USER MANUAL JJW2827LM JENN-AIR

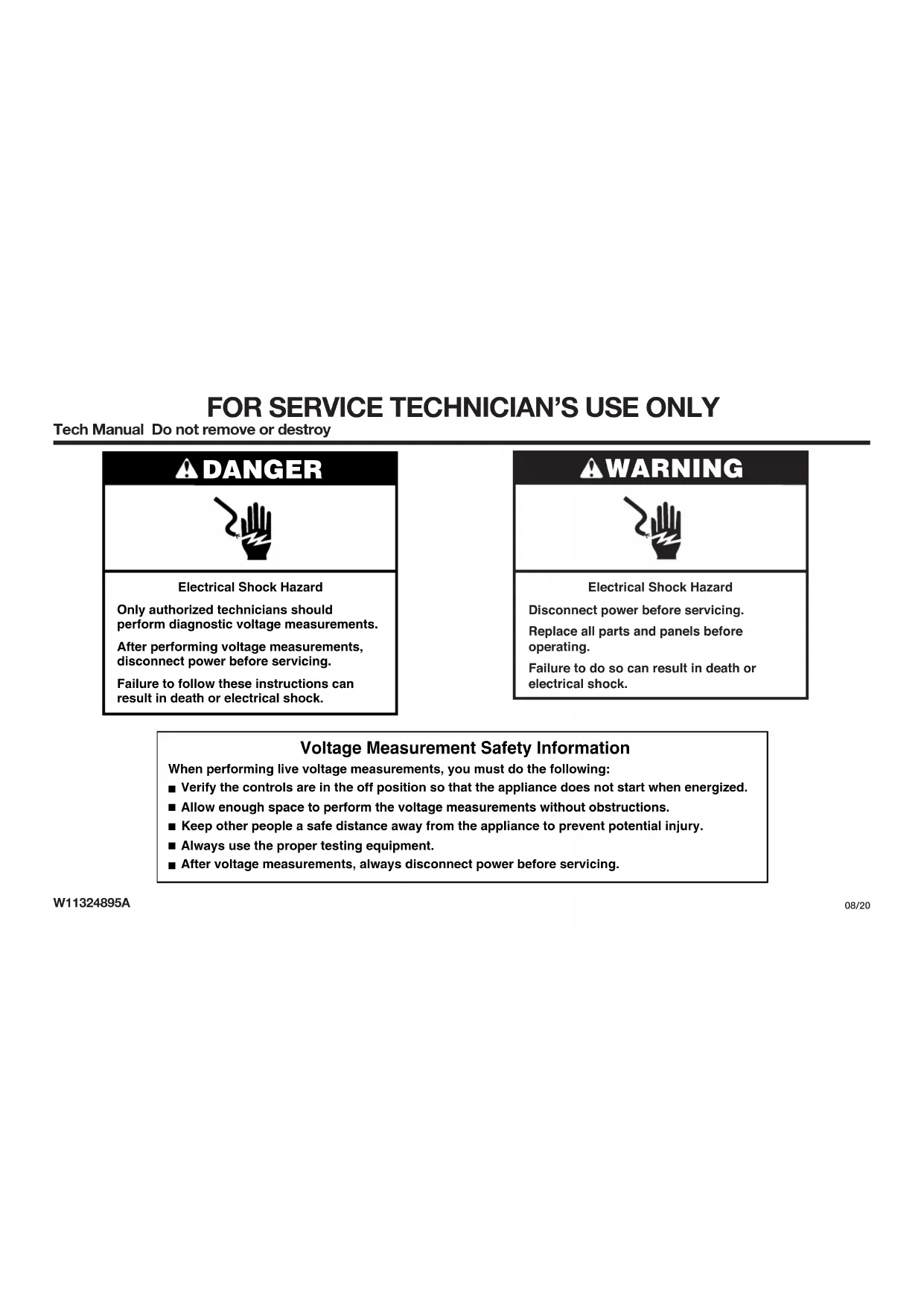

Tech Manual Do not remove or destroy W11324895A 08/20 WARNING Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. DANGER Electrical Shock Hazard Only authorized technicians should perform diagnostic voltage measurements. After performing voltage measurements, disconnect power before servicing. Failure to follow these instructions can result in death or electrical shock. Voltage Measurement Safety Information When performing live voltage measurements, you must do the following:

Verify the controls are in the off position so that the appliance does not start when energized.

Allow enough space to perform the voltage measurements without obstructions. ■ Keep other people a safe distance away from the appliance to prevent potential injury.

Always use the proper testing equipment.

After voltage measurements, always disconnect power before servicing.FOR SERVICE TECHNICIAN’S USE ONLY

IMPORTANT: Electrostatic Discharge (ESD) Sensitive Electronics ESD problems are present everywhere. ESD may damage or weaken the electronic control assembly. The new control assembly may appear to work well after repair is finished, but failure may occur at a later date due to ESD stress. ■ Use an antistatic wrist strap. Connect wrist strap to green ground connection point or unpainted metal in the appliance -OR- Touch your finger repeatedly to a green ground connection point or unpainted metal in the appliance. ■ Before removing the part from its package, touch the antistatic bag to a green ground connection point or unpainted metal in the appliance. ■ Avoid touching electronic parts or terminal contacts; handle electronic control assembly by edges only. ■ When repackaging failed electronic control assembly in antistatic bag, observe above instructions.3 Diagnostics Unplug oven or disconnect power before performing the following checks: ■ A potential cause of a control not functioning is corrosion on connections. Observe connections andcheck for continuity with an ohmmeter. ■ All tests/checks should be made with a VOM or DVM having a sensitivity of 20,000 Ω per volt DC or greater. ■ Check all connections before replacing components, looking for broken or loose wires, failed terminals, or wires not pressed into connectors far enough. Damaged harness must be entirely replaced. Do not rework a harness. ■ Resistance checks must be made with power cord unplugged from outlet and with wiring harness or connectors disconnected. ■ If the oven does not heat, there may be a problem with connections to the power supply. Check the connection to L2. IMPORTANT: Do not replace the control if there is no evidence of any failure. To Enter Diagnostics Mode: Before proceeding with any corrective action, perform the following steps to enter the Diagnostics mode:

1. Enter Diagnostics mode by pressing the same 3 keypads 3 times in a row.

Single Ovens: Press KITCHEN TIMER>TOOLS> SELF CLEAN (repeat 2 more times). Double Ovens: Press UPPER OVEN>LOWER OVEN>LOWER LIGHT (repeat 2 more times). NOTE: You do not need to wait for any audible or visual feedback from the control between keypad presses.

2. If control does not enter Diagnostics mode, continue repeating the keypad

sequence from Step 1. All the keypads will light up when the control enters Diagnostics mode.

3. From the Diagnostics menu, scroll to the desired selection using the

touch screen. Error Diagnostics: View and clear the failure history. Component Activation: Manually activate each relay. Sensors & Switches: View the traditional oven cavity temperatures and door/latch switch status. System Information: View the model number, serial number, and software versions. Exit Diagnostics General Procedure: Error Codes NOTE: All failures are stored in the failure history. To check if the error code is still present, start a cooking function and wait 1 minute to check if the error appears.

1. Enter Diagnostics mode.

2. Touch or scroll to “Error Diagnostics” in the Diagnostics menu, and then

General Procedure: Software Version For Engineering only

General Procedure: Component Activation

1. Enter Diagnostics mode.

2. Touch or scroll to “Component Activation” in the Diagnostics menu, and

then touch “OK.” NOTE: The loads are switched off if they remain active for more than 5minutes. Single Oven Models Selection Relay Bake Element Bake Relay Broil Element Broil Relay Convection Element Convection ElementRelay Convection Fan Convection Fan Relay Cooling Fan High Speed Cooling Fan High Relay Cooling Fan Low Speed Cooling Fan Low Relay Oven Light Oven Light Relay Door Latch Motor Door Latch Relay Double Oven Models Selection Relay Upper Bake Element Upper Bake Element Relay Upper Broil Element Upper Broil Element Relay Upper Convection Element Upper Convection ElementRelay Upper Convection Fan Upper Convection Fan Relay Upper Cooling FanHighSpeed Upper Cooling Fan High‑Speed Relay Upper Cooling FanLowSpeed Upper Cooling Fan Low‑Speed Relay Upper Oven Light Upper Oven Light Relay Upper Door LatchMotor Upper Door Latch MotorRelay Selection Relay Lower Bake Element Lower Bake Element Relay Lower Broil Element Lower Broil Element Relay Lower Convection Element (on some models) Lower Convection ElementRelay Lower Convection Fan (onsome models) Lower Convection Fan Relay Lower Cooling FanHighSpeed Lower Cooling Fan High‑Speed Relay Lower Cooling FanLowSpeed Lower Cooling Fan Low‑Speed Relay Lower Oven Light Lower Oven Light Relay Lower Door LatchMotor Lower Door Latch MotorRelay5 General Procedure: Sensors & Switches NOTE: This procedure is to view the current status of oven switches and sensor readings. Single Oven Models Component Status Door Switch Open or Closed Latch Switch Open or Closed Cavity Temperature Degrees in Celsius Meat Probe Temperature Degrees in Celsius Double Oven Models Selection Relay Up Door Switch Open or Closed Up Latch Switch Open or Closed Up Cavity Temperature Degrees in Celsius Up Meat Probe Temperature Degrees in Celsius Low Door Switch Open or Closed Low Latch Switch Open or Closed Low Cavity Temperature Degrees in Celsius Low Meat Probe Temperature Degrees in Celsius

1. Enter Diagnostics mode.

2. Touch or scroll to “Sensors & Switches” in the Diagnostics menu, and

3. Touch or scroll through the Sensors & Switches menu to view the desired

status. NOTE: Touching “Back” will return the display to the main Diagnostics menu. General Procedure: System Information NOTE: This procedure is to view the following system information: System Information Display Single Oven Double Oven Model # Model Information O O Serial # Product Serial Number O O UI Serial # User Interface SerialNumber O O ACU Serial# Appliance Control UnitSerial Number O NA Upper ACU Serial # Upper Appliance Control Unit Serial Number NA O Lower ACU Serial # Lower Appliance Control Unit Serial Number NA O UI Version User Interface SoftwareVersion O O HMI Central

HMI Central Board Software Version O O HMI Left SW HMI Left Keyboard Software Version O O HMI Left EE HMI Left Keyboard EEPROM Version O O HMI Right

HMI Right Keyboard Software Version O O HMI Right

Upper Appliance Control Unit Software Version NA O Lower ACU

Lower Appliance Control Unit Software Version NA O Diagnostics Entries Number of times Diagnostics menu has been entered. O O Legend Selection Not Available Selection Available NA O

3. Touch or scroll through the System Information menu to view the desired

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on).

1. Unplug oven or disconnect power.

2. Remove plastic cover from User Interface. Conrm connection between

the Display and User Interface.

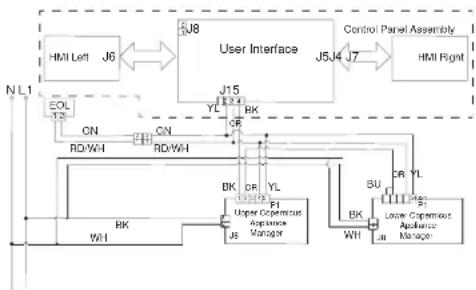

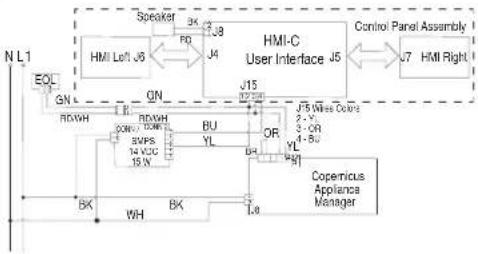

3. For single ovens: check the wiring from L1 toSMPS(CONN7‑2)

For double ovens: check the wiring from L1 toUpperCopernicus Appliance Manager (J8‑1). Single Oven Double Oven

4. Check connection from wiring harness to UserInterface (J15).

5. Check proper voltage input at J15‑2 (GND) to J15‑4 (14 VDC) on the User

Interface by completing the following steps:

6. Connect voltage measurement equipment to J15‑2 and J15‑4 on User

7. Plug in oven or reconnect power.

8. Measure voltage and conrm voltage reading is 14VDC. If voltage is

correct, unplug oven or disconnect power. Go to Step 16.

9. If voltage is not correct, go to Step 10.

10. Unplug oven or disconnect power.

For single ovens: replace the Switch Mode PowerSupply (SMPS). For double ovens: replace the Copernicus ApplianceManager.

11. Reassemble all parts and panels before operating.

12. Plug in oven or reconnect power.

13. Check for control board display. If still no display, unplug oven or

15. Plug in oven or reconnect power.

16. Reassemble all parts and panels before operating.

17. Plug in oven or reconnect power.

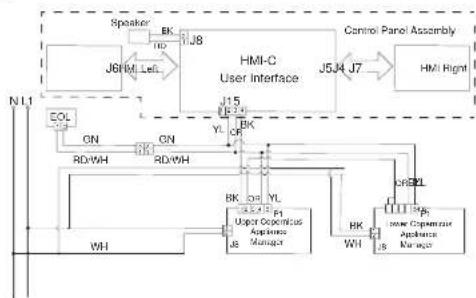

HMI Right HMI-C User Interface CONN 2

Speaker Control Panel Assembly

ORBU HMI Right HMI-C User Interface

19. Replace Control Panel Assembly.

20. Reassemble all parts and panels before operating.

21. Plug in oven or reconnect power.

22. Verify operation is normal.

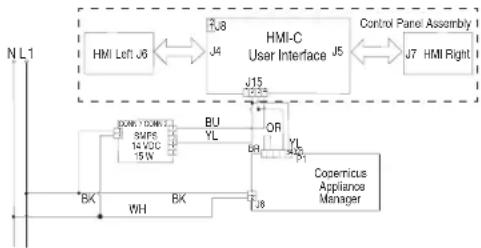

User Interface not reacting to touch Control Panel Assembly

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on).

1. Enter the Diagnostics menu, and then touch POWER.

2. To reset Touch Calibration: unplug oven or disconnect power, wait

10seconds, and then pluginoven or reconnect power. If still no response, go to Step 3.

3. Unplug oven or disconnect power.

4. Replace Control Panel Assembly.

5. Reassemble all parts and panels before operating.

6. Plug in oven or reconnect power.

7. Verify operation is normal.9

No Sound Speaker, Control Panel Assembly

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on).

1. Verify sound is enabled. Touch the Tools menu, and then scroll to the

Sound menu. Conrm Key Press, Timer & Alert, and Power On & Off actions are all turned on and set to the desired volume.

2. Unplug oven or disconnect power.

3. Conrm the speaker is rmly connected to the HMI‑Central/UI board at

J8. If speaker is rmly connected, go to Step 4. If speaker connection isloose, reconnect and proceed to Step 5.

5. Reassemble all parts and panels before operating.

6. Plug in oven or reconnect power.

7. Conrm operation of the speaker. If problem persists, unplug oven or

disconnect power, replace Control Panel Assembly, and repeat steps 5 through 7.

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.” NOTE: If other error codes are stored, troubleshoot those other error codes rst.

1. Unplug oven or disconnect power.

2. Conrm the control panel assembly is grounded to the oven chassis. If it

is, go to Step 6. If it is not, x the connection.

3. Reassemble all parts and panels before operating.

4. Plug in oven or reconnect power and cycle power.

5. If error persists unplug oven or disconnect power.

6. Replace HMI‑Central/UI board.

7. Reassemble all parts and panels before operating.

8. Plug in oven or reconnect power and cycle power.

9. If error persists after HMI‑Central/UI board is replaced, unplug oven or

disconnect power and replace Control Panel Assembly.

10. Reassemble all parts and panels before operating.

11. Plug in oven or reconnect power. Follow the on‑screen prompts for model

12. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history. HMI-C User Interface Speaker

F1 E1 Internal oven appliance manager error

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.” NOTE: If other error codes are stored, troubleshoot those other error codes rst.

1. Unplug oven or disconnect power.

2. For single ovens: replace the Copernicus Appliance Manager.

For double ovens: replace both Copernicus Appliance Managers.

3. Reassemble all parts and panels before operating.

4. Plug in oven or reconnect power.

5. If error persists after Copernicus Appliance Manager is replaced, unplug

oven or disconnect power, and then go to Step 6. If not, go to Step 9.

6. Replace Control Panel Assembly.

7. Reassemble parts and panels before operating.

8. Plug in oven or reconnect power. Follow the on‑screen prompts for model

9. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history.

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Unplug oven or disconnect power.

2. Check that connectors J4, J5, J6, and J7 are rmly connected. If they are

not, go to Step 3. If they are, go to Step 6.

3. Reconnect any loose connectors.

4. Reassemble all parts and panels before operating.

5. Plug in oven or reconnect power. If the failure is gone, go to Step 9. If the

failure is still present, unplug oven or disconnect power.

6. Replace the Control Panel Assembly.

7. Reassemble all parts and panels before operating.

8. Follow the on‑screen prompts to select the model number.

9. Verify operation is normal. Enter the Diagnostics menu, select “Error

Diagnostics,” and clear the history. If the Control Panel Assembly was replaced, there is no need to clear the error history. HMI Right J7J5 J15 User Interface J4J6 HMI Left Control Panel Assembly

Sensors E0 Main oven sensor openorshorted E1 Bottom oven sensor openorshorted

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Unplug oven or disconnect power.

2. Disconnect connector P3 from Copernicus Appliance Manager, and

measure the resistance of the sensor between P3‑1 and P3‑2. Test for 1000 Ω to 1200 Ω at 77°F (25°C). Check sensor for short to ground. If checks on sensor are not correct, replace sensor andrepeat the checks.

3. Reassemble all parts and panels before operating.

4. Plug in oven or reconnect power.

6. If not, unplug oven or disconnect power.

7. Replace the Copernicus Appliance Manager board.

NOTE: On the status screen, the unit of measurement is Celsius.

8. Reassemble all parts and panels before operating.

9. Plug in oven or reconnect power.

10. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history.

Sensors E3 Meat probe connector jack ormeat probe shorted

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Unplug oven or disconnect power.

2. Remove meat probe if connected.

3. Disconnect connector P3 from Copernicus ApplianceManager.

4. Check connector jack resistance between P3‑3 andP3‑4. If it is not 0 Ω,

the jack assembly is workingproperly. Go to Step 6.

5. If it is 0 Ω, change the jack assembly.

6. Plug in the meat probe and check for short to groundor open.

7. If checks on meat probe are not correct, replace themeat probe. At 77°F

(25°C), the resistance shouldbe approximately 50 kΩ.

8. If they are correct, replace the Copernicus ApplianceManager.

9. Reassemble all parts and panels before operating.

10. Plug in oven or reconnect power.

11. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history. Check the meat probe reading by entering Diagnostics mode and selecting “Sensors & Switches.” The meat probe should detect the ambient temperature. Upper Copernicus Appliance Manager Upper Ov

Door and latch switch do notagree (main/upper oven) E3 Door and latch switch do notagree (lower oven)

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Enter the Diagnostics mode and select “ComponentActivation.”

2. Touch or scroll to “Door Latch Motor.” Touch “OK.” Touch “Latch Door.”

Wait at least 15 seconds and check if latch status changes on screen. If status does not change, go to Step 4. If status changes, goto Step 8.

3. Unplug oven or disconnect power.

4. Unplug connector P3 and check for continuity (onthelatch wire) between

5. Unplug connector J8 from the Copernicus Appliance Manager and

measure the resistance between connectors J8‑2 and P5‑1. It should be 500 Ω to 3000 Ω at 77°F (25°C).

6. If the resistance check is not correct, replace the affected door latch

7. Verify that the resistance between connectors J8‑2 and P5‑1 is 500 Ω to

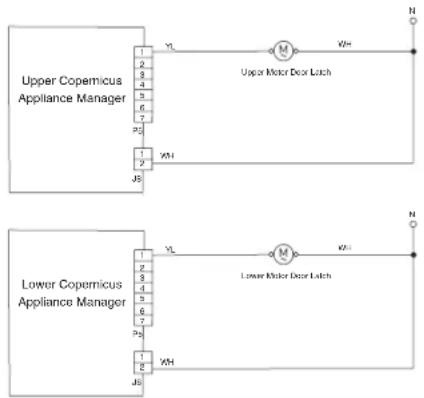

Lower Motor Door Latch

8. Reassemble all parts and panels before operating.

9. Plug in oven or reconnect power.

10. Enter the Diagnostics mode and select “Sensors & Switches.” Check the

door status on the screen by opening and closing the oven door.

11. If status does not change, unplug the oven ordisconnect power.

12. Check door switch for continuity with the door open and closed at P3‑5

to P3‑6. Door open = innite resistance. Door closed = zero resistance.

13. If continuity check is not correct, replace the doorlatch assembly and

verify that the resistance iscorrect.

14. If all checks are correct, replace Copernicus Appliance Manager.

15. Reassemble all parts and panels before operating.

16. Plug in oven or reconnect power.

17. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history.

FAILURE ERROR LIKELY FAILURE CONDITION

F5 Inputs E1 Latch not operating (main/upper oven) E4 Latch not operating (lower oven)

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Enter the Diagnostics mode and select “ComponentActivation.”

2. Touch or scroll to “Door Latch Motor.” Touch “OK.” Touch “Latch Door.”

Wait at least 15 seconds and check if latch status changes on screen. If status does not change, go to Step 4.

3. If status changes, unplug oven or disconnect power, and go to Step 8.

4. If latch status on screen is “open,” unplug oven ordisconnect power.

5. Check for loose harness connection between motorlatch switch and

6. Disconnect connector J8 from the Copernicus Appliance Manager.

Measure the resistance between connectors J8‑2 and P5‑1. It should be 500 Ω to 3000 Ω at 77°F (25°C).

7. If the resistance check is outside the range, replacethe door latch

8. Verify that the resistance between connectors J8‑2 and P5‑1 is 500 Ω to

3000 Ω at 77°F (25°C).

9. If all checks were correct, replace Copernicus Appliance Manager.

10. Reassemble all parts and panels before operating.

11. Plug in oven or reconnect power.

12. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history.

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Unplug oven or disconnect power.

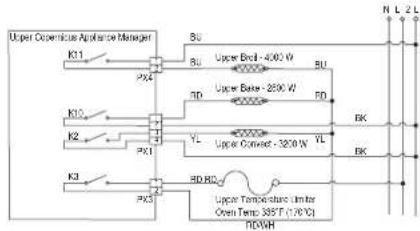

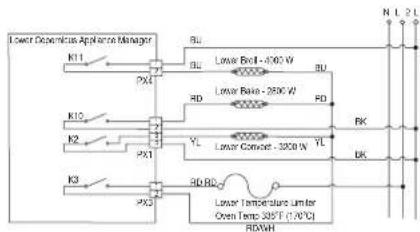

2. Check for elements shorted to ground. Check resistance of elements:

a. PX4‑2 and PX3‑2 to check Broil element (13.2 Ωto 14.6 Ω) b. PX1‑1 and PX3‑2 to check Bake element (19 Ωto21 Ω) c. PX1‑3 and PX3‑2 to check Convect element (16.6 Ω to 18.4 Ω)

3. If there is a short to ground, replace the corresponding element.

Lower Motor Door Latch

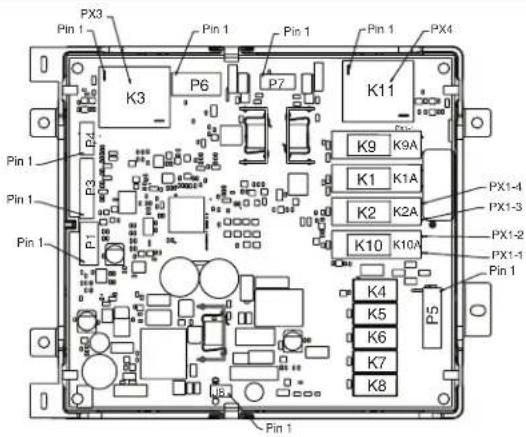

4. Check for shorted relays. Disconnect PX1 and PX4connectors and check

for shorts between: a. PX1‑1 and PX1‑2 (Bake relay) b. PX1‑3 and PX1‑4 (Convect relay) c. PX4‑1 and PX4‑2 (Broil relay)

5. If there is a shorted relay, replace the Copernicus Appliance Manager.

7. If everything is correct, disconnect connector P3 from the Copernicus

Appliance Manager, and measure the resistance of the oven sensor. It should be 1000 Ω to1200 Ω at 77°F (25°C). Check sensor for short to ground. If checks on sensor are not correct, replace the sensor and repeat the checks.

8. Reassemble all parts and panels before operating.

9. Plug in oven or reconnect power.

10. Enter the Diagnostics mode and select “Sensors & Switches” to verify

that the corresponding oven temperature displayed is correct (ambient temperature). NOTE: On the status screen, the unit of measurementis Celsius.

11. If it is not, unplug the oven or disconnect power.

12. Replace the Copernicus Appliance Manager board.

13. Reassemble all parts and panels before operating.

14. Plug in oven or reconnect power.

15. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history. K11 K10

E0 Oven user interface ‑ lostcommunication

Oven appliance manager ‑ lostcommunication (main/upper oven)

Oven appliance manager ‑ lost communication (lower oven)

SUGGESTED CORRECTIVE ACTION PROCEDURE

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.”

1. Unplug oven or disconnect power.

2. Conrm continuity of wiring:

For single ovens: P1‑4 to J15‑3 and P1‑5 to J15‑2. For double ovens: P1‑4 Upper Copernicus to J15‑3 and P1‑4 Lower Copernicus to J15‑3. P1‑5 Upper Copernicus to J15‑2 and P1‑5 LowerCopernicus to J15‑2.

3. Check continuity:

For single ovens: Between P1‑1 and P1‑2. For double ovens: Between P1‑1 Lower, P1‑2Lower,and P1‑2 Upper.

4. If continuity has been conrmed, replace the Copernicus Appliance

Manager. Single Ovens: Double Ovens:

5. Reassemble all parts and panels before operating.

6. Plug in oven or reconnect power.

7. If the error appears again, unplug oven or disconnectpower.

8. Replace the HMI‑Central/UI board.

9. Reassemble all parts and panels before operating.

10. Plug in oven or reconnect power.

11. Follow the on‑screen prompts for model selection ifthe User Interface was

12. Verify operation is normal. Enter Diagnostics mode, select “Error

Diagnostics,” and clear the history.

HMI Right HMI-C User Interface CONN 2

Control Panel Assembly

HMI Right User Interface

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics.” NOTE: If other error codes are stored, troubleshoot those other error codes rst.

Unplug oven or disconnect power.

Reassemble all parts and panels before operating.

Plug in oven or reconnect power.

Cycle power. If error persists after the Copernicus Appliance Manager is replaced, unplug oven or disconnect power. Go to Step 7.

If the error is gone, go to Step 10.

Replace the HMI‑Central/UI board.

Reassemble parts and panels before operating.

Plug in oven or reconnect power, and follow the on‑screen prompts for model selection.

Verify operation is normal. If operation is normal, goto Step 14. If error still exists, go to Step 11.

Unplug oven or disconnect power.

Replace the control panel assembly.

Plug in oven or reconnect power.

Follow the on‑screen prompts for model selection.

Verify operation is normal. Enter Diagnostics mode, select “Error Diagnostics,” and clear the history. FAILURE (Left-most 2 Clock digits) ERROR (Right-most 2 Clock digits)

High fan speed overspeed LOW FAN SPEED MESSAGE ON SINGLE/DOUBLE: The product isexperiencing a problem and can no longer be used.

Unplug oven or disconnect power.

Wait for at least 30 seconds.

Plug in oven or reconnect power.

Enter Diagnostics mode and navigate to the Component Activation list.

Turn on the Cooling Fan Low Speed.

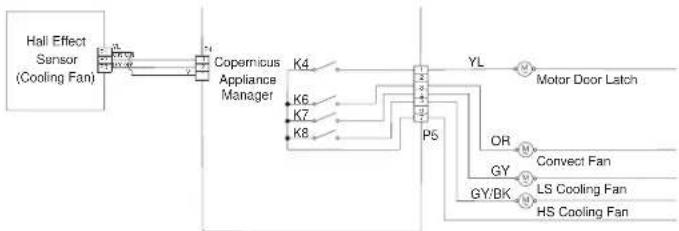

Check for proper voltage input at P5‑5 and neutral for high speed fan, P5‑4 and neutral for low speed fan when cooling fan should be running by completing following steps.

Unplug oven or disconnect power.

Connect voltage measurement equipment.

Plug in oven or reconnect power. Measure voltage and conrm voltage reading is 120 V. If it is not, unplug oven or disconnect power and go to Step 13. If it is, go to Step 10.

Check for proper voltage input at P4‑1 and P4‑2 and conrm voltage reading is 5 VDC. If it is not, unplug oven or disconnect power and go to Step 13. If it is, go to Step 11.

Unplug oven or disconnect power.

Check integrity of all harness wires and connections between the oven appliance manager and the cooling fan. Ensure no shorted wires to chassis. If the wiring is pinched or damaged, replace the cooling fan harness. Go to Step 15. If the wiring is good, go to Step 14.

15. Replace all parts and panels before operating.

16. Plug in oven or reconnect power.

17. Enter into Diagnostics mode and verify that fan speed is running within

oven. (High speed: 1000‑3300, Low speed: 400‑3000) Once Fan Speed is completed, navigate back to the activation list and activate the Cooling Fan High Speed and return to “More Information” screen for fan speed.

NOTE: Before starting any test, cycle power to the oven(power off, wait 10seconds, and power on). PROCEDURE: Before proceeding, verify the error codeby entering the Diagnostics mode and selecting “Error Diagnostics”.

1. Unplug oven or disconnect power.

2. Access the electrical wiring from the house power supply to the oven.

3. Check house wiring to the product. Check to see ifthe neutral connection

is switched with L1 or L2(refer to the installation instructions for productwiring).

4. Reassemble all parts and panels before operating.

5. Plug in oven or reconnect power.

6. Verify operation is normal by running a cooking function. Enter

Diagnostics mode, select “Error Diagnostics,” and clear the history.

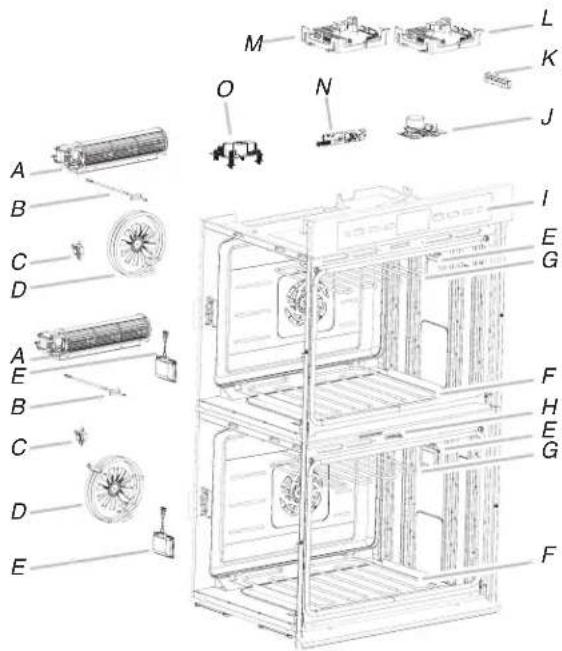

J. Upper door latch assembly K. Terminal block L. Copernicus appliance manager M. Copernicus appliance manager lower oven (on double oven models) N. HMI-Central/UI board O. Switch mode power supply (SMPS) (on single oven models) NOTE: The upper cavity of the double oven shown above is the same for single oven models.

Cooling Fan Relay Logic Oven High- Speed Blower (Main/Upper or Lower) Oven Low-Speed Blower (Main/Upper or Lower) Oven Cooking - Cold ‑ O Oven Cooking - Warm ‑ O Oven Cooking - Hot O ‑ Oven Self-Clean O ‑ LEGEND Cold Cavity Temperature is less than 212°F (100°C). Warm Cavity Temperature is between 212°F and 599°F (100°C and 315°C). Hot Cavity Temperature is greater than 599°F (315°C). Mode Bake Broil Convect Ring Convect Fan Convect Frozen Pizza C C C O Convect Pastry C C C C Convect Slow Roast 12 hrs C C C O Convect Slow Roast 8 hrs C C C O Convect Slow Roast 4 hrs C C C O Convect Roast C C C O Convect Broil ‑ C ‑ C Convect Bake C C C C Convect Bake - Rapid Preheat C C C C Bake C C C C Broil ‑ C ‑ ‑ Keep Warm C C ‑ C Rapid Proof C C ‑ ‑ Proof C C ‑ ‑ Self Clean C C ‑ ‑ LEGEND Relay Off Relay Cycles Relay On Not Available ‑ C O NA21 Component Testing Chart - Oven To properly check for voltage, complete the following steps:

1. Unplug oven or disconnect power.

2. Connect voltage measurement equipment tocheckpoints.

3. Plug in oven or reconnect power and conrmvoltagereading.

4. Unplug oven or disconnect power.

W11324895A ©2020 All rights reserved. For patent information, please see Pat. www.patent-listing.com W11324895A NOTE: This sheet contains important Technical Service Data.
