USER MANUAL Pro Weed 700 Texas

Technical line drawing of a mechanical lawn mower with attached tool arm (no text or symbols)

VIGTIGT!

HUSK AT PÄFYLDE

MOTOROLIE SAE-30

F∅R START!

WICHTIG!

DENKEN SIE VOR DEM START AN DAS

BEFÜLLEN MIT MOTORÖL SAE-30!

IMPORTANT!

REMEMBER TO FILL WITH

ENGINE OIL SAE-30

BEFORE START!

IMPORTANT!

PENSEZ À AJOUTER DE L'HUILE

MOTEUR SAE-30 AVANT LE

DÉMARRAGE!

GB	S	PICTOGRAMS
	Please read this instruction manual carefully, especially the safety warnings marked with the symbol		Ear muffs, safety goggles, and boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.
	Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.		Always disengage the levers, turn off the engine, and remove the spark plug, when the unit is left unattended.
	Do not put hands or feet near or under rotating parts. Keep a 15 meters safety distance		The brush head turns anti-clockwise which means that the material is thrown out on the left side.
	Never allow any bystanders in front of unit.		Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide.
	Exercise extreme caution when operating on slopes.		Be cautious on hot engines parts
	The rotating parts are capable of amputating fingers, toes and feet. Failure to observe could result in serious injury or death.		Use extreme care in handling gasoline. Gasoline is extremely flammable, and the fumes are explosive.
	Never fit rigid or metal cutting parts

Technical diagram of a mechanical power tool with labeled components (A–H) and exploded view, including a detailed top-down view.

2

A

Technical illustration of a green mechanical clamp or tool with labeled component B, mounted on a cylindrical device (no text or symbols present)

3

A B

4

Diagram of a mechanical assembly with multiple black rods and green connectors, no text or symbols present

Technical illustration of a mechanical clamp or bracket assembly with green connectors and coiled cable (no text or symbols)

5

Technical line drawing of a mechanical assembly with green bolt holes and a vertical rod (no text or symbols)

6

Technical line drawing of a mechanical assembly with green components and a wheel (no text or symbols)

7

ON/OFF

Technical line drawing of a mechanical engine component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical component with internal flow patterns and directional arrows, no readable text or symbols present.

Technical illustration of mechanical assembly with three arms and a central green component, showing alignment before and after assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting base and green valve (no text or symbols)

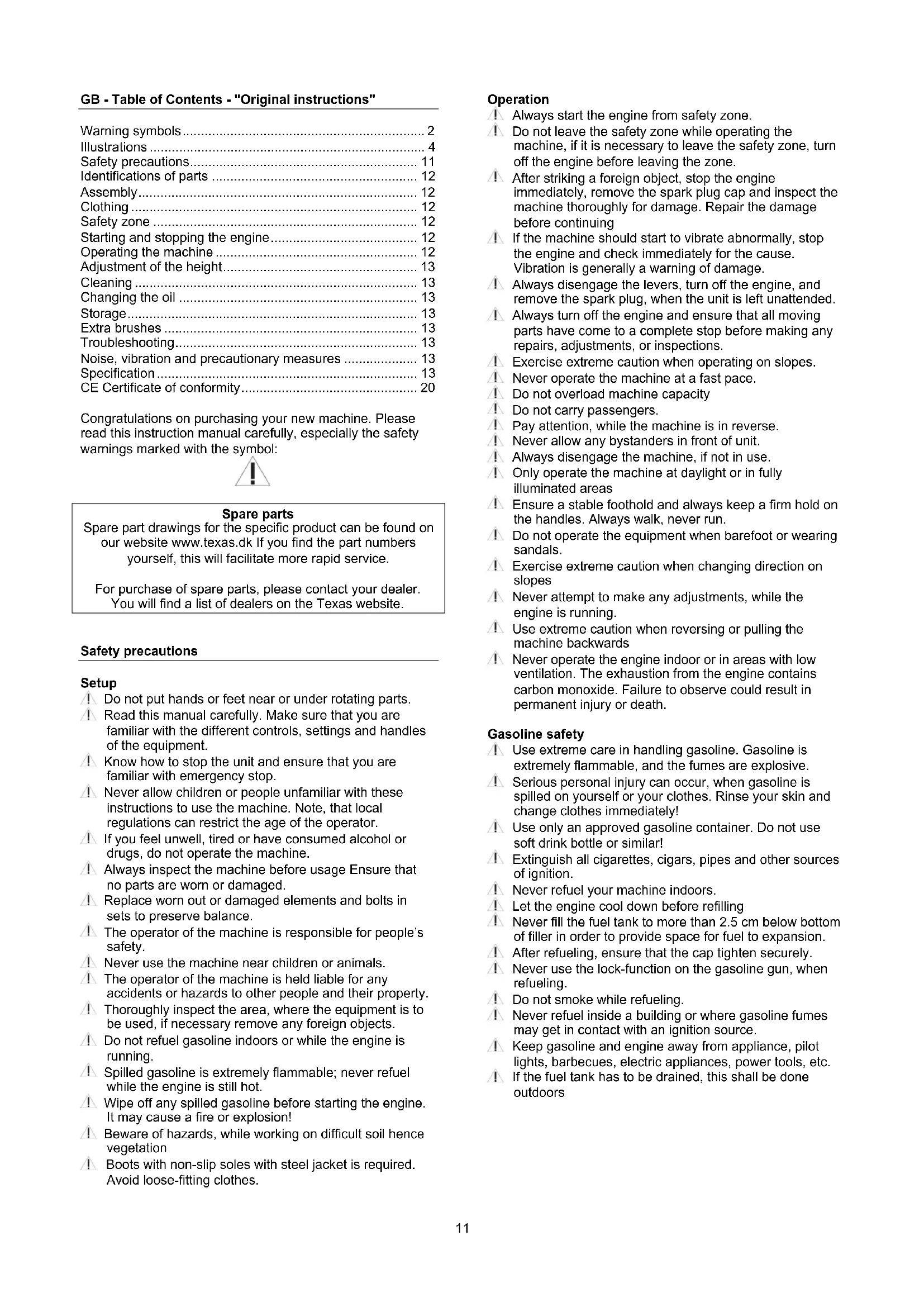

GB - Table of Contents - "Original instructions"

Warning symbols....2

Illustrations 4

Safety precautions.... 11

Identifications of parts 12

Assembly....12

Clothing 12

Safety zone 12

Starting and stopping the engine.... 12

Operating the machine 12

Adjustment of the height.... 13

Cleaning 13

Changing the oil 13

Storage....13

Extra brushes 13

Troubleshooting.... 13

Noise, vibration and precautionary measures 13

Specification 13

CE Certificate of conformity....20

Congratulations on purchasing your new machine. Please read this instruction manual carefully, especially the safety warnings marked with the symbol:

Spare parts

Spare part drawings for the specific product can be found on our website www.texas.dk If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer. You will find a list of dealers on the Texas website.

Safety precautions

Setup

Do not put hands or feet near or under rotating parts.

Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.

Know how to stop the unit and ensure that you are familiar with emergency stop.

A. Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator.

If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine.

Always inspect the machine before usage Ensure that no parts are worn or damaged.

⚠️ Replace worn out or damaged elements and bolts in sets to preserve balance.

The operator of the machine is responsible for people's safety.

Never use the machine near children or animals.

The operator of the machine is held liable for any accidents or hazards to other people and their property.

Thoroughly inspect the area, where the equipment is to be used, if necessary remove any foreign objects.

Do not refuel gasoline indoors or while the engine is running.

Spilled gasoline is extremely flammable; never refuel while the engine is still hot.

⚠ Wipe off any spilled gasoline before starting the engine. It may cause a fire or explosion!

⚠ Beware of hazards, while working on difficult soil hence vegetation

Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.

Operation

Always start the engine from safety zone.

Do not leave the safety zone while operating the machine, if it is necessary to leave the safety zone, turn off the engine before leaving the zone.

After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing

If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage.

Always disengage the levers, turn off the engine, and remove the spark plug, when the unit is left unattended.

Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections.

Exercise extreme caution when operating on slopes.

Never operate the machine at a fast pace.

Do not overload machine capacity

Do not carry passengers.

Pay attention, while the machine is in reverse.

Never allow any bystanders in front of unit.

Always disengage the machine, if not in use.

Only operate the machine at daylight or in fully illuminated areas

⚠ Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run.

Do not operate the equipment when barefoot or wearing sandals.

Exercise extreme caution when changing direction on slopes

Never attempt to make any adjustments, while the engine is running.

Use extreme caution when reversing or pulling the machine backwards

Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death.

Gasoline safety

Use extreme care in handling gasoline. Gasoline is extremely flammable, and the fumes are explosive.

! Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately!

Use only an approved gasoline container. Do not use soft drink bottle or similar!

Extinguish all cigarettes, cigars, pipes and other sources of ignition.

Never refuel your machine indoors.

Let the engine cool down before refilling

Never fill the fuel tank to more than 2.5 cm below bottom of filler in order to provide space for fuel to expansion.

After refueling, ensure that the cap tighten securely.

Never use the lock-function on the gasoline gun, when refueling.

Do not smoke while refueling.

Never refuel inside a building or where gasoline fumes may get in contact with an ignition source.

Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc.

If the fuel tank has to be drained, this shall be done outdoors

Maintenance and storage

The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.
Check regularly that all bolts and nuts are tightened. Retighten if necessary.
The engine must be completely cooled before storing indoors or covered.
If the machine unused for a period of time, please refer to the instructions in this manual.
Maintain or replace safety and instruction labels, as necessary.
Only use original spare parts or accessories. If not original parts or accessories is used, the liability is no longer applied.
⚠️ Replace faulty silencers.

Miscellaneous

The gears are delivered pre-greased. However, always ensure they are well greased before each use.
The motor is not pre-filled with oil.
⚠ Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.
Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive.
⚠ Ensure that the machine is properly secured when transported on a flatbed etc.
⚠️ Reduce the throttle during engine shutdown and close the fuel valve.

Identifications of parts

Identification of parts, see Fig. 1

A. Start cord
B. Brush activation lever
C. Engine
D. Wheel
E. Brush
F. Brush head
G. Protection guard
H. Protection frame

I. Engine protection cover

For explanation of engine, see separate engine manual.

Assembly

Please follow the steps in figures 2-5:

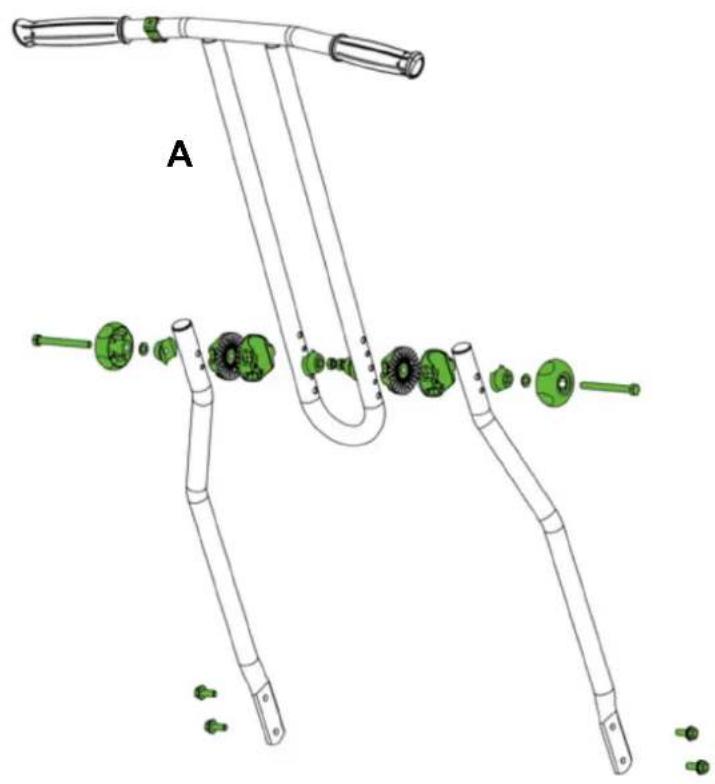

1. Mount lower handlebar with 4 bolts on the console. After that mount the upper handlebar as shown on Fig. 2A

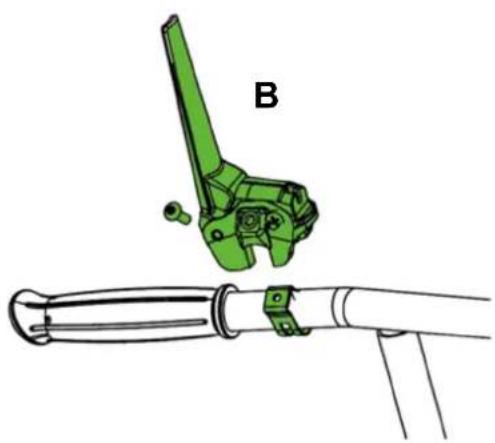

2. Attach the clutch handle on the handlebar, as shown on Fig. 2B.

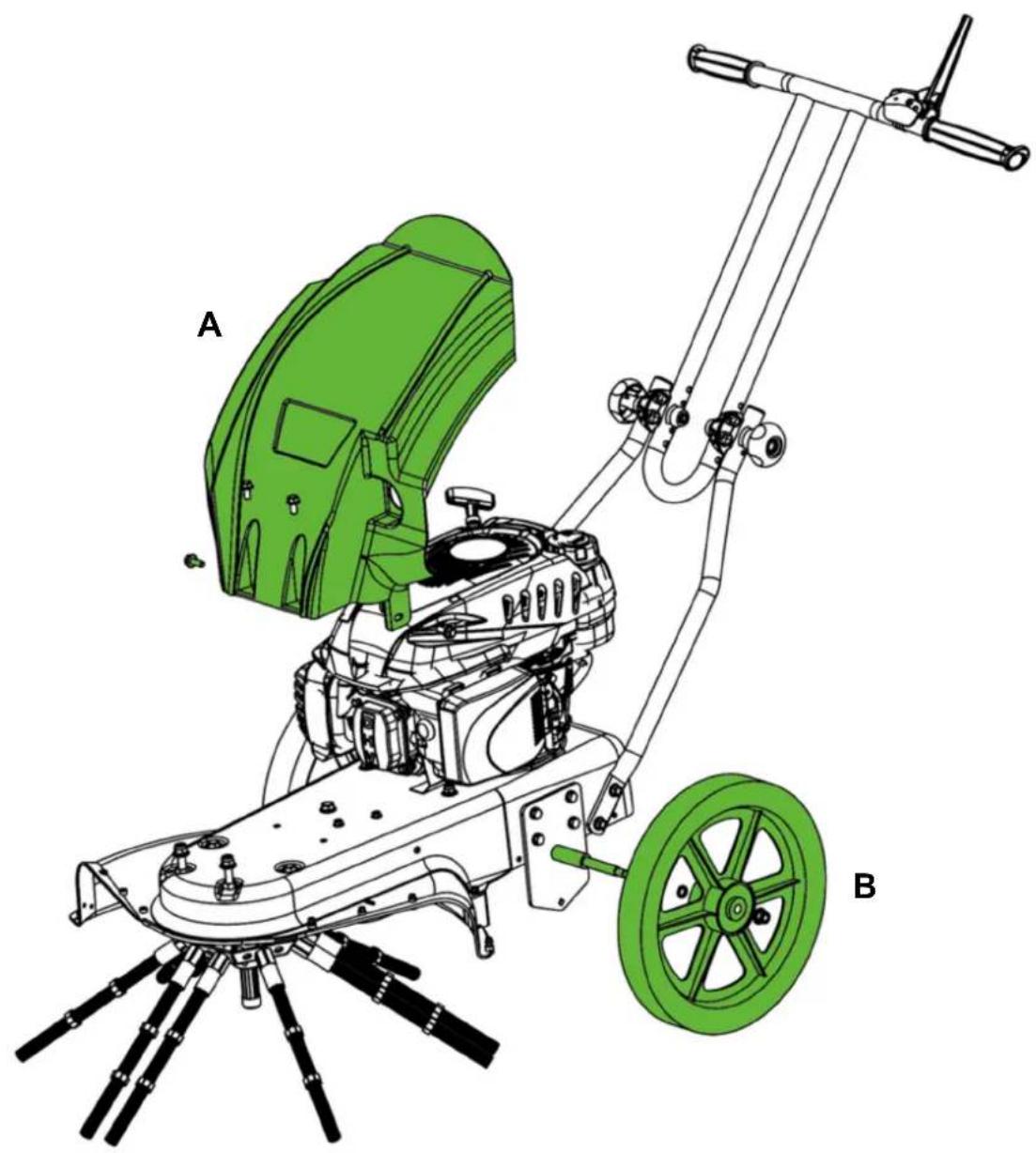

3. Mount the wheels with the bolts shown on Fig. 3A. The spacer needs to be between the wheel and the console.
4. Mount the engine protection cover with the 13 mm bolts shown on fig. 3B.

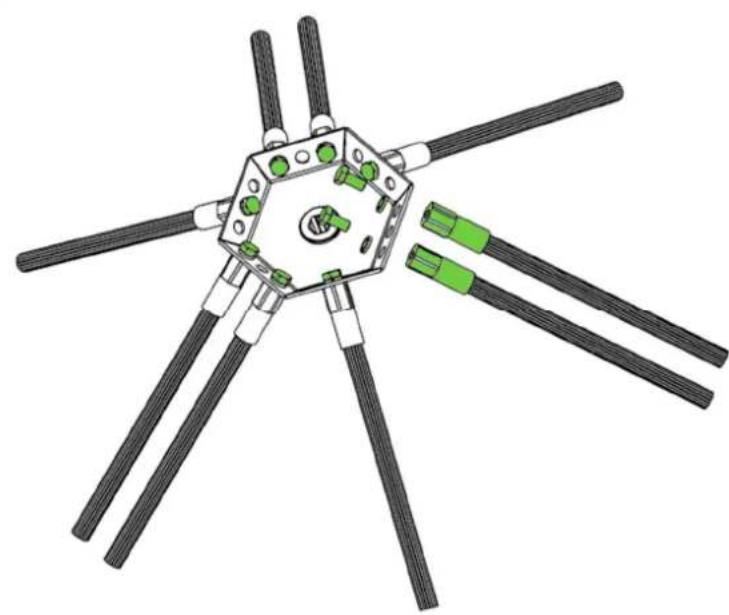

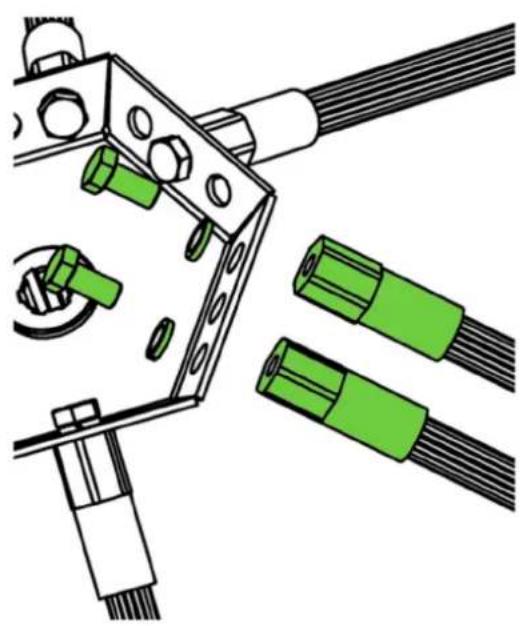

5. Attach the brushes using the bolts and lock washers as shown on Fig. 4

Mounting the protection frame:

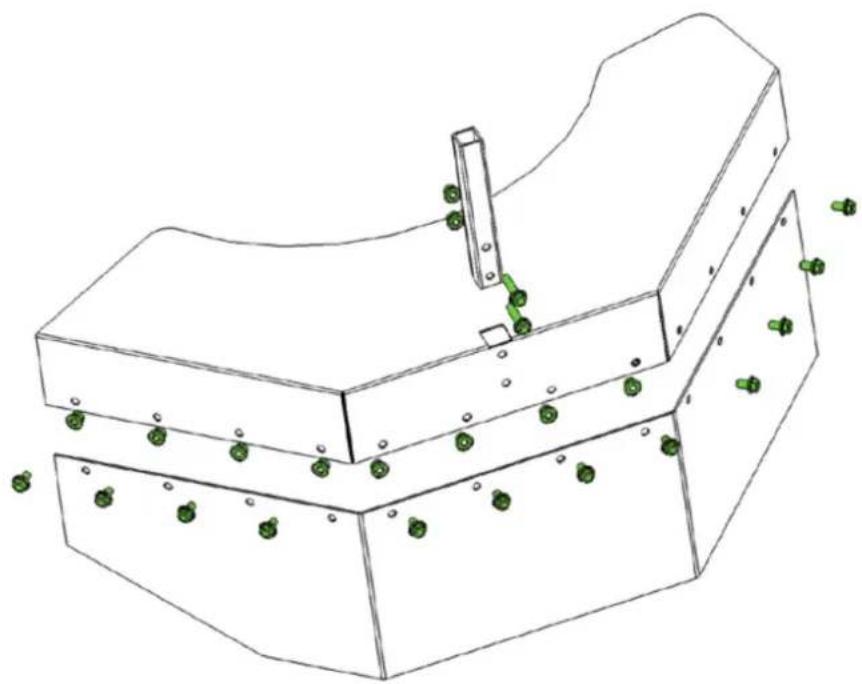

1. Attach the transparent rubber covers to the frame with bolts. See Fig. 5.

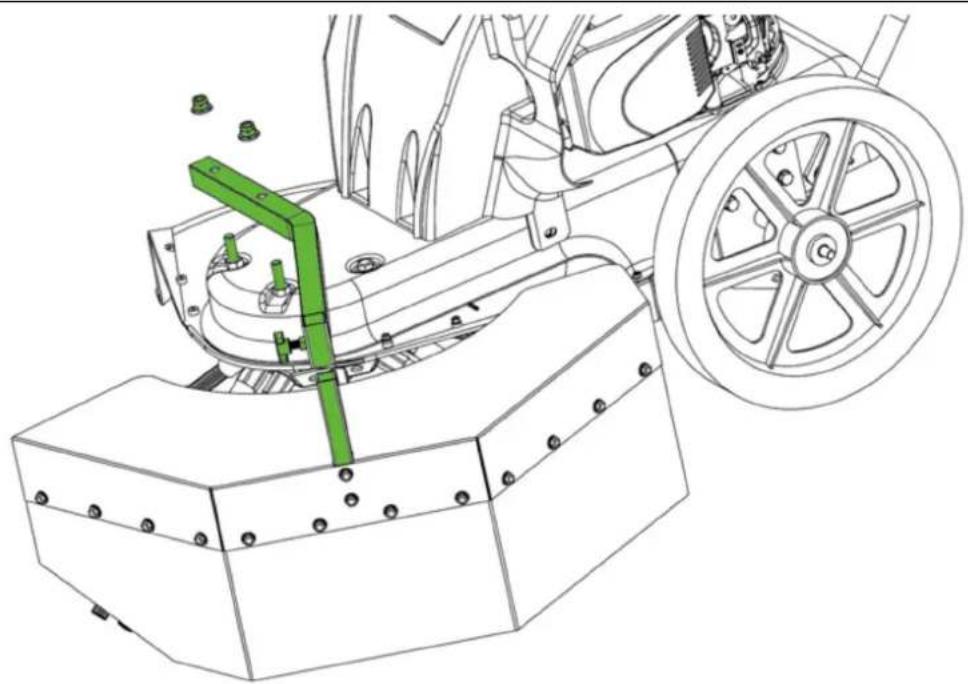

2. Mount the frame on the machine, as shown on Fig. 6.

Fill the motor with engine oil. See changing the oil section for more details.

Clothing

When using the machine, wear close-fitting work clothes, hard-wearing work gloves, safety goggles, ear defenders and non-slip boots with steel toecaps.

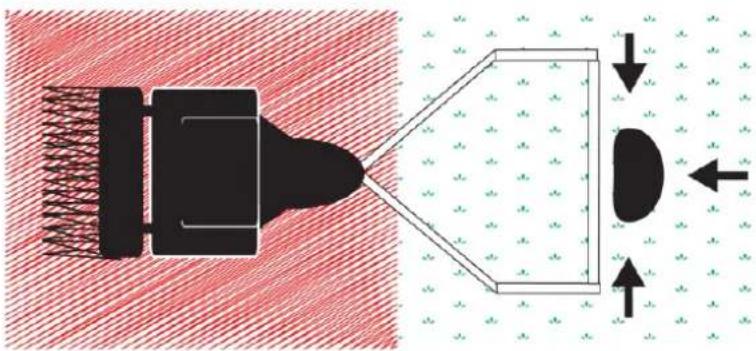

Safety zone

While the machine is being operated and the motor is running, do not leave the operation zone marked with arrows on Fig. 9. If it is necessary to leave the operation zone, first stop the engine.

Starting and stopping the engine

Always check the oil level prior to use!

On engines with dipstick the oil level must always be between the min. and max. On engines without dipstick the oil must be visible to the edge on filler hole, when the engine is horizontal position. Always use SAE-30 oil. Use only unleaded 95 octane gasoline. Never over-fill the gas tank.

Start

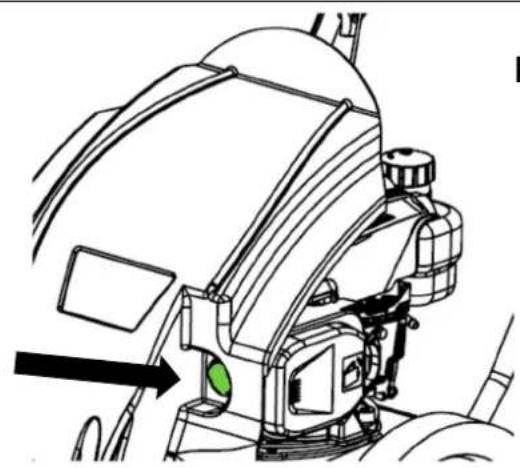

1. Pump the primer bulb 3-6 times. See Fig. 8B.

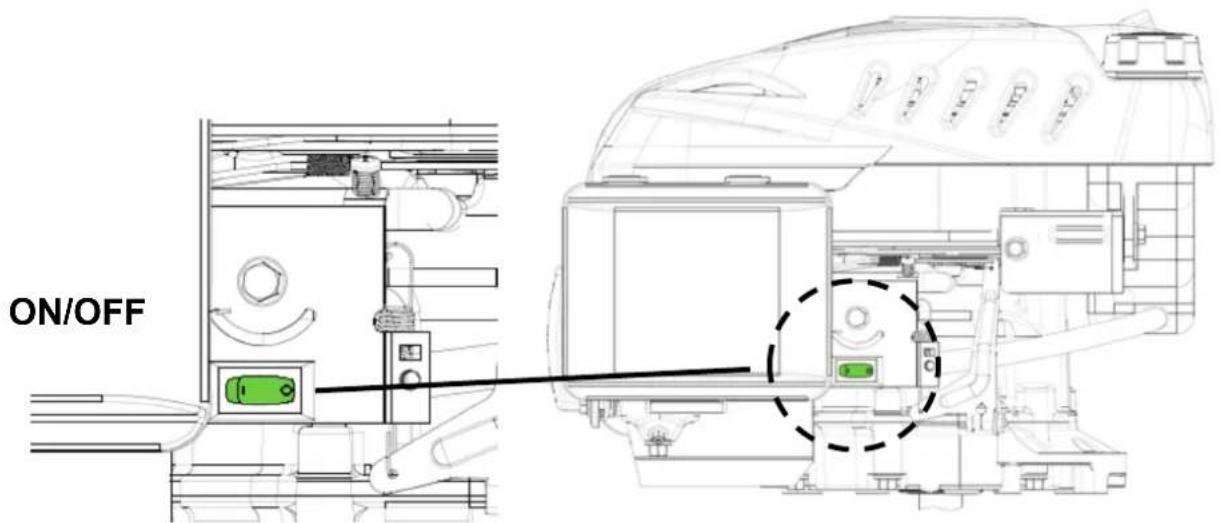

2. Set the switch on engine to "l". See Fig. 7.

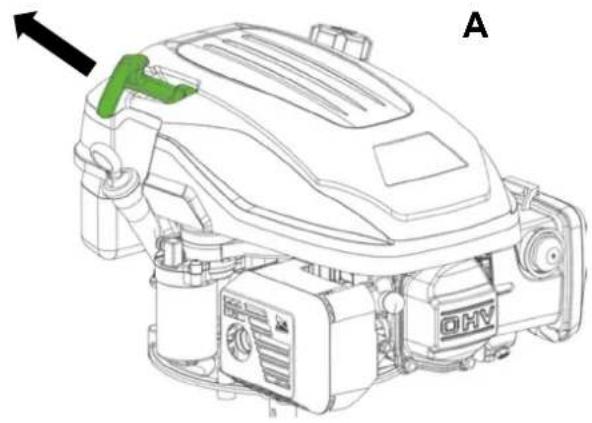

3. Pull the start cord to start the engine. See Fig. 8A. Always feed the start cord back into the engine by hand.
4. Activate the brush activation handle

Stop

1. Release the brush activation handle
2. Set the switch on engine to "O". See Fig. 7.

Vibrations may travel up into the handle during use. We therefore recommend taking a break, every 2 hours.

Operating the machine

A Remove all foreign objects from the work area before using the machine. Stones, glass, branches and similar items may damage the machine. Also check the bolts are tightened.
Start the motor as per the instructions above. Stand clear of the machine's moving parts.
Never attempt to move the machine in any way other than intended for normal use while the motor is running.

KEEP A SAFETY DISTANCE OF 15 METERS.

The machine can work on all types of flat surfaces and remove weeds between tiles or edges.

Note that the brushes may sweep stones or other objects away at high speed, so do not drive close to cars and other items that could be damaged.

Brushes can scratch and damage some tiles. Therefore, run a small test before using the machine.

Always have the protection frame attached during use.

Adjustment of the height

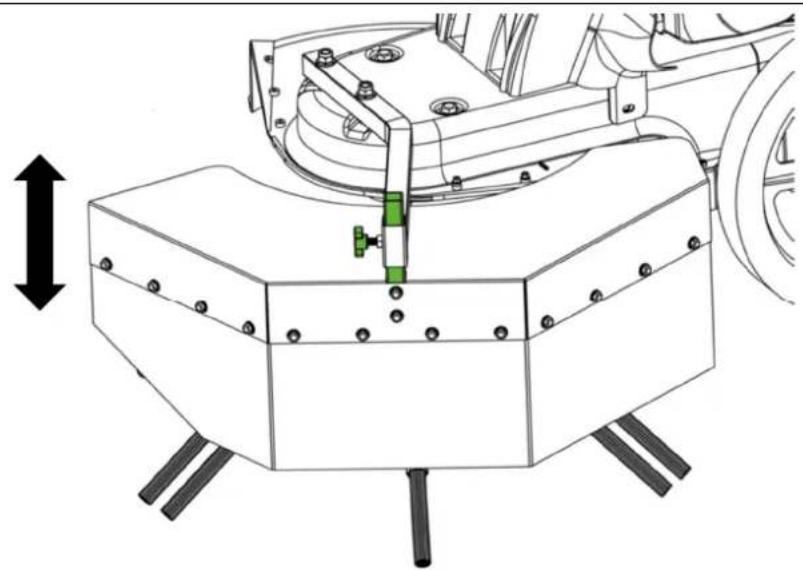

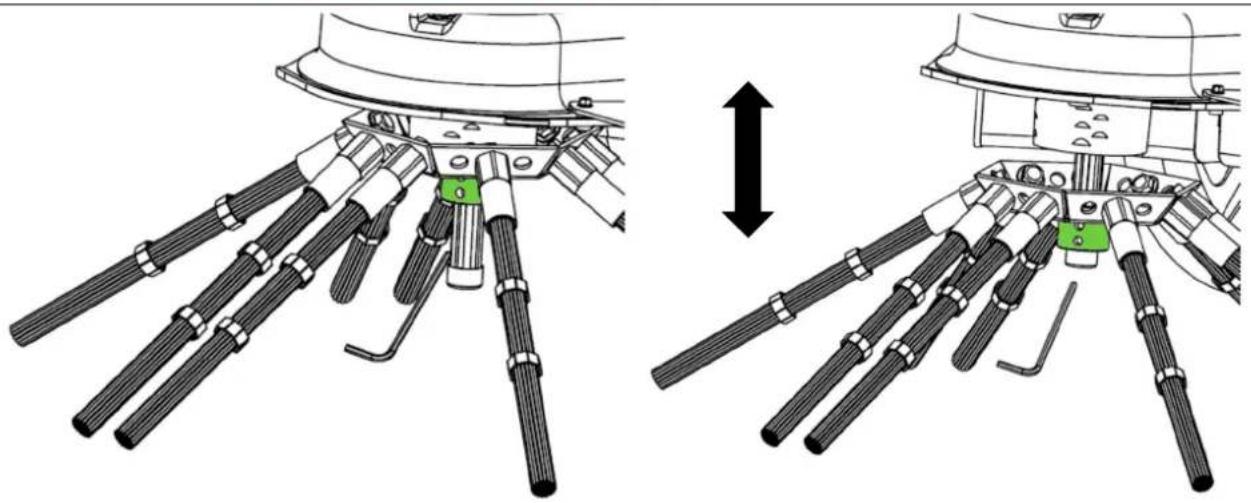

Follow the adjustment procedure as shown in Fig. 10+11.

It is possible to adjust the height on the brush head down in several positions as the brushes get worn.

To adjust the height, you have to loosen the two 4 mm allen screws shown in Fig. 10. Then you can adjust the brush head up and down. Tighten both screws again once the wanted height is chosen.

Make sure to adjust the protection frame upwards too as the brushes get worn and when the brush head is adjusted down. Or else the rubber cover will be damaged. See Fig. 11.

Cleaning

The machine should be cleaned after use. Use a garden hose to wash off soil and dirt. The chassis number should only be cleaned with a damp cloth to avoid unnecessary wear. Avoid using a high-pressure washer during cleaning.

Changing the oil

The oil should initially be changed after the first 5 hours of use, and thereafter once per year. Use an oil extractor kit.

1. Suck the oil up through the oil filler hole using the syringe. Use the hose to reach the sump.

2. Transfer the used oil to the container.

3. Fill the engine with new SAE-30 oil.

4. Check the oil level using the dipstick.

Remember to dispose of used oil in a safe way.

Oil and oil extractor kit are not included

Storage

• If the machine is likely to be stored unused for prolonged periods, follow the instructions below. This will ensure longer machine lifetime.
• Wipe the surfaces down with an oily cloth to prevent rust.
  • Always store the machine in a dry, clean location.

Extra brushes

Extra brushes can be purchased:

Set of 9 pcs. nylon/steel brushes: Art. no. 90061102

Set of 6 pcs. steel brushes: Art. no. 90061103

Buy them from your dealer.

Troubleshooting

The motor will not start

1. Check the spark plug.
2. Check there is fresh gas in the tank.
3. See separate motor instructions for further troubleshooting.

The motor is not running smoothly

1. Check there is fresh gas in the tank.

The brush head will not rotate

1. Check the cables are in good working order and fitted correctly.
2. Check that the belt is fitted correctly.

Noise, vibration and precautionary measures

1. Long-term exposure to noise levels exceeding 85 dB (A) are damaging. Always use ear defenders when the machine is being used.
2. To reduce noise levels further, only use the machine in an open environment.
3. Vibrations can be reduced further by holding the handle firmly.
4. To avoid disturbing others, the machine should only be used during the daytime.
5. Always wear close-fitting work clothes, hard-wearing work gloves, ear defenders and non-slip boots with steel toecaps.
6. Take a 30-minute break every 2 working hours.

Specification

Engine TG595 173cc (Rato RV170)
Effect 2.9 KW/3000 Rpm.
Working width Max 70 cm
Brushes 9 pcs.
Transmission	Push
Wheels	14"
LpA 84.2 dB(A)
LwA 104 dB(A)
Vibrations (L / R) 6,7 m/s ^2 / 5,0 m/s ^2
Weight	44 kgs

2006/42/EC - 2014/30/EU - 2000/14/EC amended by 2005/88/EC

S/N: 2003025510000 - 2203025599999

Texas Andreas Petersen A/S Knullen 22 • DK-5260 Odense S

06.11.2020

Henry Tahn

Johnny Lolk Managing Director

TEXAS EQUIPMENT

Responsible for documentation Johnny Lolk
