USER MANUAL 02968200125 Cleanmaxx

Intended Use 14
Safety Notices 14
Items Supplied 17
Device Overview 17
Technical Data 18
Filling the Water Tank 18
Assembly 18
Use 19
Cleaning and Storage 21
Troubleshooting 22
Disposal 22

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety notices carefully and abide by them.

Caution: Hot surfaces!

This device works with hot steam!

Protection class II

Read the operating instructions prior to use!

Supplementary information

Explanation of the Signal Words

DANGER Warns of serious injuries and danger to life.

WARNING Warns of possible serious injuries and danger to life.

CAUTION Warns of slight to moderate injuries.

NOTICE Warns of material damage.

Dear Customer,

We are delighted that you have chosen this presser.

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. They are an integral part of the device.

The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

If you have any questions about the device and about spare parts / accessories, contact the customer service department via our website:

• This device is intended to be used to dry, steam and press textiles, for example blouses and shirts. Delicate textiles such as wool or similar fabrics must not be pressed on the presser. Always follow the care labels for the textiles!
• The device is intended for machine-spun or dry, washed laundry.

WARNING: This device is intended only for drying textiles washed in water.

• The device is for personal use only and is not intended for commercial applications.
• The device should only be used as described in the operating instructions. Any other use is deemed to be improper.
• The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

Safety Notices

Warning: Read all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and/or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
Children must not play with the device.
- Cleaning and user maintenance must not be carried out by children without supervision.

• Keep children younger than 8 years of age and animals away from the device and the connecting cable.

CAUTION: Hot surfaces! The motor unit / telescopic rod will become hot during use. You should therefore not touch it during or shortly after use.

CAUTION: hot steam! This device works with hot steam! Operate the device with caution.

• The device must always be switched off and disconnected from the mains power when it is not being used, before assembling, disassembling, fi lling or emptying the water tank or cleaning the device.
• Do not make any modifications to the device. If the connecting cable of the device is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person (e.g. a specialist workshop) in order to avoid any hazards.
• Allow the device to cool down completely before the water tank is emptied and / or the device is cleaned and stored away.
  It is essential to follow the instructions in the "Cleaning and Storage" chapter.

DANGER - Danger of Electric Shock

Use the device only in closed rooms.
Do not use the device in rooms with high humidity.

• Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
  Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
• Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.
• Never exceed the maximum fill level of the water tank to prevent overflowing (Note the MAX marking on the measuring cup and in the water tank!).
  Steam may rise during operation. For this reason, do not place the device under other electronic devices.

WARNING - Danger of Injury

Danger of suffocation! Keep children and animals away from the packaging material.
Danger of tripping! Make sure that the connecting cable does not present a trip hazard.
The device must not be moved during use.
Danger of strangulation!Make sure that the connecting cable is always kept out of the reach of small children and animals.

WARNING - Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).

Do not use the device in conjunction with extension cables.

Do not operate the device in the vicinity of combustible material.

NOTICE - Risk of Damage to Material and Property

• Only connect the device to a plug socket with safety contacts that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
  Before using the device, read the care instructions for the fabric which is to be smoothed. Some fabrics, leather and suede as well as fabrics with flounces, sequins and appliqués must not be steamed!
  Always switch off the device first before the plug is pulled out of the plug socket.
  Never cover up the ventilation slots and do not insert any objects into them.
• Lay the mains cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
• Never pull or carry the device by the connecting cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
• Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
  Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

Items Supplied

• 1 x motor unit
• 1 x telescopic rod with drip guard (long)
• 1 x hanger
• 1 x nylon balloon (shirts, blouses)
• 5 × clamps with integrated weight
• 1 x measuring cup
• 1 x operating instructions

Check the items supplied for completeness and transport damage. If you find any damage to the device, the accessories or the connecting cable, do not (!) use them, but contact our customer service department.

Before using the device, remove all packaging materials and any labels that may be on the device and are used for protection during transportation or for advertising. Never remove the rating plate and any possible warnings!

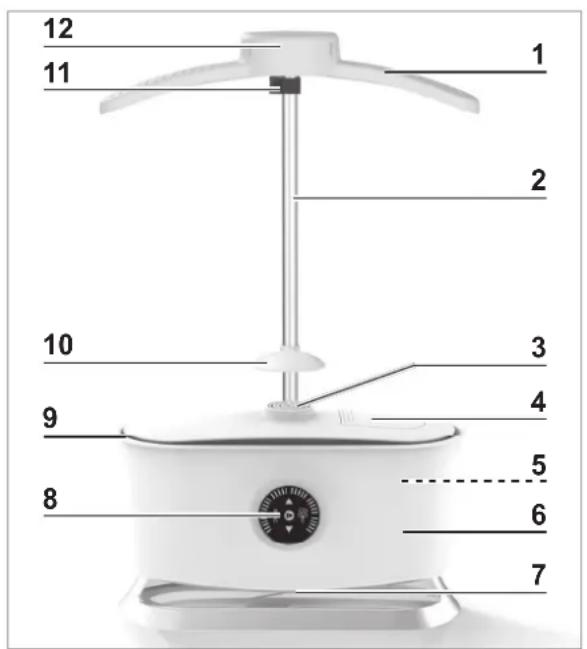

Device Overview

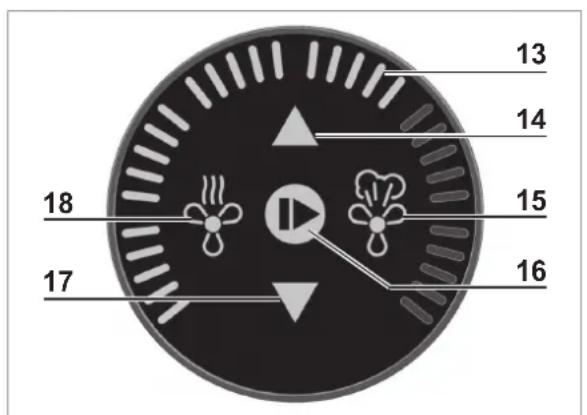

Control Panel

1 Hanger
2 Telescopic rod
3 Fan
4 Water tank cover
5 Water tank (in housing)
6 Motor unit
7 Ventilation slots
8 Control panel
9 Mounting fl ange
10 Drip guard (premounted on the telescopic rod)
11 Clip (for adjusting the height)
12 Collar section

13 Operating time display (1 bar = 1 minute)
14 ▲Increase the operating time
15 Pressing programme with steaming (for dry textiles)
16 - Start / pause
17 - Decrease the operating time
18 Pressing programme without steaming (for damp textiles)

Technical Data

Article

number:

02968

Model

number:

EL18034-00100

Voltage supply: 220 - 240V 50Hz

Power:

1800

W

Protection

class:

1

Type of protection: IPX1

Capacity of water tank: approx. 700 ml

ID of operating instructions: Z 02968 M DS V1 0419

Filling the Water Tank

PLEASE NOTE!

• Never pour any descending or cleaning agent or other chemical additives into the water tank. This may destroy the device and safe working is no longer guaranteed.
• Never pour more than 700ml (two measuring cups filled up to the MAX marking) of water into the water tank.

Water residues in the water tank are attributable to the fact that this device has been tested and do not constitute a defect.
- Only ever use distilled water with the device to prevent calcification and damage to the device.

1. Make sure that the device is not connected to the mains power and has cooled down sufficiently if used previously.
2. Fill the measuring cup up to the MAX marking with water.
3. Open the water tank cover (4) by pressing on the cover on the left.
4. Pour the water from the measuring cup into the water tank (5). Here too you should note the MAX marking.

For the best results, we recommend pouring no more than 350ml into the water tank for each steaming process.

1. Flip the water tank cover back down again.

Assembly

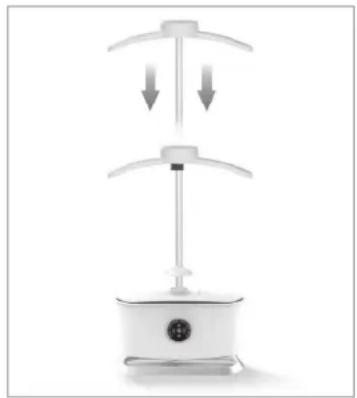

1. Plug the telescopic rod (2) into the recess on the top of the motor unit (6).
2. Place the hanger (1) onto the telescopic rod. When you do this, make sure that the slight bend in the hanger points forwards. The hanger must audibly engage on the telescopic rod.

The drip guard (10) must be located directly above the fan (3). It prevents any water that may drip down from being able to get into the fan.

3. Attach the nylon balloon:

• Pull it over the hanger. When you do this, make sure that the side with the hole line points forwards.
• Pull the small elastic cord at the top over the collar section (12) on the hanger.
• Pull the large elastic cord at the bottom over the mounting flange (9).

The device is disassembled in the reverse order.

Use

PLEASE NOTE!

Always place the device with sufficient clear space above it and on all sides on a dry, flat at, solid, water-resistant and heat-resistant surface.
The device must not be left unattended during operation.
- Be aware that the clamps with integrated weight may likewise become hot during use. Allow them to cool down suitably before they are detached from the item of clothing.
Let the device cool down after every pressing process.
It is essential that you follow the care labels for the textiles which are to be dried / smoothed!

For the best results, the device should ideally be used in a room that is as cool as possible. We recommend a maximum room temperature of 25^ .

1. Set the height you want. To do this, open the clip (11), pull out the telescopic rod (2) and then close the clip again. We recommend pulling the telescopic rod out to its maximum height.

2. If the item of clothing is to be steamed, fill the water tank (5) (see the "Filling the Water Tank" chapter).

1. Pull on the nylon balloon (see the "Assembly" chapter).

The nylon balloon should sit immediately below the mounting flange (9) so that it can fully inflate.

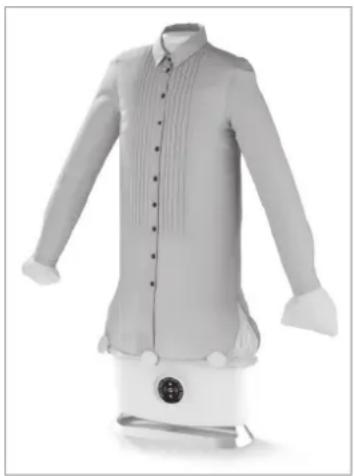

1. Pull the garment which is to be pressed over the nylon balloon and the hanger (1) and do up the buttons if necessary. Make sure that

2. the collar is fitted over the collar section (12) on the hanger,

3. any button strip is over the hole line on the nylon balloon,

4. the arms of the nylon balloon fit properly in the sleeves of the garment and are not twisted or scrunched up,

-all buttons on the garment (including on the sleeves) are done up.

1. Spread the clamps along the bottom of the garment (at the front and back in each case on the outsides and in the middle on the button strip at the front) so that it is weighed down and will not go out of shape when the nylon balloon is inflated.
2. Insert the mains plug into an easily accessible plug socket. The device switches on and on the control panel (8) the symbols (18) and (15) light up.

3. Select the programme you want by touching the appropriate symbol on the control panel:

4. pressing programme without steaming (intended for damp textiles)

5. pressing programme with steaming (intended for dry textiles)

On the control panel, the symbol for the programme you want and the arrow symbols (14 + 17) light up. The symbol (16) flashes.

1. Use the arrow symbols to set the operating time you want (max. 30 minutes). 1 bar represents 1 minute of operating time here.

When setting the time for the pressing programme with steaming, please note that the process of steaming the garment takes approx. 8 minutes and only then does the pressing process start. An operating time of approx. 12 - 15 minutes should therefore be set.

1. Touch the symbol to start the pressing process. It is now permanently lit. The symbol for the set programme flashes.

The lighting of the control panel switches off after approx. 40 seconds. To reactivate it, touch the middle of the control panel.

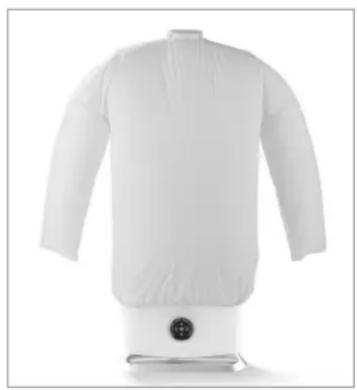

1. Once the nylon balloon has inflated, straighten out the garment and smooth it down again.

The pressing process can be paused at any time by touching the symbol. When the process is interrupted, the symbol flashes.

If the operating time for the pressing process is to be adapted, use the and symbols to extend or shorten the operating time. Then touch the symbol again to continue the pressing process.

If during the pressing programme with steaming the operating time is adapted, this change only affects the pressing process and not the steaming! Example: The operating time is set to 15 minutes. The process is interrupted after 3 minutes

and the operating time is extended by 5 minutes. After the process resumes, the steaming still only takes 5 minutes, and not 8.

PLEASE NOTE: After switching to the pressing programme with steaming, the steaming always starts again and lasts 8 minutes!

1. The device stops automatically after the set operating time has elapsed. The control panel goes out and the device switches to stand-by mode.

If the operating time should be ended prematurely, press the symbol to pause the process and the symbol until there is no longer any bar lit up on the operating time display (13). The control panel goes out and the device switches to stand-by mode.

1. Remove the garment from the nylon balloon and hanger.
2. Pull the mains plug out of the plug socket and allow the device to cool down completely.

Tips

• If in the pressing programme without steaming hand-washed or non-machine-spun laundry is to be pressed, allow it to dry first.
• The pressing process without steaming takes around 10 minutes for a spun-dried shirt. However, the length of time can vary depending on the material and thickness of the material. We recommend that you start with a shorter time and extend it if necessary.
• The pressing process with steaming takes around 15 minutes for a dry shirt. Here too the time may vary depending on the material and thickness of the material.
• The nylon balloonfor shirts and blouses can be enlarged or reduced in size with the zips. For smaller sizes, the zips should be closed. For larger sizes, the zips should be opened on both sides.
• Wide-apart buttons may result in the button strip crimping slightly during pressing. Here it is advisable to smooth down the button strip again by hand immediately after the pressing process.

Cleaning and Storage

PLEASE NOTE!

• Do not use any caustic or abrasive cleaning agents or cleaning pads for cleaning. These may damage the surface.

• Clean the device and the nylon balloon if necessary with a slightly damp cloth and a little mild detergent if required. Then wipe with a dry cloth.

• Empty the water tank (5) if the device is not going to be used for a long time or before storing it away. To do this, take the device apart and tilt the motor unit (6) so that the water can escape from the steam outlet openings beneath the mounting flange (9).
• Allow all parts to dry completely before storing them away.
• Store the device in a clean, dry place which is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps listed, contact the customer service department.

Do not attempt to repair an electrical device yourself!

Problem	Possible cause/solution
The control panel (8) does not light up.	·Is the mains plug inserted correctly in the plug socket? Correct the fi t of the mains plug. ·Is the plug socket defective? Try another plug socket. ·Check the fuse of the mains connection. ·Is the device in stand-by mode? Touch the middle of the control panel.
Unusual noises	·Are the ventilation slots (7) covered up or blocked? Free up the ventilation slots.
The device switches off suddenly.	·Are the ventilation slots covered up or blocked? Free up the ventilation slots. ·The device has an automatic safety switch-off function. It switches off automatically if it overheats / the water tank is empty. Allow the device to cool down and switch it on again. ·Has the device fallen over? The device has a protective switch that is activated if the device falls over. Set the device up again and switch it back on. ·Has the set time elapsed? Set the operating time again.
Odour produced	·You might notice a slight odour caused by production residues the fi rst time you use the device. However, this is harmless and will cease as you use the device.
No steam is produced.	·The device has not yet reached operating temperature. Depending on how full the water tank (5) is, it may take a few minutes for the water to be hot enough for steam to be produced.

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of the device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

Customer Service/Importer:

Tel.: [phone] (Calls to German landlines are subject to your provider's charges.)

All rights reserved.
