Product type	Hot air pressing hanger / Clothes dryer
Brand	Cleanmaxx
Model	00384200128 (ref. 00348, model EL17001-00100)
Category	Clothes dryer
Supply voltage	220-240 V ~ 50 Hz
Power	1800 W
Protection class	II
Timer	5 to 30 minutes (adjustable in 5-minute increments)
Main functions	Drying and ironing with hot air, inflating a nylon balloon
Included accessories	Hanger, telescopic rod, nylon balloon with zippers, 5 weighted clips, power cord
Care and cleaning	Wipe with a slightly damp cloth and mild detergent; dry completely before storing
Heating type	Hot air blower (1800 W)
Safety	Automatic shut-off in case of overheating; safety switch in case of tipping over
Usage	Household only; suitable textiles: shirts, blouses (except wool and delicate fabrics)
Country of origin	Imported by DS Produkte GmbH, Germany
Customer service	DS Produkte GmbH, phone: [phone]
Disposal	Do not dispose of with household waste; recycle at collection points for WEEE

Frequently Asked Questions - 00384200128 Cleanmaxx

How to assemble the pressing hanger?

Insert the telescopic rod into the recess of the device body, then attach the hanger onto the rod. Fix the nylon balloon by placing the top elastic band over the collar part and the bottom band over the fixing edge. Make sure the perforated line is facing forward.

Can I use this device for wool or delicate fabrics?

No, the device is intended for drying and ironing textile items such as blouses and shirts. Delicate fabrics like wool or similar should not be ironed on the hanger. Always check the care label.

What should I do if the device suddenly stops during use?

Several possible causes: 1) The ventilation slots are blocked - clear them. 2) The device has overheated - it shuts off automatically; let it cool down and turn it back on. 3) The device has fallen - the safety switch activates; place it back properly. 4) The set time has expired - reset the timer.

How long does it take to dry a shirt?

For a shirt spin-dried in a washer, the process takes about 10 minutes. The time may vary depending on the material and thickness. Start with a short time and extend if necessary.

How to adjust the hanger height?

Open the clip on the telescopic rod, extend the rod to the desired height, then close the clip.

The device makes an unusual noise, what should I do?

Check that the ventilation slots are not covered or blocked. If the noise persists, contact customer service. Do not attempt to repair it yourself.

Can I use an extension cord?

No, it is not recommended to use an extension cord. Plug the device directly into a properly installed and grounded outlet.

How to clean and store the device?

Unplug the device and let it cool down completely. Wipe the device and the nylon balloon with a slightly damp cloth and a little mild detergent. Dry all parts before storing in a clean, dry place away from direct sunlight.

What if the device does not turn on?

Check that the plug is properly inserted into the outlet, that the outlet works (try another one), that the mains fuse is intact, and that the timer is set to a non-zero duration.

Does the device emit an odor at first?

Yes, during the first use, a slight odor from production residues may occur. It is harmless and disappears after a few uses.

USER MANUAL 00384200128 Cleanmaxx

Black long-sleeve shirt displayed on a white electronic device in a kitchen setting (no visible text or symbols)

00384

DE

Gebrauchsanleitung

ab Seite 3

EN

Instruction manual

starting on page 11

FR

Mode d'emploi

www.service-shopping.de

Modern office lamp with adjustable arm and base, no visible text or symbols

White long-sleeve shirt with a button, shown in a plain white image (no text or symbols visible)

3D rendered image of a long-sleeve button-up blouse with pleated collar and front buttons (no text or symbols)

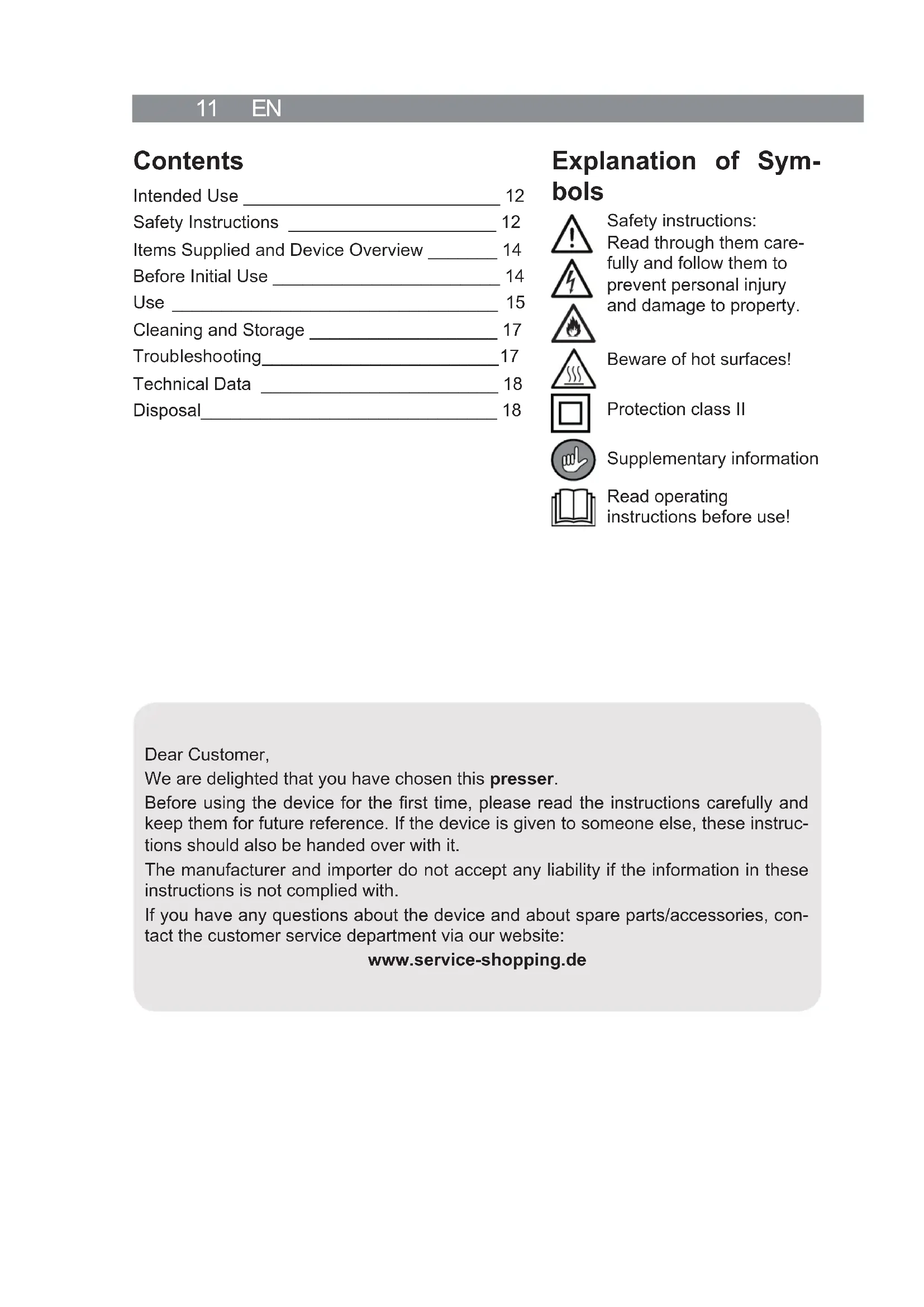

Safety Instructions 12

Items Supplied and Device Overview ____ 14

Before Initial Use 14

Use 15

Cleaning and Storage 17

Troubleshooting 17

Technical Data 18

Disposal 18

Explanation of Symbols

Safety instructions:

Read through them carefully and follow them to prevent personal injury and damage to property.

Beware of hot surfaces!

Protection class II

Supplementary information

Read operating instructions before use!

Dear Customer,

We are delighted that you have chosen this presser.

Before using the device for the first time, please read the instructions carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it.

The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

www.service-shopping.de

Intended Use

• This device is intended to be used to dry and press textiles, for example blouses and shirts. Delicate textiles such as wool or similar fabrics must not be pressed on the presser. Always follow the care labels for the textiles!
• The device is for personal use only and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.
• The following are excluded from the warranty: all defects caused by improper handling, damage or unauthorised attempts at repair. This also applies to normal wear and tear.

Safety Instructions

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
- Cleaning and user maintenance may not be carried out by children without supervision.

CAUTION: hot surfaces! The motor unit / telescopic rod will become hot during use. You should therefore not touch it during or shortly after use.

• The device must always be switched off and disconnected from the mains power when it is not being used and before assembling, disassembling or cleaning the device.
• Do not make any modifications to the device. If the mains cable of this device is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.
• Allow the device to cool down completely before it is cleaned and stored away.

Danger of Injury

• Danger of suffocation from plastic films and bags! Keep children and animals away from the packaging material.
  ■ Always lay the mains cable in such a way that it does not present a trip hazard.
  ■ The device must not be moved during use.

Danger of Electric Shock

The device should only be connected to a properly installed socket with safety contacts. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device. Do not use any extension cables.
- Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.
- Should the device fall into water or liquid get inside it, switch off the power supply immediately. Never attempt to pull the device out of the water while it is still connected to the mains power! Have the device checked in a specialist workshop before using it again.
- Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
■ Switch off the device and pull the mains plug out of the plug socket
- if a fault occurs during operation,
– before it is cleaned or
– before a thunderstorm.
■ Use the device only in closed rooms.
- Do not operate the device in a very damp environment.

Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not operate the device in the vicinity of combustible material.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).

Avoiding Damage to Material, Property and the Device

■ Always place the device with clear space above it and on all sides on a dry, flat, solid and heat-resistant surface.
- Do not place the device under other electronic devices.
- The device must be switched off when inserting or removing the mains plug. Always pull the mains plug and never the mains cable to disconnect the device from the mains power.
■ Never cover up the ventilation slots and do not insert any objects into them.
■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.

• Protect the device from heat, naked flames, extreme temperatures, persistent moisture, wet conditions and collisions.
• Do not use any corrosive or abrasive cleaning agents to clean the device. These can damage the surface.

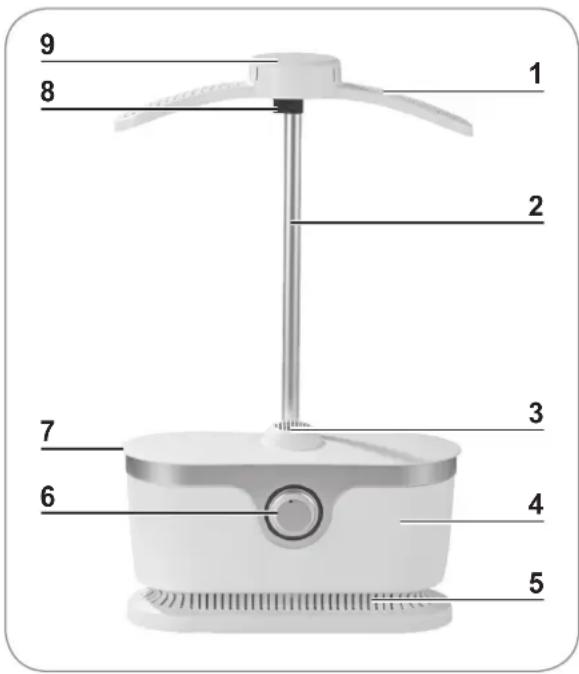

Items Supplied and Device Overview

9 8 1 2 3 7 6 4 5

1 Hanger
2 Telescopic rod
3 Fan
4 Motor unit
5 Ventilation slots
6 Timer (5–30 minutes)
7 Mounting fl ange
8 Clip (for adjusting the height)
9 Collar section

Not shown:

• Nylon balloon
• 5 x clamps with integrated weight
• Mains cable with mains plug

Before Initial Use

CAUTION!

- Danger of suffocation from plastic films and bags! Keep children and animals away from the packaging material.

• Unpack the items supplied and check them for completeness (see the "Items Supplied and Device Overview" chapter) and possible transport damage. If the device, the mains plug or the mains cable does have damage, do not use the device(!), but contact our customer service department.
• Before using the device, remove all packaging materials and any labels that may be on the device and are used for protection during transportation or for advertising.

Assembly

1. Plug the telescopic rod (2) into the recess on the top of the motor unit (4).
2. Place the hanger (1) onto the telescopic rod (2). When you do this, make sure that the slight bend in the hanger (1) points forwards.
3. Attach the nylon balloon:
4. Pull it over the hanger (1). When you do this, make sure that the side with the hole line points forwards.
   – Pull the small elastic cord at the top over the collar section (9) on the hanger (1).
   – Pull the large elastic cord at the bottom over the mounting flange (7).

The device is disassembled in the reverse order.

Use

CAUTION!

■ Only place the device on a stable, flat, moisture-resistant and heat-resistant surface.
■ Caution! Hot surface! The motor unit / telescopic rod will become hot during use. You should therefore not touch it during or shortly after use.
It is essential that you follow the care labels for the textiles to be dried!
- Never cover up the ventilation slots and do not insert any objects into them.

Illustration of a smart air conditioner unit with two vertical arms and a base, showing airflow direction arrows (no text or symbols)

1. Set the height you want. To do this, open the clip (8), pull out the telescopic rod (2) and then close the clip (8) again.

White long-sleeve jacket with a button, shown in a plain white image (no text or symbols visible)

1. If you have not already done so, pull on the nylon balloon (see the "Before Initial Use" chapter, "Assembly" section).

The nylon balloon should sit immediately below the mounting flange (7) so that it can fully inflate.

3D rendered image of a long-sleeve button-up blouse with pleated collar and front buttons (no text or symbols)

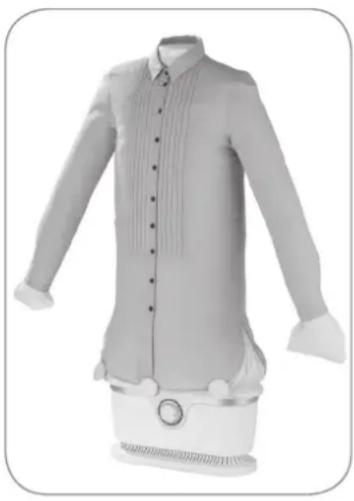

1. Pull the garment which is to be pressed over the nylon balloon and the hanger (1) and do up the buttons if necessary. Make sure that

2. the collar is fitted over the collar section (9) on the hanger (1),
   –any button strip is over the hole line on the nylon balloon,

3. the arms of the nylon balloon fit properly in the sleeves of the garment and are not twisted or scrunched up, -all buttons on the garment (including on the sleeves) are done up.

4. Spread the clamps along the bottom of the garment (at the front and back in each case on the outsides and in the middle on the button strip at the front) so that it is weighed down and will not go out of shape when the nylon balloon is inflated.

5. Insert the mains plug into an easily accessible socket.

6. Turn the timer (6) clockwise and set it to the length of time you want. Each LED light represents 5 minutes.
7. Once the nylon balloon has inflated, straighten out the garment and smooth it down again.
8. When the set time elapses, the device switches off automatically. The drying / pressing process can be interrupted at any time by turning the timer (6) to the starting position.
9. Remove the garment from the nylon balloon and hanger (1).
10. Pull the mains plug out of the plug socket and allow the device to cool down completely.

Tips

• The device is intended primarily for machine-spun laundry! If hand-washed or non-machine-spun laundry is to be pressed, first allow it to dry out a little first.
• The drying /pressing process takes around 10 minutes for a spun-dried shirt. However, the length of time can vary depending on the material and thickness of the material. We recommend that you start with a shorter time and extend it if necessary.
• The nylon balloon can be enlarged or reduced in size with the aid of the zip fasteners. For smaller sizes, the zip fasteners should be closed. For larger sizes, the zip fasteners should be opened on both sides.
• Wide-apart buttons may result in the button strip crimping slightly during pressing. Here it is advisable to smooth down the button strip again by hand immediately after the pressing process.

Cleaning and Storage

CAUTION!

• Pull the mains plug out of the plug socket and allow the device to cool down completely before doing any cleaning!
  ■ Never immerse the device, the mains cable or the mains plug in water or other liquids!

• Do not use any corrosive or abrasive cleaning agents or cleaning pads to clean the device. These can damage the surface.

• Clean the device and the nylon balloon if necessary with a slightly damp cloth and a little mild detergent if required. Then wipe down fully with a dry cloth.

• Allow all parts to dry completely before you put them away.
• Store the device in a clean, dry place that is protected from sunlight and is not accessible to children and animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause / solution
The device does not work. The LEDs do not light up.	• Is the mains plug inserted in the plug socket correctly? Correct the fi t of the mains plug.• Is the plug socket defective? Try another plug socket.• Check the fuse of the mains connection.• Is the device switched on? Set the timer (6) to a time.
Unusual noises	• Are the ventilation slots (5) covered up or blocked? Free up the ventilation slots (5).
The device switches off suddenly.	• Are the ventilation slots (5) covered up or blocked? Free up the ventilation slots (5).• The device has an automatic safety switch-off function. It switches off automatically if it overheats. Allow the device to cool down and switch it on again.• Has the device fallen over? The device has a protective switch that is activated if the device falls over. Set the device up again and switch it back on.• Has the set time elapsed? Set the timer (6) to the time you want again.
Odour produced	• You might notice a slight odour caused by production residues the fi rst time you use the device. However, this is harmless and will cease as you use the device.

Technical Data

Article number: 00348

Model number: EL17001-00100

Voltage supply: 220 – 240 V \~ 50 Hz

Power: 1800 W

Protection class: II

Customer Service / Importer:

DS Produkte GmbH

Am Heisterbusch 1

19258 Gallin

Germany

Tel.: [phone]

(Calls to German landlines are subject to charges. The cost varies depending on the service provider.)

Disposal

The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner. It should not be disposed of in the normal domestic waste. Dispose of the device at a recycling centre for used electrical and electronic devices. More information is available from your local authorities.
