Brand	Cleanmaxx
Model	05980200125
Product type	Cordless hand vacuum cleaner
Power	150 W
Battery power	Lithium-Ion 22.2 V, 2000 mAh
Charging time	Approx. 4 to 5 hours
Runtime	Approx. 20 to 30 minutes (full charge)
Number of power levels	2 (I and II)
Filter type	Washable dust filter + HEPA filter
Dust container capacity	Not specified (MAX mark)
Included accessories	Microfiber floor nozzle with LED, brush nozzle, crevice nozzle, extension tube, wall mount, power supply unit
Intended use	Domestic, dry dust vacuuming
Maintenance	Empty container after each use, clean filters regularly
Charger protection class	II
Warranty	Not specified (excluding misuse)

Frequently Asked Questions - 05980200125 Cleanmaxx

How to recharge the battery of the Cleanmaxx vacuum cleaner?

Plug the female connector of the power supply into the connection socket of the motor unit, then plug the power supply into a wall outlet. The indicator light flashes during charging and stays on when the battery is fully charged (4 to 5 hours). Always disconnect the charger from the outlet before removing the plug from the appliance.

What is the runtime of the vacuum cleaner?

The runtime is approximately 20 to 30 minutes when the battery is fully charged. To optimize usage time, turn off the appliance between surfaces and clean the filters regularly.

How to clean the HEPA filter?

The HEPA filter must not be immersed in water or rinsed. Tap it gently to remove dust or use a soft brush. Do not wash it in the machine or dishwasher.

How to empty the dust container?

Remove the dust container from the motor unit by pressing the release button. Hold it over a trash can, lift the flap to open the lid, and empty the contents. Close the lid until it clicks.

What to do if suction power decreases?

Check in order: 1) Recharge the battery if low. 2) Empty the dust container if full. 3) Clean the filters (dust filter and HEPA filter). 4) Check that the suction inlet is not blocked.

Can I use the vacuum cleaner for liquids?

No, the vacuum cleaner is designed only for dry dust. Never vacuum liquids, ashes, cigarette butts, flammable materials, or very fine dust (concrete, toner). This could damage the appliance and pose a safety risk.

How to install the wall mount?

Use the supplied mounting hardware. Drill two holes (top and bottom) after checking for pipes or cables. Insert wall plugs, screw in the mount. Hang the vacuum by the suction inlet pointing downwards.

What to do if the appliance does not start?

Check that the battery is charged. If the indicator light does not turn on when the charger is plugged in, check the power supply connection and try another outlet. If the problem persists, contact customer service.

How to replace the filters?

The dust filter and HEPA filter are washable and reusable. Replace them only if worn or damaged. To change them, remove the dust container, then the HEPA filter, then the filter support with the dust filter. Twist the dust filter to separate it from the support.

What accessories are included and what are they used for?

The package contains: a microfiber floor nozzle with LED (for hard floors and carpets), a brush nozzle (for textiles and delicate items), a crevice nozzle (for corners and narrow spaces), an extension tube (to reach high areas), a wall mount (storage), and a nozzle holder.

USER MANUAL 05980200125 Cleanmaxx

Before Initial Use 18

Charging Up the Battery 18

Attaching the Wall Bracket 19

Accessories 19

Assembly 19

Operation 20

Cleaning and Storage 21

Troubleshooting 23

Technical Data 24

Disposal 24

Explanation of the Symbols

Danger symbols: These symbols indicate dangers of injury. Read through the associated safety notices carefully and follow them.

Supplementary information

Protection class II

Only use indoors!

⊖—⊕ Polarity of the barrel connector

Switching power supply

Safe electrical isolation

Read operating instructions before use!

Explanation of the Signal Words

DANGER warns of serious injuries and danger to life
WARNING warns of possible serious injuries and danger to life
CAUTION warns of slight to moderate injuries

NOTICE warns of material damage

EN 14

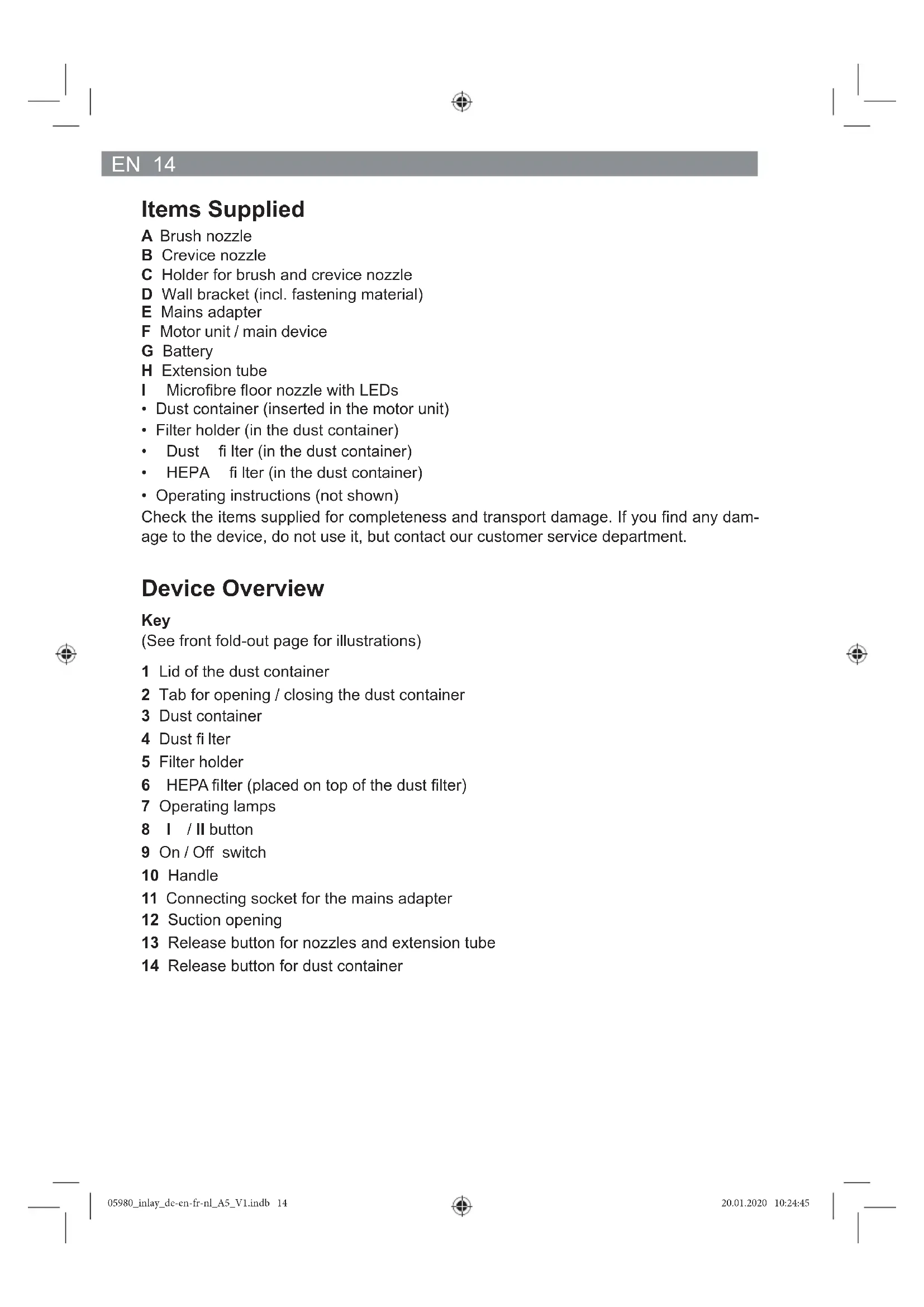

Items Supplied

A Brush nozzle
B Crevice nozzle
C Holder for brush and crevice nozzle
D Wall bracket (incl. fastening material)
E Mains adapter
F Motor unit / main device
G Battery
H Extension tube

I Microfibre floor nozzle with LEDs

- Dust container (inserted in the motor unit)

- Filter holder (in the dust container)

• Dust fi Iter (in the dust container)

• HEPA fi lter (in the dust container)

- Operating instructions (not shown)

Check the items supplied for completeness and transport damage. If you find any damage to the device, do not use it, but contact our customer service department.

Device Overview

Key

(See front fold-out page for illustrations)

1 Lid of the dust container
2 Tab for opening / closing the dust container
3 Dust container
4 Dust fi Iter
5 Filter holder
6 HEPA filter (placed on top of the dust filter)
7 Operating lamps
8 I / II button
9 On / Off switch
10 Handle
11 Connecting socket for the mains adapter
12 Suction opening
13 Release button for nozzles and extension tube
14 Release button for dust container

15 EN

Dear Customer,

We are delighted that you have chosen this battery-operated hand-held vacuum cleaner.

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. They are an integral part of the device.

The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

Please Note: The illustrations used in these operating instructions may differ from the actual device.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website:

IMPORTANT NOTICES! PLEASE KEEP FOR REFERENCE!

Intended Use

- This device is intended to be used to suck up normal household dust.

On no account should the device be used to suck up the following:

– liquids or wet substances (e.g. wet carpet shampoo)
– glowing ash, cigarette ends, matches, etc.
- i n fl ammable or explosive substances
- very fi ne dust (e.g. concrete dust), ash or toner
-pointed, hard objects such as large pieces of broken glass

• The device is for personal use only and is not intended for commercial applications.
• The device should only be used as described in the operating instructions. Any other use is deemed to be improper.
• The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

EN 16

Safety Notices

WARNING: Read all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
- Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.
■ Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.
- The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling or cleaning the device.
- Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
- Charge the battery only with the mains adapter supplied with it. Do not use the mains adapter supplied with the device to charge up any other devices.
In the interest of your own safety, you should inspect the device for damage each time before you use it. The device may only be used if it has no visible signs of damage! If the device or the connecting cable is damaged, they must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

17 EN

DANGER – Risk of Electric Shock!

■ Use and store the device only in closed rooms.
■ Do not use it in rooms with high humidity.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
- Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.
- Never suck up liquids. Do not pour any liquids into the dust container. Keep the motor unit away from moisture or wet conditions!
If the device is to be used as a hand-held vacuum cleaner for cleaning a car, ensure that the device is not exposed to rain or moisture.

WARNING – Danger of Injury!

■ Danger of suffocation! Keep children and animals away from the packaging material.
- Danger of strangulation! Make sure that the mains cable is always kept out of the reach of small children and animals.
- Danger of burns! If the battery has leaked, do not allow your skin, eyes and mucous membranes to come into contact with the battery acid. If you touch battery acid, rinse the affected areas with abundant clear water straight away and seek medical assistance immediately.
- Danger of becoming stuck! Keep animals, hair, jewellery, wide clothing, fingers and all other body parts away from the nozzles of the device. They could become stuck to the device. Should the vacuum cleaner become stuck, switch the device off immediately.
- Danger of tripping! Make sure that the connected mains cable does not present a trip hazard.

WARNING – Danger of Fire!

Do not charge up the device in the vicinity of highly flammable materials (curtains, textiles, etc.).
- Do not cover the device during operation or charging in order to prevent it from catching fire. Do not insert anything into the ventilation openings of the device and make sure that these do not become clogged.

NOTICE – Risk of Damage to Material and Property

• Only connect the mains adapter to a socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
  ■ Only use suitable extension cables whose technical data is the same as that of the device.
  ■ Remove the mains adapter from the plug socket if a fault occurs during charging or if a thunderstorm is expected.

EN 18

• When you pull it out of the plug socket, always pull on the mains adapter and never the mains cable! Never pull or carry the device by the mains cable.
  ■ Make sure that the mains cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces. Do not wrap the mains cable around the device or the mains adapter.
  The device should only be used if it has been fully and correctly assembled! The dust container, the filter holder and the filters must be inserted and must not be damaged! If the dirt were to get inside the motor unit, this could damage the motor.
• Protect the device from heat, naked flames, extreme temperatures, persistent moisture, wet conditions and collisions.
• Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage. The LEDs cannot be replaced.
• Do not place or lay any heavy objects on the device or accessories.

NOTICE – Risk of Damage to Material and Property from Batteries

• Remove a dead battery from the device immediately. Clean the contacts before a new battery is inserted.
  The battery must not be taken apart, thrown into a fire, immersed in liquids or short-circuited.

Before Initial Use

• Remove any possible films, stickers or transport protection from the device. Never remove the rating plate and any possible warnings!
• Charge up the battery (G) (see the "Charging Up the Battery" chapter).
• Attach the wall bracket (D) (see the "Attaching the Wall Bracket" chapter).

Charging Up the Battery

PLEASE NOTE!

It is essential that you charge up the battery fully before you first use the device in order to achieve the maximum charging capacity. If the battery is fully discharged during use, it must be fully charged up again before it is next used.
Before inserting the battery, check whether the contacts are clean and clean them if necessary.

- First plug the barrel connector of the mains adapter (E) into the connecting socket (11) on the motor unit (F) and then connect the mains adapter to a plug socket. The Level I operating lamp (7) flashes. The battery (E) is being charged.

- If the operating lamp is permanently lit, the battery is fully charged.

- First disconnect the mains adapter from the mains power and then disconnect the barrel connector from the motor unit.

19 EN

Attaching the Wall Bracket

PLEASE NOTE!

• Use the fastening material supplied to hang up the wall bracket. If you are unsure whether the fastening material supplied is suitable for your wall, seek advice from a specialist stockist.

• Hang the wall bracket in a secure and solid place.
  Before drilling, ensure that there are no pipes or cables behind the intended drilling point.

• Place the wall bracket (D) against the wall and mark out two drill holes (at the top and bottom).

• Drill holes into the wall and place dowels in them.
• Screw the wall bracket onto the wall.

Accessories

• The microfibre floor nozzle (I) is suitable for both carpets and hard floors. It has a rotating microfibre roller and is thus particularly suitable for delicate floor surfaces. The LEDs illuminate dark areas, to allow even more thorough cleaning.
• The brush nozzle (A) is used for vacuuming upholstery and textiles and for removing dust from delicate objects such as picture frames, lamp shades, keyboards, books etc. The brush head can be pivoted 360°.
• The crevice nozzle (B) is suitable for places which are hard to get to, such as corners, crevices or recesses, e.g. for upholstery and cleaning the inside of cars.
• The extension tube (H) makes it easier to reach the tops of cupboards, ceilings and corners and, along with the electric floor nozzle, allows floors to be cleaned.
• The holder for the brush and crevice nozzle (C) is suitable for securing the two nozzles to the extension tube easily to save space.
• The wall bracket (D) is suitable for storing the device in a space-saving manner. The mains cable of the mains adapter (E) can be tucked in on the small hook on the wall bracket.

Assembly

Attaching / Detaching the Microfi bre Floor Nozzle and Extension Tube

• The microfibre floor nozzle (I) and the extension tube (H) are plugged directly onto the suction opening (12). They must engage audibly. Attach the microfibre floor nozzle to the extension tube in the same way.
• To detach it, press the release button (13) above the suction opening and pull the microfibre floor nozzle or the extension tube out at the same time.

EN 20

Attaching / Detaching the Brush and Crevice Nozzle

• Plug the nozzle you want into the suction opening (13) or the extension tube (H). The nozzle must engage audibly.
• To detach it, press the release button (13) above the suction opening and pull the nozzle out at the same time.

Removing / Inserting the Dust Container

• Removing: Press the release button (14) on the front of the dust container (3) and pull the dust container upwards to remove it.
• Inserting: Insert the dust container into the motor unit (F) from above. When you do this, make sure that the release button is pointing downwards (towards the motor unit) (Picture A). The dust container must engage audibly.

Operation

PLEASE NOTE!

■ Ensure that there are no larger, sharp objects on the surface which is to be cleaned.
Note the MAX marking on the dust container. If during use the marking is reached, empty the dust container. Empty and clean the dust container after each use. The fit liters must also be regularly cleaned in order to prevent overloading of the motor.
- Switch the device off after each surface has been cleaned as this will considerably increase the operating time on each battery charge. Charge up the battery after use (see the "Charging Up the Battery" chapter).

1. Select an accessory as required (see the "Accessories" chapter) and attach it to the device (see the "Assembly" chapter).
2. Switch on the device by pressing the On / Off switch (9) once. The device will start vacuuming immediately. The Level I operating lamp (7) lights up.
3. If necessary, Level II can be switched on with the I/II button (8). The Level I and II operating lamps light up. To switch back to Level I, press the I/II button again.
4. Move the device over the surface to be cleaned.
5. If the device is to be switched off again, press the On / Off switch again.
6. To ensure optimum performance of the device, empty and if necessary clean the dust container (3) after every use (see next chapter).

21 EN

Cleaning and Storage

PLEASE NOTE!

• Do not immerse the HEPA filter in water or rinse it under running water to prevent damage to the filter. It is neither machine-washable, dishwasher-safe nor suitable for tumble drying.
  The filter holder and the dust filter are not machine-washable, dishwasher-safe or suitable for tumble drying! Only ever dry them in the air, and never use a hair dryer to do so.
• Do not use any sharp or abrasive cleaning agents to clean the housing. They may damage the surfaces.

The HEPA filter (6) may lose some of its colour over time. This is normal and does not have any adverse effect on function.

Emptying the Dust Container

1. Remove the dust container (3) from the motor unit (F) (see the "Assembly" chapter – "Removing / Inserting the Dust Container").
2. Hold the dust container over an open dustbin. The distance from the dustbin should be as small as possible so that the dust does not spread in the surrounding air.
3. Pull the tab (2) on the dust container gently upwards. The lid of the dust container (1) will open and the dirt will fall out.
4. To close it, press the lid onto the dust container. The tab must engage audibly.

Cleaning the Dust Container, HEPA Filter, Dust Filter and Filter Holder

1. Pull out the HEPA filter (6) by the handle.
2. Reach into the dust container (3) and pull out the dust filter (4) with the filter holder (5).
3. Twist the dust filter anticlockwise and pull it out of the filter holder (Picture B1).
4. Tap out all parts and clean them with a soft brush if necessary.
5. The filter holder and dust filter can also be rinsed with clear water. NOTICE: Do not wet-clean the HEPA filter!
6. Wipe out the dust container with a damp cloth if necessary. Let all parts dry completely in the air before you reassemble them. NOTICE: Never assemble wet or damp components or attach them to the motor unit (F)!

Assembly

1. Insert the dust filter into the filter holder and twist it clockwise until it fits securely (Picture B2).
2. Insert the filter holder with dust filter into the dust container so that the two recesses fit directly above one another (Picture C). The filter holder must fit correctly in the dust container, it must not stick out at the top.
3. Place the HEPA filter on top of the dust filter.
4. Insert the dust container back into the motor unit (see the "Assembly" chapter – "Removing / Inserting the Dust Container").

EN 22

Cleaning the Motor Unit, Extension Tube and Nozzles

• Wipe down the motor unit (F), extension tube (H) and nozzles with a damp, soft cloth if necessary. Then dry with a soft cloth.
  • Regularly remove hair and fluff from the nozzles and brushes.

Cleaning the Microfi bre Floor Nozzle

To make it easier to clean, the roller can be taken out of the microfibre floor nozzle (I):

1. Slide the latch fastener on the bottom of the microfibre floor nozzle towards the open lock symbol (Picture D1).
2. Flip open the latch and remove.
3. Take out the roller and remove any dirt.
4. Re-insert the roller. When you do this, insert the end with the star-shaped recess first.
5. The end with the hexagonal bulge must be inserted in such a way that the two corners are pointing upwards (Picture D2). Otherwise the latch cannot be placed on.
6. Insert the latch and press it down. The latch fastener must engage audibly.

Storage

• Store the device in a cool, dry place which is protected from direct sunlight and is out of the reach of children and animals.
• For easy storage and to save space, the brush nozzle (A) and crevice nozzle (B) can be secured to the holder for the brush and crevice nozzle (C) on the extension tube (H) (Picture E).
• For easy storage, hang the device with the suction opening (12) downwards into the wall bracket (D) that is also supplied (Picture F).

If the device is not going to be used for a prolonged period, remove the battery (G) to be on the safe side: Flip up the small clip on the bottom of the battery and pull out the battery downwards (Picture G). To prevent a deep discharge of the battery, charge it up from time to time if it is not used for a prolonged period.

23 EN

Troubleshooting

If the device does not work properly, first check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact our customer service department.

Do not attempt to repair an electrical device yourself!

Problem Possible cause $olution
The device only works slowly or does not start.	The battery (G) is empty. Charge up the battery.
Low suction force.	The battery (G) is too weak.	Charge up the battery.
	The dust container (3) is too full.	Empty the dust container.
	The filters are dirty.	Clean the filters.
	The suction opening (12) is blocked.	Switch off the device and remove the blockage.
	Particles which are too large or heavy may stick to a fitted carpet.	Remove these foreign objects by hand.
Dust escapes from the device during cleaning.	The dust container (3) or fi lter are not fitted correctly.	Correct the fi t of the dust container and filter. Make sure that the dust container is closed.
	The filters are dirty.	Clean the filters.
	The fl iters are worn or damaged.	Replace the fl iters.
The Level I operating lamp (7) does not light up when the device is connected to the mains power.	The mains adapter (E) is not inserted in the plug socket correctly or the barrel connector is not inserted in the connecting socket (11) on the device correctly.	Correct the fi t.
	The plug socket is defective.	Try another plug socket.
Unusual odour	The device is being used for the first time.	A new odour is normal when the device is used for the first time; it disappears after a while.

EN 24

Technical Data

Article number: 05980

ID operating instructions: Z 05980 M DS V1 0120 uh

Device

Model number: PC-P011E

Voltage supply: 22.2 V (Li-Ion 2000mAh)

Power: 150 W

Battery

Charge time: approx. 4-5 hours

Operating time: approx. 20-30 minutes (when battery is fully charged)

Mains adapter

Model number: GQ12-260040_AG

Input: 100 – 240 V\~ 50/60 Hz

Output: 26 V DC, 400 mA

Protection class: II

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

Non-rechargeable and rechargeable batteries should be removed prior to disposal of the device and disposed of separately from the device. To protect the environment, non-rechargeable and rechargeable batteries must not be disposed of with normal household waste, but must be taken to suitable collection points.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

25 FR

Contenu

Composition 26

Installation du support mural 31

Accessoires 31

Assemblage 32

Utilisation 32

Installation du support mural

À OBSERVER !

WAARSCHUWING – Verwondingsgevaar!

WAARSCHUWING – Brandgevaar!
