Product type	Dosing pump
Brand	AstralPool
Model	57162
Use	Dosing of liquids (reagents)
Protection	IP65
Housing	Acid-resistant reinforced polypropylene
Standard power supply	230 V AC 50 Hz single-phase
Optional power supplies	240 V AC 50-60 Hz, 110 V AC 50-60 Hz
Power consumption	37 to 82 W depending on model
Current consumption	0.16 to 0.36 A
Net weight	2.7 to 4.1 kg depending on model
Max flow rate	0 to 20 l/h depending on model
Max pressure	0 to 15 bar depending on model
Diaphragm	PTFE
Pump head	Polypropylene (options PVC, stainless steel 316, PTFE)
Connections	Polypropylene (options PVC, stainless steel 316, PTFE)
Valves	FPM (Viton®) standard, options silicone, EPDM, nitrile, glass/stainless steel ball
Suction tubes	Flexible clear PVC 2 m
Discharge tubes	Semi-rigid polyethylene 2 m
Injection lance	PP/Viton 3/8" BSPm
Filter	Polypropylene, FPM
Flow rate adjustment (manual)	By potentiometer 0-100%
Modes (advanced models)	Manual, 1xN, 1:N, proportional mA
Warranty	2 years (excluding wear parts)
Standards	Directives 89/336/EEC and 73/23/EEC
Transport	Vertical position only
Max ambient temperature	40°C
Max suction height	2 m

Frequently Asked Questions - 57162 ASTRALPOOL

How to install the dosing pump?

Install the pump away from heat sources, in a dry place at ambient temperature max 40°C. Respect local electrical standards: use an omnipolar switch with a minimum distance of 3 mm between contacts. The pump can be mounted above or below the liquid level, with a maximum suction height of 2 meters. The injection point must always be higher than the reagent tank.

How to prime the pump?

To prime, follow the sequence in diagram 8: if the pump does not prime, suck through the discharge connection with a normal syringe while the pump is running until the liquid arrives. If the pump is equipped with a manual air vent, unscrew the purge valve until all air is expelled.

What to do if the pump is pulsing but not injecting?

Disassemble the suction and discharge valves, clean them and reassemble them in the same position. Also check if the filter is clogged. If the valve is swollen, check the chemical compatibility of the reagent with the valve material (Viton® standard). Be careful of residual reagent during disassembly.

How to clean the pump?

Turn off the power supply (omnipolar switch). Disconnect the tubes, immerse the filter in a solution of hydrochloric acid then run the pump in a closed circuit with this solution for 5 minutes. Rinse with clean water. For sodium hypochlorite, first circulate clean water for 5-10 minutes before acid cleaning.

How to replace the valves?

Disconnect the power supply. Depressurize the pump head and drain the liquid. Unscrew the four head fixing screws (drawing 11). Replace the valves respecting their position. Tighten the screws evenly when reassembling, not forgetting the screw gaskets.

What does the level alarm mean?

The level alarm (yellow indicator or message 'RL1'/'FAO') indicates that the reagent tank is empty or the level is too low. The pump stops automatically. Fill the tank. The level control has a 5-second delay to avoid false alarms.

How to adjust the flow rate on a manual model (MA/AD)?

Use the potentiometer (button 10) to adjust the flow rate from 0 to 100%. Buttons 2 and 9 allow selecting the 20% and 100% steps for quick adjustment. The red indicator (8) flashes with each injection.

How to set the mA signal on the CC/M model?

In 'Set 1' and 'Set 2' modes, you can associate an injection frequency with a current value (4-20 mA). For example, for a direct 4-20 mA signal: set Set 1 to 0 l/h for 4 mA and Set 2 to 10 l/h for 20 mA. Use keys 6 and 12 to adjust, then confirm with key 11.

What are the essential safety precautions?

Do not touch the device with wet hands. Always disconnect the power before any intervention (omnipolar switch with 3 mm opening). For harmful liquids, wear gloves and goggles. Do not let children use the pump. Check material compatibility with the reagent.

What does the 2-year warranty cover?

The 2-year warranty covers manufacturing defects, but excludes normal wear parts such as valves, connections, filters and tubes. Improper use voids the warranty. For any repair, contact an approved center and use original spare parts.

USER MANUAL 57162 ASTRALPOOL

Exterior view of a black ASTRALPOOL industrial pump with control panel and orange valve (no visible text or symbols on the device itself)

ASISTENCIA TECNICA Y OFICINAS COMERCIALES TECHNICAL ASSISTANCE AND SALES OFFICES ASSISTENZA TECNICA E UFFICI COMMERCIALI

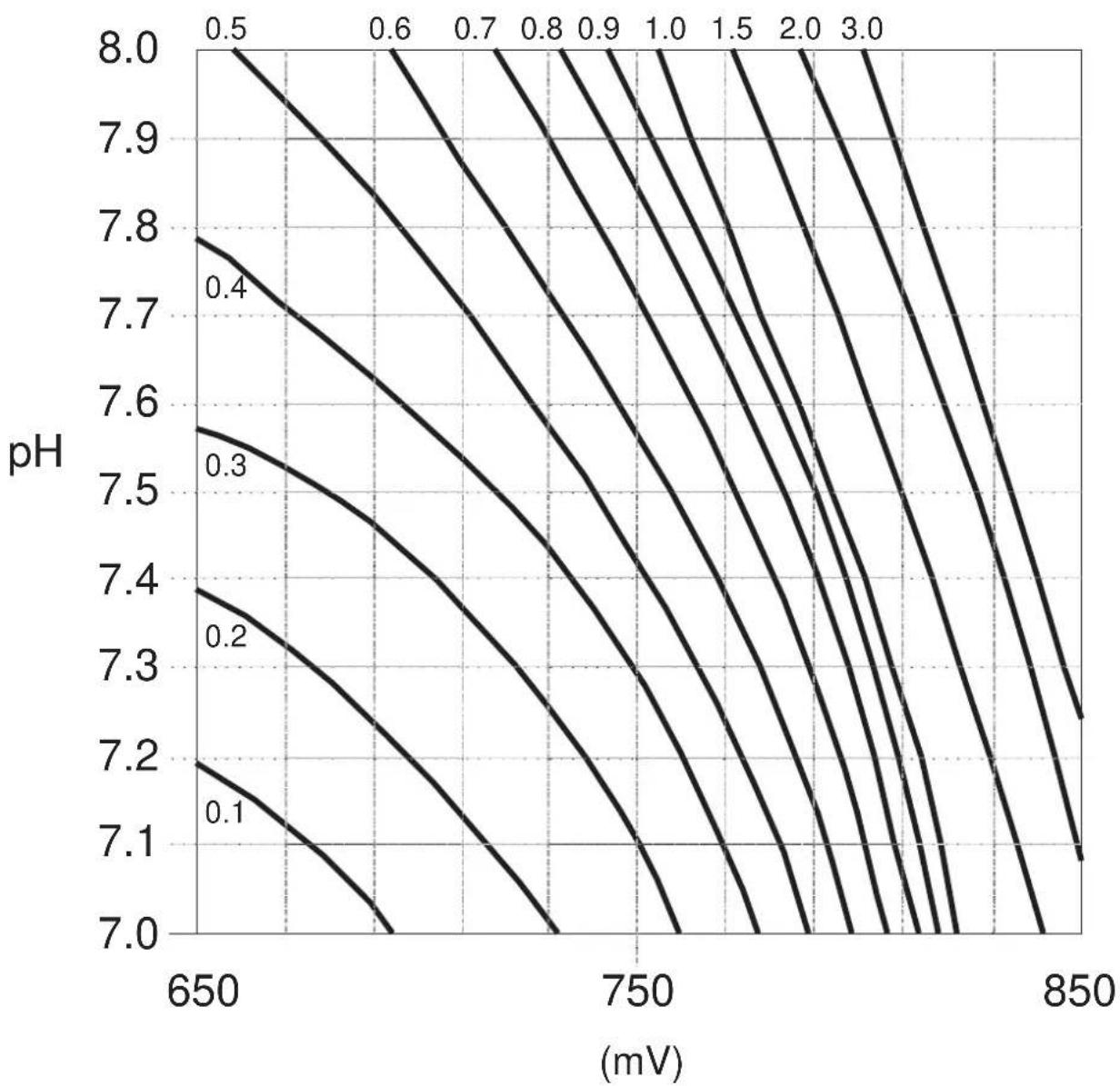

GRAFICO CLORO LIBERO VS POTENZIALE REDOX (pH)

GRAPHIQUE CHLORE LIBRE VS POTENTIEL REDOX (pH)

GRAFIK FREIES CHLOR ZU REDOX-POTENTIAL (Ph)

GRÁFICO CLORO LIVRE - POTENCIAL REDOX (pH)

GRÁFICO CLORO LIBRE VS POTENCIAL REDOX (pH)

FREE CHLORINE - OXIDATION REDUCTION POTENTIAL (ORP) - pH SKETCH
(ppm)

INDICE

1.0 -NORMAS GENERALES pag. 2

Technical line drawing of a mechanical device with pipes and housing (no text or symbols)

Fig. 5

Fig. 6

Four-step diagram showing a mechanical device with a lever mechanism, no text or symbols present

Fig. 7

A N D C M G T

Fig. 9

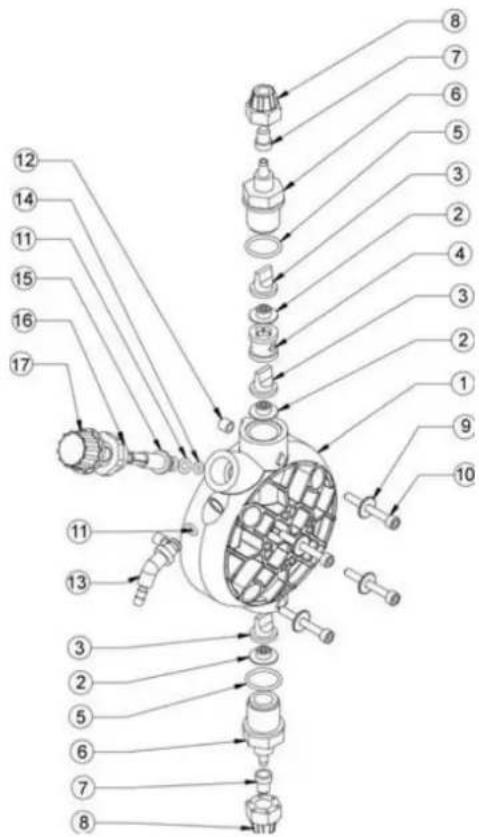

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

Fig. 11

MAN VFT/MBB 100 N 100% FLOW F START STOP ASTRALPOOL

Fig. 18

9.0 - BOMBA DOSIFICADORA CON MICROCONTROLADOR SERIE EXACTUS VFT/MBB

Please read the warning notices given in this section very carefully, because they provide important information regarding safety in installation, use and maintenance of the pump.

• Keep this manual in a safe place, so that it will always be available for further consultation.
• The pump complies with EEC directives No.89/336 regarding "electromagnetic compatibility" and No.73/23 regarding "low voltages", as also the subsequent modification No.93/68.

N.B. The pump has been constructed in accordance with best practice. Both its life and it electrical and mechanical reliability will be enhanced if it is correctly used and subjected to regular maintenance.

1.1 - WARNING:

Any intervention or repair to the internal parts of the pump must be carried out by qualified and authorized personnel. The manufacturers decline all responsibility for the consequences of failure to respect this rule.

GUARANTEE: 2 years (the normal wearing parts are excluded, i.e.: valves, nipples, tube nuts, tubing, filter and injection valve). Improper use of the equipment invalidates the above guarantee. The guarantee is exfactory or authorized distributors.

1.2 - SHIPPING AND TRANSPORTING THE PUMP

The pump should always be moved in a vertical (and never in a horizontal) position. No matter what the means of transport employed, delivery of the pump, even when free to the purchaser's or the addressee's domicile, is always at the purchaser's risk. Claims for any missing materials must be made within 10 (ten) days of arrival, while claims for defective materials will be considered up to the 30th (thirtieth) day following receipt. Return of pumps or other materials to us or the authorized distributor must be agreed beforehand with the responsible personnel.

1.3 - PROPER USE OF THE PUMP

• The pump should be used only for the purpose for which it has been expressly designed, namely the dosing of liquid additives. Any different use is to be considered improper and therefore dangerous. The pump should not therefore be used for applications that were not allowed for in its design. In case of doubt, please contact our offices for further information about the characteristics of the pump and its proper use.
  The manufactures cannot be held responsible for damage deriving from improper, erroneous or unreasonable use of the pump.

1.4 - RISKS

• After unpacking the pump, make sure it is completely sound. In case of doubt, do not use the pump and contact qualified personnel. The packing materials (especially bags made of plastics, polystyrene, etc.) should be kept out of the reach of children: they constitute potential sources of danger.
• Before you connect the pump, make sure that the voltage ratings, etc., correspond to your particular power supply. You will find these values on the rating plate attached to the pump.
• The electrical installation to which the pump is connected must comply with the standards and good practice rule in force in the country under consideration.
• Use of electrical equipment always implies observance of some basic rules: In particular:

1 - do not touch the equipment with wet or damp hands or feet;

2 - do not operate the pump with bare feet (Example: swimming pool equipment);

3 - do not leave the equipment exposed to the action of the atmospheric agents;

4 - do not allow the pump to be used by children or unskilled individuals without supervision;

- In case of breakdown or improper functioning of the pump, switch off, but do not touch. Contact our technical assistance for any necessary repairs and insist on the use of original spares. Failure to respect this condition could render the pump unsafe for use.

- When you decide to make no further use of an installed pump, make sure to disconnect it from the power supply.

Before carrying out any service on the item, check:

1. Disconnect the pins from the mains or by means of a two poles switch with 3 mm minimum distance between the contacts. (Fig. 4).

2. Relieve all the pressure from the pump head and injection tube.

3. Drain or flush all dosing liquid from the pump head. This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the tubing to the nipples: if this operation is not possible, dismount and remount the pump head using the four mounting screws.

In event of possible losses in the hydraulic system of the pump (breakage of the "0" ring gasket, the valves or the hoses) the pump should immediately be brought to a stop, emptying and depressurizing the delivery hose while taking all due safety precautions (gloves, goggles, overalls, etc.).

1.5 - TOXIC AND/OR DANGEROUS LIQUID DOSAGE

To avoid risk from contact with the hazardous liquids or toxic fumes, always adhere to the notes in this instruction manual:

• Follow the instructions of the dosing liquid manufacturer.
• Check the hydraulic part of the pump and use it only if it is in perfect condition.
• Use only the correct materials for the tubing, valves and seals to suit the liquid to be dosed; where possible shield the tubing with PVC conduit.
• Before disconnecting the metering pump, make sure to flush out and neutralize the pump head with the proper reagent liquid.

1.6 - ASSEMBLING AND DISMANTLING THE PUMP

1.6.1 - ASSEMBLY

All metering pumps are normally supplied fully assembled. For greater clarity, please consult the exploded view of the pump appended at the end of the manual, which shows all the pump details and a complete overview of all the pump components. These drawings are in any case quite indispensable whenever defective parts have to be re-ordered. For the same purpose, the appendix also contains other drawings showing the hydraulic parts (pump head and valves).

1.6.2 - DISMANTLEMENT

Proceed as follows before you dismantle the pump or before performing any other operation on it:

1. Disconnect the pins from the mains or by means of atwo poles switch with 3 mm minimum distance between the contacts. (Fig. 4).
2. Relieve all the pressure from the pump head and injection tube.
3. Drain or flush all dosing liquid from the pump head. This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the tubing to the nipples: if this operation is not possible, dismount and remount the pump head using the four mounting screws. (Fig. 11).

This operation calls for special attention, and you should therefore consult the drawings in Appendix and Chapter 1.4 "RISKS" before you commence work.

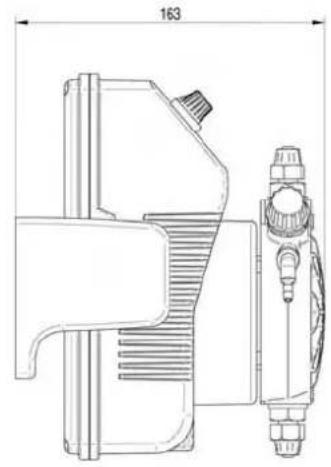

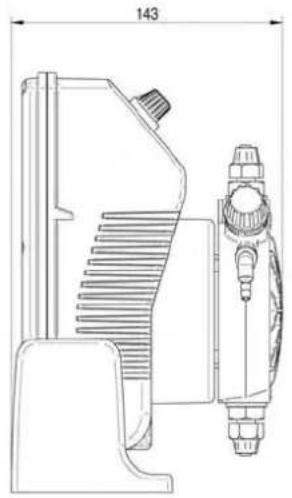

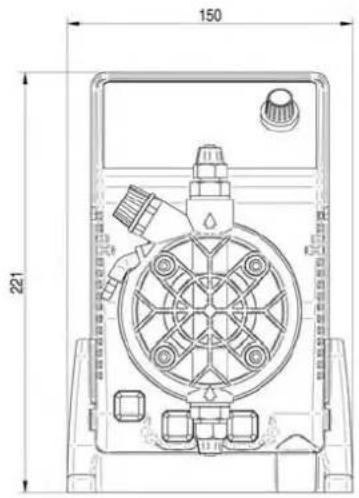

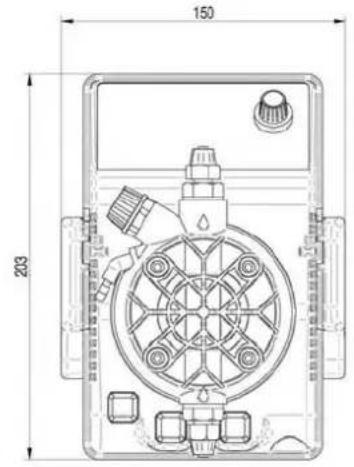

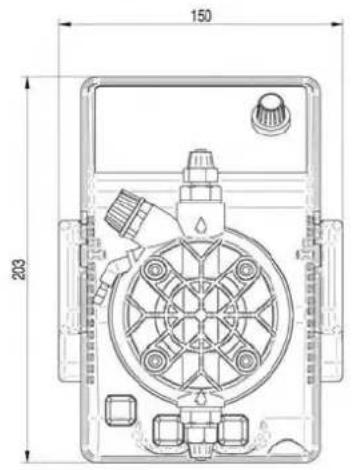

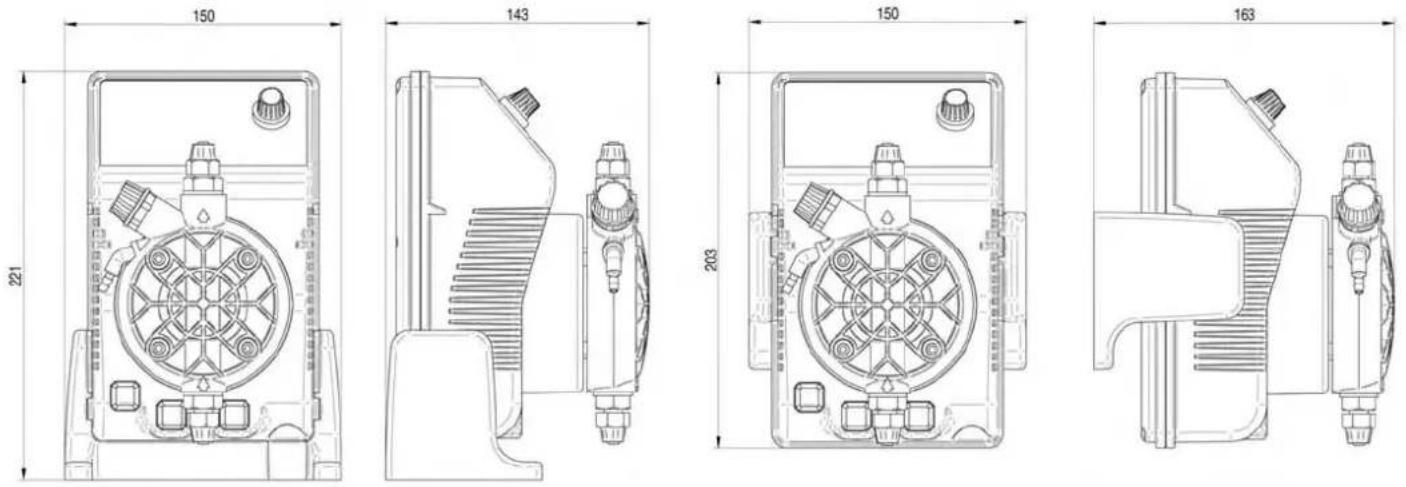

OVERALL DIMENSIONS (Fig. 1)

2.0 - EXACTUS SERIES METERING PUMPS

2.1 - OPERATION

The metering pump is activated by a teflon® diaphragm mounted on a piston of an electromagnet.

When the piston of the electromagnet is attracted, a pressure is produced in the pump body with an expulsion of liquid from the discharge valve. Once the electric impulse is finished a spring brings the piston back to the initial position, with a recall of liquid through the suction valve.

The operation is simple the pump does not need lubrication, therefore maintenance is reduced almost to zero. The materials used for the construction of the pump make it particularly suitable for aggressive liquids.

The metering pump has been designed to feed liquids with capacities from 0 to 20 l/h and pressures from 0 to 10 bar (depending on the model selected).

2.2 - COMMON FEATURES

• The products are manufactured according (€) regulation.
• IP 65 protection.
• Antiacid plastic casing.
• Control panel protection assured by an adhesive polyester film, weatherproof and resisting UV rays
• Standard powersupply:

230 Va.c.50 Hz single phase.

• Optional power supply:

240 Va.c.50-60 Hz single phase;

110 Va.c. 50-60 Hz single phase.

UPON REQUEST:

- Level control setting included (supplied without probe).

2.3 - LIQUID ENDS MATERIALS

DIAPHRAGM: PTFE

PUMP HEAD: Polypropylene; upon request: PVC, 316 Stainless, PTFE

NIPPLES: polypropylene

FILTER: polypropylene

INJECTION NIPPLE: polypropylene

SUCTION HOSE: PVC - flexible

DISCHARGE HOSE: polyethylene

VALVES "lip" type: FPM (viton®), (upon request available in EPDM (Dutral®), NBR, Silycon). "Ball Check" VALVES

upon request type in SS316 and Glass PYREX. Available with Spring Return and "KALRETZ"Valve.

SEALS: FPM upon request EPDM, NBR, Silycon, PTFE only for ball checks valves

MAIN FEATURES

Tipo Type	Portata max Max flow	Press. max Max press	Max imp./min. Max imp./min.	Dosaggio per imp. Output per stroke	Corsa Stroke	Altez. aspiraz. Suction height	Aliment. elettr. standard Standard power supply	Potenza ass. Power cons.	Correnteass. Current cons.	Peso netto Net weight
	l/h	bar		ml	mm	m	Volts/Hz	Watts	Ampere	kg
2-5	2	5	120	0,28	0,80	2	230 V 50-60 Hz	37	0,16	2,7
2-10	2	10	120	0,28	1,20	2	230 V 50-60 Hz	37	0,16	2,7
4-5	4	5	120	0,56	1,00	2	230 V 50-60 Hz	37	0,16	2,7
5-7	5	7	120	0,70	1,40	2	230 V 50-60 Hz	37	0,16	2,7
5-10	5	10	120	0,70	1,80	2	230 V 50-60 Hz	58	0,25	3,2
10-5	10	5	120	1,40	1,10	2	230 V 50-60 Hz	58	0,25	3,2
10-10	10	10	120	1,40	2,20	2	230 V 50-60 Hz	82	0,36	4,1
20-5	20	5	120	2,80	2,00	2	230 V 50-60 Hz	82	0,36	4,1

Fig. 2

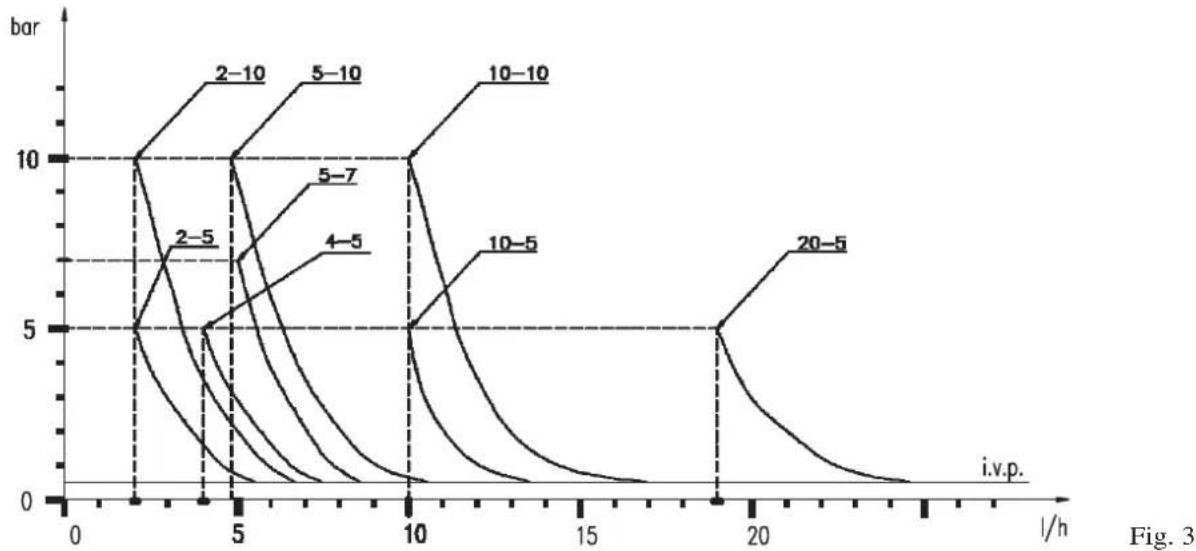

The diagrams of fig. 3 indicate max metering pump flow variation in relation to the working pressure in the plant; the diagrams also include injection valve losses. I.V.P.

Due to production requirements the technical characteristics of our equipment at maximum ratings can vary with a tolerance of 5% which must be taken into account when choosing the type of pump.

a. - Install the pump in a dry place and well away from sources of heat and, in any case, at environmental temperatures not exceeding 40^ C. The minimum operating temperature depends on the liquid to be pumped, bearing in mind that it must always remain in a liquid state.
b. - Carefully observe the regulations in force in the various countries as regards electrical installations (Fig.4). When the supply cable is devoid of a plug, the equipment should be connected to the supply mains by means of a single-pole circuit breaker having a minimum distance of 3 mm between the contacts. Before accessing any of the electrical parts, make sure that all the supply circuits are open.

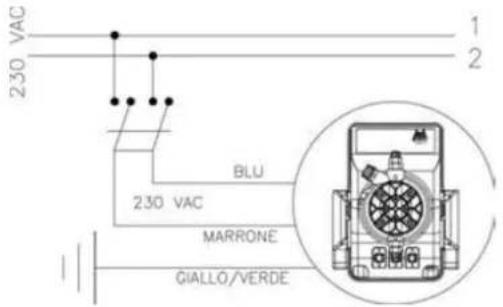

230 VAC 1 2 230 VAC BLU MARRONE GIALLO/VERDE

Fig. 4

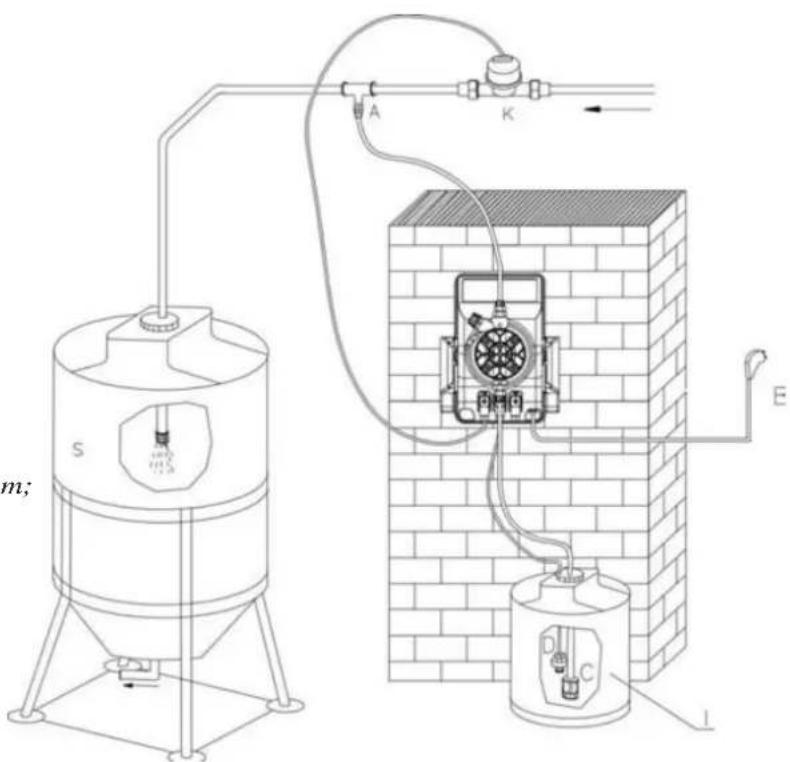

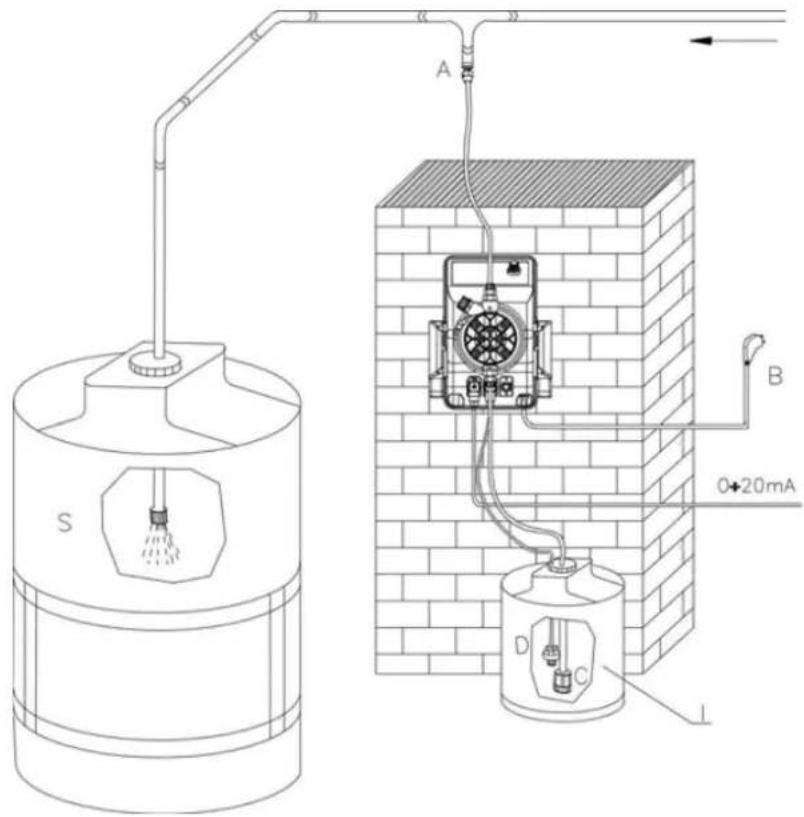

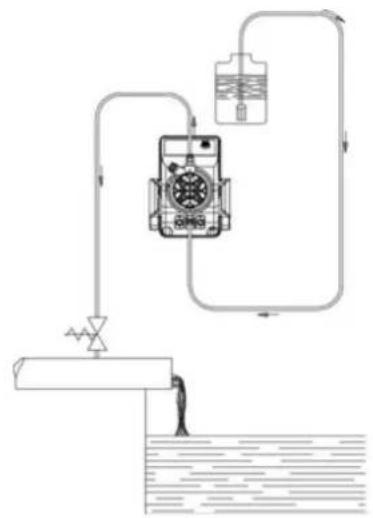

c.- Locate the pump as shown in fig. 5 bearing in mind that it may be installed either below or above the level of the liquid to be dosed, though the level difference should not exceed 2 meters. When the process plant in which the pump is installed is operating at atmospheric pressure (no back pressure) and the chemical tank is situated above the plant (Fig. 6), the condition of the injection valve should be checked at regular intervals, because excessive wear and tear could cause additive to drip into the plant even when the pump is shut down. If the problem persist, install a properly calibrate counter-pressure valve (C) between injection point and the valve. In the case of liquids that generate aggressive vapours, do not install the pump above the storage tank unless the latter is hermetically sealed.

Technical line drawing of a mechanical device with tubing and a water tank (no text or symbols)

Fig. 5


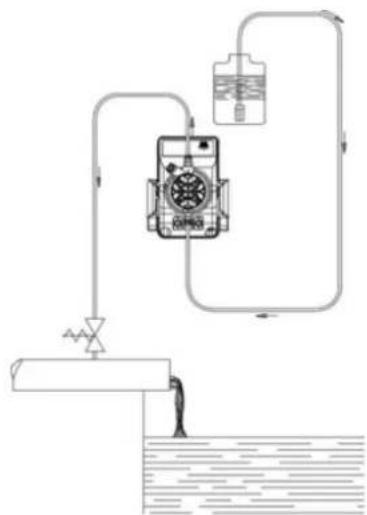

Fig. 6

d.- The discharge nipple will always remain in the upper part of the pump. The suction nipple, which serves to attach the hose (with filter) leading into the chemical tank, will therefore always be situated in the lower part of the pump.

Four-step diagram showing a mechanical device with a lever and handle, no text or symbols present

Fig. 7

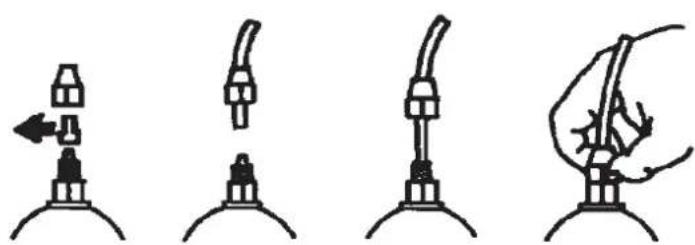

e.- Remove the protection caps from the two nipples, slide the hoses over the connectors, pushing them right home, and then fix them with appropriate tube nuts. (Fig. 7).

B

B

B

Fig. 8

Whenever the pump is dismantled from the pipework, you will be well advised to replace the caps on the connectors to avoid residual liquid being spilled. Before attaching the delivery hose to the plant, prime the metering pump by going through the sequence shown in Fig. 8. Before finalizing the installation of the discharge hose, make sure that the pump strokes will not cause it to move and bump into rigid bodies. In case of priming difficulties, use a normal syringe to suck liquid from the discharge nipple while the pump is in operation, continuing until you actually see the liquid rise in the syringe. Use a short length of suction hose to connect the syringe to the discharge nipple. In case of a pump equipped with an air bleed valve, unscrew the air relief valve B up to all the air in the pump head will be out.

f. - Try to keep both the suction and discharge hose as straight as possible, avoiding all unnecessary bends.
g. - Select the most appropriate injection point on a pipe of the plant to be treated and there fit a 3/8" female steel gas thread connector (similar to BSPm). This connector is not supplied with the pump. Screw the injection valve to the gas connector, inserting a gasket as shown in Fig. 9. Then connect the discharge hose to the conical connector on the injection valve and fix it with the supplied tube nut G. The injection valve also acts as no return valve by means of a cylinder sleeve (elastomer, standard supplied in Viton®).

N.B. The sleeve D must not be removed.

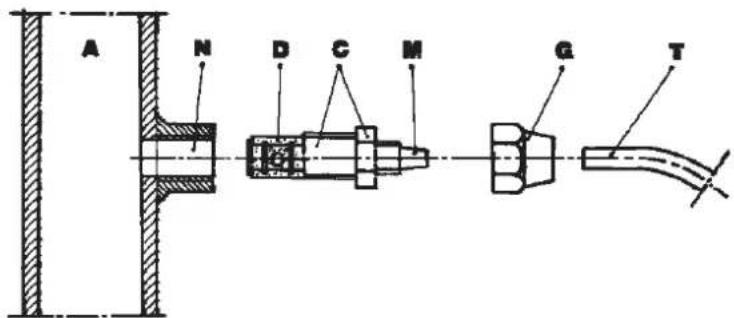

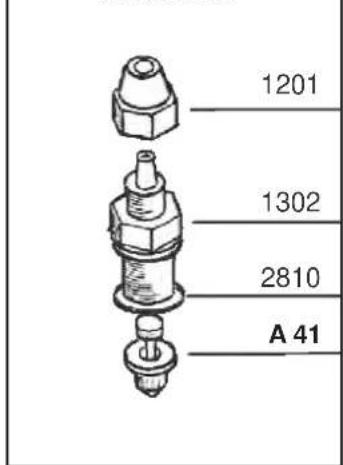

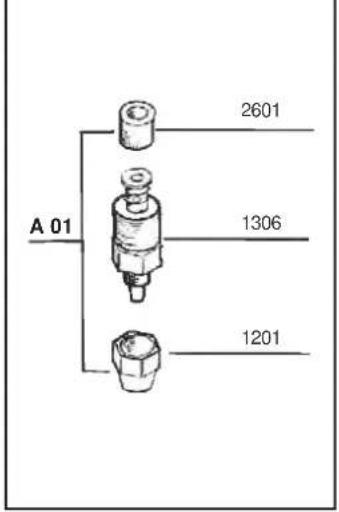

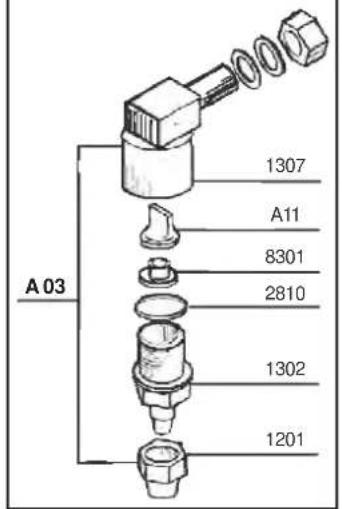

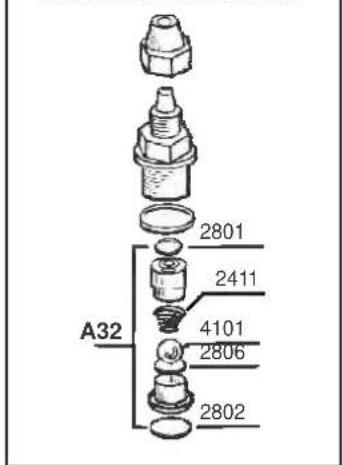

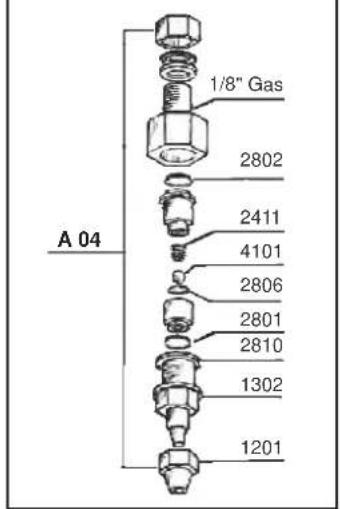

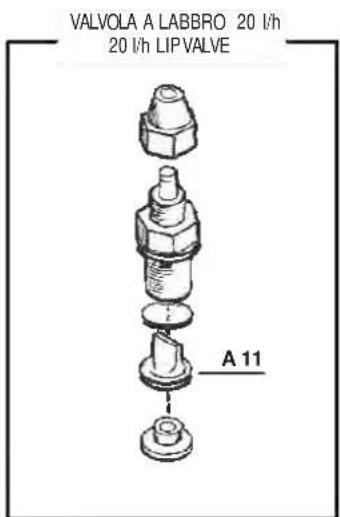

3.1 - INJECTION VALVE INSTALLATION DIAGRAM Fig. 9

A - Pipework
C- Injection valve
M - Conical connector for attaching the discharge hose
N - 3/8" female steel gas thread connector
G - Hose tube nut
T - Polyethylene hose
D - Cylinder sleeve (no return valve)

A N D C M G T

Fig. 9

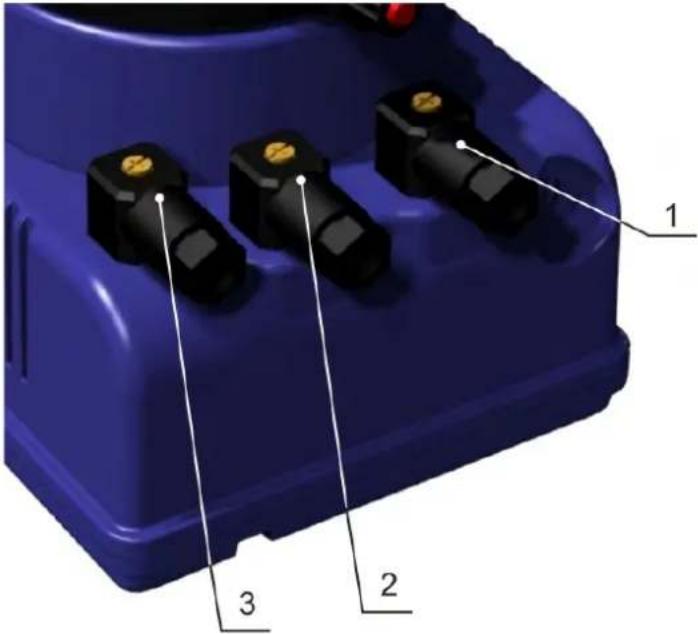

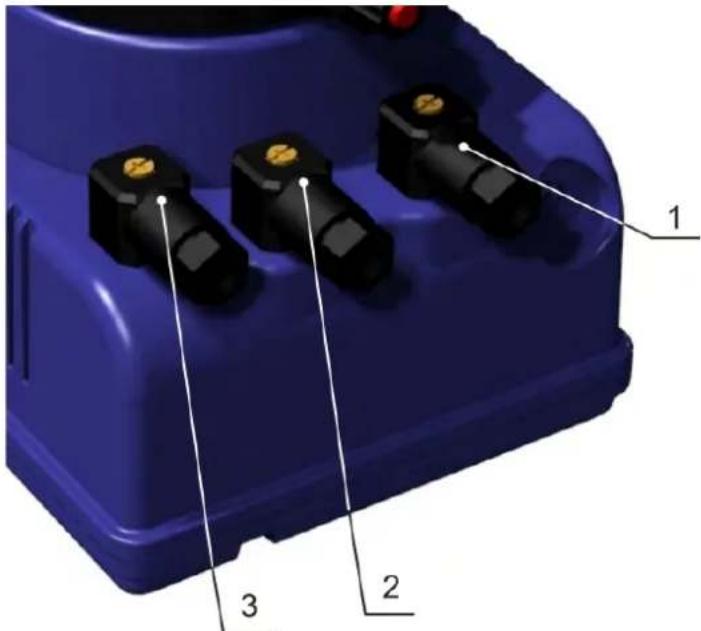

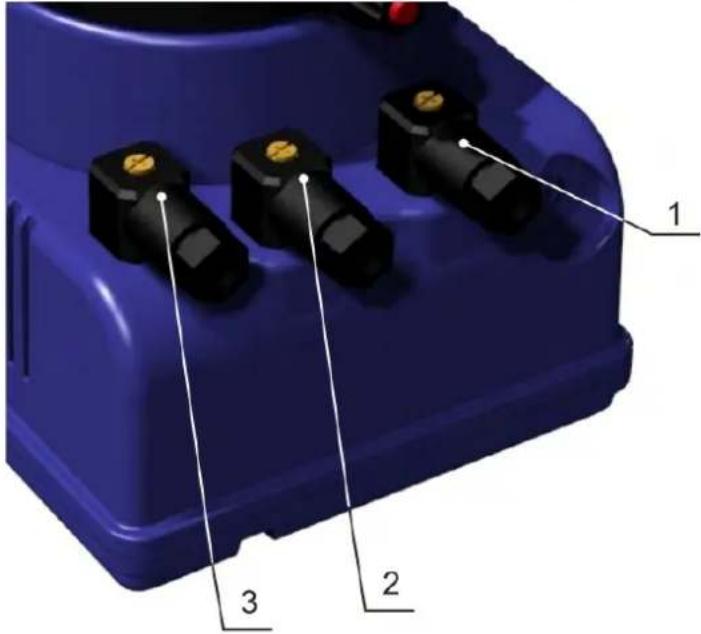

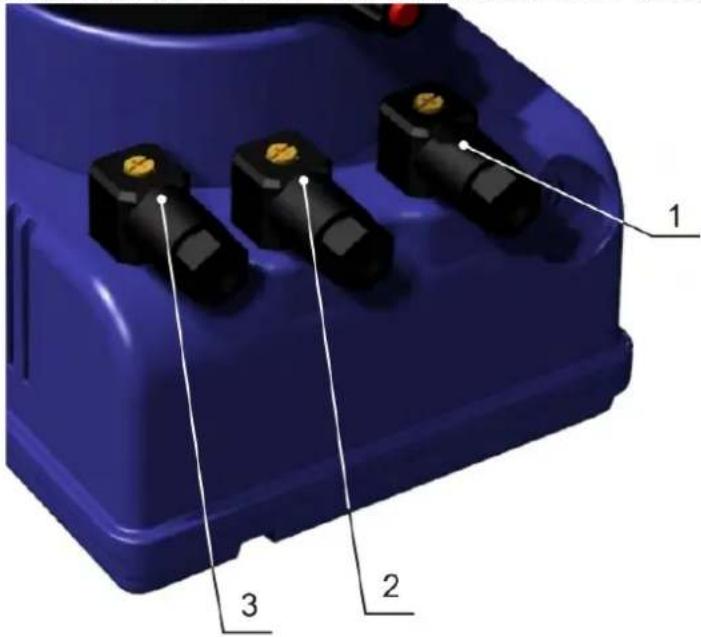

3.2 - WIRING CONNECTION AND OUTPUT CONNECTOR FUNCTIONS

1 2 3

Fig. 10

Model	Female service connector wire assembly		Functions and technical informations
VFT/MBB		POS. 1	Relay service output connectionConfiguration:Pin 1 = Normally Open“ 2 = No connection“ 3 = Common = = No connection
MA/ADL MA/MB CC/M VFT/MBB	[IMAGE]	To level probePOS. 2	Level probeconnectionConfiguration:Pin 1 = No connection“ 2 = No connection“ 3 = Level probe wire“ 4 = Level probe wire
CC/M	.. | .	Input mA signalPOS. 3	Input mA signal configuration:Pin 1 = No connection“ 2 = No connection“ 3 = (+) mA signal wire“ 4 = (-) mA signal wire
VFT/MBB	[IMAGE]	To pulse emitting water meterPOS. 3	Pulse emitting Water Meter connectionConfiguration:Pin 1 = No connection“ 2 = No connection“ 3 = Water meter signal wire (+)“ 4 = Water meter signal wire (-)

1. Periodically check the chemical tank level to avoid the pump operating without liquid. This would not damage the pump, but may damage the process plant due to lack of chemicals.
2. Check the pump operating condition at least every 6 months, pump head position, screws, bolts and seals; check more frequently where aggressive chemicals are pumped, especially:
3. pulse and power L.E.D.;
4. the additive concentration in the pipework; a reduction of this concentration could be caused by the wearing of the valves, in which case they need to be replaced (Fig. 11) or by the clogging of the filter which then has to be cleaned as in point 3 here below.

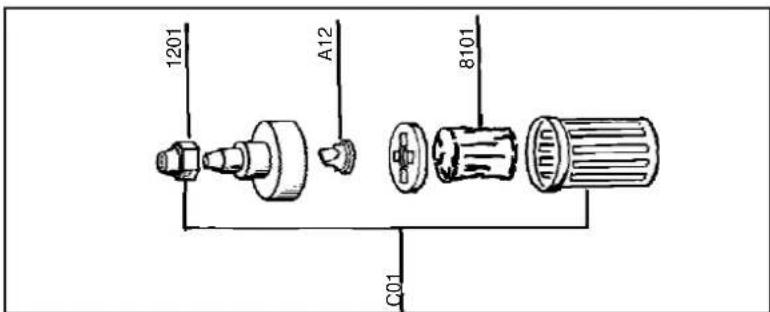

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

Fig. 11

1. The Company suggests periodically cleaning off the hydraulic parts (valves and filter). We cannot say how often this cleaning should be done as it depends on the type of application, we also cannot suggest what cleaning agent to use as this will depend on the additive used.

Operating suggestions when dosing sodium hypochlorite (most frequent case):

a - disconnect the pins from the mains or by means of a onnipolar switch with 3 mm minimum distance between the contact.
b - disconnect discharge hose from pipework;
c - remove the suction hose (with filter) from the tank and dip it into clean water;
d- switch on the metering pump and let it operate with water for 5 to 10 minutes;
e - switch OFF the pump, dip the filter into a hydrochloric acid solution and wait until the acid finishes cleaning;
f- switch ON the pump again and operate it with hydrochloric acid for 5 minutes in a closed-circuit, with suction and discharge hose dipped into the same tank;
g- repeat the operation with water;
h - re-connect the metering pump to the pipework.

5.0 - HOW TO OPERATE WHEN DOSING SULPHURIC ACID (MAX 50%)

In this case it is essential to bear in mind the following:

1. replace PVC crystal suction hose with polyethilene discharge hose;

2. empty any residual water from the pump head beforehand.

Warning: if the water mixes with sulphuric acid it can produce a large quantity of gas with consequent overheating of the area causing damage to valves and pump head.

This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the hose to the nipples; if impossible, dismount and remount the pump head (Fig. 11) using the four mounting screws.

EXACTUS MA/AD

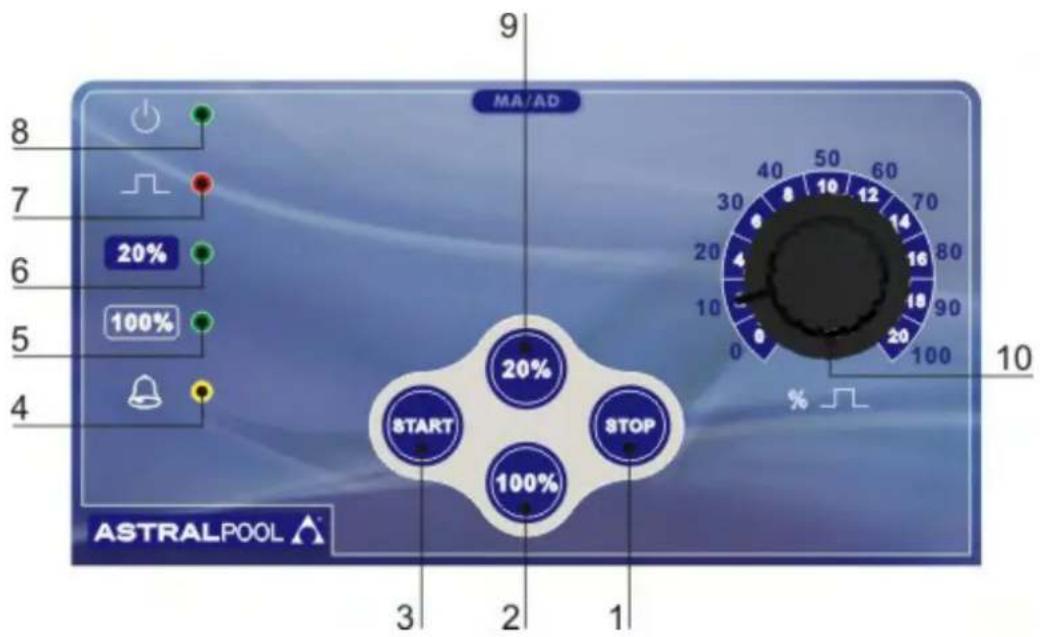

MA/AD 8 7 6 5 4 3 2 1 9 10 ASTRALPOOL

Fig. 12

6.0 - MANUALLY OPERATED METERING PUMP EXACTUS MA/AD SERIES

Flow can be controlled manually by setting the pump pulse rate by means of a potentiometer. Possibility of a more precise flow rate setting at low frequencies through the two keys 20% and 100%.

6.1 - PUMP CONTROLS (Fig.12)

1 - Switch off button "STOP"
2 - 100% flow scale read out button
3 - Switch on button "START"
4 - Level alarm LED "yellow" (only for EXACTUS with level alarm, MA/ADL SERIES)
5 - 100% flow scale read out LED "green"
6 - 20% flow scale read out LED "green"
7 - Pulse LED "red"
8 - Power LED "green"
9 - 20% flow scale read out button
10 - Adjustment knob of Injections/min numbers (0÷100% max flow)

6.2 - TYPICAL INSTALLATION (Fig.13)

A Injection valve

B Power supply

C Filter

I Chemical tank

S Process tank

6.3 - ACCESSORIES

• 1 flexible PVC suction hose,
transparent crystal type, length 2 m;
• 1 semirigid polyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
- 1 filter;
• 1 instructions/operating booklet.

% max flow) A B C S

Fig. 13

EXACTUS MA/MB

MA/MB 100 % START STOP ASTRALPOOL

Fig. 14

7.0 - MICROCONTROLLED DOSING PUMPS EXACTUS MA/MB SERIES

Manual flow rate adjustment by means 2 buttons (LEFT (3) - RIGHT (1)) shown in figure 14.

Operative range 1-100% flow rate.

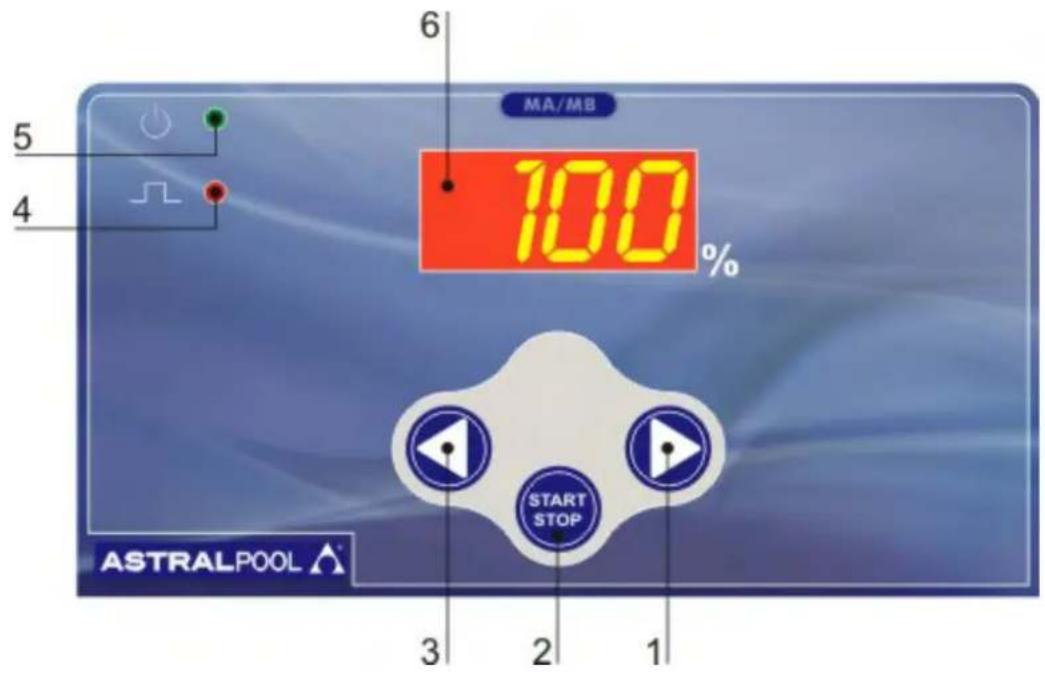

7.1 - PUMP CONTROLS (Fig. 14)

1 - Increasing values button
2 - ON/STAND BY button
3 - Decreasing values button
4 - "red" LED injection pulse flashing
5 - "green/red" LED pump fed/stand by - level probe alarm
6 - 7 segment display

7.2 - TYPICAL INSTALLATION (Fig.15)

A Injection valve

B Power supply

C Filter

S Process tank

I Chemical tank

7.3 - ACCESSORIES

• 1 flexible PVC suction hose,
transparent crystal type, length 2m;
• 1 semirigid polyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
- 1 filter;
• 1 instructions/operating booklet.

Technical diagram of a gas stove installation with labeled components and piping connections

Fig. 15

EXACTUS CC/M

CC/M 100 8 7 6 mA METER ENTER 12 13 14 ma + - F SET 1/STOP SET 2/STOP MANUAL 5 4 3 2 1 ASTRALPOOL

Fig. 16

8.0 - MICROCONTROLLED DOSING PUMPS EXACTUS CC/M SERIES

The EXACTUS CC dosing pump is a microcontroller unit suitable for operation in proportion to a "mA" input signal. Connected to a transmitter/indicator instrument or other device which supplies a modulated current signal from 0 to 20 mA, the pump pulse frequency will be proportional to the mA signal received: higher the signal higher the pump flow.

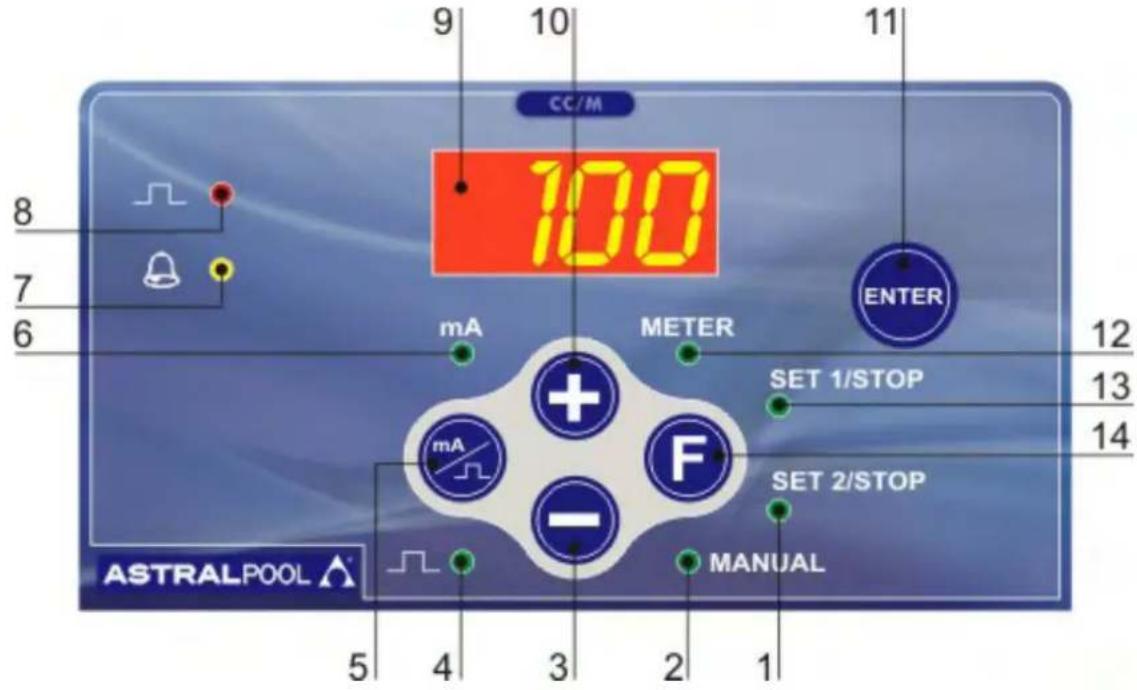

8.1 - PUMP CONTROLS (Fig. 16)

1 - "green" LED SET POINT2 function/stand by

2 - "green" LED MANUAL function

3 - Decreasing values button

4 - "green" LED stroke

5 - "Functions selector (mA/manual pulse)

6 - "green" LED mA

7 - "yellow" LED level probe alarm

8 - "red" LED injection pulse flashing

9 - 7 segment display

10 - Increasing values button

11 - Enter button

12 - "green" LED METER function

13 - "green" LED SET POINT1 function/stand by

14 - Function selection button

8.2 - TYPICAL INSTALLATION (Fig.17)

A Injection valve

B Power supply

C Filter

D Level probe

I Chemical tank

S Process tank

8.3 - ACCESSORIES

• 1 flexible PVC suction hose,
transparent crystal type, length 2 m;
• 1 semirigid polyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
- I filter;
• 1 instructions/operating booklet.

S A B 0→20mA D C I

Fig. 17

8.4 - LEVEL CONTROL (UPON REQUEST)

If the dosing pump is supplied with level control setting and upon request floating level switch. When the level of the additive is lower than the switch, level alarm goes ON, the display will show "FAO", the pump is off giving an optical and soundalarm. The level control alarm goes ON with 5 seconds delay.

8.5 - CALIBRATION

Turning on the pump, the instrument switches automatically to the "METER" function.

Pressing button mA pulse (5) will show the actual mA input signal. To go back to strokes/min press again. The manual function is also used when priming the pump. In order to avoid programming and setting errors during the system functioning, the pump is programmed to automatically return to the Meter Mode each time the unit is switched OFF.

8.6 - PARAMETERS SETTING MODE (Fig. 16)

- “Manual” Mode

Turn pump ON

A. On the control panel press button F (14) and start manual mode: ("Manual" LED 2 ON)
B. By means of button 10 (increase) and 3 (decrease), select the number of imp/min. To prime the pump set pulse rate at 75%.
C. Prime the pump.

- “Set 1” Mode

Mode Set 1 is used to select the mA input value/min. dosing pump flow and pulse frequency.

A. Press button 14; Set 1, LED ON. The display will show the pulse frequency previously set.
B. Select the minimum pump output required pressing buttons 3 and 10. If the minimum output is zero set 000.
C. Press button 5 "mA" LED ON:
D. By pressing buttons 3 and 10, you can select the mA input value corresponding to minimum pump output required. Confirm with enter 11. To finish the programming procedure and modify the maximum output value, press button 14 which will automatically change to mode Set 2.

- "Set 2" Mode

Mode Set 2 selects the mA input value/max. dosing pump flow and pulse/frequency.

A. Press button 14 Set 2 LED ON, the display will show the frequency previously set.
B. Press buttons 3 and 10 to set the desired imp/frequency at the maximum pump output required.
C. Press button 5 "mA/pulse", the display will show the value previously set.
D. Pressing 3 and 10 select the mA input value at the maximum pump output required.
E. Press button 11 to enter. The pump will automatically return to “METER” mode and is operational according to the selected functioning mode; two modes are available: direct/reverse.

- Direct Functioning Mode

During production the pumps are programmed for a 4-20 mA direct functioning curve. The pump will start every time the mA signal goes above 4 mA increasing the pulse frequency (and consequently the flow) proportionally to the mA input signal up to maximum imp/min frequency available. E.G. Set 1 minimum signal 4 mA, minimum output. Set 2 maximum signal 20 mA, maximum output.

- Reverse Functioning Mode

Reverse functioning is when the mA signal increases and pump output proportionally decreases. Select the maximum mA signal required with mode Set 1 (in relation to the min. output).

E.G. Set 1 maximum signal 20 mA, minimum output.

Set 2 minimum signal 4 mA, maximum output.

WARNING: Reverse functioning can only be selected when mode Set 1 is always higher than the mA signal.

Example n°1: PUMP MODEL EXACTUS-CC, 10 L/H, 5 BAR, SIGNAL 4-20 mA.

Signal 4 mA = 0 l/h (0% pump flow rate)

Signal 12 mA = 5 l/h (50% pump flow rate)

Signal 20 mA = 10 l/h (100% pump flow rate)

Example n° 2: SAME MODEL, BUT WITH INVERSE SIGNAL: 20 - 4 mA

Signal 4 mA = 10 l/h (100% pump flow rate)

Signal 12 mA = 5 l/h (50% pump flow rate)

Signal 20 mA = 0 l/h (0% pump flow rate

EXACTUS VFT/MBB

VFT/MBB 100 N 100% FLOW F START STOP ASTRALPOOL

Fig. 18

9.0 - MICROCONTROLLED DOSING PUMPS EXACTUS VFT/MBB SERIES

The pump is equipped with a modern microcontroller allowing design of a extremely compact and reliable electronic device.

9.1 - PUMP CONTROLS (Fig. 18)

1 - Increasing values button
2 - ON/STAND BY button
3 - Decreasing values button
4 - "green" LED 1:N function
5 - "green" LED IXN (M) function/water meter
6 - "green" LED 1XN function/ manual mode
7 - "red" LED injection pulse flashing
8 - "green/red" LED pump fed/stand by
9 - 7 segment display
10 - function selection button

9.2 - TYPICAL INSTALLATION (Fig.19)

A Injection valve

B Power supply

C Filter

D Level probe

I Chemical tank

K Pulse emitting water meter

S Process tank

9.3 - ACCESSORIES

• 1 flexible PVC suction hose, transparent crystal type, length 2 m;
  • 1 semirigid polyethylene hose, white, length 2 m;
  • 1 injection valve 3/8 BSP m;
• 1 filter;
  • 1 instructions/operating booklet.

9.4 - LEVEL CONTROL

The dosing pump is supplied with level control setting. When the chemical tank is empty, on display (9) it appears R1 and the pump goes in stand by. The level control has 5 seconds of delay.

m; S A K E D C I

Fig. 19

205 VFT/MBB FEATURE DESCRIPTION

Utilising the "F" function button enables simple selection of one of the below modes. When the LED is energized and

flashing next to the mode required, the operator must adjust the value "N" using the arrows. Setting is confirmed by pressing the START/STOP button.

MANUAL Mode

Unit runs at flow rate set on "N" - adjustable 10-100%

1XN Mode

Let's see how the pumps works with an example:

- Pump set in water meter 1XN mode

- Set value on "20"

- At the time the water meter gives a pulse to the pump, it starts its 20 dosing injection strokes, if during this phase further shuts of the contact occur, these are neglected. Ended up the 20 injections, the pump is waiting for further pulses from the water meter to restart the dosing cycle.

1XN(M) Mode

The pump is operated by an impulse produced by an external device (e.g. pulse emitting water meter) and it supplies a number of injections equal to the value visualized on the display "N" (set by the operator). The injections are distributed with a variable frequency that depends by the time passed between a water meter pulse (produced by water meter) and the other.

Possible impulses (contacts) that may arrive to the pump while is already dosing are saved in the memory of the microcontroller, these will be delivered after the first batch is dosed.

Let's see how the pump works with an example:

The pump receives the first contact and returns a string "N" injections to the maximum frequency (e.g. 120 imps./min).

To the arrival of the second contact, the pump computes the time "T" spent by the arrival of the first one and it returns a string of "N" injections not more to the maximum frequency but to that it allows to uniformly distribute them in the time "T".

In case such time reduces, the pump keeps into consideration the injections "N1" which have not been delivered and add them to the "N" ones still not delivered. There are no problems if the time occurred between the contacts should length. If instead quick contacts occurs and it goes to condition N1>4 times N, the pump goes in alarm (on the display AL3 is visualized) but continues working and maintaining all the parameters set before by the operator but not dosing the strokes related to the last water meter pulses "N".

1:N Mode

The pump supplies an injection of chemical only when it has reached a number of pulses (contacts), equal to the value visualized on the display (set by the operator)

Let's see how it works with an example:

- Pump set with water meter 1:N

- Set value on "20"

- While the water meter supplies 20 pulses the pump discharge 1 stroke.

PRIMING (100% flow)

is possible in all meter modes by pressing and holding simultaneously.

980 INPUT/OUTPUT EXTERNAL CONNECTIONS (FOR EXTERNAL ACCESSORY)

As shows on paragraph 3.2 the three connectors are used for connecting the accessories.

Namely the accessories are:

• Level control switch;
• Water meter input (Reed switch type);
• Output service relay

It is very important to disconnect the power from the pump when connecting the accessories. It is also very important to protect the unutilized connectors with male connectors supplied with the pump.

Such operation will protect the internal circuitry from unwanted shorts and/or the power surge either from the operator or from different sources. There will be no accessible contacts after installation is completed.

It is imperative that the accessories will be supplied by the factory to avoid unwanted mismatched situations and/or furthed possible damage (wich in this case will be no covered by the warranty).

Further more cables and accessories must be idoneus and rated for the proper voltage and type of insulation.

SUMMARY OF TYPE OF CONNECTIONS

1. INPUT LEVEL SWITCH: as shown on paragraph 3.2 the pins #3-4 from position 2 are dedicated to the operation of the level sensor. Such operation is activated by a float containing one magnet if the liquid is below the position or completely absent the flow will slide down activating a reed switch. On the display "AL1" is visualized.
2. INPUT FROM WATER METER: our pump (pins #3-4 from position 3) can be connected to a water meter generating reed switch signal proportional to a certain quantity of water passing through out. It must be clear that such signal are only of ohmic nature and they do not carrying any power.
   Connecting to the pump a different type of water meter generating any voltage will irrevocably damage the pump thus avoiding any warranty.
3. OUTPUT SERVICE RELAY: such relay utilize the pins #1-3 (connector #1 paragraph 3.3) which are activated in case of alarm status.

10.1 - MECHANICAL FAULTS

As the system is quite robust there are no apparent mechanical problems. Occasionally there might be a loss of liquid from the nipple because the tube nut has loosened, or more simply the discharge tubing-has broken.

Very rarely there may be losses caused by the breakage of the membrane, or by the membrane seals in which case they have to be replaced by disassembling the four screws of the pump head fig. 12), when remounting the pump head ensure that the screws are replaced properly, along with "O" ring.

After repair, the metering pump will need to be cleaned of additive residues which can damage the pump casing.

① - THE METERING PUMP GIVES PULSES BUT THE ADDITIVE IS NOT INJECTED

a. Dismount the suction and discharge valves, clean them and replace, see position (fig. 12). Should the valves be swollen, check valves material against our chemical resistance compatibility chart and fit correct valves. Standard valves are Viton. Upon request Silicon, EPDM (Dutral), Nitryl and valves, ball check valve, K valve can be supplied.

b. Check clogging of the filter.

ATTENTION: When removing the metering pump from the plant, be careful as there might be some residual additive in the discharge hose.

10.2 - ELECTRICAL FAULTS

① ALL LEDS OFF, THE PUMP DOES NOT PULSE

Check power supply (socket, plug, power switch ON), if the pump doesn't work contact manufacturer Customer Service, Dealer or Distributor.

② GREEN LED (POWER) ON, RED LED (PULSE) OFF, THE PUMP DOES NOT PULSE

Press the START button. If the pump doesn't work contact manufacturer Customer Service, Dealer or Distributor

③ PUMP PULSES ARE NOT CONSTANT

Check that supply voltage is within +/- 10% of rated voltage.

④ THE DOSING PUMP GIVES ONLY ONE PULSE

Disconnect the equipment and contact manufacturer Customer Service, Dealer or Distributor.

INDICE

1.0 - NORME GENERALI 38

Technical line drawing of a mechanical device with tubing and a container (no text or symbols)

Fig. 5

Fig. 6

Four-step diagram showing a mechanical device with a lever mechanism, no text or symbols present

Fig. 7

A N D C M G T

Fig. 9

3.2 - CABLAGGI E FUNZIONI DEI CONNETTORI USCITA

1 2 3

Fig. 10

Exploded view diagram of a mechanical assembly with internal components (no text or labels)

Fig. 11

VFT/MBB 100 N 100% FLOW F START STOP ASTRALPOOL

Fig. 18

9.0 - POMPA DOSATRICE A MICROCONTROLLORE SERIE EXACTUS VFT/MBB

Technical diagram of a gas or gas processing system with labeled components including tanks, valves, and control panel

Fig. 19

1.2 - TRANSPORT ET DEPLACEMENT

DIMENSIONS (Dessin 1)

150 221

Technical line drawing of a mechanical device with a 143-unit dimension label (no text or symbols on the diagram itself)

150 203

Technical line drawing of a mechanical device with no visible text or symbols

2.0 - POMPES DOSEUSES MODELES EXACTUS

2.1 - PRINCIPE DE FONCTIONNEMENT

Technical line drawing of a mechanical device with tubing and a container (no text or symbols)

Dessin 5

Dessin 6

Four-step diagram showing a mechanical device with a lever mechanism, no text or symbols present

Dessin 7

Technical line drawing of a mechanical device with labeled component B, showing internal components and fluid flow (no text or symbols)

B

B

Dessin 8

A N D C M G T Dessin 9

Dessin 9

3.2 - CABLAGES ET FONCTIONS DU CONNECTEUR SERVICES

1 2 3

Dessin 10

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

Dessin 11

Technical diagram of a gas stove installation with labeled components and piping connections

Dessin 13

EXACTUS MA/MB

MA/MB 100% START STOP ASTRALPOOL

Dessin 14

7.0 - POMPA DOSATRICE A MICROCONTROLLORE SERIE EXACTUS MA/MB

VFT/MBB 100 N 100% FLOW F START STOP ASTRALPOOL

Dessin 18

9.0 - POMPE DOSEUSE ÁMICROCONTROLLEUR EXACTUS VFT/MBB

Technical line drawing of a mechanical device with no visible text or symbols

150 203

Technical line drawing of a mechanical device with dimension标注 (no text or symbols present)

2.0 - DOSIERPUMPE DER SERIE EXACTUS

2.1 - FUNKTIONSWEISE

Technical line drawing of a gas washing machine with inlet/outlet pipes and control panel (no text or labels)

Abb. 5

Abb. 6

Four-step diagram showing a mechanical device with a lever and a hand holding a tool, illustrating the process (no text or symbols)

Abb. 7

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

Abb. 11

Technical diagram of a gas stove installation with labeled components and piping connections

Abb. 13

EXACTUS MA/MB

6 MA/MB 100 % 5 4 3 2 1 ASTRALPOOL START STOP

Abb. 14

7.0 - DOSIERPUMPE MIT MIKROCONTROLLER DER SERIE EXACTUS MA/MB

PUMPE EXACTUS CC, DURCHSATZ 10 V/h, DRUCK 5 bar, SIGNAL 4-20 mA.

VFT/MBB 100 N 100% FLOW F START STOP ASTRALPOOL

Abb. 18

9.0 - DOSIERPUMPE MIT MIKROCONTROLLER DER SERIE EXACTUS VFT/MBB

iβ S A K E I

Abb. 19

Technical line drawing of a gas washing machine with tubing and control panel (no text or symbols)

Fig. 5

Fig. 6

Four-step diagram showing a mechanical device with a lever and handle, no text or symbols present

Fig. 7

A N D C M G T Fig. 9

3.2 - CONEXÃO E FUNÇÕES DOS CONECTORES DE SAÍDA

1 2 3

Fig. 10

Exploded view diagram of a mechanical assembly with multiple components (no text or labels)

Fig. 11

Technical diagram of a gas stove installation system with labeled components and piping connections

Fig. 13

EXACTUS MA/MB

MA/MB 100% START STOP ASTRALPOOL

Fig. 14

7.0 - BOMBA DOSADORA MICROPROCESADA SERIE EXACTUS MA/MB

Technical diagram of a gas or gas processing system with labeled components including tanks, valves, and a control unit.

Fig. 19

9.5 - DESCRIÇÃO DAS FUNÇÕES VFT / MBB

PRIMING (100 FLUXO%)

Exploded view diagram of a mechanical device with numbered parts for identification

POS.	ELENCO DEI PARTICOLARI	SPARE PARTS LIST
1	CASSA	CASING
2	COPERCHIO POSTERIORE	BACK COVER
3	SUPPORTO POMPA	PUMP SUPPORT BRAKET
4	CORPO POMPA	PUMP HEAD
5	GUARNIZIONE COPERCHIO	BACK COVER GASKET
6	SERIGRAFIA PANNELLO COMANDI	CONTROL PANEL SERIGRAPHY FILM
7	GUARNIZIONE DI TENUTA POTENZIOMETRO	POTENTIOMETER GASKET
8	MANOPOLA REGOLAZIONE IMPULSI	PULSES ADJUSTMENT KNOB
9	FLANGIA PISTONE	PLUNGER FLANGE
10	DIAFRAMMA	PTFE DIAPHRAGM
11	O-RING CORPO POMPA	O-RING PUMP HEAD
12	VITE 4x8 TS INOX	M4x8 FLATHEAD SCREW
13	PASSACAVO PG7 + DADO	PG7 CABLE CLAMP
14	O-RING 10x1,5	O-RING 10x1,5
15	ELETTROMAGNETE	COMPLETE ELECTROMAGNET
16	VITE 4x16 TC INOX	4x16 BACK COVER SCREW
17	VITE 2,9x9,5	2,9x9,5 SCREW
18	SCHEDA ELETTRONICA	PC BOARD
19	SUPPORTO PER TERMOSTATO	SUPPORT FOR THERMOSTAT
20	TERMOSTATO	THERMOSTAT
21	CAVO CON SPINA FASE/NEUTRO CON FASTON FEMMINA	CABLE WITH PHASE/NEUTRAL WIRES AND FEMALE FASTON CONNECTOR
22	CONNETTORE FEMMINA 4 VIE G4W1F	FEMALE CONNECTOR G4W1F
23	GUARNIZIONE CONNETTORE	CONNECTOR GASKET
24	CONNETTORE MASCHIO 4 VIE G4A5M	MALE CONNECTOR G4A5M

VALVOLE - VALVES

Complete injection valves

VALVOLA INIEZIONE STD. fino a 20 l/h STD. INJECTION VALVE up to 20 l/h

A 01 2601 1306 1201

VALVOLA INIEZIONE 90° fino a 20 l/h 90° INJECTION VALVE up to 20 l/h

A 03 1307 A11 8301 2810 1302 1201

VALVOLA INIEZ. A SFERA fino a 20 l/h BALL INJECTION VALVE up to 20 l/h

A 04 1/8" Gas 2802 2411 4101 2806 2801 2810 1302 1201

Valvole a labbro - Lip valves

VALVOLA A LABBRO 20 l/h 20 l/h LIP VALVE A 11

Valvole speciali - Special valves

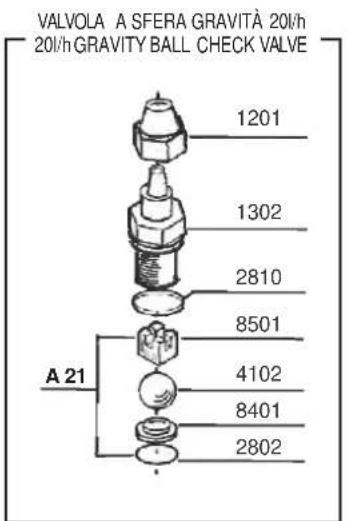

VALVOLA A SFERA GRAVITÀ 20l/h 20l/h GRAVITY BALL CHECK VALVE 1201 1302 2810 8501 4102 8401 2802 A 21

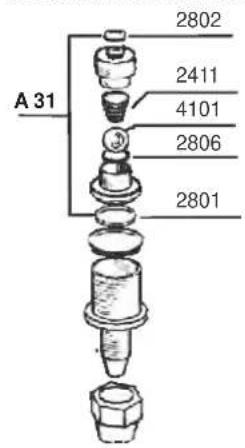

VALVOLA A SFERA ASPIRAZIONE SUCTION BALL CHECK VALVE

A 31 2802 2411 4101 2806 2801

VALVOLA A SFERA MANDATA DISCHARGE BALL CHECK VALVE

A32 2801 2411 4101 2806 2802

VALVOLA KALRETZ KALRETZ VALVE

1201 1302 2810 A 41

Corpo pompa con spurgo manuale Manual air bleed pump head

PARTICOLARI DEL CORPO POMPA

1 CORPO POMPA
2 SPINGIVALVOLA
3 VALVOLA A LABBRO
4 DISTANZIALEPER SPURGO
5 O-RING 2062
6 RACCORDOCORPO POMPA
7 TAPPO PERRACCORDO
8 GHIERA FISSATUBO
9 RONDELLA D4 PIANA
10 VITE M4x35 TCINOX BRUGOLA
11 O-RING 2018
12 BUSSOLA 6x5,5 PER CORPO POMPA
13 RACCORDO PER SPURGO
14 O-RING 2012
15 VITE PER SPURGO
16 TAPPO PER SPURGO
17 MANOPOLA PER SPURGO

Exploded view diagram of a mechanical device with numbered parts for identification

PUMP HEAD DETAILS

1 PUMP HEAD
2 VALVE GUIDE
3 LIP VALVE
4 AIRBLEED SPACER
5 O-RING 2062
6 PUMP HEAD NIPPLE
7 NIPPLE CAP
8 TUBE NUT
9 D4STAINLESS STEEL WASHER
10 M4x35 STAINLESS STEEL SCREW
11 O-RING 2018
12 6x5,5 PUMP HEAD BUSH
13 AIR BLEED NIPPLE
14 O-RING 2012
15 AIR BLEED SCREW
16 AIR BLEED CAP
17 AIR BLEED KNOB

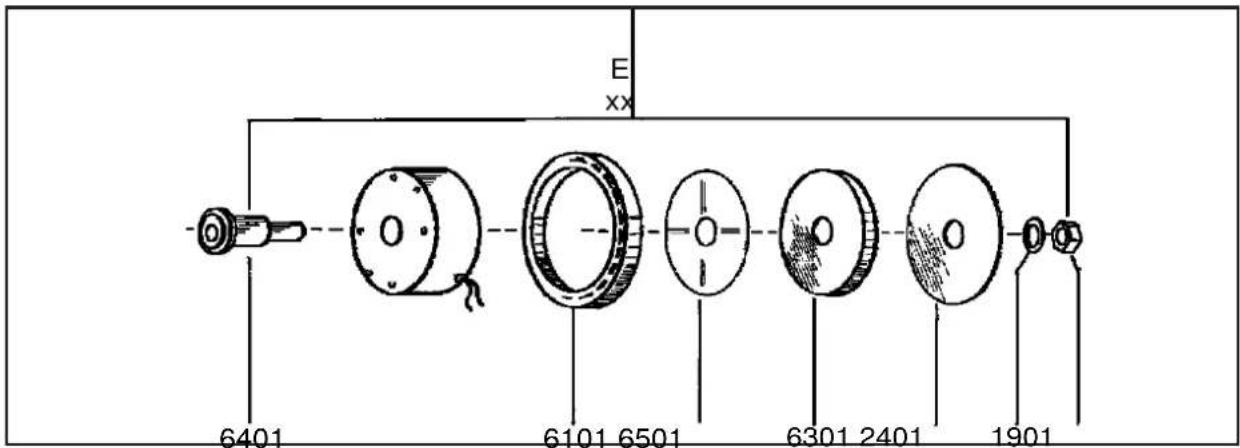

Elettromagnete Completo - Complete Electromagnet

E xx 6401 6101 6501 6301 2401 1901

Filtro Std fino a 20 l/h - Std Filter up to 20 l/h

1201 A12 8101 C01

Note:

Note:

Note:
