USER MANUAL UD301X TEAC

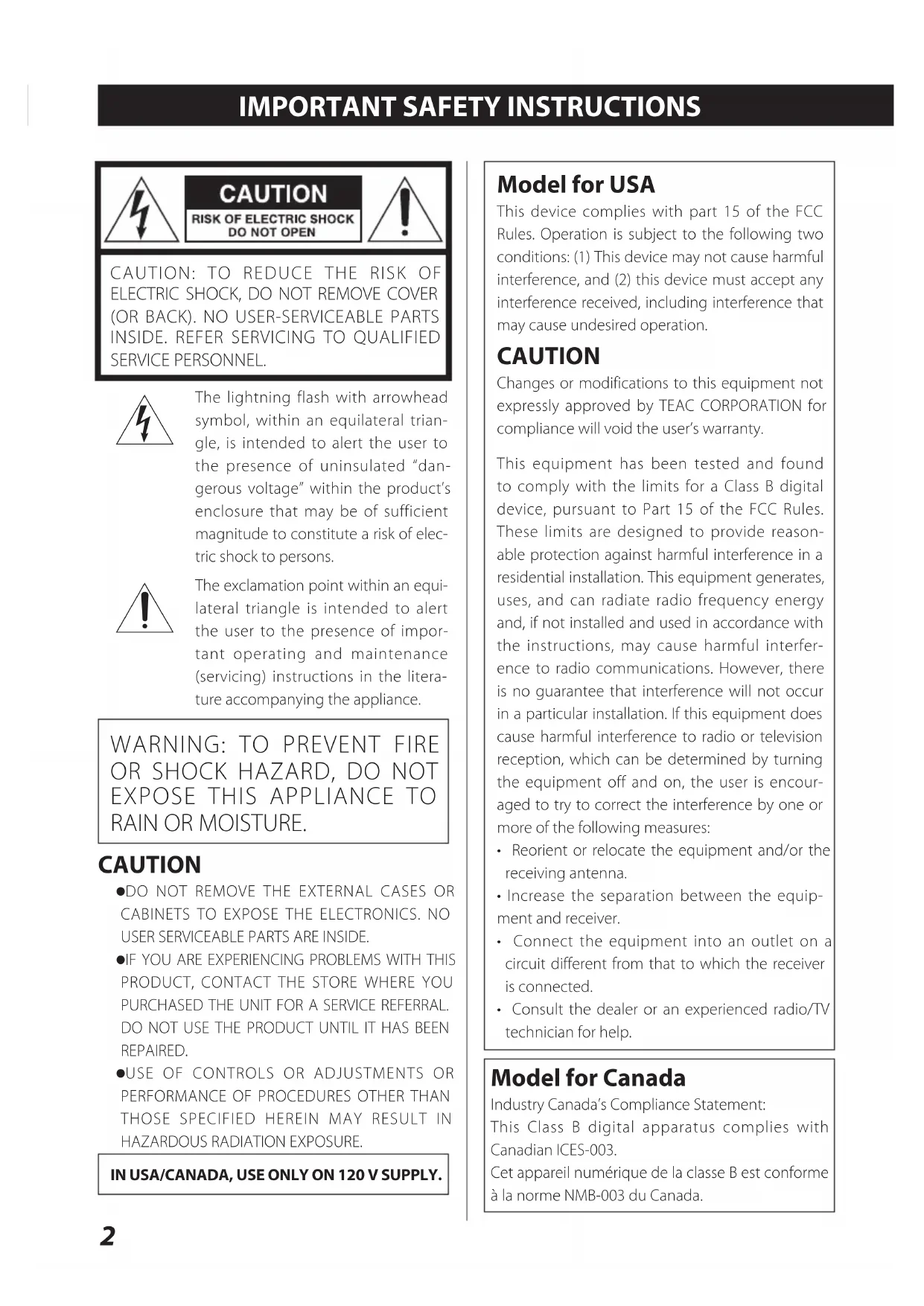

The lightning flash with arrowhead symbol, within an equilateral trian- gle, is intended to alert the user to the presence of uninsulated “dan- gerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of elec- tric shock to persons.

The exclamation point within an equi- lateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the litera- ture accompanying the appliance.

WARNING: TO PREVENT FIRE

OR SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO

THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE. IN USA/CANADA, USE ONLY ON 120 V SUPPLY. Model for USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance will void the user’s warranty. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.

• Increase the separation between the equip- ment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in

accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polar-

ized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an elec- trician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. o The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position. o The mains plug is used as the disconnect device, the disconnect device shall remain readily operable. o Caution should be taken when using earphones or headphones with the product because exces- sive sound pressure (volume) from earphones or headphones can cause hearing loss. CAUTION o Do not expose this apparatus to drips or splashes. o Do not place any objects filled with liquids, such as vases, on the apparatus. o Do not install this apparatus in a confined space such as a book case or similar unit. o The apparatus should be located close enough to the AC outlet so that you can eas- ily reach the power cord plug at any time. o If the product uses batteries (including a bat- tery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat. o CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type. WARNING Products with Class ! construction are equipped with a power supply cord that has a ground- ing plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection. “DSD” is a registered trademark. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Apple, Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Other company names and product names in this document are the trademarks or registered trade- marks of their respective owners.4 The nameplate is located on the bottom of the unit as shown below. Nameplate IMPORTANT SAFETY INSTRUCTIONS (continued)5 For European Customer Disposal of electrical and electronic equipment a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities. b) By disposing of electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment. c) Improper disposal of waste electrical and electronic equipment can have serious effects on the environ- ment and human health because of the presence of hazardous substances in the equipment. d) The Waste Electrical and Electronic Equipment (WEEE) symbol, which shows a wheeled bin that has been crossed out, indicates that electrical and electronic equipment must be collected and disposed of separately from household waste. e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment. Disposal of batteries and/or accumulators a) Waste batteries and/or accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities. b) By disposing of waste batteries and/or accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment. c) Improper disposal of waste batteries and/or accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in them. d) The WEEE symbol, which shows a wheeled bin that has been crossed out, indicates that batter- ies and/or accumulators must be collected and disposed of separately from household waste. If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical sym- bols for those elements will be indicated beneath the WEEE symbol. e) Return and collection systems are available to end users. For more detailed information about the dis- posal of waste batteries and/or accumulators, please contact your city office, waste disposal service or the shop where you purchased them.

DECLARATION OF CONFORMITY

Hereby, TEAC Corporation declares that the product com- plies with the European Directives request and the other Commission Regulations.6 What’s in the box If one of the following is missing or damaged, con- tact your dealer. Power cord × 1 Owner’s manual including warranty (this docu- ment) × 1 o See page 46 for warranty information. Product registration Customers in the USA, please visit the following TEAC website to register your TEAC product online. http://audio.teac.com/support/registration/ You can download the dedicated drivers necessary for this unit from the TEAC Global Site: http://teac-global.com/

1) Open the TEAC Global Site.

2) In the TEAC Downloads section, click the desired

language to open the Downloads website page for that language. NOTE If the desired language does not appear, click Other Languages.

3) Click the product name in the “Products” for the

users in Europe or “Search by Model Name” sec- tion for the users in North America or areas other than those mentioned above to open the Downloads page for that product.

4) Select and download the dedicated drivers that

are needed. Using the TEAC Global Site7 Maintenance If the surface of the unit becomes dirty, wipe it with a soft cloth or use diluted mild liquid soap. Do not use thinner or alcohol because they could damage the surface of the unit.

For safety, disconnect the power cord from the outlet before cleaning. Before use

CAUTION Placement of the unit o Avoid placing it in high temperature environ- ments such as in direct sunlight or close to a source of heat. Moreover, do not place the unit on an amplifier or any other device that gener- ates heat. Doing so could cause discoloration, deformation or malfunction.

Placement precautions o Do not put anything on top of the unit. o Avoid placing the unit in direct sunlight or close to any source of heat, such as a radiator, heater, open fireplace or amplifier. Moreover, avoid loca- tions that are subject to vibrations or exposed to excessive dust, cold or moisture. o Place the unit in a stable location near the audio system that you will use with it. o Do not move the unit during use. o The voltage supplied to the unit should match the voltage printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician. o Since the unit could become warm during opera- tion, always leave sufficient space around it for ventilation. When placing this unit, position it so that it is at least 5 cm (2") from walls and other devices in order to allow good heat dissipation. When installing it in a rack, leave at least 5 cm (2") open above the unit and 10 cm (4") open behind it. o Do not open the body of the unit because this could result in damage to the circuitry or cause electric shock. If a foreign object should enter the unit, contact your dealer. o When removing the power plug from the wall outlet, always pull directly on the plug; never yank on the cord. o If a TV is turned on while the unit is on, static might appear on the TV screen depending on the characteristics of the TV broadcast signal. This is neither a malfunction of the unit nor of the TV. If this occurs, put the unit in standby.8

After all connections are complete, connect the power cord’s plug to the AC wall outlet. o Read the instructions of each device that you intend to use with this unit. o To avoid hum and noise, do not bundle the connection cords. o Be sure to connect each plug securely. Connections

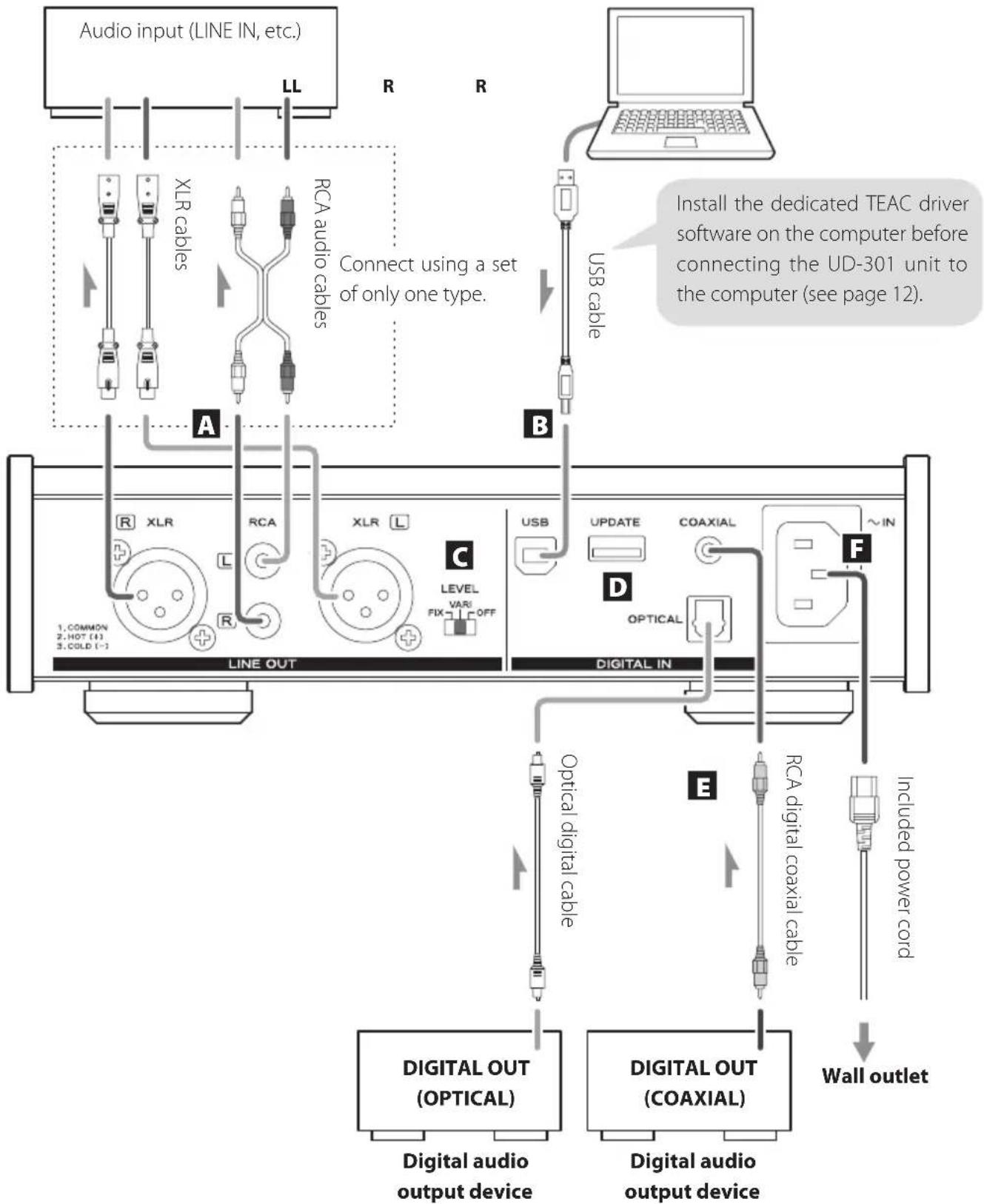

XLR cables RCA audio cables USB cable Connect using a set of only one type. Optical digital cable RCA digital coaxial cable Included power cord DIGITAL OUT (OPTICAL) DIGITAL OUT (COAXIAL) Digital audio output device Digital audio output device Wall outlet Stereo amplifier or powered speakers Computer Audio input (LINE IN, etc.) Install the dedicated TEAC driver software on the computer before connecting the UD-301 unit to the computer (see page 12).9

Analog audio output jacks Use these to output two channels of analog audio. Connect the XLR jacks or RCA jacks to a stereo amplifier or powered speakers. Use commercially-available cables. XLR: Balanced XLR cables RCA: RCA audio cables Connect the R jack of this unit to the right (R) jack of the amplifier and the L jack of this unit to the left (L) jack of the amplifier.

USB input port Connect to the USB port of a computer to input digital audio from it. Use a commercially-available USB cable. o When using a Windows computer, you must install the dedicated driver on it before con- necting it to this unit (see page 12). When using a Macintosh computer, you do not need to install a driver.

Output level switch (LEVEL) Set the audio level output from the analog audio output jacks. FIX: The maximum volume level is always output. Use this setting when you want to adjust the volume using a connected amplifier. Audio will be output from the analog audio output jacks even when headphones are connected. VARI: Output can be adjusted by the VOLUME knob on the front of the unit. Use this setting when you want to adjust the volume using this unit. Audio will not be output from the analog audio out- put jacks when headphones are connected. OFF: Audio is never output from the analog audio output jacks. o Regardless of the LEVEL setting, the VOLUME knob on the front of the unit always adjusts the headphones output level.

Maintenance connector (UPDATE) This connector is only for maintenance use. Unless directed by our service department, do not connect anything to it.

Power cord connector Connect the supplied power cord to the power cord receptacle. After all other connections are complete, con- nect the power cord's plug to a wall outlet.

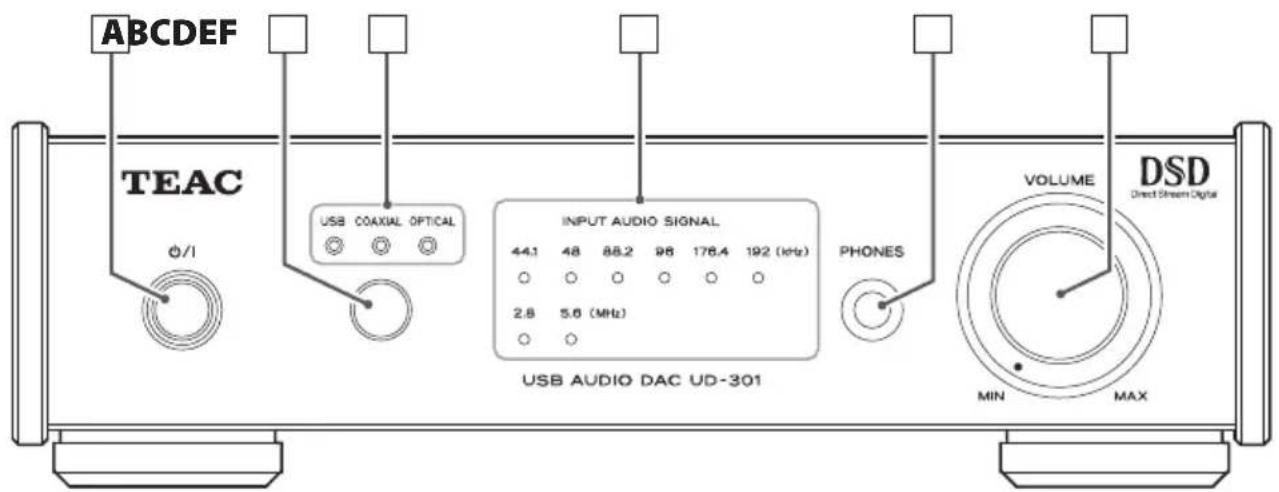

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock. Unplug the power cord when you are not going to use the unit for several weeks.10 Front Panel Overview A B C D E F

Standby/on (¤) button Press this button to turn the unit on and put it in standby. The blue indicator lights when the unit is turned on. o When this unit is in standby mode, it still consumes some power, which is why the term “standby” or “standby mode” is used instead of “off”.

Source button Each time this button is pressed, the source changes.

Input source indicators The indicator for the selected source lights. These indicators blink when the input signal is not a digital audio signal or is a digital audio sig- nal in a format other than PCM or DSD (such as Dolby Digital, dts or AAC).

Sampling frequency indicators These show the sampling frequency of the input digital audio signal. When an input signal is locked, the indicator for its sampling frequency lights. These indicators blink when there is no input signal or the input signal is not locked. NOTE If the sampling frequency of the input signal is 32 kHz, no sampling frequency indicator will light, but the input indicator will light.

PHONES jack Connect headphones with a standard 6.3mm (1/4") stereo plug here.

VOLUME knob When the LEVEL switch is set to VARI, you can use this knob to control the audio level output from the analog audio output jacks (see page 9). When headphones are connected, this knob also adjusts the headphones volume.

Be sure to set the VOLUME knob to MIN before putting on connected headphones. Do not turn the unit on or put it in standby or connect/disconnect headphones while wearing them. Doing so could cause a sud- den loud sound, resulting in harm to hearing.11 Playback 1 Press the

button to turn the unit on. CAUTION When using this unit (as a preamp) connected to a power amplifier, always set the LEVEL switch to VARI and mini- mize the volume knob before turning the amplifier on. If the connected amplifier is turned on when the LEVEL switch is set to a different setting, this could cause a sud- den loud sound, resulting in damage to the speakers, harm to hearing and other trouble. 2 Press the source button to set the input source. Press the source button repeatedly to cycle through the inputs in the following order. USB (computer input) COAXIAL (digital input) OPTICAL (digital input) The indicators light for the selected source and input sampling frequency. o The input source indicators blink when the input signal is a digital audio signal in a format other than PCM or DSD (such as Dolby Digital, dts or AAC). If this is the case, check to see if the connected digital audio output device has a “PCM” setting for the digital output format. Refer to the operation manual for that device to make this setting. o The sampling frequency indicators blink when there is no input signal or the input signal is not locked. o If the sampling frequency of the input signal is 32 kHz, no sampling frequency indicator will light, but the input indicator will light. o When using a Windows computer connected to this unit by a USB cable, you must install the dedicated driver on that computer in order to play audio files through this unit (see page 12). 3 Start playback on the connected source device.12 Playing back music on a computer Installing the driver on a computer When using Mac OS X This unit can be used with the following Mac operat- ing systems. Mac OS X 10.6.4 or later (Snow Leopard) OS X Lion 10.7 OS X Mountain Lion 10.8 OS X Mavericks 10.9 (as of March, 2014) o This unit will run with the standard Mac OS driver, so there is no need to install a special driver. When using Windows OS Installing the driver on the computer In order to play audio files stored on a Windows com- puter through this unit, you must install a dedicated driver on that computer beforehand. Download the dedicated driver from the TEAC Global Site: http://teac-global.com/ This unit can be used with the following Windows operating systems. Windows XP (32-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 8.1 (32/64-bit) Operation with other operating systems is not guaranteed. CAUTION Install the dedicated driver software before connect- ing the computer to this unit using a USB cable. If a computer is connected to this unit before the driver is installed, proper operation will not be possible. Moreover, after doing this, proper driver installation might not be possible. Furthermore, if using Windows XP, the computer might start operating noticeably slower and require restarting. For instructions about driver installation procedures, please visit the Downloads page from the TEAC Global Site (http://teac-global.com/). Depending on the combination of hardware and software, proper operation might not be possible even with the above operating systems. About the transmission mode This unit connects using high-speed asynchronous mode.Transmittable PCM sampling frequencies are 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz.2.8 MHz and 5.6 MHz DSD are also supported.When properly connected, you will be able to select “TEAC USB AUDIO DEVICE” as an audio output from the computer.In asynchronous mode, the audio data sent from the computer is processed using this unit's clock, reduc-ing data transmission jitter. Downloading the TEAC HR Audio Player application If you need, you can download our free TEAC HR Audio Player application, which supports DSD file playback, from the TEAC Global Site (both Mac and Windows versions available). http://teac-global.com/13 USB cable Playing back music files stored on the computer 1 Connect the unit to the computer using a USB cable. o To use a Windows computer, you must install the dedicated driver beforehand (see page 12). o Use a cable with a connector that fits the USB port on the unit. 2 Turn the computer on. o Confirm that the computer has started up correctly. 3 Press the ¤ button to turn the unit on. 4 Press the source button repeatedly to select “USB”. 5 Start playback of the music le on the computer. If you can adjust the volume from the computer, set it to its maximum level and use this unit's VOLUME knob to adjust the level for the best audio quality. o If you are using the TEAC HR Audio Player Application, the volume cannot be adjusted from the computer. Turn this unit's VOLUME knob to MIN before starting play- back. Then, gradually turn it up. o The computer and this unit cannot control each other. o When playing back a music file using the USB connection, do not attempt any of the following operations. Doing so could cause the computer to behave irregularly. Always stop music playback software on your computer before doing any of the following.

Put the unit into standby

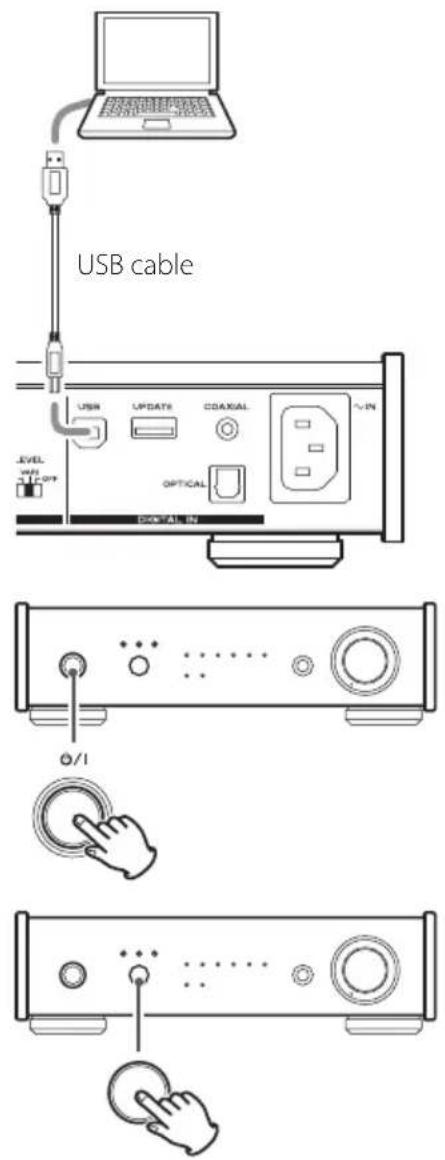

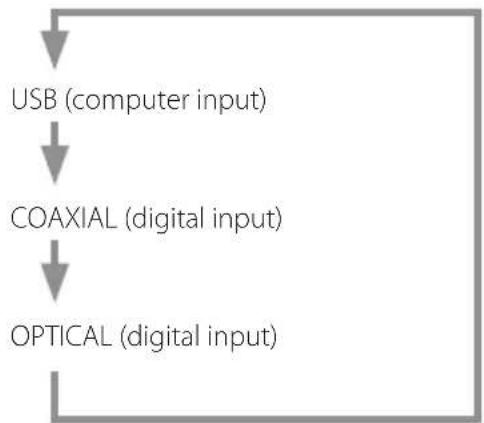

Change the input source o When playing back a music file using the USB connection, computer operation sounds will also be played through this unit. To avoid this, make appropriate settings on the computer. o If you connect this unit with the computer or you set this unit’s input to “USB” after starting music playback software, music files might not play back properly. If this occurs, restart the music playback software or restart the computer.14 This unit has an automatic power saving function. So, by default, the unit will enter automatic power saving mode automatically after 30 minutes elapse without any locked input signal. (Power consumption in this standby mode is 0.5 W or less.) o The automatic power saving function is on when the unit is shipped from the factory. Checking the automatic power saving setting If automatic power saving is off, all the input indicators will light temporarily when the unit is turned on. Setting the automatic power saving function When the unit is on, press and hold the ¤ button for five sec- onds until all the input indicators light or turn off. No indicators lit: APS on All indicators lit: APS off Automatic power saving (APS) function Upconversion function When using a digital input (USB*, OPTICAL or COAXIAL), the upconversion function can be used. *DSD audio will not be upconverted. Press and hold the source button for about five seconds until the sampling frequency indicators light as follows. 44.1kHz and 48kHz indicators lit: Upconversion off 44.1kHz to 96kHz indicators lit: Upconversion setting 1 44.1kHz to192kHz indicators lit: Upconversion setting 2 Input frequency and frequency after upconversion Input frequency Setting 1 Setting 2

96 kHz No upconversion 192 kHz o Frequencies of 176.4 kHz and higher will not be upconverted when input. Sampling frequency indicators during upconversion When upconversion is in use, two sampling frequency indicators will light. The left one shows the input frequency and the right one shows the frequency after upconversion. Press and hold Press and hold15 If you experience any problems with the unit, please take a moment to read this page before seeking repair. If you still have a problem, contact the retailer from which you purchased the product. No power. Check the connection to the AC power source. If the AC source is a switched outlet, confirm that the switch is turned on. Confirm that power is supplied to the AC outlet by plug- ging in another device such as a lamp or a fan. No sound is output from the analog audio jacks. Is the LEVEL switch set to OFF or VARI and the VOLUME knob turned all the way to MIN? This unit is not recog- nized by a computer. This unit can be connected by USB and used with a com- puter running one of the following operating systems. Microsoft Windows Windows XP (32-bit), Windows Vista, Windows 7, Windows 8, Windows 8.1 o When using a Windows computer, a dedicated driver must be installed (see page 12). Apple Macintosh Mac OS X 10.6.4 or later (Snow Leopard) OS X Lion 10.7 OS X Mountain Lion 10.8 OS X Mavericks 10.9 Use with a computer running a different operating system cannot be guaranteed. Noise occurs. If you launch another application during playback of an audio file, load on the CPU of the computer will increase, and this could cause the audio to skip or other noise. Do not launch other applications during playback. Music files cannot be played. Connect this unit to the computer, and set this unit’s input to “USB” before launching music playback software. If you connect this unit to the computer or set its input to “USB” after launching music playback software, music files might not play back properly. General Computer connection Since this unit uses a microcontroller, external noise and other interference can cause the unit to malfunction. If this occurs, unplug the power cord, wait for a while, and then turn the power back on to restart operations. Troubleshooting16 Analog audio output Jacks ......................XLR jacks (2 channels) × 1 RCA jacks (2 channels) × 1 Output impedance .......................XLR: 200 Ω RCA: 100 Ω Maximum output level (1 kHz, full scale, 10 kΩ) XLR (Gain: 0 dB): +14 dBu RCA: 2.0 Vrms Frequency response ..........5 Hz to 55 kHz (−3 dB)* Signal-to-noise ratio (S/N) .....................105 dB Total harmonic distortion ...........0.0015% (1 kHz)* *At 192kHz sampling frequency Headphones output Connector type ....standard 6.3mm (1/4") stereo jack Maximum output .................100 mW + 100 mW (into 32Ω load with 0.1% distortion) Nominal load impedance ..............16 Ω to 600 Ω Specifications Digital audio input RCA jack × 1 .................................0.5 Vp-p (input impedance 75 Ω) Optical digital connector × 1 −24.0 to −14.5 dBm peak USB port (type B) connector ..................USB 2.0 Supported sampling frequencies (PCM) in kHz

Supported sampling frequencies (DSD) 2.8/5.6 MHz (only when connected by USB)

1) If the sampling frequency of the input signal is 32 kHz, no

frequency indicator lights, but the input indicator does.

2) The maximum is 96 kHz when using the optical digital

3) Only during USB input17

In the United States/Canada/Aux États-Unis/Canada Model/Modèle: UD-301 Serial No./N° de série Date of purchase/Date de l’achat Owner’s name/Nom du propriétaire Owner's address/Adresse du propriétaire Dealer's name/Nom du détaillant Dealer's address/Adresse du détaillant Length of Warranty The parts and labor warranty will be effective for one (1) year from the date of the original purchase for products not used for commercial purposes. For products used commercially, the war- ranty is ninety (90) days for magnetic heads and optical pickups, one (1) year for all other parts and ninety (90) days for labor. Who Is Covered Under This Warranty This warranty is valid only in the United States or Canada, dependent upon the country in which original purchase was made, and enforceable only by the original purchaser within the country in which the purchase was made. This warranty is not valid if the product was purchased through an unauthorized dealer. What Is Not Covered Under This Warranty o Damage to or deterioration of the external cabinet. o Damage resulting from accident, misuse, abuse, or neglect. o Damage resulting from failure to follow instructions contained in the products owners’ manual or otherwise provided with the product. o Damage occurring during shipment of the product (Claims must be presented to the carrier). o Damage resulting from the repair or attempted repair by anyone other than TEAC or an authorized TEAC. o Damage resulting from modification or attempted modi- fication of product not authorized by TEAC. o Damage resulting from causes other than product defects, including lack of technical skills, competence, or experience of the user. o Damage to any unit that has been altered or which the serial number has been defaced, modified or removed. What TEAC Will Pay For TEAC will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is covered in the next section. How To Obtain Warranty Service Your unit must be serviced by an authorized TEAC service sta- tion within the country in which the product was purchased. If you are unable to locate an authorized service station in your area, please contact TEAC at the applicable address shown at the end of this warranty statement. PLEASE DO NOT RETURN YOUR UNIT TO TEAC WITHOUT OUR PRIOR AUTHORIZATION. You must pay shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are cov- ered by warranty, we will pay the return shipping charges to any destination within the country in which the product was purchased. Whenever warranty service is required, you must present the original dated sales receipt, or other proof indicat- ing the purchase place and date, as proof of warranty coverage.

LIMITATION OF IMPLIED WARRANTIES

ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF

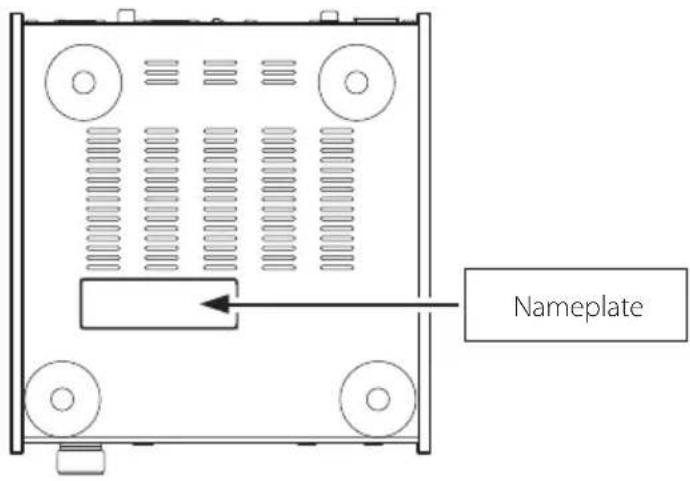

This device has a serial number located on its back panel. Please record the serial number and retain it for your records. Model name: UD-301 Serial number TEAC CORPORATION 1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan Phone: [phone] TEAC AMERICA, INC. 1834 Gage Road, Montebello, California 90640 U.S.A. Phone: [phone] TEAC AUDIO EUROPE Gutenbergstr. 3, 82178 Puchheim, Germany Phone: [phone]
