48015 - Water dispenser KORONA - Free user manual and instructions

Product type	Hot water dispenser
Brand	Korona
Model	48015
Tank capacity	15 L (max), 5 L (min)
Power supply	220-240 V ~ 50-60 Hz
Temperature range	30 °C to 110 °C
Main functions	Heating, keep warm, automatic dry-boil shut-off
Dimensions (approx.)	35 x 35 x 50 cm
Weight (approx.)	5 kg
Included accessories	Drip tray
Care and cleaning	Do not immerse; clean with a damp cloth; descale every 3 to 6 months
Safety	Automatic shut-off in case of water shortage; hot surfaces (caution burns)
Warranty	2 years
Intended use	Preparation of hot beverages (coffee, tea, instant soup) and keep warm
Keep warm temperature	Adjustable via selector, varies from 5 to 10 °C around the chosen value

Frequently Asked Questions - 48015 KORONA

What is the maximum water tank capacity?

The maximum capacity is 15 liters. Never exceed this level to avoid overflow.

What is the minimum water temperature I can get?

You can set the temperature from 30 °C using the temperature selector.

How do I use the keep warm function?

After heating, the orange indicator lights up. Set the temperature selector to the desired value (between 30 and 110 °C, but avoid 110 °C for keep warm). The appliance will maintain this temperature with a variation of 5 to 10 °C.

Does the appliance turn off automatically if there is no water?

Yes, it has an automatic dry-boil shut-off function. If water is insufficient, the appliance turns off. Let it cool down for 10 minutes before reusing.

How do I clean the water dispenser?

Turn off and unplug the appliance. Clean the exterior with a damp soft cloth. Never immerse the appliance in water. Descale every 3 to 6 months with a mild descaler.

Can I use the appliance to heat liquids other than water?

No, the appliance is designed only for water and ready-to-drink hot beverages such as coffee, tea, or mulled wine. Do not use it for other foods.

What if the red indicator does not light up?

Ensure the appliance is plugged in and the temperature selector is set to a value other than 0. If the problem persists, contact customer service.

Is the appliance suitable for professional use?

No, it is intended exclusively for private domestic use.

How do I adjust the temperature during heating?

Turn off the appliance with the switch, set the desired temperature, then turn it back on. Heating will resume at the new temperature.

Where can I find after-sales service?

Contact KORONA Service by phone [phone]) or email ([e-mail]). The warranty is 2 years.

USER MANUAL 48015 KORONA

Exterior view of a modern KORONA coffee maker with glass and water dispenser (no visible text or symbols)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

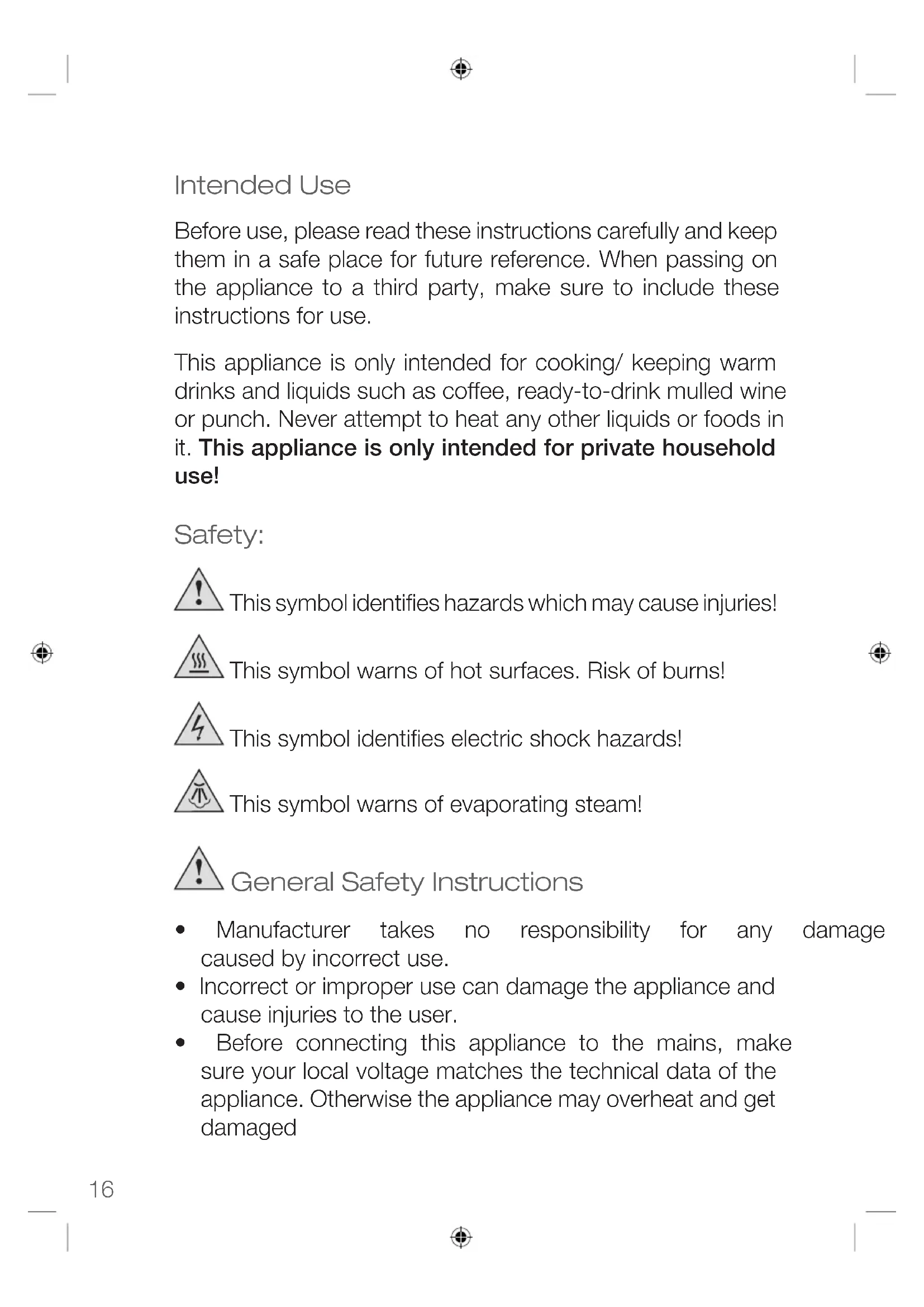

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for cooking/ keeping warm drinks and liquids such as coffee, ready-to-drink mulled wine or punch. Never attempt to heat any other liquids or foods in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!
This symbol warns of hot surfaces. Risk of burns!
This symbol identifies electric shock hazards!
This symbol warns of evaporating steam!
General Safety Instructions

- Manufacturer takes no responsibility for any damage caused by incorrect use.

- Incorrect or improper use can damage the appliance and cause injuries to the user.

- Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of burns.

• Only use the appliance for its intended purpose and as described in this manual.
  • Never attempt to heat any other liquids / foods in it.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Do not move the appliance during operation. - Do not place the appliance near any inflammable objects.

- The appliance can get very hot during use, dang serious burns! Only touch it by its handles.

• Never exceed the maximum filling level (15 L).

• Never open the lid during operation.

• To prevent the appliance from boiling dry, make sure the water level is never below minimum filling (5 L).
• The appliance also features a boil-dry cut-out, which will switch off the appliance, should it accidentally be operated without water. In the event of such a safety cut-out switch off the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

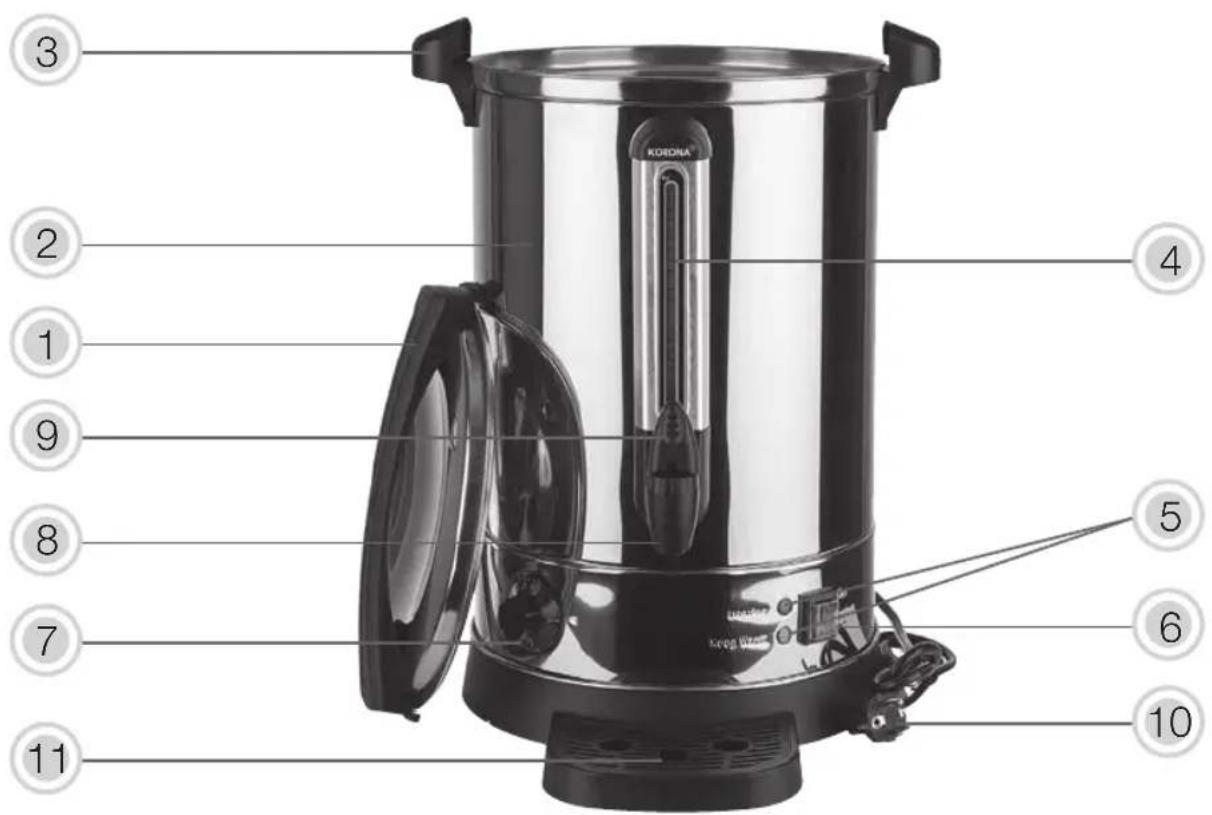

KORONA 1 2 3 4 5 6 7 8 9 10 11

Product Description

1. Lid with handle
2. Water tank
3. Water tank handle
4. Water level indicator
5. Indicator lights
6. red (heating up)

7. orange (keeping warm)

8. On/Off switch

9. Temperature control (30 °C – 110 °C)

10. Tap

11. Tap lever
12. Power cord and plug
13. Drip tray

Temperature indicator lights

During the heating up process the red indicator light lights up, once the desired temperature is reached the red indicator lights goes off and switches into the keeping warm phase. During the keeping warm phase the orange indicator light lights up.

Before First Use

• Remove all packaging material and check whether the appliance is complete and undamaged.
  • Completely unwind the power cord.
• Do not use the appliance if it shows any signs of damage.
• Clean the appliance according to “Cleaning and Care”.
• Place the appliance on an even and heat resistant surface.
• Connect the appliance to a properly installed wall socket.

Warning: Plastic bags are a danger to toddlers and yes, therefore keep them away to avoid suffocation.

Operation

The temperature of accessible surfaces may hgh during operation. Therefore, do not touch theance during and/or immediately after operation.

1. Remove the lid (1) by turning it into anti clockwise direction.
2. Fill the water tank (2) with fresh tap water. Always make sure not to exceed the max water level nor to the min. water level (4). - Make sure that the appliance is not connected to the mains when filling it with water -

3. Close the lid (1) by turning it into clockwise direction.

4. Connect the appliance to the mains.

5. Choose the desired temperature (7) and switch ON the appliance by pressing the ON/Off switch (6). The re-indicator light (5) will illuminate and the heating process will start.

Note: If no temperature is chosen, the appliance will not switch on.

1. Once the chosen temperature has been reached the red indicator light goes off and the orange indicator light lights up.
2. To prepare your desired beverage (instant coffee, tea instant soup, etc.) place a cup or flask underneath the tap (8).

Note: Various beverages, e.g. teas, need a special temperature to unfold their aroma.

1. Press down the tap lever (9) to pour the desired amount of water into a cup or flask. Once pressed down, the lever will hold into position.
2. Once the cup or flask is filled with the desired amount of water push the lever back into its original upward position. The tap will close automatically.

Always make sure that during use the water level will go beyond the minimum water level indicator.

Note: If you wish to adjust the water temperature during the heating process:

• Switch off the appliance by pressing the ON/OFF button.
• Choose the desired temperature and press the On/Off button to switch the appliance back on.

You can stop the boiling process any time by pushing the On/Off button.

Always switch off and unplug the appliance after use.

Keeping Warm Function

Note: The appliance is fitted with a thermostat which will keep a constant temperature during the keeping warm phase.

Once the heating process has finished, the red indicator light goes off and the orange indicator light will illuminate.

Choose the desired keeping warm temperature with the temperature control dial to keep the water at a constant temperature.

The keeping warm function can be stopped any time by pressing the On/Off button

Note: The keeping warm temperature can vary between 5-10 °C.

Attention: Do not set the keep warm temperature 0^ C, the appliance will keep boiling the water.

Recommendation: If you are not using the appliance, switch it off, empty the water tank and disconnect it from the mains!

Dry-boil cut-out

Your appliance is equipped with a boil-dry cut-out, which will switch off the appliance automatically, should it accidentally be operated without water or by not observing the minimum water level. In the event of such a safety cut-out, switch off

the appliance immediately, unplug it and let it cool down for approx. 10 minutes. Afterwards, your appliance is ready for use again.

Cleaning and Care

Due to hygienic reasons clean your appliance on a regular basis, best after each use. Not doing so could possibly result in a hazardous situation or could lead to health issues (germ formation).

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Rinse the appliance with some hot water, if necessary use a mild dishwashing detergent.

If this is the case, make sure to wipe it again with a moistened cloth until there is no soap residue left.

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Make sure that the appliance and all other resp. parts are properly dried.

△! △ Never place the appliance and its accessories into the dishwasher – It is not dishwasher safe! This can damage the appliance and hurt its user!

Cleaning and user maintenance shall not be made children without supervision.

DESCALING

Descale your appliance in regular intervals (approx. every 3 – 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descaling, always make sure to rinse the appliance several times with some water. – But, do not immerse the appliance in water -

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use disconnect the appliance from the mains and let it completely cool down.

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Hot Water Dispenser 48015 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 - 60 Hz

Rated Power: 2500 W

Rated Power: 15 Litre

Protection Class: I

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
