USER MANUAL CMGA31EDLB CANDY

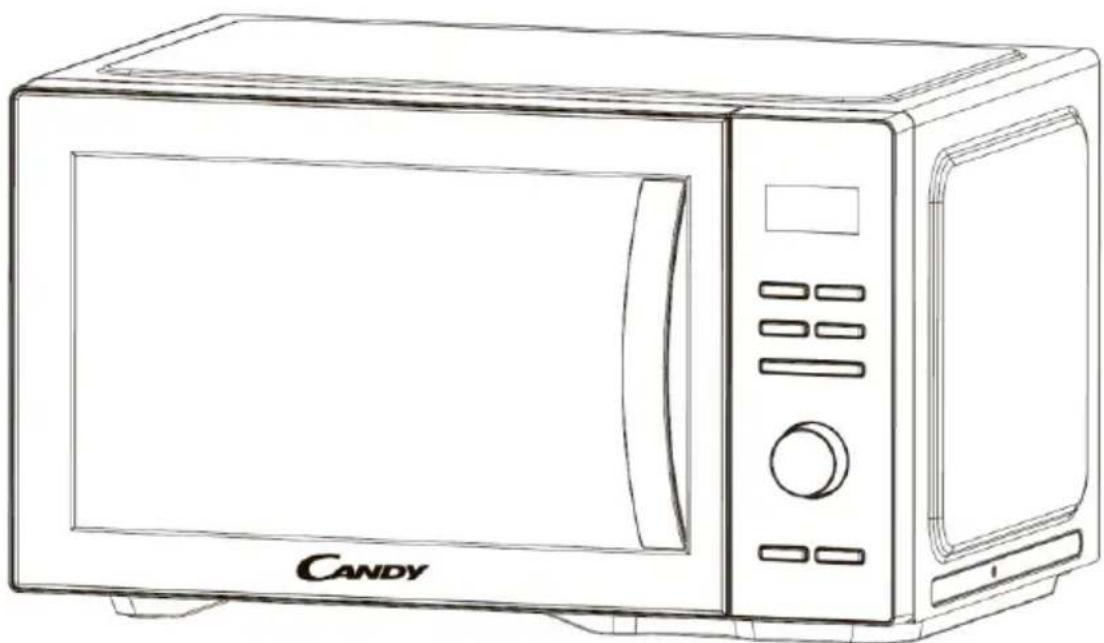

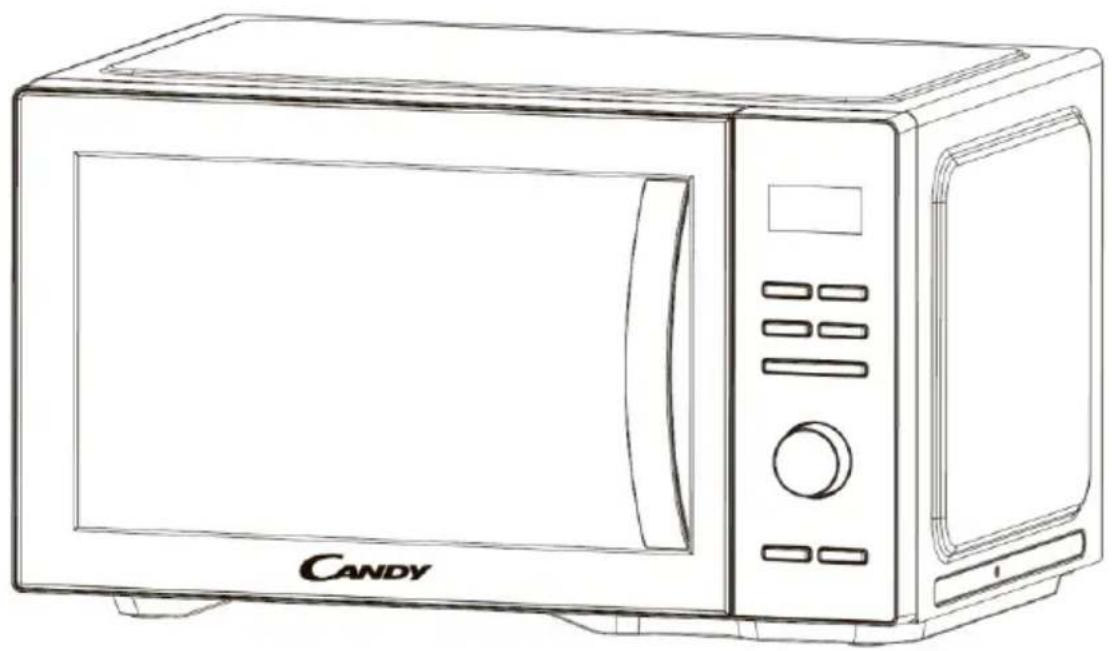

Microwave Oven INSTRUCTION MANUAL Model: CMGA31EDLB Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.2

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. SPECIFICATIONS Model CMGA31EDLB Rated Voltage 230V~ 50 Hz Microwave Input 1550W Microwave Output 1000W Grill 1000W3

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

3. Keep the appliance and its cord out of reach of children

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. WARNING: Ensure that the appliance is switched off

before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a

competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in

sealed containers since they are liable to explode.4

8. When heating food in plastic or paper containers, keep an

eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave

10. If smoke is emitted, switch off or unplug the appliance and

keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed

eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be

stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not

be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food

15. Failure to maintain the oven in a clean condition could lead

to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative

door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this

oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet

unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative

door open. (for ovens with a decorative door.)5

20. This appliance is intended to be used in household and

similar applications such as: - staff kitchen areas in shops, offices and other working environments; - by clients in hotels, motels and other residential type environments; - farm houses; - bed and breakfast type environments.

21. The microwave oven is intended for heating food and

beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

22. Metallic containers for food and beverages are not allowed

during microwave cooking.

23. The appliance shall not be cleaned with a steam cleaner.

24. The appliance is intended to be used freestanding.

25. The rear surface of appliances shall be placed against a

26. The appliances are not intended to be operated by means

of an external timer or separate remote-control system.

27. The temperature of accessible surfaces may be high when

the appliance is operating.

28. WARNING: When the appliance is operated in the

combination mode, children should only use the oven under adult supervision due to the temperatures generated.6

READ CAREFULLY AND KEEP

FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION DANGER Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3- wire extension cord.

1. A short power-supply cord

is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or

extension cord is used:

1) The marked electrical

rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

2) The extension cord must

be a grounding-type 3-wire cord.

3) The long cord should be

arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.7 CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly

2. Clean the accessories in the usual way in soapy water.

3. The door frame and seal and neighbouring parts must be

cleaned carefully with a damp cloth when they are dirty.

4. Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the cavity walls that

the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.8 UTENSILS CAUTION

PERSONAL INJURY HAZARD

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. UTENSIL TEST:

1. Fill a microwave-safe container with 1 cup of cold water

(250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do

not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.9

Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Materials to be avoided in microwave oven Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish. Metal or metal- trimmed utensils Metal shields the food from microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack.10

SETTING UP YOUR OVEN

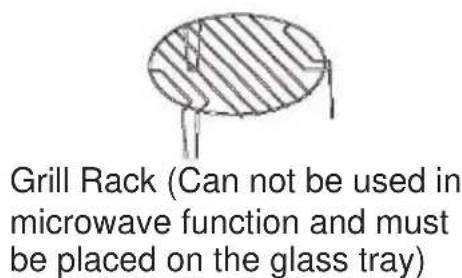

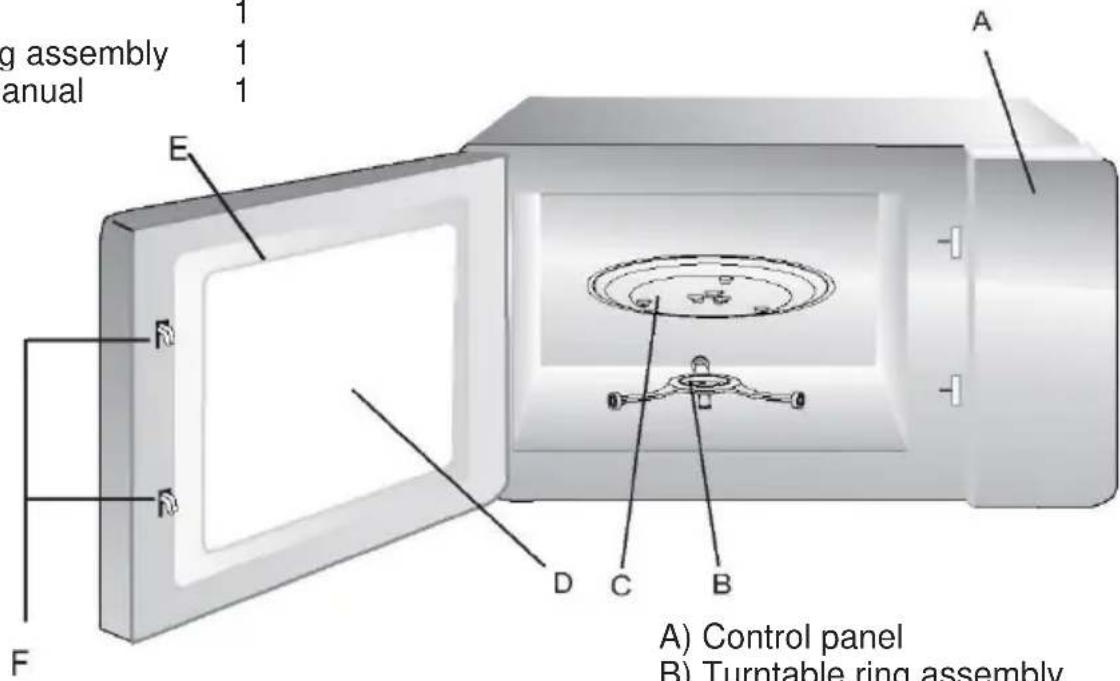

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

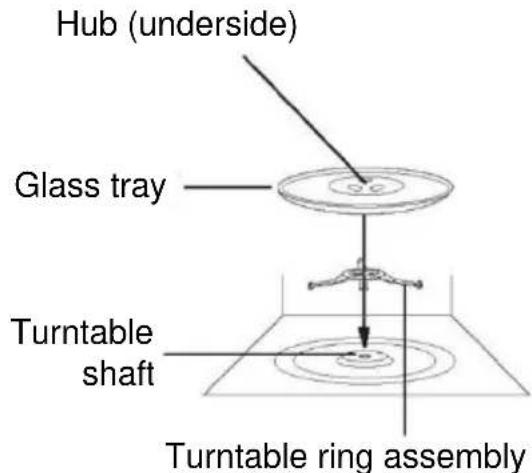

Hub (underside) Glass tray Turntable shaft Turntable ring assembly11 COUNTERTOP INSTALLATION Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron. INSTALLATION

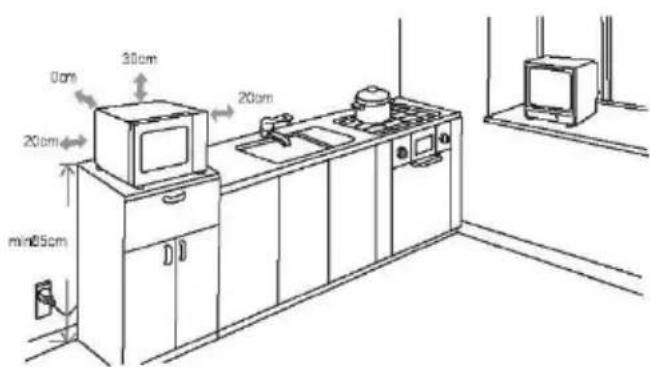

1. Select a level surface that

provide enough open space for the intake and/or outlet vents. (1) The minimum installation height is 85cm. (2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. (3) Do not remove the legs from the bottom of the oven. (4) Blocking the intake and/ or outlet openings can damage the oven. (5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

2. Plug your oven into a

standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.12

WARNING: Do not install

oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void. The accessible surface may be hot during operation.13 OPERATION INSTRUCTION CONTROL PANEL

Microwave Press to select microwave function Grill Press once to select grill function Defrost Press to select deforst function quickly Timer/Clock Press to set clock Smart Clean Press to select smart clean function Auto Menu Press to select auto menus Sound off Press 3 seconds to mute the microwave Stop/Cancel Press to cancel current cooking function Start/+30Sec. Press to start the function or quick start for 30 seconds microwave function Lock Press 3 seconds for child lock function14 OPERATION INSTRUCTION This microwave oven uses modern electronic controls to meet your cooking needs.

When the microwave oven is Powered On, the oven will display "0:00" and the buzzer will ring once.

1) Press " " twice. "00:00" display, the hour figures will flash.

2) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).

3) Press " ", the minute figures will flash.

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

5) Press " " to finish clock setting. ":" will flash.

1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you don't press " " within 5 minutes, the

oven will go back to the previous status automatically.

1) Press " " once, the screen will display 00:00.

2) Turn " " to enter the correct timer. (The maximum cooking time is 95 minutes.)

3) Press " " to confirm setting.

3. Microwave Cooking

Microwave Power Chart Display P100 P80 P50 P30 P10 Microwave Power 1000W 800W 500W 300W 100W

1) Press " " and then “P100” will display.

2) Press " " repeatedly or turn the knob to set the power level. The 5 power levels are

3) Press " " to confirm.15

4) Turn " " to adjust the cooking time. It should be within 0:05-95:00.

5) Press " " to start cooking.

4. Grill and Combination Cooking

1) Press " " repeatedly to choose the mode, and then “G”, ‘‘C-1”, “C-2” will display in

2) Press " " to confirm the mode.

3) Turn " " to set the cooking time. It should be within 0:05-95:00.

4) Press " " to start cooking.

Function Display Microwave Power Grill Power Combi. 1 C-1 55% 45% Combi. 2 C-2 34% 66%

5. Defrost by Weight

1) Press " " pad once, the oven will display "d-1".

2) Turn " " to select the weight of food. At the same time, "g" will light.

The weight should be within 100-2000g.

3) Press " " key to start defrosting.

Note: the buzzer will sound to remind you to turn the food over during defrosting. If no operation, the oven will continue working.

1) Press " " key twice, the oven will display "d-2".

2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.

3) Press " " key to start defrosting.

The defrost power is P30, and it can not be changed. Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.16

1) Two cooking stages can be set in multi-stage cooking.

2) If you set defrost function, it will work automatically in the first stage.

3) Kitchen timer, auto menu and auto clean cannot be set as one of the multi-stage.

Example: defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes.

1) Press " " twice and then the screen will display “d-2”.

2) Turn " " to set the desired defrost time of 5 minutes.

3) Press " " and then “P100” will display.

4) Turn " " or press " " repeatedly to set the power level of P80.

5) Press " " to confirm.

6) Turn " " to set the desired defrost time of 7 minutes.

7) Press " " to start cooking.

1) In waiting state, Press " " to start 30 seconds cooking with 100% power, each added

press will increase 30 seconds cooking time up to 95 minutes.

2) In waiting state, turn " " left to set cooking time for 95 minutes with 100% microwave

power, and then turn " " to set the cook time, Press " " to start cooking.

In waiting state, press " " once, “AC” will display, Press " " to start cleaning (100% microwave clean for 5 minutes) The Smart Clean program helps you to easily clean your appliance and remove unpleasant odors. You just need to place a bowl of water inside the microwave and select the Smart Clean function, the natural power of the steam will soften the food residues in a few minutes, preparing them to be eliminated. Note: It is forbidden to hold the water with metal vessels.17

Lock: In waiting state, press " " for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and locked indicator will light. Unlock: In locked state, press " " for 3 seconds, there will be a long "beep" denoting that the lock is released, and locked indicator will disappear.

1) During cooking state, press " " to check the current time. It will be displayed for 3

To activate the silent mode: In waiting or clock state, press and hold " " for 3 seconds. “oFF” will display, when you press the keys, it does not make a sound. To deactivate the silent mode: In silent mode, press and hold " " for 3 seconds. A beep will sound. “on” will display.

1) In waiting state, turn " " right to choose the function wanted, and "A1"~"A8" will display.

2) Press " " to confirm the menu you need.

3) Turn " " to choose the submenu.

4) Press " " to start cooking.18

Grill garlic bread 200g 4'00"

Grilled chicken breast 300g 7'00''

Grilled chicken legs 500g 16'00''

Grilled chicken tight 400g 15'00''

Grilled chicken drums 400g 12'00''

Grilled fish fillets 300g 8'00''

Grilled salmon 300g 6'00''

Fresh sausages 250g 6'00''

Hot dogs 250g 6'00''

Grilled courgetts 300g 10’

Grilled aubergines 300g 10'00''

Grilled tomatoes 300g 8'00''

Grilled pumpkin 300g 8'00''

Crepes 400g 9'00'' C219 TROUBLE SHOOTING Normal Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vents In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal. Oven started accidentally with no food in. It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy Oven cannot be started. (1) Power cord is not plugged in tightly. Unplug. Then plug again after 10 seconds. (2) Fuse blowing or circuit breaker works. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) (3) Trouble with outlet. Test outlet with other electrical appliances. Oven does not heat. (4) Door is not closed well. Close door well. ENVIRONMENTAL PROTECTION

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. ln many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.Four à micro-ondes
