| Product type | Electric storage water heater |
| Brand | Tesy |
| Model | Anticalc Slim 80 |
| Nominal volume | 80 liters |
| Nominal power | 1600 W / 2400 W (depending on setting) |
| Nominal voltage | 230 V ~ 50 Hz |
| Nominal pressure | 0.6 MPa (6 bar) |
| Anti-scale protection | Magnesium anode, enameled or stainless steel lining |
| Boost function | Accelerated heating at maximum power |
| Temperature setting | Adjustable thermostat, anti-freeze mode, energy saving mode |
| Safety | Thermal limiter, safety valve (supplied) |
| Hydraulic connection | Cold water inlet (blue), hot water outlet (red), thread G 1/2 |
| Installation | Vertical or horizontal wall mounting (depending on model) |
| Maintenance | Drainage, valve cleaning, magnesium anode replacement every 2 years |
| Protection rating | IP24 (splash-proof) |
| Country of origin | Bulgaria |
Frequently Asked Questions - Anticalc Slim 80 Tesy
User questions about Anticalc Slim 80 Tesy
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual Anticalc Slim 80 - Tesy and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Anticalc Slim 80 by Tesy.
USER MANUAL Anticalc Slim 80 Tesy
- This technical description and instructions manual was prepared in order to acquaint you with the product and the conditions of proper installation and use. These instructions were also intended for use by qualified technicians, who shall perform the initial installation, or disassembly and repairs in the event of a breakdown.
- Following the current instructions will primarily be of interest to the consumer, but along with this, it is also one of the warranty conditions, pointed out in the warranty card, so that the consumer can benefit from the free warranty services. The producer is not responsible for damages in the appliance that have appeared as a result of operation and/or installation not corresponding to the instructions here.
- The electric water heater complies with the requirements of EN 60335-1, EN 60335-2-21.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
Attention! Improper installation and connection of the appliance may make it hazardous for the health and life of consumers. It may cause grievous and permanent consequences, including but not limited to physical injuries and/or death. Improper installation and connection of the appliance may also lead to damage to the consumers' property /damage and/ or destruction/, or to that of third persons, as a result of, but not limited to flooding, explosion and/or fire.
Installation, connection to the main water and power supply, and putting into operation must be carried out by certified electricians and technical personnel certified in installation of this category of appliances, who have obtained their license in the state where the installation and commissioning of the appliance are carried out, and in compliance with its local legislation.
All alterations and modifications to the water heater's construction and electrical circuitry are forbidden. If such alterations or modifications are established during inspection, the appliance's warranty shall be null and void. Alterations and modifications shall mean each instance of removal of elements incorporated by the manufacturer, building in of additional components into the water heater, replacement of elements by similar elements unapproved by the manufacturer.
Mounting
- The water heater must only be mounted in premises with normal fire resistance.
- In the event the device is mounted in a bathroom, the selected location must exclude the possibility of water spray contact from the showerhead or portable showerhead attachment.
- The water heater is designed to operate only in closed and heated premises where the temperature is not lower than 4^ C and it is not designed to operate in a continuous protracted regime.
- The appliance is affixed to a wall via the mounting brackets attached to the unit's body (if the brackets are not attached to the unit's body, they must be affixed in place via the provided bolts).
Water heater connection
- The appliance is intended to supply hot water to household sites equipped with a piping system working at pressure below 6 bar (0,6 Mpa).
- .The safety return-valve must be mounted on the cold water supply pipe, in observance of the direction arrow stamped on its body, indicating the incoming water's direction. Additional stopcocks must not be mounted between the safety return-valve and the water heater.
Exception: If the local regulations (norms) require the usage of another protection valve or mechanism (in accordance with EN 1487 or EN 1489), then it must be bought additionally. For mechanisms operating in accordance with EN 1487 the announced operational pressure must be no more than 0.7 MPa. For other protection valves, the pressure at which they are calibrated must be 0.1 MPa lower than the one marked on the appliance's sign. In these cases the safety valve which the appliance is supplied with should not be used. - The safety valve and the pipe between the valve and the water heater must be protected from freezing. During hose draining - its free end must be always open to the atmosphere (not to be immersed). Make sure that the hose is also protected from freezing.
- In order to secure the water heater's safe operation, the safety return-valve must undergo regular cleaning and inspections for normal functioning /the valve must not be obstructed/, and for the regions with highly calcareous water it must be cleaned from the accumulated lime scale. This service is not provided under warranty maintenance.
- In order to prevent injury to user and third persons in the event of faults in the system for providing hot water, the appliance must be mounted in premises outfitted with floor hydro insulation and plumbing drainage. Don't place objects, which are not waterproof under the appliance under any circumstances. In the event of mounting the appliance in premises not outfitted with floor hydro insulation, a protective tub with a plumbing drainage must be placed under the appliance.
- During operation – regime of heating the water – water drops through the drainage opening of the protection valve are usual. The protection valve should be left open to the atmosphere. Measures should be taken to lead and collect the leakages in order to prevent damages.
- If the probability exists for the premise's temperature to fall below 0°C, the water heater must be drained.
In the event you must empty the water heater, first you must cut off its power supply. The inflow of water from the water mains must first be terminated and the hot water tap of the mixing-faucet must be opened. The water tap 7 (fig 4) must be opened to drain the water from water tank. If there is no such tap build in the pipe line, than the water can be drain directly from inlet pipe of water tank after when you disconnect it from water main.
Connection to the electrical network
- Do not switch on the water heater unless you established it was filled with water.
- Upon connecting the water heater to the electric mains care must be taken to connect the safety lead.
- Models without power cord, the circuit has to be supplied with a safety fuse (16A) and with inbuilt device to ensure disconnection of all pole pieces in the conditions of over-voltage from category III.
- If the power supply cord (of models that have one) is damaged, it must be replaced by a service representative or a person with similar qualification, to avoid any risk.
- For water heaters intended for horizontal mounting the power supply conductor insulation from fixed wiring must be protected from direct contact with the flange (in zone under the plastic panel). For example, insulating sleeving having temperature rating higher than 90 °C can be used.
- During the heating the appliance could produce a hissing noise (the boiling water). This is common and does not indicate any damage. The noise gets higher with the time and the reason for this is the accumulation of limestone. To remove the noise the appliance must be cleaned from limestone. This type of cleaning is not covered by the warranty.
Dear Clients,
The TESY team would like to congratulate you on your new purchase. We hope that your new appliance shall bring more comfort to your home.
II. TECHNICAL PARAMETERS
- Nominal volume V, liters - see the appliance's rating plate
- Nominal voltage - see the appliance's rating plate
- Nominal power consumption - see the appliance's rating plate
- Nominal pressure - see the appliance's rating plate
This is not the water mains pressure. This is the pressure that is announced for the appliance and refers to the requirements of the standards.
-
Water heater type - closed type accumulating water heater, with thermal insulation
-
Daily energy consumption – see Annex I
- Rated load profile - see Annex I
- Quantity of mixed water at 40°C V40 litres - see Annex I
- Maximum temperature of the thermostat - see Annex I
- Default temperature settings - see Annex I
- Energy efficiency during water heating - see Annex I
III. DESCRIPTION AND PRINCIPLE OF WORK
The appliance consists of a body, flange at the bottom side /for water heaters intended for vertical mounting/ or at the sides /for water heaters intended for horizontal mounting/, protective plastic panel safety-return valve.
- The body consists of a steel reservoir (water tank) and housing (outer shell) with thermal insulation placed in-between made of ecologically clean high density polyurethane foam, and two pipes with thread G 12 for cold water supply (marked by a blue ring) and hot water outlet pipe (marked by a red ring).
The inner tank may be of two types depending on the model: - Made of steel protected form corrosion by a special glass-ceramics coating
• Made of stainless steel - The flange is outfitted with: electric heater and thermostat. The water heaters with glass-ceramics coating are outfitted with a magnesium protector.
The electric heater is used for heating the water in the tank and is managed by the thermostat, which automatically maintains the set temperature.
The thermostat has a built in overheating safety device, which switches of power to the heater when the water temperature reaches excessive values. - The safety-return valve prevents the appliance's complete emptying in the event the cold water supply is interrupted. The valve protects the appliance from pressure increases higher than the allowed value during heating (! pressure increases upon an increase of temperature), via release of excess pressure during the drainage opening.
The safety-return valve cannot protect the appliance in the event of water mains pressure in excess of the acceptable pressure stated by appliance.
IV. MOUNTING AND SWITCHING ON
Attention! Improper installation and connection of the appliance may make it hazardous for the health and life of consumers. It may
cause grievous and permanent consequences, including but not limited to physical injuries and/or death. Improper installation and connection of the appliance may also lead to damage to the consumers' property /damage and/ or destruction/, or to that of third persons, as a result of, but not limited to flooding, explosion and/or fire. Installation, connection to the main water and power supply, and putting into operation must be carried out by certified electricians and technical personnel certified in installation of this category of appliances, who have obtained their license in the state where the installation and commissioning of the appliance are carried out, and in compliance with its local legislation.
Notice: The installation of the unit is at the buyer's expense.
1. Mounting
We recommend the mounting of the device at close proximity to locations where hot water is used, in order to reduce heat losses during transportation. In the event the device is mounted in a bathroom, the selected location must exclude the possibility of water spray contact from the showerhead or portable showerhead attachment.

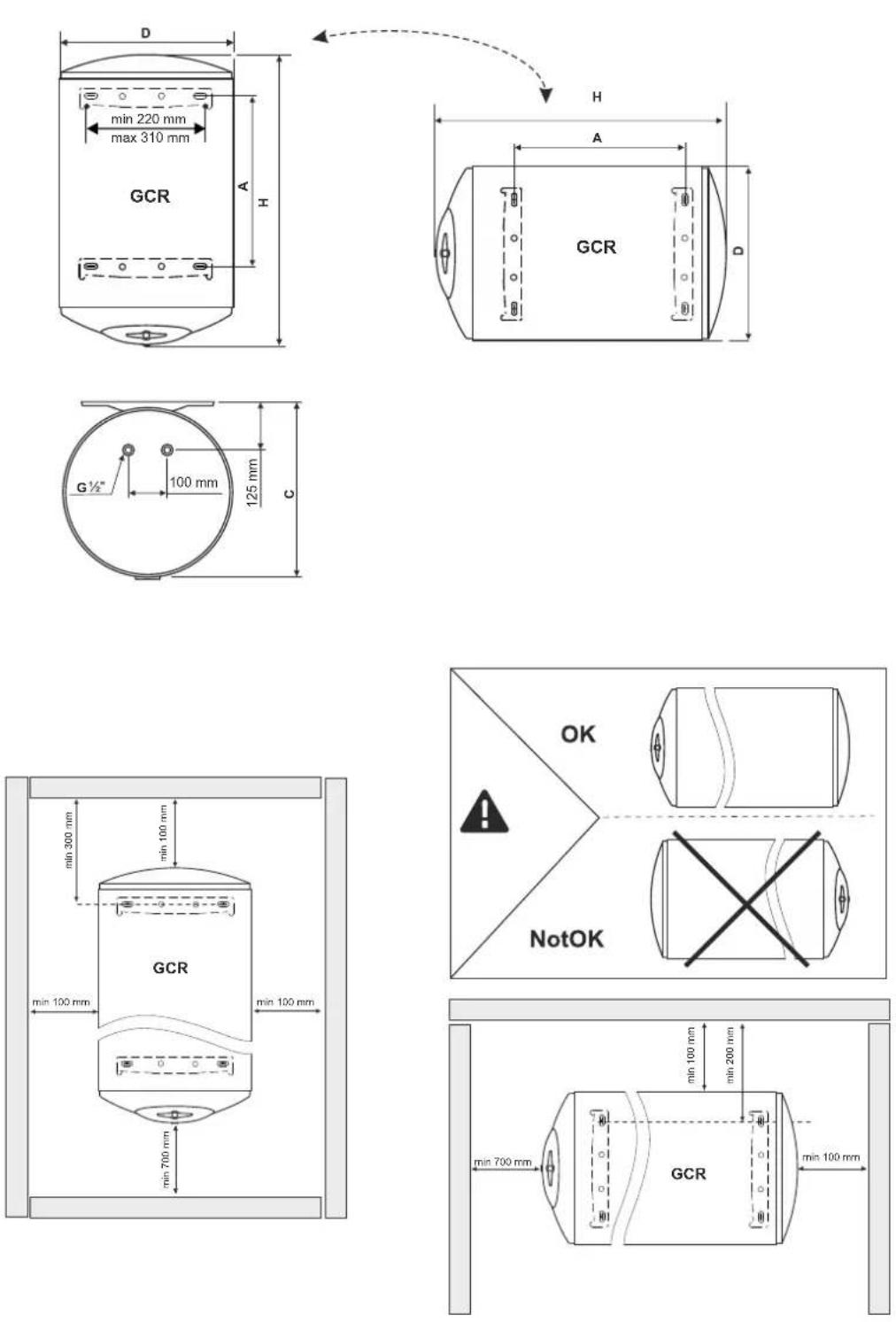

Vertical installation GCV (fig. 1a, table 1) -The appliance is affixed to a wall via the mounting brackets attached to the unit's body (if the brackets are not attached to the unit's body, they must be affixed in place via the provided bolts). Two hooks are used for suspending the appliance (min. ∅ 10 mm) set firmly in the wall (not included in the mounting set). The mounting bracket's construction designed for water heaters intended for vertical mounting is universal and allows a distance between the hooks of 220 to 310 mm (fig. 1a).

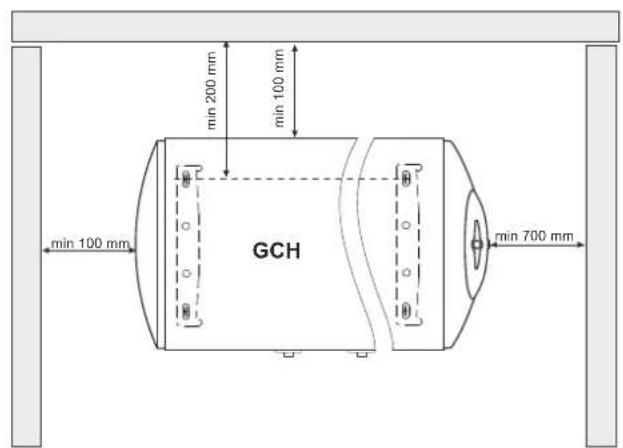

Horizontal installation GCH and GCR models (fig.1b, 1c) – At horizontal installation the distances between the carrying hooks are different with the different capacities and these values are indicated in table 2 - fig.1b and table 3 - fig. 1c.
In order to prevent injury to user and third persons in the event of faults in the system for providing hot water, the appliance must be mounted in premises outfitted with floor hydro insulation and plumbing drainage. Don't place objects, which are not waterproof under the appliance under any circumstances. In the event of mounting the appliance in premises not outfitted with floor hydro insulation, a protective tub with a plumbing drainage must be placed under the appliance.
Notice: the set does not include a protective tub and the user must select the same.
2. Water heater connection to the pipe network.
Fig. 4:

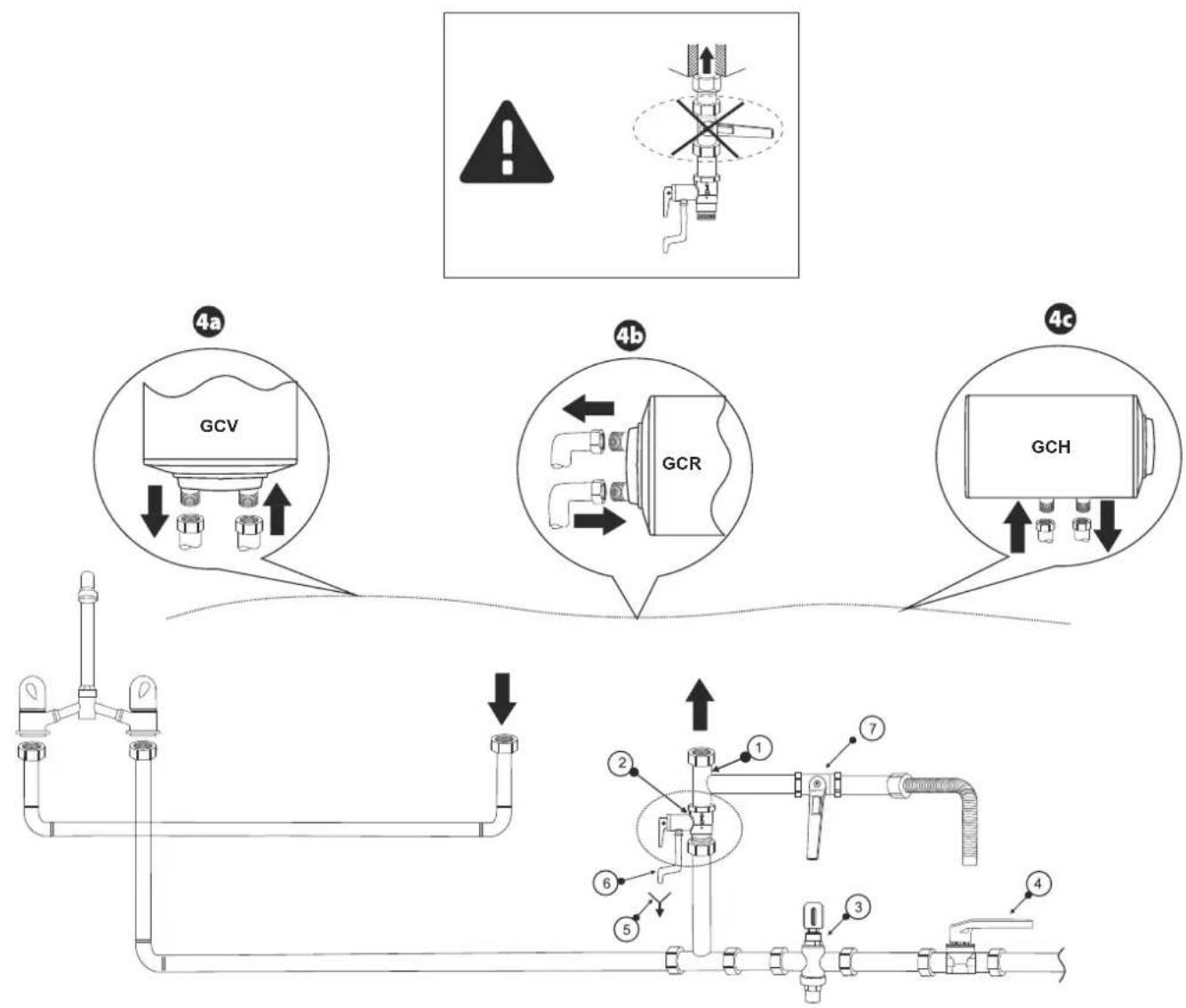

Where: 1 - Inlet pipe; 2 - Safety valve; 3 - reducing valve (for water main pressure > 0,6 MPa); 4 - Stop valve; 5 - Funnel connected to the sewer network; 6 - Hose; 7 - Drain water tap.
Upon connecting the water heater to the water mains you must consider the indicative color markings /rings/ affixed to the pipes: blue for cold /incoming/ water, red for hot /outgoing/ water.
The mounting of the safety return-valve supplied with the water heater is obligatory. The safety return-valve must be mounted on the cold water supply pipe, in observance of the direction arrow stamped on its body, indicating the incoming water's direction. Additional stopcocks must not be mounted between the safety return-valve and the water heater.
Exception: If the local regulations (norms) require the usage of another protection valve or mechanism (in accordance with EN 1487 or EN 1489), then it must be bought additionally. For mechanisms operating in accordance with EN 1487 the announced operational pressure must be no more than 0.7 MPa. For other protection valves, the pressure at which they are calibrated must be 0.1 MPa lower than the one marked on the appliance's sign. In these cases the safety valve which the appliance is supplied with should not be used.
The presence of other /old/ safety return-valves may lead to a breakdown of your appliance and they must be removed.
Other type of stopping armature is not allowed between the protection return valve (the protective device) and the appliance.
The attaching of the safety return-valve to threads longer than 10 mm is not allowed, otherwise this may damage the valve and poses danger for your nce.
With appliances for vertical assembly, the safety valve has to be connected to the ingoing pipe with the safety plastic panel of the stance being taken off.
The safety valve and the pipe between the valve and the water heater must be protected from freezing. During hose draining - its free end must ways open to the atmosphere (not to be immersed). Make sure that the hose is protected from freezing.
Opening the cold-water stopcock of the water supply piping network and opening the hot-water stopcock of the water-mixing faucet carries out the filling of the water heater with water. After the filling is complete, a constant stream of water must begin to flow from the water-mixing faucet. Now you can close the hot water stopcock.
In the event you must empty the water heater, first you must cut off its power supply. The inflow of water from the water mains must first be terminated and the hot water tap of the mixing-faucet must be opened. The water tap 7 (fig 4) must be opened to drain the water from water tank. If there is no such tap build in the pipe line, than the water can be drain directly from inlet pipe of water tank after when you disconnect it from water main
In the event of removing the flange, the discharge of several liters of water, which remain in the water tank, is normal.
Measures must be undertaken to prevent damage from discharging water during draining
In case that the pressure in the water mains is over the value pointed out in the above paragraph I, then it is necessary to assemble a pressure reduce valve, otherwise the water heater would not function properly. The Manufacturer does not assume any liability for problems arising out of the appliance's improper use.
3. Water heater connection to the electrical network
Make sure the appliance is full of water prior to switching on the electrical mains power.
3.1. Models with power cord with a plug are connected by inserting the plug into a contact. They are switched off the power supply by drawing the plug out of the contact.
The wall-plug must be properly connected to a separate electrical circle that is provided with a protector. It must be earthed.
EN
3.2. The appliance has to be connected to a separate electricity circuit of the stationary electrical wiring. The connecting has to be constant-with no plug contacts. The circuit has to be supplied with a safety fuse (16A) and with inbuilt device to ensure disconnection of all pole pieces in the conditions of over-voltage from category III.
The connecting of the conductors of the supply cord of the appliance has to be carried out as follows:
• conductor with brown insulation – to the phase conductor of the electrical wiring (L)
• conductor with blue insulation- to the neutral conductor of the wiring (N)
- conductor with yellow-green insulation – to the safety conductor of the wiring (1)
3.3. Models without power cord
The appliance has to be connected to a separate electricity circuit of the stationary electrical wiring. The circuit has to be supplied with a safety fuse 16A (20A for power >3700W). Copper single core (rigid – non stranded) conductor shall be used for the connection – cable 3 x 2.5 mm ^2 (cable 3 x 2.5 mm ^2 for power >3700W).
The electrical circuit supplying the appliance must have an in-built device ensuring the splitting of all terminal poles under conditions of super-voltage of category III.
To install the power supply wire to the appliances remove the plastic cover. Connect the power wires in compliance with the marks on the terminals, as follows:
• the phase - to mark A, A1, L or L1;
• the neutral - to N (B or B1 or N1)
- The safety wire must be obligatory connected to the screw joint marked with ⏚
After the installation, put the plastic cover back in its place!
Explanations to Fig. 3:

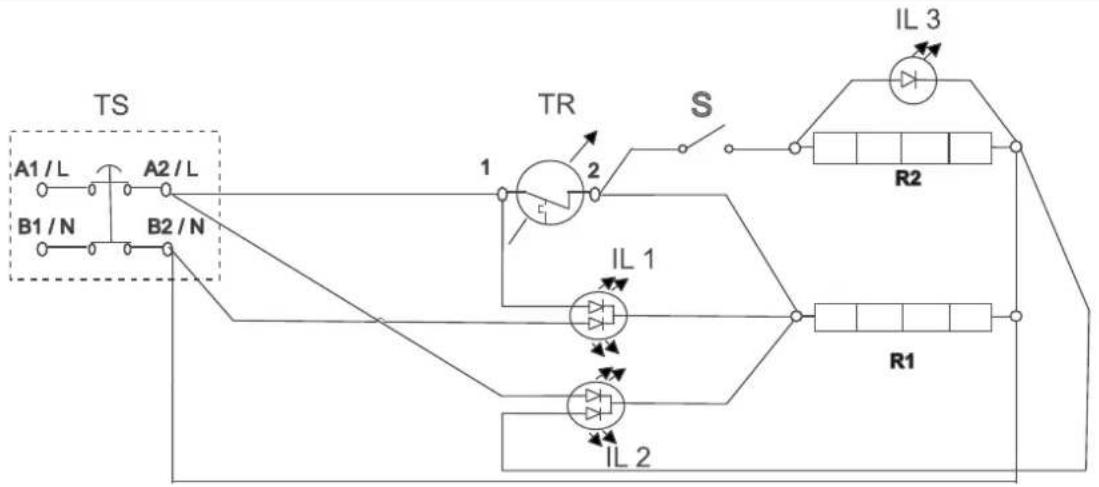

TS - thermal switch; TR - thermal regulator; S - switch (for models that have one); R - heater; IL - light indicator; F - flange.
V. RUST PROTECTION MAGNESIUM ANODE (FOR WATER HEATERS WITH WATER TANKS COVERED BY GLASS-CERAMICS COATING)
The magnesium anode protects the water tank's inner surface from corrosion.
The anode element is an element undergoing wear and tear and is subject to periodic replacement.
In view of the long-term and accident free use of your water heater, the manufacturer recommends periodic inspections of the magnesium anode's condition by a qualified technician and replacement whenever required, and this could be performed during the appliance's technical preventive maintenance.
For replacements, please contact the authorized service stations!
VI. OPERATION
Before switching on the appliance for first time, make sure that the water heater is properly connected to the power supply network and full with water.
1. Models with BOOST control
1.1. Control Elements

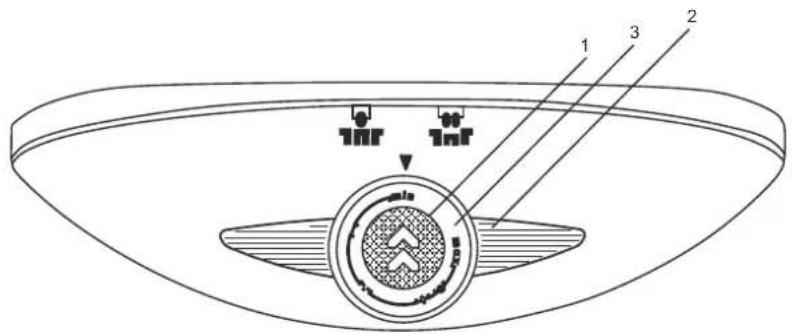

Fig. 2 where:
1 - Key of a power switch (on key models)
2 - luminous indicators
3 - Handle for thermoregulator (integrated with the key of the power switch).
1.2. Switching on the appliance
The appliance is switched on by means of the appliance incorporated in the installation described in subsection 3 of paragraph V or by connecting the plug to the electrical socket (if the model is with a cord with a plug).

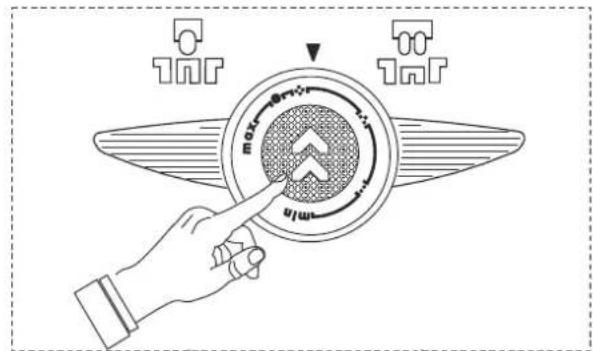

The BOOST function is activated by the power switch button.
The power switch button of the appliance is embossed and is marked Ⓐ. To turn on the BOOST function, press the button until it stops and then release it. The button remains pressed and it illuminates in red color, indicating that the button is on and the appliance will be working at maximum power.
The maximum heating power is marked on the appliance type plate.
The button illuminates continuously until the water in the appliance gets warm. The button goes out when the set water temperature is reached and the thermostat switches off the heater power. To turn off the BOOST function, press the button until it stops, then release it. The button must be stand out and the light signalization goes out (if the appliance is in the heating mode), which means that the BOOST function is off. The appliance remains in the minimal power heater operation mode.
Attention! The BOOST button illuminates only when the BOOST function and the water heating mode are active. When the BOOST function is activated and the set water temperature is reached, the BOOST button is not illuminating. Indication for active BOOST function is the pressed BOOST button.

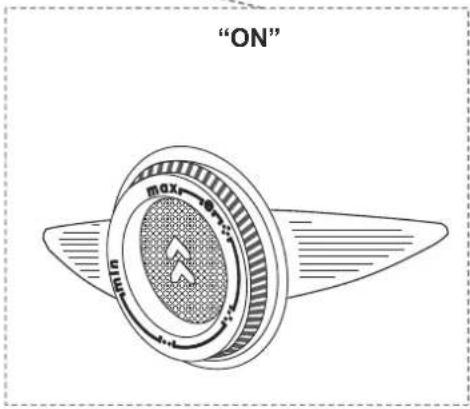

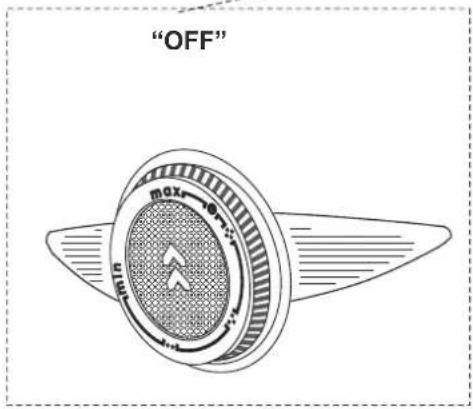

BOOST "OFF"
BOOST "ON"
Control lights (indicators)
They illuminate in red color - the appliance is in the heating water mode. (If the appliance is in BOOST mode, the BOOST button illuminates in red color.)
They illuminate in blue color - the water in the appliance is heated and the thermostat switches off the heater's power. (If the appliance is in BOOST mode, the BOOST button extinguishes.)
Indicators do not illuminate in case of:
no electrical power is supplied to the appliance, or the temperature protection of the appliance has been switched off - see section 2 below.
When the BOOST function is activated, the unit operates at maximum power to heat the water. The BOOST function is recommended when you want the appliance to reach the set water temperature for a short period of time.
Selecting a power level for heating the water:
| Declared power (marked on the nameplate of the appliance) | Button BOOST off Button BOOST on | |
| 1600 W 800 W 1600 W | ||
| 2400 W 1200 W 2400 W | ||
1.3. Setting the temperature

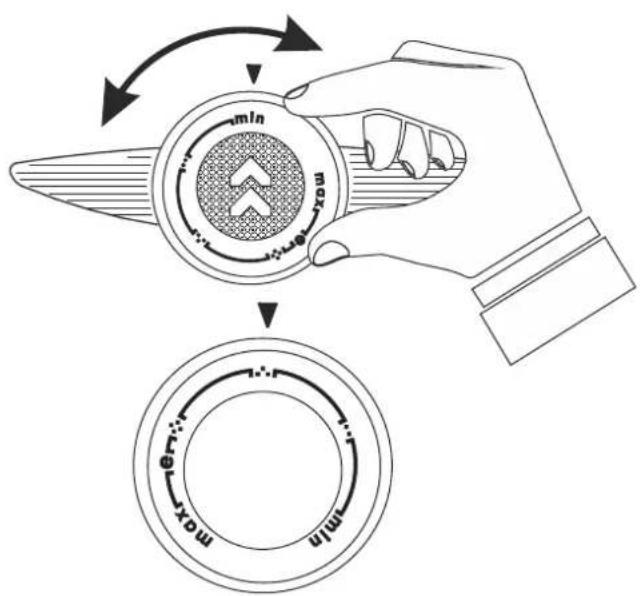

This function allows you to select the desired temperature. To make your choice, turn the handle on the panel by placing the marker in the appropriate position (Fig. 2). To increase the temperature, turn clockwise.
Place the thermostat knob in position for maximum temperature (unless it is on this position constantly), for period of one day each month - see Annex-I Maximum temperature of the thermostat. This ensures higher hygiene of the used hot water.
Anti-freeze mode
Set the handle to the „MIN“ position according to figure 2. With this setting, the appliance maintains a temperature that prevents the water from freezing.
The power supply of the appliance must be switched on. The safety valve and the pipeline from it to the appliance compulsory must be secured against frost.
Energy-save mode - Position e
At this mode, water temperature reaches up to approximately 60^ C. Heat losses are reduced in this way.
- Protection according to the temperature (valid for all models). The appliance is equipped with a special facility (thermal circuit-breaker) for protection against over-heating of the water, which is switching off the heater from the electricity network, when the temperature reaches too high values.
When this device operates, it does not self-reset and the appliance will not work. Please call an authorized service for solving the problem.
VII. PERIODIC MAINTENANCE
Under normal use of the heater, under the influence of high temperature, lime scale /the so-called lime scale layer/ is deposited upon the heating element's surface. This worsens the heat exchange between the heating element and water. The heating element's surface temperature increases along /of boiling water/. The thermoregulator begins to switch on and off more frequently. A "deceptive" activation of the thermal protection is possible. Due to these facts, the manufacturer recommends preventive maintenance of your water heater every two years by an authorized service center or service base. This protective maintenance must include cleaning and inspection of the anode protector (for water heaters with glass-ceramic coating), which shall be replace with a new one if need arises.
In order to clean the appliances use a damp cloth. Do not clean with abrasive or solvent content detergents. Do not pour water over the appliance.
The manufacturer does not bare the responsibility for all consequences caused by not obeying the instructions, given hereby.
Instructions for protecting the environment
Old electric appliances contain precious materials and thus should not be thrown together with the household litter. We kindly ask you make your active contribution for protecting the resources and the environment by handing over the appliance in the authorized buy-back stations (if such exist).
