DHD30U990WSDA - Basket Dacor - Free user manual and instructions

Product Type	Wall chimney hood
Brand	Dacor
Model	DHD30U990WSDA
Width	76.2 cm (30")
Depth	50.6 cm (19 15/16")
Adjustable height	80.7 to 135.4 cm (31 3/4" to 53 5/16")
Duct diameter	25.4 cm (10")
Power supply	120 V, 60 Hz, 15 A
Exhaust	Exterior required, 10" round duct
Filters	2 metal filters
Material	Stainless steel
Lighting	Integrated (type not specified)
Damper	Integrated
Mounting	Wall mounted, requires rigid metal duct
Minimum mounting height	76.2 cm above a gas stove, 60.9 cm for electric
Optional accessories	Extension kit DHD-D0000WS/DA
Safety	Grounding required, circuit breaker recommended
Maintenance	Washable filters; clean regularly to prevent grease buildup

Frequently Asked Questions - DHD30U990WSDA Dacor

What is the minimum mounting height above a gas cooktop?

The minimum height is 76.2 cm (30") above a gas cooking surface and 60.9 cm (24") for an electric surface.

Can I use a flexible duct for exhaust?

No, flexible vent is not recommended because it creates back pressure and reduces performance. Use a rigid metal duct 10" (25.4 cm) in diameter.

How to install the dual ventilation hood?

First install the ventilator box with the mounting screws, then hang the hood drawer under the box by inserting the pins into the slots. Connect the cable connector.

What to do if the hood does not work after installation?

Make sure the power is off at the service panel, that the electrical connections are correct, and that the hood is properly grounded. See the 'Troubleshooting' section in the user manual.

How to clean the filters?

The metal filters can be washed with warm soapy water or in a dishwasher. Dry them before reinstalling.

Can I use the hood without an exterior exhaust?

No, the hood must be vented to the outside. Do not vent into an attic or enclosed space. Use only a metal duct.

What are the electrical requirements?

An electrical circuit of 120 V, 60 Hz, 15 A with fuse is required. Installation must comply with local codes.

How to connect the electrical wiring?

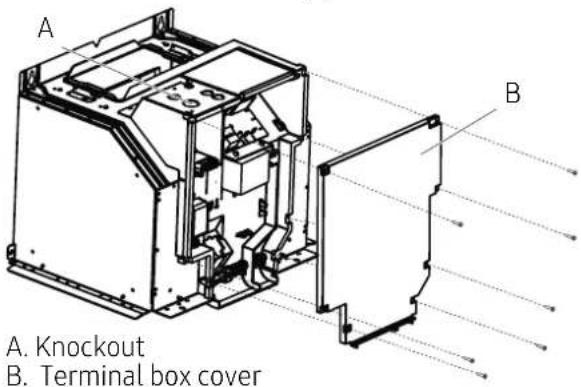

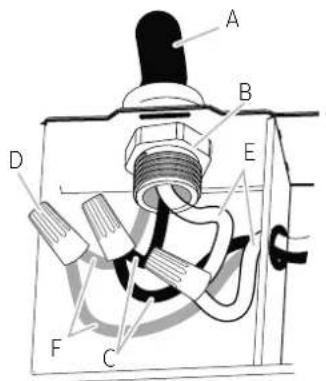

Turn off power. Remove the terminal box cover, install a 1/2" cable clamp, pass the cable, connect black wires together, white wires together, and the ground wire to the yellow-green wire. Tighten the cable clamp.

Where is the rating plate located?

The rating plate is located behind the filter, on the back wall of the hood. Note the model and serial number before contacting customer service.

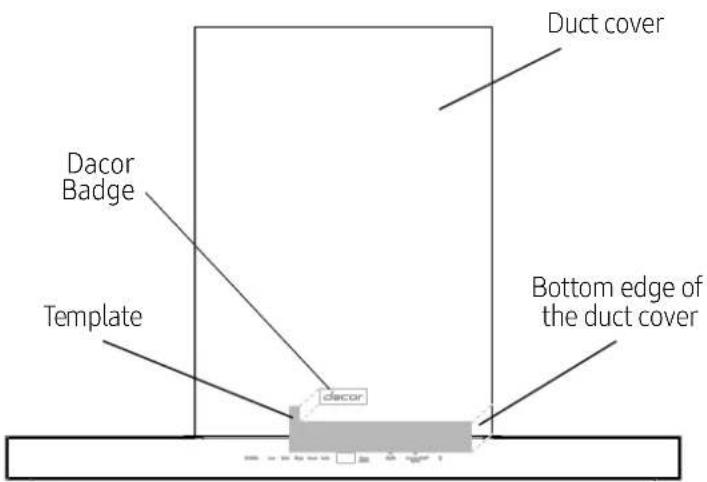

How to install the Dacor badge?

Use the template provided in the manual to align the badge. Practice before removing the adhesive paper. The badge has very strong adhesive. Attach it without overlapping with the template.

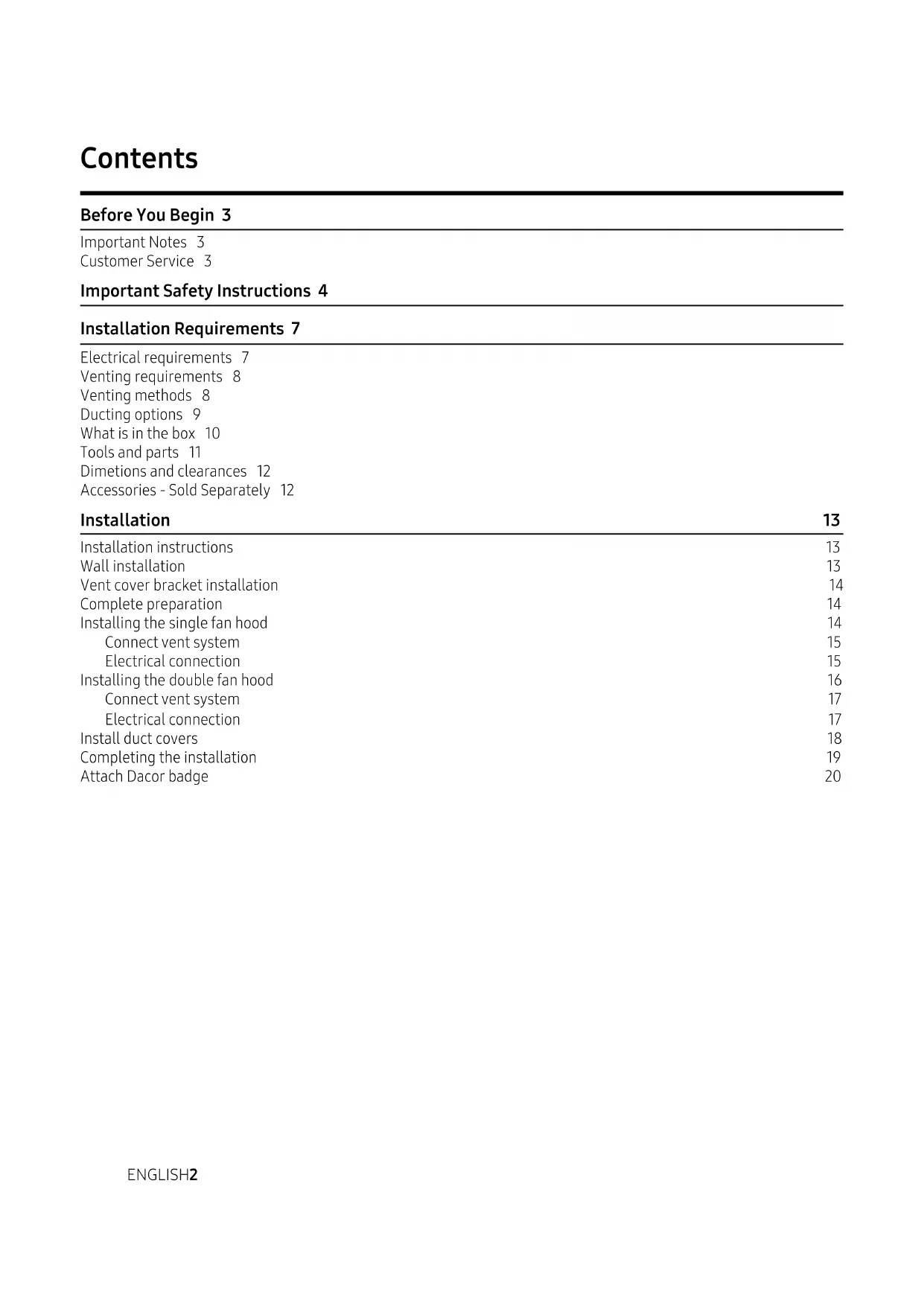

USER MANUAL DHD30U990WSDA Dacor

Important Safety Instructions 4

Installation Requirements 7

Electrical requirements 7

Venting requirements 8

Venting methods 8

Ducting options 9

What is in the box 10

Tools and parts 11

Dimetions and clearances 12

Accessories - Sold Separately 12

Installation 13

Installation instructions 13

Wall installation 13

Vent cover bracket installation 14

Complete preparation 14

Installing the single fan hood 14

Connect vent system 15

Electrical connection 15

Installing the double fan hood 16

Connect vent system 17

Electrical connection 17

Install duct covers 18

Completing the installation 19

Attach Dacor badge 20

Important Notes

Installer

• In the interest of safety and to minimize problems, read this manual thoroughly before starting the installation.
• Leave this manual with the customer.
  • Show the owner how to shut off power to the hood.

Customer

Keep this manual for personal and professional reference.

Customer Service

To resolve questions and installation issues, contact your Dacor dealer or Dacor customer service. Before calling, have the hood's model and serial number available. (See the data label inside the hood above the filters on the chassis' rear wall).

All specifications are subject to change without notice. Dacor assumes no liability for such changes. ©2022 Dacor, all rights reserved.

APPROVED FOR RESIDENTIAL APPLIANCES

READ AND SAVE THESE INSTRUCTIONS

PLEASE READ ENTIRE INSTALLATION GUIDE BEFORE PROCEEDING.

INSTALLATION MUST COMPLY WITH ALL LOCAL CODES.

IMPORTANT: Save these instructions for the local electrical inspector's use.

INSTALLER: Please leave these instructions with this unit for the owner.

OWNER: Please retain these instructions for future reference.

Symbols used in this manual

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

WARNING

Turn off power circuit at service panel and lock out panel before wiring this appliance.

CAUTION

Hazards or unsafe practices that may result in electric shock, personal injury, or property damage.

NOTE

Useful tips and instructions.

These warning icons and symbols are here to prevent injury to you and others.

Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

State of California Proposition 65 warning (US only)

WARNING

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm - www.p65warnings.ca.gov

1. FCC Notice

CAUTION

FCC CAUTION:

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is subject to following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that cause undesired operation.

For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select any other channels.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV
• Consulting the dealer or an experienced radio/TV technician for help

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

2. IC Notice

The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1\~11 are available. You cannot select any other channels.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING PRECAUTIONS:

• Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
• Before servicing or cleaning the unit, switch the power off at the service panel and lock the service panel to prevent power from being switched on accidentally. If the service panel cannot be locked, securely fasten a prominent warning device, such as a tag to the service panel.
• Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fi re-rated construction.
• Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• When cutting or drilling into the wall or ceiling; do not damage electrical wiring and other hidden utilities.
• Ducted fans must always be vented outdoors.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION

To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK

WARNING

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

• Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
• Always turn the hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
• Clean ventilating fans frequently. Grease should not be allowed to accumulate on the fan or filter.
• Use proper pan sizes. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING PRECAUTIONS:*

• SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMMING PAN - you may get burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
• Use an extinguisher ONLY if:
• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.

*Based on "Kitchen Fire Safety Tips" published by NFPA.

WARNING

To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

WARNING

Do not let children near this appliance. Do not let children play with this appliance.

Keep all packaging materials out of children's reach. Properly dispose the packaging materials after this appliance is unpacked.

NOTE

Suitable for use in household cooking area.

Read and save these Instructions

Electrical requirements

IMPORTANT

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 — latest edition*, or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from: National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

• A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

• If the house has aluminum wiring, follow the procedure below.

• Connect a section of solid copper wire to the pigtail leads.

• Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

- Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

- Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the hood.

- Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition and all local codes and ordinances).

Installation Requirements

Venting requirements

• Vent system must terminate outdoors.
• Do not terminate the vent system in an attic or other enclosed area.
• Do not use a 4" (10.2 cm) laundry-type wall cap.
• Use metal vent only. Rigid metal vent is recommended.
• Plastic or metal foil vent is not recommended.
• The length of the vent system and the number of elbows should be kept to a minimum to provide efficient performance. For the most efficient and quiet operation:
• Use no more than three 90° elbows.

• Make sure there is a minimum of 30" (76.2 cm) of straight vent between the elbows if more than 1 elbow is used. Do not install 2 elbows together.

• Use clamps to seal all joints in the vent system.

• The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the hood.
• Use caulking to seal the exterior wall or roof opening around the cap.
• The size of the vent should be uniform.

Venting methods

To use the hood's top outlet to vent your hood, a 10" (25.4 cm) round vent system is required. This vent system is not included and must be purchased separately.

NOTE

Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduces performance. The vent system can terminate either through the roof or wall.

Always install a metal vent cover where the ductwork exits the house. Hood must be vented to the outside of building only

Discharge direction

This hood is factory set for venting through the roof (vertical discharge) or wall (horizontal discharge).

To vent through a wall, a 90° elbow is needed.

Ductwork installation guidelines

For safety reasons, ducting should vent directly outdoors (not into an attic, underneath the house, into the garage or into any enclosed space). Do not exceed 50 ft (15.24 m) of duct. Keep duct runs as short and straight as possible. Elbows and transition fittings reduce air flow efficiency.

Back to back elbows and "S" turns give very poor delivery and are not recommended. A short straight length of duct at the inlet of a remote fan gives the best delivery.

Ducting recommendations

Proper performance is dependent upon proper ducting.

Cold weather

Cold weather installations should have an additional backdraft damper installed to minimize backward cold air flow and a nonmetallic thermal break to minimize conduction of outside temperatures as part of the ductwork. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the ducting enters the heated portion of the house.

Make-up air

Local building codes may require the use of make-up air systems when using ducted ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. It is the responsibility of the owner and the installer to determine if additional requirements and/or standards apply to specific installations.

Ducting options

The hood is equipped with a 10" (25.4 cm) round transition for discharge of fumes to the outside.

Closely follow the instructions set out in this manual. Dacor is not responsible for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual.

Preparation

Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed.

Fittings material is provided to secure the hood to most types of walls/ceilings.

However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling.

Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent.

Mounting height

CAUTION

Mount this hood so that the bottom edge above the cooking surface is at 30" (76.2 cm) minimum for a gas cooking surface or 24" (60.9 cm) for an electric cooking surface.

There is no maximum mounting height, however, we recommend mounting the hood no greater than 36" (91.4 cm) above the cooking surface. For every inch (2.54 cm) above 36" (91.4 cm), fume and moisture capture efficiency diminishes at an increasing rate and may not deliver an acceptable level of ventilating performance.

This hood is intended for household use.

Check your ceiling height and hood height before selecting your hood.

Horizontal discharge

A 90° elbow may be installed immediately above the hood.

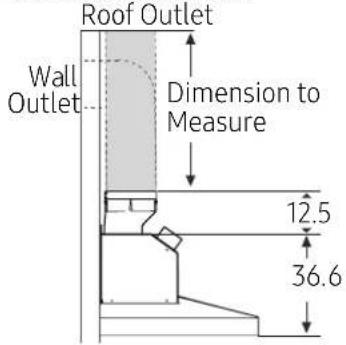

Roof Venting Wall Venting

A B

A. Roof Cap B.10" (25.4 cm) Round Vent

B A

A. Wall Cap B. 10" (25.4 cm) Round Vent

Installation Requirements

What is in the box

Hood assembly (1)30" single fan	Transition adapter (1)30" single fan	10 " Transition (1)30" single fan
Hood base (1)36" double fan48" double fan	Fan motor housing with 10 " transition (1)36" double fan48" double fan
Filters30"(2)36"(2)48"(3)	Upper duct cover (1)Lower duct cover (1)	Hardware bag (1) Product literature (2)

Tools and parts

Remove the packaging.

CAUTION

Remove the carton carefully. Wear gloves to protect against sharp edges.

WARNING

Remove the protective film before putting into operation.

Parts supplied

- Hardware bag includes:

Part Qty
5 x 45 mm	6
8 x 40 mm	4
3.5 x 9.5 mm	Single fan model (10)Double fan model (2)
4.2 x 8 mm	Single fan model (10)Double fan model (6)
10 x 60 mm	4
5.4 x 75 mm	4
Torx 20 adapter	1
Duct cover bracket	1
Mounting template	1

Parts not supplied

Tools/materials required

• Level
• Drill with ^3/_16 (4.76 mm) drill bit
• Pencil
• Wire stripper or utility knife
• Tape measure or ruler
• Pliers
• Caulking gun and weatherproof caulking compound
• Vent clamps
• Jigsaw
• Metal snips
• Screwdrivers:
• Phillips
• Flat - blade

Parts needed

• Home power supply cable
- 1/2'' (12.7 mm) UL listed or CSA approved strain relief
• 3 UL listed wire connectors
- 1 wall or roof cap
- Metal vent system

Installation Requirements

Dimetions and clearances

A B C D E F

	30" 36" 48"
A 30" (76 cm) 36" (91.2 cm) 48" (121.7 cm)
B 19 ^15/_16 " (50.6 cm)
C	max. 53 ^5/_16 " (135.4 cm)min. 31 ^3/_4 " (80.7 cm)
D 10" (25.4 cm)
E 14 ^11/_16 " (37.3 cm)
F 16 ^1/_2 " (42 cm)
G 2 ^3/_8 " (6 cm)

Accessories - Sold Separately

Installation instructions

We recommend that a qualified technician install the hood. It is the installer's responsibility to ensure the hood complies with the installation clearances specified for the product.

• It is recommended that the vent system be installed before the hood is installed.
• If possible, disconnect and remove any cooking appliance from beneath the hood area to provide easier access to the rear wall.
• Before making cutouts, make sure there is proper clearance within the ceiling or wall for the exhaust vent.

• Confirm that all installation parts have been removed from the shipping carton.

• Turn off the power at the circuit breaker panel or fuse box.

• Determine which venting method to use: vertical or horizontal.

NOTE

This hood is factory set to vent through the top air exit.

1. Select a flat surface for assembling the hood. Place a covering over that surface.

Wall installation

1. Turn power OFF at the service panel. Lock service panel to prevent power from being turned ON.
2. Ensure that the installation height from the bottom of the hood to the cooking surface will be maintained.
3. Mark a reference centerline on the wall.
4. Tape template in place, aligning the template centerline (B) and bottom of template (C) with hood bottom line and with the centerline marked on the wall (A).

A PROBABY DIFFERENCE FOR CHINA'S MINI DIFFERENCE B C INVERTICAL FOR CHINA'S MINI DIFFERENCE B C

1. Mark centers of the fastener locations through the template to the wall.

IMPORTANT: All screws must be installed into wood. If there is no wood to screw into, additional wall framing supports may be required.

1. Remove the template.

2. Drill 316 " (4.8 mm) pilot holes at all locations where screws are being installed into wood.

3. Install the 2 - 5 x 45 mm mounting screws with 2 8 - 40 mm anchors. Leave a 14 " (6.4 mm) gap between the wall and the back of the screw head to slide hood into place.

Vent cover bracket installation

1. Assemble the 3 pieces of the vent cover bracket with 4 - 4.2 x 8 mm screws provided using the Torx 20 adapter. The assembled bracket should be sized to fit inside the upper vent cover.

A D C B X

A. Vent cover bracket assembly C. 4 - 4.2 x 8 mm screws B. Upper vent cover D. Centerline

1. Position vent cover bracket on wall about 18 " (3.0 mm) away from the ceiling.
2. Mark the hole locations.

A B C D E

A. 2 - 8 x 40 drywall anchors

B. Centerline on wall

C. Vent cover support bracket

D. 2 - 5 x 45 mm screws

E. Centerline of bracket

1. Drill ^3/_8 " (9.5 mm) holes for wall anchors and insert anchors flush with the wall.

Complete preparation

We recommend that a qualified technician install the hood. It is the installer's responsibility to ensure the hood complies with the installation clearances specified for the product.

1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the hood. See "Venting Requirements" section.

2. Determine the required height for the home power supply cable and drill a 114 " (3.2 cm) hole at this location.

3. Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough 12 " conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

NOTE

Do not reconnect power until installation is complete.

Installing the single fan hood

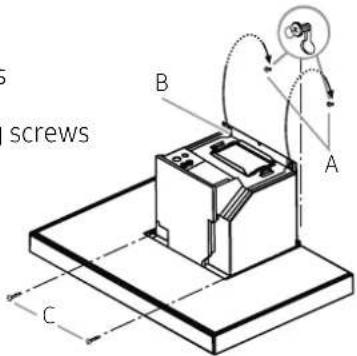

1. Using 2 or more people, hang hood on 2 mounting screws through the mounting slots on back of hood.

A. Mounting screws

B. Mounting slots

C. Lower mounting screws

screws B A C

1. Mark with a pencil the lower mounting holes location (C).

2. Uninstall the hood assembly, and drill 316 " (4.8 mm) pilot holes at marked locations.

3. Hang the hood again on 2 upper mounting screws (A).

4. Level the hood and tighten upper mounting screws (A).

5. Install 2 - 5 x 45 mm lower mounting screws and tighten (C).

Use the optional wall anchors if needed.

Connect vent system

1. Fit vent system over the transition adapter
2. Fit the transition adapter over the exhaust outlet.

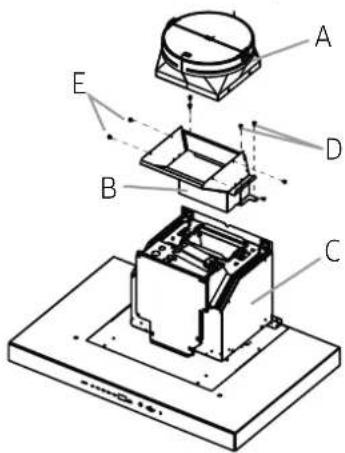

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

A. 10" round transition
B. Transition adapter
C. Hood assembly
D. 4 - 3.5 x 9.5 mm screws
E. 4 - 4.2 x 8 mm screws

Electrical connection

WARNING

ELECTRICAL SHOCK HAZARD.

WARNING

DISCONNECT POWER BEFORE SERVICING.

REPLACE ALL PARTS AND PANELS BEFORE OPERATING.

FAILURE TO DO SO CAN RESULT IN DEATH OR

ELECTRICAL SHOCK.

1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box cover and install a UL listed or CSA approved 12 " strain relief.

A. B. A. Knockout B. Terminal box cover

1. Measure from the wall or roof outlet to the top ceiling. Cut the ductwork at the measured dimension and place it over the transition.

Roof Outlet Wall Outlet Dimension to Measure 12.5 36.6

1. Seal connection with clamps.

2. Use caulk to seal all openings.

3. Run home power supply cable through strain relief, into terminal box.

A B C D E F G

A. Home power supply cable
B. Black wires
C. UL listed wire connectors
D. White wires
E. Green (or bare) and yellow-green ground wires
F. Power board ground wires
G. Fan ground wires

1. Use UL listed wire connectors and connect black wires (B) together.

2. Use UL listed wire connectors and connect white wires (D) together.

WARNING

ELECTRICAL SHOCK HAZARD.

WARNING

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (E) in terminal box using UL listed wire connectors.

2. Tighten strain relief screw.

3. Install terminal box cover.

4. Reconnect power.

Installing the double fan hood

1. Using 2 or more people, hang the fan housing on 2 mounting screws through the mounting slots on back of hood.

A B C A B C

A. Mounting screws
B. Mounting slots
C. Low mounting screws

1. Mark with a pencil the lower mounting holes location (C).
2. Uninstall the fan housing, and drill 316 " (4.8 mm) pilot holes at marked locations.
3. Hang the fan housing again on 2 upper mounting screws (A).
4. Level the fan housing and tighten upper mounting screws (A).
5. Install 2 - 5 x 45 mm lower mounting screws and tighten (C).

Use the optional wall anchors if needed.

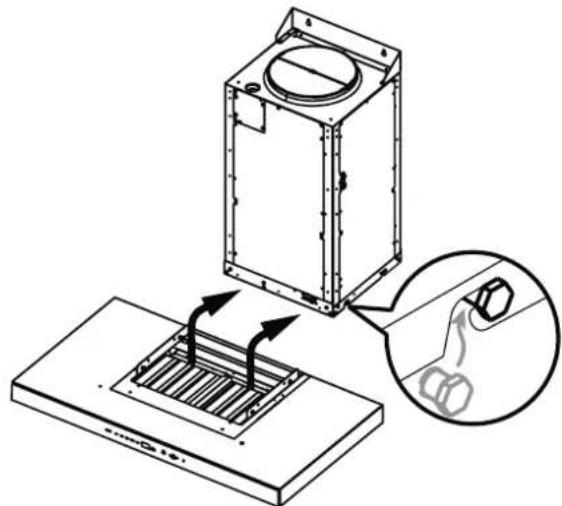

1. Using 2 or more people, lift the hood base beneath the motor housing. Insert the hood base pins into the housing lower slots. Once the four pins are already inserted, the hood base stands hanging.

Technical line drawing of a mechanical device with internal components and a magnified inset showing a close-up view of a component (no text or symbols present)

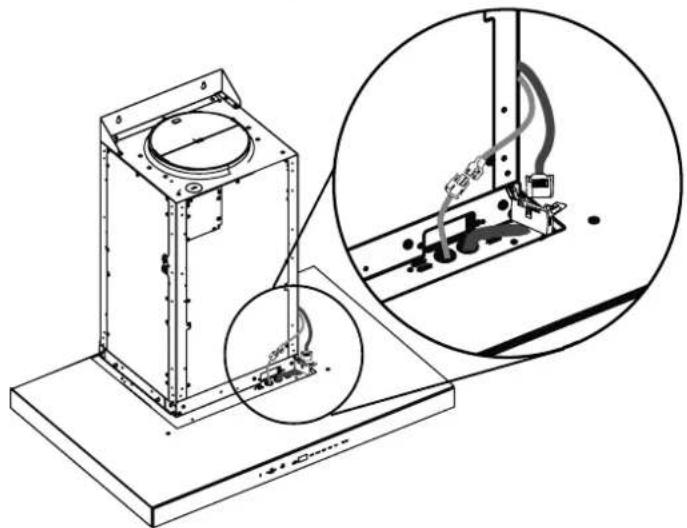

1. Release the base connector wire from the strap. Plug with the fan housing wire connector.

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Connect vent system

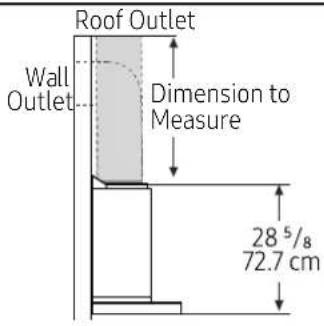

1. Measure from the wall or roof outlet to the top ceiling. Cut the ductwork at the measured dimension and place it over the transition.
2. Seal connection with clamps.
3. Use caulk to seal all openings.

Roof Outlet Wall Outlet Dimension to Measure 28⁵/₈ 72.7 cm

Electrical connection

WARNING

ELECTRICAL SHOCK HAZARD.

WARNING

DISCONNECT POWER BEFORE SERVICING.

REPLACE ALL PARTS AND PANELS BEFORE OPERATING.

FAILURE TO DO SO CAN RESULT IN DEATH OR

ELECTRICAL SHOCK.

1. Disconnect power.
2. Remove terminal box cover.
3. Remove the knockout in the terminal box cover and install a UL listed or CSA approved 12 " strain relief.

Technical diagram of a mechanical device with labeled components A and B, showing internal structure and alignment indicators.

A. Terminal box cover
B. Strain relief

1. Run home power supply cable through strain relief, into terminal box.

A B D E F C

A. Home power supply cable
B. UL listed or CSA approved strain relief
C. Black wires
D. UL listed wire connectors
E. White wires
F. Green (or bare) and yellow-green ground wires

1. Use UL listed wire connectors and connect black wires (C) together.
2. Use UL listed wire connectors and connect white wires (E) together.

WARNING

1. Connect green (or bare) ground wire from home power supply to yellow-green ground wire (F) in terminal box using UL listed wire connectors.
2. Tighten strain relief screw.
3. Install terminal box cover.
4. Reconnect power.

Install duct covers

- When using both upper and lower vent covers, push lower cover down onto hood and lift upper cover to ceiling and install with two mounting screws.

NOTE

The upper vent cover may be reversed to hide slots.

1. Place a tissue or soft cloth between duct covers to prevent scratching while installing.
2. Insert the complete duct cover at an angle and swivel toward the wall.
3. Remove the tissue or soft cloth.

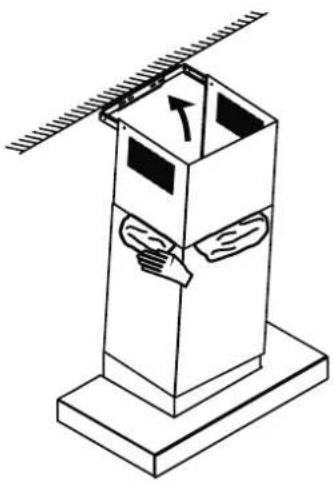

Isometric line drawing of a mechanical assembly with a base platform and overhead railings (no text or symbols)

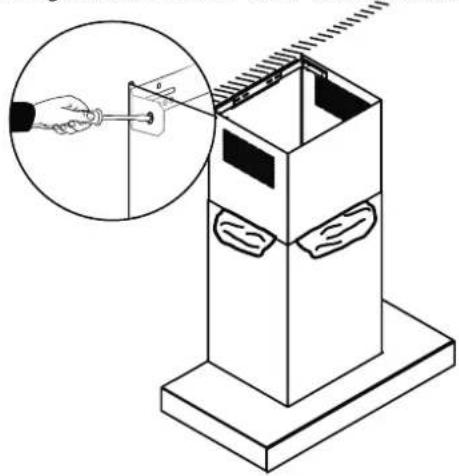

1. Carefully pull the top part of the extension upwards. Screw the left and right sides of the extension to the mounting bracket with 2 -3.5 x 9.5 mm screws.

Isometric line drawing of a mechanical assembly with a hand holding a tool, showing part details and a close-up inset (no text or symbols)

1. Secure the bottom of the duct with 2 - 4.2 x 8 mm screws.

Technical line drawing of a ceiling-mounted appliance with internal components (no text or symbols)

Completing the installation

Place the filters and check the operation of the hood.

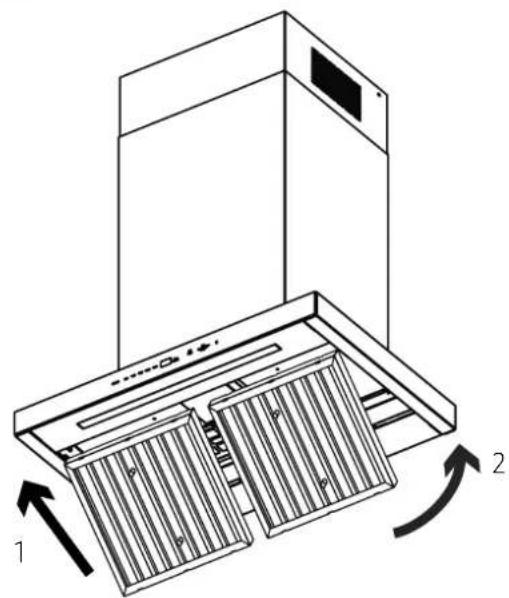

1. Grasp the filter handles with both hands and then place the front edge of the filter into the hood.
2. Push up on the back of the handle, and then set rear of filter into the drip tray to secure. Repeat for each filter.

Technical diagram of a kitchen air conditioner unit with labeled components and directional arrows indicating assembly or movement.

Model shown for reference only, features may vary

• To get the most efficient use from your new hood, read the "Use and Care" manual.
• Keep these Installation Instructions and Use and Care Guide close to hood for easy reference.

Installation

Attach Dacor badge

Use the template on this page for alignment of the badge. Cut out the template and tape it onto the duct cover front surface, aligned with the bottom part of the hood and verify the template is aligned with the right side of the duct cover and within the bottom part of the hood. Practice placing the badge first before removing the adhesive release paper.

Template Dacor Badge Bottom edge of the duct cover Duct cover

After this practice, remove the release paper from the back of the badge, and attach the badge to the hood without any overlap of the badge to this template.

Remove and discard this template.

NOTE: The badge has very high retention adhesive - once the badge is attached its extremely difficult to remove.

Before removing the release paper from the back of the badge, practice placing the badge in the proper position on the hood without any overlap between the badge and this template.

Sommaire

Installation murale 32

State of California Proposition 65 warning (US only)

▲ AVERTISSEMENT

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

This hood is factory set for venting through the roof (vertical discharge) or wall (horizontal discharge).

Technical diagram showing a mechanical assembly with labeled components A and B, likely for engineering or architectural drawing.

Isometric line drawing of a rectangular box with internal compartments and labeled point B (no text or symbols beyond label)

C. 4 vis de 4,2 x 8 mm

D. Ligne centrale

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

Technical diagram of a device with labeled components A, B, C, D, E and internal structure

A B C D E F G

Technical illustration of a mechanical device with internal components and a magnified inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal structure and alignment indicators.

Isometric line drawing of a mechanical assembly with a rectangular frame and base platform (no text or symbols)

Installation

Isometric illustration of a mechanical assembly with a hand holding a tool, showing part details and a magnified inset (no text or symbols)

Technical line drawing of a ceiling-mounted appliance with internal components (no text or symbols)

Terminer l'installation

Technical diagram of a kitchen air conditioner unit with labeled components and airflow direction arrows

Important Safety Instructions 42

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Isometric line drawing of a rectangular box with internal compartments and labeled point B, showing dimension X (no text or symbols beyond label)

C. 4 - tornillos de 4.2 x 8 mm

D. Línea central

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

Technical diagram of a mechanical assembly with labeled components A, B, and C, showing motion paths and structural details.

Technical diagram of a mechanical assembly with labeled components A, B, C, D, and E

A B C D E F G

Technical illustration of a mechanical device with internal components and a magnified inset showing a close-up of the component (no text or symbols present)

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

Technical diagram of a mechanical device with labeled components A and B, showing internal structure and alignment indicators.

Isometric line drawing of a mechanical device with a lever and base (no text or symbols)

Instalación

Isometric illustration of a mechanical device with a hand holding a tool, showing internal components and a close-up inset (no text or symbols)

Technical line drawing of a ceiling-mounted appliance with internal components (no text or symbols)

Technical diagram of a kitchen air conditioner unit with labeled components and directional arrows indicating flow or movement.
