Product type	Cordless stick vacuum
Brand	Shark
Model	ICZ300EUT
Rated voltage	28.8 V=
Rated power	450 W
Battery type	Lithium-ion rechargeable
Full charging time	About 3 hours 30 minutes
Charge indicators	LED indicators: flashing while charging, alternating for temperature problem
Suction modes	Eco, Standard, Boost
Floor modes	Hard floor, Carpet and rug
Main technologies	Anti-hair wrap, DuoClean, PowerFins, Shark Get Anywhere Technology
Rotating brushes	Rotating brush and soft roller

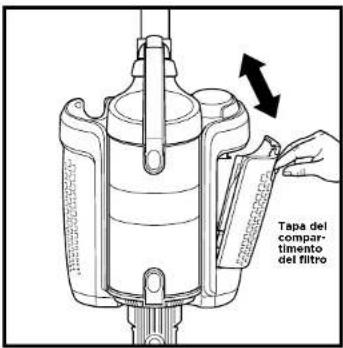

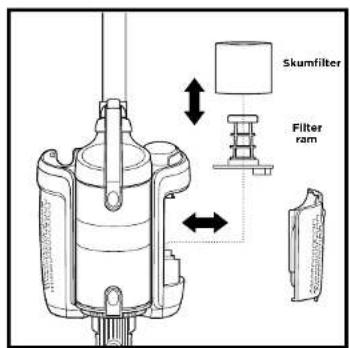

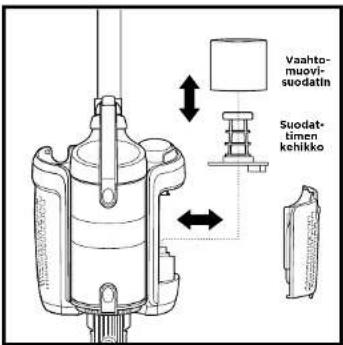

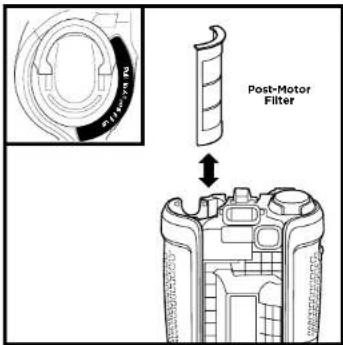

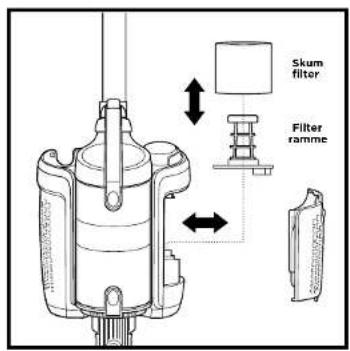

Filters	2 filters before motor (foam + frame) + 1 filter after motor
Filter maintenance	Rinse with lukewarm water only, dry 24 hours in open air

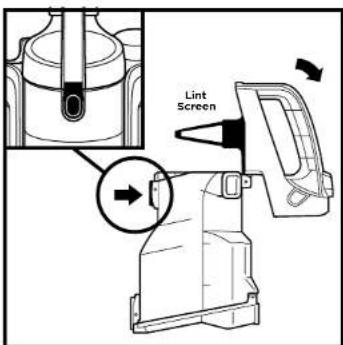

Dust cup emptying	Bottom opening button, lint filter on top
Included accessories	Flat nozzle, dusting brush, wide upholstery tool, motorized pet brush (depending on model), accessory bag, Li-ion battery, charger, charging dock
Manufacturer warranty	5 years (2 years standard + 3 years upon registration)
Battery warranty	2 years
Service numbers	Helpline: 0800 862 0453 (toll-free)
Parts website	sharkclean.eu
Use	Household use only

Frequently Asked Questions - ICZ300EUT SHARK

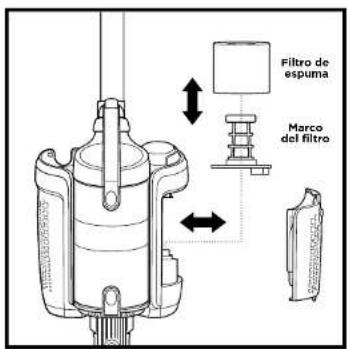

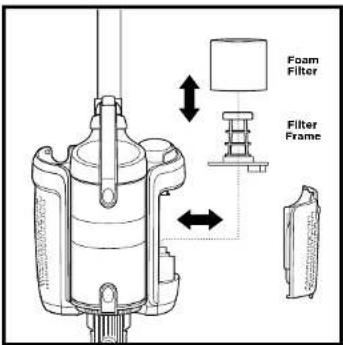

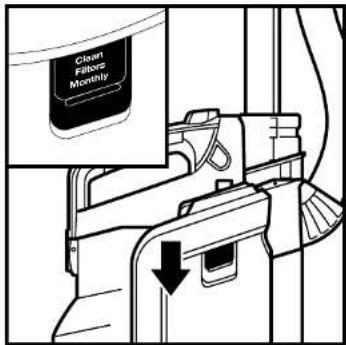

How to clean the filters of my Shark ICZ300EUT vacuum?

The filters before the motor (foam and frame) and the filter after the motor must be rinsed with lukewarm water only, without soap, then air-dried for at least 24 hours before reinserting. Perform this operation monthly for the pre-motor filters and once a year for the rear filter.

What to do if the vacuum turns off by itself?

The shutdown may be due to overheating, an obstruction, or a discharged battery. Empty the dust cup, clean the filters, check for blockages in the tube and accessories, then let the device cool down for 45 minutes before restarting.

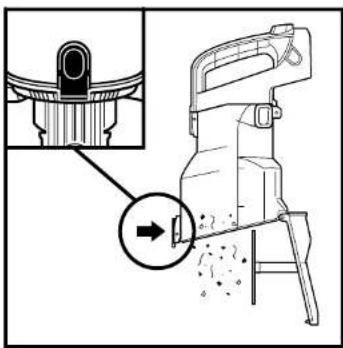

How to empty the dust cup?

Press the side tabs to remove the dust cup, then press the bottom button to open the bottom. For the lint filter, press the top button and lift the handle. Reassemble by clipping the bottom then tilting toward the tube until it clicks.

My ICZ300EUT battery is not charging, what should I do?

Check that the battery is within the optimal temperature range (10-40 °C). If it is too hot or too cold, let it cool down or warm up to room temperature. Make sure the charger is securely locked in the dock and the battery is properly inserted.

How to detach the handle or tube from the vacuum?

To remove the tube, press the tube release button near the floor nozzle. To detach the handle, pull the handle release trigger. The entire unit detaches by pressing the Shark Get Anywhere Technology button on the handle.

What do error codes E2, E3, etc. mean?

Error codes are displayed on the screen: E2 = no start, E3 = overheating, E4 = overcurrent, E5 = short circuit, E6 = excessive speed, E7 = communication error. For the brush: F8 = overheating, F1 = short circuit. Refer to the troubleshooting section.

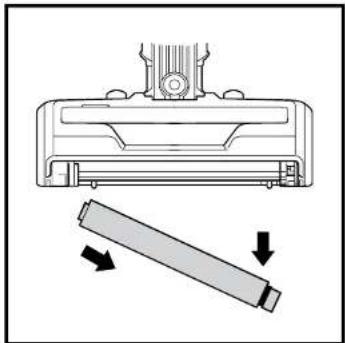

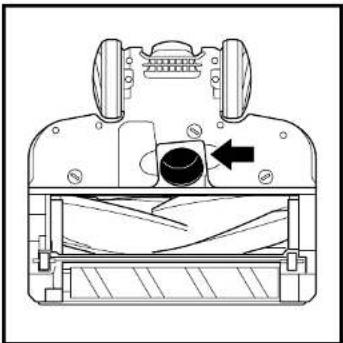

How to clean the rotating brush and the soft roller?

Turn off the vacuum and remove the battery. Open the brush cover with a coin, remove the rotating brush and the soft roller. Remove any wrapped hair/pet hair. The soft roller can be rinsed with lukewarm water and dried 24 h. Reinstall by clipping.

The vacuum lifts the carpets, what to do?

Turn off the vacuum and remove any blockage. Switch to Hard floor or Eco mode to reduce power. Tilt the handle backwards to activate the rotating brush. If the problem persists, check that the brush is not blocked.

Where to find spare parts and accessories?

Visit the official website sharkclean.eu to order filters, brushes, batteries and other genuine Shark accessories. Use of non-genuine parts may void the warranty.

How to register for the 5-year warranty extension?

You must register your product within 28 days of purchase at sharkclean.eu/register-guarantee. Keep your proof of purchase. Products purchased directly from the Shark website are automatically registered.

USER MANUAL ICZ300EUT SHARK

Anti Hair Wrap, DuoClean® & PowerFins Cordless Upright with Shark Get Anywhere Technology®

kclean.co.uk/register-guarantee

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Top-down schematic of a circular device with control panel and indicator lights (no text or symbols)

IN DER LADESTATION

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Simple line drawing of a mechanical tool or probe (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

MERCI D'AVOIR ACHETÉ

3

4

5

TROIS FAÇONS DE CHARGER LA BATTERIE LITHIUM-ION

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Top-down schematic of a circular device with control panel and indicator lights (no text or symbols)

DANS LE SUPPORT DE CHARGE

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a device labeled 'DEBOUT' (no other text or symbols)

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

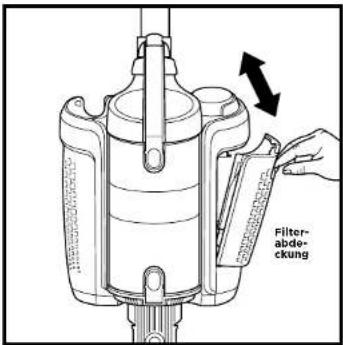

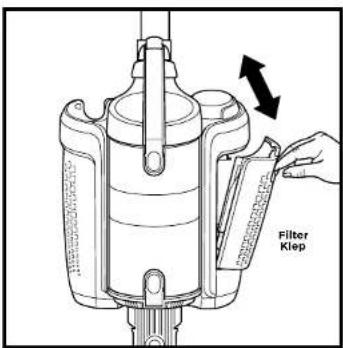

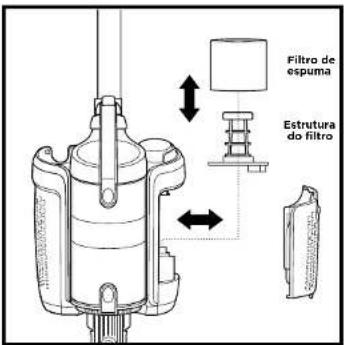

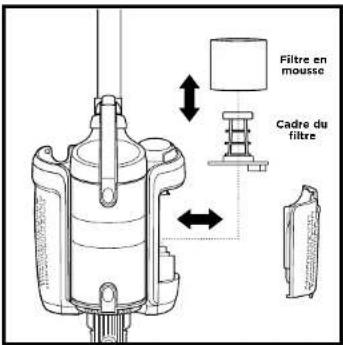

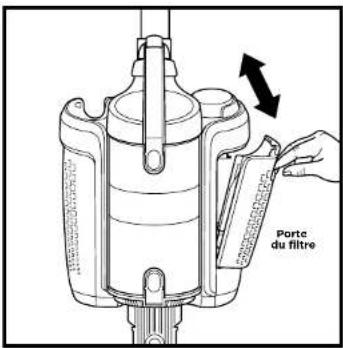

REEMPLACEMENT DES FILTRES

Technical line drawing of a mechanical device with internal components and a black arrow indicating direction (no text or symbols)

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Line drawing of a vacuum cleaner with attached pipe and wheels (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a pen-like object with a cylindrical body and a tapered tip (no text or symbols)

the Shark ^ Anti Hair Wrap, DuoClean ^ & PowerFins Cordless Upright with Shark Get Anywhere Technology ^*

TIP: You can find

the model and serial

numbers on the QR

code label which is

located on the back of

the unit and the battery.

To benefit from your product's extended guarantee, simply register your purchase at:

rkclean.eu/register-guarantee

00 862 0453

n QR code using mobile device

Please note, products purchased directly from

Shark are automatically registered.

RECORD THIS INFORMATION

Model Number:

Date of Purchase (Keep receipt):

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 28.8V =

Body Watts: 450W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Anti Hair Wrap, DuoClean & PowerFins Cordless Upright with Shark Get Anywhere Technology ^® .

If you have any questions, please call the Customer Service line on 0800 862 0453.

CONTENTS

Product Registration....44

Important Safety Instructions....46

Getting To Know Your Shark* Anti Hair Wrap

& DuoClean® Cordless Upright with Shark Get Anywhere Technology* ...48

Assembly 48

Charging Your Lithium ION Power Pack Battery 49

Charge Indicator Lights.... 50

Operating the Vacuum 50

Maintaining Your Vacuum Cleaner....53

Emptying the Dust Cup....53

Cleaning the Filters....54

Maintaining the Brush-roll 56

Maintaining the Soft Roller 56

Checking for Blockages....57

Accessories....58

Troubleshooting Guide.... 60

Guarantee 62

Battery Guarantee....63

This marking indicates that this product should not be disposed of with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

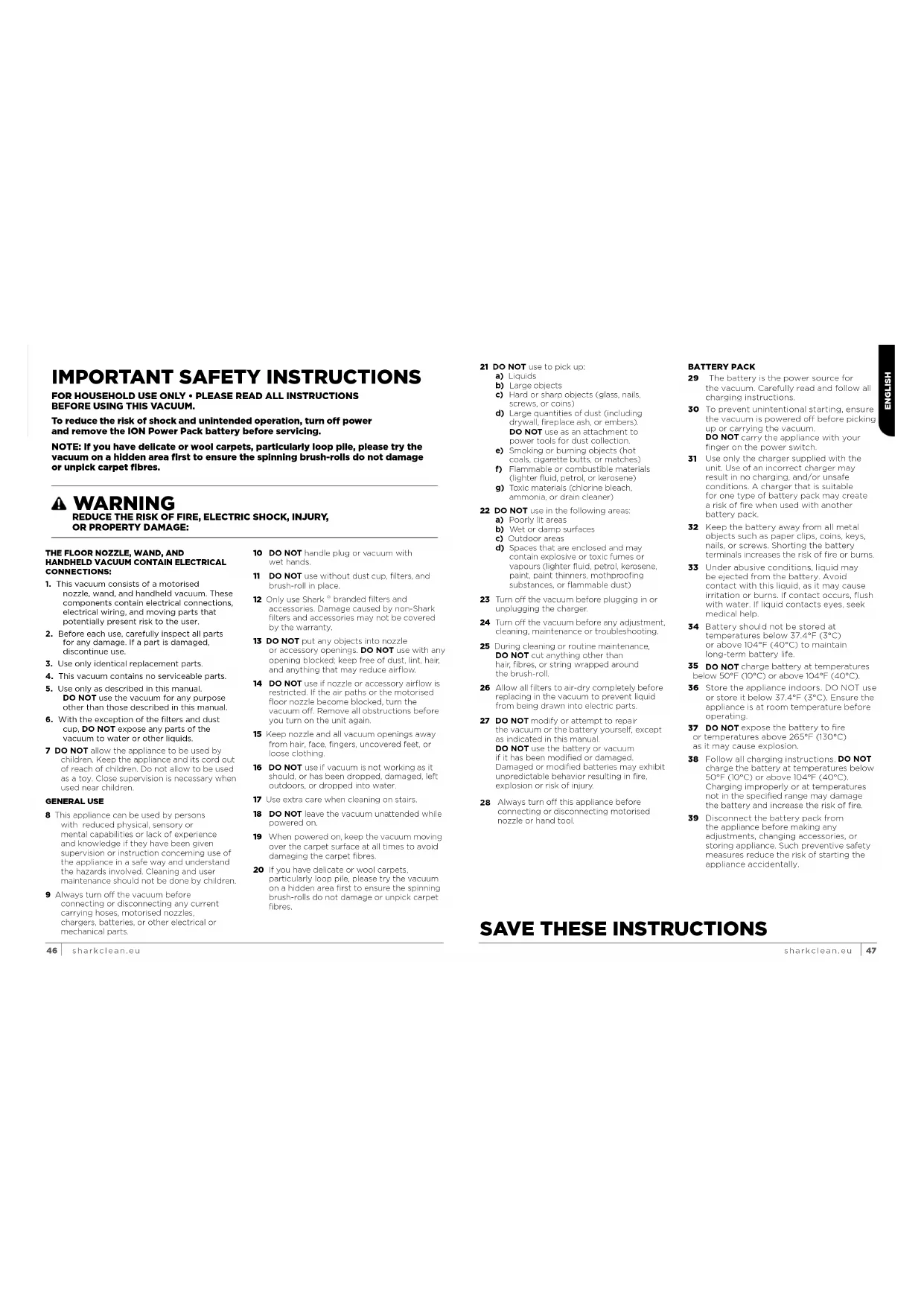

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

THE FLOOR NOZZLE, WAND, AND HANDHELD VACUUM CONTAIN ELECTRICAL CONNECTIONS:

1. This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.
2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.
3. Use only identical replacement parts.
4. This vacuum contains no serviceable parts.
5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.
6. With the exception of the filters and dust cup, DO NOT expose any parts of the vacuum to water or other liquids.
   7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be done by children.

9 Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.

10 DO NOT handle plug or vacuum with wet hands.
11 DO NOT use without dust cup, filters, and brush-roll in place.
12 Only use Shark ^® branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the warranty.
13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.
15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.
16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.
17 Use extra care when cleaning on stairs.
18 DO NOT leave the vacuum unattended while powered on.
19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.
20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

21 DO NOT use to pick up:
a) Liquids
b) Large objects
c) Hard or sharp objects (glass, nails, screws, or coins)
d) Large quantities of dust (including drywall, fireplace ash, or embers). DO NOT use as an attachment to power tools for dust collection.
e) Smoking or burning objects (hot coals, cigarette butts, or matches)
f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)
g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)
22 DO NOT use in the following areas: a) Poorly lit areas
b) Wet or damp surfaces
c) Outdoor areas
d) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)
23 Turn off the vacuum before plugging in or unplugging the charger.
24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.
25 During cleaning or routine maintenance, DO NOT cut anything other than
hair, fibres, or string wrapped around the brush-roll.
26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.
27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.
DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
28 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool.

BATTERY PACK

29 The battery is the power source for the vacuum. Carefully read and follow all charging instructions.
30 To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum.
DO NOT carry the appliance with your finger on the power switch.
31 Use only the charger supplied with the unit. Use of an incorrect charger may result in no charging, and/or unsafe conditions. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
32 Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery terminals increases the risk of fire or burns.
33 Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.
34 Battery should not be stored at temperatures below 37.4^ F ( 3^ C) or above 104^ F ( 40^ C) to maintain long-term battery life.
35 DO NOT charge battery at temperatures below 50°F (10°C) or above 104°F (40°C).
36 Store the appliance indoors. DO NOT use or store it below 37.4°F (3°C). Ensure the appliance is at room temperature before operating.
37 DO NOT expose the battery to fire or temperatures above 265°F (130°C) as it may cause explosion.
38 Follow all charging instructions. DO NOT charge the battery at temperatures below 50°F (10°C) or above 104°F (40°C). Charging improperly or at temperatures not in the specified range may damage the battery and increase the risk of fire.
39 Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

SAVE THESE INSTRUCTIONS

ASSEMBLY

1

2

3

4

5

1. Insert wand into floor nozzle.
2. Insert handle into wand.
3. Align the bottom of pod onto the rails on the front of the neck of the floor nozzle.
   Slide pod down the rails until it clicks into place.
4. Connect hose to back of pod, and attach hose clip onto wand.
5. Insert charged battery into pod with the handle toward the back until it clicks.
   To ensure proper insertion, the handle on battery must be down.

IMPORTANT: For proper operation, ensure all connections are securely clicked into place.

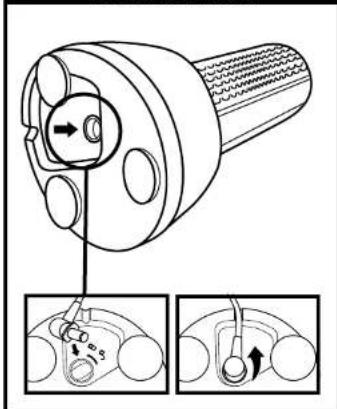

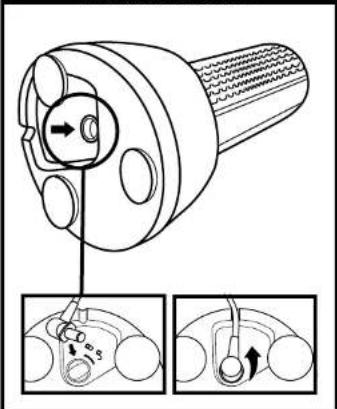

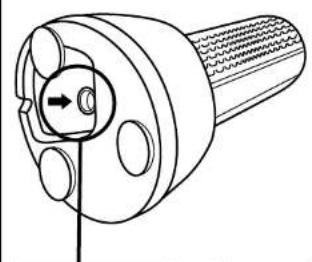

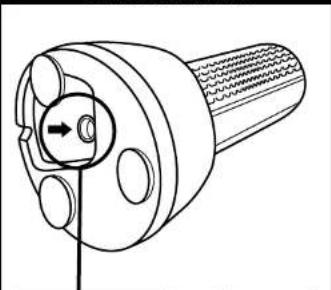

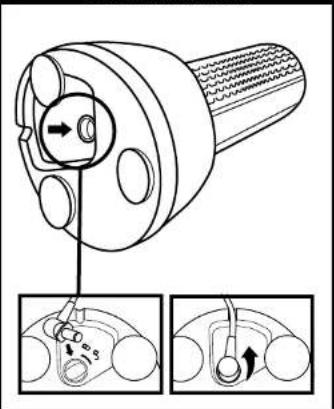

3 WAYS TO CHARGE THE LITHIUM-ION BATTERY

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

To remove the battery for charging, lift the handle on top of the battery and pull up. The battery must be charged before first use.

A complete charge takes approximately 3.5 hours.

IMPORTANT: When charging, connect the charger to the port first, then plug the charger into plug socket.

OUT OF VACUUM

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Top-down schematic of a circular device with control panel and indicator lights (no text or symbols)

IN CHARGING CRADLE

NOTE: Only one charger is provided.

NOTE: When using the cradle, insert the charger plug into the port and rotate to lock into place

The battery will not charge unless the charger is locked into place.

CHARGE INDICATOR LIGHTS

Charge Indicator Light

Charging: One light flashes

Nearly Full

TEMPERATURE ISSUE: FIRST AND THIRD INDICATOR LIGHTS FLASHING ALTERNATELY

If the first and third indicator lights are flashing alternately, the battery temperature is not optimal. If this happens when charging, leave the battery plugged in and charging will resume once temperature reaches optimal level.

NOTE: The battery must be charged before first use. A complete charge takes approximately 3.5 hours. NOTE: The indicator light will shut off 5 minutes after reaching full charge.

Press power button to turn on or off the vacuum.

To vacuum in hard floor mode, press the floor select button until the hard floor icon (◆) illuminates. The brush-rolls will spin slowly to clean bare floors and small area rugs.

To vacuum in carpet mode, press the floor select button until the carpet icon (☑) illuminates. The brush-rolls will spin faster to pick up debris below the surface of your carpets.

Press the (◆) button to toggle between Eco, Deep clean mode and Boost modes. To save battery power, select Eco mode. For everyday cleaning power, select Deep Clean Mode. For an extra burst of power, select Boost mode.

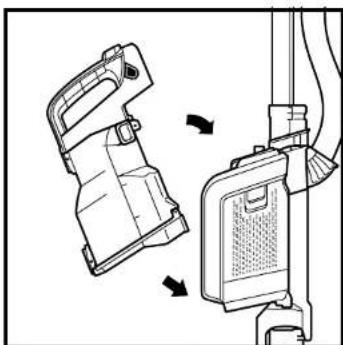

POD, HANDLE, AND WAND ARE DETACHABLE

Press SHARK GET ANYWHERE TECHNOLOGY* button on handle and lift pod off floor nozzle.

TIP: See next page for all the different ways you can use your vacuum.

Press the Wand Release button until it clicks, then pull up on wand to detach from the floor nozzle.

Pull the Handle Release trigger to detach the handle from the wand.

Line drawing of a hand holding a device labeled 'UPRIGHT' (no other text or symbols)

For cleaning carpets and hard floors. To activate brush-roll, step on floor nozzle and tilt handle back.

Use Shark Get Anywhere Technology to reach under furniture to clean carpets and hard floors.

With pod attached, detach the wand from the floor nozzle.

With pod attached, detach the handle from the wand.

Use the wand in Shark Get Anywhere Technology ^® mode for more reach when cleaning above-floor areas like coving or skirting boards.

Use the handle in Shark Get Anywhere Technology ^® mode for more detailed cleaning of above-floor areas like upholstery, window sils or stairs.
NOTE: See previous page for instructions on how to detach the pod, wand, and handle.

MAINTENANCE

IMPORTANT: Remove the battery before performing any maintenance. To remove, lift the handle on top of the battery and pull up.

To remove Dust Cup, pinch and pull side tabs. Tilt dust cup away from the vacuum cleaner, then lift to remove.

Press lower button to open bottom of dust cup.

To remove collected debris from Lint Screen, press top button and lift handle to open top of dust cup.

Technical line drawing of a mechanical device with two components and directional arrows indicating motion (no text or symbols)

To reinstall dust cup, place bottom into pod and then tilt dust cup toward the wand until it clicks into place.

MAINTENANCE

Your vacuum comes equipped with three filters located on the vacuum pod: two Pro-Motor Filters (one is a filter frame) and one Post-Motor Filter to capture and trap dust and debris.

CLEANING PRE-MOTOR FILTER (ONCE A MONTH)

Regularly rinse and replace the pre-motor filters to maintain your vacuum's suction power.

IMPORTANT: To prevent damage, rinse filters with lukewarm water ONLY. DO NOT use soap. Allow filters to air-dry for at least 24 hours before replacing them in the vacuum to prevent liquid from being drawn into electric parts.

1. Slide down filter door release button.
2. Tilt filter door and lift off.
3. Remove filter from pod. Pull off foam filter.
4. Rinse foam filter and filter frame with lukewarm water ONLY and leave to air-dry for at least 24 hours before reinstalling.
5. Once completely dry, reinsert foam filter on filter frame.
6. Holding the pull tabs, push the filter back into the pod.
7. Reinsert bottom of filter door into slots on pod. Tilt door to close, pressing until it clicks into place.

MAINTENANCE

CLEANING POST-MOTOR FILTER (ONCE A YEAR)

Rinse and replace the post-motor filter every year to maintain your vacuum's suction power.

IMPORTANT: Rinse Post-Motor Filter with lukewarm water ONLY. DO NOT use soap. Allow to air-dry for at least 24 hours before reinstalling. DO NOT scrub Post-Motor Filter.

1. Pull up on Post-Motor Filter access tab to remove.
2. Rinse filter with lukowarm water ONLY and leave to air-dry at least 24 hours before reinstalling.
3. When dry, reinsert Post-Motor Filter and press down until it clicks into place.

Note: Battery must be removed before Post-Motor Filter can be removed.

REPLACING FILTERS

Follow the previous instructions for removing filters. The Foam Filter should be replaced every 2.5 years, and the Post-Motor Filter should be replaced every 3 years, subject to frequency of use.

Replacement Pre-Motor Filter and Frame

Replacement Post-Motor filter

NOTE: To order replacement parts and filters, visit sharkclean.eu.

Cross-sectional diagram of a mechanical device showing internal components and a central circular feature (no text or symbols)

If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brush-roll.
1. Turn off the vacuum.
2. Using a coin, turn locks counterclockwise to open, then lift off cover to access brush-roll.
3. Clear airway of blockages.
4. Replace cover by sliding inserts into slots, then pressing down firmly on all sides before turning locks clockwise to close. There will be an audible click once the locks are secured.

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

1. Slide Eject Roller button forward.
2. To remove Soft Roller, pull the tab on the right.
3. Tap loose debris off the Soft Roller. Use a dry towel to wipe clean, or to remove any hair or fibres caught in the teeth behind the Soft Roller.
4. Rinse as needed. Use ONLY lukewarm water, and leave to air-dry completely for at least 24 hours.
5. When dry, insert the left end of the roller first, then push the right end into place with the word Front facing forward.

NOTE: Anti Hair Wrap Technology removes hair from your brush-roll continuously as you vacuum. At times you may see small amounts of hair around the brush-roll - simply continue vacuuming and the comb and suction will remove the hair as you clean.

NOTE: To order replacement parts and filters, visit sharkclean.eu.

IMPORTANT: DO NOT use sharp or metal objects to clear blockages.

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Detach hose from vacuum pod, and check opening on back of pod for blockages.

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Detach dust cup from vacuum pod. Empty dust cup, remove debris from lint screen, and check for blockages.

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Detach handle from wand and hose from the vacuum pod, and check openings for blockages.

Simple line drawing of a mechanical tool or connector (no text or symbols)

Detach wand from floor nozzle and handle, and check both ends of wand for blockages.

Simple line drawing of a mechanical component or tool (no text or symbols)

Detach wand from floor nozzle. Tilt nozzle neck back to straighten the airway, and remove any blockages.

NOTE: Turn off vacuum and remove battery before checking for blockages

ACCESSORIES INCLUDED

Crevice Tool
B Dusting Brush
© Wide Upholstery Tool
© Motorised Pet Tool (certain models only)
E Accessory Bag
F Lithium-Ion Battery
⑤ Charging Cord
H Battery Charging Cradle

A

E

B

F

c

G

D

H

ADDITIONAL ACCESSORIES

A Flexi Crevice Tool
⑧ 2in1 Duster Crevice Tool
© Multi-Surface Tool
Anti-Allergen Dust Brush
E Upholstery Tool
F Under-Appliance Wand
Car Maintenance Kit

A

E

B

F

C

G

D

NOTE: Not all accessories come with all units. Please see the top flap of your box for your unit's configuration.

To order additional accessories, visit sharkclean.eu.

LIGHT INDICATOR WHAT IT MEANS
		ERROR CODE E6 AND RED LED FILTER ICON ILLUMINATESThe Red LED icon in the center of the UI will light up when a Blockage is detected. Turn off unit and remove blockage.
		ERROR CODE E3 will be displayed for overheatingUnit temperature is high.Turn off vacuum and wait for approximately 45 minutes. While unit is cooling, clear any blockages.Filters may also need to be cleaned.See Maintenance Section.
		FIRST and THIRD BATTERY INDICATOR LIGHTS flash alternatelyBattery temperature is not optimal, so charging is temporarily paused. Leave battery plugged in and charging will resume soon.

Part Fault Error code display on UI
Hand OverVacuum	No Start E2
	Overheat E3
	current E4
	Short	E5
	Overspeed	E6
	System Comm Error	E7
Nozzle	Nozzle Overheat	F8
	Nozzle Short	F1

BATTERY REMOVAL AND DISPOSAL

This product uses a lithium-ion rechargeable and recyclable battery. When the battery no longer holds a charge, it should be removed from the vacuum and recycled. DO NOT incinerate or compost the battery.

When your lithium-ion battery needs to be replaced, dispose of it or recycle it in accordance with local ordinances or regulations. In some areas, it is illegal to place spent lithium-ion batteries in the bin or in a municipal solid waste stream. Return spent battery to an authorised recycling centre or to retailer for recycling. Contact your local recycling centre for information on where to drop off the spent battery.

TROUBLESHOOTING TROUBLESHOOTING

Vacuum is not picking up debris.

No suction or light suction.

• Ensure handle, hose, dust cup, and wand are all securely connected onto the unit.
• Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinserting them in the vacuum.
  • Dust cup may be full; empty dust cup.
• Check wand, hose, hose connections, nozzle and accessories for blockages; clear blockages if required.
• Check floor nozzle for blockages; clear blockages if required.
• Remove any string, carpet fibres, or hair that may be wrapped around the brush-roll and Soft Roller or trapped behind the Soft Roller.

Vacuum lifts rugs.

• Turn off vacuum, and move it away from any obstruction. Turn on vacuum and tilt handle back to activate brush-roll.
• Check that vacuum is in Extended Runtime mode and/or try Floor mode.
• Turn off the unit to disengage the brush-roll and restart with the Power button.

Brush-roll/Soft Roller does not spin.

• If Brush-roll Indicator Light on the floor nozzle turns red, the brush-roll and/or Soft Roller have stopped spinning. Immediately turn off and remove battery from vacuum pod and remove blockage before reconnecting and turning vacuum back on. If light turns green, the blockage has been successfully cleared.
• If headlights are not illuminated, there is a connection issue between the hose, pod, wand, and nozzle. Try disconnecting the pieces and then reconnecting them, sliding in each one until it clicks securely into place.

Vacuum turns off on its own or will not turn on.

There are several possible reasons for the vacuum cleaner turning off on its own, including blockages, battery issues, and overheating. If the vacuum cleaner turns off on its own, perform the following steps:

1. Check battery indicator lights to see if battery needs to be recharged. If it does not need charging, turn off the vacuum cleaner and remove battery.
2. Empty dust cup and clean filters.
3. Check wand, accessories, and inlet openings and remove any blockage
4. Allow unit and battery to cool for at least 45 minutes, until it returns to room temperature.
5. Return battery to vacuum and press Power button.

Dust cup will not latch onto unit

The dust cup will not latch if the pod is not inserted properly onto the unit. Align the bottom of pod onto the rails on the front of the neck of the floor nozzle. Slide pod down the rails until it clicks into place.

Battery not charging.

• Batteries outside of optimal temperature range may not begin charging immediately. Move to room temperature area and/or allow battery to cool before charging.
• Please review battery runtimes in the Operating the Vacuum section.
• When charging with the cradle, ensure battery is pressed all the way down onto cradle and that charge indicator lights illuminate.
• Battery life expectancy is at least two years and batteries come with a two-year limited guarantee subject to registration.
• When charging with the cradle ensure the charger is inserted and then rotated to lock it into place. Battery will not charge unless the charger is locked into place.

Battery not inserting into vacuum.

• Make sure handle is down before pushing battery securely into place.
• Make sure Post-Motor Filter is securely clicked into place prior to inserting the battery.

Shark NINJA

FIVE (5) YEAR LIMITED GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark ^a we are so confident about the quality of our products that we give the original product owner an additional manufacturer's guarantee of up to five years (2 years standard plus 3 on registration). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them.

The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee on next page) Shark ^® Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark* machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^1 representative. You'll also find online support at www.sharkclean.eu

How do I register my extended Shark ^® guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

• To register online, please visit www.Sharkclean.eu/register-guarantee. Products purchased directly from Shark® are automatically registered.

IMPORTANT

- Both the 2 years and the extended 3 years guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your extended guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark® guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark ^2 vacuum and hear the latest news about new Shark ^® technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark ^® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark ^® vacuum cleaner is guaranteed for a total of up to five years (2 years plus 3 years on registration).

What is covered by the free Shark® guarantee?

Repair or replacement (at Shark's discretion) of your Shark ^ machine, including all parts and labour. A Shark ^ guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark ^4 guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the instructions.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark® instructions supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark* Genuine Components.

7. Faulty installation (except where installed by Shark®).

8. Repairs or alterations carried out by parties other than Shark® or its agents.

9. The Lithium ION power pack battery. Please see next page for battery guarantee.

What happens when my guarantee runs out?

Shark" does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line and ask about our out of guarantee programme, on 0800 962 0453.

Where can I buy genuine Shark ^4 spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark ^ spares is not covered under your guarantee

Shark NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark ^® we are so confident about the quality of our batteries that we give you an additional manufacturer's guarantee of two years. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark ^2 machine comes with a free parts and labour guarantee. Our customer service helpline (0800 862 0453) is open from 9.00am to 6.00pm Monday - Friday. It's free to call, and you'll be put straight through to a Shark ^2 representative. You'll also find online support at www.Sharkclean.eu/uk.

IMPORTANT

• The manufacturer's guarantee covers your battery for 2 years starting on the date of delivery.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark® battery guaranteed for?

Our confidence in our design and quality control means that your new Shark ^® vacuum cleaner battery is guaranteed for a total of two years.

What is covered by the free Shark® guarantee?

Repair or replacement of your Shark® machine (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper functioning of your unit.

2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark ^® Instructions supplied with your machine.

3. Use of the vacuum cleaner for anything other than normal domestic household purposes.

4. Use of parts not assembled or installed in accordance with the instructions.

5. Use of parts and accessories which are not Shark® spares.

6. Faulty installation (except where installed by Shark).

Where can I buy genuine Shark ^® spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.Sharkclean.eu. Please remember that using non-Shark ^ spares may invalidate your manufacturer's guarantee. However, your statutory rights are unaffected.

TAK FORDI DU HAR K∅BT

Shark ^ anti-hårindpakning, DuoClean ^ og PowerFins ledningsfri og opretstående med elektrisk Shark Get Anywhere Technology ^b

TIP: Du kan

Anywhere Technology* at kende....68

Montering 68

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

I OPLADERHOLDEREN

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Line drawing of a mechanical tool or probe with no visible text or symbols

Simple line drawing of a mechanical component or tool (no text or symbols)

4

5

TRES FORMAS DE CARGAR LA BATERÍA DE IONES DE LITIO

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Line drawing of a circular vacuum cleaner with control panel and attached cable (no text or symbols)

EN EL ALOJAMIENTO DE CARGA

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a device labeled 'VERTICAL' (no other text or symbols)

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a central component with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels (no text or symbols)

Line drawing of a medical or laboratory device with tubing and connectors (no text or symbols)

Simple line drawing of a pen-like object with a cylindrical body and a separate rod (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a mechanical tool or probe with a cylindrical shaft and flanged end (no text or symbols)

Technical diagram of a mechanical component with directional arrows indicating movement (no text or labels)

Technical line drawing of a mechanical device with two components and directional arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a central rotating element (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached pipe and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a mechanical device with a curved handle and connector (no text or symbols)

Line drawing of a mechanical tool or probe with no visible text or symbols

Simple line drawing of a pen-like object with a handle and spout (no text or symbols)

kclean.co.uk/register-guarantee

0-862 0453

Productregistrate....124

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Line drawing of a circular device with control panel and handle (no text or symbols)

IN HET LAADSTATION

Line drawing of a hand holding a device with a small object above, labeled 'UPRIGHT (RECHTOP)' below (no other text or symbols)

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Simple line drawing of a mechanical tool or probe (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

TUSEN TAKK FOR DITT KJ∅P

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Line drawing of a circular device with control panel and handle (no text or symbols)

I LADESTASJONEN

Technical line drawing of a mechanical component with no visible text or symbols

MERK: Kun én lader Talger med.

Line drawing of a vacuum cleaner with attached device (no text or symbols)

SHARK GET ANYWHERE TECHNOLOGY® MED EKSTRA KRAFT

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

VEDLIKEHOLDVEDLIKEHOLD

RENGJ∅RING ELLER BYTTE AV B∅RSTERULLER HVORDAN DU SER ETTER BLOKKERINGER

B∅RSTERULL

MYKRULL

Cross-sectional diagram of a mechanical device showing internal components and a central circular feature (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Line drawing of a mechanical tool or probe with no visible text or symbols

Simple line drawing of a mechanical component or tool (no text or symbols)

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

NA BASE DE CARGA

Line drawing of a hand holding a device labeled 'VERTICAL' (no other text or symbols)

Para limper tapetes e pavimentos duros. Para ativer a escova do rolo, pise o bocal para pavimento e incline a pega para trás.

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a central circular feature (no text or symbols)

Line drawing of a vacuum cleaner with attached pipe and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a mechanical device with a curved handle and two connectors (no text or symbols)

Line drawing of a mechanical tool or probe with no visible text or symbols

Simple line drawing of a mechanical component or tool (no text or symbols)

4

5

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Top-down schematic of a circular device with control panel and indicator lights (no text or symbols)

LATAUSLOKEROSSA

Line drawing of a hand holding a small object, labeled 'PYSTYSSÄ' at the bottom (no other text or symbols)

Technical line drawing of a mechanical device with two components and directional arrows indicating motion (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a central circular feature (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Simple line drawing of a mechanical tool or probe with no text or symbols

Simple line drawing of a mechanical component or tool (no text or symbols)

Mechanical component diagram showing a piston and crankshaft assembly (no text or labels)

Diagram of a cylindrical object with internal structure and curved line, no text or symbols present

Top-down schematic of a circular device with control panel and buttons (no text or symbols)

I LADDARHÅLLAREN

Line drawing of a hand holding a device labeled 'UPPRÄTT' (no other text or symbols)

Technical line drawing of a mechanical device with two components and directional arrows indicating assembly or movement (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal components and a central circular feature (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and wheels (no text or symbols)

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a medical or laboratory device with a curved tube and connector (no text or symbols)

Simple line drawing of a mechanical tool or probe (no text or symbols)

Simple line drawing of a mechanical component or tool (no text or symbols)

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This Owner's Guide is designed to help you get a complete understanding of your new Shark® vacuum.

Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice.

© 2021 SharkNinja Operating LLC. DUOCLEAN, SHARK GET ANYWHERE TECHNOLOGY and SHARKare registered trademarks of SharkNinja Operating LLC.

LÆS DENNE VEJLEDNING OMHYGGELIGT IGENNEM, OG GEM DEN TIL FREMTIDIGE OPSLAG.

© 2021 SharkNinja Operating LLC.

Excellent Business Center 10
