KTV M - Karaoke system Auna - Free user manual and instructions

Product Type	Karaoke System
Brand	Auna
Model	KTV M
Mains Power Supply	AC 100-220 V, 50 Hz
Battery Power	12 V (built-in battery)
Screen Size	12.1 inches
Playback Functions	USB, SD, TF, FM Radio, Bluetooth
Microphones Included	2 UHF wireless microphones
Microphone Range	10-15 meters
Microphone UHF Frequency	863–865 MHz
Microphone Transmission Power	10 mW
Bluetooth Version	2.1+EDR
Bluetooth Range	Approx. 10 meters
Bluetooth Frequency	2.402–2.48 GHz
Bluetooth Transmission Power	4 dBm
FM Radio	87.5–108 MHz
Connectivity	HDMI, AUX IN/OUT, MIC IN, USB 2x, TF
Remote Control	Yes
Audio Settings	Volume, echo, bass, treble, microphone priority
Safety	Overvoltage protection, lightning disconnection, do not open
Recycling	Comply with WEEE and used battery regulations
Spare Parts	Use manufacturer-approved parts

Frequently Asked Questions - KTV M Auna

How to connect the wireless microphone?

Open the battery compartment of the microphone, insert a battery respecting polarity. Set the microphone switch to ON. The indicator should flash or stay on. Adjust the microphone volume using the MIC VOL knob on the device.

How to use the Bluetooth function?

Press the BT button on the device to activate Bluetooth mode. On your mobile device, enable Bluetooth and search for KTV in the device list. Connect. The range is approximately 10 meters.

What to do if the remote control does not work?

Make sure the remote control is pointed at the infrared receiver of the device. If necessary, replace the remote control batteries. Ensure no obstacles block the signal.

How to adjust the microphone echo?

Turn the ECHO knob located on the control panel to adjust the microphone reverberation level. Turn clockwise to increase echo, counterclockwise to decrease it.

Why is there no sound via Bluetooth?

Ensure the device is turned on and the main volume is high enough. Check the volume of your Bluetooth device and set it to maximum. If the problem persists, restart the device and reconnect Bluetooth.

How to disable the original vocals in karaoke?

Press the TRACK button on the remote control to disable the original vocals. Note that this is only possible if the video or audio file supports track separation.

How to reset the device to factory settings?

Press the SET button on the remote control. In general settings, select Factory settings and confirm with OK by choosing 'Yes'.

What is the range of the wireless microphone?

The range of the UHF wireless microphones is approximately 10 to 15 meters in open field. Obstacles like walls can reduce this range.

What to do if the device turns off by itself?

This may indicate a discharged battery. Charge the battery by plugging the device into mains (AC 100-220 V) or replace the battery if defective.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment (WEEE). Batteries must be removed and recycled separately according to local regulations.

USER MANUAL KTV M Auna

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 18

Device Overview 19

Function Keys and Connections 20

Remote Control 21

Installation and Operation 22

Settings 22

Using the Wireless Microphone and Precautions 25

Troubleshooting 25

Disposal Considerations 27

Declaration of Conformity 27

TECHNICAL DATA

Item number 10040288
Power supply (battery) 12 V
Functions USB / SD / TF / BT
Accessories 2 UHF microphones
Max. microphone rangeUHF frequencyMicrophone transmitting power	10-15 m863–865 MHz10 mv
BT frequencyRadio-frequency power	2.402–2.48 GHz4 dBm
Screen size 12,1 Inches

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
  • Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Note: This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

DEVICE OVERVIEW

1	Control panel	6	Metal grille
2	Tempered glass	7	Tension rod
3	12" display	8	Wooden cabinet
4	Tweeter	9	Metal bracket
5	Subwoofer	10	Plastic feet

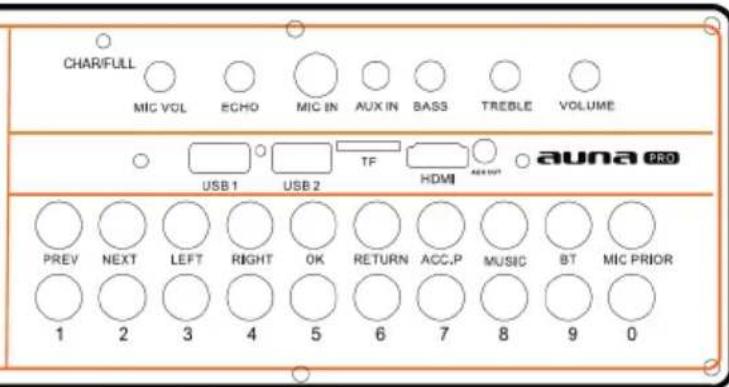

FUNCTION KEYS AND CONNECTIONS

POWER ON/OFF - On/Off button	MIC PRIOR - Microphone fade-out function on/off
DC 12V IN - Extra battery	MIC VOL - Microphone volume control, microphone volume adjustment
PREV - Previous title	ECHO - Microphone reverb, adjusting the microphone hall setting
NEXT - Next title	MIC IN - Microphone connection, cable microphone connection
LEFT/ RIGHT - To the left/right	AUX IN - Audio input for connecting external devices; available on some models
OK - Confirm or open selected option	BASS - Turn clockwise: increase bass; Turn counterclockwise: reduce bass
RETURN - Return to previous page TREBLE	- Treble setting
ACC.P - Music Track function for Vocal accompaniment	VOLUME - Main volume control
MUSIC - Music playback	USB 1 & 2 - USB port; video or audio files can be played back; supports USB media up to 128 GB in NTFS format
BT - Activate the BT mode; a mobile BT device can be connected and the music of the device can be played back via BT	TF - Insert a TF card to play video or audio files; the unit supports TF cards up to 128 GB
AC INPUT 100-220 V - mains connection HDMI - HDMI connector
0-9 - Number buttons to select a title	AUX OUT - Audio output for connecting external devices
CHAR/FULL - Signal LED for charging status

REMOTE CONTROL

1	ON/OFF - Turn LCD screen on/off (standby)	7 SET - System settings
2	APP - Open multiple application pages	8	VOD - Video on Demand (YouTube)
3	PREV (previous title) / NEXT (next title)	9 MEDIA - Multimedia Player
4 MENU - Menu settings 10 UP - High and previous title
5 HOME - Home page call 11 RETURN - Back
6	MICROPHONE PRIORITY - microphone priority	12 DOWN - Down and next title

INSTALLATION AND OPERATION

WLAN setting

Press the SET button on the remote control. In the network settings, locate the wireless network you want to connect to and then enter the password.

Media Playback

1 For media playback, press the MULTIMEDIA speed dial button on the remote control.
2 Select the playback media: Local memory, USB device, memory card, etc.

Establishing a BT connection

1 Press the BT key to activate the BT mode.
2 Activate BT on the external BT device that you want to connect to your device. Search the device list of the external device for „KTV“ to connect the external BT device to your device. If the connection cannot be established, restart the device or try again.
3 After the BT connection has been successfully established, you can play music on the external device, which will then be played back via the device. To ensure that the connection of the music signal remains stable, make sure that the external device is within the BT range.
4 This device can be used with iPads, iPhone, Samsung, HTC, Huawei, Xiaomi, etc. (2.1*DER version). A2DP stereo playback is supported.
5 The BT range is approximately 10 meters.

SETTINGS

Press the SET button on the remote control. Select the setting screen.

General Settings

• Language selection: Press the OK button to select Chinese or English as the output language.
• Product Information: Displays the current external hard disk capacity.
• Factory Default: Select „Yes“ to reset the unit to factory defaults.
• Exit: Exits the previous menu.

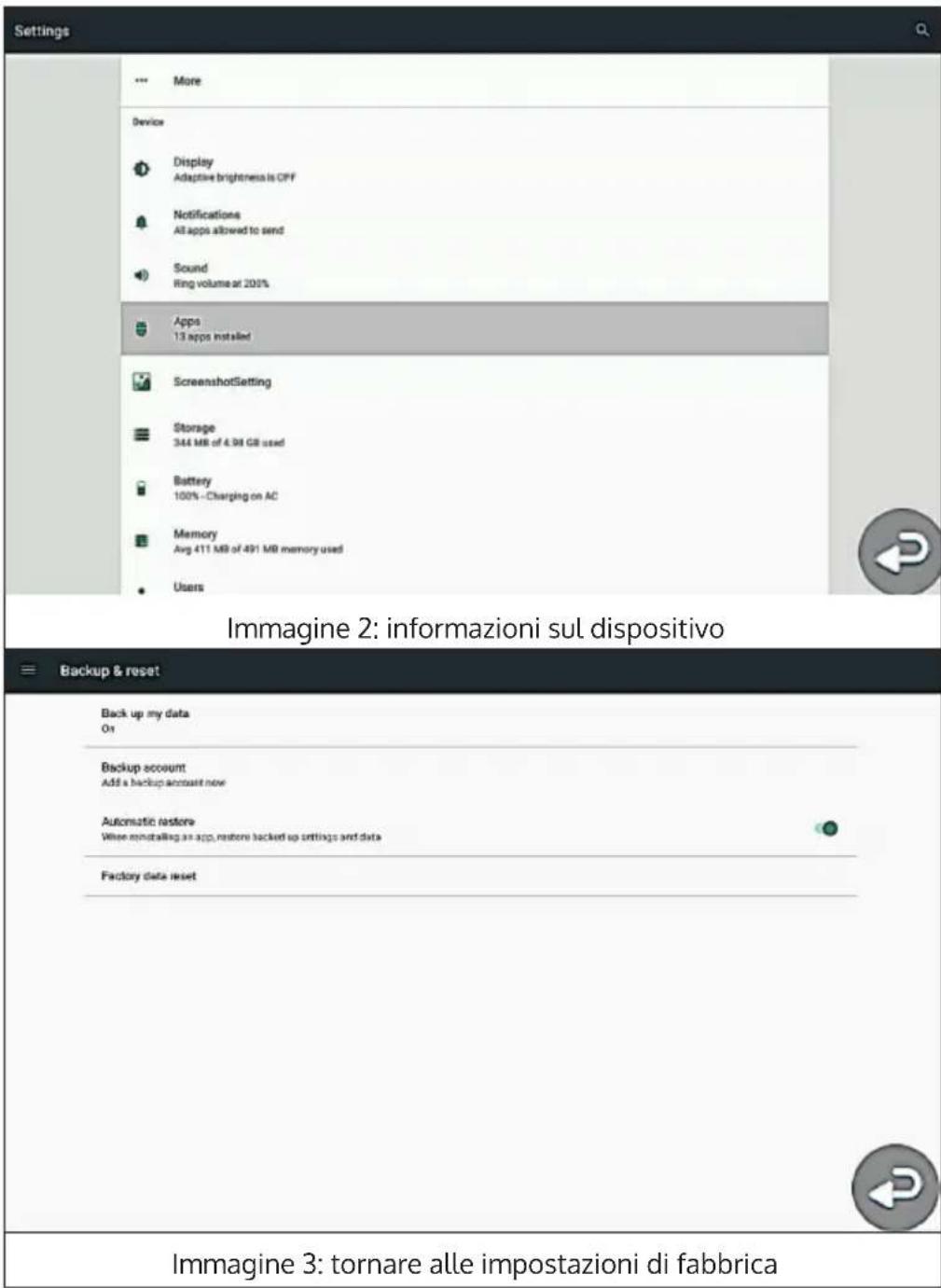

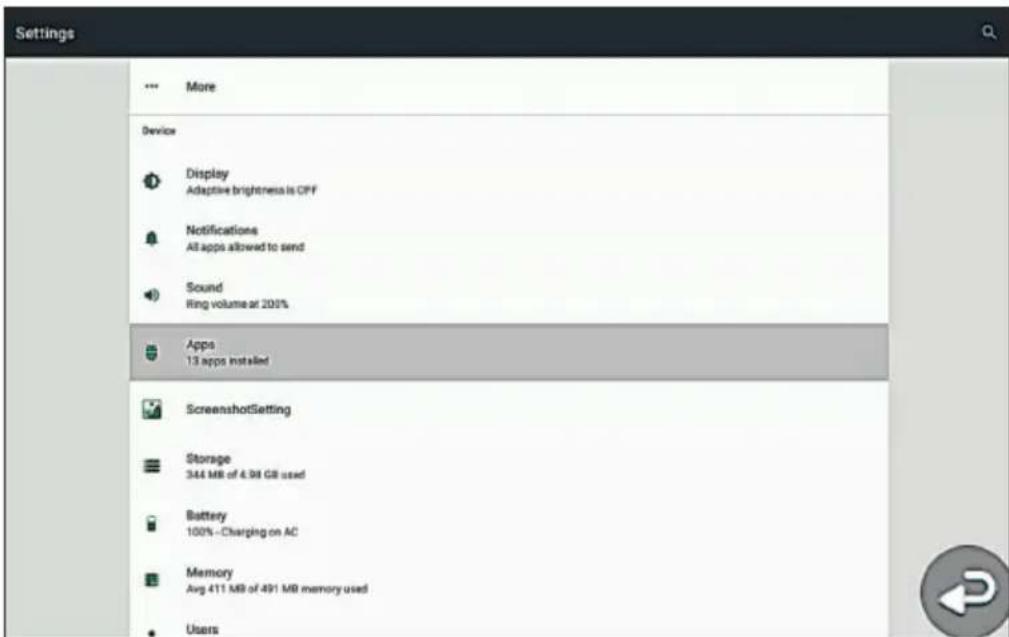

Figure 2: Device information

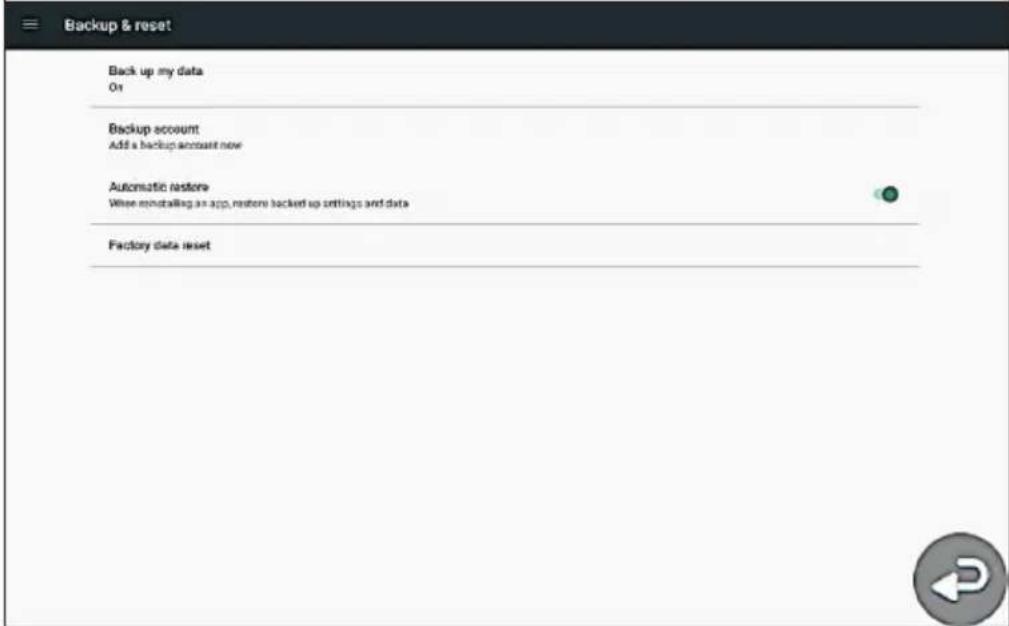

Figure 3: Resetting to factory settings

Energy Setting

• Backlight: Press the OK button to adjust the backlight of the screen (note: the brighter the screen, the higher the energy consumption).
• Back: Press the RETURN button to exit the current setting and return to the previous menu item.

USING THE WIRELESS MICROPHONE AND PRECAUTIONS

1 Open the battery compartment, insert the battery and observe the polarity.
2 Set the microphone switch to „ON“. If the battery light does not blink or is permanently on, check that the battery is empty or that the batteries are inserted the wrong way round in the battery compartment.
3 Adjust the microphone volume. While singing, adjust the volume on the microphone volume control for best results.

TROUBLESHOOTING

Problem Possible cause and solution
The next track cannot be played back.	The repeat function is set to repeat only the current track. Set the function to repeat all tracks or activate random playback.
The name of a track is only partially displayed.	This is because unavailable characters are included in the title name.
The unit turns off automatically. The battery is empty and must be charged or replaced.
The remote control does not work. Align the remote control so that the illuminated end of the remote control is facing the receiver on the unit and replace the remote control batteries if necessary.
There's no sound coming from the speakers.	The volume is off or too low, turn it on or turn the volume up.
No sound is heard while pictures are displayed.	The screen sound has been turned off with the remote control. Check that the audio and video output is turned on.
The original voice reproduction cannot be deactivated during karaoke singing.	Press the TRACK button on the remote control to turn off the original voice. The original voice may not be deactivated because the selected video file does not support it.
No sound reproduction via the wireless microphone	Turn on the wireless microphone or replace the wireless microphone batteries.
The name of a title is displayed in characters.	The original title name is traditional Chinese or contains characters from other countries. Only simplified Chinese or English titles can be displayed.
The next track is not played automatically.	The "Play a title" mode has been activated. Deactivate it.
There is no sound during BT playback.	Turn on the unit and set the maximum volume of the external BT unit.
During karaoke singing, only the microphone has sound.	The MICROPHONE PRIORITY function has been activated. Deactivate it.
No connection to the WLAN can be established.	Check the distance between the device and the wireless router and reduce it if necessary or restart the router.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type KTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10040288

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type KTV is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10040288
