4906FL - Saucepan Flama - Free user manual and instructions

Product Type	Pancake and snack maker
Brand	Flama
Model	4906FL
Power supply	220-240 V ~ 50/60 Hz
Power	Approximately 1000 W
Dimensions (approx.)	30 x 20 x 10 cm
Weight (approx.)	1.5 kg
Cavity capacity	8 servings (2 cavities, 1/3 cup each)
Integrated timer	Yes, from 1 to 15 minutes
A Bit More function	Adds 30 extra seconds
Automatic shut-off	After 20 minutes of inactivity
Preheating	Automatic with Power and Ready indicator lights
Non-stick coating	PFOA-free
Cool-touch handle	Yes
Non-slip feet	Yes
Cable winder	Yes, integrated into the base
Cleaning	Damp cloth, do not immerse
Warranty	36 months
Use	Domestic and indoor only
Child safety	Use by children from age 8 under supervision
After-sales service	FLAMA approved technical service

Frequently Asked Questions - 4906FL Flama

What is the power of the appliance?

The power is approximately 1000 W, suitable for fast and even cooking.

How to clean the non-stick plates?

Use a soft, damp cloth after cooling. Never use abrasive sponges or harsh chemicals to preserve the coating.

Can I make waffles with this appliance?

No, this appliance is designed only for pancakes and snacks. It has specific cavities, not waffle plates.

What does the 'Ready' indicator mean?

The Ready light turns green when the optimal cooking temperature is reached. You can then open the lid and pour the batter.

How long does it take to cook plain pancakes?

Approximately 2 minutes depending on the recipe. Time may vary based on thickness and ingredients.

Does the appliance turn off automatically?

Yes, if no action is taken for 20 minutes after preheating, the appliance shuts off automatically for safety reasons.

Can I use spray oil on the plates?

It is not recommended to use non-stick sprays as they may affect the coating properties. Prefer a brush of vegetable oil.

What is the maximum capacity per cavity?

The recommended amount is about 1/3 cup (approximately 80 ml) per cavity to avoid overflow.

How to use the 'A Bit More' function?

Press the A Bit More button at the end of the cycle to add 30 extra seconds of cooking, ideal for a browner finish.

Where can I find after-sales service?

Contact FLAMA approved technical service via the website www.flama.pt or your retailer. The warranty is 36 months upon presentation of proof of purchase.

USER MANUAL 4906FL Flama

Black electric microwave oven with open lid and three side dishes (no visible text or symbols)

4906FL

PT MÁQUINA DE PANQUECAS E SNACKS 1 ES MÁQUINA DE PANQUEQUES Y SNACKS 11 EN PANCAKE AND SNACK MACHINE 21 FR MACHINE À CRÊPES ET SNACKS 30

MÁQUINA DE PANQUECAS E SNACKS

INSTRUÇÕES DE SEGURANÇA

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please read these instructions carefully before using the appliance for the first time and keep them for future reference. Any use not in accordance with the instructions releases FLAMA from all responsibility.

Check that the power supply voltage for the electrical installation in your home corresponds to that stated on the appliance's nameplate. This appliance must be connected to an earthed socket.

The appliance is not intended to be operated using an external timer or a separate remote control system.

This appliance is designed for domestic use only, and indoors.

This device is intended to be used in domestic and similar applications such as:

• Kitchen areas reserved for staff in stores, workshops and other professional environments
• Country houses
• By customers of hotels, motels and other residential environments
• Hotel room type environments

This appliance can be used by children 8 years of age and older and people with physical, sensory or mental disabilities or lack of experience and knowledge if they have received supervision or instruction in using the appliance in a safe manner and understand the risks involved. Children must not play with the appliance. The cleaning and maintenance of the appliance must not be carried out by children unless they are over 8 years old and are under supervision.

Keep the appliance and power cord out of reach of children under 8 years of age.

Warning - The temperature of accessible surfaces may be high when the appliance is in operation.

Disconnect the appliance from the power supply by removing the plug from the socket after each use and when cleaning.

Allow it to cool down before carrying out any cleaning or storage operation.

Before connecting the appliance, make sure you place it on a flat, stable and horizontal surface.

Do not use the appliance if the power cord or plug is damaged, have them replaced immediately by an authorized FLAMA Technical Assistance Service.

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified personnel in order to avoid a hazard.

The appliance must never be used near flammable or combustible materials.

Never leave the device unattended.

Do not cover the appliance while it is in operation.

Do not disassemble the device.

The appliance must only be used for cooking food. Its use for other purposes may cause irreparable damage.

Never immerse the device in water or any other liquid.

WARNING: Charcoal or other combustibles must not be used with this appliance.

This product complies with the Electromagnetic Compatibility and Low Voltage Directives.

This instruction manual is also available in PDF format at www.flama.pt.

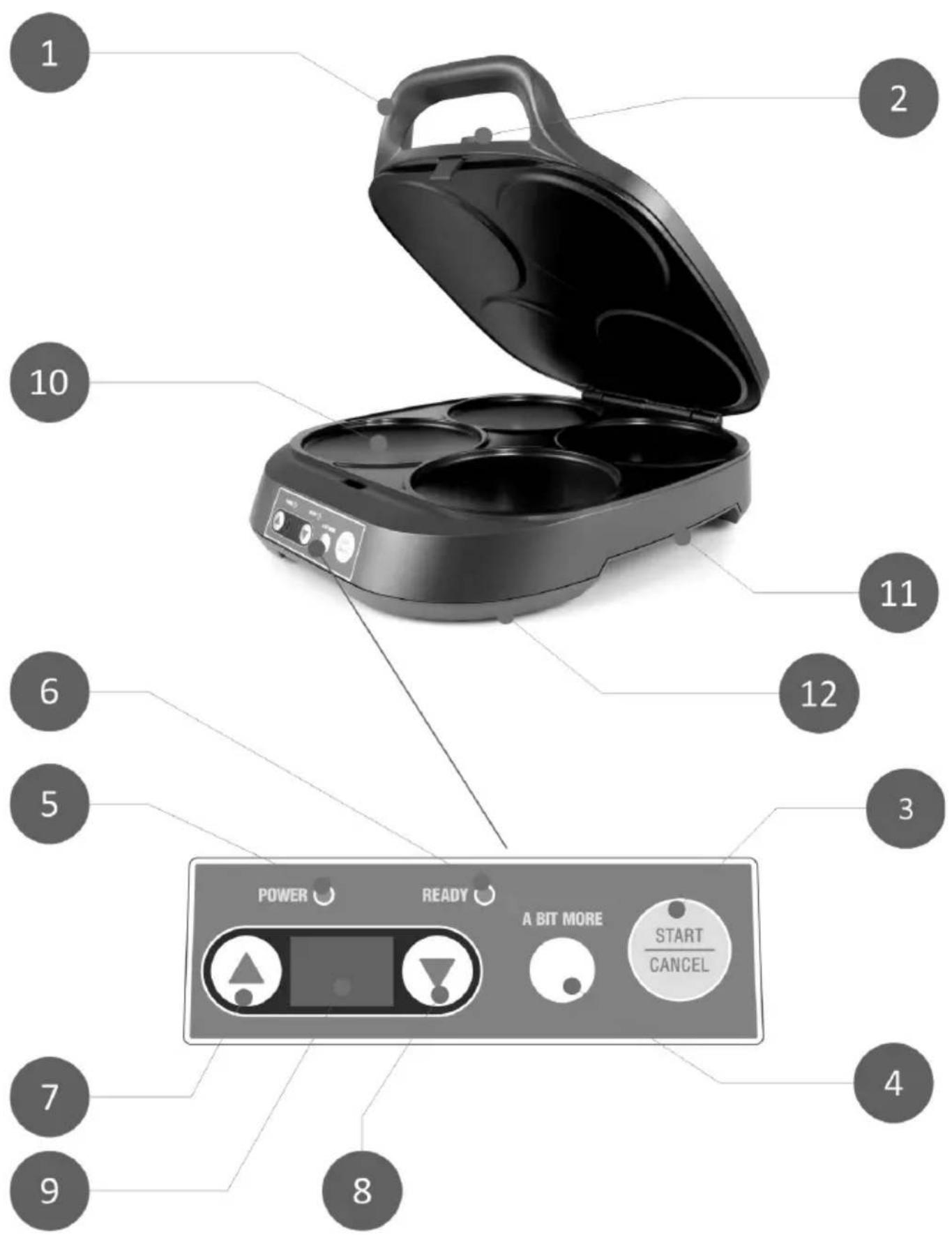

DESCRIPTION

1. Anti-scalding handle
2. Lid release button
3. START/CANCEL Button
4. A BIT MORE function button
5. "Power" indicator light (means power is on)
6. "Ready" indicator light (means ready for use)
7. Increase time button
8. Decrease time button
9. LED control panel with countdown
10. Slots for pancakes and snacks
11. Integrated cable winder
12. Non-slip pads

OPERATION

Before first use

Safely remove and discard all promotional labels, clean the slots and the plates with a damp cloth, and dry them thoroughly.

WARNING: Fully unwind the power cord from the cord reel integrated in the base before use.

Grease the plates before use, according to the instructions in the “Care, Cleaning, and Storage” section of this manual.

Operating your appliance

Make sure that the baking plates are clean and free of dust. Clean with a damp cloth. Place the machine on a flat, level surface in a closed position.

Make sure that there is a minimum clearance of 20 cm on all sides of the machine. Make sure there are no items on top of the machine.

Insert the power cord into a socket. The pancake and snack machine will be in Standby mode and the panel will show 2 dashes.

Press the START/CANCEL button to start preheating. The "POWER" light will turn red and the panel will display a rotating loop "during preheating."

Once preheating is finished, the “POWER” light will remain on and the “READY” light will turn green. The machine will beep 3 times to alert you that preheating has finished and the information “00” will flash continuously on the panel.

NOTE: If you do not use the unit within 30 seconds of the initial preheat, the unit will continue preheating for another 20 minutes, with the panel displaying the rotating loop. The “POWER” light will remain on and the “READY” light will flash. If after 20 minutes you still haven’t set the baking time on the machine, it will automatically turn off. The machine will beep 5 times, stop heating and 2 dashes “- -” will appear in the panel. Eventually, both the “POWER” and the “READY” lights will turn off, indicating that heating has stopped.

Open the lid and pour the batter / ingredients evenly into the center of each slot. The total volume of batter / ingredients must not exceed the edge of the slot. NOTE: Do not overfill the slots. 1/3 cup is the maximum recommended amount of pancake batter to cook well.

Set the required cooking time using the increase and decrease buttons on the timer.

Select a time between 1 and 15 minutes.

Press the button to start cooking.

The time will stop flashing to indicate that the timer is counting down.

During this period, the “POWER” light will remain on, while the “READY” light will turn green.

NOTE: The “POWER” and “READY” lights will keep turning on and off to indicate that the machine is maintaining the correct temperature.

The timer will count down in 1-minute intervals, showing the remaining cooking time on the LED panel. When it reaches 1 minute, it will count down the seconds until the cooking time is over.

When the cooking time is over, the machine will beep 5 times and go into Standby mode. The LED panel will flash displaying “— —”. The “POWER” and “READY” lights will turn off, indicating that heating has stopped.

Open the lid and carefully remove the pancakes/

snacks with the help of a silicone spatula. Never use metal tongs or knives, as these can damage the non-stick coating.

If you wish to add more batter/ingredients to make a new batch, repeat steps 4 to 6.

When you are done cooking, press the START/CANCEL button and remove the power cord from the socket.

A BIT MORE

After the initial cooking time, you may wish to cook your pancakes/snacks a little longer.

Press the ‘A BIT MORE’ button to quickly and easily add another 30 seconds to a cooking cycle.

The ‘ A BIT MORE’ function can be used immediately after the end of the initial cooking cycle; An additional 30 seconds will appear in the panel. The “POWER” and “READY” lights will turn on.

NOTE

The lid must always remain closed and locked. When using the machine for the first time, you may notice a fine mist of steam/smoke. This is caused by some of the components heating up. There is no need to worry.

Making simple pancakes takes about 2 minutes. The exact cooking time will depend on the filling used. To keep the heat even, keep the lid closed until you are ready to add the next batch.

WARNINGS

The temperature of the machine's exposed surfaces may be high when it is switched on.

Some steam will come out from between the baking plates when the lid is closed. Be careful not to come in contact with the steam, as it may cause burns.

CARE, CLEANING AND STORAGE

Before cleaning, make sure the appliance is turned off and remove the power cord from the socket.

Let the machine cool down before cleaning it. However, it is easier to clean when it is still slightly warm. Always clean your machine after each use to avoid accumulating food residue. Wipe the plates with a soft, damp cloth to remove food residue.

WARNING: Do not immerse any part of the pancake and snack machine or the power cord in water or any other liquid.

PFOA-free Non-stick Coating ^1

Cooking on a non-stick surface minimizes the need for oil, as food does not stick and cleaning becomes easier. Any discoloration that may occur will only affect the machine's appearance and will not impact the cooking performance. When cleaning the non-stick coating, do not use steel scouring pads (or other abrasive products). Wash with warm water and soap and dry thoroughly. Remove the toughest residues using a damp cloth.

Grease the plates

Grease the plates occasionally to prevent sticking and to make cleaning easier. To grease, brush the baking plates with some vegetable oil and remove the excess with absorbent paper. Do this procedure after preheating the unit.

Do not use spray on non-stick coatings, as it will affect the performance of the non-stick surface of the baking plates.

NOTE: The baking plates, hinges and slots are coated with a non-stick surface; do not use abrasive products on them.

STORAGE

To store your machine:

1. Check that the appliance is turned off by removing the power cord from the socket.
2. Let the appliance cool down completely and clean it according to the instructions. Close the lid.
3. Wind the power cord into the storage area on the base.
4. Store the machine on a flat, dry surface. Do not store anything on top of the baking plates. The machine can be stored upright to save space.

WARNING: The handle is designed to open and close the machine during cooking. It must not be used to move or transport it. When moving your pancake and snack machine, let it cool completely and transport it by holding the base.

ANOMALIES AND REPAIR

In case of malfunction, please take the appliance to an authorized Technical Assistance Service. Do not attempt to disassemble or repair the appliance, as this may be dangerous.

PROTECTING THE ENVIRONMENT

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol indicates the separate collection of electrical and electronic equipment.

The main objective of the separate collection of this waste is to reduce the quantity to be disposed of, promote re-

use, recycling and other forms of recovery in order to reduce its negative effects on the environment.

When it is no longer in use, this appliance must not be disposed of together with other unsorted municipal waste.

The user is responsible for delivering it free of charge to the selective collection facilities available for that purpose.

Pieces of equipment that are no longer in use can also be taken back at points of sale, by purchasing new pieces of equipment that are equivalent and have the same functions.

For more detailed information on collection points, please contact your City Council or a point of sale for this equipment.

RECIPES

NOTE: The pancake and snack cooking times given are specific to the recipes in this manual.

If you use store-bought mixtures, follow the manufacturer's instructions provided on the package.

Cooking times for store-bought mixtures vary from one brand to another, so cooking results may also vary.

Simple pancakes

Servings: 8

Cooking time: 2 minutes

Ingredients

160 g flour

180 ml milk

40 g sugar

2 small eggs

2 teaspoons baking powder

1 tablespoon sesame oil

Preparation

1. Mix all the ingredients and blend with the help of a hand blender or a blender until smooth;
2. Preheat your pancake and snack machine until the "READY" light turns green;
3. Pour the recommended amount into the slots of your pancake and snack machine, close the lid, and set the timer for 2 minutes;
4. Remove with a heat-resistant silicone spatula and serve plain or with toppings to taste.

Oat pancakes

Servings: 8

Cooking time: 2.5 minutes

Ingredients

250 g oat flakes

375 ml plant-based milk

1 tablespoon flax seeds

1 tablespoon honey or other natural sweetener Fruit to taste

Cinnamon powder to taste

Preparation

1. Place the oats and flax seeds in a food processor and pulse until you have a flour;
2. Add the plant-based milk and honey, then pulse again until liquid;
3. Preheat your pancake and snack machine until the "READY" light turns green;
4. Pour the mixture into the slots of your pancake and snack machine, close the lid, and set the timer for 2.5 minutes;
5. Remove with a heat-resistant silicone spatula and serve with fruit, honey and some cinnamon.

Banana and oatmeal pancakes

Servings: 8

Cooking time: 3 minutes

Ingredients

2 large bananas
8 tablespoons of oatmeal
3 eggs
2 teaspoons of cinnamon

Preparation

1. Cut the bananas into small pieces;
2. Mix all the ingredients and blend until a homogeneous mixture is obtained;
3. Preheat your pancake and snack machine until the

"READY" light turns green;

1. Pour the recommended amount into the slots, close the lid, and set the timer for 3 minutes;
2. Remove with a heat-resistant silicone spatula and serve with toppings to taste.

Spinach pancakes

Servings: 8

Cooking time: 3 minutes

Ingredients

140 g flour

200 ml plant-based milk

100 g raw spinach

2 teaspoons baking powder 2 eggs

salt to taste

Black pepper to taste

Nutmeg to taste

Preparation

1. Mix all the ingredients and blend with the help of a hand blender or blender until smooth;
2. Preheat your pancake and snack machine until the "READY" light turns green;
3. Pour the recommended amount into the slots of your pancake and snack machine, close the lid, and cook for 3 minutes.

Potato rosti

Servings: 8

Cooking time: 10 minutes

Ingredients

4 medium-sized potatoes, peeled and grated

30 g melted butter

3 sprigs of thyme, chopped salt and pepper

Preparation

1. Mix all the ingredients together;
2. Preheat your pancake and snack machine until the

"READY" light turns green;

1. Place 80 g of the grated potato mixture into each slot and close the lid;
2. Set the timer to 10 minutes. When ready, remove using a silicone spatula.

Simple tortillas

Servings: 8

Cooking time: 3 minutes

Ingredients

3 medium potatoes, boiled

1 small onion

2 garlic cloves 6 eggs

parsley to taste

Salt and pepper to taste

Preparation

1. Cut the potatoes into small squares and bake them;
   2.Chop the onion;
2. Add the beaten eggs to the potatoes, onion, and chopped parsley and season;
3. Preheat your pancake and snack machine until the "READY" light turns green;
4. Pour the recommended amount into the slots of your pancake and snack machine, close the lid, and set the timer for 3 minutes.

Eggs with crème fraîche and smoked salmon

Servings: 8

Cooking time: 5 minutes

Ingredients

8 eggs

200 g smoked salmon, sliced

2 tablespoons of chopped chives salt and pepper

Preparation

1. Whisk together the eggs, crème fraîche and the salt and pepper. Add the chopped chives;
2. Preheat the pancake machine until the "READY" light turns on;
   3.Open the lid, pour the recommended amount of egg mixture into the slots of your pancake and snack machine, and set the timer for 5 minutes;
3. Place the eggs on a platter, divide the smoked salmon among the servings and place on top.

Bacon and mozzarella cheese omelets

Servings: 8

Cooking time: 3 minutes

Ingredients

4 eggs

75 g bacon

75 g of grated mozzarella cheese Chopped parsley to taste Pepper to taste

Preparation

1. Start by beating the eggs;
2. Mix together the remaining ingredients, season with pepper to taste and stir;
3. Preheat your pancake and snack machine until the "READY" light turns green;
4. Pour the recommended amount into the slots of your pancake and snack machine, close the lid, and set the timer for 3 minutes.

Pataniscas (codfish fritters)

Servings: 8

Cooking time: 4 minutes

Ingredients

250 g water
350 g of salted cod, soaked and shredded
300 g flour
150 g onion
10 parsley stalks 4 eggs
salt to taste

Preparation

1. Poach the soaked and shredded cod.
   Once it is cooked, shred it into even smaller pieces if necessary. Set aside the cooking water;
2. Chop the parsley and the onion and set aside;
3. In a bowl, add the eggs, the flour, and the water.
   Season with salt and mix well until smooth;
4. Add the cod, the parsley and the onion to the mixture and mix well;
5. Preheat your pancake and snack machine until the "READY" light turns green;
6. Pour the recommended amount into the slots of your pancake and snack machine, close the lid, and set the timer for 4 minutes.

Butter cookies

Servings: 8

Cooking time: 4 minutes

Ingredients

250 g self-rising flour

125 g butter

125 g sugar

1 egg

12 teaspoon baking powder

Preparation

1. Mix all the ingredients together and knead a little;
2. Divide the dough into 8 pieces and form small balls;
3. Preheat your pancake and snack machine until the "READY" light turns green;
4. Place one ball per slot, close the lid of your pancake and snack machine, and set the timer for 4 minutes.

DYSFONCTIONNEMENTS ET RÉPARATIONS

1. Keep the proof of purchase (receipt) for this product carefully. When a repair is made under these conditions, the technician will require proof of purchase. This assistance can only be provided once you have proven, with the proof of purchase, that your appliance is within the warranty period.
2. The warranty period for this appliance is defined by the respective EU Directive in force on the date of purchase/delivery.
3. Within the guarantee period, we will repair or replace, free of charge, any parts which, during the normal use of the appliance, have deteriorated as a result of a proven material or manufacturing defect.
4. This warranty does not cover consumable items, light bulbs, easily breakable parts made of glass or plastic, or any other defects that do not impair its proper functioning.
5. We accept no liability for damage caused by incorrect or careless use of the appliance, by its connection to an electrical current other than that indicated on the appliance's rating plate, by faulty electrical installation, or by atmospheric, chemical or electrochemical causes. Other claims or demands for compensation relating to objects which are not an integral part of the appliance will be denied.
6. The provision of assistance under warranty does not extend the warranty period. Only within this period will assistance be provided under warranty. The right to assistance is only granted to the first purchaser of the device and cannot be transferred to a third party.
7. The warranty expires when unauthorized persons have attempted to repair, modify or replace parts of the appliance.
8. All expenses and risks of transportation to our factory or vice versa will always be borne by the buyer.

WARRANTY CONDITIONS

To benefit from the Technical Assistance service during the 36-month warranty period after the date of purchase, you will need to:

Present the Invoice/Proof of Purchase, stating the model and the manufacturing number of the product (whenever possible).

Note: Failure to present the aforementioned documents will be grounds for not providing services under warranty.

CONDITIONS DE GARANTIE

CONDITIONS DE GARANTIE
