USER MANUAL PGU 2013 QLIMA

Pure white background with a vertical blue line and small black markers, no text or symbols present.

PICTURES

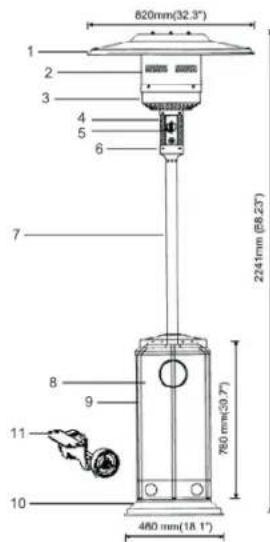

Picture 1

	ES FR GB IT NO NL						PT SL
1	Reflector Réflecteur	reflecteur Reflector Riflettore R	Reflektor Reflector				Refletor Reflektor
2	Pantalla de llama	Coupe-flamme	Flame screen	Schermo della fiamma	Flammeskjerm	Vlamscherm	Rede difusora	Zaslon za plamen
3	Base del quemador	Base du brû-leur	Burner base E	ase del bruciatore	Brennunderlag	Branderkop	Base do queimador	Baza gorilnika
4	Reja de entrada de aire	Grille d'ad-mission d'air	Air admittance fence	Recinzione dell'ingresso aria	Lufttilgan-gsgjerde	Beschermgaas luchtinlaat	Vedação de admissão de ar	Rešetka za dostop zraka
5	Controlador	Contrôleur	controller	Controllo	Styreenhet	Regelaar	Controlador	Krmilnik
6	Base de carcasa de control	Base du boîtier de commande	Base of con-trol housing	Base della scatola di comando	Underdelen av styringens kabinett	Basis van de regelaar-behuizing	Base do compartimento de controlo	Baza ohišja krmilja
7	Poste	Tige	Post	Palo	Stang	Paal	Apoio	Kol
8	Cubierta del tanque	Logement de réservoir	Tank Housing	Alloggiamento del serbatoio	Tank	Behuizing gasfles	Compartimento do depósito	Ohišje rezervoarja
9	Soportes del poste	Fixations de la tige	Post brackets	Staffe del palo	Stang	Paalsteunen	Suportes do apoio	Oporniki ohišja
10	Base	Base	base	Base	Base	Voet	Base	Baza
11	Ruedas	Roues	Wheels	Ruote	Hjul	Wielen	Rodas	Kolesca

Picture 2

Picture 3

Picture 4 Picture 5

Picture 6

Close-up of a black cylindrical component with a coiled wire, labeled QA1 (*) (no other text or symbols visible)

Picture 7

Picture 8 Picture 9

Technical line drawing of a mechanical component with curved and straight sections (no text or symbols)

(*)
Pas inclus
Not included
Non incluso
Følger ikke med
Niet meegeleverd
Não incluído
Ni priloženo

Picture 10

Technical line drawing of a mechanical device with a circular top and cylindrical base (no text or symbols)

Picture 11 Picture 12

Gas name Type	Model Modele	Model	Model	Model Model	13 KW
Gas pation heater	Gas transferes varner	Kasun Kausu	Gaz	Gas terrasse	13 KW
gas	Gas < 15 kg	Kaushu kau	Gaz	Gas < 15 kg	13 b/p (30°):Propane, Butane or their mixtures at 28-30 mbar / Propane 37 mbar
Pb. Pd. of the application in a gas container and in electrolytes used to obtain 13% of the product in the absence of any chemical reaction, but are either as an alternative fuel or the product or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or than 13% of the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products can be obtainedfrom the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from theproducts or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the Products or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromthe products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products ORs or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from tharpoor or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbecabe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained from the products or that is necessary for whichthe products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or thatis necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromthe products canbe obtained from the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpooror or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products or that is necessary for which the products canbe obtained fromtharpoor or the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/OURs or the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products, our products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our the products/our they are necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessaryfor which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for whichthe products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the productscan be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can beobtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained fromthe products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the product can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products can be obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the product or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtainedfrom the products orthat is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtainedfrom the products or that is necessary for which the products canbe obtained from the products or that isecessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary forwhich the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the products canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbe obtained from the products or that is necessary for which the product canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canbelate from the products or that is necessary for which the products canBELATEMORS OF CHAS AND CONSUMPTION (MAX)
Countries of Desitration	*	*	**	*	*
Gas consumption (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)
Pb. Gas/o use of a derivative (max.)	*	*	**	*	*
Consumption (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Cash flow (max.)	Cash flow (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Cash flow (max.)	Cash flow (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o useof cash flow (max.)	Cash flow (max.)	Cash flow (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of cash flow (max.)	Cash flow (max.)	Cash flow (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)	Gas/o use of cash flow (max.)	Cash flow (max.)	Cash flow (max.)
Pb. Gas/o use of a derivative (max.)	Gas/o use of a derivative (max.)

GB DK FI FR/BE IT NO NL SE SL

ES

Glima

Olima.com

Netherlands

AB OSS, THE

PO. BOX 96, 5340

PVG Holding B.V.

18 0063

E ÍNDICE

Assembling the heater

Operation

Storage

Cleaning and care

Troubleshooting

End of life time

Warranty provisions

INDICE

Paso 4: picture 6, 7, 8

Paso 5: picture 9, 10

Étape 4: image 6, 7, 8

GARANTIE DISPOSITIONS

This heater is for outdoor use only. Indoor use is dangerous and strictly forbidden.

Always use in amply ventilated areas. An amply ventilated area must have a minimum of 25% of the surface area open.

The surface area is the sum of the walls surface

• Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards.
• The gas fired patio heater is designed for outdoor use only, it will provide radiant heat which warms people and objects rather than the air in between.
• This product is intended to be used as patio heater around residential houses in normal household conditions and environment.
• After unpacking, check the appliance for any damages. When in doubt, do not use the appliance, but contact customer service at your local dealer's. Keep the packaging materials (plastic bags, etc.) away from children, as they may cause hazardous situations to children.
• No modifications to the safety system are allowed.
• This heater is constructed in conformity with relevant texts in the EN14543:2005+A1:2007 standard
• Keep the instructions for future reference

WARNINGS

• Read the instructions before installation and use. This appliance must be installed and the gas cylinder stored in accordance with the regulations In force.
• Only use the device for its intended purpose. Other usage may lead to burns, fire, explosion, crash, etc.
  • Install the heater only if it complies with local regulations, laws and standards;
• Check if the information indicated on the type plate corresponds your situation before you connect the appliance.
  • Install the heater according to the instructions as described in the installation section of the directions for use;
• This heater is manufactured according to CE safety standards. Nevertheless, as with any other heating device, care must be taken;

RICH OF FIRE 11

ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• If the heater is damaged, it shall be repaired by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Children should be supervised to ensure that they do not play with the appliance.
• In order to avoid overheating, do not cover the device.
• The guard of this heater is intended to prevent direct access to heating elements and must be in place when the heater is in use.
• Do not insert objects into the openings of the device.
• The guard does not give full protection for young children and infirm persons.
• This appliance can be used by children aged from 12 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION - some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• During operation and just after operation the appliance will be extremely hot. NEVER touch it during operation or just operation. NEVER move the appliance during this time.
• Switch off the appliance when it is unattended.
• Do not cover or obstruct the heater when in use.

If you fail to consult and/or follow up the rules, instructions and explanation, the warranty will no longer be valid, and the manufacturer will no longer deal with any damage to the appliance and/or your environment under the warranty.

• Read the instructions before installation and use.
• This appliance must be installed and the gas cylinder stored in accordance with the regulations in force.

• Do not obstruct the ventilation holes of the cylinder housing.

• Do not move the appliance when in operation.

• Shut off the valve at the gas cylinder and/or the regulator:
  a. before moving the appliance b. after use
• The tubing or the flexible hose must be changed within the prescribed intervals
• Use only the type of gas and the type of cylinder specified by the manufacturer
• In case of violent wind particular attention must be taken against tilting of the appliance
• Have any repairs and/or maintenance carried out by a recognized service engineer only
• Make sure that the correct gas is used and that the gas containers are not exposed to heat or extreme temperature changes. Always store the gas containers in a cool, dry and dark place.
• Always use a suitable and approved low-pressure regulator. In case of any doubt contact your local dealer.
• Use only the type of gas and the type of cylinder specified by the manufacturer.
• In case of violent wind particular attention must be taken against tilting of the appliance
• The tubing or the flexible hose must be changed within the prescribed intervals
• Turn of the appliance immediately if smell of any gass is detected and extinguish any open flame.

ASSEMBLING THE HEATER

The manufacturer is not responsible for any harm or damage if attention is not paid to the points described above.

The use of this product and the elements required for that purpose is entirely at the end user's own risk.

HEATER LOCATION AND CLEARANCE

Always maintain: (picture 1)

• 120 cm clearance from combustible materials,
• minimum 100 cm top clearance
• minimum 100 cm side clearance
• Heater must only be placed and used on a firm, level and stable underground.

GAS REQUIREMENTS

Use propane, butane or LGP only. See rating label on the appliance.

• Maximum size of cylinder suitable for the appliance is ∅ 30 cm x (60-65) cm (high) (*). Inner dimension of stand with supporting
  (*) height depends on the size and type of your gas regulator
• The appliance requires approved gas hose in 140 cm length and a gas regulator (Hose and regulator not included). The hose and regulator assembly must conform to local standard codes.
  • Regulator maximum inlet pressure must not exceed 690 kPa
• Regulator outlet pressure to be 28 mbar (2.8 kPa) to 50 mbar (5 kPa) depending on countries.
• The installation must conform to local codes, or in the absence of local codes, to the standard for the storage and handling of liquid petroleum gases.
• A dented, rusted or damaged gas cylinder may be hazardous and should be checked by an authorized dedicated gas specialist,
• Never use a gas cylinder with a damaged valve connection.
• The gas cylinder must be arranged to provide for vapor withdrawal from the operating cylinder.
• Never twist the flexible tubes and hoses.
• Never connect an unregulated gas cylinder to the heater.
• Disconnect the gas cylinder when the heater is not use.

LEAK TESTING

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment and/or installation or because of excessive pressure being applied to the heater. The heater must be checked with a full cylinder.

1. Make sure the safety control valve is in the OFF position.
2. Make a soapy water solution of one part liquid detergent and one part water. The soapy water solution can be applied with a spray bottle, brush or rag to all gas connections. Soap bubbles will appear in case of a leak.

WARNING: Never leak test while smoking!

GB

WARNING: In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used again.

1. Turn the gas supply ON. And check all the connections with the soapy water solution. No bubbles may appear!
2. In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply ON and recheck. Contact your dealer or gas supplier for assistance if bubbles continue to appear.

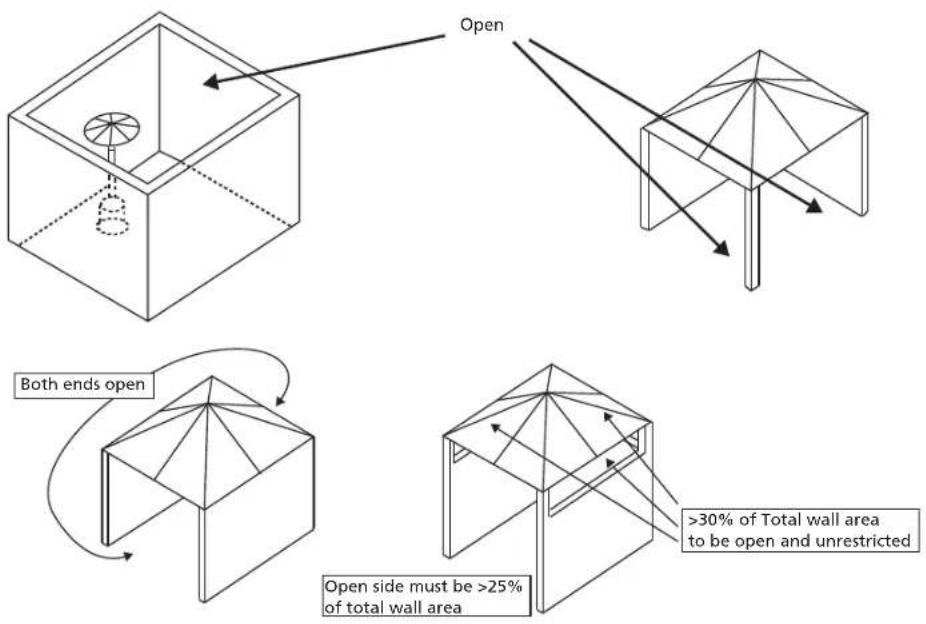

DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS

SPECIFICATIONS

Max.Wattage: 13 kW

Min. Wattage: 5 kW

Gas Consumption: 450 g/hr-945 g/hr

Height: 224 cm including stand

Model PGU2013
Gas type propane,	butane or LPG only
Countries of destination (*)	BE-ES-FR-GB-GR-IT-PT-LUX	NL-NO-DK-FIN-SE
Gas Category I3+ (28-30/37) I3 B/P (30)
Pressure (mBar) 28	30/37 28-30

(*) This appliance is not suitable for Germany, Austria, Swiss

ASSEMBLY (picture 2)

Required tools

• Open end wrench 10 & 13 mm
• Adjustable opening wrench (2) 20 cm (8") long
• Slip joint pliers 23 cm (9") long
  • Philips screwdriver w/ medium blade
  • Plumbing tape for joints
• Spray bottle of soap solution for leakage test

Parts supplied

• Stand (1) with tank housing (8)
• Assembly post (7) with 3 pcs post brackets
• Gas connector suitable for:
- ∅ 8-12 mm hose (Hose connector as separate item in the box)
- G1/2 fitted as standard
• Note: Hose and regulator not included
• Reflector 820 mm consisting out of 4 pieces with:
- 9 pcs washers ∅ 8 mm
- 9 pcs M6*10mm bolts
- 9 pcs M8 cap nuts
• 3 pcs 60 mm pins for reflector support
• 4 pcs bolts M6 X 10 mm for assembly post and burner
- 6 pcs bolts & nuts M6 X 35 mm for post and post brackets
• 3 pcs bolts M8 X 16 mm for post brackets and stand
• Bracket with 2 wheels including:

- 2 bolts M8*20

- 2 nuts M8

Step 1: picture 3

- Put the 3 pcs post brackets (9) on each position on the base (10) as shown in picture 2.

• Use 3 pcs M8 x 16 mm bolts to join the post brackets (9) and base (10).

Step 2: picture 4

- Put the post (7) on the top of 3 pcs post brackets (9).

- Use 6 pcs M6 x 35 mm bolts and nuts to connect the post (7) to the 3 pcs post brackets (9). Tighten the bolts and nuts.

Step 3: picture 5

Step 4: picture 6, 7, 8

• Secure the 3 pcs 60 mm pins (reflector support bolts) on the cap of flame screen (2).
• Connect the gas hose (QA1) to the gas connector. (picture 7)

Please note

• The gas hose (QA1) is NOT included with the heater. Hose must be purchased separately
• Minimum / Maximum length gas hose: 140-160 cm
• Screw connection (France G1/2) is fitted as standard
• Hoses ∅ 8-13 mm. can be fitted as well. When required: use the multi country connector (picture 12) supplied. Fitting of the multi country connector is described in the separate manual supplied in with the included multi country kit. When using the multi country connector: ALWAYS make sure to use hose clamps!
• For gas hose with threaded connectors: bind 2 or more rounds of plumbing tape around the gas pipe before connecting the gas hose for security.
• Bind 2 or more rounds of Teflon plumbing tape around the gas burner inlet connector and connect the gas pipe. Use a wrench to tighten the connection.
• Fix the completed burner unit to the post by 4 pcs M6 x10 mm bolts.(picture 8)

Step 5: picture 9, 10

• Carefully take of the blue protection film completely from each reflector part.
  • Assemble reflector following picture 9
• Put ∅ 8 mm washer on each reflector support bolt.
  • Fix the reflector (1) to the support bolts (picture 10)
• Fasten the reflector (1) with 3 pcs washers and 3 pcs M8 wingnuts.

Step 6: picture 11

• Lift the tank housing (8) and rest it on the post plate (9)
• Connect the other end of your gas hose according to the mounting instruction as supplied with the gas hose and/or supplied with the gas regulator.

Note:

• The gas hose (QA1) is NOT included with the heater
• The gas regulator is not included with the heater
  • Put gas cylinder on the base (10).

- Connect the regulator to the gas cylinder (not included) according to the mounting instruction as supplied together with the gas regulator and/or the gas cylinder

OPERATION

TO TURN ON THE HEATER

Check that the regulator seal is correctly fitted and able to fulfil its function.

a) Open the valve on the gas supply cylinder.
b) Press and turn the variable control knob (5) to PILOT position (counterclockwise 90°).
c) Press down the variable control knob and hold for 30 seconds. While holding down the variable control knob press the igniter button several times until the pilot flame ignited. Release the variable control knob 10\~20 seconds after the ignition.

Note:

1. If a new tank has just been connected, please allow at least one minute or more for the air in the gas pipeline to purge out through the pilot hole,
2. When lighting the pilot flame make sure that the variable control knob is continuously depressed while pressing the igniter button. Variable control knob can be released after the pilot flame lit for 10-20 seconds.

1. Pilot flame can be watched and checked from the peephole located on the base of burnerhead. If the pilot flame does not light or it goes out, repeat step c.

d) Turn the variable control knob to LO and leave it there for 5 minutes or more before turning the knob to desired temperaturesetting.

e) If the burner flame goes out accidentally or it is blown out by wind, turn off the heater and wait at least 5 minutes or more to let the gas dissipate before re-lighting to avoid possible gas explosion. Repeat steps b to d.

TO TURN OFF THE HEATER

a) Turn the variable control knob to PILOT position.
b) Press and turn the variable control knob to OFF position.
c) Turn off the valve on the gas cylinder and disconnect the cylinder.

Warnings:

• The whole gas system. hose, regulator, pilot and burner should be inspected for leak before use. But at least once a month and each time the gas cylinder is changed. Check the hose assembly for sign of extreme abrasion, cuts or wears. Suspected areas should be leak tested. If the hose leaks, it must be replaced with a new one that conforms to local standard codes. ). If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the equivalent quality.
• Make sure the ventilation opening of the cylinder enclosure, control compartment, burner and circulation air passageways of the heater are free and clear of debris. If debris, spider or insect nests are found, clean the holes with heavy-duty pipe cleaner or compressed air.
  • Always keep a dry chemical fire extinguisher readily available.
• For safety, always allow a 5-minute complete shut off period before re-lighting a hot heater.
• Replace the gas tube/hose within the interval described with the hose.

REPLACING THE GAS CYLINDER

• Shut off heater.
• Close the valve of the gas cylinder.
• Disconnect the regulator from the cylinder following the instructions that

came with your regulator.

• Replace the cylinder.
• Make sure there is no flame. Only when no flame: remove the plug or seal cap from the cylinder valve.
• Check for the presence and good state of the gasket before connecting the regulator to the new cylinder
• Check that the regulator seal is correctly fitted and able to fulfil its function.
  • Perform leak test using soapy water solution.

WARNING: only change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances, ...).

STORAGE

• Make sure the heater is in off position
- Always close the valve of the gas cylinder after use or in case of a disturbance.
- Disconnect the gas container from the gas heater.
- Store the gas container in a well-ventilated room. Position it far away from inflammable, explosive or hot materials and preferably not in the home. In addition it should never be stored in the basement or attic.
- Cylinder must be stored out of the reach of children.
- Disconnected cylinder must have threaded valve plugs tightly installed and must not be stored in garage or any other enclosed area. Only store in ventilated area!
- Storage of heater indoors is permissible only if the cylinder is disconnected and removed from the heater.
- Check the tightness of the gas valve and for damage. If you suspect a damage, have it changed by your gas dealer.
- Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.

CLEANING AND CARE

Warning: Make sure the heaer is in off position and is cool!

Warning: Do not clean heater with cleaners that are combustible or corrosive.

• Wipe off powder coated surfaces with soft, moist rag and soap water.
• Remove debris, spider and insect nests from ventilation opening of the cylinder enclosure, control compartment, burner and circulation air passageways of the heater with heavy duty pipe cleaner or compressed air to keep appliance clean and safe for use.
• Never clear ports or other openings with toothpicks or other article that will break and block the ports.
• If carbon deposits develop, remove the reflector and flame screen and clean them with soap water.
• Do not paint the flame screen, control panel or reflector.
• Cover the burner unit with the optional supplied protective cover when the heater is not in use. Wait until the heater is cool before covering.

- In a salt-air environment, such as near an ocean, corrosion occurs more quickly than normal. Check frequently for corroded areas and repair them promptly.

TROUBLESHOOTING

Review these tips first and you may not need to call for service.

Problem Probable cause Solution
Pilot will not light	Gas valve may be OFF Turn the gas valve ON.
	Tank fuel empty Refill gas tank.
	Pilot injector blocked Clean or replace pilot injector.
	Air in supply system Purge air from lines by pressing the control knob until you smell gas.
	Loose connections Check all fittings.
	Low gas pressure Replace cylinder with a new cylinder.
Pilot will not stay on	Lack of fuel pressure Keep the variable knob depressed for 10-20 seconds or more after the pilot light ignited.Tank near empty. Refill gas tank.
	Debris around pilot Clean dirty area.
	Loose connections Tighten connections.
	Thermocouple bad	Replace thermocouple.
	Gas leak in line	Check connections.
Burner will not light	Pressure is low	Tank near empty. Refill gas tank.
	Opening blocked	Remove and clean.
	Control is not ON Turn valve to ON.
	Thermocouple bad	Replace thermocouple.
	Pilot light assembly bent	Place pilot properly.
	Not in correct location	Position properly and retry.
Burner flame is low	Supply hose is bent or twisted	Straighten hose and perform leak teston hose.
	Blockage in burner injector	Clean or replace burner injector.

GB

45

Burner flame goes off immediately after ignition	Low gas pressure Let the pilot flame stay lit for 10 minutes before setting variable knob to LO.
Emitter glows uneven	Blockage in burner injector	Clean or replace burner injector
	Base is not on a level surface	Place heater on a level surface
	Low gas pressure Replace cylinder with a new cylinder.
Thick black smoke Blockage in burner Turn off the heater and let it cool.Remove blockage and clear burnerinside and outside.
Carbon bulld-up Dirt or film on reflector and flame screen	Clean reflector and flame screen.

END OF LIFE TIME

If it is decided that the gas heater is not to be used any more, it is recommended that it be disconnected from the gas container. Also cut the rubber hose. If children play with the heater, make sure that dangerous parts are removed.

Never dispose of non-biodegradable products in the environment, but dispose of them in accordance with current national legislation. At the end of its lifetime, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection center or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered in order to make significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately.

WARRANTY PROVISIONS

The appliance is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral and/or consequential damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non-genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as filters, batteries, lamps and heating elements are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to it.

6. The guarantee is invalid for damage caused by neglect and/or by actions that deviate from those in this instruction booklet.

7. Transportation costs and the risks involved during the transportation of the appliance or components of the appliance shall always be for the account of the purchaser

8. Damage caused by not using suitable spare parts is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the appliance to your dealer for repairs if these instructions do not provide a solution.

www.Qlima.com

ISTRUZIONI PER L'USO (IT)

ESPECIFICAÇÕES

TEHNIČNI PODATKI

Maks. moč v vatih: 13 kW

Distributed in Europe by PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.qlima.com, oder setzen Sie sich mit unserem Kundendienst in Verbindung ([phone]).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.qlima.com eller det lokale Kundecenter ([phone]).
(65) Si necesita información o si tiene algún problema, visite nuestra página Web www.qlima.com, o póngase en contacto con el servicio cliente ([phone]).
Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.qlima.com) ou contactez notre service client ([phone]).
Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.qlima.com tai kysy neuvoa PVG kuluttajapalvelukeskuksesta ([phone]).
(38) If you need information or if you have a problem, please visit the our website (www.qlima.com) or contact our sales support ([phone])
① Per informazioni e in caso di problemi, visitate il sito Web www.glima.com oppure contattate il Centro Assistenza Clienti ([phone]).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.qlima.com. Alternativt kan du kontakte med PVG' forbrukertjeneste ([phone]).
NL Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.glima.com) of neem contact op met de afdeling sales support ([phone]).
P Se necessitar de informações ou se tiver problemas, visite o Web site www.qlima.com ou contacte o Centro de Assistência ([phone])
PL W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.qlima.com lub skontaktuj się z Centrum kontaktów Qlima ([phone])
⑤ Om du behöver service eller information eller har problem med apparaten kan du besöka www.qlima.com eller kontakta Qlima kundtjänst (du hittar telefonnumret på [phone]).
⑤D Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.qlima.com ali pokličite na telefonsko ([phone]).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.qlima.com adresindeki Qlima Internet sitesini ziyaret edin veya ülkenizde bulunan Qlima müşteri merkeziyle iletişim kurun ([phone]).
