USER MANUAL Cookeo CE912410 MOULINEX

Please connect and update your Cookeo Touch Wi before the rst use

• read the instructions. The back and on/o buttons are only visible when needed.

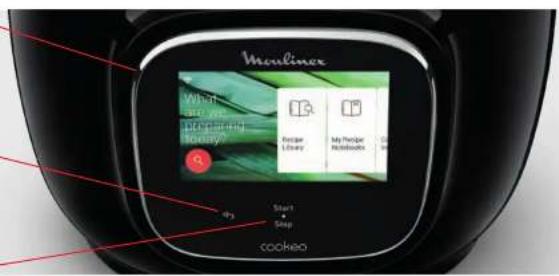

Tilting touch screen Back button Start/Stop to exit standby mode40 41 Step 2 — the touch screen Clean the touch screen with a soft, damp cloth. Do not use a metal sponge as it may scratch the screen. Step 4 — the water tray After each use:

• clean the condensation collector with clean water or in the dishwasher,

• dry the condensation collector,

• remember to return the condensation collector to the Cookeo Touch. Cleaning your Cookeo Touch There are 5 steps to follow before you use your Cookeo Touch for the first time and after each use. Step 1 — the Cookeo Touch Clean the Cookeo Touch with a damp cloth. Step 3 — the cooking bowl To clean the bowl, you can:

• put the bowl in the dishwasher,

• wash it in hot soapy water. If the cooking bowl turns an o-white colour on the outside, a metal sponge can be used.42 43 Step 5 — the lid Unscrew the central nut.

Remove the valve cover and take out the ball.

Clean all parts of the Cookeo Touch lid with clean water or in the dishwasher. Cleaning your Cookeo Touch

Check the mobility of:

• the safety valve. Remove the inner part of the lid by pulling it towards you.

Remove the cover underneath the lid.

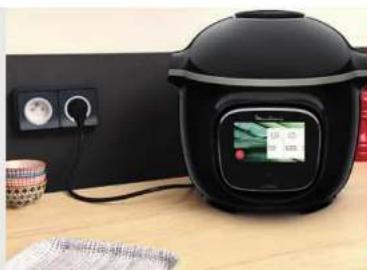

To ensure safety while cooking, place your Cookeo Touch on a at, dry surface. Plug in your Cookeo Touch.

Installing the steam basket Wash the steam basket using hot soapy water. Rinse and thoroughly dry the steam basket. Let's go! Replacing the steam basket. How to install the steam basket? Put the steam basket back into place. Place the steam basket in the Cookeo Touch cooking bowl using the handles. Squeeze the leg between your thumb and index finger to position it in the notches. When using your Cookeo Touch for the first time, the pot can release a slight odour. This is normal.46 47 Mastering the cooking processEasy cooking On the recipe menu, visible on the touch screen, Via WIFI connection access over 400 recipes. No more boring mealtimes!

• and desserts. The recipes are delicious and quick to make. Using the ingredients menu, you can cook food without worrying about the cooking mode or the cooking time. The Cookeo Touch provides all the information you need according to the weight and type of ingredients.48 49 Using the dierent options Using the manual mode, you can select the cooking mode and cooking time for your meal. The various cooking modes: Pressure cooker Lid position: closed and locked. Cooking intensity Low: to cook soft ingredients quickly. High: to cook all ingredients quickly. Express: to cook ingredients very quickly. Timer delay mode: Possible The timer delay mode allows you to start cooking at a later time. Steam Use the steam basket. Lid position: closed and locked. Cooking intensity Gentle: to cook soft ingredients. Boost: to cook all ingredients quickly. Timer delay mode: Possible Browning The bowl heats from below, like a stove.µ Lid position: open and raised. Cooking intensity Gentle: to brown delicate ingredients. Medium: to brown and crisp all ingredients quickly. High: to brown and crisp all ingredients very quickly.50 51 Reheating The Cookeo Touch reheats dishes to the perfect temperature. Lid position: May be open or closed. Stewing The bowl heats from below to act like a stew pot. Lid position: open and raised. Cooking intensity Gentle: slow and gentle cooking. Medium: slow cooking. High: medium cooking. Keeping warm The Cookeo Touch keeps your dishes warm until it is time to serve them. Lid position: May be open or closed. Cookeo Touch functions Depending on your Cookeo Touch model, these are various useful features. The "What's in my fridge" function: Input the ingredients that you have in your fridge and the Cookeo Touch will find a suitable recipe. The "Recipe Book" function: You can create several recipe books. Examples:

adjust the brightness,

turn the sound on or o,

select country and language,

understand your Cookeo Touch's connectivity. This is a QR Code. By scanning the QR code with the camera of your mobile phone or a special app, you can access the Cookeo Touch playlist on YouTube. Safe opening: The locking rod is a safety system that automatically locks the Cookeo Touch as soon as it is pressed. The Cookeo Touch is locked when the icon appears on the touch screen. Do not open the Cookeo Touch when it is locked. Wait for the internal pressure to drop before opening the lid. The internal pressure has dropped when there is no more steam coming out of the valve. Safety in case of too much pressure: If the pressure is too high, the Cookeo Touch can release pressure automatically through the safety valve.

Safety features The Cookeo Touch has several safety features. Open and scan54 55 If any of the safety systems are activated:

• unplug the Cookeo Touch,

• allow the Cookeo Touch to cool completely,

• open the Cookeo Touch,

• check and clean: - the safety valve, - the ball, - the covering. If your Cookeo Touch is still leaking or not working, take it to an Approved Service Centre. Regulating the Cookeo Touch: When pressure cooking, the Cookeo Touch can emit small amounts of steam. This serves to automatically regulate the pressure. The Cookeo Touch lid: The metal lid should only be used with the Cookeo Touch. The metal lid should not be used with other equipment. The Cookeo Touch lid is easy to recognise thanks to the red safety valve. Troubleshooting You may encounter various problems when using the Cookeo Touch. The lid does not close:

• There may be something stuck between the bowl and the hot plate. Remove the bowl to check that all parts are clean: - the heating plate, - the central element, - under the bowl. Also check that the central element can move around.

• The lid release handle is not in the correct position. Ensure that the release handle is fully open.

• The metal lid is not installed correctly. Ensure that all elements of the metal lid are in the correct position.

• The bowl damaged after being hit or dropped. The bowl should be replaced at an Approved Service Centre. An Approved Service Centre is a repair centre that has been approved by Moulinex.

The Cookeo Touch pressure fails to raise and steam is not being released properly:

• The gasket seal is dirty or damaged. Ensure that the gasket seal is clean and in good condition.

• The inner lid is missing or not tight enough. Ensure that the central nut under the metal lid is tight enough.

• The locking rod is dirty or the seal is missing. Clean the locking rod according to the instructions. The locking rod must be able to move up and down properly.

Ensure that the seal is correctly positioned on the locking rod.

• The decompression ball is dirty or incorrectly positioned. Ensure that the ball is correctly positioned and that the ball cover is in the locked position. Clean and dry the ball and the support.

• The edge of the bowl is damaged or dirty. Clean the bowl. Ensure that the bowl is in good condition.

• If the locking rod is built upside down: place the magnetic side of the

• stem on the same side as the ball The Cookeo Touch does not decompress:

• The ball cover is out of place: Leave the Cookeo Touch to cool down completely, remove the metal lid, and place the ball cover in the correct position. Water is leaking behind the Cookeo Touch:

• The collector is not in place or is overowing. Ensure that the collector is correctly positioned behind the Cookeo Touch.

• The bowl is too full. Ensure that the contents do not exceed the maximum volume.

• If you are using certain ingredients such as: - cream, - wine, - or milk, Respect the quantities shown in the recipe. These ingredients can cause the Cookeo Touch to overow. The gasket seal should be changed every three years at an Approved Service Centre.58 59 The lid won't open when steam is released:

• The locking rod is still in the upwards position. Check that all of the steam has been released and wait until the Cookeo Touch has cooled down fully. The light on the lid handle no longer lights up:

• The LED is not working. Take the device to an Approved Service Centre. The screen does not light up:

• The Cookeo Touch is not plugged in. Ensure that the Cookeo Touch is plugged in correctly.

• The Cookeo Touch is on standby. Press the dot on the screen. The inner metal lid cannot be removed:

• The ball lid is positioned incorrectly: Unscrew the nut on the lid, remove the inner part of the lid by pulling it towards you, access the ball cover, correctly reposition the lid.

• error 3 error communicating with the power board.

• If the temperature sensor fails, the numbers 04, 05, 06, 07, 08, 09 are displayed on the Cookeo Touch.

• error 11 pressure problem. Unplug the Cookeo Touch. Ensure that all elements of your Cookeo Touch are in good condition. If needed, clean the elements of your Cookeo Touch following the cleaning instructions. Ensure that the valve cover is correctly in place.

• error 13 excess pressure.

• error 14 low pressure due to lack of water: - add water to the bowl, - resume cooking. Cookeo Touch error codes There are several error codes:60 61

• error 15 decompression fault: - unplug the Cookeo Touch, - leave to cool, - remove the metal lid, - correctly position the ball cover.

• error 16 the Cookeo Touch doesn't build up pressure: - add water to the bowl, - resume cooking.

• error 17 the Cookeo Touch pressure fails to raise. See page 56 "The Cookeo Touch pressure fails to raise and steam is not being released properly".

• error 18 failure to detect the locking rod.

• error 101, 106 display or recipe loading error: Unplug and restart the appliance. If the problem persists, take your appliance to an Approved Service Centre. For all problems, unplug the Cookeo Touch. If the problem persists, contact an Approved Service Centre. If you experience connection problems, visit www.moulinex.com or the Moulinex app. Your Cookeo Touch model : SERIE EPC13 Technical information about your Cookeo Touch: Low pressure: 40kPa (109°c) High pressure: 70kPa (115°c) Very high pressure: 100kPa (119°C) PS = 140kPa Cookeo Touch capacity: 6L Usable capacity: 4L Built-in heater: enclosed heating resistor. A beep signals that operating pressure has been reached. WiFi: Maximum transmitted power: 20dBm, 100mW Frequency: 2,4GHz What do Cook4me Touch Wi pictograms mean ?

Product connected to the Wi

• Product connected to the Wi but not connected to Moulinex database
