Summer Breeze ASF40DZ - Fan BESTRON - Free user manual and instructions

Product type	Pedestal fan
Brand	Bestron
Model	Summer Breeze ASF40DZ
Blade diameter	40 cm
Speeds	3 (low, normal, high)
Oscillation	Yes, 90° angle (left-right)
Tilt	Adjustable vertically (forward or downward)
Adjustable height	Yes (telescopic rod with base)
Power supply	Mains 220-240 V, 50 Hz
Rated power	45 W
Material	Plastic and metal
Warranty	60 months
Cleaning	Unplug, disassemble grilles and blades, clean with a damp cloth, dry
Safety	Do not cover, do not use outdoors or in a damp room, do not immerse
Stable base	Yes, with bottom plate and fixing screws
Blade protection	Front and rear grille
Intended use	Domestic only

Frequently Asked Questions - Summer Breeze ASF40DZ BESTRON

How to assemble the Summer Breeze ASF40DZ fan?

Attach the rod to the bottom plate using three screws. Then mount the rear grille onto the motor block by aligning the notches, secure with the ring. Slide the blades onto the shaft and screw on the cap. Finally, attach the front grille with the closure band by tightening the screw.

How to clean the fan?

Unplug the fan. Unscrew the clamp and remove the front grille. Loosen the blade cap (turn in the 'LOOSEN' direction), remove the blades. Remove the rear grille by unscrewing the ring. Clean all parts with a damp cloth, dry thoroughly. Clean the motor block with a dry cloth. Do not use aggressive detergents.

How to oscillate the fan?

Press the angle lock on the motor block to activate oscillation (left-right sweep of 90°). Pull the lock to deactivate oscillation and fix the direction.

What speeds are available?

The fan offers three speeds: position 1 (low), position 2 (normal), position 3 (high). Select the speed using the rotary knob. Position 0 to stop.

Is the fan suitable for children?

The device may be used by children over 8 years old under adult supervision. Children under 8 years old must stay away from the device. Ensure that children do not play with the fan.

What to do if the fan stops working?

Do not attempt repairs yourself. Contact Bestron service assistance at www.bestron.com/service or your retailer. Have your proof of purchase ready for the 60-month warranty.

How to adjust the fan tilt?

You can tilt the fan forward or slightly downward by rotating the grille and motor block in the vertical plane. This allows you to direct the airflow.

Can I use the fan outdoors?

Be careful outdoors. Never use the fan in a damp room or near an open window. Rain may cause a short circuit. Use it only indoors on a stable, dry surface.

What is the warranty of the Summer Breeze ASF40DZ fan?

The warranty is 60 months from the date of purchase, covering manufacturing defects. Damage due to misuse, improper installation, or unqualified repairs is not covered. Keep your proof of purchase.

How to disassemble blades for thorough cleaning?

Unplug the device. Unscrew the clamp of the front grille and remove it. Block the blades and turn the cap in the 'LOOSEN' direction (arrow) to remove them. For the rear grille, turn the fixing ring to the left. Clean and reassemble in reverse order.

USER MANUAL Summer Breeze ASF40DZ BESTRON

Black desktop fan with a mesh grille and four blades, mounted on a stand (no visible text or symbols)

ASF40DZ INSTRUCTION MANUAL

DE

Bedienungsanleitung

FR

Mode d'emploi

NL

Handleiding

EN

Instruction manual

IT

R. Neyman Quality control

FUNKTION - Allgemein

Diagram of a fan with five blades and a handle, labeled with 'a' and 'b' (no text or symbols on the fan itself)

DÉCLARATION DE CONFORMITÉ CE

R. Neyman

Contrôle qualité

Diagram of a fan with five blades, labeled with 'a' and 'b', showing internal structure without any text or symbols.

NETTOYAGE ET ENTRETIEN

WAT U MOET WETEN OVER DIT APPARAAT

R. Neyman

Quality control

WERKING - Algemeen

Diagram of a fan with five blades and a handle, labeled with 'a' and 'b' (no text or symbols on the fan itself)

REINIGING EN ONDERHOUD

Congratulations with the purchase of this Bestron product. These instructions tell you how the product works and how to use it. Read the instructions carefully before you start using the appliance. Only use the appliance in the manner described in the instructions. Keep these instructions in a safe place for future reference.

Defects:

If the appliance is defective, do not try to repair it yourself. Always have a qualified mechanic carry out any repairs.

Children:

• This appliance may be used by children over the age of 8 years old and persons with reduced physical, sensory or mental capabilities or lack of experience and know-how, but only if supervised or if they have been instructed on how to use the appliance safely and are aware of its potential dangers.
  • Children are not allowed to clean and maintain the appliance, except if they are over the age of 8 years old and supervised.
• Keep the appliance and the cable out of reach of children under the age of 8 years old.
• Keep an eye on children to ensure that they do not play with the appliance.

WHAT YOU SHOULD KNOW ABOUT ELECTRICAL APPLIANCES

• Check that the mains voltage corresponds with that shown on the rating plate of an electrical appliance before you use it.
• Check that the socket to which you connect the electrical appliance is earthed.
  • Always install electrical appliances on a stable and level surface where it cannot fall over.
  • Certain parts of an electrical appliance may become warm or sometimes hot. Do not touch them as you may burn yourself.
  • Make sure your hands are dry when you touch an electrical appliance, a cord or a plug.
• Electrical appliances must be able to lose their heat to avoid fire hazards. Therefore, make sure that the appliance has sufficient clearance around it and that it does not come into contact with flammable materials. Electrical appliances must never be covered.
• Make sure that electrical appliances, cords or plugs do not come into contact with water.

Never immerse electrical appliances, cords or plugs in water or any other liquid.

• Do not touch electrical appliances if they have fallen in the water. Immediately pull the plug out of the socket. Stop using the appliance.
  • Make sure that electrical appliances, cords and plugs do not come into contact with heat sources, such as a hot hob or open fire.
• Never let cords hang over the edge of the sink, a worktop or a table.
  • Always remove plug from the socket when you are not using the electrical appliance.
• Remove the plug from the socket by pulling the plug itself and not the cord.
• Regularly check if the cord of the electrical appliance is not damaged. Do not use the electrical appliance if the cord shows signs of damage. If the cord is damaged, it should be replaced by the manufacturer, a technical service provider or a person with an equivalent qualification, to avoid any danger.
• The appliance may not be switched on with the aid of an external time switch, or by a separate system with remote control.

WHAT YOU SHOULD KNOW ABOUT THIS APPLIANCE

• Be careful when using the appliance outdoors.
• Never use the appliance in damp or wet locations.
• Thoroughly clean the appliance after use (see Cleaning and Maintenance).
• Never use the appliance near an open window; rain coming through the window could come into contact with the appliance and cause a short circuit.
• Put the fan on a horizontal and clean floor. Make sure that the appliance is unobstructed.
  • Make sure that objects cannot contact the fan blades.
• Do not cover the appliance whilst it is in use.

ENVIRONMENT

- Dispose of packaging material such as plastic and cardboard boxes in the designated containers.

Do not dispose of this product as normal domestic waste at the end of its life, but hand it in at a collection point for the reuse of electric and electronic equipment. Look for the symbol on the product, the user instructions or the packaging showing the type of waste.

- The materials can be used as indicated. By helping us reuse and process the materials or otherwise recycle the old equipment, you will be making an important contribution towards the protection of the environment.

- Your municipality can tell you where to find the designated waste collection point in your neighbourhood.

CE DECLARATION OF CONFORMITY

This product meets the requirements of European guidelines.

R. Neyman Quality control

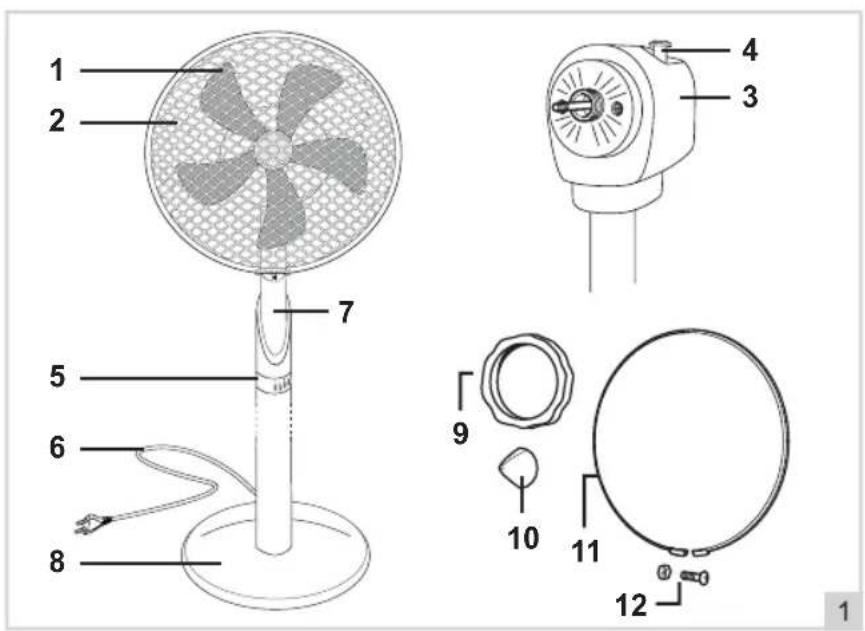

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

1. Fan blades
2. Fan housing
3. Motor housing
4. Oscillation button
5. Speed settings
6. Power cord and plug
7. Inner Pipe
8. Base
9. Fixing ring
10. Fixing cap
11. Closing strip
12. Screw and bolt sealing strip

OPERATION - Before first use

Remove the fan from the packaging.

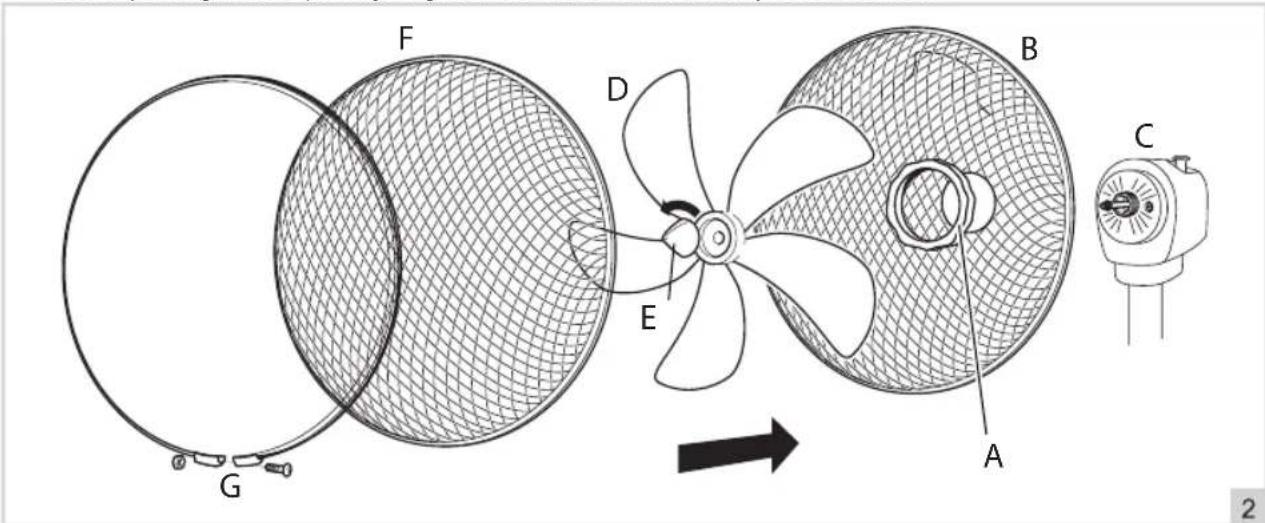

OPERATION - Assembling the fan

1. Attach the rod to the bottom plate using the three screws.
2. Unscrew the locking ring (see figure 2A) from the shaft.
3. Fit the rear of the fan housing (2B) onto the motor-housing (2C), making sure that the openings are aligned precisely with the lugs on the motor housing and that the grip is at the top.
4. Slide the locking ring (2A) onto the shaft, and screw it tight (clockwise).
5. Slide the fan blades (2-D) onto the shaft and screw the mounting cap (2-E) onto the shaft (counter clockwise, in the direction of the arrow marked "TIGHT").
6. Now attach the closing strip (1-11) to the rear basket (2-B) by partially tightening the screw (1-12) on the underside. Now subtly click the front basket into the closing strip against the rear basket and tighten the screw (see figure 2-G) firmly. Tighten the screw with a Phillips screwdriver.

1. Set the fan on a level surface, such as a table.

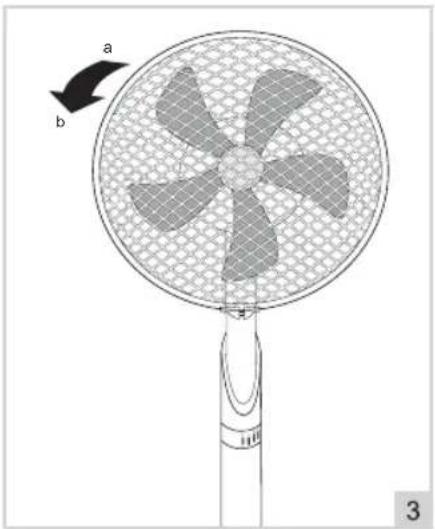

2. Tilt the fan to the required angle (see figure 3). You can set the fan:
   a. to blow horizontally (position a) or angled slightly downwards (position b). Tilt the ventilator housing and motor housing to the required angle.
   b. to oscillate from left to right (with a sweep of 90°). This will ventilate much of the room. Press the oscillation button on the motor housing fully in.
   c. remain in the same position whilst the fan is turning. This will ventilate one area. Pull out the oscillation button until you hear it click.
3. Put the plug into the wall socket.
4. Start the fan by selecting one of the three speed settings.
   a. Position "1", the fan runs slowly.
   b. Position "2", the fan runs normally.
   c. Position "3", the fan runs quickly.
5. Stop the fan by switching to position "0".

Diagram of a fan with five blades, labeled with 'a' and 'b', showing internal structure without any text or symbols.

CLEANING AND MAINTENANCE

Over time, dust can accumulate in the fan basket and on the fan blades. Always begin by trying to remove the dust with a brush and/or vacuum cleaner. If this does not remove all the dust you can always dismantle the fan and clean it.

1. Remove the plug from the wall socket.
2. Loosen the bolt in the rim around the fan housing using a small crosshead screwdriver.
3. Remove the rim and the front half of the filter housing.
4. Hold the fan blades to stop them from turning, and unscrew the spinner by turning clockwise in the direction of the 'LOOSEN' arrow. Remove the fan blades from the motor housing.
5. Remove the rear half of the fan housing by turning the locking ring at the centre of the housing anticlockwise. Remove the ring and the housing from the motor housing.
6. Clean the dismantled parts and the base with a damp cloth. Dry thoroughly with a dry cloth.
7. Clean the motor housing with a dry cloth.

WARNING:

• Verify that the appliance is not connected to the power supply before you clean it.
- Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

Reassemble the fan using the procedure given under by 'Assembling the fan'.

WARRANTY CONDITIONS

Bestron offers a 60-month warranty on this equipment against defects resulting from manufacturing and/or material errors, subject to the following conditions.

1. No labour or material costs will be charged during this warranty period.
2. Any repairs carried out under the warranty will not extend the warranty period.
3. Faulty parts, or in the event of exchange, the faulty equipment itself, will automatically become the property of Bestron.
4. The warranty is valid for the first buyer only and is non-transferable.
5. The warranty is not valid for damage caused by:

- Accidents

• Improper use
• Wear and tear

- Neglect

• Faulty installation
• Connection to a different mains voltage than indicated on the type plate
  • Unauthorised changes
  • Repairs carried out by unqualified third parties
• Use in violation with the applicable statutory, technical or safety standards

• Careless transport without suitable packaging or other protection

• Warranty cannot be claimed:

• For damage during transport

• If the serial number of the appliance is removed or changed

• Items excluded from warranty are:

• Cords

• Lamps

- Glass parts

1. The warranty does not entitle the purchaser to compensation for any damage other than replacement or repair of the faulty parts. Bestron cannot in any event be held liable for any indirect or consequential losses caused by or in relation to the equipment it has provided.
2. Claims under a warranty may only be submitted to your (online) retailer or directly to the Bestron Service Department. Never send items without being asked to. We may refuse the parcel and you will be liable for the costs. Contact us first and we tell you how the appliance should be packaged and sent. Each claim under a warranty must be accompanied by the relevant receipt.

SERVICE

If an unexpected problem occurs, please contact the BESTRON service department: www.bestron.com/service

COMPLIMENTI!

Diagram of a fan with five blades, labeled with 'a' and 'b', showing internal structure without any text or symbols.

Diagram of a fan with five blades, labeled with 'a' and 'b', no text or symbols present.

LIMPIEZA Y MANTENIMIENTO
