Wild Rave 1 - Speaker NGS - Free user manual and instructions

Product type	Amplified portable speaker
Brand	NGS
Model	Wild Rave 1
Maximum output power	200 W
RMS power	80 W
Battery	12 V / 3.6 Ah
Power supply	DC input 12 V / 2 A (adapter included)
Battery life	Up to 6 hours (at 70% volume, lights off)
Bluetooth	Yes, unspecified version, range 10 m
Frequency response	40 Hz – 18 kHz
Available inputs	USB (MP3/WAV/WMA/FLAC playback), Line In (3.5 mm), microphone, guitar
LED display	Yes, displays information
LED lights	Yes, 6 modes + off
Additional functions	TWS (wireless stereo), X-Drive (bass), equalizer (bass, treble, echo)
Remote control	Included
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or moisture. Disconnect before cleaning.
Spare parts	Power adapter, remote control. Contact customer service.

Frequently Asked Questions - Wild Rave 1 NGS

How to pair my phone via Bluetooth?

Press the SOURCE button until the screen displays BL. Enable Bluetooth on your phone, search for "NGS WILDRAVE" and select it. Pairing is automatic for the first time.

What to do if the sound is distorted?

Check the volume level: reduce it. Disable the X-Drive effect if the bass is saturated. Make sure the audio source is not distorted. If the problem persists, reduce the volume of the connected device.

How to use the TWS function?

Turn on two speakers and select Bluetooth mode on both. On the master speaker, press and hold the PLAY/PAUSE (▶II) button for 2 seconds until the screen shows 'b'. Connect your phone to the master speaker. To disable TWS, press and hold the same button.

Can I plug in a guitar?

Yes, plug your guitar into the GUITAR jack (no. 3). Use the MENU button then turn the VOLUME/MULTI knob to adjust the guitar volume (displayed '2u'). You can also adjust echo ('E'), bass ('b') and treble ('L') in the menu.

How to charge the battery?

Turn the switch to OFF. Plug the power adapter into the DC INPUT jack of the speaker, then into a wall outlet. The CHARGING indicator is red while charging and turns green when charging is complete. Then unplug.

What does the red light mean?

The red light comes on when the battery is low and the speaker needs to be charged. If the speaker turns off quickly, recharge it immediately.

How to adjust bass and treble?

Press the MENU button until 'b' (bass) or 'L' (treble) appears on the screen. Turn the VOLUME/MULTI knob to adjust between ±6 dB. The setting is saved automatically.

The remote control doesn't work, why?

Make sure the remote is pointed at the speaker's sensor. Replace the batteries if necessary. Ensure no obstacles block the signal. If the problem persists, contact customer service.

Can I use a USB flash drive?

Yes, insert a USB flash drive into the USB port (no. 6). The speaker will automatically read MP3, WAV, WMA or FLAC files. Use the PREV/NEXT buttons to change tracks.

How to reset the device?

To reset the Bluetooth connection, press and hold the X-DRIVE button for 2 seconds. For a full reset, turn off and on the speaker after a few seconds.

USER MANUAL Wild Rave 1 NGS

NORSK I SUOMI I SVENSKA I DANSK I LIETUVIU

www.ngs.eu

USER'S MANUAL

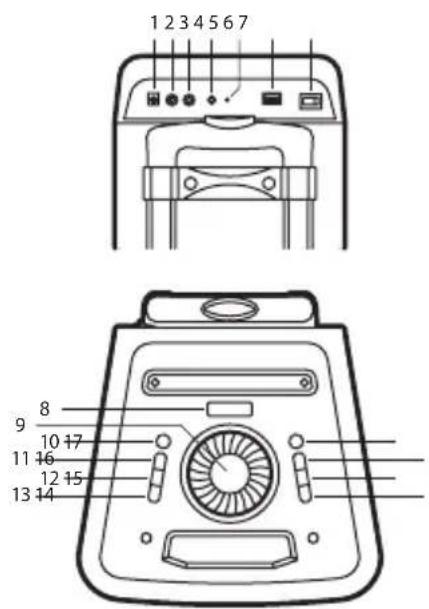

DESCRIPTION OF TOP AND BACK PANEL

1 2 3 4 5 6 7 9 8 10 17 11 16 12 15 13 14

1 DC INPUT: DC input socket
2 MIC: Wired microphone input socket
3 GUITAR: Guitar input socket
4 LINE IN: Line input socket
5 CHARGING: Charging light
6 USB: USB input socket
7 Power switch: Switch power between ON or OFF
8 LED display
9 VOLUME/MULTI: Increase or decrease speaker main volume.

ENGLISH

NGS

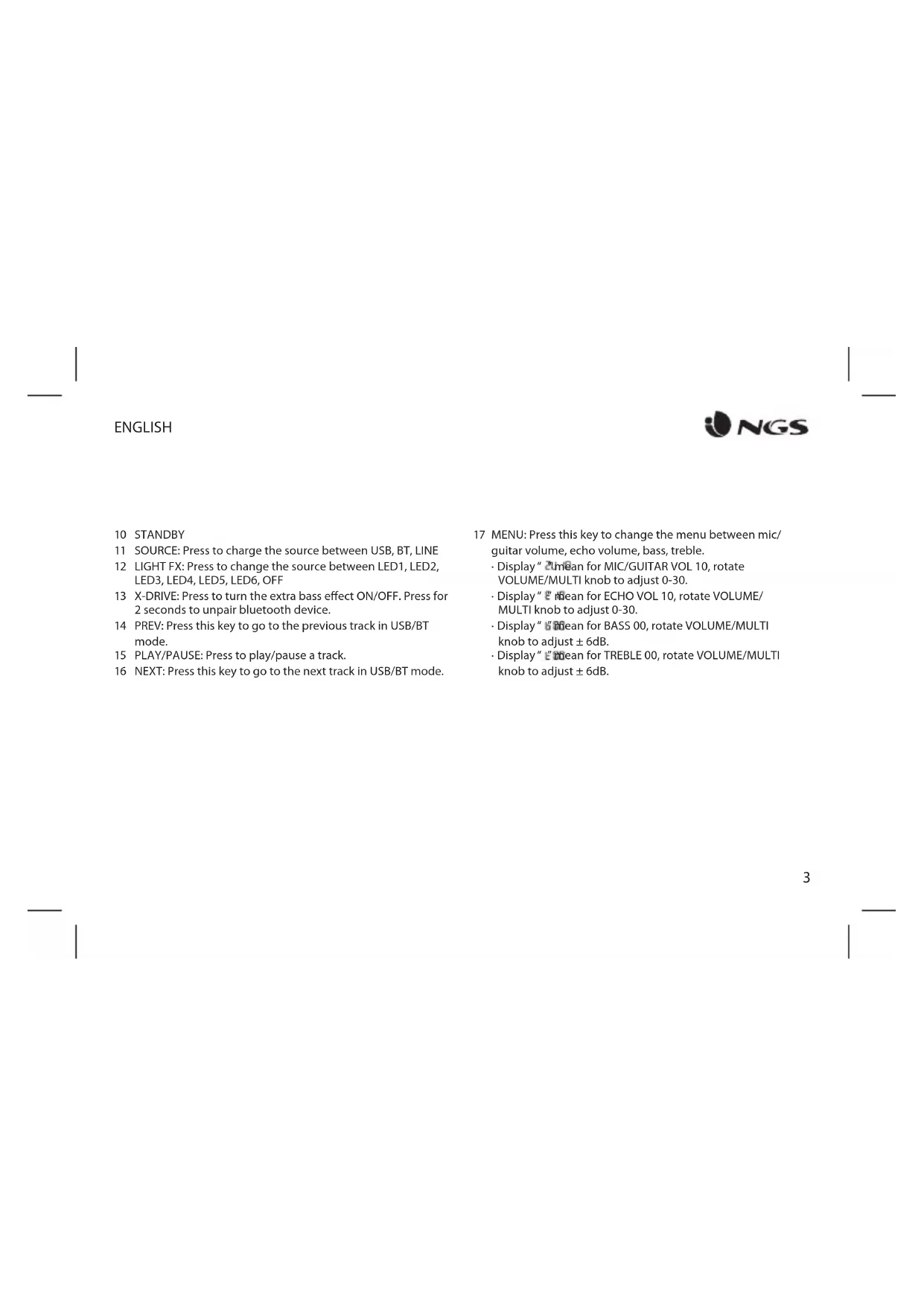

10 STANDBY
11 SOURCE: Press to charge the source between USB, BT, LINE
12 LIGHT FX: Press to change the source between LED1, LED2, LED3, LED4, LED5, LED6, OFF
13 X-DRIVE: Press to turn the extra bass effect ON/OFF. Press for 2 seconds to unpair bluetooth device.
14 PREV: Press this key to go to the previous track in USB/BT mode.
15 PLAY/PAUSE: Press to play/pause a track.
16 NEXT: Press this key to go to the next track in USB/BT mode.

17 MENU: Press this key to change the menu between mic/guitar volume, echo volume, bass, treble.

- Display "Z" mean for MIC/GUITAR VOL 10, rotate VOLUME/MULTI knob to adjust 0-30.

- Display "E" mean for ECHO VOL 10, rotate VOLUME/MULTI knob to adjust 0-30.

- Display "8" mean for BASS 00, rotate VOLUME/MULTI knob to adjust ± 6dB.

- Display "E" mean for TREBLE 00, rotate VOLUME/MULTI knob to adjust ± 6dB.

USER'S MANUAL

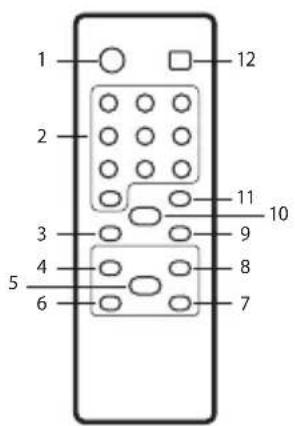

DESCRIPTION OF REMOTE CONTROL

1 2 3 4 5 6 7 8 9 10 11 12

1 STANDBY: Standby ON/OFF
2 0-9 numeric keys: These keys are used to play a track directly in USB source mode. Eg: To play 12th track in the USB playlist press the numeric key "1" followed by "2".
3 VOL-: To decrease the volume
4 : Play the previous song
5 ▶: Play / pause
6 ◀: Fast rewind a song by pressing, only in USB input mode.

7 ▶: Fast forward song by pressing, only in USB input mode.
8 ▶▶: Play the next song
9 VOL+: To increase the volume.
10 MUTE: Press to switch mute ON/OFF.
11 REPEAT: To choose repeat mode in USB input mode: repeat one (ONE), repeat all (ALL), repeat randomize (RAN).
12 SOURCE: Press to change the source between USB, BT, LINE.

TWS MODE (TRUE WIRELESS STEREO)

A. Turn on 2 speakers and select both INPUT modes as Bluetooth.
B. Press "▶" key on speaker set for 2 seconds and "L" will be displayed. When the display light is "bl" or a tone is heard from another device, the TWS is established.
C. Turn on the Bluetooth feature on your mobile phone to search for Bluetooth devices and select "NGS WILDRAVE" from the search result. Select OK o YES to pair this unit with your mobile phone and steady blue light indicate a successful connection. Once connected you can play music from your mobile phone.
D. Press "▶II" key on the speaker unit for 2 seconds. Turn off the TWS features when "L" is displayed.

USB CARD / BLUETOOTH

USB CARD PLAYING

When power ON the product, if USB card inserted, it can play the MP3 / AMR / WAV / WMA / FLAC format music from the USB. Press PREV/NEXT buttons to select the song you want. Press the play/pause button to pause / resume the music.

BLUETOOTH MODE

A. Press the SOURCE button until the screen displays the word BL. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS WILDRAVE" and select it to pair (for first time pairing or pairing a new mobile device).
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (depend on the mobile phone's type and configuration, manual reconnection may require on some devices).
E. To unpair the speaker from the mobile phone, press and hold the X DRIVE button for 2 seconds.

USER'S MANUAL

LINE IN

You can connect the device with the external multimedia audio sources through the port "LINE IN". After connection, just set the mode to LINE by pressing the "SOURCE" button on the device. The device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.

CHARGING INSTRUCTIONS

During playback, if the battery is low, the red light will turn on indicating that the speaker should be charged or else it will turn off soon.

1. Set the switch in the OFF position.
2. Connect the power adapter to the speaker.
3. Connect the adapter to electrical power.
4. When the charge LED turns from red to green, it indicates that it's fully charged. Disconnect the charger from the mains and disconnect the adapter from the speaker.

ENGLISH

NGS

TECHNICAL SPECIFICATIONS

WILDRAVE 1 WILDRAVE 2

Output peak power 200W 300W

Battery 12V/3.6Ah 12V/3.6Ah

Bluetooth Yes Yes

Working range 10m 10m

Frequency response 40Hz\~18kHz 40Hz\~18kHz

USB port Yes Yes

Aux input Yes Yes

Microphone Yes Yes

Guitar input Yes Yes

LED screen Yes Yes

Battery level indicator Yes Yes

LED lights Yes Yes

RMS 80W 100W

Battery life 6 hours* 6 hours*

DC input 12V / 2A

* 4 hours at 100% volume (lights and super-bass off) 6 hours at 70% volume (lights and super-bass off) 10 hours at 50% volume (lights and super-bass off)

DC CHARGING

DC 18.5V/3A max power supply

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

MANUEL DE L'UTILISATEUR

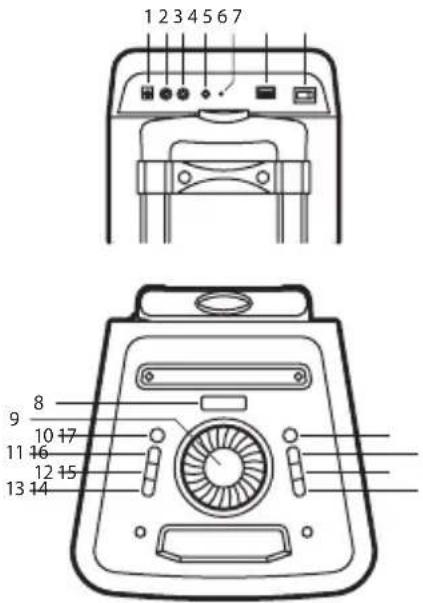

DESCRIPTION DU PANNEAU SUPÉRIEUR ET ARRIÈRE

1 2 3 4 5 6 7 9 8 10 17 11 16 12 15 13 14

DC 18, sumini

DC 18,5V/3A

DC 18, max. S

DC 18,5V/3A

MODALITÀ TWS (TRUE WIRELESS STEREO)

DC 18, Alimer

DC 18,5V/3A

Alimentazione max

DC 18, Alimer

DC 18,5V/3A

REŽIM TWS (TRUE WIRELESS STEREO)

DC 18, maxim

DC 18,5V/3A

REŽIM TWS (TRUE WIRELESS STEREO)

DC 18, max zo

DC 18,5V/3A

KAPTA USB / BLUETOOTH

ΑΝΑΠΑΡΑΓΩΓΗ ΑΠΟ USB

TWS MÓD (TRUE WIRELESS STEREO)

• Vis "2" middel for MIC/GUITAR VOL 10, vri VOLUME/MULTI-knappen for å justere 0-30.
• Vis "E" middel for ECHO VOL 10, vri VOLUME/MULTI-knappen for å justere 0-30.
• Vis "l" middel for BASS 00, vri VOLUME/MULTI-knappen for å justere ± 6dB.
• Vis "L"middel for TREBLE 00, vri VOLUME/MULTI-knappen for å justere ± 6dB.

BRUKERVEILEDNING

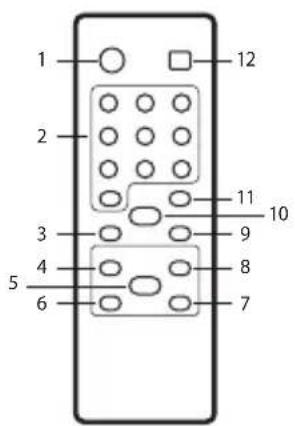

BESKRIVELSE AV FJERNKONTROLL

1 2 3 4 5 6 7 8 9 10 11 12

DC 18, max st

DC 18,5V/3A

TWS REŽIMAS (TRUE WIRELESS STEREO)

HAS BEEN TESTED AND FOUND IN CONFORMITY WITH THE FOLLOWING HARMONIZED EUROPEAN STANDARDS:

HA SIDO TESTADO EN CONFORMIDAD CON LAS SIGUIENTES NORMAS STANDARD EUROPEAS ARMONIZADAS:

EN62368-1:2014

EN 55032:2015,

EN 50663:2017

EN55035:2017,

ETSIEN 301 489-1 V2.2.3(2019-11)

EN61000-3-22:2014.

ETSIEN 301 489-17 V3.2.4 (2020-09)

EN61000-3-3:2013

ETSIEN 300 328 V2.2.2(2019-07)

AND THEREFORE COMPLY WITH THE ESSENTIAL REQUIREMENTS AND PROVISIONS OF THE FOLLOWING DIRECTIVES OF THE EUROPEAN PARLIAMENT AND EUROPEAN COUNCIL:

Y, POR LO TANTO, CUMPLE CON LOS REQUERIMIENTOS Y PROVISIONES DE LAS SIGUIENTES DIRECTIVAS DEL PARLAMENTO EUROPEO:

RADIO EQUIPMENT DIRECTIVE 2014/53/EU

ROHS DIRECTIVE 2011/65/EU & (EU) 2015/863
