WILD DUB Zero - Speaker NGS - Free user manual and instructions

Brand	NGS
Model	WILD DUB Zero
Product type	Portable speaker
RMS power	20 W
Peak power	120 W
Woofer	1 x 8 inches
Tweeter	2 x 3 inches
Power supply	AC 100-240 V ~ 50/60 Hz or rechargeable battery 11.1 V / 2.2 A
Battery life	About 3 hours at 100% volume, 4.5 hours at 70%, 7 hours at 50%
Inputs	USB, SD card, Bluetooth, AUX, microphone, guitar
Outputs	AUX OUT
Wireless functions	Bluetooth 5.0 (estimated), TWS to pair two speakers
Equalizer	Presets: NOR, rock, jazz, classical, pop, country; mega bass
Recording	Voice recording via built-in mic on USB key or SD card
Remote control	Included with AAA batteries
Display	LED to show modes and settings
Lighting	Multicolored LED lights with flashing modes
Frequency range	20 Hz - 20 kHz
Maintenance	Clean with a soft dry cloth; do not immerse in water
Safety	Do not open the device; use the supplied power adapter; recycle at a waste disposal center
Spare parts	Contact NGS after-sales service
General information	Full manual available for PDF download

Frequently Asked Questions - WILD DUB Zero NGS

How to connect my phone via Bluetooth?

Press the MODE button until 'BLUE' appears on the screen. Enable Bluetooth on your phone, search for 'NGS WILDDUB' and select it. Once connected, the Bluetooth icon stops blinking.

How to use the TWS function?

Put both speakers in Bluetooth mode. On one of them, press and hold the Play/Pause button for 5 seconds. You will hear a beep and 'ON' appears. Search for 'NGS WILDDUB' on your phone to connect the pair.

How to charge the battery?

Plug the power cable into the AC IN input and into a wall outlet. While charging, a red LED lights up. When the battery is full, the red LED turns off and a green LED turns on.

Can I plug in a guitar or microphone?

Yes, the speaker has a microphone input (MIC IN) and a guitar input (GTR IN). Use the VOL. MIC and VOL. GUITARE buttons to adjust the respective volume.

How to adjust the equalizer?

Briefly press the EQ button to cycle through modes: NOR, rock, jazz, classical, pop, country. To activate the mega bass, press and hold the EQ button.

How to record with the microphone?

Plug in a microphone, insert a USB key or SD card, select USB/SD mode. Press REC to start recording. Files are saved in a RECORD folder.

How to use the microphone priority function?

On the remote control, press the M-PRI button. The microphone voice becomes priority over music, ideal for announcements.

How to turn the LED lights on/off?

Use the INT LUMIÈRE button on the rear panel or the LIGHT button on the remote control to change color or make them flash to the beat of the music.

What is the battery life?

At 100% volume: about 3 hours; at 70%: 4.5 hours; at 50%: 7 hours.

How to repeat a song on USB/SD?

Use the REPEAT button on the remote control to repeat the current song or all songs in the folder. This function is only available in USB/SD mode.

USER MANUAL WILD DUB Zero NGS

NORSK I SUOMI I SVENSKA I DANSK I LIETUVIU

www.ngs.eu

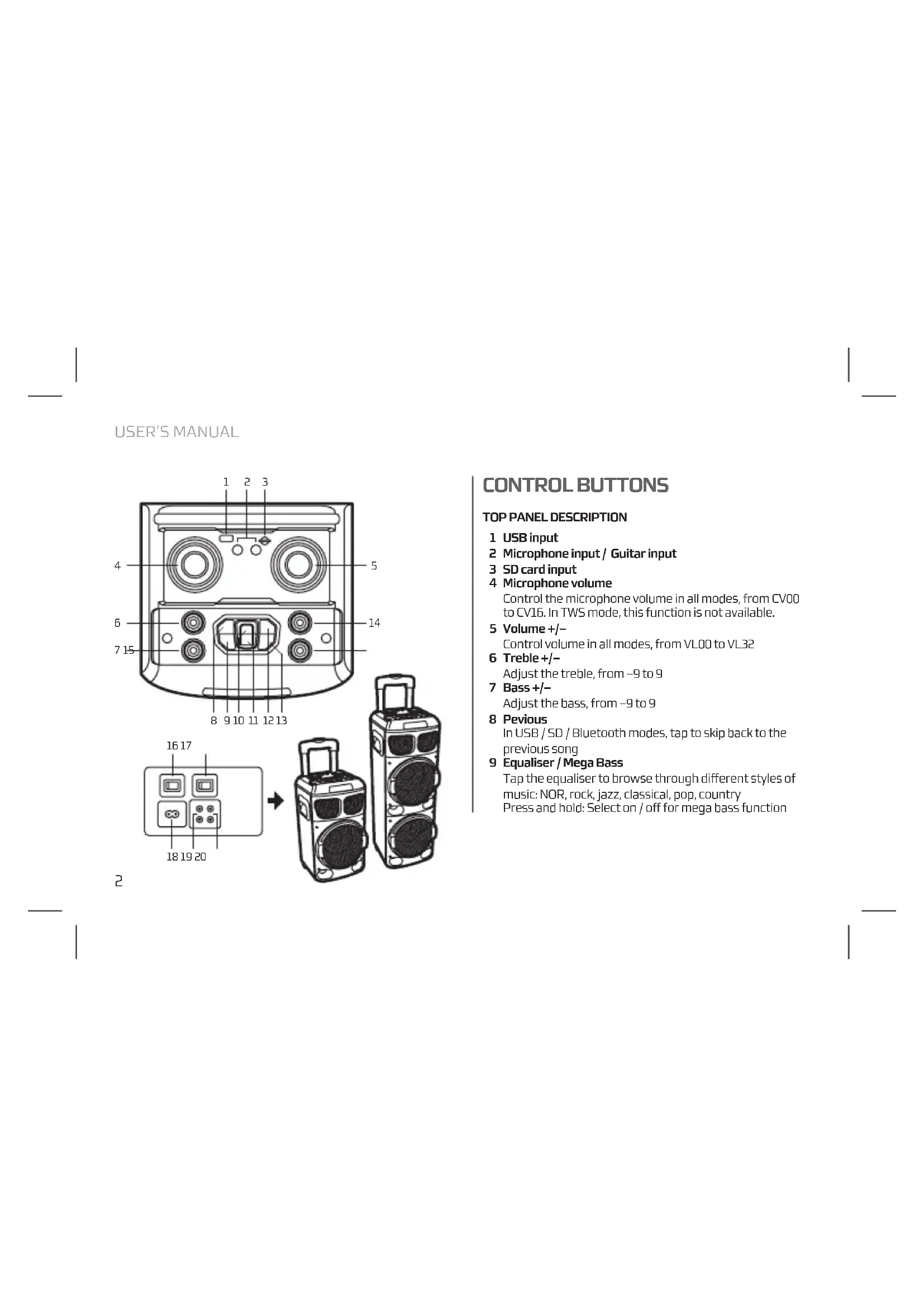

USER'S MANUAL

1 2 3 4 5 6 7 15 14 8 9 10 11 12 13 16 17 18 19 20 2

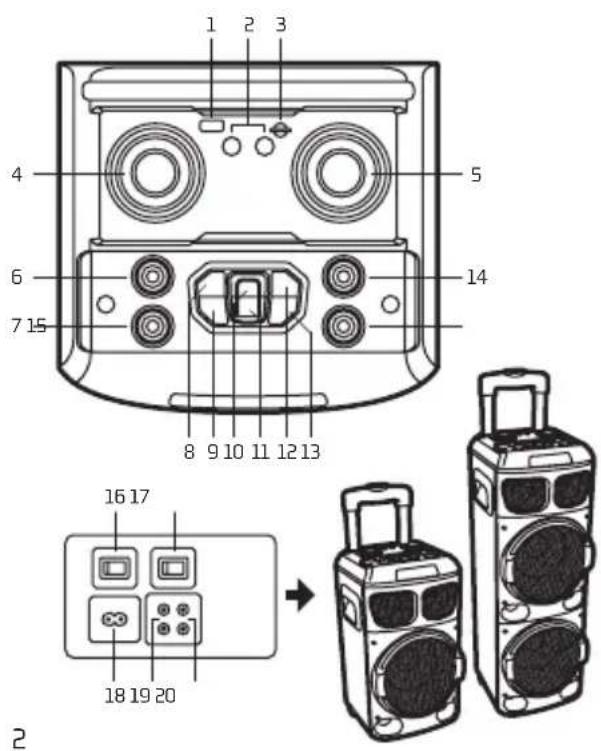

CONTROL BUTTONS

TOP PANEL DESCRIPTION

1 USB input
2 Microphone input / Guitar input
3 SD card input
4 Microphone volume
Control the microphone volume in all modes, from CV00 to CV16. In TWS mode, this function is not available.
5 Volume +/- Control volume in all modes, from VL00 to VL32
6 Treble +/- Adjust the treble, from -9 to 9
7 Bass +/- Adjust the bass, from -9 to 9
8 Pevious In USB / SD / Bluetooth modes, tap to skip back to the previous song
9 Equaliser / Mega Bass Tap the equaliser to browse through different styles of music: NOR, rock, jazz, classical, pop, country Press and hold: Select on / off for mega bass function

Play / Pause

Under USB / SD modes, this button is play/pause In BT mode, tap to play / pause

In TWS mode, press and hold to connect and disconnect the TWS (5 seconds)

Under AUX-IN mode, this button has no function

11 Mode

Press shortly to skip to Wireless BT / AUX-IN / USB / SD modes

In BT mode, press and hold to disconnect Bluetooth (3 seconds)

12 Next

Under USB / SD / BT modes, tap to skip forward to the next song

13 Standby mode

By pressing standby, all functions will stop working

14 Echo

Press and adjust the value with the multifunction from EC00 to EC30

15 Guitar volume

Control the guitar volume under guitar-input mode

BACK PANEL DESCRIPTION10

16 POWER

Battery / off / AC

17 LIGHT SW

Turn on / off the light

18 ACIN

For connecting the AC cable to get power supply

19 AUX OUT

To connect more speakers togheter

20 AUX-IN

For connecting the external device under AUX-IN mode

USER'S MANUAL

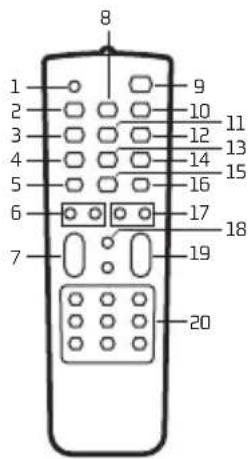

USING THE REMOTE CONTROL

Installing the batteries

Remove the battery cover from the back of the remote control as shown and insert 2xAAA size batteries ensuring correct polarity.

Diagram of a remote control unit with an arrow indicating left-side change (no text or symbols)

Note: Please point at the LED screen when you are using the remote controller

8 1 2 3 4 5 6 7 9 10 11 12 13 14 15 16 17 18 19 20

1 Mute

Press this button, sound off. Press again, sound on

2 Previous

Under USB / SD / Bluetooth mode, press shortly for previous sound source

3 MODE

Press shortly to skip to Wireless BT / AUX-IN / USB (with USB card plug in) / SD (with SD card plug in) mode

4 REC

Under any mode, press "REC" button to record sound with connected microphone and record in USB stick / SD card

5 LIGHT

The color changes from red, green, blue, purple four color automatically. Press "LIGHT" button, the light will twinkle & change color with the music. Press the "LIGHT" again, the light will be off.

6 BASS+/-

Adjust the bass

7 M. VOL+/-

Control the microphone volume

8 Play / Pause

Under USB / SD / BT modes, this button is play/pause Under AUX-IN mode, this button has no function

9 STANDBY

Press shortly to put speaker in standby Press again to turn on speaker

10 Next

Under USB / SD / BT modes, press shortly for next song

11 VOICE

Sound effects key which can emphasize the voice

12 REPEAT

Repeat one, repeat all (only available under USB / SD modes)

13 REC PLAY

Play the recorded files into USB / SD

14 R-DEL

Delete the recorded file (only available under REC PLAY mode)

15 RGB

Change LED lights colours between red, green and blue

16 M-PRI

Gives priority to mic voice against music

17 TREBLE +/-

Adjust the treble

18 EQ

Equalizer to browse through different music styles: NOR, rock, jazz, classical, pop, country

19 VOL+/-

Control the volume

20 0-9 keys

Under USB / SD modes to select songs

For other modes, number buttons have no function

USER'S MANUAL

AUX IN, USB/SD, BLUETOOTH

To switch from one mode to another press the MODE button. If the device is not connected to a USB stick or an SD card, these modes will be omitted.

1. AUX IN

With the attached audio cable, you can connect the device with the external multimedia audio sources through the port "AUX". After connection, just set the mode to AUX by pressing the MODE button on the device. At this time, the AUX indicator will be displayed on the screen, suggesting the device can play the audio files from multimedia sources like PC, mobile phone, MP3 and MP4, etc.

Note: In AUX IN mode, the forward and rewind song functions will not operate. They must be accessed through the auxiliary device directly.

2. USB/SD CARD PLAYING

Insert the SD card or a USB Flash memory stick into the corresponding slot. The device will automatically play any music in MP3 format on the card.

3. BLUETOOTH MODE

A. Press the MODE button until the word "BLUE" appears on the screen. The * icon will start to flash. In Bluetooth mode the device goes into searching / paring / reconnect mode for pair.
B. Now, turn ON the Bluetooth function on your mobile phone.
C. Search for "NGS WILDDUB" and select it to pair (for first time pairing or pairing a new mobile device). Once connected, the ➤ icon will stop flashing.
D. The Bluetooth speaker will be reconnecting automatically if your mobile phone has been paired (Depend on the of mobile phone's type and configuration, manual reconnection may require on some devices).

4. TWS

A. Change the two speaker in the BT mode, then press the PLAY/PAUSE button on one speaker for 5 seconds.
B. You'll hear a beep and ON will appear on the main screen and PAUSE on the secondary screen.
C. Search your mobile device for NGS WILDDUB and it will hook up.

BUILT-IN RECORDING FUNCTION

1. Plug in a microphone to the MIC IN input
2. Insert USB/SD card into the corresponding port, press MODE button and select USB/SD mode.
3. If the USB/SD card is plugged into the speaker for the first time, the system will automatically create a folder named RECORD to save recorded files (FAT32 USB file system is supported).
4. When you are ready to record, press REC button to go to recording mode. The current sound output will stop and the MICRO mode will be activated, the screen shows the recording time. The device starts recording when the screen shows 00:01 and users can use the microphone to record.

USER'S MANUAL

BATTERY MODE

1. Put the switch on the back to battery position.
2. Switch on the speaker by pressing the STANDBY button.

CHARGING THE BATTERY

1. Connect one end of the power cable to the speaker and the other end to the electricity supply.
2. A red LED will appear on the screen while it is charging.
3. When the battery is fully charged the red LED will disappear and a green LED will appear.

TECHNICAL SPECIFICATIONS

TWS
USB / SD / BT / AUX inputs
Microphone input
Guitar input
LED screen
LED lights
AUX output
Input voltage: AC 100V-240V 50/60Hz
Frequency range: 20Hz - 20kHz
WILDDUB1 WILDDUB ZERO
Output power
(Peak power): 300W 120W
Woofer size: 2 x 8" 1 x 8"
Tweeter size: 2 x 3" 2 x 3"
RMS power: 80W 20W
Battery: 11.1V/5.2A 11.1V/2.2A
Battery life:
At 100% volume 3 hours 3 hours
At 70% volume 7 hours 4.5 hours
At 50% volume 12 hours 7 hours

ENGLISH

NGS

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)
