| Brand | CASO |
| Model | WineCase Red 12 |
| Category | Wine cooler |
| Dimensions (W x H x D) | 34 x 48 x 50 cm |
| Weight | 11.4 kg |
| Capacity | 33 liters / 12 standard bottles |
| Power supply | 220-240 V, 50 Hz |
| Power | 70 W |
| Annual energy consumption | 121 kWh/a at 17 °C |
| Temperature range | 10 to 18 °C |
| Temperature display | Digital, switchable °C / °F |
| Interior lighting | Yes, with switch |
| Number of shelves | 4 removable racks |
| Door type | Glass door with magnetic seal |
| Material | Steel cabinet, glass door |
| Refrigerant | Not specified, hermetic cooling circuit |
| Noise | Moderate noise level |
| Installation | Freestanding, 8 cm clearance on each side |
| Warranty | 24 months from date of purchase |
| Maintenance | Clean interior with lukewarm water and mild detergent; clean the fan cover at least once a month |
| Safety | Automatic shutdown before cleaning; electrical disconnection recommended; children under 8 years supervised |
| Spare parts | Available from after-sales service |
| Reparability | Repairs by qualified professional only |
Frequently Asked Questions - WineCase Red 12 CASO
User questions about WineCase Red 12 CASO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wine cellar in PDF format for free! Find your manual WineCase Red 12 - CASO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WineCase Red 12 by CASO.
USER MANUAL WineCase Red 12 CASO


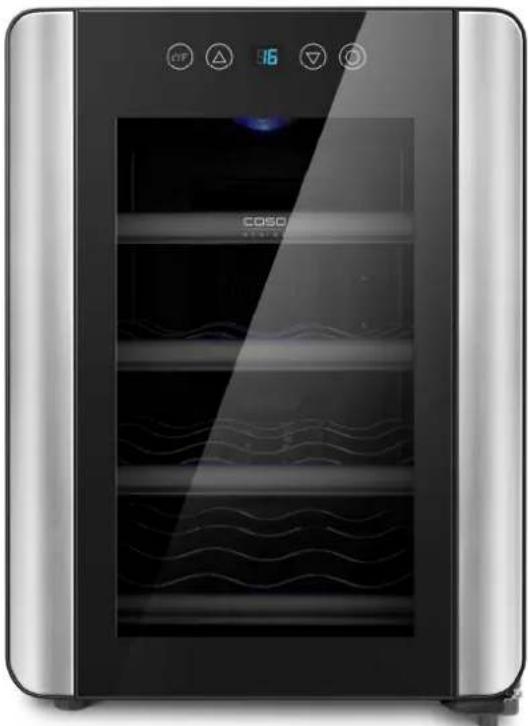

Exterior view of a modern stainless steel refrigerator with digital display and wavy internal shelves (no visible text or symbols)Braukmann GmbH
Raiffeisenstraße 9
D-59757 Arnsberg
Service-Hotline International:
Tel.: +49 (0) 29 32 / 80 55 4 - 99
Fax: +49 (0) 29 32 / 80 55 4 - 77
eMail: kundenservice@caso-germany.de
Internet: www.caso-germany.de
13 Commissioning....27
13.1 Safety information....27
13.2 Delivery scope and transport inspection....27
13.3 Unpacking....27
13.4 Disposal of the packaging....28
13.5 Setup 28
13.5.1 Setup location requirements: 28
13.5.2 The handle 28
13.5.3 Shelves 29
13.5.4 To remove a shelf 29
13.6 Electrical connection....29
14 Design and Function....29
14.1 Complete overview....30
15 Operation and Handing ....30
15.1 Operating elements and displays....30
15.2 Rating plate....31
16 Cleaning and Maintenance....31
16.1 Safety information....31
16.2 Cleaning....31
16.3 Moving the appliance....32
17 Troubleshooting....32
17.1 Safety notices....32
17.2 Fault indications and rectification of faults 32
18 Disposal of the Old Device....33
19 Guarantee ....33
20 Technical Data....34
40.3 Advertencias....64
(2) Ventilator-Abdeckung
Original Operating Manual
WineCase Red 12


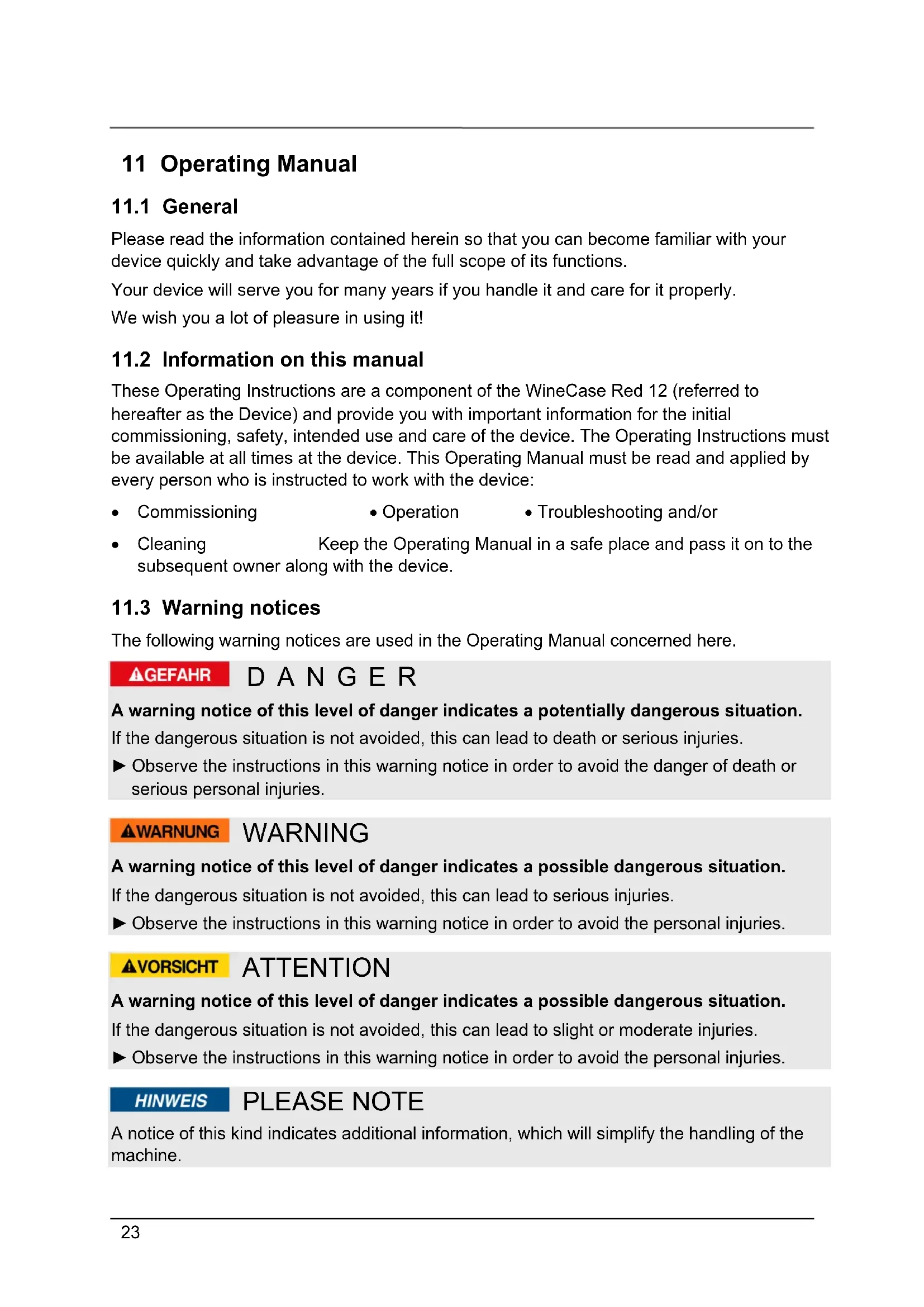

11.1 General
Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.
Your device will serve you for many years if you handle it and care for it properly.
We wish you a lot of pleasure in using it!
11.2 Information on this manual
These Operating Instructions are a component of the WineCase Red 12 (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:
- Commissioning
- Operation
- Troubleshooting and/or
- Cleaning
Keep the Operating Manual in a safe place and pass it on to the ring with the device.
11.3 Warning notices
The following warning notices are used in the Operating Manual concerned here.
▲GEFAHR DANGER
A warning notice of this level of danger indicates a potentially dangerous situation.
If the dangerous situation is not avoided, this can lead to death or serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.
▲WARNUNG WARNING
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to serious injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
▲VORSICHT ATTENTION
A warning notice of this level of danger indicates a possible dangerous situation.
If the dangerous situation is not avoided, this can lead to slight or moderate injuries.
▶ Observe the instructions in this warning notice in order to avoid the personal injuries.
HINWEIS PLEASE NOTE
A notice of this kind indicates additional information, which will simplify the handling of the machine.
11.4 Limitation of liability
All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.
No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:
• Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts
Modifications of the device are not recommended and are not covered by the guarantee.
All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.
11.5 Copyright protection
This document is copyright protected.
Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.
12 Safety
This chapter provides you with important safety notices when handling the device.
The device corresponds with the required safety regulations. Improper use can result in personal or property damages.
12.1 Intended use
This device is only intended for use in households in enclosed spaces for cooling of beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.
▲WARNUNG WARNING
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.
▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.
Claims of all kinds due to damages resulting from unintended uses are excluded.
The User bears the sole risk.
12.2 General Safety information
HINWEIS PLEASE NOTE
Please observe the following general safety notices with regard to the safe handling of the device.
▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Do not use the device for storing foodstuff. The temperature is not cold enough to keep food fresh.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
HINWEIS
Please note
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
12.3 Sources of danger
12.3.1 Danger of burns or of explosion
⚠️WARNUNG
WARNING
There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of burns or an an explosion:
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
▶ Do not damage the cooling circuit.
12.3.2 Dangers due to electrical power
⚠GEFAHR
DANGER
Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:
▶ Before changing the inner light, turn off the device first and then unplug the device from the wall outlet.
▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
AGEFAHR DANGER
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
13 Commissioning
This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:
13.1 Safety information
▲WARNUNG WARNING
Personal and property damages can occur during commissioning of the device!
Observe the following safety notices to avoid such dangers:
▶ Packaging materials may not be used for playing. There is a danger of suffocation.
13.2 Delivery scope and transport inspection
As a rule, the WineCase Red 12 is delivered with the following components:
- WineCase Red 12
- 4 shelves
- Operating Instructions
HINWEIS Please note
▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.
13.3 Unpacking
To unpack the device, proceed as follows:
- Remove the device out of the carton and remove the packaging material.
- Clean the interior surface with lukewarm water using a soft cloth.
- First plug in the device and switch it on, then put beverages into the device.
HINWEIS Please note
▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.
13.4 Disposal of the packaging
The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.
HINWEIS
Please note
▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.
13.5 Setup
13.5.1 Setup location requirements:
In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:
- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
- Ambient temperature below 16^ C or above 32^ C will hinder the performance of the appliance.
- This unit is not designed for use in a garage or any other outside installation.
- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
- The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 8 cm around the appliance.
- Do not cover up any openings on the device and do not block these off.
- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
- The installation and assembly of this device in non-stationary setup locations must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
- For energy saving reasons please ensure that the door is closed when the appliance is turned on.
13.5.2 The handle
The handle for opening the door is recessed on the upper side of the door.
13.5.3 Shelves
Remove all bottles from the shelves. Lift the shelf upwards and the gently pull it out. Any of the shelves can be removed to accommodate larger bottles.
13.5.4 To remove a shelf
Remove all bottles from the shelves. Lift the shelf upwards and the gently pull it out.
HINWEIS Please note
▶ Ensure that the tabs are firmly engaged in place before storing any bottles.
▶ Any of the shelves can be removed to accommodate larger bottles.
▶ Spread your bottles out as evenly as possible over the shelves, so weight is not concentrated in one point; and make sure your bottles will not touch the back of the cabinet.
13.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:
- Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
- The electrical outlet must be protected by a 16A safety cut-out switch.
- The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
- Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
- This unit is not designed to be installed in an RV or used with an inverter.
- The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.
14 Design and Function
This chapter provides you with important safety notices on the design and function of the device.
14.1 Complete overview


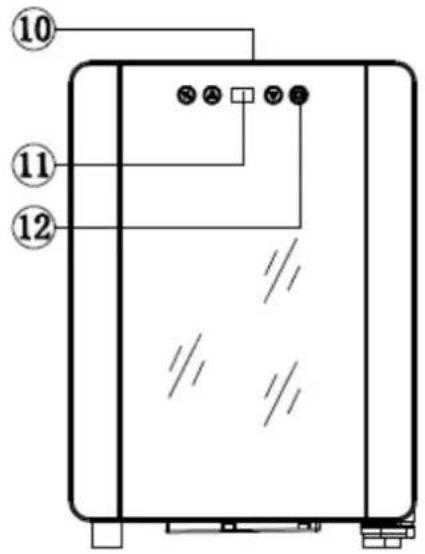

(5) foot (6) bottom condensation water box (7) magnetic seal (8) door frame
(9) lower cover and foot (10) door handle (11) temperature control panel
(12) light switch
15 Operation and Handing
This chapter provides you with important notices with regard to operating the device.
15.1 Operating elements and displays
The device transmits the following signal sounds as an acoustic feedback signal:
HINWEIS
Please note
▶ Use the buttons “▲” and “▼” to set the temperature in the range of 10-18°C.
With the buttons “▲” and “” on the panel you can adjust the temperature in 1°C
steps from 10-18°C. You can tune the interior light on or off by pressing the "Light"
button. The temperature in the device depends on the room temperature, the quantity of bottles and the chosen temperature. Please note that your device is only intended to cool beverages. The maximum temperature that can be reached inside the device cannot be significantly ABOVE the ambient temperature at the setup location.
▲WARNUNG WARNING
The device can only cool efficiently if you regularly clean the fan mask. The device may overheat if the fan mask is dirty. Depending on the degree of soiling the fan mask has to be cleaned – at least once a month.
15.2 Rating plate
The rating plate with the connection and performance data can be founded on the back of the device.
16 Cleaning and Maintenance
This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.
16.1 Safety information
▲VORSICHT Attention
Please observe the following safety notices, before you commence with cleaning the device:
▶ Prior to commissioning, clean the appliance thoroughly.
▶ Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. Remove all content.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.
16.2 Cleaning
◆ Interior space
- Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent.
- Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water.
- After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.
- If condensation was formed inside, then please wipe the inside with a soft cloth to prevent leakage of condensate and damage of the device.
Door gasket
- Be sure to keep the door gasket clean to keep the unit running efficiently.
Cabinet
- The cabinet should be cleaned with a mild detergent and warm water.
- Use a soft, damp cloth for drying.
◆ Fan/Fan Mask
- Dust or anything else may block the fan/fan mask and hinder the cooling efficiency of the appliance. Vacuum the fan/fan mask if necessary.
16.3 Moving the appliance
Turn off the device first and then unplug the device from the wall outlet.
Remove all content. Shurely tape down all lose items inside your appliance.
Tape doors shut. Be sure the device stays in the upright position during transportation.
17 Troubleshooting
This chapter provides you with important notices with regard to operating the device.
Observe the following notices to avoid dangers and damages:
17.1 Safety notices
▲VORSICHT Attention
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.
17.2 Fault indications and rectification of faults
The following table assists in localizing and rectifying minor faults.
| Fault Possible Cause | |
| Device is not cold enough | Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly.The device does not have the correct clearance.The fan cover is dirty. Please clean the fan cover. |
| The light does not work Please call the warranty service number | |
| Vibrations Check to ensure that the device is level | |
| The device seems to make too much noise | The device is not level. Also,please check the fan. |
| The door will not close properly. | The device is not level.The door is not properly installed.The seal is weak. The shelves are out of position. |
| LED display does not show up | Main control board does not work.PCB Problem. There is a problem with the plug. |
| LED display error - Lo | PCB problem, please contact customer service. |
| Condensed water on the surface of the device | There may be some water condensation on the surface of device (especially the glass door) if the item is in a damp room. Please wipe it away with dry cloth. |
| Condensation formed inside the device | If the environment has a high level of humidity or the door of device has been left open for a long period or opened frequently, wipe off the door and walls and leave the door closed as long as possible. |
HINWEIS Please note
▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.
18 Disposal of the Old Device
Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.
HINWEIS Please note
▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old device take off the doors and leave the shelves in place, so that children may not easily climb inside.
19 Guarantee
We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.
Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.
The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.
This device is designed for use in domestic situations and has the appropriate performance levels.
Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.
In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.
Any pending faults must be reported within 14 days of delivery.
All further claims are excluded.
To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).
20 Technical Data
| Name | WineCase Red 12 |
| Article No. | 613 |
| Power | 70 W |
| Energy consumption set at 17°C | 121 kWh/a |
| Connection | 220-240 V, 50 Hz |
| Outside dimensions (W/H/D) | 340 x 480 x 500 mm |
| Net capacity in litres or storage space for, say, number of standard wine bottles | 33 litres12 bottles |
| Weight: | 11,4 kg |
21 Mode d'emploi
21.1 Généralités
30 Istruzioni d'uso
30.1 In generale
Ref. 613
▲WARNUNG WAARSCHUWING
▲WARNUNG WAARSCHUWING
(4) opvangreservoir (5) voet (6) onderste opvangreservoir
(7) magnetische deur pakking (8) deur kader (9) bedek de bodem en de voet
(10) handgreep (11) temperatuur-indicator (12) licht schakelaar
