Brand	TP-Link
Model	TLMR6400 V5
Product Type	4G LTE Router
Cellular Connectivity	4G LTE / 3G WCDMA
Wi-Fi Connectivity	Wi-Fi 802.11b/g/n, 300 Mbps max
Ports	1 Ethernet LAN port (RJ45)
Antennas	2 external antennas (removable)
SIM Card Slot	Standard SIM card slot
Power Supply	Power adapter (12 V / 1 A)
Dimensions (W x D x H)	Approx. 160 x 110 x 30 mm
Weight	Approx. 300 g
Configuration	Quick setup via http://tplinkmodem.net
Wi-Fi Security	WPA/WPA2, SSID and password printed on the label
Main Functions	4G sharing, firewall, parental controls (via interface)
Maintenance and Cleaning	Soft dry cloth, avoid water and chemicals
Safety	Keep away from water, fire, do not disassemble
Spare Parts and Repairability	No spare parts provided, repair by professional
Warranty	3 years limited manufacturer warranty
General Information	Manual downloadable at notice-facile.com

Frequently Asked Questions - TLMR6400 V5 TP-LINK

How to access the router configuration page?

Connect your computer to the router (Wi-Fi or cable). Open a browser and enter http://tplinkmodem.net or 192.168.1.1. Use the username and password admin (lowercase).

What to do if I cannot access the login page?

Check that your computer receives an IP address automatically. Make sure you enter the address correctly. Try a different browser, restart the router, or disable/re-enable your network card.

Why is the Internet LED not turning on?

This may be due to an unsupported SIM card, lack of network coverage, or incorrect operator settings. Refer to FAQ Q2 in the manual for detailed checks.

How to configure the router for the first time?

After inserting the SIM card and turning on the router, connect your device and open http://tplinkmodem.net. Follow the Quick Setup to configure the 4G connection and Wi-Fi.

How to reset the router to factory settings?

With the router on, press the WPS/RESET button on the back until the Power LED blinks. The router will restart with default settings.

I forgot the administrator password. What to do?

Reset the router (see previous question). After reset, use the default credentials: admin / admin. You can then set a new password.

Where to find the Wi-Fi network name and default password?

They are printed on the label on the bottom of the router. If you have changed them, log into the management interface to find or change them.

How to use the router in cable/xDSL modem mode?

The router can operate as a standard Wi-Fi router. For more information, refer to the full manual at www.tp-link.com/fr.

What to do if I suspect a data limit issue?

Access the management interface, check the Data Limit feature. If consumption exceeds the limit, reset the counter or disable the limit.

How to enable data roaming?

In the management interface, enable the Data Roaming option. Note: this may incur additional charges. Confirm with your operator before enabling.

USER MANUAL TLMR6400 V5 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(foors 1-4), Central Science &

Technology Park, Shenzhen Rd, Nanshan, Shenzhen, China TP-Link Deutschland GmbH Robert-Broger-Vivien 9, 65719 Holheim am Taunus, Germany

TP-Link Book/Work/CFL/PROCT BOOK/Oldust 6, CPT IS Home-In-1200, CSF TP-Link UK Limited Unit 2 & 3 Riverview (142-144). Cardiff Road. Reading. RG18FW

TP-Link IBERIA,S.L. Calle Quintanavides 17, 3° E, 20050 Madrid, Spain

TP-Link Netherlands B.V. Archimodesbaan 18, 3439 ME Nieuwogain

TP-Link (Nordic) AB Forumvägen 14, Plan 13, 131 53 Nacka, Sweden

TP-Link Heliae Ltd. Marathonodromou 77, Marousl 151 24, Greece

NWS.TP-Link Portugal, Unipessoal, Lds. Avenida da Liberdade, n°245, 7°E,1250-143 Lisboa, Portugal

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from IP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

www.tp-link.com

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106508106 REVS.0.0

tp-link

Quick Installation Guide

4G LTE Router

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Hardwareinstallation

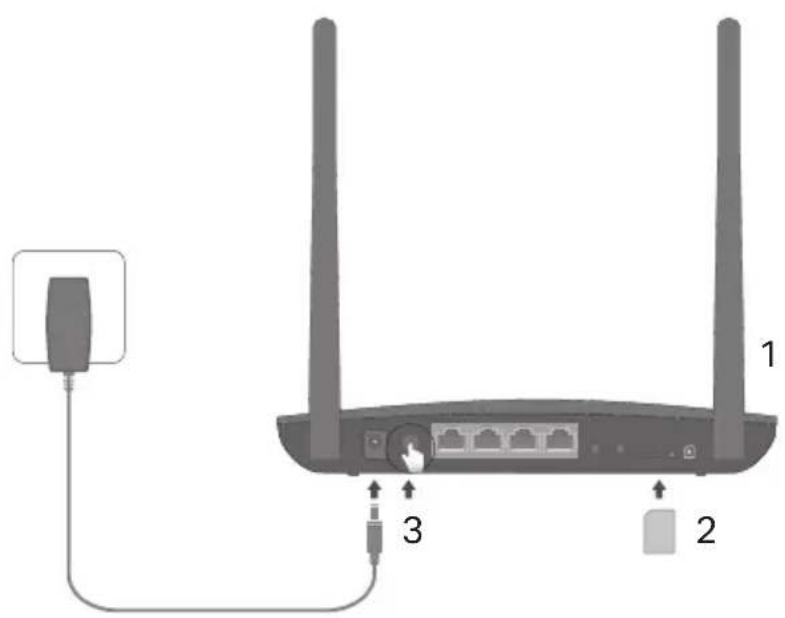

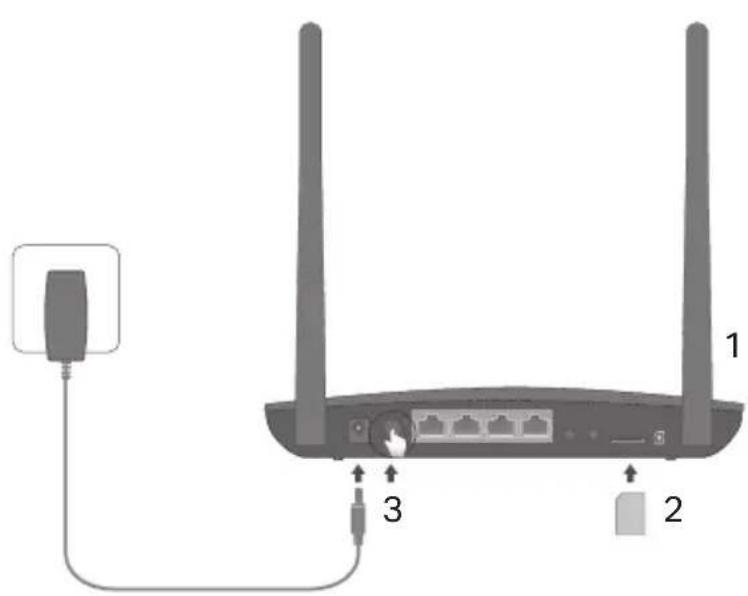

Connect the Hardware

Note: Images are for demonstration only.

1 Position the antennas vertically. Note: For some routers you need to install the antennas manually first.
2 Insert the SIM card into the slot until you hear a click.
3 Turn on the router.
4 Make sure the Internet LED 🔒 is on, indicating the router is connected to the internet successfully. If it is not, please refer to FAQ > Q2 in this guide.

Enjoy the Internet!

Connect your device to the router (wired or wireless).

The default SSID and password are printed on the product label at the bottom of the router.

English

Customize the 4G LTE Router

1 Make sure your computer is connected to the router (via wired or wireless).
2 Enter http://tplinkmodem.net or 192.168.1.1 in the address bar of a web browser. Based on the actual web management login page: use the default admin for both username and password or create a new password to log in.
3 Follow the step-by-step instructions on the Quick Setup page to complete the initial configuration.

Note: The router can also be used (or configured) in wireless router mode for ADSL/Cable connections. For more information, please refer to the User Guide at www.tp-link.com.

FAQ(Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

• Verify that the computer is set to obtain an IP address automatically from the router.
• Verify that http://tplinkmodem.net or 192.168.1.1 is correctly entered in the web browser.
• Use another web browser and try again.
• Reboot your router and try again.
• Disable and then enable the active network adapter and try again.

Q2. What can I do if I cannot access the internet?

English

• Verify that your SIM card is an LTE or WCDMA card.
• Verify that your SIM card is in your ISP's service area.
• Verify that your SIM card has sufficient credit.
• Check the LAN connection:

Enter http://tplinkmodem.net or 192.168.1.1 in the address bar of a web browser. If the login page does not appear, refer to FAQ > Q1 and then try again.

- Check your ISP parameters:

1 Open a web browser and log in to the web management page.
2 Verify the parameters provided by your ISP are correctly entered. If the parameters are incorrect, create a new profile with the correct parameters.

- Check the PIN settings:

1 Open a web browser and log in to the web management page.
2 Verify if PIN is required. If it is, enter the correct PIN provided by your ISP.

- Check the Data Limit:

1 Open a web browser and log in to the web management page.
2 Verify if the total used data exceeds the total allowance. If it does, correct the total allowance and set the total used data to 0, or disable the data limit.

- Check the Mobile Data:

1 Open a web browser and log in to the web management page.
2 Enable the mobile data to access the internet.

English

- Check the Data Roaming:

1 Confirm with your ISP if you are in a roaming service area. If you are, open a web browser and log into the web management page.
2 Enable the data roaming to access the internet.

Q3. How to restore the router to its factory default settings?

• With the router powered on, press and hold the WPS/RESET button on the rear panel of the router until the Power LED starts flashing. The router will restore and reboot automatically.
• Log in to the web management page of the router to restore the router to its factory defaults.

Q4. What can I do if I forget the password of the web management page?

- Refer to FAQ>Q3 to restore the router and use admin for both username and password or create a new password to log in.

Q5. What can I do if I forget my wireless network password?

• The default wireless password is printed on the product label of the router.
• If the default wireless password has been changed, log in to the router's web management page and retrieve or reset your password.

Note: For more troubleshooting help, please refer to FAQ on our website: https://www.tp-link.com.

Navigate in Internet!

Merk: Bildene er kun til demonstrasjon.

OFTE STILLEDE SP∅RGSMÅL

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or
  damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS

THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when

used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español

OCH I STÄLLET FÖR ALLA ANDRA GARANTIER, GOTTGÖRANDEN OCH VILLKOR.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.
