USER MANUAL CFBI901ZW BORETTI

GB | INSTRUCTIONS ON MOUNTING AND USE

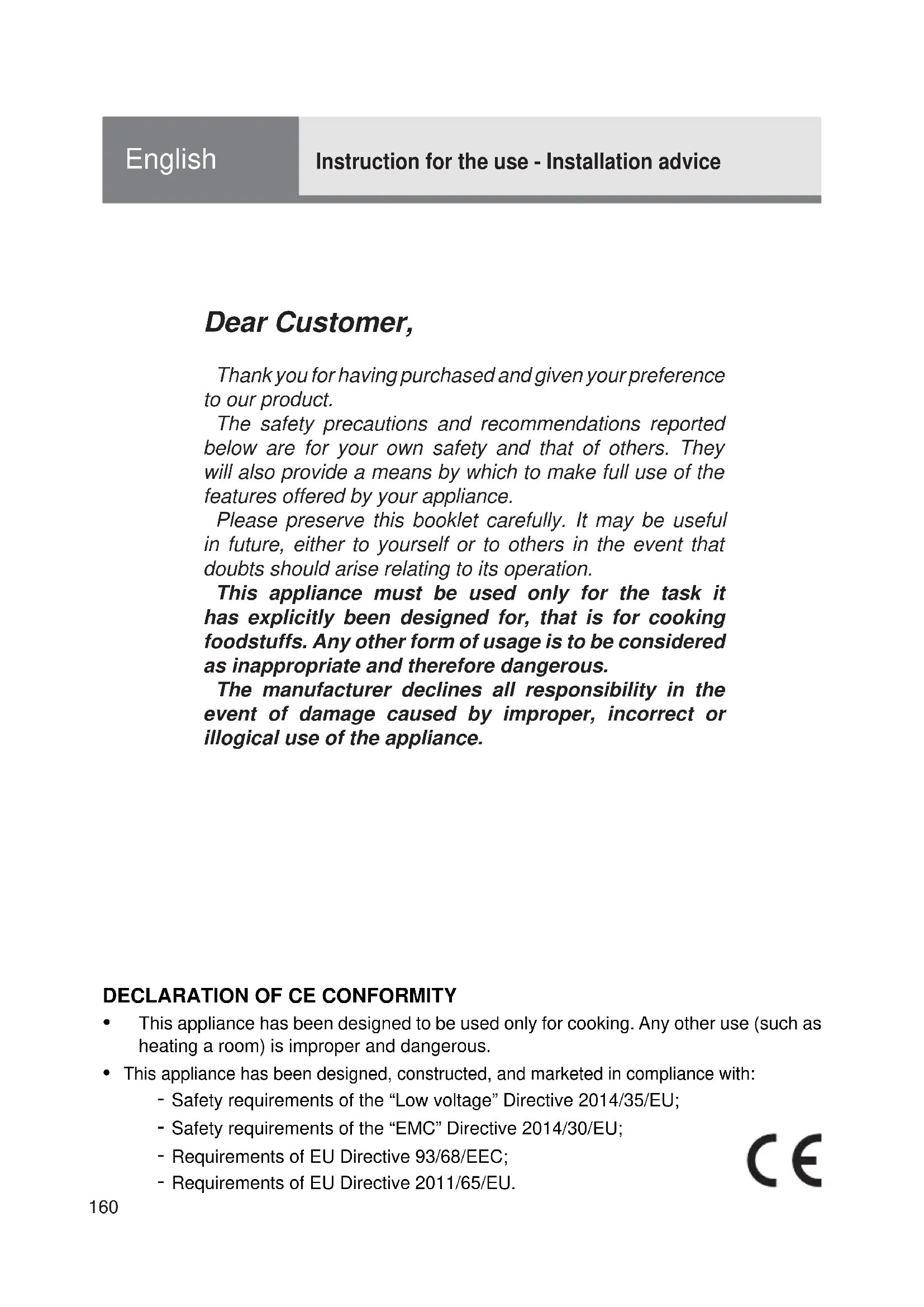

ac159160 Dear Customer, Thank you for having purchased and given your preference to our product.The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance. English Instruction for the use - Installation advice

DECLARATION OF CE CONFORMITY

• This appliance has been designed to be used only for cooking. Any other use (such as heating a room) is improper and dangerous.
• This appliance has been designed, constructed, and marketed in compliance with: - Safety requirements of the “Low voltage” Directive 2014/35/EU; - Safety requirements of the “EMC” Directive 2014/30/EU; - Requirements of EU Directive 93/68/EEC; - Requirements of EU Directive 2011/65/EU.161

IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS

IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. a semi commercial, commercial or communal environment. Read the instructions carefully before installing and using the appliance.

• This appliance has been designed and manufactured in compliance with the applicable standards for the household cooking products and it fullls all the safety requirements shown in this manual, including those for surface temperatures. Some people with sensitive skin may have a more pronounced temperature perception with some components although these parts are within the limits allowed by the norms. The complete safety of the appliance also depends on the correct use, we therefore recommend to always pay a extreme attention while using the product, especially in the presence of children.

• After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualied technician.

• Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

• Some appliances are supplied with a protective lm on steel and aluminium parts. This lm must be removed before using the appliance.

• IMPORTANT: The use of suitable protective clothing/gloves is recommended when handling or cleaning this appliance.

• Do not attempt to modify the technical characteristics of the appliance as this may become dangerous to use. The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.162

• Do not operate your appliance by means of an external timer or separate remote-control system.

• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.

• WARNING: Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.

• Do not use a steam cleaner because the moisture can get into the appliance therefore making it unsafe.

• Do not touch the appliance with wet or damp hands (or feet).

• Do not use the appliance whilst in bare feet.

• If you should decide not to use this appliance any longer (or decide to substitute another model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.

• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.

• After use, ensure that the knobs are in the off position.

• Children less than 8 years of age shall be kept away unless continuously supervised.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.163

• WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use. – Care should be taken to avoid touching heating elements (on the hob and inside the oven). – The door is hot, use the handle. – To avoid burns and scalds, young children should be kept away.

• Make sure that electrical cables connecting other appliances in the proximity of the cooker cannot come into contact with the hob or become entrapped in the oven door.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in re. NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.

• WARNING: Danger of re: do not store items on the cooking surfaces.

• Do not place or leave empty pans on the glass ceramic hob.

• Do not allow heavy or sharp objects to drop on the glass ceramic hob.

• Do not scratch the hob with sharp objects. Don’t use the hob as a work surface.

• WARNING: When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

• FIRST USE OF THE OVEN - it is advised to follow these instructions: – Furnish the interior of the oven as described in the chapter “CLEANING AND MAINTENANCE”. – Switch on the empty oven on max to eliminate grease from the heating elements. – Disconnect the appliance from the electrical power supply, let the oven cool down and clean the interior of the oven with a cloth soaked in water and neutral detergent; then dry carefully.164

• CAUTION: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

• Do not line the oven walls or base with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber.

• FIRE RISK! Do not store ammable material in the oven or in the storage compartment.

• Always use oven gloves when removing the shelves and food trays from the oven whilst hot.

• Do not hang towels, dishcloths or other items on the appliance or its handle – as this could be a re hazard.

• Clean the oven regularly and do not allow fat or oils to build up in the oven base or tray. Remove spillages as soon as they occur.

• Do not stand on the cooker or on the open oven door.

• Always stand back from the appliance when opening the oven door to allow steam and hot air to escape before removing the food.

• SAFE FOOD HANDLING: Leave food in the oven for as short a time as possible before and after cooking. This is to avoid contamination by organisms which may cause food poisoning. Take particular care during warmer weather.

• WARNING: Take care NOT to lift the cooker by the door handle.

• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• The oven accessories (e.g. oven wire rack) must be tted correctly as indicated at page 191.

• If the power supply cable is damaged, it must be replaced only by an authorized service agent in order to avoid a hazard.

• INDUCTION HOBS: – Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. – Do not use metallic kitchen utensils (e.g. ladles). It is preferable to use plastic or wood kitchen utensils.165 – Please use pans of recommended size (see minimum pan diameter recommended). It is not advisable to use pans smaller than the cooking zone. The pans have to be placed in the centre of the cooking zone. – Do not use defective pans or pans with a curved bottom. – Please use suitable pans marked for induction cooking. – Please keep your distance from the electromagnetic elds by standing 5-10 cm from the cooking zones. When possible use the rear cooking zones. – Magnetic objects (e.g. credit cards, oppy disks, memory cards) and electronic instruments (e.g. computers) should not be placed near the induction hob. – The heating of magnetic tins is forbidden! Closed tins may explode by exceeding pressure while heating. There is a burning risk with open tins as well, because the integrated temperature protection will not work correctly. – IMPORTANT WARNING: The induction hob complies with European Standards for domestic cooking appliances. Therefore it should not interfere with other electronic units. Persons with cardiac pacemakers or any other electrical implants must check with their doctor if they can use an induction cooking system (and check any possible interferences with the implants). IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain signicant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.166

ENERGY LABELLING/ECODESIGN

• Commission delegated regulation (EU) No 65/2014 (supplementing Directive 2010/30/EU of the European Parliament and of the Council).

• Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the European Parliament and of the Council). Reference to the measurement and calculation methods used to establish compliance with the above requirements:

• Check the oven door always closes properly and the door gasket is clean and in order. During use, open the oven door only when strictly necessary to avoid heat losses (for some functions it may be necessary to use the oven with the door half-closed, check the oven operating instructions).

• Turn off the oven 5-10 minutes before the end of the theoretical cooking time to recuperate the stored heat.

• We recommend using oven proof dishes and adjusting the oven temperature during cooking if necessary. HOB

• When the pan comes to the boil, turn the heat down to the level desired.

• Please use suitable pans marked for induction cooking. Some cookware available on the market has an effective ferromagnetic area which is much smaller than the diameter of the pan itself. Avoid using this cookware because the induction cooktop may not function properly or may be damaged.

• Always use pans/coffee pots with thick, completely at bottom. Do not use pans/coffee pots with concave or convex bottom; these could cause overheating of the cooking zone.

• Important: Do not use pots/coffee pot adaptors.167 This gure is indicative only Hob rail Door handle/s WARNING – VERY IMPORTANT ! FIRE/OVERHEATING HAZARD:

• Do not place towels/cloths etc onto the hob rail or oven door handle/s whilst the product is in use or hot. TO AVOID DAMAGE TO THE APPLIANCE:

• Do not lift/move the cooker by the hob rail or oven door handle/s.

Attention: Detach the appliance from the mains if the ceramic glass is cracked and contact the After- Sales Service. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

1. Induction cooking zone Ø 200 mm Normal Power: 2300 W

Booster Power: 3000 W

2. Induction cooking zone Ø 160 mm Normal Power: 1400 W

3. Cooking zones display

Note: The Nominal and Booster Power may change depending on the size and material of the pan set on the cooking zone.

INDUCTION COOKING HOB

2. Rear right cooking zone control knob

3. Rear left cooking zone control knob

The ceramic hob is tted with induction cooking zones. These zones, shown by painted disks on the ceramic surface, are controlled by separate knobs positioned on the control panel.

INDUCTION COOKING SYSTEM

When your induction hob is switched on and a cooking zone has been selected, the electronic circuits produce induced currents that instantaneously heat the bottom of the pan which then transfers this heat to the food. Cooking takes place with hardly any energy loss between the induction hob and the food. Your induction hob operates only if a correct pan with the right features is placed on a cooking zone. Please refer to COOKWARE FOR INDUCTION COOKING. If the pan detection symbol appears on the display, your pan is not suitable and your induction hob will not operate After 10 minutes without detecting any pan, the cooking zone switches Off automatically and can only be switched On after the control knob has been returned into “O” (Off) setting. In the front central area of the hob, the cooking zones display (composed by no. 4 luminous gures - one for each zone) indicates: = Cooking zone Off (not activated) = Cooking zone On (activated but not operating). If all the zones are in zero setting, the display switches off automatically (cooking zones Off) after about 10 seconds.

= Power levels = “Fast heating” function = “Booster” function = Remaining heat indicator = Pan detection indicator = Childlock safety Note: each lit gure refers to the relevant cooking zone Fig. 3.1

When the temperature of a cooking zone is still hot, the relevant remaining heat indicator lights up on the display to alert you of the hot surface. Avoid touching the hob surface over the cooking area. Please pay special attention to children. When the is lit on the display, it is still possible to start cooking again; just turn the control knob to the required power level.

COOKWARE FOR INDUCTION COOKING

The induction cooking system OPERATES ONLY if using correct cookware suitable for induction cooking. The bottom of the pan has to be ferromagnetic to generate the electromagnetic eld necessary for the heating process (meaning a magnet has to stick to the bottom of the pan). Pans made from the following materials are not suitable:

• glass, wood, porcelain, ceramic, stoneware;

• pure stainless steel, aluminium or copper without magnetic bottom. To check if a pan is suitable or not:

• test the bottom of the pan with a magnet: if the magnet sticks, the pan is suitable.

• if a magnet is not available pour a small amount of water inside the pan and place the pan on a cooking zone. Switch on the cooking zone: if the symbol (pan detection) appears on the cooking zone display (instead of the power level), the pan is not suitable. Important note: the cooking zones will not operate if the pan diameter is too small ( pan detection symbol will appear on the cooking zone display). To correctly use the cooking zones follow the indications given in the following table. Induction cooking zone Minimum pan diameter recommended Front right Ø 160 mm 110 mm Rear right Ø 200 mm 145 mm Rear left Ø 160 mm 110 mm Front left Ø 200 mm 145 mm Pay attention: The pan shall always be centred over the middle of the cooking zone. It is possible to use oversized pans but the bottom of the pan cannot touch other cooking zones. Always use pans with thick, completely at bottom. Do not use pans with concave or convex bottom; these could cause overheating of the cooking zone. Note: Some types of pans could cause noise when used on an induction cooking zone. The noise does not mean any failure on the appliance and does not inuence the cooking operation.172

OPERATION TIME LIMIT OF

COOKING ZONES Each cooking zone is automatically switched Off after a maximum preset time if no operation is performed. The maximum preset time limit depends on the set power level, as illustrated in this schedule. Each operation on the cooking hob by using the knob will reset the maximum operation time at its initial value. Power level of Cooking zones Operation time limit 360 minutes 360 minutes 300 minutes 300 minutes 240 minutes 90 minutes 90 minutes 90 minutes 90 minutes CONTROL KNOBS Each cooking zone is adjusted by a separate control knob positioned on the control panel and the operation is controlled by the electronic system. If a cooking zone is not turned Off the electronic system automatically switches it Off after a pre-set time which depends on the power setting. Fig. 3.2bFig. 3.2a

O Cooking zone not operating 1 to 2 Melting Reheating Sauces, butter, chocolate, gelatine Dishes prepared beforehand 2 to 3 Simmering Defrosting Rice, pudding, sugar syrup Dried vegetables, sh, frozen products 3 to 4 Steam Vegetables, sh, meat 4 to 5 Water Steamed potatoes, soups, pasta, fresh vegetables 6 to 7 Medium cooking Simmering Meat, lever, eggs, sausages Goulash, roulade, tripe 7 to 8 Cooking Potatoes, fritters, wafers

Frying, roasting Boiling water Steaks, omelettes, fried dishes Water 1 ÷ 9 POWER LEVEL Turn the knob clockwise to set the desired power level between 1 (minimum) and 9 (maximum). The power level can be modied at any time by turning the knob clockwise or anti-clockwise to a different setting. The cooking zone display shows the selected level.174

“FAST HEATING” FUNCTION

Turn the control knob anti-clockwise to the setting and then release the knob (after the “beep”); the relative symbol lights up on the cooking zone display. Within 5 seconds turn the knob to the desired power level (between 1 and 9); once a setting has been selected, and the chosen power level will ash in alternation on the control panel display. This function allows the cooking zone to operate at the maximum power (100%) for a time proportional to the selected power level; after this time the cooking zone will operate at the selected level. This function is available on all the cooking zones. While this function is operating it is possible, at any time, to increase the selected power level but it is not possible to decrease the power; by turning the knob anti-clockwise to a lower level the function will be disabled. The function will be disabled also by turning the knob to the “O” (Off) position or by selecting the “Booster” function. Note: If removing the pan from the cooking zone before the programme has been completed, the “Fast heating” function will be completed with the remaining time if the pan is put back on the cooking zone within 10 minutes. “BOOSTER” FUNCTION Turn the control knob clockwise to set the maximum power level (9), then turn clockwise again to the setting and release the knob (after the “beep”); the control knob returns to the maximum setting (9) automatically and the relative symbol lights up on the cooking zone display. The “Booster” program is now operative. This function allows the cooking zone to operate at the Booster maximum power (above the nominal power) for maximum 5 minutes; it could be used, for example, to rapidly heat up large amount of water. This function is available on the front left/rear right zones. To disable this function turn the knob anti-clockwise to a lower power level or to the “O” (Off). The “Booster” is also disabled by turning the knob again to the setting; in this case the cooking zone operates at the power level 9. Note: if a cooking zone is still hot, it is not possible to use the “Booster” function and will ash if you try to activate. The cooking zone is automatically set to the maximum power level (9). The “Booster” function is always limited to a maximum of 5 minutes. You can activate the “Booster” function again after 5 minutes. IMPORTANT NOTES: The “BOOSTER” function is not suitable for use with non water based cooking. Do not use this function for heating oil (e.g. deep fat frying)175

MAXIMUM USABLE POWER FOR THE

COOKING ZONES The right and left cooking zones are controlled by two separate power boards and the maximum total power per each power board is 3700 W. Should the cooking zones of one power board require more than 3700 W, the last selected power level has priority and the power of the other cooking zone is automatically reduced to the remaining power available. If this occurs, the cooking zone will display a ashing gure for about 3 seconds before automatically displaying the new power level. This means for example that:

• When setting a “Booster” programme for the second zone, the setting for the other zone could be reduced to the remaining power available.

• When setting a “Booster” programme for a zone and then another setting on the second zone, if the total power exceed 3700 W the “Booster” programme is deleted and the power reduced to the maximum power available. THERMAL PROTECTIONS The induction hob is tted with safety devices to protect the electronic system and to protect each cooking zone from overheating. In case of overheating, one of the following automatic functions could be started by the electronic system:

• “Booster” program deleted and power reduced;

• one or more cooking zone switched Off;

• cooling fan motor of the induction unit switched on. CHILDLOCK SAFETY When not using the induction hob, set the childlock safety to prevent children from accidentally switching on the cooking zones. Ensure all cooking zones are switched Off, then turn the control knobs of the left cooking zones simultaneously to the left ( setting) and hold the knobs in this position until lights up on the cooking zones display; then release the knobs. To deactivate the childlock repeat the same procedure until lights up on the cooking zones display; then release the knobs. Controlled by 2nd power board Controlled by 1st power board176 Error code Example What to do Erxx or Ex (not E2 or EH)

1. Switch off the cooker and disconnect it

2. Wait for about 1 minute, then reconnect

the cooker and turn on the cooking zones.

3. Wait for about 1 minute and if the error

message does not appear again the cooking zones can be used.

4. If the error message does not disappear

repeat step from 1 to 3.

5. If the problem continues do not use the

induction hob (only use the oven) and contact your Authorised Service Centre.

E and 2 alternating for one or more cooking zones. This indicates an overheating of the cooking zone/s.

1. Switch off the cooking zone/s and leave

2. If the problem continues do not use the

induction hob (only use the oven) and contact your Authorised Service Centre.

display not operative The cooker has been incorrectly connected. The appliance shall be connected to the appropriate power supply by a qualied technician. Symbol as per side gure This indicates an incorrect operation of one or more cooking zone control knob.

1. Turn the cooking zone control knobs to

the “O” (Off) position, then switch off the cooker and disconnect it from the mains.

2. Wait for about 1 minute, then reconnect

the cooker and turn on the cooking zones.

3. Wait for about 1 minute and if the error

message does not appear again the cooking zones can be used.

4. If the error message does not disappear

repeat step from 1 to 3.

5. If the problem continues do not use the

induction hob (only use the oven) and contact your Authorised Service Centre. ERROR CODES ON THE COOKING ZONES DISPLAY177

• Before switching on make sure that you have the correct knob for the hotplate chosen. It is advisable to put the pan on the hotplate before switching on and to take it away after switching off.

• Use cookware with at and even bottoms. Uneven bottoms can scratch the glass ceramic surfaces. Be careful that the bottom is clean and dry.

• Do not leave wet or damp lids on the bob.

• The glass-ceramic surface and pans must be clean. Carefully eliminate any food remains (especially containing sugar), dirt etc. with the aid of a cleansing agent.

• Make sure that the handles of cookware do not stick out over the edge of the cooker, to avoid them being knocked over by accident. This also makes it more difcult for children to reach the cooking vessels.

• Do not lean over the cooking zones when they are switched on.

• Do not drop heavy or sharp objects on the glass ceramic cooktop. If the surface is broken or damaged unplug the cooktop and contact the after-sales service.

• Do not put aluminium foil or plastic objects on the cooking zones when they are hot.

• Follow the cleaning instructions carefully.

DO NOT USE PANS WITH ROUGH

CIRCULAR MACHINED BASE. Fig. 3.4 Fig. 3.3178 Do not scratch the cooktop with cutting or sharp objects. Do not use the glass ceramic surface as a work surface. CLEANING

• Before you begin cleaning make sure that the appliance is switched off.

• Remove any encrustation using the scraper provided.

• Dust or food particles can be removed with a damp cloth.

• If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive or scouring powders can damage the glass surface of the hob.

• All traces of the cleaner have to be removed with a damp cloth.

• It is highly recommended to keep off the hob any article which can melt: plastic, aluminium foil, sugar, sugar syrup mixtures etc.

• If any of these products has melted on the ceramic surface, you should remove it immediately (when the surface is still hot) by using the scraper to avoid any permanent damage to the surface of the hob.

• Avoid using any knife or sharp utensil since these can damage the ceramic.

• Do not use steel wool or an abrasive sponge which could scratch the surface in an irreparable way ATTENTION: MOST IMPORTANT! If cleaning the glass ceramic hob using a special tool (i.e. scraper) take extra care to avoid damage to the seal at the edges of the glass ceramic surface.

Fig. 3.5179 Attention: the oven door becomes very hot during operation. Keep children away. GENERAL FEATURES As its name indicates, this is an oven that presents particular features from an operational point of view. In fact, it is possible to insert 8 different programs to satisfy every cooking need. The 8 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Circular element NOTE: Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30 minutes at the maximum temperature (thermostat knob on position 250) in the positions and , to eliminate possible traces of grease on the heating elements. Clean the oven and accessories with warm water and washing-up liquid. OPERATING PRINCIPLES Heating and cooking in the MULTI- FUNCTION oven are obtained in the following ways: a. by normal convection The heat is produced by the upper and lower heating elements. b. by forced convection A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking. It is possible to cook several dishes simultaneously. c. by semi-forced convection The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan. d. by radiation The heat is irradiated by the infra red grill element. e. by radiation and ventilation The irradiated heat from the infra red grill element is distributed throughout the oven by the fan. f. by ventilation The food is defrosted by using the fan only function without heat. MULTI-FUNCTION OVEN

The door is hot, use the handle. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.180 OVEN LIGHT By turning the knob onto this setting we light the oven cavity. The oven remains alight while any of the functions is on. THERMOSTAT KNOB (fig. 4.2) To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature. To set the temperature, it is necessary to make the knob indicator meet the chosen number. The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50° C and 250° C with the thermostat knob. It is necessary to preheat the oven before introducing the foods to be cooked. Recommended for: For foods which require the same cooking temperature both internally and externally, i. e. roasts, spare ribs, meringue, etc.

LOWER HEATING ELEMENT

In this position only the lower element is switched on. Heat is distributed by natural convection. The temperature must be regulated between 50 °C and the maximum position with the thermostat knob. Recommended for: To complete cooking of dishes that require higher temperature at the bottom. FUNCTION SELECTOR KNOB (g. 4.1) Rotate the knob clockwise to set the oven for one of the following functions: Fig. 4.2 Fig. 4.1181

UPPER HEATING ELEMENT

In this position only the upper element is switched on. Heat is distributed by natural convection. The temperature must be regulated between 50 °C and the maximum position with the thermostat knob. Recommended for: To complete cooking of dishes that require higher temperature at the top. GRILLING The infra-red heating element is switched on. The heat is diffused by radiation. Use with the oven door closed and with the thermostat knob to between 50 and 225°C. In the position also the rotisserie motor come on for cooking with the rotisserie. For correct use see chapter “USE OF THE GRILL” and “USE OF THE ROTISSERIE” Note: It is recommended that you do not grill for longer than 30 minutes at any one time. Attention: the oven door becomes very hot during operation. Keep children away. Recommended for: Intense grilling action for cooking with a broiler; browning, crisping, “au gratin”, toasting, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50°C and 225°C maximum for max 30 minutes, with the thermostat knob. It is necessary to preheat the oven for about 5 minutes. For correct use see chapter “GRILLING AND AU GRATIN”. Use with the oven door closed. Attention: The oven door becomes very hot during operation. Keep children away. Recommended for: For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.182

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on. The heat coming from the top and bottom is diffused by forced convection. The temperature must be regulated between 50° and 250 °C with the thermostat knob. Recommended for: For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

The circular element and the fan are on. The heat is diffused by forced convection and the temperature must be regulated between 50° and 250 °C with the ther mostat knob. It is not necessary to preheat the oven. Recommended for: For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

DEFROSTING FROZEN FOODS

Only the oven fan is on. To be used with the thermostat knob on “

” because the other positions have no effect. The defrosting is done by simple ventilation without heat. Recommended for: To rapidly defrost frozen foods; 1 kilogram requires about one hour. The defrosting times vary according to the quantity and type of foods to be defrosted.183 COOKING ADVICE STERILIZATION Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

Fill the dripping pan with hot water. d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135 °C. When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool. REGENERATION Set the switch to position and the thermostat knob to position 150° C. Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature. ROASTING To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200 °C.

• that the cooking time depends on the quantity and the type of foods.

SIMULTANEOUS COOKING OF

DIFFERENT FOODS The MULTI-FUNCTION oven set on position and gives simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours. This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods. The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20° - 25 °C.

• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one. The time and energy saved with this type of cooking is obvious.

GRILLING AND “AU GRATIN”

Set the switch to position . Set the thermostat to position 225 °C and after having preheated the oven, simply place the food on the shelf. Close the door and let the oven operate with the thermostat on, until grilling is complete. Adding a few dabs of butter before the end of the cooking time gives the golden “au gratin” effect. Note: It is recommended that you do not grill for longer than 30 minutes at any one time. ATTENTION: the oven door becomes very hot during operation. Keep children away.184 COOKING EXAMPLES Temperatures and times are approximate as they vary depending on the quality and amount of food. Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary. DISHES TEMPERATURE Cakes 180°C Doughnuts 180°C Cheese soufflé 200°C Potatoes soufflé 200°C Roast veal 200°C Spinach crepes 200°C Potatoes in milk 200°C Chicken breasts in tomato 200°C Sole fish filet 200°C Whiting 200°C Cream puffs 200°C Plum pie 200°C Meat balls 200°C Veal meatloaf 200°C Grilled chicken - roast chicken 220°C Baked lasagna 220°C Roast beef 220°C Oven cooked pasta 220°C Lemon cake 220°C Rice creol 225°C Baked onions 225°C Stuffed potatoes 225°C Grilled veal joint 225°C Marmalade pie 225°C Pound cake 225°C Turkish shishkebab 250°C Pizza with anchovies 250°C OVEN COOKING Before introducing the food, preheat the oven to the desired temperature. For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature. Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

Preheat the oven for about 5 minutes. Introduce the food to be cooked, positioning the rack as close to the grill as possible. The dripping pan should be placed under the rack to catch the cooking juices and fats. Grilling with the oven door closed. Do not grill for longer than 30 minutes at any one time. CAUTION: the oven door becomes very hot during operation. Keep children well out of reach.185 The electronic programmer is a device which groups together the following functions:

• 24 hours clock with illuminated display

• Timer (up to 23 hours and 59 minutes)

• Program for automatic oven cooking

• Program for semi-automatic oven cooking Description of the buttons: Timer Cooking time End of cooking time Manual position and cancellation of the inserted cooking program To increase the numbers on the digital display To decrease the numbers on the digital display. Description of the illuminated symbols: AUTO - ashing - Programmer in automa- tic position but not programmed AUTO - illuminated - Programmer in auto- matic position with program inser- ted. Automatic cooking taking place Timer in operation and AUTO - ashing - Program error. (The time of day lies between the calculated cooking start and end time). Note: Select a function by the respective button and, in 5 seconds, set the required time with the / buttons (“one-hand” operation). After a power cut the display resets to zero and cancels the set programs. ELECTRONIC PROGRAMMER

Fig. 5.2Fig. 5.1186 ELECTRONIC CLOCK (g. 5.2) The programmer is equipped with an electronic clock with illuminated numbers which indicates hours and minutes. Upon immediate connection of the oven or after a power cut, three zeros will ash on the programmer display. To set the correct time of day it is necessary to push the button and then the or button until you have set the correct time (g. 5.2). In another way push simultaneously the two buttons and at the same time push the or button. Note: If the clock is reset it deletes any previously set programs

NORMAL COOKING WITHOUT THE

USE OF THE PROGRAMMER

To manually use the oven, without the aid of the programmer, it is necessary to cancel the ashing AUTO by pushing the button (AUTO will be switched off and the symbol will illuminate - g. 5.3). Attention: If the AUTO is illuminated (which means a cooking program has already been inserted), by pushing the button you cancel the program and return to manual operation. If the oven is switched on, you must switch off manually. ELECTRONIC TIMER The timer program consists only of a buzzer which may be set for a maximum period of 23 hours and 59 minutes. If the AUTO symbol is ashing push the button. To set the time, push the button and the or until you obtain the desired time in the display (g. 5.4). Having nished the setting, the clock hour will appear on the panel and the symbol will be illuminated. The countdown will start immediately and may be seen at any moment on the panel by simply pressing the button

At the end of the time, the symbol will disappear and the buzzer will sound and continue for approximatley 7 minutes or until a button is pressed (not the

buttons). After a short time the display will revert back to the time of day.

SETTING THE FREQUENCY OF THE

AUDIBLE SIGNAL The buzzer has 3 different tones and can be changed by pressing the button, but only when the time of day is displayed Fig. 5.4Fig. 5.3187

AUTOMATIC OVEN COOKING

To cook food automatically in the oven, it is necessary to:

1. Set the length of the cooking period.

2. Set the end of the cooking time.

3. Set the temperature and the oven

cooking program. These operations are done in the following way:

1. Set the length of the cooking period

by pushing the button and the button to increase, or to decrease if you have passed the desired time (g. 5.5). The AUTO and the symbol will illuminate.

2. Set the end of the cooking time by

pressing the button (the cooking time already added to the clock time will appear), and the button (g. 5.6); if you pass the desired time you may get back by pushing the button. After this setting, the symbol will disappear. If after this setting, the AUTO ashes on the display and a buzzer sounds, it means there was an error in the programming, that is that the cooking cycle has been superimposed on the clock. In this case, modify the end of cooking time or the cooking period itself by following again the above mentioned instructions.

3. Set the temperature and the cooking

program by using the switch and thermostat knobs of the oven (see specic chapters). Now the oven is programmed and everything will work automatically, that is the oven will turn on at the right moment to end the cooking at the established hour. During cooking, the symbol remains illuminated. By pushing the button you can see the time that remains until the end of cooking. The cooking program may be cancelled at any time by pushing

At the end of the cooking time the oven will turn off automatically, the symbol will turn off, AUTO will ash and a buzzer will be sound, which can be turned off by pushing any of the buttons except the / buttons. Turn the switch and thermostat knobs to zero and put the programmer onto “manual” by pressing the button. Attention: After a power cut the clock resets to zero and cancels the set programs. After a power cut, three zeros will ash on the display. Fig. 5.6Fig. 5.5188 SEMI-AUTOMATIC COOKING This is used to automatically switch off the oven after the desired cooking time has elapsed. There are two ways to set your oven:

1. Set the length of the cooking time

by pushing the button and the button to advance, or to go backwards if you have passed the desired time (g. 5.7).

2. Set the end of the cooking time

by pushing the button and the button to advance, or to go backwards if you have passed the desired time (g. 5.8). AUTO and the symbol will be on. Then set the temperature and the cooking programme using the oven switch and thermostat knobs (see specic chapters). The oven is switched on and it will be switched off automatically at the end of the desired time. During cooking, the symbol remains on and by pressing the button you can see the time that remains till the end of the cooking. The cooking program may be cancelled at any time by pushing

At the end of the cooking time the oven will turn off automatically, the symbol will turn off, AUTO will ash and a buzzer will be sound, which can be turned off by pushing any of the buttons except the / buttons. Turn the switch and thermostat knobs to zero and put the programmer onto “manual” by pressing the button. Attention: After a power cut the clock resets to zero and cancels the set programs. After a power cut, three zeros will ash on the display. Fig. 5.8Fig. 5.7189

IMPORTANT – OVEN NOT WORKING

If the oven is not working, it may have been accidently set to “AUTOMATIC” or the power to the appliance was interrupted. If the Timer is showing the letter “AUTO” as below or the time of day is ashing, the Oven may not turn on or be delayed in its operation. Before requesting a service call, please refer to the timer set up instructions in this handbook and ensure the timer is set to “MANUAL” operation ensuring the cook symbol appears in the timer as shown below. NB. A service charge will be made if an engineer is called out to re-set the timer, as this is not covered by the guarantee.190 Important: The manufacturer declines all liability for possible damage caused by the use of unsuitable products to clean the appliance. Attention! The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking. Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. ENAMELLED PARTS All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products. Dry preferably with a microbre or soft cloth. Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

Clean using an appropriate product. Always dry thoroughly. IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap. CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the surface.

CLEANING AND MAINTENANCE

• Before you begin cleaning, you must ensure that the appliance is disconnected from the electrical power supply.

• It is advisable to clean when the appliance is cold and especially when cleaning the enamelled parts.

• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.

• Avoid using cleaning products with a chlorine or acidic base.

• Important: The use of suitable protective clothing/gloves is recommended when handling or cleaning of this appliance. WARNING When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the rear or the underneath of the appliance as these areas are not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.191 Fig. 6.1 Fig. 6.2

• Assemble the wire racks to the oven walls using the 2 screws (fig. 6.1).

• Slide in, on the guides, the shelf and the tray (fig. 6.2). The rack must be fitted so that the safety notch, which stops it sliding out, faces the inside of the oven; the guard rail shall be at the back.

• To dismantle, operate in reverse order. Guard rail Stop notch

The oven should always be cleaned after use when it has cooled down. The cavity should be cleaned using a mild detergent solution and warm water. Suitable proprietary chemical cleaners may be used after rst consulting with the manufacturers recommendations and testing a small sample of the oven cavity. Abrasive cleaning agents or scouring pads/ cloths should not be used on the cavity surface. NOTE: The manufacturers of this appliance will accept no responsibility for damage caused by chemical or abrasive cleaning. Let the oven cool down and pay special attention no to touch the hot heating elements inside the oven cavity. Fire risk! Do not store ammable material in the oven192 TELESCOPIC SLIDING SHELF SUPPORTS (g. 6.3) The telescopic sliding shelf support makes it safer and easier to insert and remove the oven shelf. It stops when it is pulled out to the maximum position. Important! When installing the sliding shelf support, make sure that:

• You t the RH and LH sliding guides on the wire support (g. 6.4).

• You press the RH and LH sliding guides against the xing wires (g. 6.5). You will hear a click as the safety locks clip over the wire.

• You t the oven shelf above the sliding shelf support (gs. 6.6, 6.8).

• You slide, on the guides inside the oven cavity, the sliding shelf support with the oven shelf tted above: – the oven shelf shall run out towards the oven door; – do not use the top shelf position; – the short bend on the wire support shall face the inside of the oven; – the oven shelf must be tted so that the guard rail faces the inside of the oven. To remove the RH and LH sliding guides from the wire support:

• Find the safety locks. These are the tabs that clip over the xing wire (arrow 1 in g. 6.8).

• Pull the safety locks away from the xing wire to release the sliding guide (arrow 2 in g. 6.8). Cleaning the sliding shelf supports:

• Wipe the supports with a damp cloth and a mild detergent only.

• Do not wash them in the dishwasher, immerse them in soapy water, or use oven cleaner on them. LH sliding guide Fixing wires Guard rail RH sliding guide Long bend Short bend Wire support

WARNING: Ensure the appliance is switched off and disconnected from the electrical

power supply before replacing the lamp to avoid the possibility of electric shock.

• Let the oven cavity and the heating elements to cool down.

• Switch off the electrical supply.

• Remove the protective cover “A” (g. 6.9).

• Replace the halogen lamp “B” with a new one suitable for high temperatures (300°C) having the following specications: 220-240 V, 50/60Hz and same power (check watt power as stamped in the lamp itself) of the replaced lamp. IMPORTANT WARNING: Never replace the bulb with bare hands; contamination from your ngers can cause premature failure. Always use a clean cloth or gloves.

• Ret the protective cover. Note: Oven lamp replacement is not covered by your guarantee.194 STORAGE COMPARTMENT The storage compartment is accessible through the pivoting panel (g. 6.10). Fig. 6.10 Do not store ammable material in the oven or in the storage compartment.195 REMOVING AND REPLACING THE INNER DOOR GLASS PANE FOR CLEANING If you wish to clean the inner glass of the door, make sure you follow the precautions and instructions very carefully. Replacing the glass pane and the door incorrectly may result in damage to the appliance and may void your warranty. IMPORTANT!

• Take care, the oven door is heavy. If you have any doubts, do not attempt to remove the door.

• Make sure the oven and all its parts have cooled down. Do not attempt to handle the parts of a hot oven.

• Take extreme care when handling the glass pane. Avoid the edges of the glass bumping against any surface. This may result in the glass shattering.

• CAUTION: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

• If you notice any sign of damage on any of the glass panes (such as chipping, or cracks), do not use the oven. Call your Authorised Service Centre or Customer Care.

• Make sure you replace the glass pane correctly. Do not use the oven without glass pane correctly in place.

• If the glass pane feels difcult to remove or replace, do not force it. Call your Authorised Repairer or Customer Care for help. Note: service visits providing assistance with using or maintaining the oven are not covered by your warranty.196

REMOVING THE OVEN DOOR

The oven door can easily be removed as follows:

completely on the left and right hinges (g. 6.12).

• Hold the door as shown in g. 6.14.

• Gently close the door (g. 6.13) until left and right hinge levers “A

are hooked to part “B

• Withdraw the hinge hooks from their location following arrow “C

• Rest the door on a soft surface.

Fig. 6.15 Fig. 6.14 Fig. 6.13 Fig. 6.12 Fig. 6.11 Important! Always keep a safe distance from the door hinges, paying special attention to position of your hands. If the door hinges are not correctly hooked, they could unhook and close suddenly and unexpectedly with risk of injury.197

REMOVING THE INNER PANE OF GLASS

The oven door is tted with no. 2 panes:

• no. 1 inner. To clean all panes on both sides it is necessary to remove the inner pane as follows:

REMOVE THE INNER GLASS RETAINER

1. Remove the oven door and place it on a soft surface.

IMPORTANT: The door shall be placed horizontally as per g. 6.16.

2. Press down on both tabs to release the glass retainer.

3. Remove the glass retainer.

REMOVE THE INNER GLASS PANE

Lift and remove the inner pane slightly, as shown in the gure 6.17.

Fig. 6.17199 AFTER CLEANING, REPLACE THE INNER GLASS PANE When replacing the inner glass pane, make sure that:

• you replace the pane correctly, as shown. The pane must be in the position described below in order to t into the door and to ensure that the appliance operates safely and correctly.

• you take extra care not to bump the edges of the glass against any object or surface.

• you do not force the pane into place. If you are experiencing difculties replacing the pane, remove it and start the process again from the beginning. If this still does not help, call Customer Care.

• check that you are holding the pane the correct way. You should be able to read the wording on it as it faces you.

• Check that the gasket “A” is in place (g. 6.18). If not, correctly place the gasket in the top edge of the inner glass (in the centre).

1. Insert the inner glass pane in the uppermost pair of grooves and push it slightly (arrow

2. Gently lower into place (arrow 2 in gure 6.18).

1. Position the glass retainer, as shown in the gure 6.19. It should sit on the bottom edge

of the outer glass. Check that the clamps “M” are not deformed or damaged.

2. Gently push the glass retainer back into place. You should be able to hear the tabs on

both sides click as they lock the glass retainer in. Important ! Make sure the glass retainer is correctly and rmly in place and that the glass pane is secure.

2. Insert the hinge tongues into the slots, making sure that the groove drops into place

as shown in the gure 6.21.

3. Open the door to its full extent.

4. Fully close the levers “A” on the left and right hinges, as shown in the gure 6.22.

5. Close the door and check that it is properly in place.

• Cooker installation and regulation must only be carried out by QUALIFIED TECHNICIANS and in compliance with the local safety standards. Failure to observe this rule will invalidate the warranty.

• The appliance must be installed in compliance with regulations in force in your country and in observation of the manufacturer’s instructions.

• Some appliances are supplied with a protective lm on steel and aluminium parts. This lm must be removed before using the cooker. Advice for the Installer203 LOCATIONThe appliance must be kept no less than 50 mm away from any side wall which exceed the height of the hob surface (g. 7.1).Curtains must not be tted immediatly behind appliance or within 500 mm of the sides.It is essential that the cooker is positioned as stated below.The appliance must be housed in heat resistant units.The walls of the units must be capable of resisting temperatures of 75 °C above room temperature.Do not install the appliance near inammable materials (eg. curtains).If the cooker is located on a pedestal it is necessary to provide safety measures to prevent falling out.Fig. 7.1 50 mm 500 mm 650 mm 450 mm INSTALLATION

• The backguard “C” can be found packed at the rear of the cooker.

• Before assembling remove any protective lm/adhesive tape.

• Remove the two spacers “A” and the screw “B” from the rear of the cooktop.

• Assemble the backguard as shown in gure 7.2 and x it by screwing the central screw “B” and the spacers “A”.

The adjustable feet must be tted to the base of the cooker before use. Rest the rear of the cooker an a piece of the polystyrene packaging exposing the base for the tting of the feet.

LEVELLING THE COOKER

The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 7.4) Fig. 7.4 Fig. 7.3206 WARNING When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (g. 7.5). WARNING Be carefull: DO NOT LIFT the cooker by the door handle when raising to the upright position (g. 7.6). WARNING When moving cooker to its nal position DO NOT DRAG (g. 7.7). Lift feet clear of oor (g. 7.5).

Warning: This appliance must be restrained to prevent accidental tipping by tting a bracket

to the rear of the appliance and securely xing it to the wall. To t the anti-tilt bracket:

1. After you have located where the cooker is to be positioned, mark on the wall the

place where the 2 screws of the anti-tilt bracket have to be tted. Please follow the indications given in g. 7.8.

2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.

Important! Before drilling the holes, check that you will not damage any pipes or electrical wires.

3. Loosely attach the anti-tilt bracket with the 2 screws supplied.

4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can

engage in the slot on the cooker’s back, as shown in g. 7.8.

5. Tighten the screws attaching the anti-tilt bracket.

6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot

on the cooker’s back. Attention! When sliding the cooker into place pay special attention not to trap the power supply cable in the stability bracket. Fig. 7.8208 ELECTRICAL SECTION

IMPORTANT: The cooker must be installed in accordance with the manufacturer’s instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause damage to persons, animals and things. The connection of the appliance to earth is mandatory. The manufacturer declines all responsability for any inconvenience resulting from the inobservance of this condition. Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted. GENERAL

• Connection to the mains must be carried out by qualied personnel in accordance with current regulations.

• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specied on the plate.

• The appliance can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.

• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 75°C at any point.

• Once the appliance has been installed, the switch or socket must always be accessible. N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning. If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert. He should also check that the socket cable section is suitable for the power absorbed by the appliance.209

CONNECTION OF THE POWER SUPPLY CABLE

WARNING: If the power supply cable is damaged, it must be replaced only by an

authorised service agent in order to avoid a hazard.

• Unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (g. 8.1).

• Unscrew the screw “D” and open completely the cable clamp “E” (gs. 8.2 - 8.3 - 8.4).

• Position the U bolts “F” onto terminal board “G” (gs. 8.2 - 8.3 - 8.4) according to the diagrams in g. 8.5.

• Connect the phase, neutral and earth wires to terminal board “G” according to the diagrams in g. 8.5.

• Strain the feeder cable and block it with cable clamp “E” (by screwing screw “D”).

• Close the terminal block cover (check the two hooks “A” are correctly hooked). NOTE: The earth conductor must be left about 3 cm longer than the others. IMPORTANT: To connect the power supply cable DO NOT unscrew the screws xing the cover plate behind the terminal block.

(**) Connection with wall box connection. – Diversity factor applied. – A diversity factor may be applied to the total loading of the appliance only by a suitably qualied person.
