Product type	Portable DVD player
Brand	Sunstech
Model	DLPM912
Power supply	AC adapter 100-240 V, 50/60 Hz (DC IN 9V/1A)
Rechargeable battery	Li-ion 7.4 V, battery life up to 3-4 h (standard charge)
Power consumption	< 10 W
Video output	1 Vp-p (75 Ω)
Audio output	1.2 Vrms (1 kHz, 0 dB)
Laser system	Semiconductor laser 650 nm
Signal system	NTSC / PAL
Frequency response	20 Hz - 20 kHz (±1 dB)
Signal-to-noise ratio	> 80 dB (analog output)
Dynamic range	> 85 dB (DVD/CD)
Supported audio formats	MP3, WMA
Supported video formats	MPEG2, MPEG4, DivX
Supported photo formats	JPEG, BMP
eBook formats	TXT
Main functions	DVD/CD playback, zoom, search, subtitles, angle, repeat, program, slideshow, parental control
Care and cleaning	Soft cloth slightly damp; do not use abrasive products
Safety	Do not expose to moisture, excessive heat or sunlight; do not open the casing (laser)
Warranty	2 years
Approximate dimensions	25 x 18 x 4 cm (estimate)
Approximate weight	1.2 kg (estimate)

Frequently Asked Questions - DLPM912 Sunstech

How to connect the Sunstech DLPM912 portable DVD player to a TV?

Use the supplied AV cable (yellow video output, white/red audio) and connect it to the corresponding inputs on your TV. Select the AV source on the TV.

What is the battery life and how to recharge it?

The Li-ion 7.4V battery provides approximately 3 to 4 hours of playback. Recharge it via the AC adapter (DC IN 9V/1A). Standard charge time is 3 to 4 hours.

Can I play DivX and MPEG4 files on this player?

Yes, the DLPM912 supports MPEG2, MPEG4 and DivX video formats. Make sure your files are encoded in these formats.

How to adjust subtitle and audio language?

During playback, press the SUBTITLE button repeatedly to change the subtitle language, and AUDIO for the audio language (if available on the disc).

The player does not start, what should I do?

Check that the AC adapter is properly connected and the battery is charged. Ensure the disc is clean and inserted correctly. If the problem persists, contact after-sales service.

How to use the parental control function?

Go to the SETUP menu, select RATING and enter the password (default 0000). Choose the desired limitation level (from 1 KID SAFE to 8 ADULT).

Can I connect a USB flash drive to this player?

Yes, the player has a USB port. Press SOURCE to switch between DVD and USB. Note that USB extension cables longer than 250 mm are not recommended.

What to do if the picture is distorted on my TV?

Check the TV TYPE setting in the setup menu. Choose 4:3 PS, 4:3 LB or 16:9 according to your TV. Also ensure the color system (NTSC/PAL) is correct.

How to clean the LCD screen?

Use a soft, dry cloth. If necessary, dampen it slightly with water. Never use abrasive products, alcohol or liquid cleaners.

The player automatically turns off after a few hours, is this normal?

Yes, by default the auto standby is activated after 3 hours. You can disable this function in the SETUP menu > STANDBY SETTING by choosing OFF.

USER MANUAL DLPM912 Sunstech

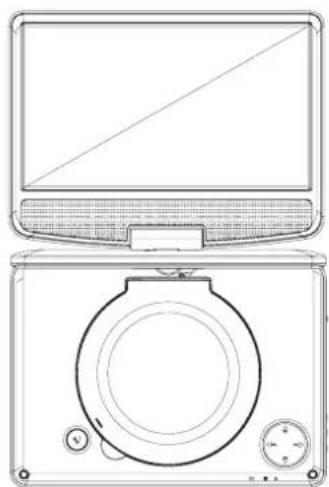

Line drawing of a laptop and its front view showing front panel, screen, and control buttons (no text or symbols)

USER'S MANUAL DLPM912

PORTABLE DVD

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely.

1. DO NOT place objects on top of the device, as objects may scratch the device.

2. DO NOT expose the device to dirty or dusty environments.

3. DO NOT place the device on an uneven or unstable surface.

4. DO NOT insert any foreign objects into the device.

5. DO NOT expose the device to strong magnetic or electrical field.

6. DO NOT expose the device to direct sunlight as it can damage the device. Keep it away from heat sources.

7. DO NOT store your device in temperatures higher than 40^ C(104°F). The internal operating temperature for this device is from 20^ C(68°F) to 60^ C(140°F).

8. DO NOT use the device in the rain.

9. Please check with your Local Authority or retailer for proper disposal of electronic products.

1. The device and adaptor may product some heat during normal operation of charging. To prevent discomfort or injury from heat exposure, DO NOT leave the device on your lap.

2. POWER INPUT RATING: Refer to the rating label on the device and be sure that the power adaptor complies with the rating. Only use accessories specified by the manufacturer.

1. Clean the device with a soft cloth. If needed, dampen the cloth slightly before cleaning. Never use abrasives or cleaning solutions.

2. Always power off the device to install or remove external devices that do not support hot-plug.

3. Disconnect the device from an electrical outlet and power off before cleaning the device.

4. DO NOT disassemble the device. Only a certified service technician should perform repair.

5. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

6. Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries according to the instruction.

1. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.

Important Safety Instructions

Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture.

Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.

Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves.

Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface.

Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury.

Never place heavy or sharp objects on the LCD panel or frame.

Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.

The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable.

Unplug the power from the outlet when the unit is not in use.

Attention should be drawn to the environmental aspects of battery disposal.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

WARNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable.

Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery)

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety Precautions

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: This digital video disc player employs a laser system. Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.

Warning: To prevent direct exposure to laser beam, do not open the enclosure. Visible laser radiation when open.

Warning: Never stare directly into the laser beam.

Caution: Do not install this product in a confined space such as a book case or similar unit.

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.

Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.

Warning: do not charging battery on the place of insufficient ventilation such as: mattress, sofa, cushion, soft mat.....

Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.

Warning: more than 250mm USB extension cord is prohibited to use for USB port

Notes on Copyrights:

It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission.

This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear. This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.

SERIAL NUMBER:

You can find the serial number on the back of the unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

Model No.

Serial No.

Date of Purchase

Identification of Controls

Main Unit

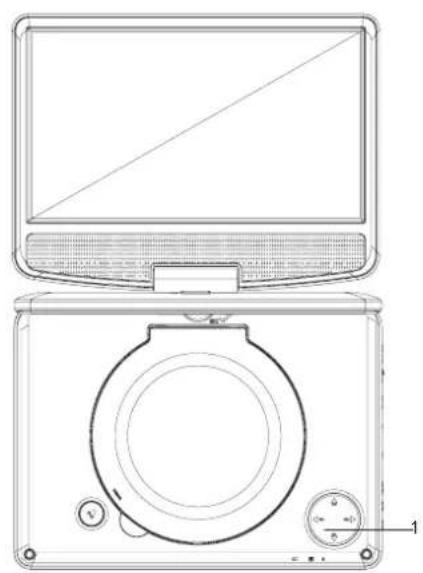

Line drawing of a vintage flat-screen monitor and its rear camera case (no text or symbols)

2 3 4 5 6 7 8 9

1. ▲/ Up / Prev

▼/▶▶|Down / Next

◄/VOL- Left/VOL-

▶/VOL+ Right/VOL+

Short press ▲/▼/◄/►is Up/Down/Left/Right;

Long press ▲/▼ is Prev/Next

Long press ◀/▶ is VOL-/VOL+

1. ▶ PLAY/PAUSE;RETURN

1. SETUP

2. SOURCE

3. USB

4. Earphone Socket

5. AV OUT

6. ON/OFF

7. DC IN 9-12V

Identification of Controls

Remote control unit

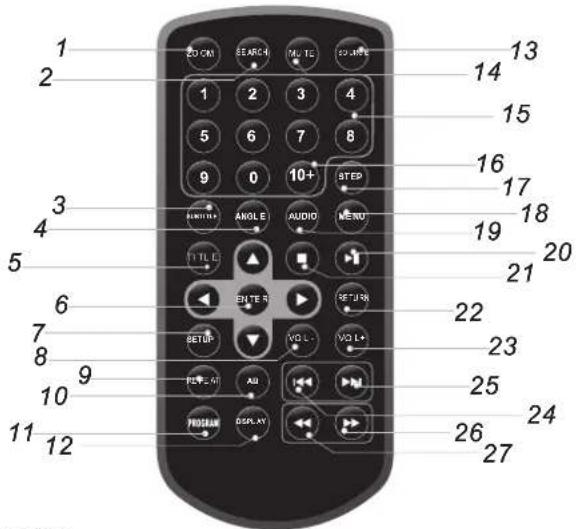

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. ZOOM

Each press of the ZOOM button changes the TV screen in the following sequence:2X size 3X size 4X size 1/2 1/3 1/4.

2. SEARCH

Go to time point, title or chapter you want in DVD Mode.

3. SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

4. ANGLE

Press ANGLE will change the view angle, on DVDs that support this feature.

5. TITLE

Return to DVD title menu.

6. ENTER

Confirms menu selection.

7. SETUP

Access or remove setup menu.

8. VOL -

Adjust VOLUME.

9. REPEAT

Press REPEAT during playback to select a desired repeat mode. DVD: you can play a chapter/title/all on a disc.

VCD CD: you can play a track/all on a disc.

MP3 WMA: you can select Repeat one/Repeat folder/ALL play mode on a disc.

10.A B

To repeat a segment: press AB once to set the starting point for repeat segment, press it again to set an end point, and the player will repeat the segment from the start to the end point.

11.PROGRAM

DVD VCD CD MP3: The program function enables you to store your favourite tracks from the disc. Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number or direction keys input the titles, chapters or tracks number and select PLAY option to resume normal playback, press PROGRAM and select CLEAR option on the program menu.

JPEG: You can press PROGRAM repeatedly to select the slide show mode, there are 6 types slide show.

12. DISPLAY

To display the playtime and status information.

Identification of Controls

Remote control unit

13. SOURCE

DVD/USB.

14. MUTE

Disable Audio output.

15.0-9 NUMBER BUTTON

Selects numbered items in a menu.

16.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button.

17.STEP

Press STEP once to pause playback, Form this station, press STEP to advance one video frame.

18. MENU

Accesses menu on a DVD disc, PBC on/off switch for VCD.

19. AUDIO

DVD: Press AUDIO repeatedly during playback to hear a different audio language or audio track, if available. VCD: Press AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

20. PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.

21. STOP

When this button is pressed once, the unit records the stopped point, from where playback will resume if ENTER is pressed after wards. But if STOP button is pressed again instead of ENTER button, there will be no resume function.

22. RETURN

Return to upper page.

23. VOL +

Adjust VOLUME.

24. Reverse Skip

Go to previous chapter/ track to the beginning.

25. Forward Skip

Go to next chapter/ track.

26. ➤ BUTTON

Press ▶▶BUTTON allows you to skip ahead at 4 level speed(X2->X4->X8->X20), press ENTER button return to normal playback.

27. BUTTON

Press ◀BUTTON allows you to skip ahead at 4 level speed(X2->X4->X8->X20), press ENTER button return to normal playback.

SETUP Menu Setting

IMPORTANT

The default unit is activated standby mode automatically after 3 hours. To change the parameters, enter SETUP / STANDBY SETTING / OFF.

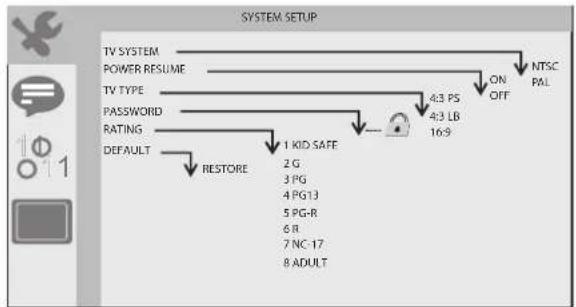

System Setup Page

Press SETUP button to get the setup menu. Use direction buttons

▲▼◀▶ to select the preferred item. After finishing settings, press SETUP again to normal display.

System Setup

TV System

Selecting the color system that corresponds to your TV when AV output. This DVD Player is compatible with both NTSC and PAL. PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format. NTSC - Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Power Resume

This function is used to turn the last memory on or off.

TV Type

Selects the aspect ratio of the playback picture.

4:3 PS: if you have a normal TV and want both sides of the

picture to be trimmed or formatted to fit your TV screen.

4:3 LB: if you have a normal TV. In this case, a wide picture with

black bands on the upper and lower portions of the TV screen will

be displayed.

16:9: wide screen display.

Password

Input user password. Default password is 0000.

Rating

After input correct password, you can change parental level.

Default

Restore the factory setting of setup menu.

Language Setup Page

Language setup

You can select OSD language, and select audio/subtitle/menu language of DVD discs if available. Also you can select font type for mpeg4 subtitle.

SETUP Menu Setting

Audio Setup Page

STANDBY SETTING AUTO STANDBY OFF 3 HOURS 4 HOURS

The function is use to select standby setting: OFF, 3 HOURS,
4 HOURS
OFF: No standby
3 HOURS: No remote control and panelkey operation within three hours into standby
4 HOURS: No remote control and panelkey operation within four hours into standby

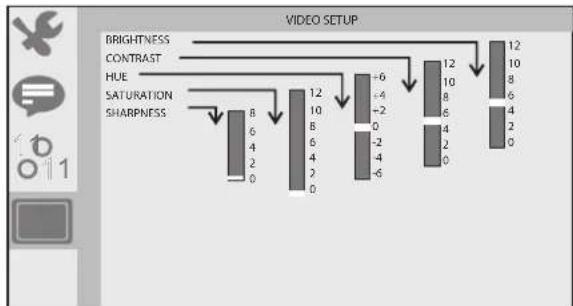

Video Setup Page

You can change the video setting: brightness, contrast, hue, saturation.

Parameters and specifications

Electronical parameters

Item		Standard requirement
Power requirements		:AC 100-240 V, 50/60 Hz for external Power Adaptor. DC IN 9V / 1A
Power consumption		:<10W
Operating humidity		:5 % to 90 %
Output	VIDEO OUT	:1 Vp-p(75 Ω)
	AUDIO OUT	:1.2 Vrms (1 KHz, 0 dB)

System

Laser	:Semiconductor laser, wavelength 650 nm
Signal system	:NTSC / PAL
Frequency response	:20Hz to 20 kHz(1dB)
Signal-to-noise ratio	:More than 80 dB (ANALOG OUT connectors only)
Dynamic range	:More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

Battery Parameters

Battery Specifications:

Output: 7.4V

Charge / Discharge Time:

Standard charge time: 3h \~ 4h

Storage and work circumstances:

1. Storage circumstances	Temperature	Humidity
6 months	-20°C ~ +45°C	65±20%
1 week	-20°C ~ +65°C	65±20%

2.Work circumstances	Temperature	Humidity
Standard charge	0°C ~ +45°C	65±20%
Standard discharge	-20°C ~ +65°C	65±20%

Formats supported

AUDIO: MP3 - WMA

PHOTO: JPEG - BMP

VIDEO: MPEG2 - MPEG4 - DIVX

EBOOK: TXT

Made in China

Warranty conditions

• The warranty of this product is for 2 years since the purchase date.
• The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.
• For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)

Your product is designed and manufactured with high quality materials components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

DECLARATIONOFCONFORMITY

CouncilDirective(s)towhichconformityisdeclared:

Directive(2009/125/EC)-ERP Directive(2004/108/EC)-EMC Directive(2006/95/EC)-LVD Directive(2011/65/EU)-RoHS

ApplicationoftheStandards:

EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011

EN55013:2001+A1:2003+A2:2006

EN61000-3-2:2006+A1:2009+A2:2009

EN61000-3-3:2008

EN55020:2007+A11:2011

AFEXSUNS,S.A.

C/Pallars189,08005Barcelona

Manufacturer'saddress:

PORTABLEDVDPLAYER

SUNSTECH

DLPM912

2、本次发行的种类和面值

We, the undersigned, hereby declare under our sole responsibility that the specified equipment is in conformity with the above Directive(s) and

Standard(s)

(Signature)

tor Planas

(Full name)

General Manager

(Position)

Place:Barcelona

Date:19-March-2015

sunstech ^12

Line drawing of a laptop and its front view with control knobs and a screen (no text or symbols)

MANUAL DEL USUARIO DLPM912

DVD PORTÁTIL

Technical line drawing of a laptop case with front panel and side panel (no text or symbols)

2 3 4 5 6 7 8 9

1. ▲/ |◀ Arriba / Prev

▼/▶▶ Abajo / Siguiente
-/VOL-Izq/VOL-
▶/VOL+ Dcha/VOL+

Observaciones:

Pulsar brevemente ▲ ▼ ▶ significa Arriba/Abajo/Izq/Dcha;

Directive(2009/125/EC)-ERP Directive(2004/108/EC)-EMC Directive(2006/95/EC)-LVD Directive(2011/65/EU)-RoHS

Line drawing of a laptop and its front view with control knobs and a screen (no text or symbols)

MANUEL D'UTILISATEUR DLPM912

DVD PORTABLE

Technical line drawing of a flat-screen computer monitor with front panel and control buttons (no text or symbols)

2 3 4 5 6 7 8 9

1. ▲/◀◀ Haut/Précédent

▼/▶▶ Bas / Suivant
-/VOL-Gauche/VOL-
▶/VOL+ Droit/VOL+

Remarque:

Pression courte ▲/▼/ ◀ Haut/Bas/Droite/Gauche
Pression longue ▲/▼ Précédent/Suivant
Pression longue ◀ ▶VOL+/VOL-
2. ▶ PLAY/PAUSE; RETURN
Pression courte PLAY/PAUSE
Pression longue RETURN
3..CONFIGURATION
4.SOURCE
5.USB:
6. ⚡Prise d'écouteurs
7.AV OUT
8.ON/OFF
9.CC IN 9-12V:

DÉCLARATIONDECONFORMITÉ

Directive(2009/125/EC)-ERP Directive(2004/108/EC)-EMC Directive(2006/95/EC)-LVD Directive(2011/65/EU)-RoHS

Applicationdesnormes:

EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011 EN55013:2001+A1:2003+A2:2006

EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008

EN55020:2007+A11:2011

AFEXSUNS,S.A.

C/Pallars189,08005Barcelona

PORTABLEDVDPLAYER

SUNSTECH

DLPM912

Nomdufabricant:

Adressedufabricant:

Typed'équipement:

MarqueCommerciale:

Modèlen°:

Line drawing of a laptop and its front view with control knobs and a screen (no text or symbols)

MANUAL DO UTILIZADOR DLPM912

DVD PORTÁTIL

Line drawing of a vintage camera with front and back views, showing screen, lens, and control buttons (no text or symbols)

2 3 4 5 6 7 8 9

1. ▲/ |◀ Para Cima / Anterior

Directive(2009/125/EC)-ERP Directive(2004/108/EC)-EMC Directive(2006/95/EC)-LVD Directive(2011/65/EU)-RoHS

AplicaçãodasNormas:

EN60065:2002+A1:2006+A11:2008+A2:2010+A12:2011 EN55013:2001+A1:2003+A2:2006

EN61000-3-2:2006+A1:2009+A2:2009

EN61000-3-3:2008

EN55020:2007+A11:2011

AFEXSUNS,S.A.

C/Pallars189,08005Barcelona,Espanha

PORTABLEDVDPLAYER

SUNSTECH

DLPM912

Nomedofabricante:
