Product type	Mixed gas and electric cooker
Brand	Bompani
Model	BO950EFL
Dimensions (H x W x D)	85 x 90 x 59 cm
Height with open lid	141 cm
Gas supply	Natural gas G20 (20 mbar) or butane/propane G30/G31 (28-30 mbar)
Electrical supply	220-240 V ~ 50/60 Hz
Total electrical power	Static oven 2.21 kW, fan oven 2.0 kW, multifunction oven 2.7 kW
Hob burners	4 burners: rapid, semi-rapid, auxiliary, triple crown
Oven	Electric multifunction with static, fan, grill and rotisserie modes
Grill	Gas or electric depending on configuration, with knob guard
Ignition	Integrated electric ignition for hob burners, oven and grill
Safety device	Thermocouple on all burners (automatic shut-off in case of flameout)
Anti-tilt chains	Yes, mandatory to attach to wall
Oven door	Removable for easy cleaning
Oven light	Yes, 15 W bulb
Timer	Mechanical with audible signal
Rotisserie	Yes, with motor and spit
Materials	Enamelled hob, glass lid, chrome/stainless steel finishes
Cleaning	Warm soapy water, no abrasive products or steam cleaner
Included accessories	Grid, drip tray, rotisserie, knob guard, safety chains

Frequently Asked Questions - BO950EFL BOMPANI

How to light a hob burner?

Press the knob and turn it counterclockwise to the maximum flame mark. Approach a match or use the built-in electric ignition. For safety burners, keep the knob pressed for 10 seconds after ignition.

What to do if a burner does not ignite with the electric ignition?

Check that the spark plug is clean and dry, that the electrode-burner distance is correct and that the wire is not damaged. If no spark occurs, do not insist and use a match. If the problem persists, contact after-sales service.

How to clean the burners and the hob?

Use warm soapy water and a soft cloth. For stubborn dirt on burners, a metal brush is acceptable. Avoid letting water enter the burner holes. Never use a steam cleaner or abrasive products.

Can I use a steam cleaner to clean the appliance?

No, the use of a steam cleaner is prohibited. This could damage electrical components and the safety of the appliance.

How to remove the oven door for cleaning?

Open the door fully, rotate the two levers from position 1 to 2, close slowly until the stop, then lift the door upwards. To reinstall, reverse the procedure.

What to do in case of gas smell?

Immediately close the gas tap and extinguish any flame. Do not operate electrical switches. Ventilate the room and contact a qualified technician. Do not search for a leak with a flame.

How to use the rotisserie?

Thread the meat onto the spit, secure it with the forks. Place the drip tray at the bottom, light the grill and start the motor. For cooking with the door open, use the knob guard; for closed door, the temperature must not exceed 200°C.

What types of gas can I use with this cooker?

The appliance can operate on natural gas (G20) or butane/propane (G30/G31). Consult the rating plate and the injector table to adapt your model. A gas change requires replacement of the injectors and adjustment of the air.

How to clean the oven door glass?

Use a soft cloth and soapy water. Do not use metal scrapers or abrasive products, as they could scratch the glass and weaken it.

What to do if the timer does not ring?

Check that the timer is correctly set by turning the knob clockwise. If the audible signal does not sound, the mechanism may be defective. Contact after-sales service.

USER MANUAL BO950EFL BOMPANI

GB Instructions for use and maintenance of gas, gas-electric and electric cookers. Series:

Operating Instructions COOKER

Contents

Warnings 8

Technical data and specifications 29

Installation 30 - 32

Using the safety chain 30

Ventilation 30

Positioning 30

Fitting the feet 30

Balancing the lid 30

Gas cylinder connection 30

Gas connection 30

Adapting to different types of gas 31

Replacing the injectors 31

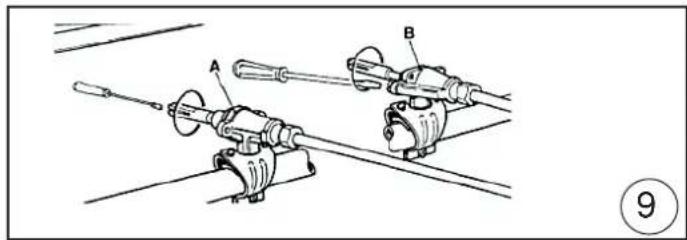

Regulating the air 31

Minimum setting 31

Electrical connection 31

Electric ignition 31

Safety device 32

For the user 32 - 35

Ventilation 32

Igniting the burners 32

Igniting the gas oven 32

Igniting the gas grill 32

Safety device 32

Electrical switch-on 32

Using the gas hob 33

Using the electric hot-plates 33

Using the gas oven 33

Using the gas or electric grill 33

Using the static electric oven 4 .... 33

Using the static electric oven 4 New 33

Using the multifunction electric oven with 4 cooking programs .... 33

Using the multifunction electric oven 34

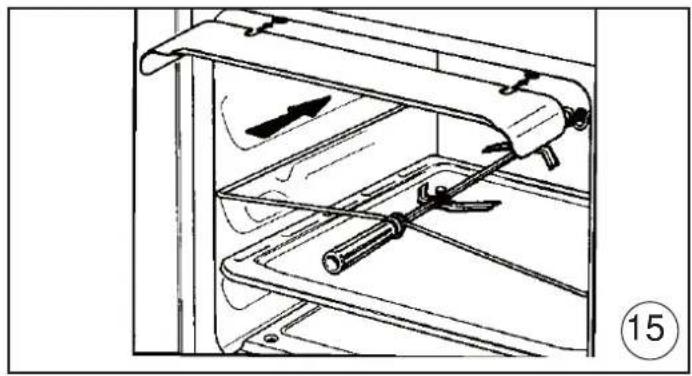

Using the rotisserie 34

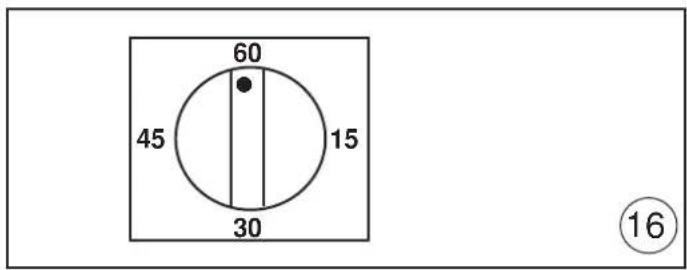

Using the minute minder 34

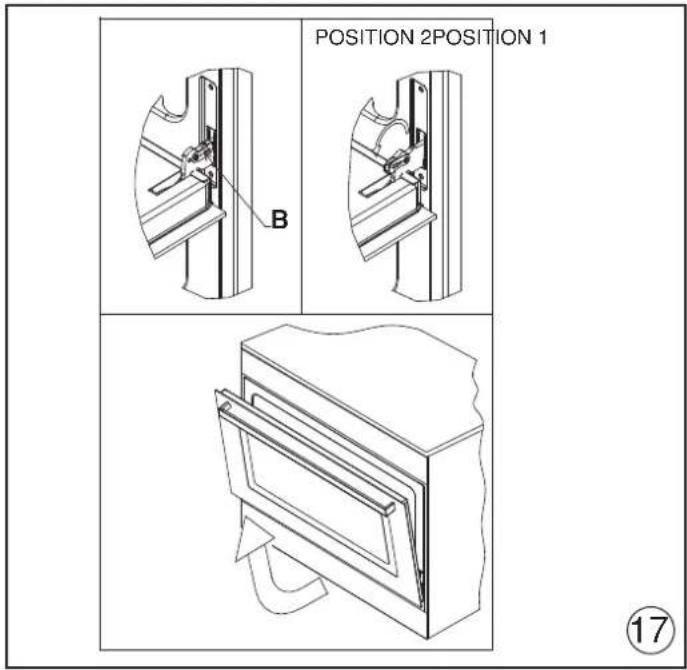

Removing the oven door....34

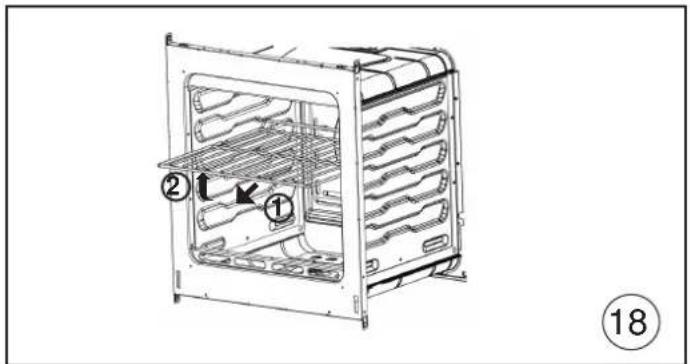

Using oven accessories 34

European Directive 2012/19/CEE (WEEE) .... 34

European Regulation 1935/2004 ...... 35

Figures 65 - 67

УСТАНОВКА

ПЛИТЫ

Содержание

ВНИМАНИЕ 9

Директива 2012/19/CEE (WEEE) ......36

ЕВРОПЕЙСКИЙ РЕГЛАМЕНТ № 1935/2004 ..... 36

ANAMMA TOY KAYΣTHPA ΦΟΥΡΝΟΥ 54

ANAMMA TOY KAYΣTHPA GRILL 54

ΦΟΥΡΝΟΣ " 4 New " 56

• The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• The internal surfaces of the compartment( where present) may become hot.
• Remove any liquid from the lid before opening it.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
• The appliance becomes very hot during use. Care should be taken not to touch the heating elements inside the oven.
• Accessible parts may be hot when the heating element is in use. Keep children well away.
• For direct connection to a power mains, a device that ensures disconnection from the mains must be installed, with a opening distance for the contacts that allows for a complete disconnection under conditions of category III electrical overload, in conformity with the installation instructions.
• Always disconnect the power supply before any work inside the oven or where live parts may be accessed.
• Never use the warming compartment for storing inflammable liquids or items which do not withstand heat, such as wood, paper, aerosol cans, matches, etc.
• Make frequent checks on the rubber connection hose, ensuring that it is well away from hot surfaces, that there are no sharp bends or kinks, and

that it is in good condition. The hose must be replaced at the latest at the indicated date and must be secured at both ends using a standard hose clamp.

- If taps become stiff to operate over time, contact the After-Sales service.

- Wash enamelled or chrome-plated parts with soapy lukewarm water or non-abrasive detergents. A metal brush may be used to remove deposits from hob burners and flame caps. Dry thoroughly.

- Never use abrasives to clean enamelled or chrome-plated parts.

- Do not use too much water when washing the hob. Take care that no water or other substances enter the burner housing holes, as this may be dangerous.

- The spark plugs for electric ignition must be kept clean and dry; always check after use, particularly if there have been drips or overflows from pans.

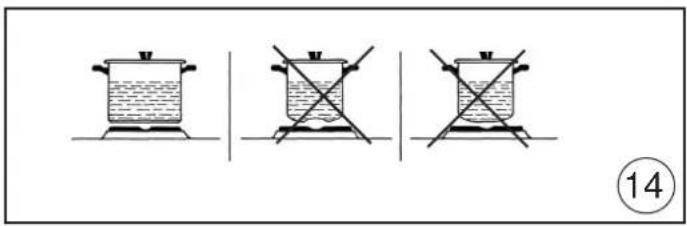

- Never close glass lids until the hob burners or hotplates have cooled completely; it might shatter or crack.

- Never knock enamelled parts or ignition spark plugs (where present).

- The main or wall gas tap should be turned off when the cooker is not in use.

- Never move the cooker by means of the handle.

- Do not clean the glass doors of the oven with rough, abrasive materials or sharp metal scrapers, since they may scratch the surface and cause the glass to shatter.

- Do not use vapor jets to clean the appliance.

- The cooker does not have an installation stand.

- The appliance is not intended to be controlled by an external timer or a separate remote control device.

- CAUTION: The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).

- CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

No liability is accepted for injury or damage caused by poor installation or improper use of the cooker.

In case of malfunctions, particularly gas leaks or short-circuits, contact your engineer without delay.

русский

ВНИМАНИЕ:

USO ACCESSORI DEL FORNO

RECOMMANDATIONS IMPORTANTES:

ALLUMAGE DU BRÛLEUR DU FOUR

Introduction Technical data and specifications

• Thank you for choosing one of our quality products, capable of giving you the very best service. To make full use of its performance features, read the parts of this manual which refer to your appliance carefully. The Manufacturer declines all responsibility for injury or damage caused by poor installation or improper use of the appliance.
• To ensure its appliances are always at the state of the art, and/or to allow constant improvement in quality, the manufacturer reserves the right to make modifications without notice, although without creating difficulties for users.
• When ordering spare parts, inform your dealer of the model number and serial number punched on your appliance's nameplate, visible inside the warming compartment or on the back of the cooker.
• Appliance complying with the following directives:
• EEC 2009/142/CE Gas (30/11/2009)
• 2006/95/EC Low Voltage (12/12/2006) and subsequent amendments)
• EEC 2004/108 (radio-frequency interference) 15/12/2004
• European Regulation 1935/2004 (materials in contact with food)
• European Regulation 1275/2008
• EEC 40/2002
• EEC 92/75
• 2012/19/EC (WEEE)
• 2005/32/CE ( Energy-using Products )

FOREWORD

- Refer only to the headings and sections covering accessories actually installed on your cooker.

Useful information concerning the energy consumption of electric ovens.

This information completes and expands on the figures provided on the technical data sticker supplied with the instruction manual.

	Oven96 PBStatic	Oven96 PBFan	Oven96 PBMultifunc. 4	Oven96 PBMultifunc.
EU environmental quality mark.	No	No	No	No
Time required to cook a normal load in conventional mode in minutes.	53,4	...	53,7	53,7
Time required to cook a normal load in fan mode in minutes.	...	55,8	51,6	55,8
Power consumption in stand-by setting in Watts.	...	...	...	...
Usable area of the dripping pan in cm^2	1156	1156	1156	1156

Nominal external dimensions	Cookers 96 PB
Height at hob	cm 85,0
Height with lid raised	cm 141,0
Depth with door closed	cm 59,0
Depth with door open	cm 100,0
Width	cm 90,0

Usable dimensions Oven Electric			oven
Width	cm	39,5	cm	39,5
Depth	cm	42,0	cm	40,0
Height	cm	31,5	cm	31,5
Volume	l.	52,0	l.	50,0

ELECTRIC HOTPLATES

ø 145 1,0 kW - Normal hotplate

∅ 180 1,5 kW - Normal hotplate

HEATING ELEMENT POWERS

bottom element 1,1 kW

top-bottom element 1,1 - 1,5 kW

oven circular element 2,0 kW

grill 2,0 kW

fan 25 W

oven light 15 W

Cat.: see nameplate on cover; Class 1 or 2.1

Type "X" cookers

EQUIPMENT

All models are equipped with safety device for oven and grill burners.

Depending on the models, cooker may also have:

• Safety device for one or more hob burners
• Electric ignition on top burners
• Electric ignition on oven and grill burners
• Oven thermostat (or tap)
• Electric oven lighting
• Rotisserie
• Grill burner
• Mechanical timer
• One or more electric hotplates

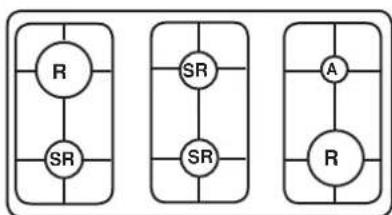

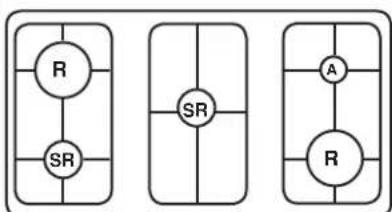

For the LAYOUT OF HOB BURNERS see the models illustrated in figure 1 at the back of this manual.

For the ELECTRIC WIRING DIAGRAM see figure 2 at the back of this manual.

The electrical power is stated on the nameplate visible inside the warming compartment (if present) or on the back of the cooker.

A copy of the nameplate is glued to the cover of this manual (for gas or gas-electric products only).

GB

Installation

Table 1 Liquid gas G30-G31 Natural gas G20

Burner	Diameter (mm)	Thermal power kw(p.c.s.*)		By-pass 1/100 (mm)	Nozzle 1/100 (mm)	Flow * g/h		Nozzle 1/100 (mm)	Flow l/h
		Nomin.	Ridot.			***	**
Rapid (Big)R	110	2.80	0.80	45	83	204	200	123	267
Semi Fast (Medium) S	86	1.65	0.58	35	65	120	118	97	157
Auxiliary (Small) A	66	1.00	0.40	32	50	73	71	77	95
Triple Ring (TC) Economic	145	4.00	1.50	70	98	291	286	145	381
Oven (Thermostat)	-	3.00	1.00	47	86	218	214	130	286
Oven (Tap)	-	3.00	1.30	52	86	218	214	130	286
Grill	-	2.00	-	-	70	145	143	110	191
Supply pressures	Nominal (mbar)Minimum (mbar)Maximum (mbar)					28-302035		201725

* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50,37 MJ/Kg G 31
*** Butane P.C.S. = 49,47 MJ/Kg G 30
Natural P.C.S. = 37,78 MJ/m ^3 G 20
City P.C.S. = 15,87 MJ/m³ G 110

INSTALLATION

The appliance must be installed by qualified staff working in accordance with the regulations in force. Before installing, ensure that the appliance is correctly preset for the local distribution conditions (gas type and pressure). The presettings of this appliance are indicated on the nameplate shown on the cover. This appliance is not connected to a flue gas extractor device. It must be installed and connected in accordance with the regulations in force. This appliance may only be installed and may only operate in rooms permanently ventilated in accordance with national regulations in force.

SAFETY CHAIN

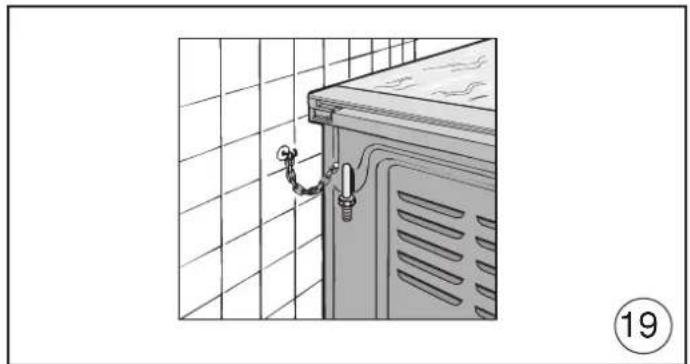

! In order to prevent the appliance from overturning accidentally, for example in case of a children climbing onto the oven door, the safety chains MUST be installed!

The cooker is provided with safety chains that must be fixed with a screw (not supplied as accessory) on the wall behind the appliance, at the same height as the fixing point on the appliance.

Make sure that the chains are fixed in the back of the cooker, as shown in the fig. 19, in such way to be tight and parallel to the floor.

! When the installation process is complete, the chains must be kept in tension!

VENTILATION

The rooms in which gas appliances are installed must be well ventilated in order to allow correct gas combustion and ventilation. The air flow necessary for combustion is at least 2 m ^3 /h for each kW of rated power.

POSITIONING

Remove the packaging accessories, including the films covering the chrome-plated and stainless steel parts, from the cooker.

Position the cooker in a dry, convenient and draft-free place. Keep at an appropriate distance from walls which may be damaged by heat (wood, linoleum, paper, etc.).

The cooker may be free-standing (class 1) or between two units (in class 2 st 2-1) the sides of which must withstand a temperature of 100^ and which must not be higher than the working table.

FITTING THE FEET (LEVELLING)

Cookers are equipped with adjustable feet to be screwed into their front and rear corners respectively. The feet allow the height of the appliance to be adjusted, in order to set it flush with the adjoining unit, to level it with other worktops and to ensure even distribution of the liquids in pans. See fig. 3.

BALANCING THE LID (present only in a few models)

Models equipped with plate glass lids are fitted with special balanced springs. These are fitted into the hinge to provide smooth, gentle lid closure.

GAS CYLINDER CONNECTION

Make the connection to the butane-propane cylinder using an approved hose from 75 to 80 cm long, following the route shown in figure 4.

The hose must not touch the side near the oven. The maximum gas cylinder size is diameter 31 cm and height 60 cm, with capacity from 10 to 13 kg.

CONNECTING TO THE GAS SUPPLY

Before connecting the cooker, check that it is preset for the gas to be used. Otherwise, make the conversion as described in the section headed "Adapting to different gas types". The connection is on the right; if the pipe has to pass behind the cooker, it must be kept low down where the temperature is about 50 degrees C.

- Rigid connection (see Figure 5, diagram D):

The connection to the mains gas supply may be made using a rigid metal pipe (D). Remove the hose connector and screw the rigid union onto the threaded connection of the gas train. The union for rigid connection is amongst the cooker accessories.

- Connection using a rubber hose (see Figure 5, diagrams B and C):

Connect a rubber hose carrying the conformity mark currently in force to the hose connector. The hose must be replaced at the date indicated, and must be secured at both ends using standard hose clamps. It must be absolutely accessible to allow its condition to be checked along its entire length.

GB

Installation

• Connection using a metal hose (see Figure 5, diagram D): Make the connection using a hose which complies with national standards, screwing it onto the connector with a ring seal, which is delivered amongst the cooker accessories.
• After installation, check that all connections are airtight.
• For operation with butane/propane, check that the gas pressure is as indicated on the nameplate.

IMPORTANT:

• Use only standard rubber hoses. For LPG, use a hose which complies with the national regulations in force.
• Avoid sharp bends in the pipe and keep it well away from hot surfaces.

References to the regulations covering the gas connection to the appliance: ISO 7-1.

ADAPTING TO DIFFERENT TYPES OF GAS

If the cooker is not already preset to operate with the type of gas available, it must be converted. Proceed as follows:

- Replace the injectors (see table on page 30);

- regulate the primary air flow;

- regulate the minimum settings.

N.B.: every time you change the type of gas, indicate the new type of gas on the serial number label.

REPLACING The hOB BURNER INJECTORS (Fig. 6)

• Remove the grid, the burner caps (A), and the burners (B);
• Unscrew and remove the injector in the bottom of each injector holder (C);
• replace the injector in accordance with the table in page 30 using a 7 mm socket wrench, tighten and screw right down;
• check that the system is gas-tight;
• replace the burners, the burner caps and the grid.

IMPORTANT

• Never over-tighten the injectors;
• after replacing, check that all the injectors are airtight.

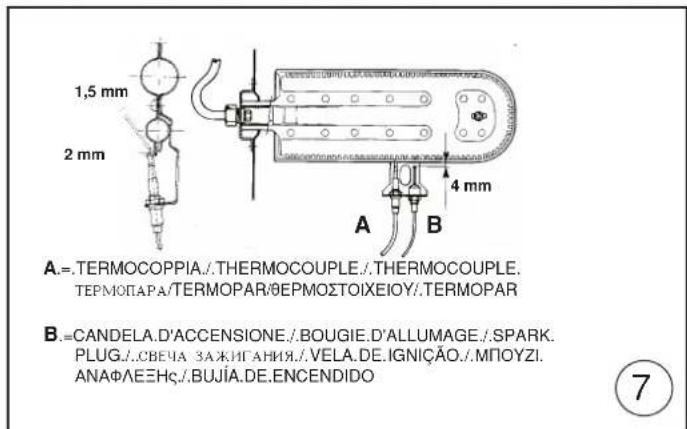

REPLACING The OVEN BURNER INJECTOR (Fig. 7)

• Loosen the screw which secures the bottom of the oven;
• remove the oven bottom (pulling it forward);
• remove the oven burner, after taking out the screw which secures it;
• replace the injector using a 7 mm socket wrench.

REPLACING The GRILL BURNER INJECTOR (Fig. 8)

• Remove the burner after taking out the two screws which secure it;
• replace the injector using a 7 mm socket wrench.

IMPORTANT:

• Never over-tighten the injectors;
• after replacing, check that all the injectors are airtight.

REGULATING The BURNER AIR

Refer to the table below (indicative values) for regulation of the gap H in mm (fig. 8 for the grill).

Burner G20 20mbar G3028-30mbar
		G31 37mbar
Oven	-	-
Grill	4	8

Check operation of the burner:

• Ignite the burner at maximum flame;
• the tongue of the flame must be clear and with no yellow tip, and must adhere closely to the burner. If too much air is supplied, the flame detaches from the burner and may be dangerous. If the air supply is insufficient, the flame has a yellow tip and soot may form.

SETTING hOB BURNER MINIMUM LEVELS

If the cooker is to work on bottled gas (butane/propane), the tap by-pass must be screwed right down. The cooker may be equipped with type A taps, with by-pass inside (accessed by inserting a small screwdriver into the rod) or type B taps, with by-pass on the outside on the right (accessed directly). See figure 9.

If the cooker is to work on natural gas, proceed as follows for both types of tap:

• Ignite the burner at maximum flame;
• pull off the knob, without using a lever against the control panel, which might be damaged;
• access the by-pass with a small screwdriver and back off by about 3 turns (turning the screwdriver anti-clockwise);
• turn the tap rod anti-clockwise again until it stops: the burner will be at maximum flame;
• screw the by-pass slowly back in, without pushing the screw-driver, until the flame has apparently shrunk to 1/4 of the maximum size, checking that it is sufficiently stable even in quite strong draughts.

SETTING OVEN BURNER MINIMUM LEVELS

If the cooker is to work on bottled gas (butane/propane), the thermostat by-pass must be screwed right down.

If the cooker is to work on natural gas, proceed as follows:

• Remove the oven bottom (loosen the screw to remove the bottom);
• ignite the oven burner, turning the knob pointer to the maximum setting;

- shut the oven door;

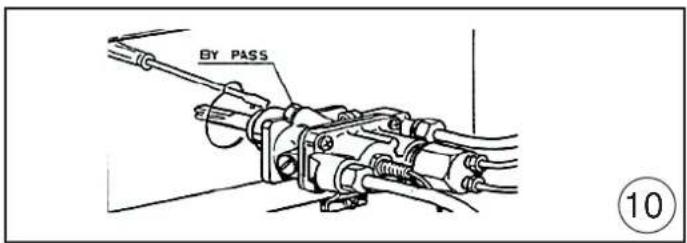

- access the thermostat or tap by-pass (see fig. 10);

- back off the thermostat by-pass by about 3 turns;

- after 5 or 6 minutes, turn the knob pointer to the minimum setting;

- slowly re-tighten the by-pass, watching the flame decrease in size through the window in the closed oven door until the tongue of the flame is about 4 mm long. Never keep the flame too low. It must be stable even when the oven door is opened or closed quickly;

- turn off the burner and replace the oven bottom.

CONNECTING TO The ELECTRICAL MAINS

Before making the connection, check that:

- the mains voltage is as indicated on the nameplate;

- the earth connection is in good working order.

If the appliance power lead is not fitted with a plug, use an approved standard type, remembering that:

• the green-yellow wire must be used for the earth connection;
• the blue wire is the neutral;
• the brown wire is live;
• the lead must never touch hot surfaces over about 75 degrees C;
• replacement leads must be of type H05VV-F of suitable size (see diagrams in fig. 2).
• if the appliance is supplied without lead, using type H05VV-F cable of suitable size (see diagrams in fig. 2).

The plug must be easily accessible after the appliance is installed IMPORTANT: the manufacturer declines all liability for damage due to failure to comply with the regulations and standards in force.

Check that the appliance is correctly connected to the earth (see diagrams in fig. 2 at the back of the manual).

FOR COOKERS WITH ELECTRIC IGNITION

If no spark is generated, do not keep on trying as this might damage the generator.

Possible causes of malfunctions:

• spark plug damp, dirty or broken;
• electrode-burner gap not correct;
• spark plug wire broken or without sheathing;
• spark discharging to earth (to other parts of the cooker);
• generator or microswitch damaged;
• air has built up in the pipes (particularly if the cooker has been out of use for a long time);
• air-gas mixture incorrect (poor fuel setting).

THE SAFETY DEVICE

To check that the valve is working properly, proceed as follows:

• ignite the burner and leave it to work for about 3 minutes;
• turn off the burner by returning the knob to off position (●);
• after 90 seconds for hob burners, 60 seconds for oven and grill burners, turn the knob pointer to the "on" position;
• release the knob in this position and move a burning match towards the burner; IT MUST NOT IGNITE.

Time needed to excite the magnet during ignition: 10 seconds approx.

Automatic tripping time, after flame has been turned off: not more than 90 seconds for hob burners; not more than 60 seconds for oven and grill burners.

IMPORTANT:

• Before doing any work inside the cooker, disconnect the mains plug and shut the gas tap.
• Never use matches to check the gas circuit for leaks. If a specific control device is not available, foam or very soapy water can be used.
• When re-closing the hob, check that the electrical wires of the spark plugs (if present) are not close to the injectors, so that they cannot run across them.

HOW TO USE THE COOKER

VENTILATION

All gas cooking appliances produce heat and moisture in the rooms where they are installed. Take care to ensure that the kitchen is well ventilated; keep the ventilation openings unobstructed or install an extractor hood with fan.

In case of intensive or prolonged use, additional ventilation may be required; open a window, or increase the extractor fan power.

IGNITING THE HOB BURNERS

• Press the knob and turn it anti-clockwise until it reaches the symbol on the control panel (maximum flame position);
• at the same time, move a burning match towards the burner head;
• to reduce the flame, turn the knob further in the same direction until its pointer is against the symbol (minimum flame position).

FOR HOB BURNERS EQUIPPED WITH SAFETY DEVICE

• Press the knob and turn it anti-clockwise until it reaches the symbol on the control panel (maximum flame position);
• move a burning match towards the burner, keeping the knob pressed right dow for about 10 seconds;
• then release the knob and check that the burner remains on. Otherwise, repeat the operation.

IGNITING THE OVEN BURNER

• Open the oven door;
• press the knob and turn it anti-clockwise to the maximum flame position;
• move a burning match towards the hole in the centre of the oven bottom and press the knob right down (see fig. 11);
• check that the burner has ignited, looking through the hole in the centre of the bottom, keeping the knob pressed all the time;
• after about 10 seconds, release the knob and check that the burner remains on. Otherwise, repeat the operation.

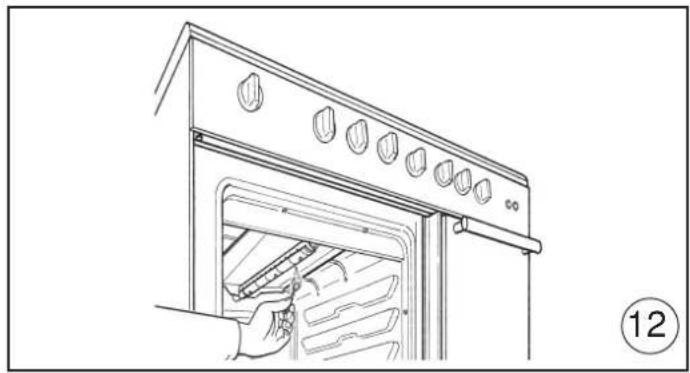

IGNITING THE GRILL BURNER (GAS GRILLS)

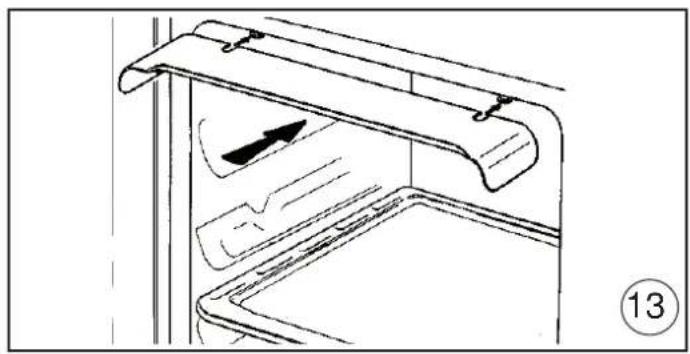

• fit the knob guard (see fig. 13);
• press the oven knob and turn it to the right until it reaches the stop;
• move a burning match towards the perforated burner pipe and press the knob right down (see fig. 10);
• check that the burner has ignited, keeping the knob pressed down;
• after about 10 seconds, release the knob and check that the burner remains on. Otherwise, repeat the operation.

SAFETY DEVICE

Burners equipped with this device have the advantage that they are protected if they accidentally go out. If this occurs, the supply of gas to the burner concerned is automatically cut off, preventing the hazards deriving from a leak of unburnt gas. The gas supply must be cut off within no more than 60 seconds for the oven and grill burners or 90 seconds for the hob burners.

FOR COOKERS WITH ELECTRIC IGNITION

All the above applies, except that the match is no longer required; a spark is obtained by pressing the button on the control panel once or more, or by pressing the knob of the burner to be ignited. If electronic ignition is difficult with some types of gas, set the knob on the low (small flame) setting.

• For cookers with electric ignition of the oven and grill burners, ensure the oven door is completely open when these burners are ignited;
• Do not operate the ignition device for more than 10 seconds when igniting the oven and grill burners. If the burner has not lit after these 10 seconds, stop using the device, leave the door open and wait one minute before trying again to ignite the burner. If the ignition device malfunctions again, light the burner with a match

GB For the user

and call the after-sales service.

IMPORTANT:

• Difficulty in igniting burners is normal if the cooker has been out of use for some time. The air accumulated in the pipes will be expelled in a few seconds;
• Never allow too much unburnt gas to flow from the burners. If ignition is not achieved within a relatively short time, repeat the procedure after returning the knob to the off position (●);
• when the oven and grill are lit for the first time, a smell may be noticed and smoke may come out of the oven. This is because of the surface treatment and oily residues on the burners.

HOW TO USE THE HOB BURNERS

Use pans of diameter suitable for the burner type. The flames must not project beyond the base of the pan. Recommended sizes:

• for auxiliary burners = pans of at least 8 cm
• for semi-rapid burners = pans of at least 14 cm
• for rapid burners = pans of at least 22 cm.

N.B.: Never keep the knob at settings between the maximum flame

symbol 🔍 and the off position (●).

FOR COOKERS EQUIPPED WITH ELECTRIC HOTPLATES

The different heat settings are obtained as follows:

- 1 = minimum setting for all hotplates;

- 6 = maximum setting for normal and rapid hotplates (with red disc); - 0 = off.

Pans must never be smaller in diameter than the hotplates and their bottoms must be as flat as possible (see fig. 14).

IMPORTANT:

• Never leave hotplates on without pans, except when first used; leave for about 10 minutes to dry oil or moisture residues;
• if the hotplate is to be out of use for a long time, apply a little grease to its painted surface;
• do not allow spills to burn onto the hotplate, requiring the use of abrasive cleaners.

• After igniting the burner, leave the oven to heat up for about 10 minutes;
• place the food for cooking in an ordinary oven dish and place it on the chrome-plated shelf;
• place the food in the oven, using the shelf on the third pair of runners whenever possible, and turn the knob pointer to the desired setting;
• cooking can be observed through the window in the door with the oven light on. This will avoid opening and closing the door frequently, unless oil or fat has to be added to the dish.

N.B.: For cookers without thermostat:

• with the knob on the maximum setting ⬆ = 270 degrees C
• with the knob on the minimum setting ♦ = 150 degrees C
• All other temperatures between 150 and 270 degrees C are obtained approximately by positioning the knob between the maximum and minimum settings.

Never leave the knob in positions between the maximum symbol

and the off setting (●).

• fit the knob guard (see fig. 13);
• light the burner and wait a few minutes to give the burner time to warm up;
• place the foods on the chrome-plated shelf;
• insert on the highest runner;
• insert the drip tray on the bottom runner;
• gently close the oven door, resting it against the knob guard;
• after a few minutes, turn the food to expose the other side to the infrared radiation (the cooking time depends on the type of food and personal taste).

The table below "Food to be grilled" will serve as a guide.

N.B.: the first time the grill is used smoke will come out of the oven. Before inserting foods for cooking, wait until any oil residues on the burner have completely burnt away.

he grill must only be used at its full rated heat.

IMPORTANT: accessible parts may be hot when the grill is in use! Keep children well away.

Food to be grilled	Time minutes
	1st side	2nd side
Thin pieces of meat	6	4
Fairly thick pieces of meat	8	5
Thin fish or fish without scale	10	8
Fairly thick fish	15	12
Sausages	12	10
Toasted sandwiches	5	2
Small poultry	20	15

HOW TO USE THE ELECTRIC GRILL WITH GAS OVEN

• ignite the grill heating element;
• place the foods on the chrome-plated shelf;
• insert on the highest runner;
• insert the drip tray on the bottom runner;
• gently close the oven door;
• after a few minutes, turn the food to expose the other side to the infrared radiation (the cooking time depends on the type of food and personal taste).

To see table "Food to be grilled"

The grill element in the top of the oven is switched on by turning the thermostat knob clockwise to the grill symbol on the control panel. The red light will come on to show the element is in operation.

STATIC ELECTRIC OVEN 4

With different heating elements controlled using a selector switch and regulated by a thermostat, starting from the 0 (off) position, as the knob is turned clockwise the settings available are:

• symbol ⚙:the oven light is switched on (it will always remain on even when the knob pointer is turned to the other settings).
• symbol ☑: grill (in top of oven) is switched on.
• symbol 📊: roaster switches on with grill on.
• symbol ☐:oven top and bottom elements switch on (conventional cooking function).

N.B. - The yellow light switches on and off as the thermostat is tripped.

Before placing food for cooking inside, allow the oven to heat up for at least 10 minutes.

STATIC ELECTRIC OVEN "4 New "

With different heating elements controlled using a selector switch and regulated by a thermostat, starting from the 0 (off) position, the knob can be turned clockwise to the following settings:

• symbol 📋:oven lamp on (it will remain on even if the knob pointer is turned to the other settings).
• symbol Ⓞ:slow cooking using the bottom element; the oven temperature is regulated using the thermostat knob.
• symbol ☐: conventional "static" oven cooking, the oven temperature is controlled using the thermostat knob.
• symbol ☐:grill on.

N.B. - The yellow light switches on and off as the thermostat is tripped.

Before placing food inside, allow the oven to heat up for at least 10 minutes.

MULTIFUNCTIONS ELECTRIC OVEN 4 POSITIONS

With different heating elements controlled using a selector switch and regulated by a thermostat, starting from the 0 (off) position, the knob can be turned clockwise to the following settings:

- symbol ⚙️ : oven lamp on (it will remain on even if the knob pointer is turned to the other settings).

- symbol :conventional "static" oven cooking, the oven tem-

GB

For the user

perature is controlled using the thermostat knob.

- symbol: Cooking with fan oven, on one or two levels, the oven temperature is controlled using the thermostat knob.

- symbol : grill on;

N.B. - The yellow light switches on and off as the thermostat is tripped. Before placing food inside, allow the oven to heat up for at least 10 minutes.

MULTI-FUNCTION ELECTRIC OVEN

With different heating elements controlled using a selector switch and regulated by a thermostat, this oven offers various cooking methods.

There are three principle sources of heat:

a) Forced heat diffusion (fan oven).

b) Spontaneous heat diffusion (static oven).

c) Infra-red rays (grill).

Starting from the 0 (off) position and turning the selector knob clockwise, the following settings are obtained:

- symbol ⓐ:oven light and red light on, fan running.

- symbol :conventional oven cooking without fan, the oven temperature is regulated by means of the thermostat knob.

- symbol ☒: fan oven cooking on one or two levels, the oven temperature is regulated by means of the thermostat knob.

- symbol 📄: fan oven cooking on one or two levels, the oven temperature is regulated by means of the thermostat knob.

- symbol ∪: grill (in top of oven) on, the thermostat knob must be on the maximum temperature setting.

- symbol ☐: grill (in top of oven) on, the thermostat knob must be on the maximum temperature setting. The roaster is in operation.

- symbol 📊:fan oven cooking and grill (in top of oven) on, the oven temperature is regulated by means of the thermostat knob. The roaster is in operation.

In all positions except zero (0) the red warning light and the oven light are on.

NOTE: The yellow warning light comes on according to thermostat variations. Before putting food in to be cooked, the oven should be pre-heated for at least 10 minutes.

HOW TO USE THE ELECTRIC GRILL WITH ELECTRIC OVEN

- For models with “Electric Oven” only, controlled by two knobs separately (selector-thermostat), grilling is permitted with the door closed, without using the front side. Temperatures above 200^ C. must not be used when grilling with the door closed.

HOW TO USE THE ROTISSERIE

a) Grilling with the door open.

- fit the control knob guard as shown in fig.15.

- ignite the grill burner, or switch on the grill element;

- impale the meat for cooking on the spit and fix it in the centre of the two forks;

- insert the end of the spit into the motor drive socket;

- remove the handle from the spit;

- place the drip tray on the bottom runner of the oven;

- gently close the oven door, resting it against the knob guard;

- start the rotisserie motor by pressing the switch on the symbol.

- baste the meat from time to time. When cooked, screw the handle onto the spit and remove from the motor drive socket.

b) Grilling with the door closed.

- as above without using the knob protection as shown in fig.15

CAUTION: The spit forks may have sharp points. Handle with care.

HOW TO USE THE MINUTE MINDER (Fig. 16)

Set the cooking time considered necessary by turning the timer knob clockwise. An alarm will sound at the end of the preset time.

REMOVING THE OVEN DOOR

The door can be removed to clean the oven in an easier way following this instructions:

1) Open the door completely.
2) Turn the two levers "B" bringing them from position 1 to position 2 (see fig.17).
3) Close the door slowly to a stop, grab it with both hands from side to side, close it further and pull it by lifting it upwards.
4) To replace the door you must follow the procedure in reverse order, insert the two hinges in their seats and open the door completely.
5) Turn the two levers "B" bringing them back in position 1.
6) Close the door normally.

HOW TO USE OVEN ACCESSORIES

• The oven shelf is designed to take normal oven dishes for cooking sweets or roasts, or is used without a pan for cooking foods under the grill.
• The drip pan under the grill is used to collect juices, which drip from the food that is cooked directly on the grill. The drip pan can also be used for cooking
• Remember that cooking times may vary if food is cooked on two shelves at the same time.
• The oven is provided with a stop system to extract the racks and prevent them from coming out of the oven (1). As shown in the drawing, to extract them completely, simply lift the racks, holding them on the front part, and pull (2), see fig.18

EUROPEAN DIRECTIVE 2012/19/EEC (WEEE): INFORMATION FOR THE CONSUMER

Fig. A

This information is strictly addressed to those who have a product showing the symbol below (Fig.A). This symbol is indicated on the technical data sticker (rating label) placed on the product itself. This symbol indicates that the appliance is considered as Waste Electrical and Electronic Equipment and complies with the European directive 2012/19/EEC (WEEE).

Therefore this product is not to be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment or it can be handed back to the retailer when you want to purchase a new equivalent product.

The consumer is responsible for a correct disposal of the product towards an appropriate collection point.

Otherwise the consumer can be exposed to a penalty sanction by laws in force for waste disposal.

Appropriate separate waste collection followed by recycling the product, the treatment and compatible environmental disposal contributes to avoid negative effects towards the environment and health and helps to recycle material which the product is composed of. For more detailed information regarding the available waste collection systems of this product please contact your local city office or contact the retailer where the product was purchased.

The manufacturers and importers will obey to their responsibility for recycling, treatment and compatible environmental disposal by participating directly and through a joint cooperative system.

EUROPEAN REGULATION N° 1935/2004 – MATERIALS IN CONTACT WITH FOOD. NOTICE TO USERS.

The symbol shown here, which appears on the packaging, indicates that the materials in this product which may come into contact with food are compliant with the requirements of European Regulation No 1935/2004.

Inside the oven chamber, food might come into contact with oven shelves, dripping pans, pastry trays, oven door glazing, rubber gaskets, rotisserie spits, and the sides of the oven itself.

On the hob, contact is possible with pan stands, burners and the hob skin.

In the food-warmer, contact may occur with the sides of the compartment.

RU

Вступление

ANAMMA TOY KAYΣTHPA ΦΟΥΡΝΟΥ

A = AUSILIARIO

Line drawing of a hand using a tool to test a flame on an induction cooktop (no text or symbols)

Technical line drawing of a mechanical component with internal flow arrows (no text or symbols)

Technical line drawing of mechanical components labeled A and B, showing assembly or assembly steps (no text or symbols beyond labels)

Line drawing of an oven with a hand inserting a tool into the door (no text or symbols)

Figure/Figures/Figures/Рисунки/Figuras/Eικόνες/Figuras

Technical line drawing of a mechanical device with clamps and a handle, no visible text or symbols

Diagram of a cabinet or enclosure with attached metal chains and a numbered circle marker (19), no text or symbols present.
