USER MANUAL HFZ136AA HAIER
Under Counter Freezer
CE
USER'S INSTRUCTIONS
Thank you for buying this under counter freezer. To ensure that you get the best results from your new freezer, please take time to read through these simple instructions in this booklet.
Please ensure that the packaging material is disposed of in accordance with the current environmental requirements.
If the appliance is visibly damaged, do not connect it to the power supply; contact the store from where you purchased the appliance.
ELECTRICAL CONNECTION (UK ONLY)
For your safety, please read the following information.
Warning: This appliance must be earthed.
The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three-pin socket, suitably earthed, and should be protected by a 13 amp fuse in the plug.
The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
If the mains plug is unsuitable for the socket outlet in your home or is removed for any other reason, then the cut-off plug should be disposed of safely. Do not insert the cut-off plug into a mains outlet to prevent the hazard of electric shock. Remove the fuse before disposal.
There is a danger of electric shock if the cut-off plug is inserted into any 13-amp socket outlet.
How to wire a 13 amp plug:
Important
The wires in the mains lead on this appliance are colored in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown – Live
As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.
The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol or colored green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the mains cord is firmly secured under the cord clamp.
Warnings:
Keep ventilation openings, in the appliance enclosure or in the built in structure, clear of obstructions.
Do not use mechanical devices or other means to accelerate the defrost process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
THANK YOU FOR PURCHASING THIS HAIER PRODUCT
This booklet contains the information you will require to install and operate your new appliance.
It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.
Please keep this booklet in a safe place so that you can refer to it when required.
This information is provided in the interest of your safety. Please read the following carefully before carrying out the installation or use of the appliance.
If you are discarding an old freezer or refrigerator with a lock / catch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of young children when playing.
As old refrigeration equipment may contain CFC's which will damage the ozone layer, when disposing of any refrigeration equipment please contact your local waste disposal department for advice on the correct method of disposal
This appliance must only be used for its intended purpose i.e. the freezing and storage of domestic edible foodstuffs and should not be used for any other purpose
If the mains cable becomes damaged, it must be replaced by the manufacturer, its
service agent or a similarly qualified person to avoid a hazard.
Installation
Position the appliance and allow to stand for two to three hours before it is turned on for the first time to allow the system to settle. Do not position next to any heat source e.g. cooker, boiler or in direct sunlight etc.

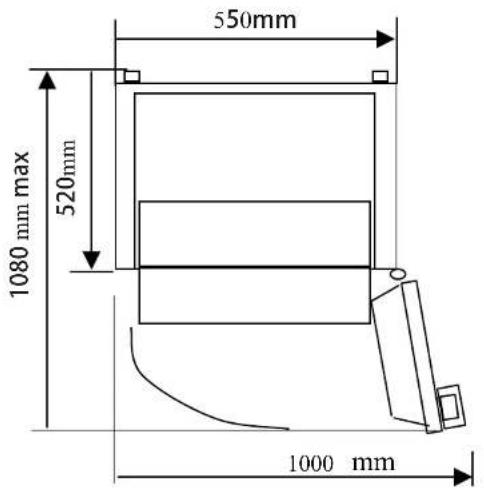

A clearance of 10 cm must be left between the sides of the appliance and any adjacent cabinets or walls to allow for adequate air circulation. The appliance is not designed for recessed installation (“building in”).
Install on a good firm level surface, and any unevenness of the floor should be corrected prior to installation, slight unevenness can be overcome by adjusting the front feet.
NOTE: If the appliance is positioned on a carpet or soft floor covering, you should re-adjust the front feet once the appliance has had time to settle.
This appliance must be used on the electric voltage shown on the rating plate on the base of this appliance. Failure to use the correct voltage will render the guarantee VOID.
This appliance is intended for domestic use only. Any other use may invalidate the warranty and might be dangerous.
This appliance is intended for indoor use only. Do not use outdoors.
Accessible surfaces may get hot during operation. Use handles and knobs at all times.
To protect against electric shock, do not immerse the cord, plugs, or appliance in water or other liquid.
Do not attempt to dislodge food when the product is in operation.
Unplug from the outlet when not in use and before cleaning. Remove food before cleaning the appliance.
If the mains lead becomes damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person with a lead of the same type and rating to avoid a hazard.
Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any way. Consult the retail store where you bought the appliance for advice.
The cooling circuit must not be damaged in any way.
Do not insert oversized food as this could cause a hazard.
Do not let the cord hang over the edge of the surface or touch hot surfaces.
Do not place the appliance on or near hot surfaces, or in direct sunlight.
Extreme caution must be used when moving an appliance.
Always attach a plug to the appliance, then plug the cord into the wall outlet. To disconnect, turn the switch OFF, then remove the plug from the wall outlet.
A short power-supply cord is provided to reduce the risk of a tripping hazard.

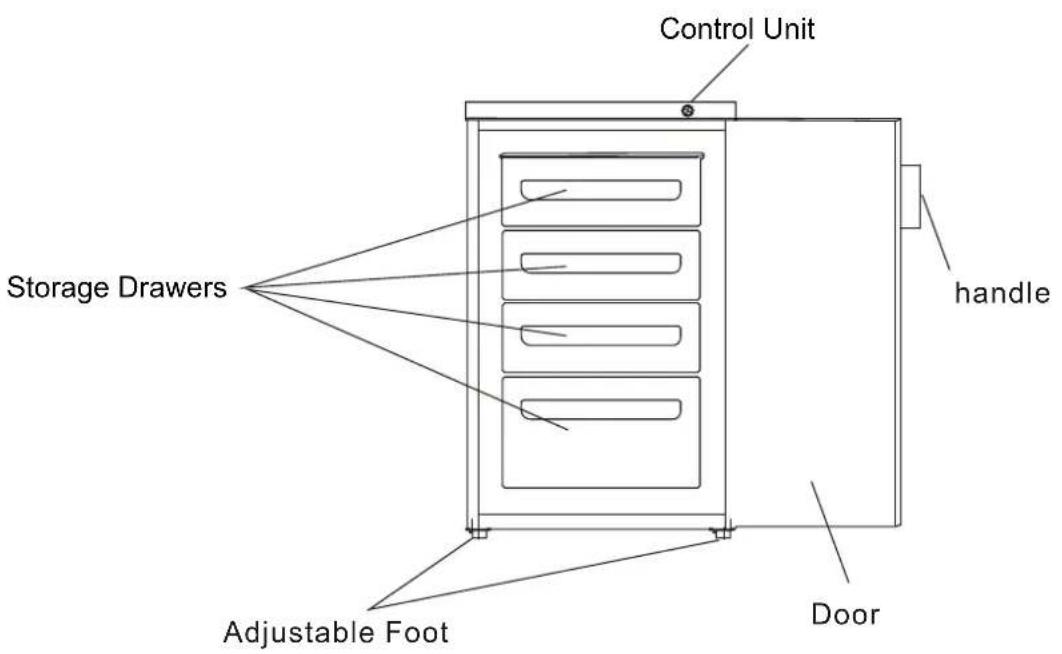

Description of the Appliance

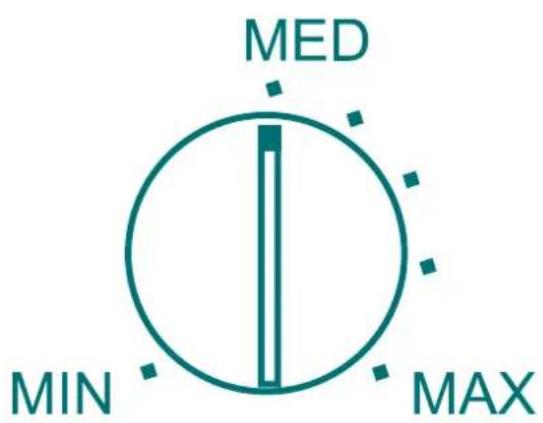

Control Unit
USING THE APPLIANCE
This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs.
This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16 and 32
If these temperatures are exceeded, i.e., colder or warmer, the appliance will not operate correctly. Should the ambient temperatures be exceeded for long periods, the temperature in the freezer will rise above -18°C and food spoilage may occur.
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water with a little bicarbonate of soda added (5ml to 0.5 litre of water). Do not use soap or detergent as the smell may linger. Dry the appliance thoroughly.
Thermostat Control
The thermostat control situated in the control panel regulates the temperature of the freezer compartment.
Position "Min" - Cold
Position "Max" - Coldest
the compressor will work continuously.
The temperature will be affected by:
• Room temperature • How often the door is opened • How much food is stored - Position of the appliance
To determine the correct temperature control setting, all these factors have to be considered and some experimentation may be necessary.
Do not allow children to tamper with the controls or play with the product.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or products containing alcohol.
To Start the Appliance
- Allow the appliance to stand for 2 hours after installation.
- Plug in the appliance and switch on at the mains supply.
- Turn the thermostat control to the required setting. The MED setting is usually suitable for normal operation (see thermostat control).
- Leave the appliance for approximately 4 hours for the correct temperature to be reached before placing food inside.

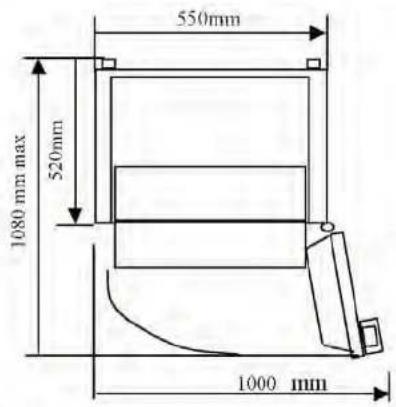

INSTALLATION
SITTING OF THE APPLIANCE
Do not keep your appliance in a room where the temperature is likely to fall below 16°C (61°F) at night, especially in winter, as it is designed to operate in ambient temperatures between +16 and +32°C (61 and 90°F). At lower temperatures the appliance may not operate, resulting in a reduction in the storage life of the food.
Do not place the appliance near cookers or radiators or in direct sunlight, as this will cause extra strain on the appliance's functions. If installed next to a source of heat or fridge, maintain the following minimum clearances.
Choose a well-ventilated location with no less than 10cm clearance around the freezer. Place the freezer on a firm base to prevent vibration and excessive noise. Level the freezer by adjusting the two front feet.
DO NOT PLACE THIS PRODUCT IN AN EXCESSIVELY COLD OR HUMID AREA SUCH AS A GARAGE OR CELLAR ETC.
WAIT 2 TO 3 HOURS BEFORE PLUGGING IN AND SWITCHING ON THIS PRODUCT. THE COOLANT FLUID NEEDS TIME TO SETTLE.
DO NOT STORE FOOD IN THE FREEZER UNTIL IT HAS BEEN RUNNING FOR AT LEAST 2 HOURS.
UNDER NO CIRCUMSTANCES MUST THE COOLANT CIRCUIT BE DAMAGED.
THIS PRODUCT IS INTENDED FOR DOMESTIC USE ONLY. ANY OTHER USE MAY INVALIDATE THE WARRANTY AND MIGHT BE DANGEROUS.
If you are discarding an old appliance with a lock or catch fitted to the door, ensure that it is left with the door catch disabled to avoid child entrapment when playing.
We suggest you contact your local authority for information on the correct and safe method of disposal.
Dispose of all packaging in an environmentally friendly way.
Your freezer is suitable for the long-term storage of commercially frozen foods and can be used to freeze and store fresh food.
If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 12 hours. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.
NOISES INSIDE THE FREEZER
If you have not owned a freezer before, you may notice that it makes some rather unusual noises. Most of these are perfectly normal, but you should be aware of them!
GURGLING, WHOOSHING
These noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC-free gases. This is not a fault and will not affect the performance of your freezer.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Your freezer is 4 star.
When you are buying frozen food, look at the storage guidelines on the packaging. You will be able to store each item of frozen food for the period shown against the 4 star rating. This is usually the period stated as 'Best Before' on the front of the packaging.
CHECK THE FREEZER TEMPERATURE
Check the temperature of the frozen food cabinet in the shop where you buy your frozen foods. It should show a temperature lower than -18°C.
CHOOSE PACKS CAREFULLY
Take a quick look at the frozen food package and make sure it is in perfect condition.
PURCHASE FROZEN FOOD LAST
Always buy frozen products last on your visit to the supermarket.
KEEP FROZEN FOODS TOGETHER
When you are going around the supermarket and when you are travelling home, if you keep all the frozen foods together they will help to keep each other cold.
Don't buy frozen food unless you can freeze it straight away. Special insulated bags can be bought from most supermarkets and hardware shops. These keep frozen food cold for longer.
FREEZING FRESH FOOD
Prepare the food to be frozen in small portions for ease of freezing and eventual thawing. Wrap the food in purpose-made polythene or aluminium foil, if possible airtight. Make a note of the date of freezing on the wrap and place it in the freezer drawer. The thermostat setting does not need to be altered when freezing food.
TO THAW FROZEN FOODS
- Cover food loosely.
- Thaw at room temperature. Don't forget that thawing in a warm area encourages the growth of bacteria.
- Always make sure there are no ice crystals in the food before cooking, particularly with meat. These crystals indicate that the food is not fully thawed. They result in lower temperatures when cooking. Lower cooking temperatures may not destroy bacteria.
- Cook food as soon as possible after thawing.
- Drain off and throw away any liquid lost during thawing.
THAWING FROZEN VEGETABLES
For some foods, thawing before cooking is unnecessary. Vegetables and pasta can be added directly to boiling water or steam cooked. Frozen sauces and soups can be put into a saucepan and heated gently until thawed.
OVEN THAWING FROZEN FOODS
Many microwaves and ovens have thaw settings. To avoid bacterial build up, only use these if you intend to cook the food immediately afterwards.
SAFETY TIPS
Never re-freeze anything that has thawed out unless you cook it again, to kill off harmful bacteria. Never re-freeze thawed shellfish.
FREEZING FRESH FOOD (TIPS)
Use quality food and handle it as little as possible. Freeze food in small quantities; it freezes faster, takes less time to thaw, and enables you to eat it in the quantity you need. First, estimate the amount of food you will be freezing. Use the Thermostat Control Dial to make your freezer colder (about -30°C); it will therefore freeze quicker and keep in the goodness. However, you should use it sparingly to conserve energy.
PROLONGED OFF PERIODS
If the refrigerator is not in use for a long period of time, proceed as follows: Disconnect the refrigerator from the main supply by removing the plug from the socket. Clean and dry the inside as instructed under the heading of cleaning the appliance. Leave the door open to prevent any unpleasant smells from building up while the appliance is not in use.
If there is a power failure for a short time, keep the door closed and check the contents of the refrigerator every so often.
POWER FAILURE
If there is a power failure for a short time (less than 12 hours), keep the door closed. Frozen food should not be affected if the failure lasts for less than 12 hours.
Extra protection can be given by covering the appliance with two or three thick blankets.
If a long power failure is anticipated, try to get the foodstuff into another appliance or cold store, if possible.
If the power cut is longer than 12 hours, then check the content of the freezer.
If the food has defrosted, cook and refreeze the food or it should be eaten immediately. Never refreeze food that has been defrosted.
CLEANING AND MAINTENANCE
Before any cleaning or maintenance is carried out, you must disconnect the appliance from the mains supply by removing the plug. Never remove the plug by pulling on the mains cord; remove the plug by pulling on the plug itself.
It is recommended that when cleaning the appliance, both the inside and outside, can be cleaned using warm water and a little bicarbonate of soda. Use 1 teaspoon to 1.2 liters of water.
Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes, or cleaning products containing bleach or alcohol.
External Cleaning: wash the outer cabinet with warm soapy water.
Do NOT use abrasive products. There are sharp edges on the underside of the product so care should be taken when cleaning.
Once or twice a year dust the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause excessive electricity consumption.
Warning:
The refrigerating system must not be damaged at any time.
DEFROSTING THE FREEZER
The freezer will need defrosting periodically (when the frost is more than 3mm thick). Turn the temperature control to “MIN” and unplug from the mains socket.
Hold the plug itself. Do not remove the plug by pulling on the mains cord.
Remove all the frozen food and wrap in thick blankets to retain the cold or move it to another freezer.
Leave the freezer door open with a suitable container under the front to catch the water as the frost melts.
When the freezer is fully defrosted, clean the inside (see the section on cleaning and maintenance). Then close the door and connect to the mains, now set the temperature control to your required setting (usually the “MED” setting).
Leave the freezer running for approximately 2 hours before re-introducing the frozen food.
DO'S AND DON'TS
Do- Clean and defrost your appliance regularly (See "Defrosting")
Do- Leave lettuce, cabbage, parsley and cauliflower on the stem.
Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying.
Do: Wrap fish and offal in polythene bags.
Do: Check contents of the compartments every so often.
Do: Store commercially prepared food in accordance with the instructions given on the packets.
Do: Always choose high quality fresh food and be sure it is thoroughly clean before freezing it.
Do: Wrap all food in aluminium foil or food quality polythene bags and make sure any air is excluded.
Don't: Cover the shelves with any protective materials which may obstruct air circulation.
Don't: Store poisonous or any dangerous substances in your freezer. It has been designed for the freezing of edible foodstuffs only.
Don't: Consume food which has been frozen for an excessive length of time.
Don't: Leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.
Don't: Use sharp edged objects such as knives or forks to remove the ice.
Don't: Use hairdryers, or electrical appliances for defrosting only use item recommended by the manufacturer.
Don't: Put hot food into the appliance. Let it cool down first.
Don't: Put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst.
Don't: Give children ice-cream and water ices direct from the freezer. The low temperature may cause 'freezer burns' on the lips.
Don't: Try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and re-frozen.
Troubleshooting
Before calling for service, please check the following points.
The freezer is not working
Check that the plug is inserted correctly into the wall socket.
Check that there is power to the wall socket by plugging in another appliance. If the other appliance works, check the fuse in the freezer plug.
The freezer is noisy when running
Check that the freezer is level and that it is not in contact with another appliance or kitchen furniture.
The freezer does not cool sufficiently
If the door has been opened too often, or it has been left open for a while, it will take time for the freezer to reach its set temperature.
Check that the airflow over the rear of the freezer has not been reduced due to insufficient clearance.
The following characteristics should not be looked upon as a problem:
A gentle trickling sound caused by coolant flowing through the pipes.
Compressor operating at high temperatures.
Prolonged idle periods
If you are going to leave the freezer idle for any period of time, proceed as follows: Disconnect the freezer from the mains supply by removing the plug from the wall socket. Clean and dry the inside as instructed under the heading "Cleaning the freezer".
Leave the door open to prevent any unpleasant smells from building up while the freezer is not in use.
Maintenance
Moving your Freezer
Hold the freezer around its sides or base when moving it. Under no circumstance should it be lifted with the edges of the top surface.
Location
Do not locate your Freezer near a heat source, e.g., cooker, boiler, or radiator. Also avoid direct sunlight in lean-tos or sun lounges.
Leveling the Freezer
Make sure the Freezer is level. Use the rotating leveling feet at the front. If the Freezer is not level, the doors and magnetic seal alignments will be affected.
Servicing
Repairs and maintenance of the appliance should only be performed by a qualified service agent.
Freezer
HFZ-136
Haier
Product:
Total net volume: 77 L
Energy class : A
Energy consumption : 201kWh/year
Climate class : N
Thermostat adjust : manual
Defrosting: manual
Freezing capacity / 24 hours : 4 kg / 24 h
Max storage time by power failure Freezer: 12 h
Drawer : 4 transparent
Reversible door
2 Front adjustable feet
Colour: white
Refrigerant : R-600A
Max noise level: 45dB
Lenght of cable/incl. plug: 1 metre

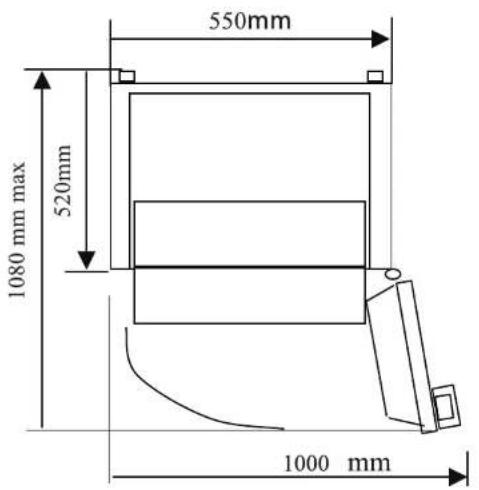

Dimensions :
Product HxWxD (cm): 85 x 55 x 58
Carton HxWxD (cm): 88.5 x 57 x 60
Weight net / gross : 34 / 37 kg
Power :
Voltage / frequency : 220-240V\~/50Hz
Freezer
HFZ-136 AA/AAS
Haier
Product:
Total net volume : 77 L
Energy class : A+
Energy consumption : 169 kWh/year
Climate class : N
Thermostat adjust : manual
Defrosting: manual
Freezing capacity / 24 hours : 4 kg / 24 h
Max storage time by power failure Freezer: 12 h
Drawer : 4 transparent
Reversible door
2 Front adjustable feet
Colour: white
Refrigerant : R-600A
Max noise level: 45dB
Lenght of cable/incl. plug: 1 metre
Dimensions :
Product HxWxD (cm): 85 x 55 x 58
Carton HxWxD (cm): 88 .5 x 57 x 60
Weight net / gross : 34 / 37 kg
Power :
Voltage / frequency : 220-240V\~/50Hz
IMPORTANT DISPOSAL INSTRUCTIONS
As a responsible retailer we care about the environment.
As such we urge you to follow the correct disposal procedure for your product, batteries and packaging materials. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment.
You must dispose of this product and its packaging according to local laws and regulations. Because this product contains electronic components and sometimes batteries, the product and its accessories must be disposed of separately from household waste when the product reaches its end of life.
Contact your local authority to learn about disposal and recycling.
The product should be taken to your local collection point for recycling. Some collection points accept products free of charge.
We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.
Haier
HFZ-136
HFZ-136 AA
HFZ-136 AAS
CE
USER MANUAL
THANK YOU FOR PURCHASING THIS HAIER PRODUCT
USING THE APPLIANCE
HUMMING, BUZZING, OR VIBRATION
INSTRUCTIONS FOR USE
CE
INSTALLATION
APPLIANCE LOCATION
CE
INSTRUCTIONS FOR USE
USE OF THE APPLIANCE
CE
USE OF THE APPLIANCE
INSTALLATION
Container HxWxD (cm): 88.5 x 57 x 60
Net / gross weight: 34 / 37 kg
Energy:
Container HxWxD (cm): 88.5 x 57 x 60
Net / gross weight: 34 / 37 kg
Energy:
CE
INSTRUCTION MANUAL
USING THE APPLIANCE
CE
USER MANUAL
USING THE APPLIANCE
HFZ-136 AA /AAS Haier
Product:
Total net volume: 77L
Energy class: A+
CE
INSTRUCTION MANUAL
USING THE APPLIANCE
INSTALLATION
APPLIANCE PLACEMENT
CE
INSTRUCTIONS FOR USE
Energy consumption: 169 kWh/year
Climate class: N
Adjustable thermostat
Defrosting: manual
Freezing capacity / 24 hours: 4.0 kg / 24 hours
Maximum storage time in case of power failure: 12 hours
Drawers: 4 transparent drawers
Reversible door
2 adjustable front feet
Color: white
Refrigerant: R-600A
Maximum noise level: 45 dB
Cable length (including plug): 1 meter

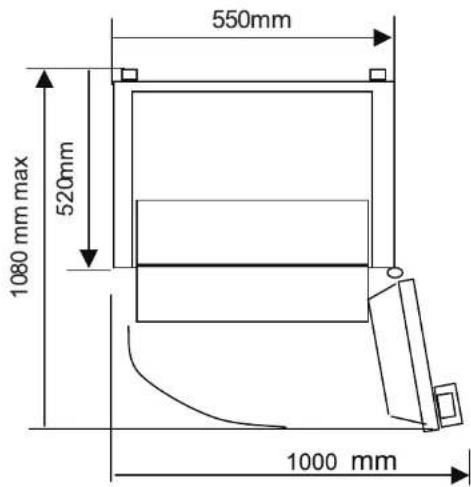

Dimensions:
Product (height x width x depth): 85 x 55 x 58 cm
Cardboard box (height x width x depth): 88.5 x 57 x 60 cm
Net / gross weight: 34 kg / 37 kg
Power:
Voltage / frequency: 220-240V~/50Hz
PROTECT THE ENVIRONMENT!
CE
USER MANUAL
USING THE DEVICE
INSTALLATION
SETTING UP THE DEVICE
CE
User manual
USING THE APPLIANCE
PLACEMENT
POSITIONING THE APPLIANCE
CE
User manual
Dear customer
Using the appliance
Installation
CE
USING THE APPLIANCE
INSTALLATION
POSITIONING THE APPLIANCE
User manual
Dear customer
Use of the appliance
Installation
Setting the appliance
