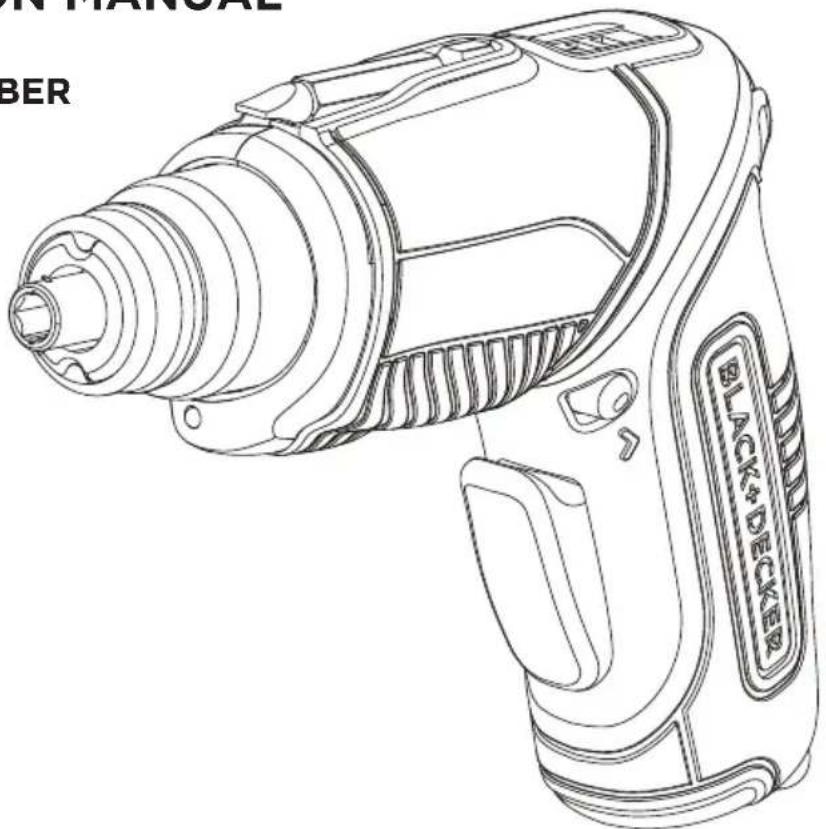

INSTRUCTION MANUAL SCREWDRIVER Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.SAVE THIS MANUAL FOR FUTURE REFERENCE.VEA EL ESPANOL EN LA CONTRAPORTADA.INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.CATALOG NUMBER BDCS40BI To register your new product, visit www.BlackandDecker.com/NewOwner2

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

REFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and

SAFETY GUIDELINES - DEFINITIONS

It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury. CAUTION: Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or mod er ate injury. NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.3 collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust- related hazards.

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES

• Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

• Keep your hair, clothing, and gloves away from air vents. Air vents often cover moving parts in which these items can be caught.

WARNING: ALWAYS use safety

glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if drilling operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

WARNING: Some dust created by

power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• leadfromlead-basedpaints,

• crystallinesilicafrombricksandcement andothermasonryproducts,and

• arsenicandchromiumfromchemically- treatedlumber. Yourriskfromtheseexposuresvaries, depending on how often you do this type of work. To reduce your exposure to these chemicals:workinawellventilatedarea,4 FUNCTIONAL DESCRIPTION

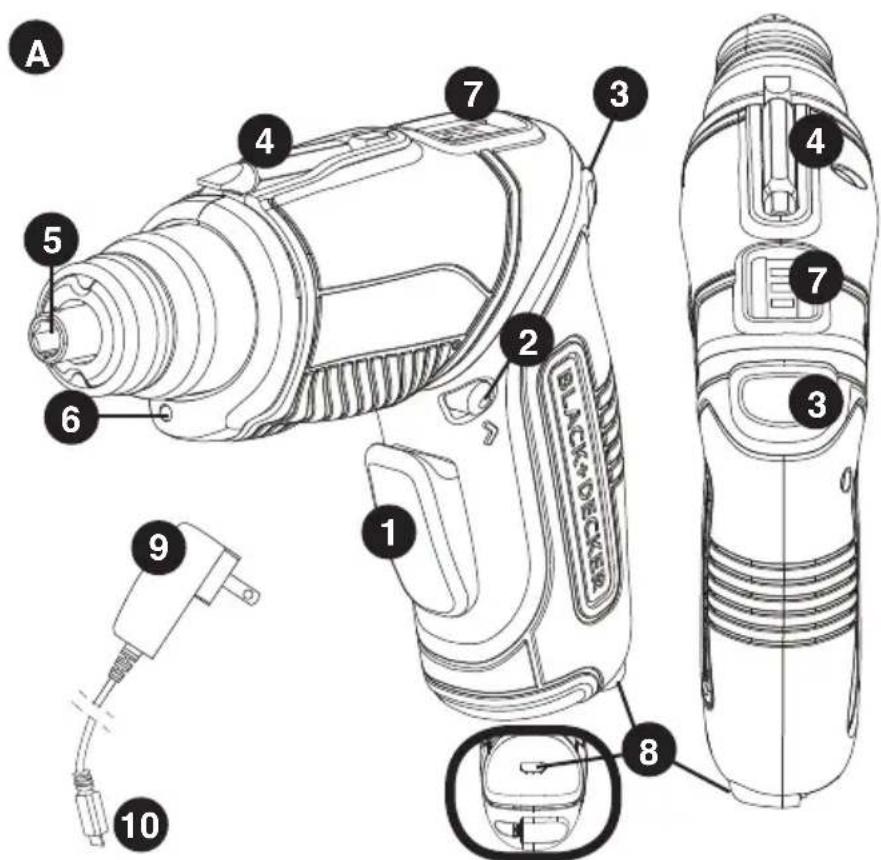

7) State of charge indicator

andworkwithapprovedsafetyequipment, suchasthosedustmasksthatarespecially designedtofilteroutmicroscopicparticles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water.Allowingdusttogetinto yourmouth,eyes,orlayontheskinmay promoteabsorptionofharmfulchemicals.

WARNING: Use of this tool can

generate and/or disperse dust, which may cause serious and permanent respiratory or other injury.Alwaysuse NIOSH/OSHA approved respiratory protection appropriate for the dust exposure.Directparticles away from face and body. SYMBOLS Thelabelonyourtoolmayincludethe followingsymbols.Thesymbolsandtheir definitionsareasfollows: V ..................volts A ..................amperes Hz ................hertz W .................watts min ..............minutes or AC ...... alternating current or DC ...direct current

• Donotmodifyorremanufacture,attempt toinsertforeignobjectsintothebattery, immerse or expose to water or other liquids,orexposetofire,excessive heatincludingsolderingirons,orputin microwave oven.

• Onlyusethebatterywithachargingsystem specifiedbythemanufacturer/supplier.

• Donotshort-circuitabatteryorallow metallicorconductiveobjectstocontact bothbatteryterminalssimultaneously.

• Disposeofusedbatteriespromptlyaccording tothemanufacturer/supplier’sinstructions.

• Improperbatteryusemayresultinafire, explosion,orotherhazard.

• Batteryusagebychildrenshouldbesupervised.

WARNING: Never attempt to open the

battery for any reason. If battery case is crackedordamaged,donotinsertinto charger.Donotcrush,dropordamage battery. Do not use a battery or charger thathasreceivedasharpblow,been dropped,runoverordamagedinanyway (i.e.,piercedwithanail,hitwithahammer, steppedon).Damagedbatteriesshouldbe returnedtoservicecenterforrecycling.

and operating instructions.

2. Beforeusingbatterycharger,readall

instructions and cautionary warnings on battery charger and product using battery. CAUTION: To reduce the risk

8. It is recommended that you use the

suppliedchargerwhenchargingyour tool.Ifanotherchargerisused,ensure itisUSBcompliant.Theuseofany otherchargercoulddamagethetoolor createahazardouscondition.

9. Useonlyonechargerwhencharging.

10. Do not attempt to open the charger.

Therearenocustomerserviceable partsinside.Returntoanyauthorized BLACK+DECKER service center. 11.DONOTincineratethetoolorbatteries eveniftheyareseverelydamagedor completelywornout.Thebatteriescan explodeinafire.

12. Do not incinerate the battery even if it is

severelydamagedoriscompletely wornout.Thebatteriescanexplodeina fire.Toxicfumesandmaterialsarecreated ofinjury,usechargeronlywiththis product. Batteries in other products may burstcausingpersonalinjuryordamage.

3. Do not expose charger to rain or snow.

4. Use of an attachment not recommended or

willnotbesteppedon,trippedover,or otherwise subjected to damage or stress.

7. Anextensioncordshouldnotbeused

unlessabsolutelynecessary.Useof improperextensioncordcouldresultina riskoffire,electricshockorelectrocution. a.Two-wirecordscanbeusedwith2-wire or3-wireextensioncords.Onlyround jacketedextensioncordsshouldbe used,andwerecommendthatthey belistedbyUnderwritersLaboratories (U.L.). If the extension is to be used outside,thecordmustbesuitable for outdoor use. Any cord marked for outdoorusecanalsobeusedforindoor work.Theletters“W”or“WA”onthe cord jacket indicate that the cord is suitableforoutdooruse. b. An extension cord must have adequate wiresize(AWGorAmericanWire Gauge)forsafety,andtopreventloss ofpowerandoverheating.Thesmaller thegaugenumberofthewire,the greaterthecapacityofthecable;that is,16gaugehasmorecapacitythan 18gauge.Whenusingmorethanone extensiontomakeupthetotallength, be sure each extension contains at leasttheminimumwiresize. whenlithiumionbatteriesareburned.

13. Do not charge or use battery in

explosiveatmospheres,suchasinthe presenceofflammableliquids,gasesor dust.Insertingorremovingthedrillfrom the charger may ignite the dust or fumes.

14. If battery contents come into contact

withtheskin,immediatelywasharea withmildsoapandwater.Ifbattery liquidgetsintotheeye,rinsewaterover theopeneyeforthreeminutesoruntil irritationceases.Ifmedicalattention isneeded,thebatteryelectrolyteis composedofamixtureofliquidorganic carbonatesandlithiumsalts.

WARNING: Burn hazard. Battery

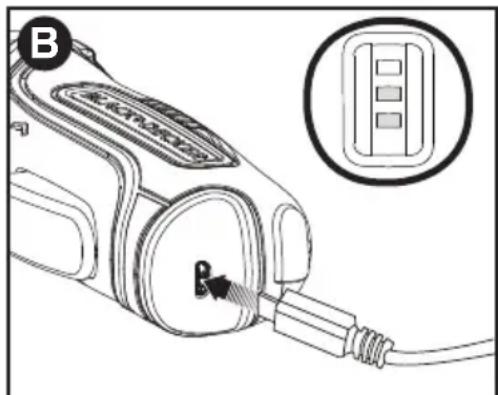

figure B. The state of charger indicator (7) LEDs

connected to the charger.

WARNING: Fire Hazard.

was sent from the factory in an uncharged

2. DO NOT charge the batteries in an

and best performance can be obtained if batteries are charged when air

NOT CONTINUE using product with its

The battery is equipped with a state of

during use and during charging. It does not

Checking state of charge: NOTE: Do not check state

reading. To receive an

the percent of charge in the battery.

WARNING: Tool may stall (if

overloaded or improperly used) causing a twist. To reduce the risk of injury always expect the stall.

ASSEMBLY AND ADJUSTMENT

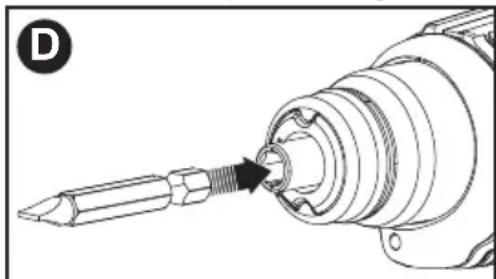

INSERTING AND REMOVING BITS

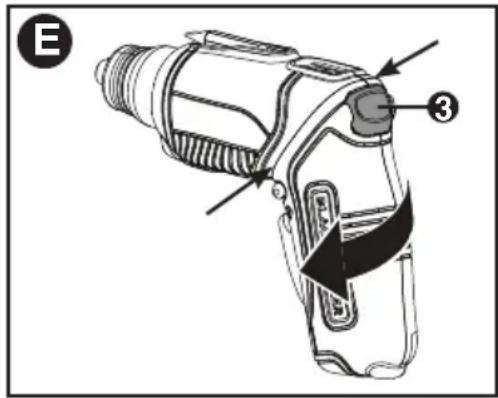

pivot release button (3) shown in figure E.

WARNING: Check to make sure tool

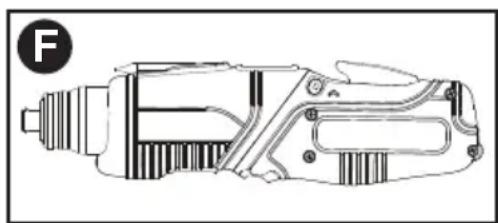

handle is locked after pressing pivot release button and changing screwdriver positions.

WARNING: To avoid being pinched at

the screwdriver at both ends and use your thumb to depress the pivot release button (3) when changing positions.

trigger switch and depress the forward/

(button pushed to the right) for removing

fastener is at the desired depth. NOTE:

instructed in the safety Instructions.

instructed in the safety instructions.

bit. Use enough pressure to keep the bit

STALLED TOOL OFF AND ON IN AN

WARNING: It is important to support

IMPORTANT: To assure product SAFETY

ACCESSORIES Recommended accessories for use with

WARNING: The use of any accessory

remove the screws from the product housing

(or battery pack) indicates

battery (or battery pack) at the end of

and the RBRC program provides an

RBRC in cooperation with BLACK+DECKER and other battery

1-800-8-BATTERY. NOTE: Batteries are integrated into the

power off when you turn

temperature of above 40

1-800-544-6986.full Two-year HoMe uSe warranTy BLACK+DECKER warrants this product for twoyearsagainstanydefectsinmaterialor workmanship.Thedefectiveproductwillbe replacedorrepairedatnochargeineither of two ways. Thefirst,whichwillresultinexchanges only,istoreturntheproducttotheretailer from whom it was purchased (provided that thestoreisaparticipatingretailer).Returns shouldbemadewithinthetimeperiodof theretailer’spolicyforexchanges(usually 30to90daysafterthesale).Proofof purchasemayberequired.Pleasecheck withtheretailerfortheirspecificreturn policyregardingreturnsthatarebeyond the time set for exchanges. The second option is to take or send the product (prepaid) to a BLACK+DECKER ownedorauthorizedServiceCenter forrepairorreplacementatouroption. Proof of purchase may be required. BLACK+DECKERownedandauthorized ServiceCentersarelistedonourwebsite www.blackanddecker.com. Thiswarrantydoesnotapplyto accessories. This warranty gives you specificlegalrightsandyoumayhave other rights which vary from state to state.Shouldyouhaveanyquestions, contact the manager of your nearest BLACK+DECKER Service Center. This productisnotintendedforcommercialuse. free warnInG laBel rePlaceMenT:Ifyourwarninglabels becomeillegibleoraremissing,call1-800- 544-6986forafreereplacement. laTIn aMerIca: This warranty does not applytoproductssoldinLatinAmerica.For productssoldinLatinAmerica,checkcountry specific warranty information contained in the packaging,callthelocalcompanyorseethe website for warranty information.
