USER MANUAL SM 3002 ppi Exquisit

3. Base of the jar with blades

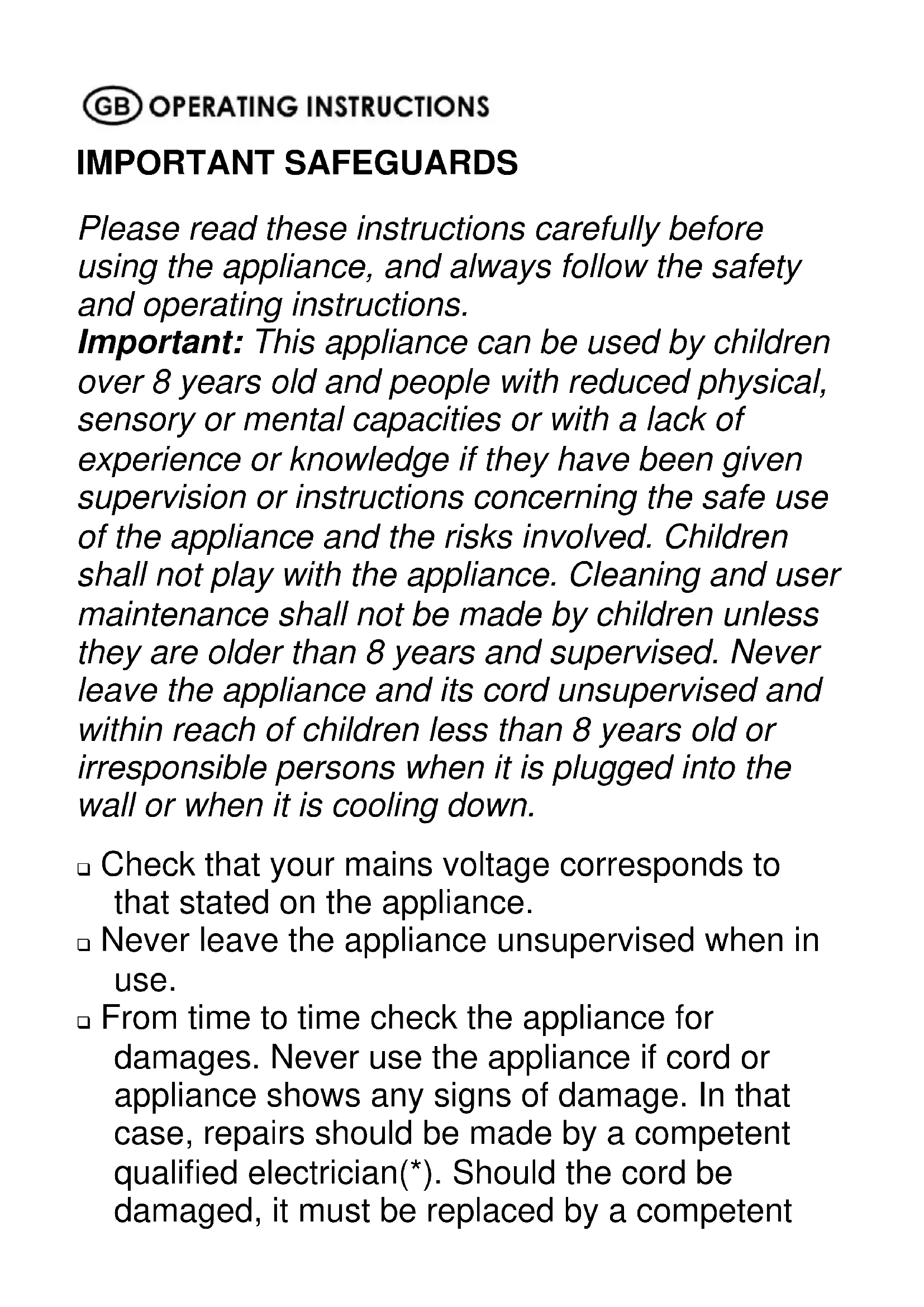

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons when it is plugged into the wall or when it is cooling down. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be damaged, it must be replaced by a competent.

qualified electrician(*) in order to avoid all danger. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the motor base of your appliance in water or any other liquid for any reason whatsoever. Never place any piece of your appliance into the dishwasher. Never use the appliance near hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a flat surface to prevent it from falling. Always unplug the appliance from the power supply when it is not in use, especially if you leave the appliance unsupervised or if you assemble or disassemble it or before cleaning it. Only cook consumable food. This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary.

stops. Check the section "Important information" in the instruction manual. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Make sure the appliance is unplugged before inserting, removing or cleaning the jug. The jug should be mounted correctly on the motor base before you plug it into the mains. The appliance is equipped with a safety, which prevents the jug from working if it is badly mounted. Furthermore the jug should be locked so that the appliance can work. Keep your hands outside the appliance when plugged in in order to avoid injuries. Do not insert any object while in use, not even for helping the mixing of food. Attention: the blades are sharp and therefore it is necessary to take particular precautions when using or cleaning. Always close the jug with the lid before starting to mix. When mixing hot liquid, you have to be very careful in order to avoid splashing of hot liquid, otherwise you can get burned. Do not forget to close the hole of the lid with the cap. Always close and hold the lid of the receptacle before starting to blend. In case the lid would come up during the mixing of hot preparations in particular (see “caution” on page 14), stop your.

appliance and take the lid off in order to release built-up pressure. Then restart the operation (with closed lid), holding the lid firm. The appliance is designed for the preparation of small quantities of food, which have to be consumed rather quickly. It is not designed for the preparation of large quantities at once. Do not touch the blades while the appliance is operating and do not try to block their movement in any way. Do not use the appliance without any food in it. (*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de). IMPORTANT INFORMATION This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes. CAUTION! Your appliance is fitted with a security device on the pouring jug allowing the functioning of the appliance only when the jug and its lid are correctly placed on the motor base. If those conditions are met and the appliance does not start, call your after sales service.

MOUNTING OF THE BLENDER AND USE

Screw the base of the jar clockwise onto the jar. Assemble the jug on the motor block by turning it clockwise in such a manner that the jug fits perfectly. Fill the jug with the chosen ingredients. The maximal capacity is 600 ml. Fruits and vegetables (peeled and cored if necessary) have to be cut into dices of about 15 x 15 x 15 mm. Hard foodstuffs such as ice cubes should not be mixed. Put the lid on the jug and press it down. Close the hole of the lid with the cap..

Plug in. Press the ON/OFF switch to switch on the appliance. Once you have finished the preparation, stop the appliance and unplug the appliance. Remove the jug from the base by turning it anticlockwise. Remove the lid. Now you can serve the mixture. Or remove the base of the jar by turning it anticlockwise and put the lid on the jar so you can take the jar with you. Caution: your appliance is not designed to mix hot preparations and the bowl could break otherwise. If nevertheless you wish to prepare hot drinks or soups, let the whole cool down to a temperature lower than about 60°C (tepid preparation) before pouring it into the bowl. In case the lid would come up in spite of the precautions mentioned in section “Important safeguards”, you can also empty part of the preparation and mix it in several times.

Always unplug from outlet before cleaning. For a quick rinsing of the jug (for example between two preparations), you can use clear water and switch on your appliance for a few seconds. In this case, do not use any detergent. For a full cleaning of the jug, remove it from the motor block. Then you can clean it with soapy water and rinse thoroughly with clear water. Dry before assembling. Do not immerse the motor block in water or any other liquid. You can wipe the motor block with a soft damp cloth. Do not use harsh abrasive cleaners.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. ErP Declaration – Regulation 1275/2008/EC We, GGV Handelsgesellschaft mbH & Co. KG, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible! For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use. Specifications Model: SM3001pbl Rated voltage: 220-240V~ Power: 300W Safety class: II Ambient conditions: Temperature: 0 to +40°C.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. On website www.ggv-service.de you can find a quick and easy solution to register a complaint in case of a defect within the warranty period. Just log on to the service portal (www.ggv- service.de), designate the appliance and then you will be guided through the menu, with all necessary information and advantages, to help you and solve your problem. We are at your service on the service portal during and also after the warranty period. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

The user manual is by simple request also available in electronic format from the after-sales service..
