USER MANUAL MC 3001 wes Exquisit

Front cover page (first page) Assembly page 1/32

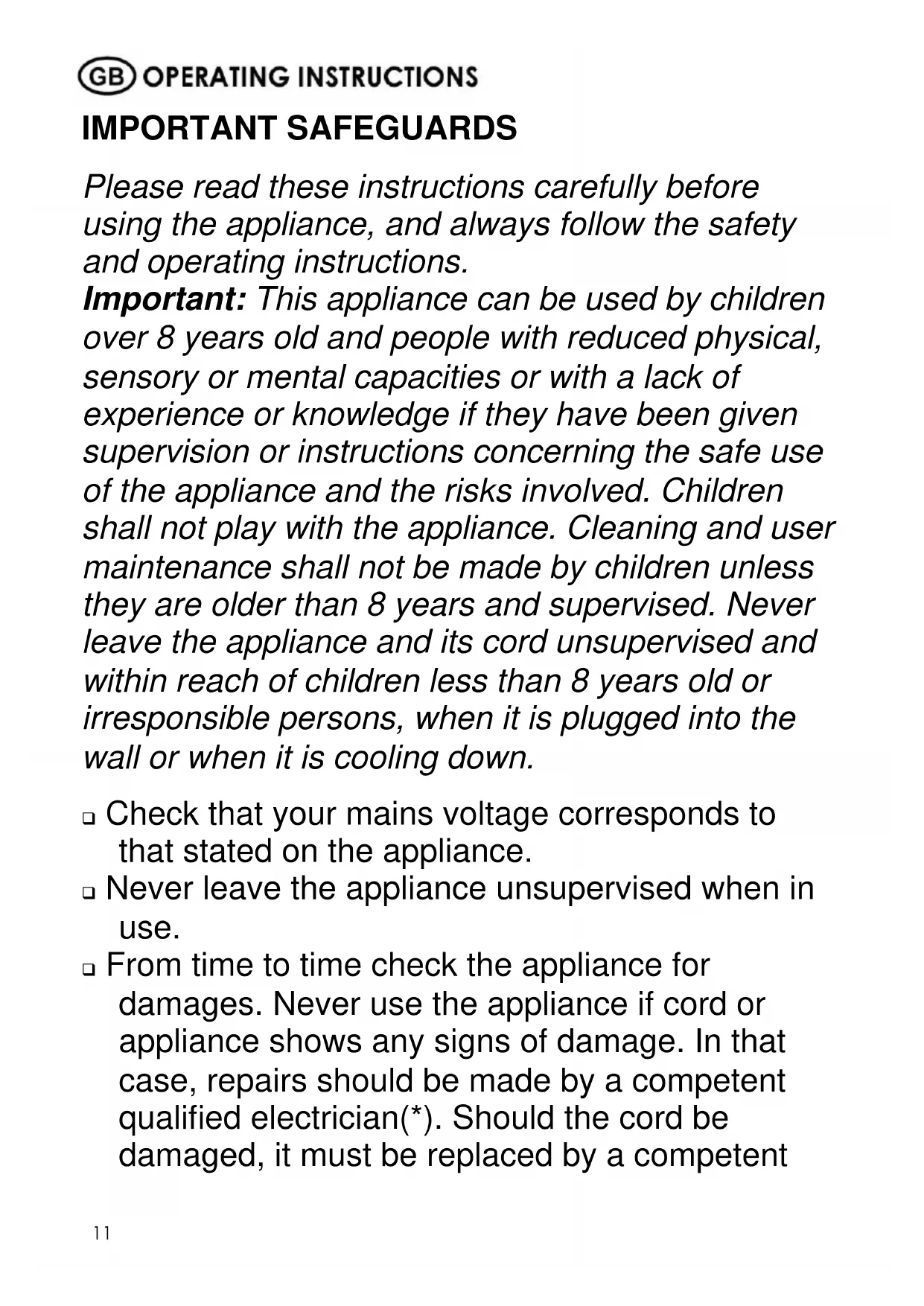

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons, when it is plugged into the wall or when it is cooling down. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be damaged, it must be replaced by a competent12

qualified electrician(*) in order to avoid all danger. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the electric part of your appliance in water or any other liquid for any reason whatsoever. Never place it in a dishwasher. Otherwise the appliance may be damaged. Never use the appliance near hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Do not let the supply cord hang over the edge of a table or counter, touch hot surfaces or become knotted. Make sure to stand the appliance on a flat surface. Always unplug the appliance from the power supply when it is not in use, especially if you leave the appliance unsupervised or if you assemble or disassemble it, before cleaning it or when you empty the jug.13

Only use this appliance for cooking purposes. This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Check the section "CLEANING" in the instruction manual. Make sure your hands and/or any kind of utensil stay clear of the receptacle when the appliance is in use in order to avoid serious injuries. Never touch the accessories when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. Unplug the appliance. Never let children use the appliance, even when they are supervised. Make sure the motor block is correctly placed on the jug before starting the appliance. Pay attention not to get injured, as the blade is very sharp. You may use a scraper (to clean the blades) only when the appliance is unplugged. Never use this appliance to mix boiling liquids. The appliance is designed for the preparation of small quantities of food, which have to be14

consumed rather quickly. It is not designed for the preparation of large quantities at once. Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. We recommend that when using your product you operate the motor unit in short on/off pulses. This will give better chopping, mixing, etc. It will also protect the motor against a too long use. The chopper is designed to be used exclusively in its delivery state (bowl, lid and blades in good state) because it gives all the needed securities. Do not try to substitute one of those pieces by another one and if you have to replace one, contact your after-sales service. Caution: your appliance has a security device that avoids excessive starting. Do not try to overrule this device, as it could be very dangerous for you. (*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician (www.ggv-service.de). IMPORTANT INFORMATION This appliance is not designed for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the allowed maximum usage time). The breaks should last at least 10 minutes.15

Remove all packaging, and check that no parts are damaged or missing. Read these instructions carefully! Wash the bowl, lid and chopper blade in warm soapy water and dry thoroughly. Wipe the motor unit of the chopper with a damp cloth.

MOUNTING AND USE OF THE MINI-CHOPPER

Caution: for your own safety and a good functioning it is absolutely necessary to respect the mounting described hereunder. Place the blade of the mixer fitting in the jug. Put the ingredients in the jug. Place the lid on the jug respecting the positioning of its openings-out. If necessary, turn the lid until it is correctly placed on the jug. Place the unplugged motor block on the jug respecting the positioning of the openings- out. If the motor block is not mounted correctly, it will be impossible to start the appliance. Plug in the appliance. To start, press the switch with one hand holding the jug with the other hand. To remove food, unplug and proceed the other way round, but pay attention not to get injured, as the blade is very sharp.

Your appliance is not intended to work for long periods. So if your preparation requires more than 1 minute of continuous use, it is absolutely necessary to follow breaks. The breaks should last at least 2 minutes to allow the motor to cool down. We advise you to chop the food by fits and starts and if necessary to mix them with a spatula between two chopping processes following the safety instructions. If you chop pieces of meat or cheese, we advise you to cut them into small pieces of 1 to

1.5 cm beforehand in order to obtain a homogeneous and fine chopping. Otherwise you

could obtain lumps in your preparation. Type of food Maximum quantity Maximum size Maximum time Almonds 120g whole 15 seconds Boiled eggs 240g cut in half 10 seconds Bread crumbs 24g 20x20x20mm 15 seconds Garlic 180g 30x30x30mm 2 seconds Ham 240g 20x20x20mm 15 seconds Hazelnuts 120g whole 15 seconds Ice cream 240g 30x30x30mm 20 seconds Light batter

15 seconds Onions 240g 30x30x30mm 2 seconds Parsley 35g cut in pieces 10 seconds Pepper

Note: If foodstuffs such as boiled eggs get stuck in the jug, unplug the appliance and remove the pieces manually before resuming action. CLEANING Unplug from outlet before cleaning. You can wipe the motor block with a slightly damp cloth. Never immerse it in water or any other liquid. If this happens, do not plug it in, let it dry for at least 24 hours before using it again. If this is not enough, bring your appliance back to a competent qualified electrician. To clean the blade, the jug and the lid, use soapy water, rinse with clear water and dry. Pay attention not to hurt yourself as the blade is very sharp. The blade, the jug and the lid can also be cleaned in the dishwasher at a temperature not higher than 65°C. To make the cleaning easier, you can disassemble the parts that are in contact with the food.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2012/19/EU

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Specifications Model: MC3001wes Rated voltage: 220-240V~ Power: 300W Safety class: II Ambient conditions: Temperature: 0 to +40°C

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair. Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service (www.ggv- service.de).17

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

The user manual is by simple request also available in electronic format from the after-sales service.18
