Product type	External portable battery (Power bank)
Brand	DENVER
Model	PBA10001 MK2
Battery capacity	10000 mAh
Battery type	Lithium-ion
Rated voltage	3.7 V
Input	5 V DC, 1 A (Micro USB port)
Output	5 V DC, 1 A and 2.1 A (two USB ports)
Output ports	2 USB ports (1A and 2.1A)
Input port	1 Micro USB port
Dimensions (L x W x H)	105 x 80 x 22 mm
Weight	~243 g
Charging time (1A adapter)	~5 hours
Charging time (computer 500mA)	~10 hours
Battery level indicator	5 LED (20% increments)
Flashlight function	Yes, activation by double press on the switch
Operating temperature	0 °C to 45 °C (charge and discharge)
Storage temperature	-10 °C to 45 °C
Storage humidity	25% to 65%
Life cycle	Approximately 300 cycles for 80% capacity; more than 500 recharges possible
Package contents	Portable battery PBA10001 MK2, USB cable, user manual
Recommended use	Charging smartphones, tablets, MP3, MP4 and other 5 V compatible digital devices
Usage precautions	Do not expose to heat or moisture, do not throw into fire, use original cables
Recycling	Compliant with WEEE directive, battery to be recycled separately

Frequently Asked Questions - PBA10001 MK2 DENVER

How to charge the portable battery itself?

Use an original USB cable and connect the micro USB connector to the micro USB port of the battery. Plug the other end into a 5 V 1 A mains adapter or a computer USB port. The LED flashes during charging. Disconnect once charging is complete.

How long does it take to fully charge the battery?

With a 1 A mains adapter, charging time is approximately 5 hours. With a 500 mA adapter or a computer USB port, charging time is approximately 10 hours.

How to charge a device with this battery?

Check that your device's voltage is compatible with the battery's 5 V output. Use your device's original cable, plug it into one of the battery's USB ports. The output indicator lights up to indicate the start of charging. When all indicators are lit, the device is fully charged.

What do the LED indicators mean?

The battery has 5 LED indicators to show the charge level: 1 LED = 0-20%, 2 LED = 20-40%, 3 LED = 40-60%, 4 LED = 60-80%, 5 LED = 80-100%. If the battery is below 5%, the first LED flashes.

How to use the flashlight?

Press the switch twice to turn on the LED flashlight. Press twice again to turn it off.

Which devices can I charge?

This battery can charge most digital devices that charge via 5 V USB, such as smartphones, tablets, MP3 players, MP4 players, etc.

What safety precautions should I take?

Do not expose the battery to excessive heat or moisture. Do not throw it into fire or water. Do not disassemble it. In case of liquid leakage, rinse eyes thoroughly with clean water and consult a doctor. Use only original cables.

How to maintain the battery if I don't use it for a long time?

If you do not use the battery for a long period, charge and discharge it every three months to prolong its lifespan. Before storing, fully charge it.

What if the battery heats up?

It is normal for the battery to heat up slightly during use. If it becomes very hot, stop using it and let it cool down. Do not cover it and ensure good heat dissipation.

How to recycle this battery?

In accordance with the WEEE directive, do not dispose of the battery with household waste. Take it to an appropriate collection point for recycling batteries.

USER MANUAL PBA10001 MK2 DENVER

denver-electronics.com

E. LED power-indikatorer

G. USB-kabel H. USB-stik

Indikator for batteriniveau

	LED-indikator	Resterende batterikapacitet
	1 indicator lyser	0-20%
	2 indicatorer lyser	20-40%
	3 indicatorer lyser	40-60%
	4 indicatorer lyser	60-80%
	5 indicatorer lyser	80-100%

denver-electronics.com

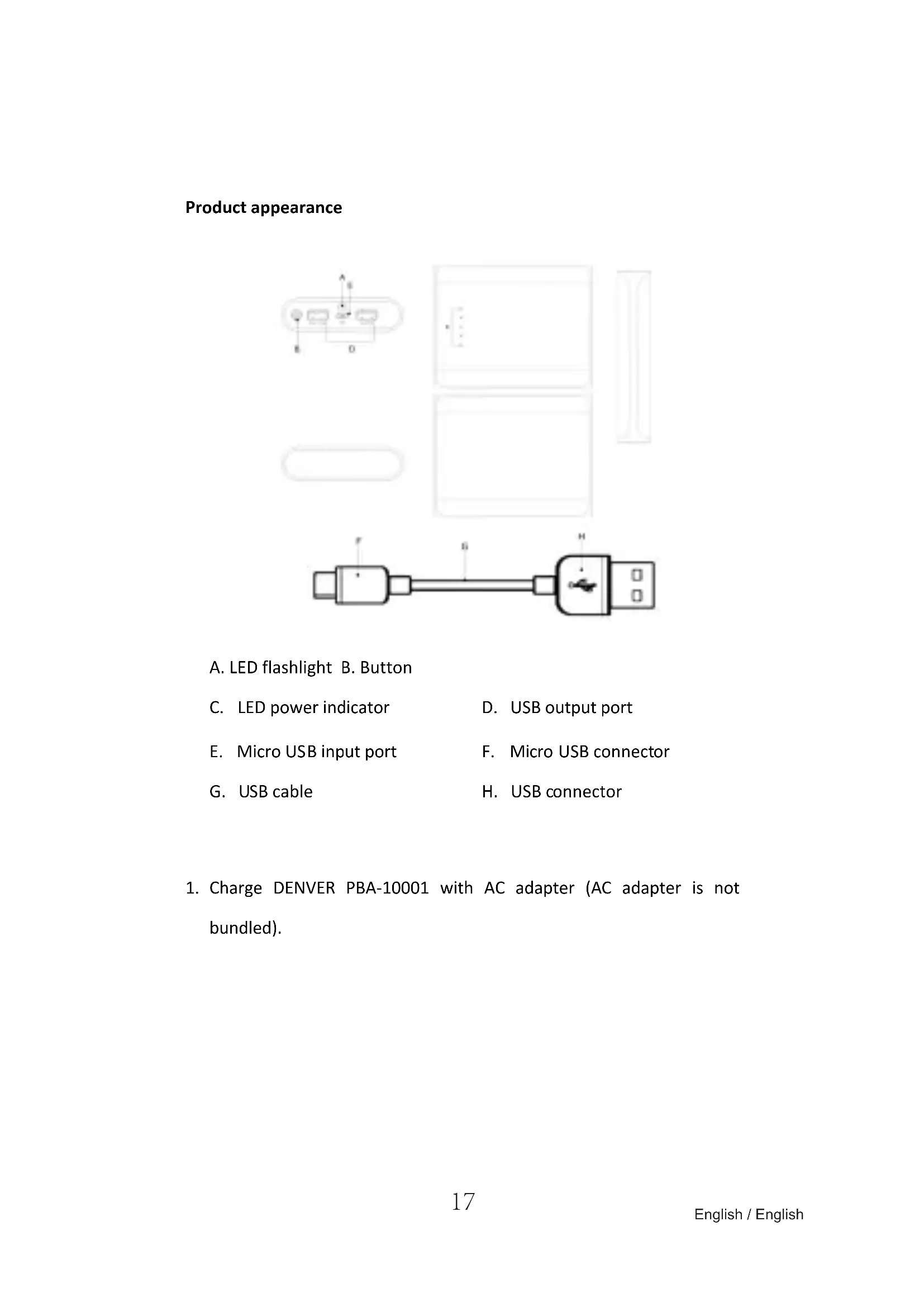

C. LED power indicator

D. USB output port

E. Micro USB input port

F. Micro USB connector

G. USB cable

H. USB connector

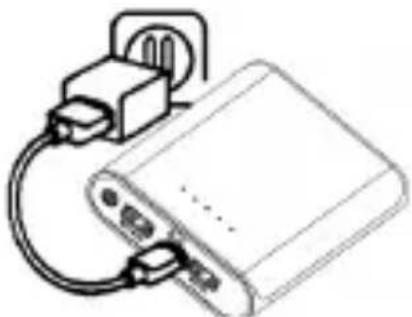

1. Charge DENVER PBA-10001 with AC adapter (AC adapter is not bundled).

1. Charge DENVER PBA-10001 by connecting it to USB port on computer.

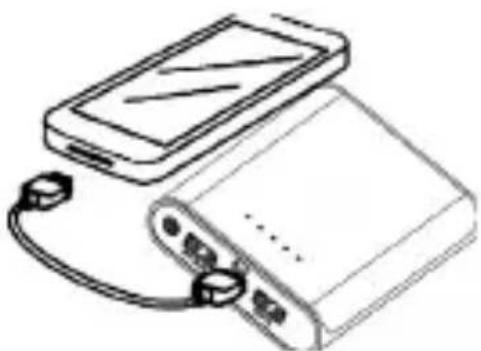

1. Charging digital products using DENVER PBA-10001.

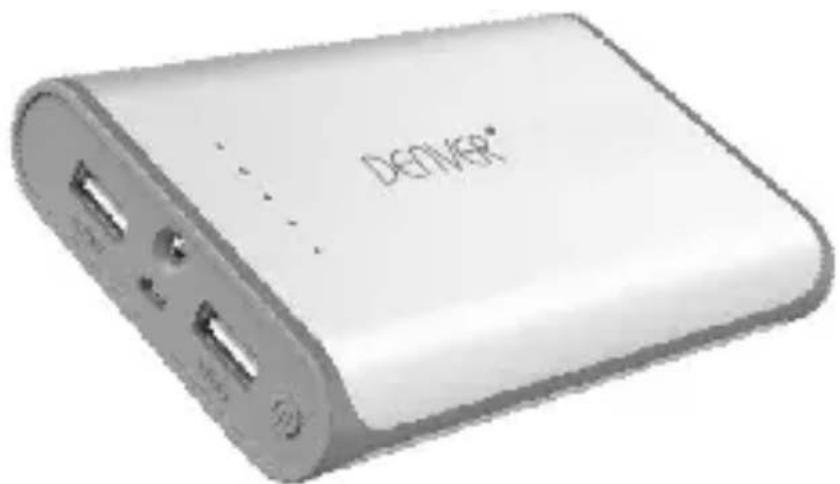

DENVER PBA-10001

Portable External Battery

Support most DC5V USB input smartphones, tablets, MP3, MP4 and other digital products charging.

Thank you for using SMLH products.

Please read the instructions carefully before using the product.

Follow the instructions and use it properly.

Instructions

Charging DENVER PBA-10001 (Figure 1/Figure 2)

1. Use original USB data cable and connect microUSB to microUSBport on DENVER PBA-10001;
2. Connect USB cable to USB port on DC5V USB charger or computer.

If LED signal flickers, it means DENVER PBA-10001 is being charged;

Please pull out power supply after recharging fully.

Charging digital product with DENVER PBA-10001 (Figure 3)

1. Check if the charging voltage of the digital product is compatible with the DC5V output voltage of DENVER PBA-10001.
2. Use the digital product's original cable, and connect one end to the digital product, the other end to DENVER PBA-10001. If battery signal (output signal) lights up, it means the charging process starts. When all signals light up, it means the digital product is fully charged.

Flashlight function

Press the switch twice to turn on the LED flashlight and press twice to turn it off.

LED power indicator:

	LED Signal Battery Percentage
	One signal lights up 0~20%
	Two signals light up	20~40%
	Three signals light up	40~60%
	Four signals light up	60~80%
	Five signals light up	80~100%

1. When switching off, LED signal will go out in 5 seconds and thebattery will enter sleep mode in about 1minute. If users want tose the battery to charge digital products, please switch on towake it up.
2. When switching off, the 1st signal (output signal) will flicker if thepower is less than 5 % to prompt users that the battery itself needs

Specifications

Name	DENVER PBA-10001	Input DC	5V 1A
Lithium-ion battery inside	10000mAh/3.7V	Output	DC 5V 1A, 5V 2.1A
Capacity	10000mAh	Weight	~243g/8.57ozs
Size	~L105 x W80 x H22mm ~L4.13x W3.15 x H0.86inches
Charging time	~5 hours (using 1A AC adapter) ~10 hours (using 500mA AC adapter or PC USB)
Environment for Use	indoors
Ambient Temperature for Use	Charging 0°C ~45°C; discharging 0°C~45°C
Environment for Storage	Storage temperature: -10°C ~45°C Humidity: 25%~65%
The electrical core will have 80% capacity left after 300 cycles. (Recycling times: >500 times)

Cautions:

1. Charge the product itself before using it to charge other products.
2. Do not place or use the product in very hot or humid environment; do not place or use it in direct sunlight, (Standard charge method: under standard atmospheric pressure, ambient temperature 25^ ± 5^ , it can be charged to 4.2V with constant current of 0.5A , and then, charged continuously with constant voltage of 4.2V until the charged current is 0.01A . Standard discharge method: under standard atmospheric pressure, ambient temperature 25^ ± 5^ , it can be discharged to the voltage of 2.75V with constant current of 0.5A .
3. Do not throw this product into fire or water, so as to avoid possible fire and explosion.
4. Please keep the product out of the reach of children.
5. Do not use it when nobody is around.
6. Do not dismantle or assembly the product yourself; the product does not have any parts that need users to dismantle, assembly or maintain themselves.
7. Do not shake it, tap it or hit it.
8. Do not use it if any liquid leaks out of the product. If the liquid goes into your eyes, do not rub your eyes, but quickly flush your eyes with running water. If necessary, go to see a doctor.
9. It is normal that the product gets hot under proper operations. Please use with

care when using or finishing using the product.

1. Original transmission cables and connectors are required for allooperations. Use of non-origina products may lead to severe ordeadly injuries or monetary loss.
2. Do not use paper or other objects to cover or shield the product, which may affect heat dissipation and cooling.
3. Check the voltage before using the product, so as to avoid unnecessary damage to the product caused by improper use under inaccurate voltage or power.
4. Please charge and discharge the product once every three months if it is not used for a long time. This can ensure the life cycle of the product.
5. Once discharged, please recharge the product fully so as to prepare for later use, for example, for charging digital products.
6. Unplug the power cable when not using the product, so as to avoid injury or property loss.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER

www.denver-electronics.com

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

DENVER ELECTRONICS A/S

Stavneagervej 22

DK-8250 Egaa

Denmark

www.facebook.com/denverelectronics

DENVER

ELECTRONICS

Käyttoohje

DENVER PBA-10001

www.facebook.dk/denver-electronics

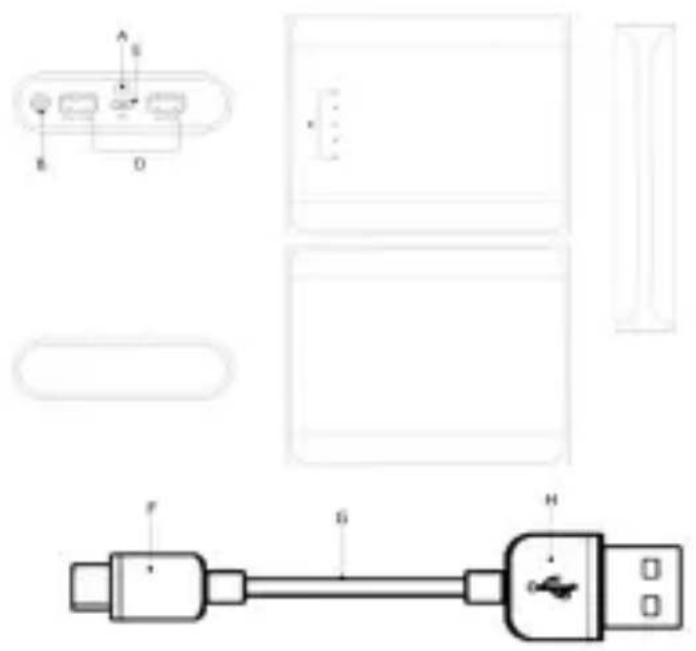

Tuotteen osat
