USER MANUAL PBA4001 MK2 DENVER

denver-electronics.com

Exterior view of a white cylindrical device labeled 'DENVER' with ports and buttons (no additional text or symbols visible)

www.facebook.com/denverelectronics

DENVER PBA-4001

Bærbar Strømbank

Technical diagram showing labeled components of a device with ports A, B, C, D and connectors F, G, H connected to a USB port.

A. LED-lommelygte B. Knap

C. LED power-indikatorer

E. MicroUSB indgangsport

G. USB-kabel H. USB-stik

D. USB udgangsport

F. MicroUSB-stik

Indikator for batteriniveau

	LED-indikator	Resterende batterikapacitet
	1 indikator lyser	0-25%
	2 indikatorer lyser	25-50%
	3 indikatorer lyser	50-75%
	4 indikatorer lyser	75-100%

Simple line drawing of a cylindrical device with attached cable and ports (no text or symbols)

Simple line drawing of a closed book connected to a battery (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

OBS:

denver-electronics.com

Exterior view of a white cylindrical device labeled 'DEIVER' (no additional text or symbols visible)

www.facebook.dk/denver-electronics

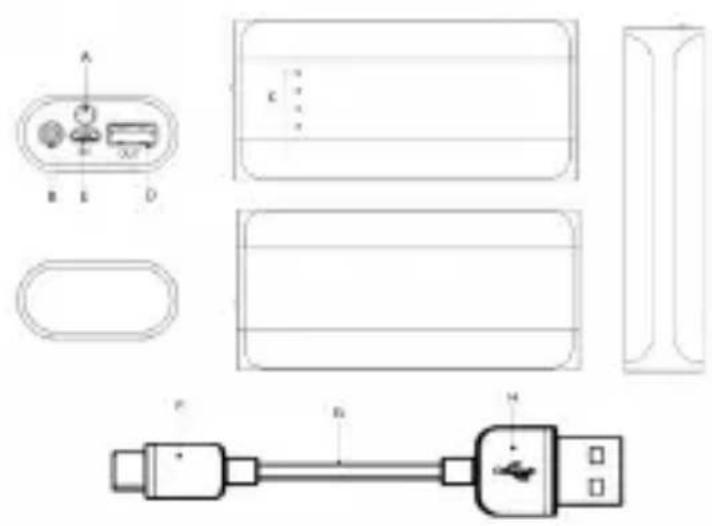

Productoverzicht

Technical diagram showing component layout and connector pinout with labeled parts A, B, C, D, E, F, G, H.

A. LED-zaklantaarn

B. Knop

C. LED-aan/uitindicator

Simple line drawing of a battery pack connected to a plug (no text or symbols)

Simple line drawing of a closed notebook connected to a cylindrical battery (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Draagbare externe batterij

Exterior view of a cylindrical battery labeled 'DELMER' (no additional text or symbols visible)

www.facebook.dk/denver-electronics

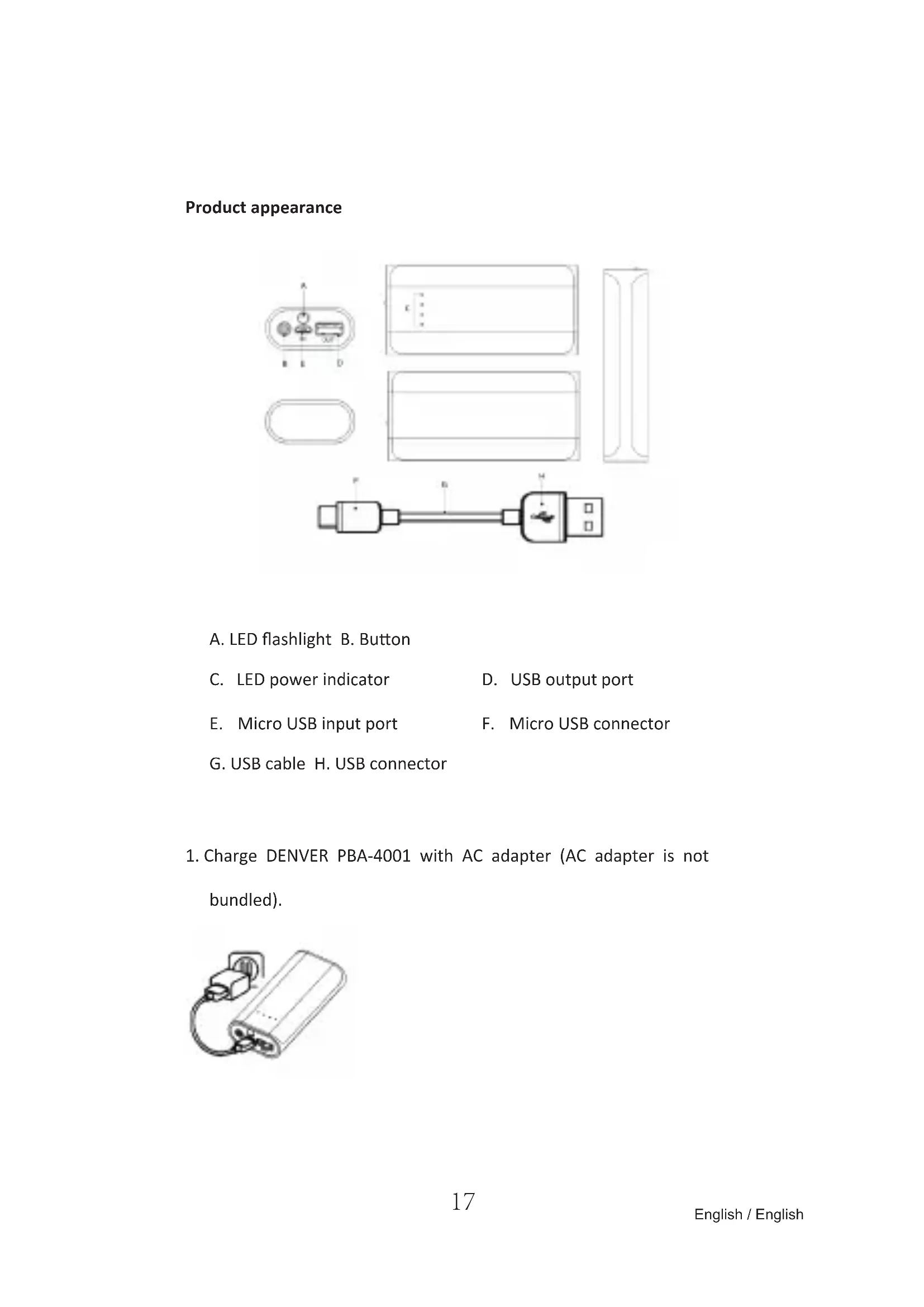

Product appearance

Technical diagram showing labeled components of a device with ports, connectors, and internal compartments

A. LED flashlight B. Button

C. LED power indicator

D. USB output port

E. Micro USB input port

F. Micro USB connector

G. USB cable H. USB connector

1. Charge DENVER PBA-4001 with AC adapter (AC adapter is not bundled).

Simple line drawing of a cylindrical device with a plug and cable (no text or symbols)

1. Charge DENVER PBA-4001 by connecting it to USB port on computer.

Simple line drawing of a closed book connected to a rectangular battery (no text or symbols)

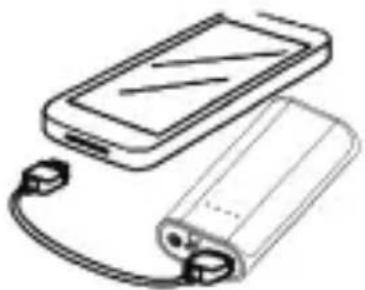

1. Charging digital products using DENVER PBA-4001.

Illustration of a smartphone connected to a battery via cable (no text or symbols)

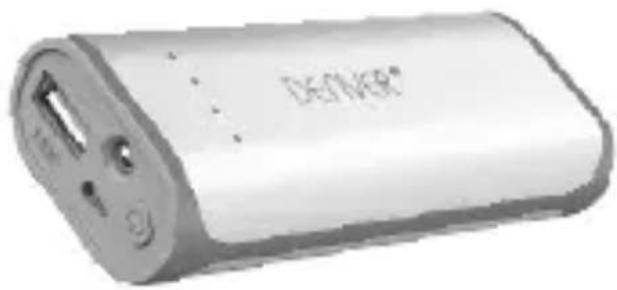

DENVER PBA-4001

Portable External Battery

Support most DC5V USB input smartphones, tablets, MP3, MP4 and other digital products charging.

Thank you for using SMLH products.

Please read the instructions carefully before using the product.

Follow the instructions and use it properly.

Instructions

Charging DENVER PBA-4001 (Figure 1/Figure 2)

1. Use original USB data cable and connect microUSB to microUSB port on DENVER PBA-4001;
2. Connect USB cable to USB port on DC5V USB charger or computer.

If LED signal flickers, it means DENVER PBA-4001 is being charged;

Please pull out power supply after recharging fully.

Charging digital product with DENVER PBA-4001 (Figure 3)

1. Check if the charging voltage of the digital product is compatible with the DC5V output voltage of DENVER PBA-4001.
2. Use the digital product's original cable, and connect one end to the digital product, the other end to DENVER PBA-4001. If battery signal (output signal) lights up, it means the charging process starts. When all signals light up, it means the digital product is fully charged.

Flashlight function

Press the switch twice to turn on the LED flashlight and press twice to turn it off.

LED power indicator:

	LED Signal Battery Percentage
	One signal lights up 0~25%

	Two signals light up 25~50%
	Three signals light up 50~75%
	Four signals light up 75~100%

1. When switching off, LED signal will go out in 5 seconds and the battery will enter sleep mode in about 1 minute. If users want to use the battery to charge digital products, please switch on to wake it up.
2. When switching off, the 1st signal (output signal) will flicker if the power is less than 5% to prompt users that the battery itself needs

Specifications

Name	DENVERPBA-4001	Input DC	5V 1A
Lithium-ion battery inside 4000 mAh/3.7V Output DC5V 1A MAX
Capacity	4000mAh	Weight	~123g/4.34ozs
Size ~L96 x W45 x H22mm	~L3.78x W1.77 x H0.86inches
Charging time	~5 hours (using 1A AC adapter)~10 hours (using 500mA AC adapter or PC USB)
Environment for Use	indoors
Ambient Temperature for Use	Charging 0°C ~45°C; discharging 0°C ~45°C
Environment for Storage	Storage temperature: -10°C ~45°CHumidity: 25%~65%
The electrical core will have 80% capacity left after 300 cycles. (Recycling times: >500 times)

Cau ons:

1. Charge the product itself before using it to charge other products.

2. Do not place or use the product in very hot or humid environment; do not place or use it in direct sunlight, (Standard charge method: under standard atmospheric pressure, ambient temperature 25^ ± 5^ , it can be charged to 4.2V with constant current of 0.5A, and then, charged con nuously with constant voltage of 4.2V until the charged current is 0.01A. Standard discharge method: under standard atmospheric pressure, ambient temperature 25^ ± 5^ , it can be discharged to the voltage of 2.75V with constant current of 0.5A.)

3. Do not throw this product into fire or water, so as to avoid possible fire and explosion.

4. Please keep the product out of the reach of children.

5. Do not use it when nobody is around.

6. Do not dismantle or assembly the product yourself; the product does not have any parts that need users to dismantle, assembly or maintain themselves.

7. Do not shake it, tap it or hit it.

8. Do not use it if any liquid leaks out of the product. If the liquid goes into your eyes, do not rub your eyes, but quickly flush your eyes with running water. If necessary, go to see a doctor.

9. It is normal that the product gets hot under proper operations. Please use with care when using or finishing using the product.

10. Original transmission cables and connectors are required for all operations. Use of non-original products may lead to severe or deadly injuries or monetary loss.

11. Do not use paper or other objects to cover or shield the product, which may affect heat dissipation and cooling.

12. Check the voltage before using the product, so as to avoid unnecessary damage to the product caused by improper use under inaccurate voltage or power.

13. Please charge and discharge the product once every three months if it is not used for a long time. This can ensure the life cycle of the product.

14. Once discharged, please recharge the product fully so as to prepare for later use, for example, for charging digital products.
15. Unplug the power cable when not using the product, so as to avoid injury or property loss.

ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS A/S

DENVER®

www.denver-electronics.com

CE RECOCONOMATION RECOCONOMATION

Electric and electronic equipment and included batteries contains materials, components and substances that can be hazardous to your health and the environment, if the waste material (discarded electric and electronic equipment and batteries) is not handled correctly.

Electric and electronic equipment and batteries is marked with the crossed out trash can symbol, seen below. This symbol signifies that electric and electronic equipment and batteries should not be disposed of with other household waste, but should be disposed of separately.

As the end user it is important that you submit your used batteries to the appropriate and designated facility. In this manner you make sure that the batteries are recycled in accordance with legislature and will not harm the environment.

All cities have established collection points, where electric and electronic equipment and batteries can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.

Imported by:

DENVER ELECTRONICS A/S

Stavneagervej 22

DK-8250 Egaa

Denmark

www.facebook.com/denverelectronics

DENVER®

ELECTRONICS

Käyttöohje

DENVER PBA-4001

Exterior view of a cylindrical electronic device with ports and buttons (no visible text or symbols)

www.facebook.dk/denver-electronics

Tuotteen osat

Technical diagram showing labeled components of a device with internal components and connected ports

A. LED-taskulamppu

B. Painike

Simple line drawing of a cylindrical device with a plug and cable (no text or symbols)

Simple line drawing of a closed book and a rectangular electronic device (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Exterior view of a cylindrical battery with visible internal components and 'DSF1V3ER' branding (no additional text or symbols)

www.facebook.dk/denver-electronics

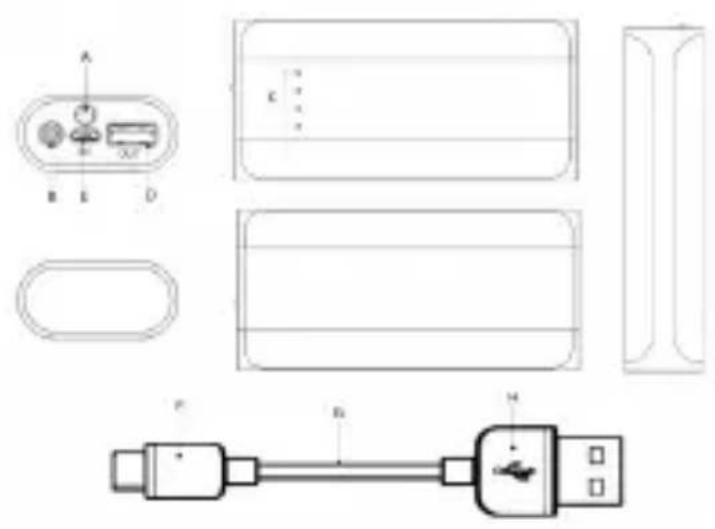

Aspect du produit

Technical diagram showing labeled components of a device with internal components and connected ports

A. TORCHE à LED

B. Touche

Simple line drawing of a battery connected to a plug (no text or symbols)

Simple line drawing of a closed book and a rectangular electronic device (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Batterie portable externe

Exterior view of a cylindrical battery with a label 'DISHERP' on its side (no other text or symbols visible)

www.facebook.dk/denver-electronics

Technical diagram showing labeled components and connectors, including a device panel with ports A, B, C, D and a USB connector with pin labels P, R, M.

A. LED-Taschenlampe

B. Taste

Simple line drawing of a battery connected to a plug (no text or symbols)

Simple line drawing of a closed book connected to a rectangular battery (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Mobiler externer Akku

Exterior view of a cylindrical electronic device labeled 'DEMON' (no other text or symbols visible)

www.facebook.dk/denver-electronics

Technical diagram showing labeled components of a device with internal and external parts, including ports, connectors, and connectors with Chinese labels.

A. Torcia a LED

B. Pulsante

Simple line drawing of a battery pack connected to a plug (no text or symbols)

Simple line drawing of a closed book connected to a cylindrical device (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Exterior view of a white cylindrical electronic device labeled 'DELIVER' (no additional text or symbols visible)

www.facebook.dk/denver-electronics

Wygląd produktu

Technical diagram showing labeled components of a device with internal components and connected ports

A. Latarka LED

B. Przycisk

Simple line drawing of a battery connected to a plug (no text or symbols)

Simple line drawing of a closed book connected to a battery (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Exterior view of a white cylindrical device labeled 'DEIVER' (no additional text or symbols visible)

www.facebook.dk/denver-electronics

Aspeto do produto

Technical diagram showing labeled components of a device with internal components and connected ports

A. Lanterna LED

B. Botão

F. Conector micro USB

G. Cabo USB

H. Conector USB

Simple line drawing of a battery connected to a plug (no text or symbols)

Simple line drawing of a closed notebook connected to a rectangular battery (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Bateria Externa Portátil

White cylindrical electronic device labeled 'DELMER' with ports and buttons (no readable text beyond branding)

www.facebook.dk/denver-electronics

Technical diagram showing labeled components of a device with ports, connectors, and internal compartments

A. Linterna LED

B. Botón

F. Conector micro USB

G. Cable USB

H. Conector USB

Simple line drawing of a battery pack connected to a plug (no text or symbols)

Simple line drawing of a closed notebook connected to a rectangular battery (no text or symbols)

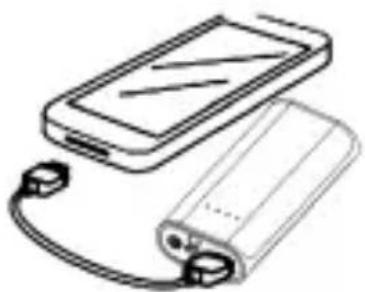

1. Carga de productos digitales usando DENVER PBA-4001.

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Exterior view of a white cylindrical electronic device labeled 'DEIVER' (no additional text or symbols visible)

www.facebook.dk/denver-electronics

Produktens utseende

Technical diagram showing labeled components of a device with internal components and connected ports

A. LED-ficklampa

B. Knapp

C. LED-strömindikator

Simple line drawing of a battery connected to a plug (no text or symbols)

Simple line drawing of a closed book and a rectangular electronic device (no text or symbols)

Line drawing of a smartphone connected to a battery via cable (no text or symbols)

DENVER PBA-4001

Externt batteri
