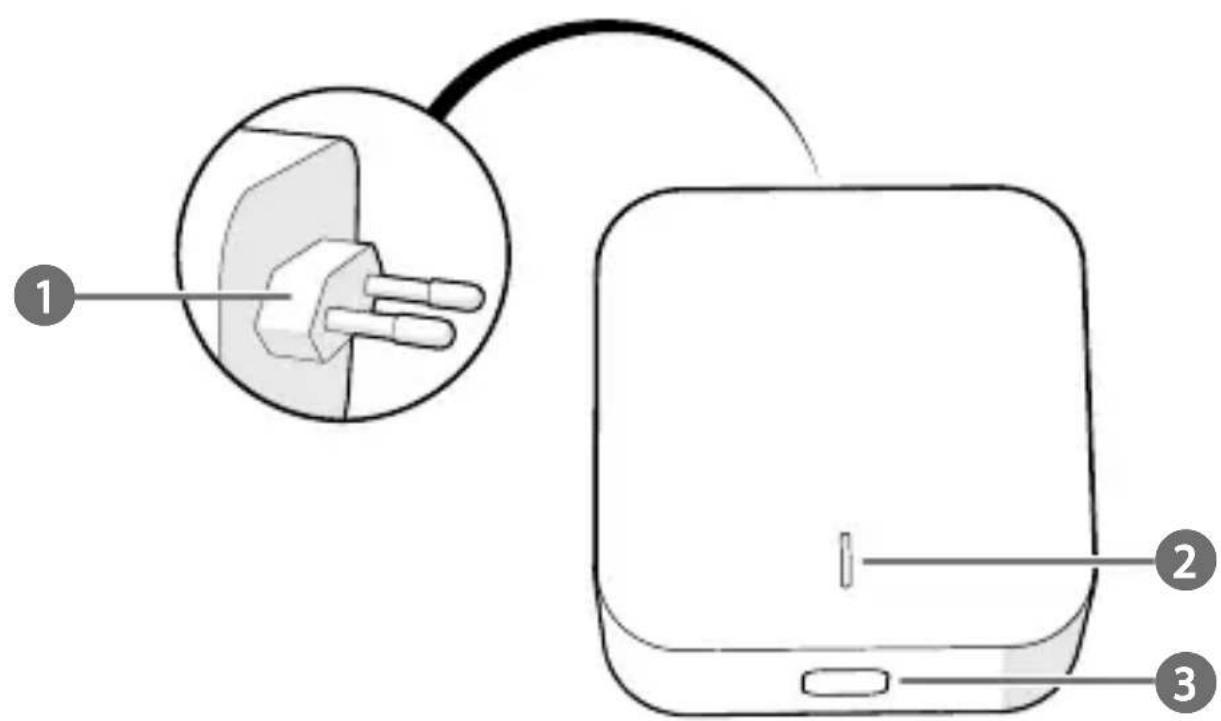

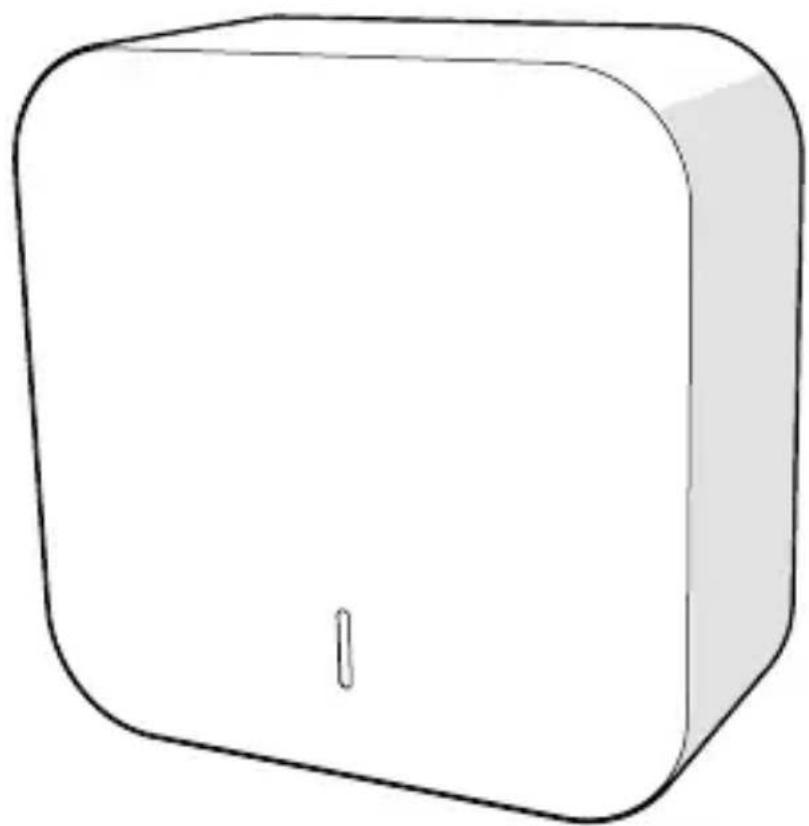

Quick start guide Zigbee Gateway WIFIZB10CWT For more information see the extended manual online: ned.is/wizb10cwt Intended use This product is intended to connect multiple sensors to the Nedis SmartLife app via a wireless Zigbee connection. The product is intended for indoor use only. The product is not intended for professional use. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Zigbee Gateway Article number WIFIZB10CWT Dimensions (l x w x h) 57 x 57 x 60 mm Input power 90 - 250 VAC Zigbee transmission protocol IEEE802.15.4 Wi-Fi transmission protocol 802.11bgn Zigbee frequency range 2400 - 2483 MHz Wi-Fi frequency range 2412 - 2484 MHz Zigbee transmission distance Up to 90 m Wi-Fi transmission distance Up to 50 m Maximum transmit power 18 dBm Antenna gain 2.5 dBi Operating temperature -10 °C - 50 °C Operating humidity < 95 % RH OS support Android, iOS5 Main parts (image A)

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.

• Only use the product as described in this document.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Disconnect the product from the power source and other equipment if problems occur.

• Disconnect the product from the power source before service and when replacing parts.

• Do not expose the product to water or moisture.

• Children should be supervised to ensure that they do not play with the product.

• Only power the product with the voltage corresponding to the markings on the product.

• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards. Installing the app

1. Download the Nedis SmartLife app for Android or iOS on your phone via

Google Play or the Apple App Store.

2. Open the Nedis SmartLife app on your phone.

3. Create an account with your mobile phone number or your e-mail address

4. Enter the received verication code.

5. Create a password and tap Done.

6. Tap Add Home to create a SmartLife Home.

7. Set your location, choose the rooms you want to connect with and tap Done.

Connecting to the app

1. Tap + in the top right corner in the Nedis SmartLife app.

2. Select the product type you want to add from the list.

3. Plug the product into a power outlet.

The status indicator LED A 2 blinks green to indicate pairing mode is active.

for 5 seconds to manually enter the pairing mode.

4. Tap Next step in the app.

5. Enter the Wi-Fi network data and tap Conrm.

6. Type in a name for the product and tap Done.

The product is now ready for use.

For more information on how to connect and use the dierent sensors with the product, consult the manual of the sensor. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product WIFIZB10CWT from our brand Nedis

, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/wizb10cwt#support For additional information regarding the compliance, contact the customer service: Web: www.nedis.com E-mail: [e-mail] Nedis B.V., de Tweeling 28 5215 MC ’s-Hertogenbosch, the Netherlands7
