USER MANUAL GV64TXBK Glem Gas

Pag 4 - 13 Description, installation, assembly, cleaning, maintenance and the various assembly phases. Technical data.

Pag. 36 Instructions for the installation and advice for the maintenance. Instructions Manual.

FR

In case of adaptation of the hob to another type of gas, operate as described in the directions for the and installation use and replace the label on the bottom with the one provided in the spare bag.

*DCC AFB: Air From the Bottom.

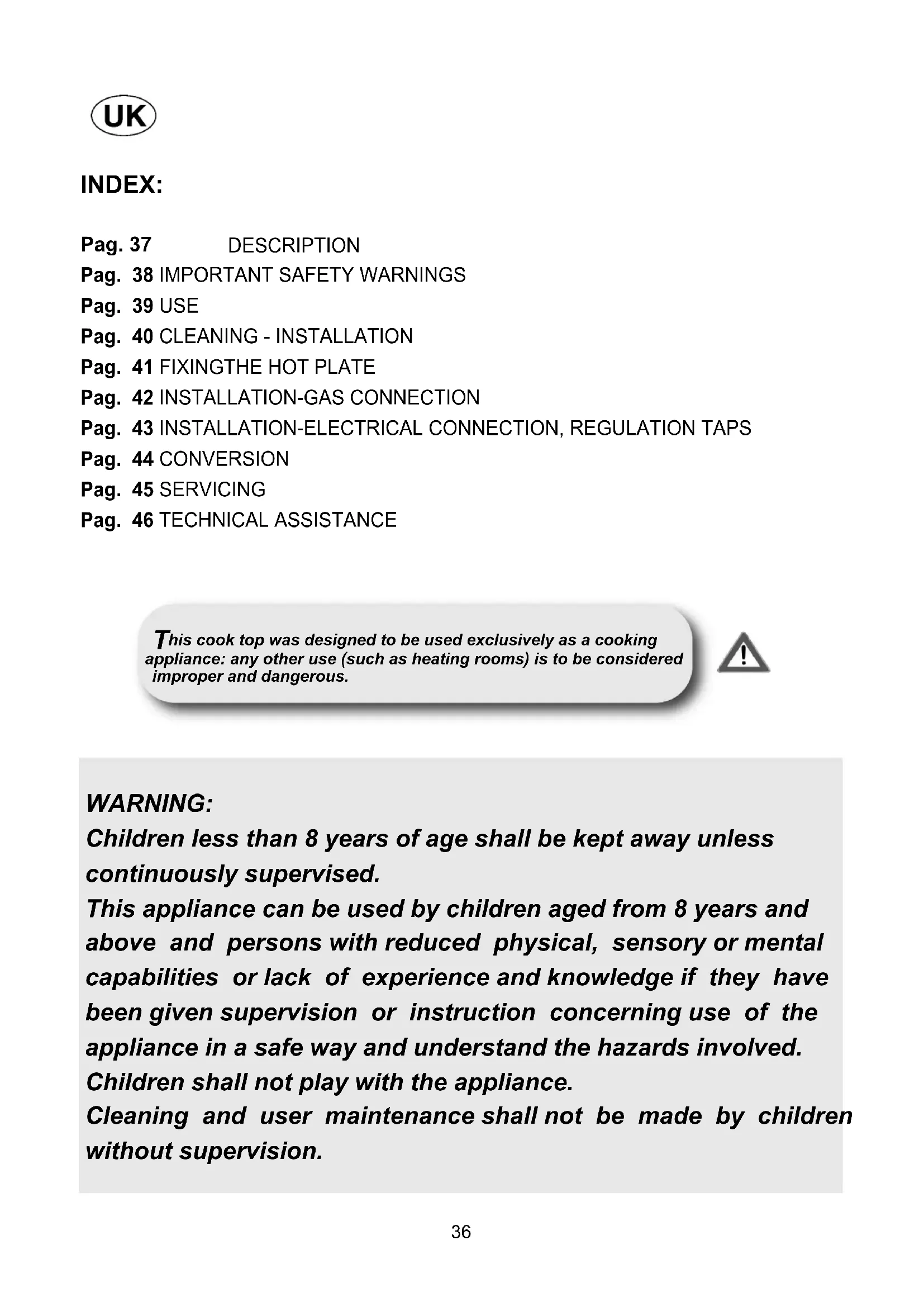

This cook top was designed to be used exclusively as a cooking appliance: any other use (such as heating rooms) is to be considered improper and dangerous.

WARNING:

Children less than 8 years of age shall be kept away unless continuously supervised.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

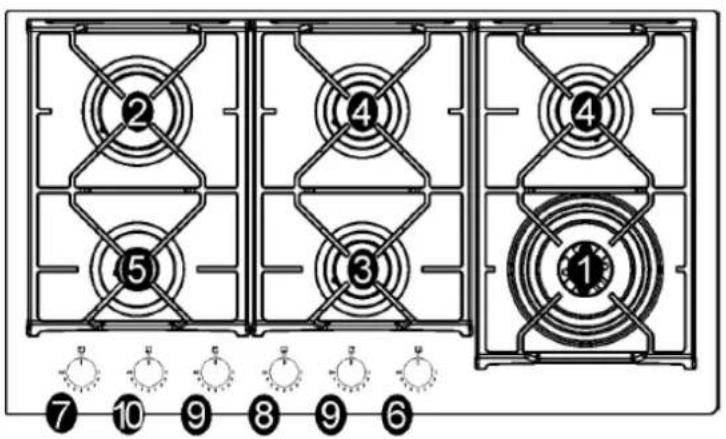

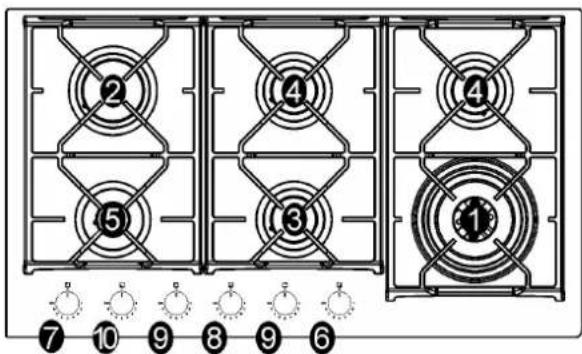

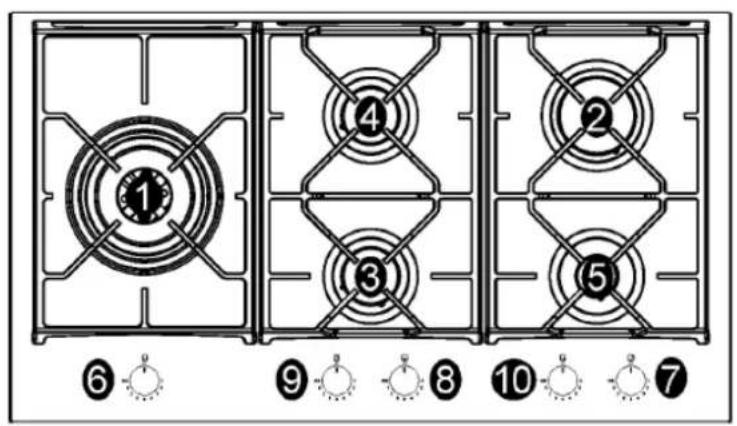

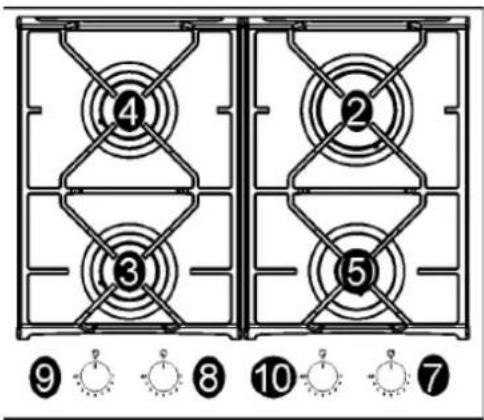

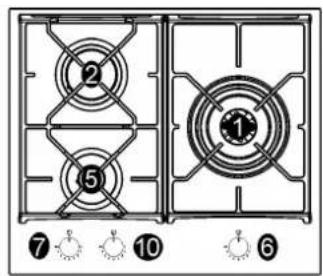

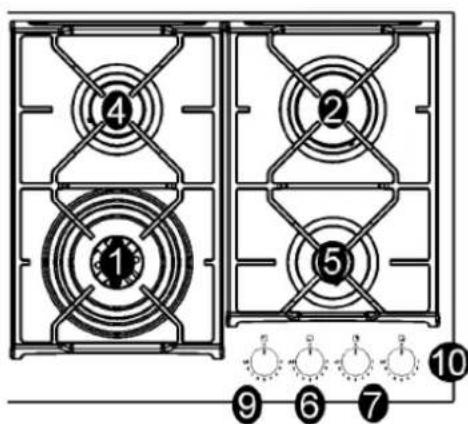

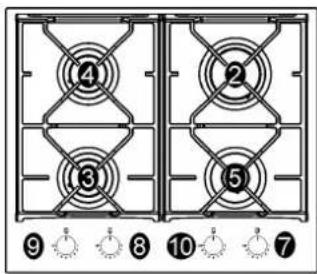

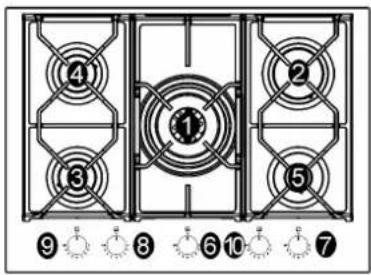

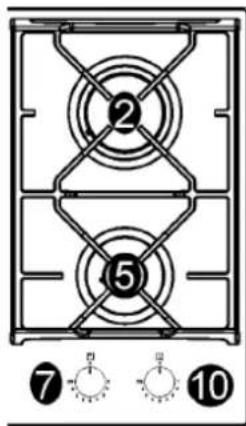

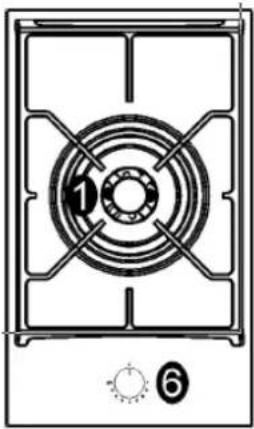

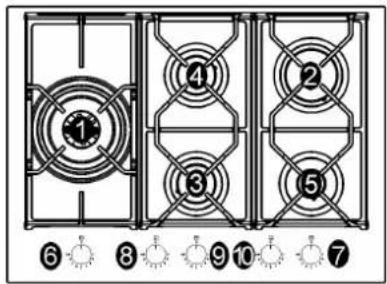

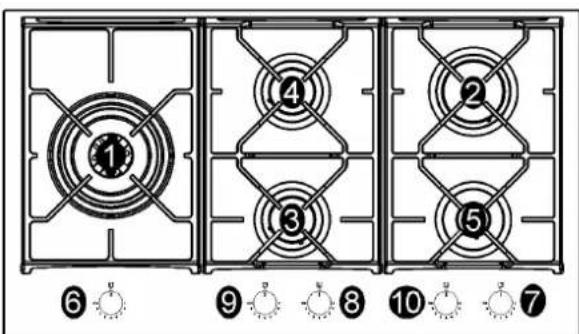

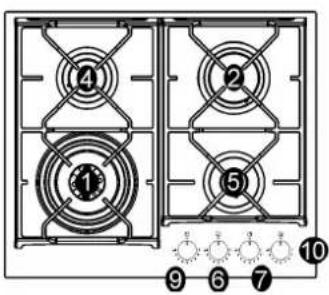

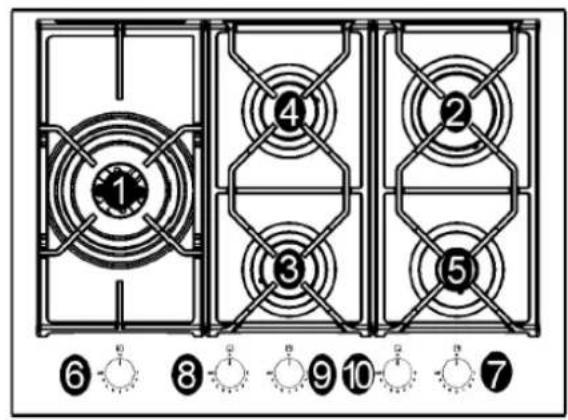

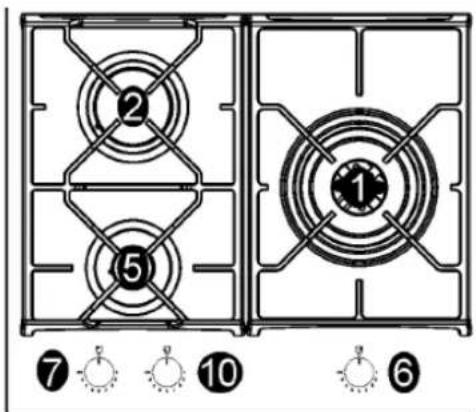

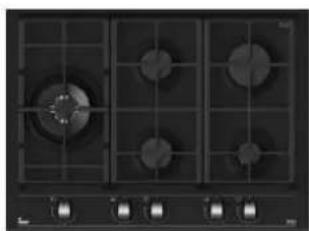

DESCRIPTION OF HOBS

1 Ultra rapid gas burner (*DCC AFB) of 4000 W
2 Rapid gas burner of 2800 W
3 Semirapid gas burner reduced of 1400 W
4 Semirapid gas burner of 1750 W
5 Auxiliary gas burner of 1000 W
6 Burner n^ 1 control knob
7 Burner n^2 control knob
8 Burner n^3 control knob
9 Burner n°4 control knob
10 Burner n° 5 control knob

*DCC AFB: Air From The Bottom (fig. 13/B)

Attention: this appliance has been manufactured for domestic use only and it employment by private person.

IMPORTANT SAFETY WARNINGS

IMPORTANT WARNINGS FOR THE USER

During operation the work surfaces of the cooking area become very hot: keep children away!

CAUTION:

In case of hotplate glass breakage:

• shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply;
• do not touch the appliance surface;
  do not use the appliance.

- IMPORTANT!

A perfect installation, adjustment or transformation of the cook top to use other gases requires a QUALIFIED INSTALLER: a failure to follow this rule will void the warranty.

-IMPORTANT: the appliance must be installed following the manufacturer's instructions. The manufacturer will not be liable for injury to persons or animals or property damage caused by an incorrect installation.
- If the installation requires modifications to the home's electrical system or if the socket is incompatible with the appliance's plug, have changes or replacements performed by professionally-qualified person. In particular, this person must also make sure that the section of the wires of the socket is suitable for the power absorbed by the appliance.
- Use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The room must therefore be well ventilated by keeping the natural air vents clear (see fig. 3) and by activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).
- Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by opening a window or by increasing the power of the mechanical exhausting system if installed.

• Do not attempt to change the technical characteristics of the product because it can be dangerous.
• If you should not to use this appliance any more (or replace an old model), before disposing of it, make it inoperative in conformity with current law on the protection of health and the prevention of environmental pollution by making its dangerous parts harmless, especially for children who might play on an abandoned appliance.

CAUTION:

Do not touch the appliance with wet or damp hands or feet. Do not use the appliance barefoot

The manufacturer will not be liable for any damage resulting from improper, incorrect or unreasonable use.
- During, and immediately after operation, some parts of the cook top are very hot: avoid touching them.
After using the cook top, make sure that the knob is in the closed position and close the main tap of the gas supply or gas cylinder.
If the gas taps are not operating correctly, call the Service Department.
- Keep the Warranty Certificate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

IMPORTANT:

All our products are conform with the European Norms and relative amendments.

The product is therefore conform with the requirements of the European Directives in force relating to:

• compatibility electromagnetic (EMC);
• electrical security (LVD);
• restriction of use of certain hazardous substances (RoHS);
• EcoDesign (ERP).

The appliance complies with the provisions of the sub-regulations for European Directives:

• Regulation (EU) 2016/426.

USE

1) BURNERS

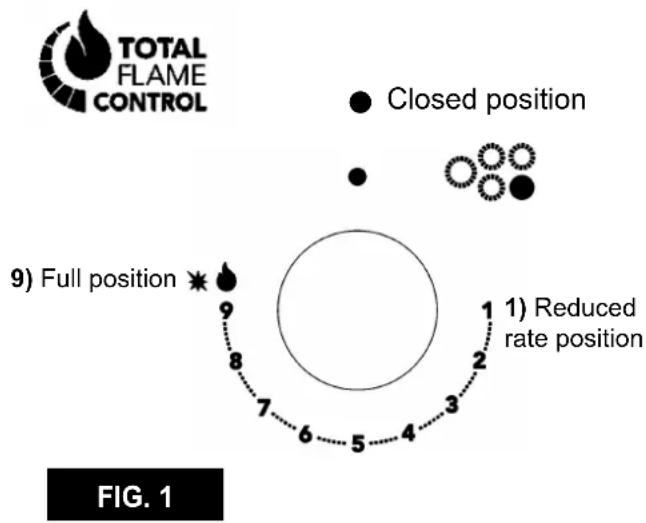

A diagram is screen-printed above each knob on the front panel. This diagram indicates to which burner the knob in question corresponds. After having opened the gas mains or gas bottle tap, light the burners as described below:

- automatic electrical ignition and Total Flame Control

Push and turn the knob corresponding to the required burner in an anticlockwise direction until it reaches the full on position of full (position 9 fig. 1), then depress the knob, the tap is equipped with a scale of 9 positions, with each click the flame is reduced until you reach the position of 1. ie the minimum supply of gas.

- Lighting burners equipped with flame failure device

The knobs of burners equipped with flame failure device must be turned in an anticlockwise direction until they reach the full on position (Position 9, fig.1) and come to a stop. Now depress the knob in question and repeat the previously indicated operations.

Keep the knob depressed for about 10 seconds once the burner has ignited.

Then follow the instructions for using the tap as explained above.

With regards to all the models, in case of accidental extinguishment of the flame, disengage the ignition by rotating the knob to the off position. Wait at least 1 minute before re-igniting the flame.

HOW TO USE THE BURNERS

Bear in mind the following indications in order to achieve maximum efficiency with the least possible gas consumption:

Burners Pan Ø in cm
Ultrarapid	24 ÷ 26
Rapid	20 ÷ 22
Semirapid reduced	16 ÷ 18
Semirapid	16 ÷ 18
Auxiliary	10 ÷ 14

• use adequate pans for each burner (consult the following table and fig. 2).
• When the pan comes to the boil, set the knob to the reduced rate position (Position 1, fig. 1).
• Always place a lid on the pans.
• Use only pan with a flat bottom.

WARNING:

• Burners with flame failure device may only be ignited when the relative knob has been set to the Full on position (Position 9, fig. 1).
  -Matches can be used to ignite the burners in a blackout.
• Never leave the appliance unattended when the burners are being used. Make sure there are no children in the near vicinity. Particularly make sure that the pan handles are correctly positioned and keep a check on foods requiring oil and grease to cook since these products can easily catch fire.
• Never use aerosols near the appliance when it is operating.
• Containers wider than the unit are not recommended.

INSTALLATION CLEAN

IMPORTANT:

Always disconnect the appliance from the gas and electricity mains before carrying out any cleaning operation.

2) HOT PLATE

It is very important to clean the surface soon after every use, when the glass is still tepid.

Periodically wash the hot plate, the enamelled stell pan support, the enamelled burner caps "A", "B" and "C" and the burner heads "T" (see fig. 6-6/A) with lukewarm soapy water. They should also be cleaned plugs "AC" and flame detection "TC" (see fig. 6). Clean them gently with a small nylon brush as shown (see fig. 6/B) and allow to dry fully.

Do not wash in the dishwasher.

Do not allow vinegar, coffee, milk, salted water, lemon or tomato juice from remaining in contact with the enamelled surfaces for long periods of time.

Do not use metallic sponges, powder abrasives or corrosive sprays.

WARNING:

Comply with the following instructions, before remounting the parts:

• check that burner heads slots (see fig. 6-6/A) have not become clogged by foreign bodies.
• Check that enamelled burner cap "A-B-C" (fig. 6-6/A) have correctly positioned on the burner head. It must be steady.
• The pan support must be placed in the appropriate centering pins.

Verifying the perfect stability.

• Do not force the taps if they are difficult open or close. Contact the technical assistance service for repairs.
• Don't use steam jets for the equipment cleaning.

TECHNICAL INFORMATION FOR THE INSTALLER

Installation, adjustments of controls and maintenance must only be carried out by a qualified engineer.

The appliance must be correctly installed in conformity with current law and the manufacturer's instructions.

Incorrect installation may cause damage to persons, animals or property for which the Manufacturer shall not be considered responsible.

During the life of the system, the automatic safety or regulating devices on the appliance may only be modified by the manufacturer or by his duly authorized dealer.

3) INSTALLING THE HOT PLATE

Check that the appliance is in a good condition after having removed the outer packaging and internal wrappings from around the various loose parts. In case of doubt, do not use the appliance and contact qualified personnel.

Never leave the packaging materials (cardboard, bags, polystyrene foam, nails, etc.) within children's reach since they could become potential sources of danger.

The measurements of the opening made in the top of the modular cabinet and into which the hot plate will be installed are indicated in either fig. 7. Always comply with the measurements given for the hole into which the appliance will be recessed (see fig. 7.)

The appliance belongs to class 3 and is therefore subject to all the provisions established by the provisions governing such appliances.

Note: continuous use could cause the burners to change colour due to the high temperature.

INSTALLATION INSTALLATION

INSTALLATION TYPE: A

The hot plate has a special seal which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:
- take off all the movable parts of the hob.
- Cut the seal in 4 parts of the necessary lenght to positioning it on the 4 edges of the crystal.

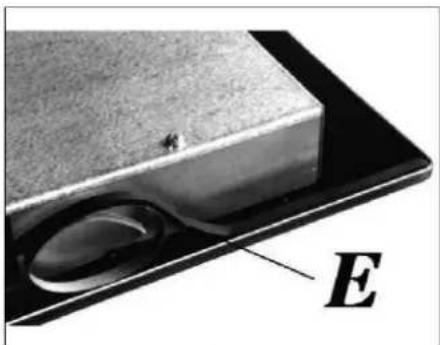

- Overturn the hot plate and correctly position seal "E" (fig. 11/A) under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer perimetal edge of the crystal. The ends of the strips must fit together without overlapping.
- Evenly and securely fix the seal to the crystal, pressing it in place with the fingers.

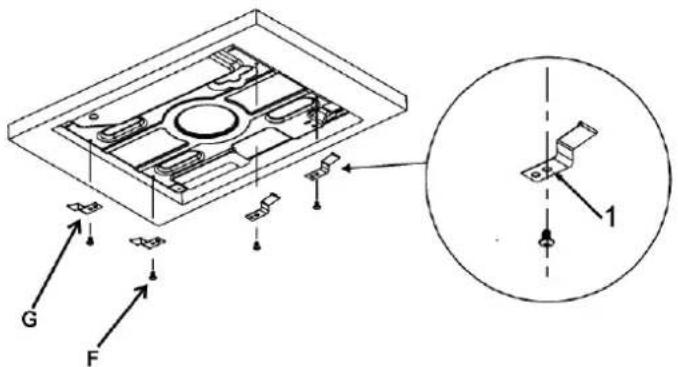

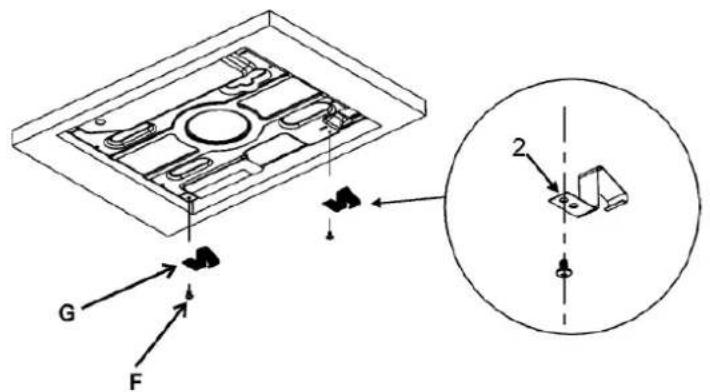

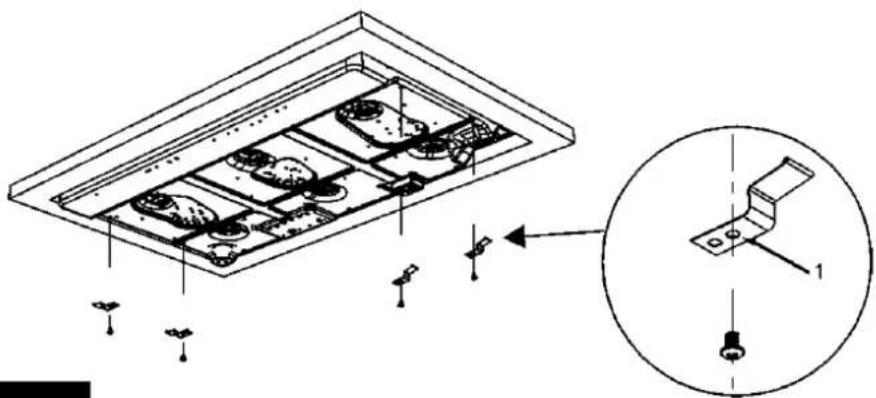

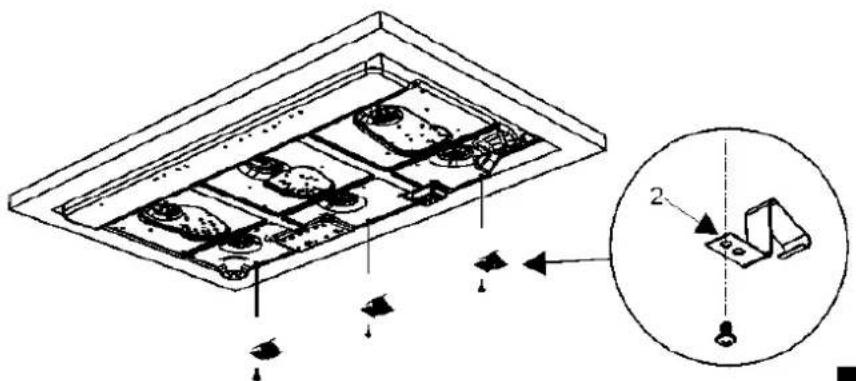

- Place the hooks in their respective positions, use the hole no. 1 as reference for position lateral (fig. 9) and hole no. 2 for positions rear (fig. 10).

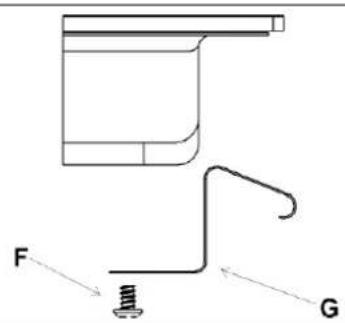

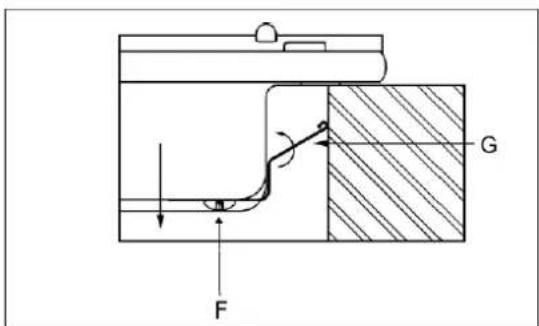

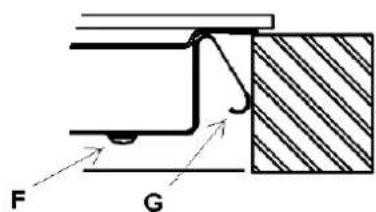

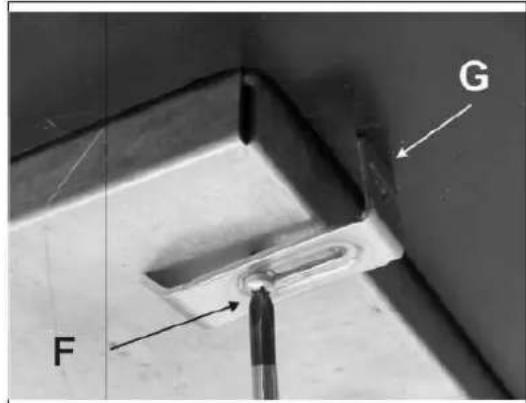

- Secure hooks "G" by means of screws "F" (fig. 9/A for lateral, and fig. 10/A for rear).

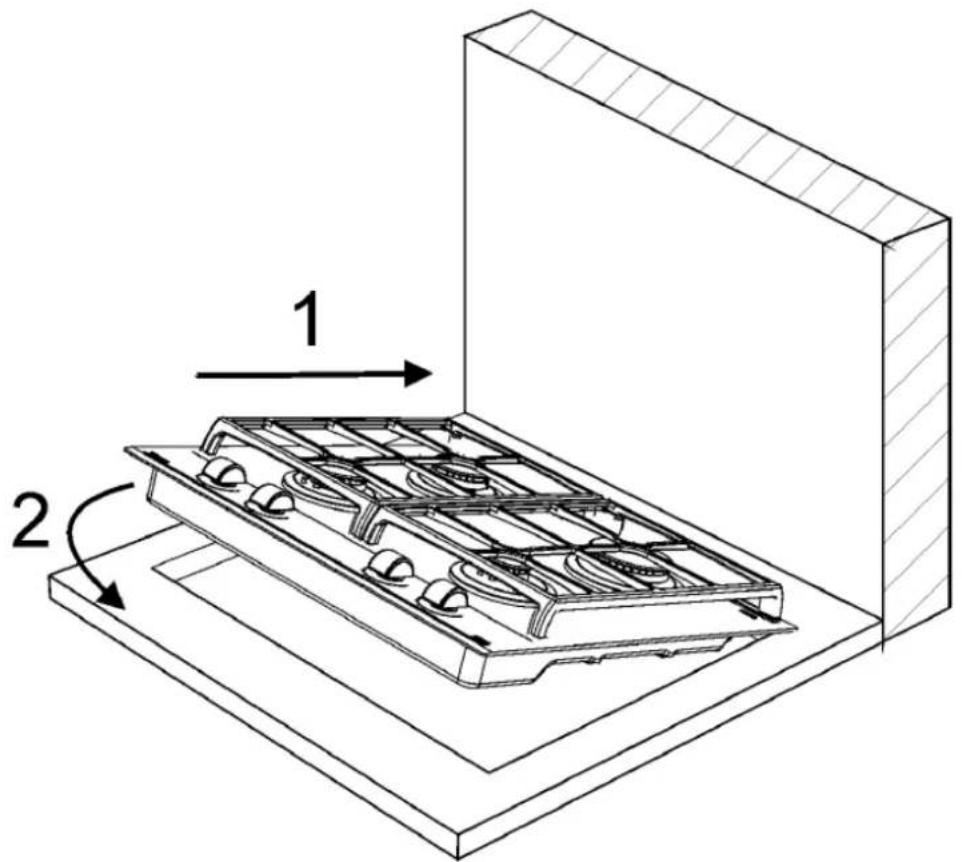

- Insert the cooking hob in the hole of the kitchen cabinet by exercising a certain level of force in order to get over the resistance of the hooks (fig. 9/B for lateral and fig. 10/B for rear). See the diagram on page 9.
- In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 7).

4) FIXING THE HOT PLATE INSTALLATION TYPE: B

The hot plate has a special seal which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal:

• take off all the movable parts of the hob.
• Cut the seal in 4 parts of the necessary lenght to positioning it on the 4 edges of the crystal.
• Overturn the hot plate and correctly position seal "E" (fig. 11/A under the edge of the hot plate itself, so that the outer side of the seal perfectly matches the outer perimetal edge of the crystal. The ends of the strips must fit together without overlapping.
• Evenly and securely fix the seal to the crystal, pressing it in place with the fingers.
• Position the hob in the hole in the unit and fasten it in place using the appropriate screws "F" of the fastening hooks "G" (see fig. 11).
• In order to avoid accidental touch with the overheating bottom of the hob, during the working, is necessary to put a wooden insert, fixed by screws, at a minimum distance of 70 mm from the top (see fig. 7).

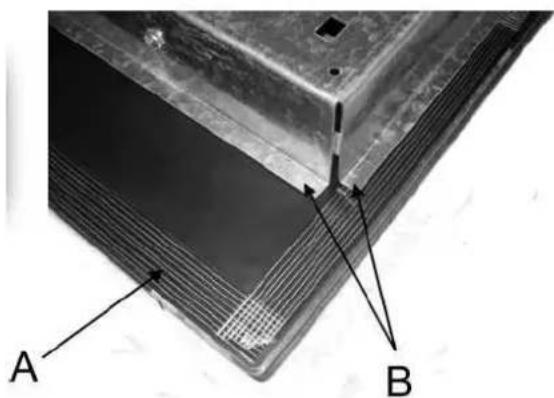

CAUTION: do not place the glass directly on the unit. The bottom of the hob must rest on the unit.

Caution: Do not allow the glass (A) lay directly on the work top. It is the metal bottom "carter" (B) that has to be in touch with the work top (see fig. 11/B).

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

The installer should note that the appliance that side walls should be no higher than the hot plate itself. Furthermore, the rear wall, the surfaces surrounding and adjacent to the appliance must be able to withstand an temperature of 90^ .

The adhesive used to stick the plastic laminate to the cabinet must be able to withstand a temperature of not less than 150^ otherwise the laminate could come unstuck.

The appliance must be installed in compliance with BS 6172 1990, BS 5440 part. 2 1989 and BS 6891 1988.

This appliance is not connected to a device able to dispose of the combustion fumes. It must therefore be connected in compliance with the above mentioned installation standards. Particular care should be paid to the following provisions governing ventilation and aeration.

5) ROOM VENTILATION

To ensure correct operation of the appliance, it is important to ensure that the room where the hot plate is installed has sufficient ventilation, as set out in BS 5440 part 2. 1989. See table below.

Natural air flow must enter directly through permanent openings in the walls of the room in question. These

Type of appliance	Volume of room cubic metres	Min. size of vent sq. cm.	Openable window or alternative method of venting to the outside
Domestic ovens	5	100	yes
hotplates or any combinations	5 to 10	50	yes
	11 to 20	nil	yes
	20 and above	nil	yes

must open towards the outside and possess a minimum section of 100cm^2 see fig.3).It must be impossible to obstruct these openings.

Indirect ventilation with air drawn from adjacent rooms is permitted in strict compliance with the provisions in force.

6) LOCATION AND AERATION

Gas cooking appliances must always dispose of their combustion fumes through hoods. These must be connected to flues, chimneys or straight outside (see fig. 4). If it is not possible to install a hood, an electric fan can be installed on a window or on a wall facing outside (see fig. 5). This must be activated at the same time as the appliance, so long as the specifications in the provisions in force are strictly complied with.

7) GAS CONNECTION

Before connecting the appliance, check that the values on the data label affixed to the underside of the hot plate correspond to those of the gas mains in the home.

A label on the appliance indicates the regulating conditions: type of gas and working pressure.

WARNING:

a gas hot plate can only be connected by a CORGI Registered engineer.

Installations should be carried out in accordance with BS 6891 1988 and must comply with the Gas Safety Regulations.

All hot plate installations must include an isolation tap.

GAS PRESSURE TEST

Some hot plates models have a test point fitted under the control panel, to conduct a gas pressure test proceed as follows:

• turn off the gas supply.
• Remove screw in the pressure test point, place test gauge connecting tube on test point.
• Fit a burner ring and cap onto burner assembly, replace control knob onto corresponding control tap for the burner.
• Turn on gas and ascertain working pressure.

After test, turn off control tap, turn off gas supply, disconnect test gauge connecting tube.

Replace the test point screw, turn gas back on and test for soundness. Reassemble the hotplate.

INSTALLATION

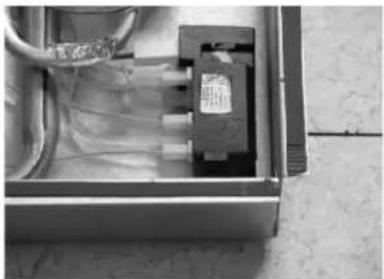

The electrical connections of the appliance must be carried out in compliance with the provisions and standards in force.

Before connecting the appliance, check that:

• the voltage matches the value shown on the specification plate and the section of the wires of the electrical system can support the load, which is also indicated on the specification plate.
• The electrical capacity of the mains supply and current sockets suit the maximum power rating of the appliance (consult the data label applied to the underside of the hot plate).
• The socket or system has an efficient earth connection in compliance with the provisions and standards in force. The manufacturer declines all responsibility for failing to comply with these provisions.

When the appliance is connected to the electricity main by a socket:

• fit a standard plug "C" suited to the load indicated on the data label to the cable. Fit the wires following figure 8, taking care of respecting the following correspondences:

Letter L (live) = brown wire;

Letter N (neutral) = blue wire;

earth symbol 12 green - yellow wire.

• The power supply cable must be positioned so that no part of it is able to reach an temperature of 90^ .
• Never use reductions, adapters of shunts for connection since these could create false contacts and lead to dangerous overheating.
• The outlet must be accessible after the built-in.

When the appliance is connected straight to the electricity main:

• install an omnipolar circuit-breaker between the appliance and the electricity main. This circuit-breaker should be sized, in compliance with current installation regulations.
• Remember that the earth wire must not be interrupted by the circuit-breaker.
• For optimum safety, the electrical connection may also be protected by a high sensitivity differential circuit-breaker.

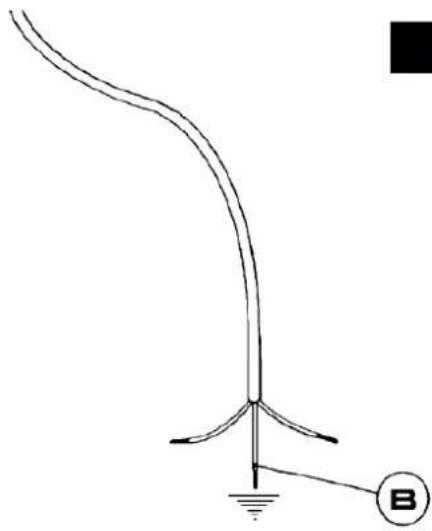

You are strongly advised to fix the relative yellow-green earth wire to an efficient earthing system.

Before performing any service on the electrical part of the appliance, it must absolutely be

REGULATION

disconnected from the electrical network. Always disconnect the appliance from the electricity main before making any adjustments. All seals must be replaced by the technician at the end of any adjustments or regulations. Our burners do not require primary air adjustment.

9) TAPS

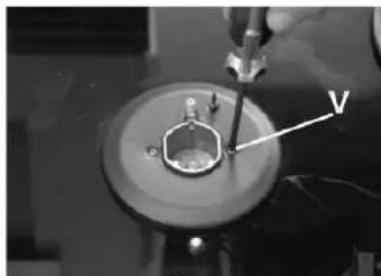

"Reduced rate" adjustment

• Switch on the burner and turn the relative knob to the "Reduced rate" position (small flame fig. 1).

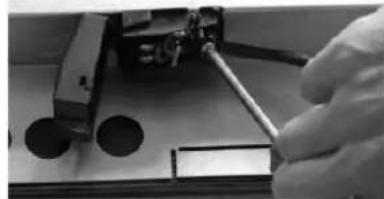

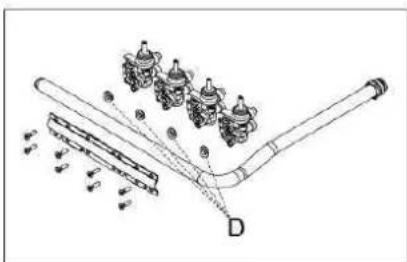

• Remove knob "M" (fig. 12 and 12/A) of the tap, which is simply pressed on to its rod. The by-pass for minimal rate regulation can be: beside the tap (fig. 12) or inside the shaft. In any case, to access to regulation, it can be done wrought the insertion of a small screwdriver "D" beside the tap (fig. 12) or in the hole "C" inside the shaft of the tap (fig 12/A). Turn the throttle screw to the right or left until the burner flame has been adequately regulated to the "Reduced rate" position.

The flame should not be too low: the lowest small flame should be continuous and steady. Re-assemble the several components.

It is understood that only burners operating with G20 gas should be subjected to the above mentioned adjustments. The screw must be fully locked when the burners operate with G30 or G31 (turn clockwise).

TAPS LUBRIFICATION

Should a tap being blocked, do not force and ask for Technical Assistance.

CONVERSIONS

10) REPLACING THE INJECTORS

The burners can be adapted to different types of gas by mounting injectors suited to the type of gas in question. To do this, first remove the burner tops using an appropriate tool. Now unscrew injector (see fig. 13 - 13/A - 13/B) and fit a injector corresponding to the utilized type of gas in its place.

It is advisable to strongly tighten the injector in place.

To access the injector, in ultra-fast burners with DCC AFB, remove the injector cover "A" (fig. 13/B).

After the injectors have been replaced, the burners must be regulated as explained in paragraphs 9. The technician must reset any seals on the regulating or pre-regulating devices.

The envelope with the injectors and the labels can be included in the kit, or at disposal to the authorized customer Service Centre.

For the sake of convenience, the nominal rate table also lists the heat inputs of the burners, the diameter of the injectors and the working pressures of the various types of gas.

TABLE

BURNERS		GAS	NORMAL PRESSURE mbar	NORMAL RATE		INJECTOR DIAMETER Max1000Emm	NOMINAL HEAT INPUT (W)
\( N^{\circ} \)	DESCRIPTION			gr/h l/h Min.					Gas Burner*
1	ULTRA RAPID (*DCC AFB)	G30 - BUTAN G31 - PROPAN G20 - NATURAL	28 - 30 37 20	291 286	381	100 H1 100 H1 150 Z1	1800 1800 1800	4000 4000 4000	55,9 %
2	RAPID	G30 - BUTAN G31 - PROPAN G20 - NATURAL	28 - 30 37 20	204 200	267	83 83 117 S	900 900 900	2800 2800 2800	58,0 %
3	SEMIRAPID REDUCED	G30 - BUTAN G31 - PROPAN G20 - NATURAL	28 - 30 37 20	102 100	133	60 60 88 Z	550 550 550	1400 1400 1400	60,0 %
4	SEMIRAPID	G30 - BUTAN G31 - PROPAN G20 - NATURAL	28 - 30 37 20	127 125	167	65 65 97 Z	550 550 550	1750 1750 1750	63,0 %
5	AUXILIARY	G30 - BUTAN G31 - PROPAN G20 - NATURAL	28 - 30 37 20	73 71	95	50 50 72 X	450 450 450	1000 1000 1000	N.A.

*In accordance with Regulation No. 66/2014 EU measures for the implementation of Directive 2009/125/EC, the performance (EEgas burner) was calculated according to EN 30-2-1 last review with the G20.

**DCC AFB: Air from the bottom (fig. 13/B).

SERVICING

CABLE TYPES AND SECTIONS

TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY
Gas hot plate H05 RR-F Section	3 x 0.75 mm	2

ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire (B) longer than the phase conductors (fig. 14) and comply with the recommendations given in paragraph 8.

WARNING: MAINTENANCE MUST ONLY BE PERFORMED BY AUTHORISED PERSONS.

In case of failure or cut in the cable, please move away from the cable and do not touch it. Moreover the device must be unplugged and not switched on. Call the nearest authorized service center to fix the problem.

TECHNICAL ASSISTANCE AND SPARE PARTS

Before leaving the factory, this appliance will have been tested and regulated by expert and specialized personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs or adjustments are required, specifying the type of fault and the model of the appliance in your possession.

Please also note that genuine spare parts are only available from our After Sales Service Centers and authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing label.

The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-sent intervention. We suggest to fill the table below.

MARK:

MODEL:

SERIES:

Keep the Warranty Certificate or the sheet of technical data with the Instructions Handbook during the appliance life. It contains important technical data.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

MATIERES:

Pag. 48 DESCRIPTION DE TABLE DE CUISSON
Pag. 49 AVERTISSEMENTS DE SECURITE IMPORTANTS
Paq. 50 UTILISATION
Pag. 51 NETTOYAGE - INSTALLATION
Pag. 52 INSTALLATION, FIXATION DE LA TABLE DE CUISSON
Paq. 53 INSTALLATION
Pag. 54 INSTALLATION, BRANCHEMENT ELETRIQUE, REGLAGE ROBINETS
Pag. 55 TRANSFORMATION
Pag. 56 ENTRETIEN
Pag. 57 SERVICE APRES-VENTE

INSTALLATION TYPE: A

INSTALLATION TYPE: B

ROBINETS LUBRIFICATION

10) REMPLACEMENT DES BUSES

m = 311

---

---

Jlalaljlll jlll lllllllllllllllllll

2002/96/EC 4g jyj yll 4g, 4dall o. g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g 4g

%59,5	240-220	796	10.95
%59,5	240-220	796	10.95
%60,3	240-220	923	12.70
%59,35	240-220	796	10.95

Lililya aolai aal 0 gialla i

معربي E.E.	الإستعمال (عربية)	ΣQn الإستعمال G30 مarseille 30-28	ΣQn ال,enforced G20 Marseille 20
60-50 نيرز
%57,6	240-220	291	4.0	6
%57,9	240-220	276	3.80	7
%57,8	240-220	567	7.8	8
%60,1	240-220	505	6.95	9
%59,7	240-220	694	9.55	10

#

a 1

\( {}^{2}{\mathrm{{H}}}_{2}\mathrm{{O}} \) 10 \( {3.5} \times {10}^{-6}{\mathrm{\;N}}_{2} \)	\( {\mathrm{H}}_{2}\mathrm{{SO}}4 \)	\( {\mathrm{H}}_{2}\mathrm{{SO}}4 \)
\( {}^{2}{\mathrm{{H}}}_{2}\mathrm{O} \) 10 \( {3.5} \times {10}^{-6}{\mathrm{\;N}}_{2} \)	\( {\mathrm{H}}_{2}{\mathrm{{SO}}}_{4} \cdot 2{\mathrm{H}}_{2}\mathrm{O} \)	\( {\mathrm{H}}_{2}{\mathrm{{SO}}}_{4} \cdot 2{\mathrm{H}}_{2}\mathrm{O} \)

1110

B

8 8aillgssy

g 1511 g 1511 g

e 1

FIG.19

jll jlll lll

Laeie 1e gao gao Las aie Jae! jai no gai gai buei

111 111 111 111 111 111 111 111 111

1

#

i 1

gall jj jdow! (11

a aaii 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.(15-14j)

Cllsall (16 kill) 15 kill)

Jaiil jaiial pals jaiial jali clia Jaiuai ai k5 (16 Jaii jaii) D" Jaill jayy

(18j)

ylll llllll 11n j yllg lgl aagaae yj glll gglg jllg jllg

jlll lii: all jie

aill 1

jlll jss

i j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

.6g2000 Cui jie

aill aylac lgsy s y jilly g. 1g5s y! el jz11 q

JyI 110

ailllll lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll

yda aolai jia bia jia yjllal:

FIG 14

FIG. 15

FIG. 16

FIG. 17

FIG. 18

#

Jai (10

y j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

DCCAFB 9 jaiy g a y Ls Caih bia y jaoa Jaiy p n A /13 13 13 13" "A" aalall sall g laay klyjagaiy jajgaiy jaiy jaiy 1e jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

J

(الله) (عاني)			الله الحرفicit 100/1	الله الحرفicit		الله الحرفicit (ملاوي)	الله الح註冊	الله الح註冊
*E.E.	ahrqi	ahrqi		ahrqi	ahrqi
%55,9	4000	1800	100 H1		291	30-28	ب tungان - G30	الله الحرفicit (**DCC AFB)
	4000	1800	150 Z1	381		20	ط tungان - G20
%58,0	2800	900	83		204	30-28	ب tungان - G30	الraleيرية
	2800	900	117 S	267		20	ط tungان - G20
%60,0	1400	550	60		102	30-28	ب tungان - G30	الraleيرية
	1400	550	88 Z	133		20	ط tungان - G20
%63,0	1750	550	65		127	30-28	ب tungان - G30	الraleيرية
	1750	550	97 Z	167		20	ط tungان - G20
الهشامف開	1000	450	50		73	30-28	ب tungان - G30	الraleيرية
	1000	450	72 X	95		20	ط tungان - G20

Lg (EE 125/EC 209/125/EC G20 Jl jy jy EN 30-2-1 (A / 13) DCC AFB

（b）5.0-G30 1

a a a a a a a a a a a a a a a a a a a a a

(边gall jglalll illl glc 3gall

aill 1y aal lal y brrll gla aai jil kail gil gil

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

jaii jiai i

i 1

yill cll y

111111111111

（）N

-1-2

90 1

y

y

Aailll l aal Jaaal Iaiae yll aan

y111 111 111 111 111 111 111 111 111

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

aillllsjjb jnil

y

y 1

y

y

i 1

gulw/ yagil pbi jai 11y galy wal / cki, ciyj / cydi j

：

i 1

i 1

: (EMC) 1

(LVD)

(RoHS)

(ERP) 1/ pil / g/ sin/

400 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

：

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

aee 100000000000000000000000000000

julj

y 1

jia//y jai//

yellll jay jilj lusg jal bi jali ggi: bgl jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg jg

Aa//j/3pSy

jlll alal albi Suaia jalln yg, yLs Dus no jelluay Lio

aalall aalbga 5yla 5ytae bna n nn 12aa aalll

ylll Jg 1000000000000000000000000000000000000000

Jus 2 1 1 1

Culal, gall aIbdo

alalalalalalalalalalalalalalalalalalal

J 1

A

J12 2 2

y 1

aill bawlgl abialll sbjia aaii gaiy jy

gall yA g

Jn Jn Jnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

J 1 JAc

a 14

j 11

Jd j 10000000000000000000000000000000000000000000

a

i 1

(11)

yuluaabuoycuiyigaiyuyi jaojia jia jia jia jia jia jia jia jia

(8Jxj) 70 j

(B) "Jala" giadll gla jall gla iiaaii lcbw gla aay y (A) cjjll gaa:

(B/11 2

FIG. 11/B

FIG. 11/A

30:

B:

FIG. 11

gA:Ag

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

J 1 JAc

Ae 4

j 11

Jd j 10000000000000000000000000000000000000000000

a a

.10Jk29 1 1

A/10 k& A/9 k& "F" 0g "G"

Cllswall aogjia gbi jn no oill n no nnoa biinall ne holl aie sia iagd

Aaiia 10 B/10

a aaa a a a a a a a a a a a a a a a a a a a a a a a a

(8Jxj) 70 j

gaiy

Model: 60 - 70 - 90 cm

FIG. 10

FIG. 10/A

FIG. 10/B

Model: 60 - 70 - 90 cm

FIG.9

FIG. 9/A

FIG. 9/B

#

usillpaww sllasll

Joo 1

aaii iis

g j 1j g j 11111111111111111111

1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

4.7.10.11 2

gall (3

j 1 j 1 j 1 j 1 j

jll jll jll jll jll jll jll jll jll jll jll jll

Jy Jibj 100

jill lai jia juaa jai

8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

(8JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

3 1

（）

gulj:1i iisw gbl/ pwh j 0s

jll jihjil jll lio jie y/ g y aai / jn sli . jbi jbi jbi jbi

eaeiie eae iie eae ie ee eae

y j 1

Jalk jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jill jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll jll

y11 1 jj0 jg0 jg00 j00

J 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10

iie 1

jlll jss 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

TOTAL FLAME CONTROL

Closed position

9) Full position*
1) Reduced rate position

jlll 1 1 1

cbsa

PCZT:

：

y

aiee

J 1

aaii i aiei jiaiesia ieae g y aesg y d 1

j 1

1

Jabj Jgln

y

cbslll cIgso

4000

(^*DCCAFB) 1

2800

2

1,1400

aiaia aay iai 3

1750

4

1,1000

5

1 aai 6

2 7

3 8

4a jaiill 9

5aill 10

（/13）：DCCAFB

gab aaii baw jay gbi jilal /jia w jy jai i:olij

ilalil glll lla

i 1

y 1 y

COD:04169PQ
