USER MANUAL Aurora FDUP43CSA Furrion

SMART 4K UHD FULL SUN, FULL SHADE &

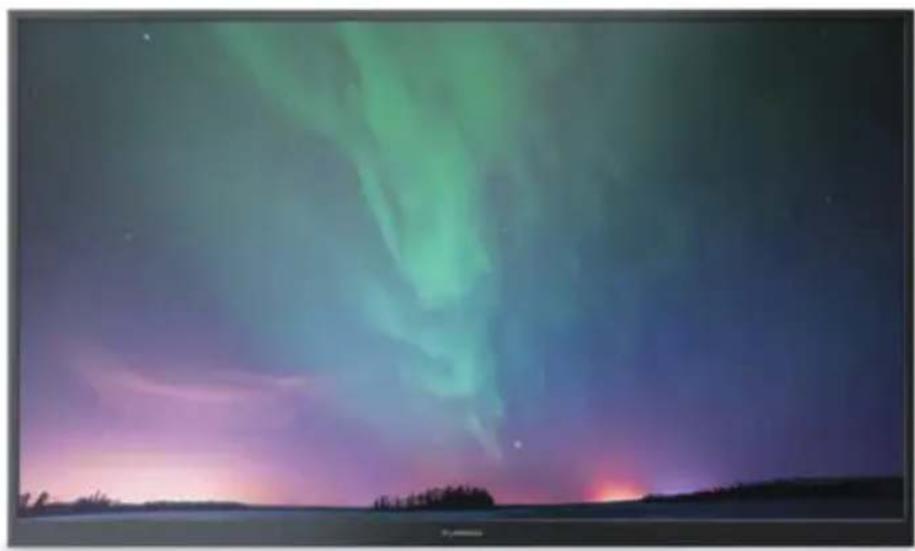

• Product picture for reference only

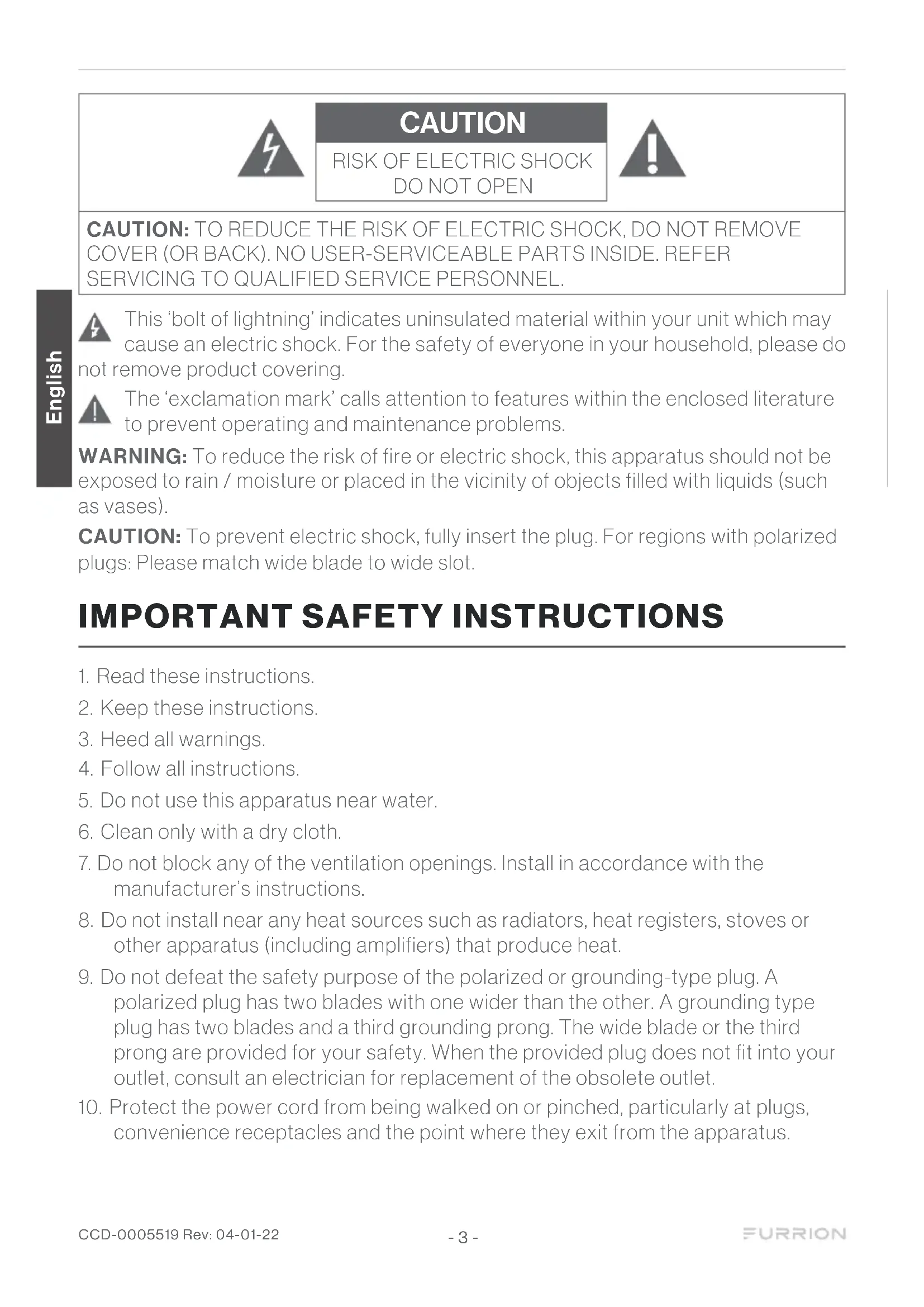

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NOUSER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This ‘bolt of lightning’ indicates uninsulated material within your unit which may cause an electric shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation mark’ calls attention to features within the enclosed literature to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be

exposed to rain / moisture or placed in the vicinity of objects filled with liquids (such as vases). CAUTION: To prevent electric shock, fully insert the plug. For regions with polarized plugs: Please match wide blade to wide slot.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

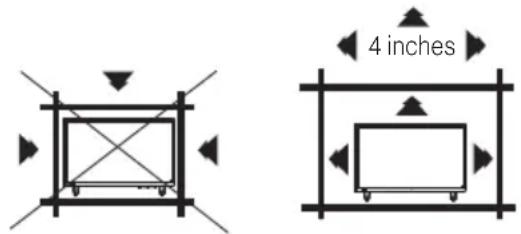

7. Do not block any of the ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,

convenience receptacles and the point where they exit from the apparatus. English CCD-0005519 Rev: 04-01-22 - 3 -11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket or table specified by the

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Apparatus should not be exposed to dripping or splashing, and objects filled with

liquids, such as vases, should not be placed on the apparatus.

16. An outside antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to eliminate touching power lines or circuits as contact might be fatal.

17. Do not overload wall outlets, extension cords, or integral convenience receptacles

as this can result in a risk of fire or electric shock.

18. Never push objects of any kind into this product through openings as they may

touch short-out parts or dangerous voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.

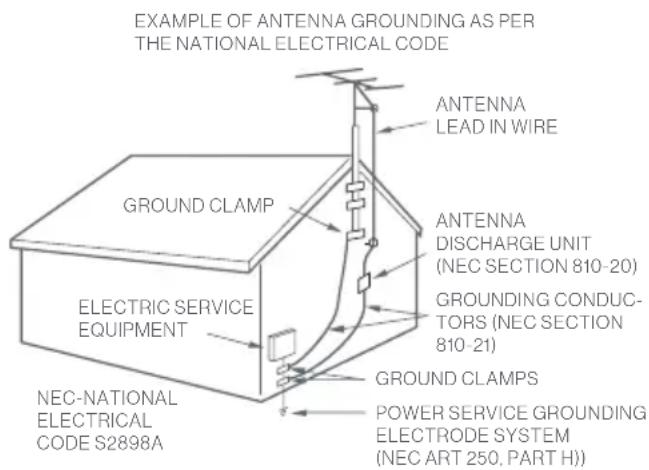

19. If an outside antenna is connected to

the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.

20. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV

system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. NEC-NATIONAL ELECTRICAL

GROUNDING CONDUC- TORS (NECSECTION 810-21) ELECTRIC SERVICE EQUIPMENT English CCD-0005519 Rev: 04-01-22 - 4 -21. When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Upon completion of any service or repairs to this unit, ask the service technician

to perform safety checks to determine that the unit is in proper operating condition.

23. When you connect the product to other equipment, turn off the power and unplug

from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.

24. Sudden high volume may cause hearing or speaker damage. When you use

headphones (if the unit is equipped with a headphone jack), keep the volume at a moderate level. If you use headphones continuously with high volume, you may suffer hearing damage.

25. Do not allow the product to output distorted sound for extended periods of time.

This may cause speaker overheating and fire.

26. The socket-outlet must be installed near the unit and easily accessible.

27. The mains plug is used as the disconnect and shall remain readily operable.

28. Batteries (battery pack or installed batteries) should not be exposed to excessive

heat such as direct sunlight, fire or other heat sources. CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens the unit’s performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching on, or make sure the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit. How to Handle the LCD Panel ● Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur. ● If the LCD panel is broken, make absolutely sure you do not touch the liquid in the panel. This may cause skin inflammation. ● If the liquid gets in your mouth, immediately rinse and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult your doctor after rinsing for at least 15 minutes in clean water. Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains English CCD-0005519 Rev: 04-01-22 - 5 -on the LCD panel for long periods of time, the image can become permanently engrained and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD panel on for long periods of time while it is displaying the following formats or images: ● Fixed images, such as stock tickers, video game patterns, TV station logos and websites. ● Special formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a wide screen (16:9) display (black bars on left and right sides of screen). The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms. ● LCD panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. ● Do not install the LCD panel near electronic equipment that produces electromagnetic waves. Some equipment placed too close to LCD may cause interference. ● Effect on infrared devices – there may be interference while using infrared devices such as infrared cordless headphones. Power source: This LED TV is designed to operate on 100~240 volt 50/60 Hz, AC current. Insert the power cord into a 100~240 volt 50/60 Hz outlet. To prevent electric shock, do not use the LED TV’s (polarized) plug with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to

rain or moisture. Caution: Never remove the back cover of the LED TV as this can expose you to very high voltages and other hazards. If the TV does not operate properly, unplug the LED TV and call your authorized dealer or service center. Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Furrion could void the user’s warranty. Internet security caution: It is strongly recommended for security purposes to connect your TV to the Internet via a router/modem that includes router functionality. Direct connection of your TV to the Internet may expose your TV to a security threat such as extraction or tampering of content or personal information. Wireless Function of the unit (For TV with wireless function only) ● Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment. ● Although this unit transmits/receives scrambled signals, be careful of unauthorized interception. We cannot be responsible for any trouble as a result. English CCD-0005519 Rev: 04-01-22 - 6 -COMPLIANCE FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to this unit not expressly approved by the

party responsible for compliance could void the user’s authority to operate this equipment under FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation. FCC Radio Frequency Interference Requirements (for UNII devices) High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to

5.85 GHz bands. These radar stations can cause interference with and/or damage

this device. This device cannot be co-located with any other transmitter. FCC RF Radiation Exposure Statement [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed English CCD-0005519 Rev: 04-01-22 - 7 -and operated with a minimum distance of 20 cm (7.8 inches) between the radiator and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance. Industry Canada Statement (For Canada) [For having wireless function (WLAN, Bluetooth,...)] This device complies with Industry Canada’s applicable licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement (For Canada) [For having wireless function (WLAN, Bluetooth,...)] This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the antenna & your body. NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. (For Canada) [For product having the wireless function using 5 GHz frequency bands] ● The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; ● For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; ● For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and ● The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated. (devices operating in the band 5250-5350 MHz with a maximum e.i.r.p. greater than 200 mW) English CCD-0005519 Rev: 04-01-22 - 8 -● High-power radars are allocated as primary users (i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Safety Precautions

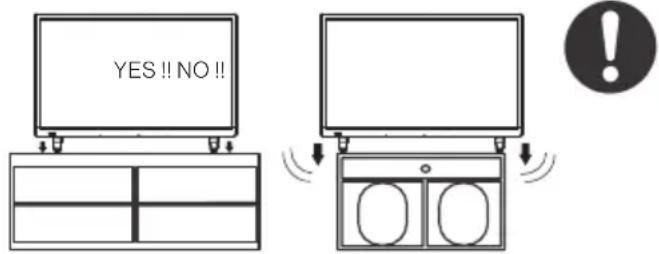

WARNING: Never place a television set in an unstable location. A television set may

fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: – Using cabinets or stands recommended by the manufacturer of the television set. – Only using furniture that can safely support the television set. – Ensuring the television set is not overhanging the edge of the supporting furniture. – Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. – Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. – Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf, leave 4 inches (10 cm) free space around the entire unit. Notes when mounting the LED TV on the wall If the unit is to be mounted on the wall, contact the retailer where you purchased the LED TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you and/or damage to the LED TV.

● Do not use this TV with wall mounts that allow the TV to tilt vertically. Vertical tilting wall mounts may cause structural damage to the TV. ● Use ONLY fixed or horizontal swiveling wall mounts with this TV. Notice for TV Cabinet If the unit is to be mounted on a cabinet smaller than the length of the unit, it could result in an unstable location. The unit may 4 inches YES !! NO !!WireClampScrew4 inchesWireWireScrewClampWireWireWire1.5 inches

English CCD-0005519 Rev: 04-01-22 - 9 -tumble over, making a risk of personal, possibly fatal injury. This would also damage the product seriously. Accordingly, Furrion accepts no responsibility or liability for any injuries or property damage resulting from the improper installation. PRODUCT OVERVIEW Control Panel POWER

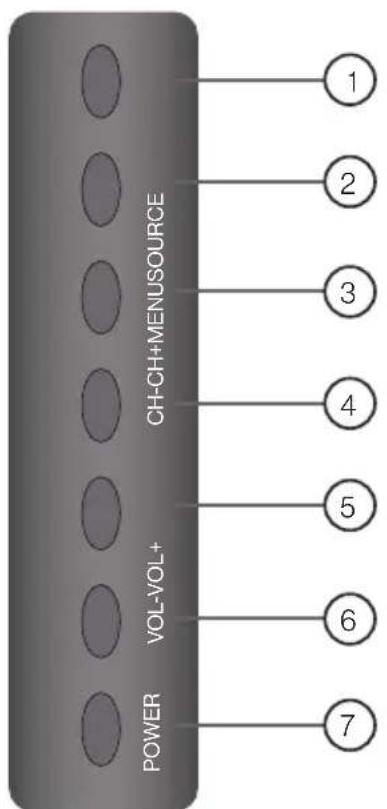

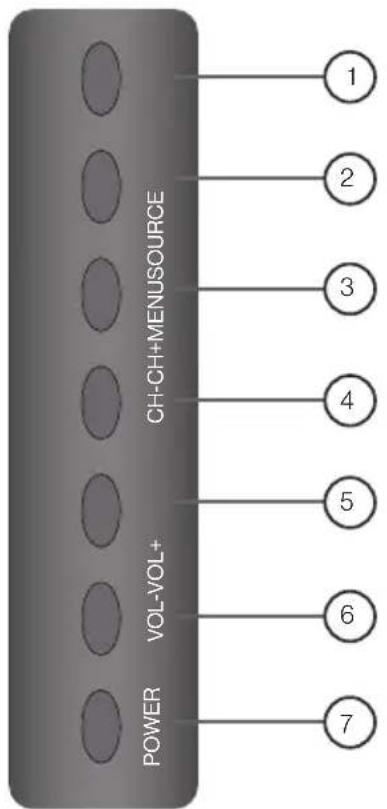

• Please note that the button layout of the controls may vary from model to model. Item Button Function

CH+ Skip to the next channel

CH- Skip to the previous channel

VOL+ Increase volume

VOL- Decrease volume

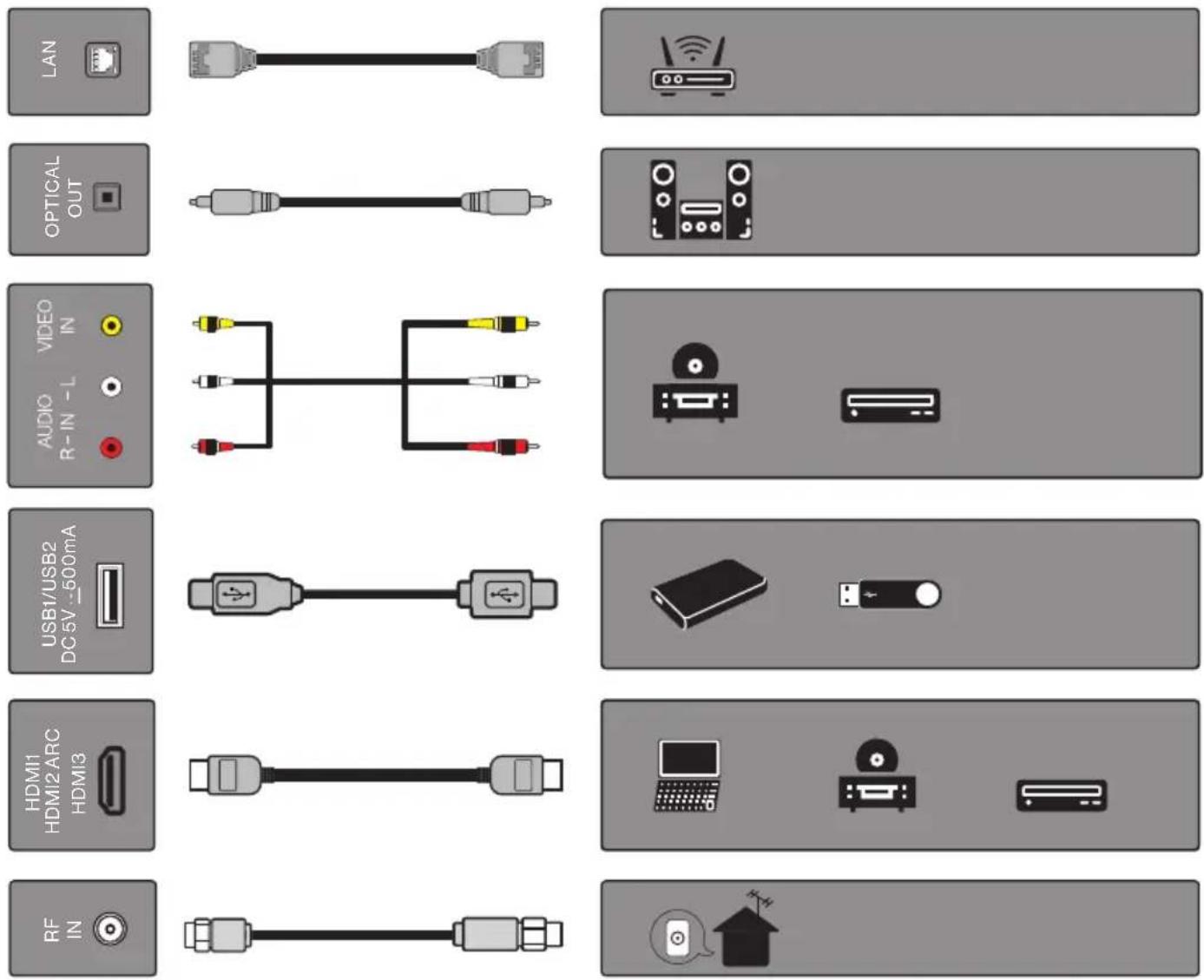

No. I/O port Description

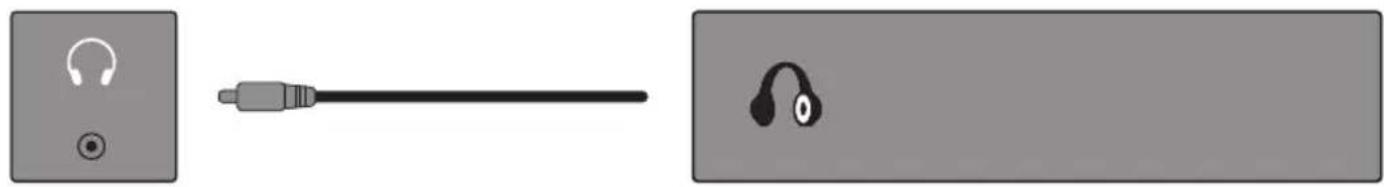

Connect a stereo headphone for private listening.

HDMI 1 Connect to the HDMI OUT port of a DVD Player, Games Console, Cable Box or other HDMI device. ARC (Audio Return Channel) When connected with a HDMI 1.4 cable to an ARC compatible audio system, the TV links with the device to give extra audio functionality.

USB1 Connect to portable USB device such as USB flash/hard drive.

RF IN Connect to external modem or network access equipment.

AUDIO IN (R-L) Connect to the COMPOSITE VIDEO/AUDIO OUT ports of a DVD Player, Cable Box or other compatible devices.

OPTICAL OUT Connect to an AV Receiver for high quality digital audio.

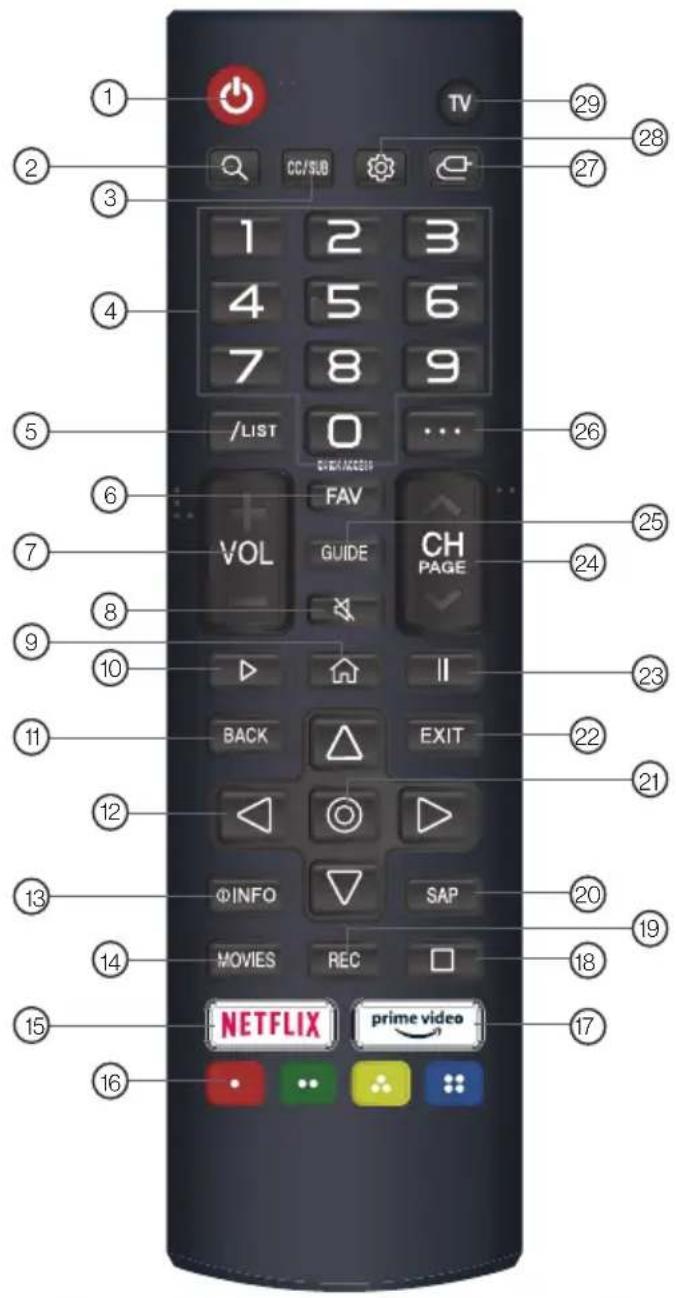

CC/SUB Closed Caption selection: ON/OFF/CC On Mute. Enable/disable subtitles.

0-9 Number selection key.

/LIST Enter multiple program channel number such as 2-1. The QUICK ACCESS edit screen appears. No. Button Function

FAV Press to display a listing of your favorite TV channels.

VOL It adjusts the volume level.

BACK Move to the previous step.

INFO Press to display the source and channels display.

Corresponds to various colour functions in the menu or teletext.

Select current option thats highlighted.

It displays the additional buttons on the remote control.

Thanks for purchasing this Furrion Aurora® TV. This manual will help you set up and begin using your TV. First, check the contents of your box with the parts checklist below: ● TV ● Remote Control (x1) ● AAA Battery (x2) ● Wall mount screws (x4) ● Screw adaptors (x4) ● RCA cable ● Printing materials Now you can get started! CONNECTIONS Your Furrion Aurora® TV offers multiple connection options. You can choose one or more of the connections below to operate. Please consult the manual of DVD player, Games Console or other devices to ensure proper connection and use.

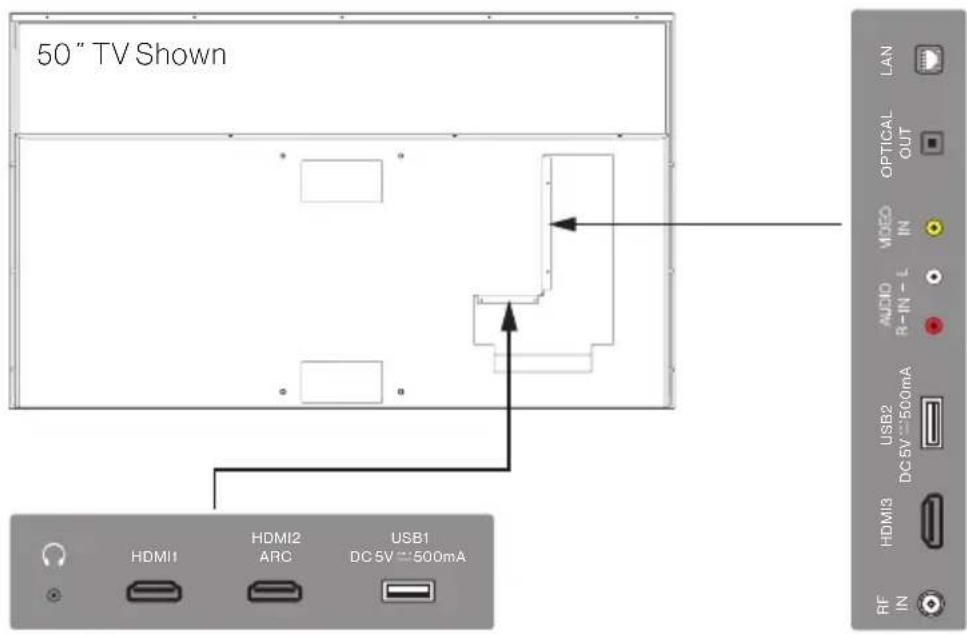

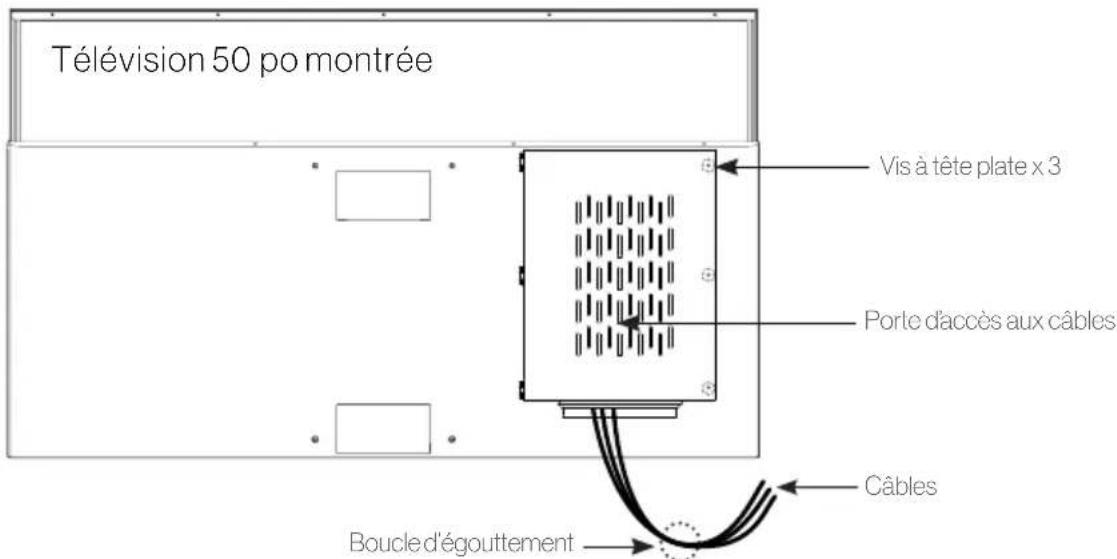

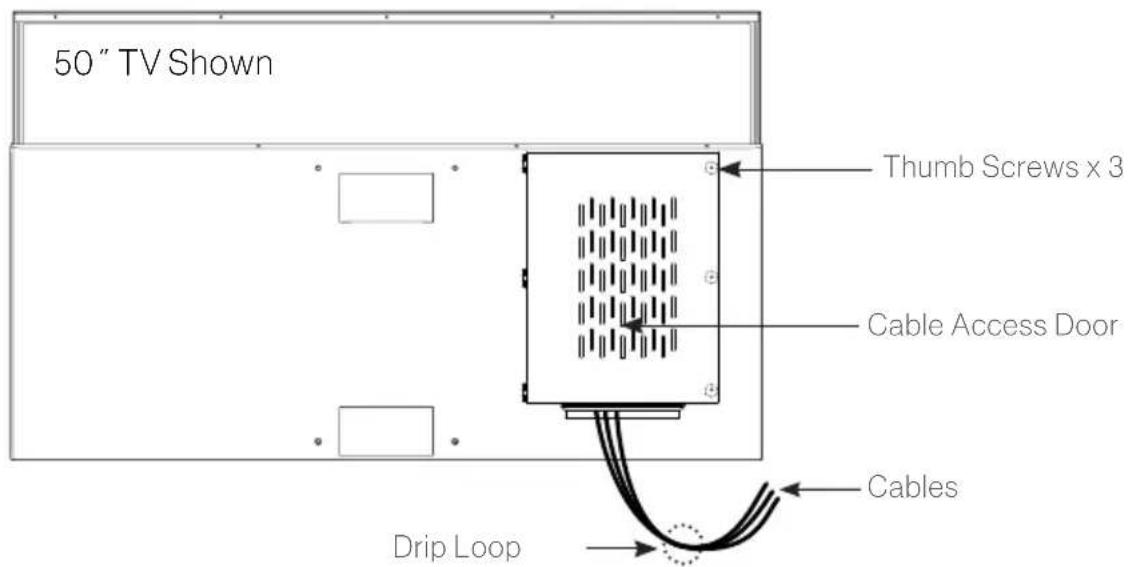

WARNING: Do not connect the power source before making connections. Open the

cable access door to connect the cables. NOTE: All external devices and cables shown in the diagram are for reference only and not included in the package. English CCD-0005519 Rev: 04-01-22 - 13 -LAN OPTICAL OUT

5V 500mA USB2 5V 500mA HDMI2 ARC HDMI1 Cable Management 50˝ TV Shown Cables Drip Loop Thumb Screws x 3 Cable Access Door – After all connections are completed, lead all connecting cables downwards through the duct at the bottom of the cable access door. – Leave a drip loop when cables enter the compartment. This will prevent water from dripping down the cord and possibly entering the door area. – Close the door and tighten the thumb screws for the best weatherproof effect. INSTALLATION Choose a Proper Location for your TV Important: The TV must be installed a safe distance away from any water source. For best viewing we recommend you install it in a shaded environment. ● Avoid installing the TV where the screen is facing direct sunlight. The ideal location is in one place where the TV is shaded by structures, or under a patio cover or gazebo. ● If the sun shines directly on the screen for long periods of time, dark areas may appear on the screen. This is a normal reaction for the LCD panel, and will not cause damage to the screen. Either turn the screen away from the sun, or shade the TV, and the dark areas will soon disappear. NOTE: DO NOT use the TV if ambient air temperature exceeds the operating temperature limits. English CCD-0005519 Rev: 04-01-22 - 15 -Mount on the Wall It is recommended you install the TV in an area shaded by trees, landscape and/or structures, or under a patio cover or gazebo. Full Sun TV designed for direct bright sunlight outdoor spaces. (Model: FDUB43CSA, FDUB55CSA, FDUB65CSA) Full Shade (Covered gazebos, patios, porches) TV designed for fully shade spaces. (Model: FDUF43CSA, FDUF50CSA, FDUF55CSA, FDUF65CSA, FDUF43CSA-CA, FDUF50CSA-CA, FDUF55CSA-CA, FDUF65CSA-CA) Partial Sun (Pergolas, partially covered decks) TV designed for partial sun exposure and brighter spaces. (Model: FDUP43CSA, FDUP50CSA, FDUP55CSA, FDUP65CSA, FDUP43CSA-CA, FDUP50CSA-CA, FDUP55CSA-CA, FDUP65CSA-CA) NOTE: Connect all cables prior to mounting the TV on the wall or TV mount. The cable access door on the rear panel will be obstructed once the TV is mounted. – Follow the installation guide supplied with the Wall-Mount Bracket when installing the TV. – Choose an appropriate location and refer to the VESA pattern for mounting. – It is recommended to contact a professional for installation and use at least two people to move or install the TV.

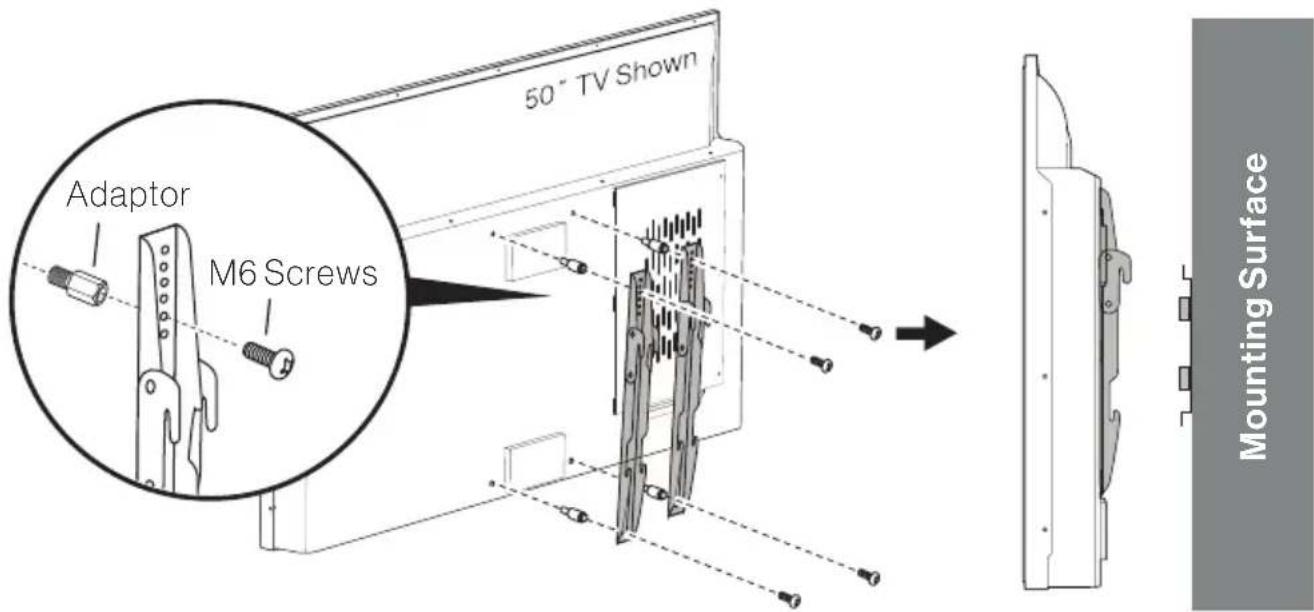

VESA MOUNTING PATTERN

Model Width (mm) Height (mm) Screw Size Screw Quantity 43" TV 200 200 M6 * 15mm 450" TV 200 400 55" and 65" TV 400 200 English CCD-0005519 Rev: 04-01-22 - 16 -Mounting Surface AdaptorM6 Screws Connect Power Connect the power cord to a GFCI protected AC outlet with an “in-use” waterproof cover. CAUTION: Do not connect power cord during cable connecting and TV installation. GFCI PROTECTEDOUTLET GFCI PROTECTEDOUTLET 50˝ TV Shown

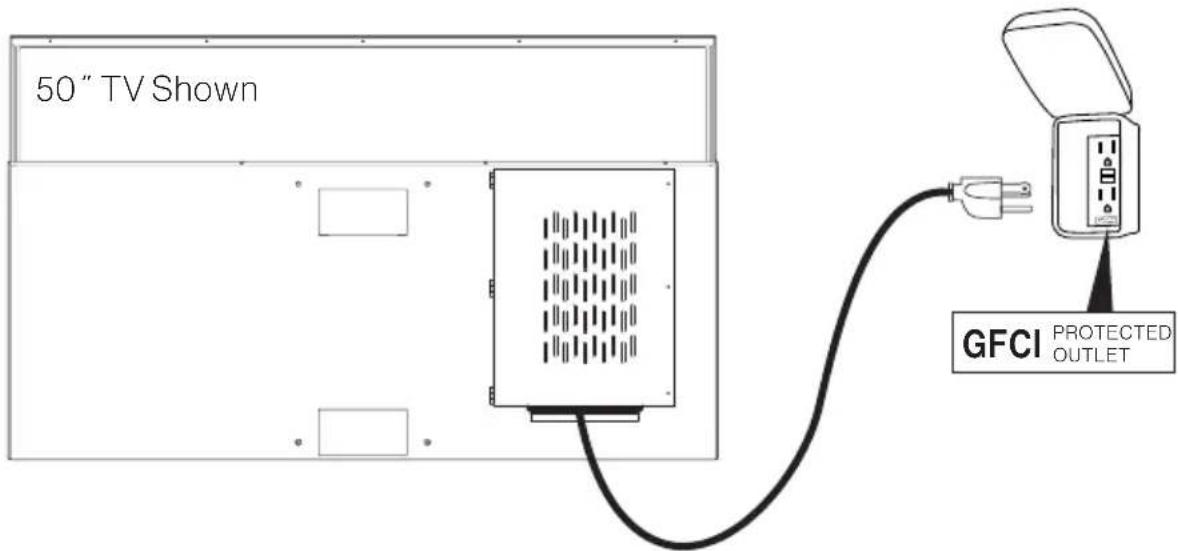

WARNING: TV and GFCI receptacle must be installed a safe distance away from

any water source. Be sure to check local electrical codes and comply with their local standards.

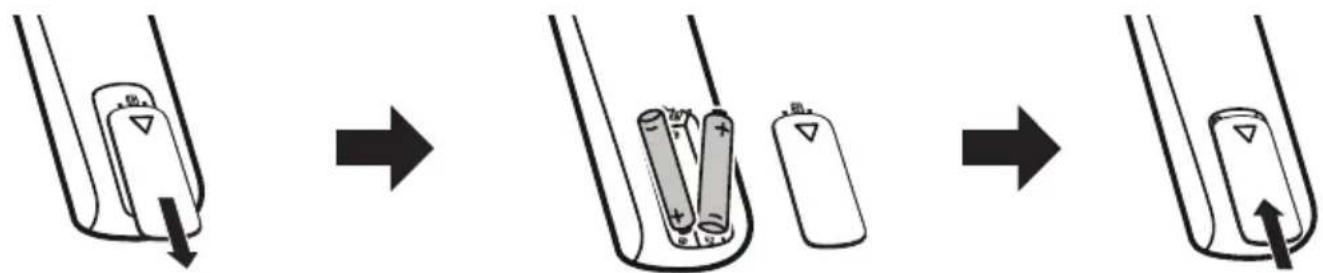

INSTALL REMOTE CONTROL BATTERY

Your remote control is powered by two (2) AAA batteries.

1. Turn the remote over and remove battery cover.

2. Place two (2) “AAA” batteries into the battery compartment with the “+” and “-“

ends facing as indicated.

3. Replace the cover.

English CCD-0005519 Rev: 04-01-22 - 17 -NOTE: Improper use of batteries can result in a chemical leakage or explosion. ● Use only the size and type of battery specified. ● Danger of explosion if batteries are incorrectly replaced. ● If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage. ● The batteries should not be exposed to excessive heat due to sunlight, fire or other heat sources.

GETTING STARTED WITH WEBOS TV

Initial Setup Press the button on the control panel or on the remote control to turn on the TV, follow the on-screen instructions to finish the initial setup. Watching TV Broadcasting Your TV must be connected to an antenna/cable or a set-top box that can receive broadcasting for broadcasting. Prepare Live TV Follow the steps below to finish an antenna/cable connection if your TV is not connected to a broadcast antenna.

1. Connect the broadcast antenna/cable to the TV. You may also connect a piece

of equipment that can receive broadcasting such as a set-top box instead of the antenna/cable.

/ / Connection / Device Connection Settings / Universal Control Settings.

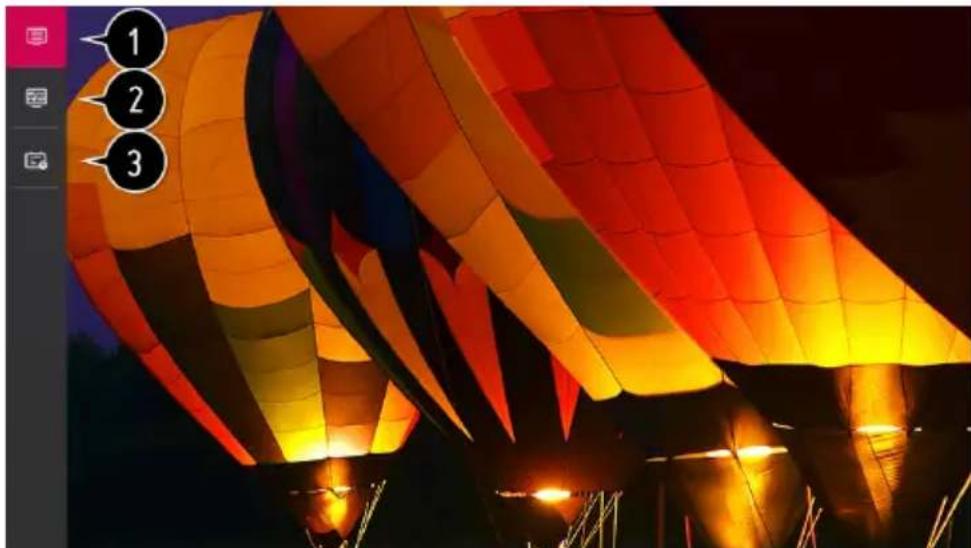

/ / Channels Channel / Tuning / Auto Tuning. Finds and adds only channels being broadcast. Enjoy Live TV Press the /LIST button on the remote control. Use the buttons to move to the desired channel then press button to select the channel. English CCD-0005519 Rev: 04-01-22 - 18 -1 Channels: View a list of broadcast content that is currently being broadcast.

Guide: You can view programs and the schedule of each program.

TV Scheduler: You can set the date and time of the desired broadcasting program, and watch the program. NOTES: ● The channels displayed in Channel List are a configuration of channels provided by the broadcast service provider. If the broadcast service provider has changed its channel configuration without notice, the channels displayed in Channel List may differ from the actual TV channels. ● You must complete the settings of the network, region, and auto-channel to receive normal live broadcast service. Using Set-Top Box Remote Control or Universal Remote Control If you would like to use an universal remote control, or you have your set-top box connected to your TV, you need to program the universal remote control or the set- top box remote control to control the Furrion TV. ● Refer to the user manual of the set-top box remote control or that of the universal remote control on how to change the settings to control the Furrion TV. ● Furrion branded TV is compatible with LG codes. Connecting to the Network If you configure settings for the network, you can use various services such as online contents and applications. Setting up a Wired Network Connect the LAN port of the TV and the router using a LAN cable. NOTE: The router should be connected to the Internet beforehand. When you connect the TV to the network with a LAN cable, the TV is automatically connected to the network if the router supports DHCP. English CCD-0005519 Rev: 04-01-22 - 19 -If the Network Is Not Automatically Connected Press / / Connection / Network Connection Settings / Wired Connection (Ethernet). Setting up a Wireless Network

1. Turn on the power of the router connected to the Internet.

button on the remote control.

/ Connection / Network Connection Settings / Wi-Fi Connection.

4. When the network search is complete, the list of networks available for

connection is shown.

5. Select a network to connect.

If your Wireless Router is password protected, enter the password configured for the router. Network Setting Warnings ● Use standard LAN cable. ● Resetting the modem may fix some network connection problems. Turn the power OFF, disconnect and reconnect it, and then turn the power on to solve the problem. ● The manufacturer is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network connection. ● The network connection may not work properly because of network settings or the Internet service provider. ● DSL service must use a DSL modem and cable service must use a cable modem. Since only a limited number of network connections may be available, TV network settings may not be used depending on the contract with Internet service provider. (If the contract does not allow more than one device per line, only the already-connected PC may be used.) ● A wireless network can experience interference from other devices that use the 2.4 GHz frequency (wireless phone, Bluetooth device, or microwave oven). Although interference can also happen when using the 5GHz frequency, it is less likely to occur. ● The wireless environment can make wireless network service run slowly. ● Failure to turn off all local home networks may cause excessive traffic on some devices. ● The access point device must support wireless connections and wireless connection feature must be enabled on the device to have AP (access point) connection. Contact the service provider for availability of wireless connections on the access point. English CCD-0005519 Rev: 04-01-22 - 20 -● Check SSID and security settings of the AP. Refer to the appropriate documentation for SSID and security settings of the AP. ● Invalid settings of network devices (wired/wireless line sharer, hub) can cause the TV to operate slowly or not operate properly. Install the devices correctly according to the appropriate manual and network. ● The connection method may differ depending on the AP manufacturer. ● To solve a problem related to this function, please go to: / / Connection / Network Connection Settings / Wired Connection (Ethernet) - or - / / Connection / Network Connection Settings / Wi-Fi Connection / Advanced Wi-Fi Settings Using the Home Feature of the webOS TV The home screen will be displayed automatically when the TV is turned on. If not, press the button on the remote control to pop it up.

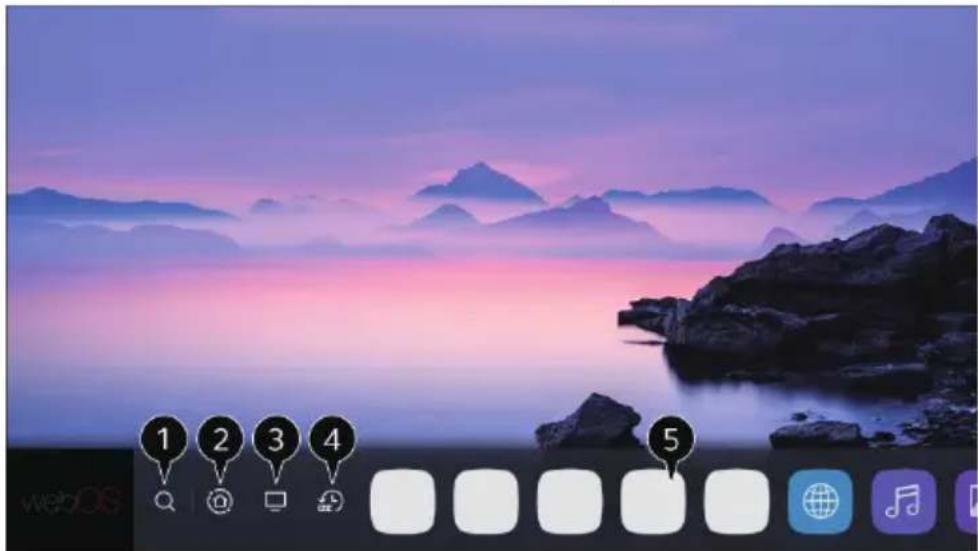

Launch search Use buttons to navigate to and highlight , then press to start searching. You can search for a variety of content and information using the desired search terms. NOTE: You must connect to the network to use the search feature. The search results may vary depending on the channel, region, network settings, and whether you have agreed to the terms and conditions.

Use home dashboard Use buttons to navigate to or press and hold the button to select home dashboard. You can select or control a device (mobile, external device, Home IoT Devices, etc.) connected to the TV. English CCD-0005519 Rev: 04-01-22 - 21 -3 Switch the TV input used recently Use buttons to navigate to and focus on , you can switch to the recently used TV input in the list quickly.

Run or close a recently used app Long-press the button or use buttons to navigate to and focus on . You can run or close a recently used app in the list of preview area.

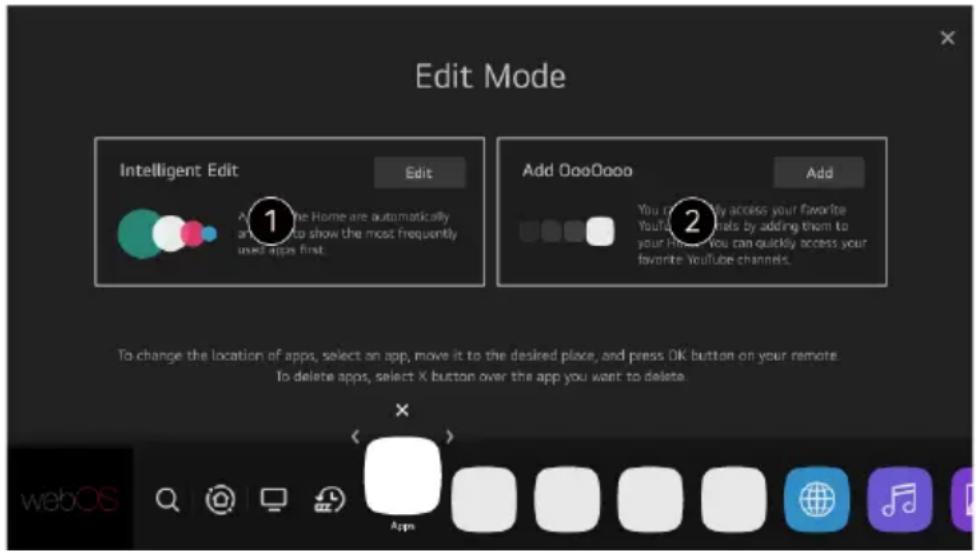

Run, move or delete the apps installed Use buttons to navigate to and focus on the app, it will provide the preview of the app at the top. You can check or run useful features of the app and recommended content on the preview without entering into the app. NOTE: Some apps may not provide the preview. Manage webOS TV Home You can view a list of all apps installed on your TV, change their positions or delete them. NOTE: The default TV app cannot be edited.

buttons to move to the app you want to edit, then press and hold the button on the remote control to activate the app edit mode. Or you can select the Edit mode button at the right corner of the Home list to enter the App Edit mode.

2. To move the app to your desired position, go to the position and press the

button. You can also move apps with the / buttons on your remote control.

3. To delete an app, select the X icon above the app.

You can move and delete as many apps as you wish before exiting the edit mode. After the editing is done, press the X icon at the top right to exit the App Edit mode. English CCD-0005519 Rev: 04-01-22 - 22 -1 You can automatically arrange the app list in the order of most frequently used based on your accumulated app usage pattern.

You can add your favorite video service channel to the list. NOTE: This feature is available only when the network is connected. SETTINGS Displays a set of light-weight controls quickly and simply such as Picture Mode, Sound Mode, Sound Out, Sleep Timer and so on. Press the button on the remote control.

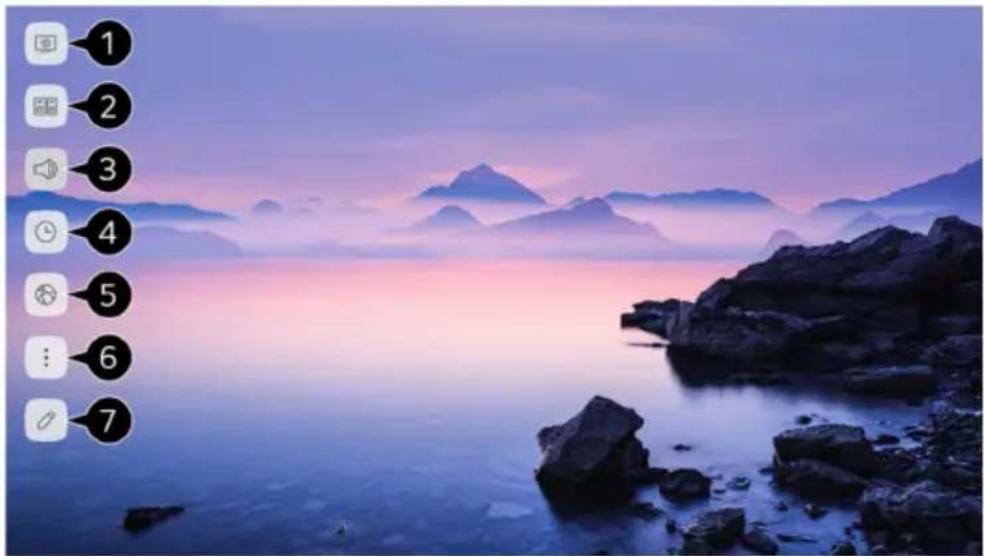

You can choose the Sound Out.

Move to the Connection screen.

You can set more options.

You can add/delete the quick setting items or change their order. After entering each item, press and hold the button on the remote control to go to the corresponding menu. English CCD-0005519 Rev: 04-01-22 - 23 -TROUBLESHOOTING Problem Solution/Issue TV does not operate Make sure the power cord is plugged in. Try another AC outlet. Power is off, check fuse or circuit breaker. Unplug unit for an hour, then plug it back in. Normal picture, but no sound Check the volume settings. Sound muted? Press button. Try another channel. Check audio cable connections. The remote control does not work Make sure the remote control is in range with no obstructions. Check the batteries. Correct operating mode set: TV, VCR etc. Poor sound or no sound Station or Cable TV experiencing problems, tune to another station. Check sound adjustments (Volume or Mute). Check for sources of possible interference. Poor picture or no picture Station or Cable TV experiencing problems, tune to another station. Make sure channels are set into memory. Check antenna or Cable TV connections, adjust antenna. Check for sources of possible interference. Check picture control adjustments. Poor TV reception Ensure the antenna amplifier is turned on for Antenna TV. Adjust the antenna position to a stronger signal receiving angle. Check if the Antenna connection is tight. Check if there is power supplied to the Antenna distribution box. Check if your incoming cable is connected to the correct cable / antenna wall connection. Poor Cable / Satellite TV Reception Ensure antenna amp is turned off for cable signal. Check if incoming cable is connected correctly. Ensure cable splitter box has power. Check if the incoming cable is connected to the correct cable / Satellite wall connection. Ensure Dish has no obstruction. TV shuts off Sleep Timer is set. Power interrupted. Black and white image from the connected AV device Check video connections on both the TV and connected AV device. Ensure all video cables are connected firmly. English CCD-0005519 Rev: 04-01-22 - 24 -SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the energy label is measured in accordance with the test procedures for television sets (USA only). The actual energy consumption depends on the usage environment (the content watched, TV settings, etc.). Specifications Full Shade Partial Sun Full Sun Resolution 3840 x 2160 Refresh Rate 60Hz Contrast Ratio 4000:1 View Angle 178° / 178° Response Time 6.5ms Brightness 400 nits 750 nits 1000 nits Wifi 802.11a/b/g/n/ac Bluetooth 5.0 Television System ATSC / NTSC Input Voltage 100-240V AC (50-60Hz) Water & Dust Resistance IP54-rated Operating Temperature -4°F to 122°F (-20°C to 50°C) Operating Humidity 10% to 90% Non-Operating* Temperature -27°F to 140°F (-33°C to 60°C) Non-Operating* Humidity 10% to 90%

Earphone Jack LAN Optical Out R-AUDIO IN-L Video in HDMI in RF in USB
