USER MANUAL 24VHT22MAX Sun Joe

© 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe , LLC

24 VOLT MAX* | 4.0 Ah | 22-INCH Model 24V-HT22-MAX Form No. SJ-24V-HT22-MAX-880E-M IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. General Power Tool Safety Warnings m WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. mDANGER! This indicates a hazardous situation, which, if not followed, will result in serious injury or death. mWARNING! This indicates a hazardous situation, which, if not followed, could result in serious injury or death. mCAUTION! This indicates a hazardous situation, which, if not followed, could result in minor or moderate injury. Work Area Safety

1. Keep work area clean and well lit – Cluttered or dark

areas invite accidents.

2. Do not operate power tools in explosive atmospheres,

such as in the presence of ammable liquids, gases or dust – Power tools create sparks which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a

power tool – Distractions can cause you to lose control. Electrical Safety

1. Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and refrigerators – There is an increased risk of electric shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet conditions

– Water entering a power tool will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Personal Safety

1. Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication – A moment of inattention while operating power tools may result in serious personal injury.

2. Use safety equipment. Always wear

eye protection – Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the

o-position before plugging in – Carrying power tools with your nger on the switch or plugging in power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before

turning the power tool on – A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and balance at

all times – This enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewelry.

Keep your hair, clothing and gloves away from moving parts – Loose clothes, jewelry or long hair can be caught in moving parts.

7. If devices are provided for the connection of dust

extraction and collection facilities, ensure these are connected and properly used – Use of dust collection can reduce dust-related hazards.2 Power Tool Use + Care

1. Do not force the power tool. Use the correct power

tool for your application – The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not turn

it on and o – Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the battery pack from the power

tool before making any adjustments, changing accessories, or storing power tools – Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or these instructions to operate the power tool – Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use – Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean – Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc.,

in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed – Use of the power tool for operations dierent from those intended could result in a hazardous situation. Service Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional Safety Rules for Hedge Trimmer

1. Remove any blade that has been damaged. Always make

sure that the blade is installed correctly and securely fastened before each use. Failure to do so can cause serious injury.

2. Hold the hedge trimmer by insulated gripping surfaces

only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may electrify exposed metal parts of the power tool and could give the operator an electric shock.

3. Maintain a rm grip on both handles while cutting with the

blade. Keep the blade away from body.

4. Hold hedge trimmer properly, e.g., with both hands if two

handles are provided. Loss of control can cause personal injury.

5. Check the hedge for foreign objects before operation,

e.g., center fences. Take care that the cutting device does not come in contact with wire or other metal objects.

6. Service on the product must be performed by qualied

repair personnel only. Service or maintenance performed by unqualied personnel could result in injury to the user or damage to the product.

7. Keep all parts of the body away from the cutting blade.

Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is o and the battery is removed when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

8. Carry the hedge trimmer by the handle with the cutting

blade stopped. When transporting or storing the hedge trimmer always keep the blade covered. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.

9. Do not use the hedge trimmer if the switch does not turn it

on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

10. Use the hedge trimmer and accessories in accordance

with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from intended use could lead to a hazardous situation.

11. Do not overreach and to keep the balance at all times.

Always be sure of the footing on slopes. Walk when operating the power tool, never run.

12. Do not touch moving hazardous parts before the battery

pack is removed and the moving hazardous parts have come to a complete stop.

13. Always wear eye and ear protection. Wear protective mask

if necessary. Dress properly, do not wear loose clothing or jewelry that could become caught in moving parts of the unit. Safe, sturdy, nonskid footwear should always be worn. Long hair should be tied back.

14. Do not using the machine in bad weather conditions

especially when there is a risk of lightning.

15. Inspect the area to be cut and remove any foreign objects

that will inuence your cutting. If the foreign objects can not be removed, e.g. wire fences, please mark and remember it to avoid toughing them during cutting. mDANGER! Keep hands away from blade. Contact with blade will result in serious personal injury. Training

1. Read the instructions carefully. Be familiar with the

controls and the proper use of the product.

2. Never allow people unfamiliar with these instructions or

children to use the product. Local regulations can restrict the age of the operator.

3. Keep in mind that the operator or user is responsible for

accidents or hazards occurring to other people or their property.3 Preparation

1. This product can cause serious injuries. Read the

instructions carefully for the correct handling, preparation, maintenance, starting and stopping of the product. Become familiar with all controls and the proper use of the product.

2. Never allow children to use the hedge trimmer.

3. Beware of overhead power lines.

4. Never operate the product while people, especially

children, or pets are nearby.

5. Dress properly. Do not wear loose clothing or jewellery,

which can be caught in moving parts. Use of sturdy gloves, non-skid footwear and safety glasses is recommended.

6. Wear eye protection and stout shoes at all times while

operating the product.

7. If the cutting attachment strikes any foreign object or the

product starts making any unusual noise or vibration, switch the product o, remove the battery, allow the product to stop and take the following steps: – inspect for damage; – check for, and tighten, any loose parts; – have any damaged parts replaced or repaired with parts having equivalent specications. Operation

1. Use the product only in daylight or good articial light.

2. Never operate the product with damaged guards or

shields or without guards or shields in place.

3. Keep hands and feet away from the cutting device at all

times and especially when switching on the motor.

4. Before using the product and after any impact, check for

signs of wear or damage and repair as necessary.

5. Always remove the battery

– whenever leaving the product unattended; – adjusting the working position of the cutting device; – before clearing a blockage; – before checking, cleaning or working on the product; – after striking a foreign object; – whenever the product starts vibrating abnormally.

6. Ensure that the hedge trimmer is correctly located in a

designated working position before starting the motor.

7. While operating the hedge trimmer, always ensure that

the operating position is safe and secure, especially when using steps or a ladder.

8. Do not operate the hedge trimmer with a damaged or

excessively worn cutting device.

9. Always ensure that all handles and guards are tted

when using the hedge trimmer. Never attempt to use an incomplete hedge trimmer or one tted with an unauthorized modication.

10. Always use two hands to operate a hedge trimmer tted

11. Always be aware of your surroundings and stays alert for

possible hazards of which you may not be aware due to the noise of the product.

12. Take care against injury to feet and hands from the cutting

13. Always ensure that the air vents are kept clear of debris.

15. Always keep proper footing and operate the product

only when standing on a xed, secure and level surface. Change working positions regularly to avoid tiredness and ensure a comfortable working position at all times.

16. Never use replacement parts or accessories not provided

or recommended by the manufacturer.

17. The use of this product may be restricted by regional or

local regulations. Vibration + Noise Reduction To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks.

1. Only use the product as intended by its design and these

2. Ensure that the product is in good condition and well

3. Use correct attachments for the product and ensure they

are in good condition.

4. Keep tight grip on the handles/grip surface.

5. Maintain this product in accordance with these

instructions and keep it well lubricated (where appropriate).

6. Plan your work schedule to spread any high vibration tool

use across a longer period of time. Emergency Familiarize yourself with the use of this product by means of this instruction manual. Memorize the safety directions and follow them to the letter. This will help to prevent risks and hazards.

1. Always be alert when using this product, so that you can

recognize and handle risks early. Fast intervention can prevent serious injury and damage to property.

2. Switch o and remove the battery if there are

malfunctions. Have the product checked by a qualied professional and repaired, if necessary, before you operate it again.4 Residual Risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

1. Health defects resulting from vibration emission if the

product is being used over long periods of time or not adequately handled and properly maintained.

2. Injuries and damage to property due to broken cutting

attachments or the sudden impact of hidden objects during use.

3. Danger of injury and property damage caused by ying

objects. mWARNING! This product produces an electromagnetic eld during operation. This eld may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product. Battery & Charger Safety Instructions We pay a great deal of attention to the design of every battery pack to ensure that we supply you with batteries that are safe, durable and have a high energy density. The battery cells have a wide range of safety devices. Each individual cell is initially formatted and its electrical characteristic curves are recorded. This data is then used exclusively to be able to assemble the best possible battery packs. Despite all the safety precautions, caution must always be exercised when handling batteries. The following points must be obeyed at all times to ensure safe use. Safe use can only be guaranteed if undamaged cells are used. Incorrect handling of the battery pack can cause cell damage. IMPORTANT! Analyses conrm that incorrect use and poor care of high-performance batteries are the main factors responsible for personal and/or product damage. mWARNING! Use only approved replacement batteries; other batteries may damage the hedge trimmer and cause it to malfunction. mCAUTION! To reduce the risk of injury, charge the 24V iON+ lithium-ion battery pack only in its designated 24V iON+ lithium-ion charger. Other types of chargers present risk of re, personal injury and damage. Do not wire a battery pack to a power supply plug or car cigarette lighter. Such misuse will permanently disable or damage the battery pack.

• Avoid dangerous environments – Do not charge the battery pack in rain, snow or in damp or wet locations. Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials) because sparks may be generated when inserting or removing the battery pack, which could lead to a re.

• Charge in a well-ventilated area – Do not block the charger vents. Keep them clear to allow for proper ventilation. Do not allow smoking or open ames near a charging battery pack. Vented gases may explode. NOTE: The safe temperature range for the battery is 41°F – 105ºF (5°C – 40.5°C). Do not charge the battery outside in freezing weather; charge it at room temperature.

• Maintain charger cord – When unplugging the charger, pull the plug, not the cord, from the receptacle to reduce the risk of damage to the electrical plug and cord. Never carry the charger by its cord or yank it by the cord to disconnect it from the receptacle. Keep the cord away from heat, oil and sharp edges. Make sure the cord will not be stepped on, tripped over or subjected to damage or stress when the charger is in use. Do not use the charger with a damaged cord or plug. Replace a damaged charger immediately.

• Do not use an extension cord unless it is absolutely necessary – Using the wrong, damaged or improperly wired extension cord poses a risk of re and electric shock. If an extension cord must be used, plug the charger into a properly wired 16 gauge or larger extension cord with the female plug matching the male plug on the charger. Make sure that the extension cord is in good electrical condition.

Charger 24VCHRG-QC is rated for 120 volt AC only – The charger must be plugged into an appropriate receptacle.

• Use only recommended attachments – Use of an attachment not recommended or sold by the battery charger or battery pack manufacturer may result in risk of re, electric shock or personal injury.

• Unplug charger when not in use – Make sure to remove battery packs from unplugged chargers. mWARNING! To reduce the risk of electric shock, always unplug the charger before performing any cleaning or maintenance. Do not allow water to ow into the charger. Use a Ground Fault Circuit Interrupter (GFCI) to reduce shock hazards.

• Do not burn or incinerate battery packs – Battery packs may explode, causing personal injury or damage. Toxic fumes and materials are created when battery packs are burned.

• Do not crush, drop or damage battery packs – Do not use the battery pack or charger if they have sustained a sharp blow, been dropped, run over or have been damaged in any way (i.e. pierced with a nail, hit with a hammer, stepped on, etc.).5

• Do not disassemble – Incorrect reassembly may pose a serious risk of electric shock, re or exposure to toxic battery chemicals. If the battery or charger are damaged, please contact an authorized Snow Joe

dealer or call the Snow Joe

• Battery chemicals cause serious burns – Never let a damaged battery pack contact the skin, eyes or mouth. If a damaged battery pack leaks battery chemicals, use rubber or neoprene gloves to safely dispose of it. If skin is exposed to battery uids, wash the aected area with soap and water and rinse with vinegar. If eyes are exposed to battery chemicals, immediately ush with water for 20 minutes and seek medical attention. Remove and dispose of contaminated clothing.

• Do not short circuit – When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Store your battery pack and charger in a cool, dry place – Do not store the battery pack or charger where temperatures may exceed 105ºF (40.5ºC), such as in direct sunlight or inside a vehicle or metal building during the summer. Battery tool use and care

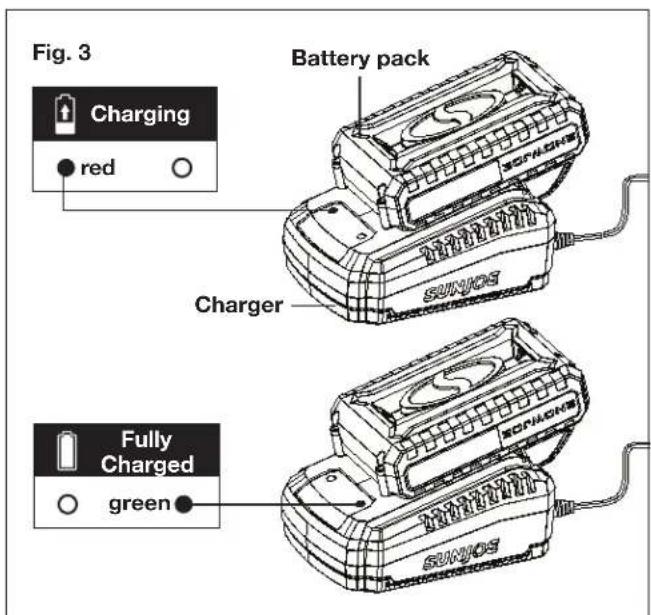

1. The battery pack supplied with your hedge trimmer is only

partially charged. The battery pack has to be charged completely before you use the tool for the rst time.

2. For optimum battery performance, avoid low discharge

cycles by charging the battery pack frequently.

3. Store the battery pack in a cool place, ideally at 77°F

(25°C) and charged fully.

4. Lithium-ion batteries are subject to a natural aging

process. The battery pack must be replaced at the latest when its capacity falls to just 80% of its capacity when new. Weakened cells in an aged battery pack are no longer capable of meeting the high power requirements needed for the proper operation of your hedge trimmer, and therefore pose a safety risk.

5. Do not throw battery packs into an open re as this poses

a risk of explosion.

6. Do not ignite the battery pack or expose it to re.

7. Do not exhaustively discharge batteries. Exhaustive

discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage or non-use of partially discharged batteries. Stop working as soon as the performance of the battery falls noticeably or the electronic protection system triggers. Place the battery pack in storage only after it has been fully charged.

8. Protect batteries and the tool from overloads. Overloads

will quickly result in overheating and cell damage inside the battery housing even if this overheating is not apparent externally.

9. Avoid damage and shocks. Immediately replace batteries

that have been dropped from a height of more than one meter or those that have been exposed to violent shocks, even if the housing of the battery pack appears to be undamaged. The battery cells inside the battery may have suered serious damage. In such instances, please read the waste disposal information for proper battery disposal.

10. If the battery pack suers overloading and overheating,

the integrated protective cuto will switch o the equipment for safety reasons. IMPORTANT! Do not press the ON/OFF switch any more if the protective cut-o has been activated. This may damage the battery pack.

11. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

12. Use appliances only with specically designated battery

packs. Use of any other battery packs may create a risk of injury and re.

13. Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

14. Do not use a battery pack or appliance that is damaged

or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

15. Do not expose a battery pack or appliance to re or

excessive temperature. Exposure to re or temperature above 266ºF (130°C) may cause explosion.

16. Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range specied in the instructions. Charging improperly or at temperatures outside of the specied range may damage the battery and increase the risk of re.

17. Use power tools only with specically designated

battery packs. Use of any other battery packs may create a risk of injury and re. Information about the charger and the charging process

1. Please check the data marked on the rating plate of the

battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate. Never connect it to a dierent mains voltage.

2. Protect the battery charger and its cord from damage.

Keep the charger and its cord away from heat, oil and sharp edges. Have damaged cords repaired without delay by a qualied technician at an authorized Snow Joe

dealer or call the Snow Joe

the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodied plugs and matching outlets will reduce the risk of electric shock.6

4. Keep the battery charger, battery pack(s) and the cordless

tool out of the reach of children.

5. Do not use the supplied battery charger to charge other

6. During periods of heavy use, the battery pack will become

warm. Allow the battery pack to cool to room temperature before inserting it into the charger to recharge.

7. Do not overcharge batteries. Do not exceed the maximum

charging times. These charging times only apply to discharged batteries. Frequent insertion of a charged or partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for days on end.

8. Never use or charge batteries if you suspect that it has

been more than 12 months since the last time they were charged. There is a high probability that the battery pack has already suered dangerous damage (exhaustive discharge).

9. Charging batteries at a temperature below 41°F (5°C) will

cause chemical damage to the cells and may cause a re. Protection from environmental inuences

1. Wear suitable work clothes. Wear safety goggles.

2. Protect your cordless tool and the battery charger from

moisture and rain. Moisture and rain can cause dangerous cell damage.

3. Do not use the cordless tool or the battery charger near

vapors and ammable liquids.

4. Use the battery charger and cordless tools only in dry

conditions and at an ambient temperature of 41ºF – 105°F (5°C – 40.5°C).

5. Do not keep the battery charger in places where the

temperature is liable to reach over 105°F (40.5°C). In particular, do not leave the battery charger in a car that is parked in the sunshine.

6. Protect batteries from overheating. Overloads,

overcharging and exposure to direct sunlight will result in overheating and cell damage. Never charge or work with batteries that have been overheated – replace them immediately, if possible.

7. Store the charger and your cordless tool only in dry

locations with an ambient temperature of 41ºF – 105°F (5°C – 40.5°C). Store your lithium-ion battery pack in a cool, dry place at a temperature of 77°F (25°C). Protect the battery pack, charger and cordless tool from humidity and direct sunlight. Only place fully charged batteries in storage.

8. Prevent the lithium-ion battery pack from freezing.

Battery packs that were stored below 32°F (0°C) for more than 60 minutes must be discarded.

9. When handling batteries, be wary of electrostatic charge.

Electrostatic discharges can damage the electronic protection system and the battery cells. Avoid electrostatic charging and never touch the battery poles.7 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. Symbols SymbolsDescriptions Descriptions

MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate. WARNING! Do not expose the unit to rain or wet conditions.

WEAR EYE AND HEARING

PROTECTION – For protection against injury, wear ear defenders and safety goggles. Wear protective gloves and non- slip footwear when using the machine and handling debris.

DANGER! ROTATING BLADES –

Keep hands and feet away from openings while the trimmer is running. Keep bystanders a safe distance away from the work area. Indoor use only. Only use battery charger indoors.8 Know Your Cordless Hedge Trimmer Read the owner’s manual and safety instructions carefully before operating the cordless hedge trimmer. Compare the illustration below to the cordless hedge trimmer in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

6. Battery compartment

battery charger (24VCHRG-QC)

13. Battery charge level indicators

(24VBAT) featuring exclusive EcoSharp

• Cordless hedge trimmer

• Front handle screws (x4)

• Manual with registration card

1. Carefully remove the cordless hedge trimmer and check to

see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the cordless hedge trimmer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Battery Pack Operation The equipment is powered by a lithium-ion battery. The battery pack is completely sealed and maintenance free. Battery Charge Level Indicator The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read o the battery charge level from the LEDs of the battery indicator:

• 3 level monitoring LEDs are lit: Battery charge level is high.

• 2 level monitoring LEDs are lit: Battery charge level is decreasing. Stop work as soon as possible.

• 1 level monitoring LED is lit: Battery is at. Stop work IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. Charge level button The battery is at 30% capacity and requires charging The battery is at 60% capacity and requires charging soon The battery is at full capacity Light IndicatorsLights NOTE: If the charge level button does not appear to be working, place the battery pack on the charger and charge as needed. Immediately after using the battery pack, the charge level button may display a lower charge than it will if checked a few minutes later. The battery cells “recover” some of their charge after resting. Charger Operation

WARNING! Charge only 24V iON+ lithium-ion battery packs with its compatible 24V iON+ lithium-ion charger. Other types of batteries may cause personal injury and damage. To reduce the risk of electric shock, do not allow water to ow into the charger's AC/DC plug. When to Charge the iON+ 24VBAT Lithium-iON Battery NOTE: The iON+ 24VBAT lithium-ion battery packs do not develop a "memory" when charged after only a partial discharge. Therefore, it is not necessary to run down the battery pack before inserting the charger plug.

• Use the battery indicator lights to determine when to charge your iON+ 24VBAT lithium-ion battery pack.

• You can "top-o" your battery pack's charge before starting a big job or after a long day of use. Charging the Battery

1. Push the push lock buttons on the battery to pull the

battery pack out of the equipment (Fig. 1). Fig. 1 Push lock button10

2. Check that the mains voltage is the same as that marked

on the rating plate of the battery charger. Then, insert the charger's plug into the electrical wall outlet. When you plug in the charger, the top right green light will illuminate and stay green (Fig. 2).

3. Place the battery pack into the charger by sliding the

pack to lock it into position. When you insert the battery into the charger, the top right green light will go o, and the top left red light will illuminate to indicate that the battery is charging (Fig. 3).

4. When the charger light turns green, the battery is fully

charged (Fig. 3). NOTE: A fully discharged pack with an internal temperature in the normal range will fully charge in 1 hr 50 min (between 32ºF/0ºC and 113ºF/45ºC).

5. If the light indicators do not come on at all, check that

the battery pack is fully seated into the bay. Remove the battery pack and reinsert. If the problem persists, contact an authorized Snow Joe

dealer or call the Snow Joe

6. When charging is complete, remove the battery from the

charger by pressing the push lock button and sliding the battery backward to unlock it from the charger (Fig. 4).

7. Timely recharging of the battery will help prolong the

battery's life. You must recharge the battery pack when you notice a drop in the equipment's power. IMPORTANT! Never allow the battery pack to become fully discharged as this will cause irreversible damage to the battery. Charging a Hot or Cold Battery Pack A red and green ashing indicator light on the charger base indicates that the battery pack temperature is outside the charging range. Once the pack is within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold battery packs may take longer to charge. Assembly

WARNING! The hedge trimmer must be fully assembled before operation! Do not use a hedge trimmer that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the gures provided as a visual guide to easily assemble the hedge trimmer. Do not insert the battery before it is completely assembled. NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss.

1. Snap the front handle into place on the unit. (Fig. 5).

Fig. 2 Charger green Power on Fig. 3 Battery pack Charger red Charging green Fully Charged Fig. 4 Battery pack Charger Push lock button Battery Pack Temperature Lithium-Ion Charging Status Too hot Flashing Not charging Normal range Red Normal charging Too cold Flashing Not charging Charger Base Indicator Light Charging Status11

2. Secure the front handle onto the unit with the 4 front

handle screws (Fig. 6). When the screws are fully secured, your hedge trimmer is ready to use. Operation mWARNING! Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. mWARNING! Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury. Holding the Trimmer Before operating the hedge trimmer, stand in the operating position and perform the following checks:

1. You are wearing all of the necessary personal protective

equipment, including protective gloves, non-slip footwear, safety goggles, ear defenders, and close-tting clothing.

2. You are holding the unit rmly with both hands. Your right

arm is slightly bent and is holding the rear handle, and your left arm is straight and is holding the front handle.

3. You are standing with proper footing and are holding the

hedge trimmer so that the cutting blades are always away from your body. mWARNING! Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand and operate the hedge trimmer with the other. Improper handling of the hedge trimmer could result in serious injury. Starting + Stopping mWARNING! Ensure the blade does not touch any objects before turning on the hedge trimmer. mCAUTION! Starting, stopping, and restarting a DC motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. To protect the life of your cordless hedge trimmer, always wait at least ve seconds after stopping before restarting the hedge trimmer.

1. Remove the blade cover and insert the battery in the

battery compartment (Fig. 7).

2. To start the tool, press and hold the safety lock button,

then squeeze the On/O trigger. Once the tool is running, you can release the lock button (Fig. 8).

3. To turn the tool OFF, release the On/O trigger and the

safety lock button (Fig. 8). NOTE: Do not press the On/O trigger until you are ready to make a cut. Cutting Procedures mWARNING! Never cut near electric cords or power lines. If the blade jams on any electrical cable, DO NOT TOUCH THE BLADE. IT CAN CONDUCT ELECTRICITY AND FATALLY SHOCK YOU! Instead, continue to hold the hedge trimmer by the insulated rear handle, and lay it down and away from you in a safe manner. Make sure that electrical service to the damaged electrical cable is disconnected before attempting to free the hedge trimmer blade. Contact with the blade, other conductive parts of the hedge trimmer, or live electric cords or power lines will result in death by electrocution or serious injury. mWARNING! Do not allow familiarity with this type of product to make you careless. Remember that a careless fraction of a second is sucient to inict serious injury. Fig. 5 Front handle Front handle screw Front handle Fig. 6 Front handle screws Fig. 7 Battery Battery compartment Fig. 8 Safety lock button On/O trigger12 mWARNING! Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose string which can become entangled in the cutting blade and create a risk of electric shock and serious personal injury.

1. When trimming new growth, use a wide sweeping action

so that the stems are fed directly into the blade. Do not try to cut branches that are thicker than 0.6 in. (1.5 cm) or those that are obviously too large to feed into the blade. Use lopping shears, a hand saw, or a pruning saw to cut out thick branches rst. If a substantial cut is necessary, cut a little at a time in several passes. Cut both sides of the hedge rst and then the top.

2. To perform a horizontal cut, hold the hedge trimmer with

the blade tilted 5-10 degrees to your cutting object; this makes the operation easier and ensures a better cut (Fig. 9).

3. To perform a vertical cut, start trimming at the bottom and

sweep up for even cutting. Swing the blades in an arc towards the outsides of the hedge so that the cuttings are swept on the ground (Fig. 10). Cutting Tips mWARNING! Hold the tool rmly in both hands. Always keep your dominant hand on the switch handle and your non-dominant hand on the front. Never hold the tool by the blade guard. Keep unit below waist level.

• A wide, sweeping motion, feeding the blade teeth through the twigs is most eective. A slight downward tilt of the blade in the direction of the motion gives the best cut.

• Begin at the bottom and sweep up.

• Do not force the hedge trimmer through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace.

• If blades do become jammed, stop the motor, allow the blades to stop, and remove the battery before attempting to remove the obstruction.

• If desired, you can use a string to help cut your hedge level. Decide how high you want the hedge. Stretch a piece of string along the hedge at the desired height. Trim the hedge just above the guide line of string. Trim the side of a hedge so that it will be slightly narrower at the top. More of the hedge will be exposed when shaped this way, and it will be more uniform.

• Wear gloves when trimming thorny or prickly growth. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement. Care + Maintenance

ATTENTION! Before performing any cleaning or maintenance, remove the battery from the battery compartment. Never touch the moving blades. mWARNING! Never spray or clean the hedge shears with water.

1. Clean the hedge shears with a dry towel, particularly

the ventilation slits, after each use, or use a brush in the event of heavy soiling. Spray the blades with lightweight machine oil after each use.

2. Store the hedge trimmer in the blade cover provided.

Store the hedge trimmer in a dry location out of the reach of children.

3. When servicing, use only identical replacement parts.

Use of any other parts can create a hazard or cause product damage. Please contact an authorized Snow Joe

dealer or call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563) for all replacement parts and accessories for your product. Lubricate the Blades For easier operation and longer blade life, lubricate the hedge trimmer blade before and after each use.

1. Stop the motor and remove the battery.

Fig. 9 5º – 10º Fig. 1013

2. Lay the hedge trimmer on a at surface. Apply lightweight

machine oil along the edge of the top blade (Fig. 11). If you will be using the hedge trimmer for an extended period, it is advisable to stop work intermittently in order to re-oil the blade. NOTE: Do not oil while the hedge trimmer is running.

1. Stop the motor and remove the battery.

2. Lubricate the hedge trimmer as described above.

3. Insert the battery and resume use.

Sharpening the Blades The blade must be re-sharpened if cutting performance and behavior begin to deteriorate (i.e. if blades frequently snag on branches).

1. Stop the motor and remove the battery. Clamp the blade

2. File the exposed cutting surface of each blade tooth with

a smooth round le. Be sure to retain the original angle of the tooth when ling.

3. Remove the blade from the vise, and power on the motor

until the unsharpened edges of the remaining blade teeth are exposed.

4. Remove the battery and repeat the sharpening procedure

as necessary. mWARNING! Do not operate the hedge trimmer with dull or damaged cutting blades. This may cause overload and will give unsatisfactory cutting results. Cleaning the Hedge Trimmer

1. Stop the motor and remove the battery.

2. Clean dirt and debris from the body of the hedge trimmer

using a damp cloth and mild detergent. NOTE: Do not use any strong detergents on the plastic housing or the handle. These parts can be damaged by certain aromatic oils such as pine and lemon, and by solvents such as kerosene. Storage

1. Stop the motor and remove the battery.

2. Clean the hedge trimmer thoroughly before storing.

3. Always place the blade cover on the blade before storing

or transporting the hedge trimmer. Use caution to avoid the sharp teeth of the blade.

4. Store the hedge trimmer indoors, in a dry place that is

inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

5. Always store the hedge trimmer in a place that is

inaccessible to children. The ideal storage temperature is between 50ºF and 86ºF (10ºC and 30ºC).

6. We recommend using the original package for storage or

covering the product with a suitable cloth or enclosure to protect it against dust. Recycling + Disposal The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is functioning properly. Recycle the package afterwards. WEEE symbol. Waste electrical product should not be disposed of with household waste. Please recycle where facilities exist. Check with you local authority or local store for recycling advice. Battery Caution + Disposal Always dispose of your battery pack according to federal, state, and local regulations. Contact a recycling agency in your area for recycling locations. mCAUTION! Even discharged battery packs contain some energy. Before disposing, use electrical tape to cover the terminals to prevent the battery pack from shorting, which could cause a re or explosion. mWARNING! To reduce the risk of injury or explosion, never burn or incinerate a battery pack even if it is damaged, dead, or completely discharged. When burned, toxic fumes and materials are emitted into the surrounding atmosphere.

1. Batteries vary according to device. Consult your manual

for specic information.

2. Install only new batteries of the same type in your product

3. Failure to insert batteries in the correct polarity, as

indicated in the battery compartment or manual, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

6. Do not dispose of batteries in re.

7. Batteries should be recycled or disposed of as per state

24V iON+ cordless hedge trimmer requires service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal axed to the housing or handle of your cordless hedge trimmer. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: Model #: Serial #: 24V-HT22-MAX15 Optional Accessories mWARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this hedge trimmer. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your hedge trimmer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

6R4_01282020 SNOW JOE

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.
