HR0013 - Other household appliances ETNA - Free user manual and instructions

Product type	Extractor hood
Brand	ETNA
Model	HR0013
Installation	External evacuation or recirculation
Number of speeds	3 (speed 1, 2, 3) + intensive mode
Lighting	Integrated lamp (replacement by qualified technician)
Control	Touch controls (on/off, speeds, lighting)
Timer	Automatic shutdown after 5 minutes
Filter saturation indicator	Yes (flashing of lighting button after 90 h)
Grease filter	Metallic, washable (dishwasher or manual)
Odor and fine particle filter	Model HF0013 (optional, annual replacement)
Minimum distance above the cooktop	55 cm (electric/ceramic/induction) – 65 cm (gas)
Extraction duct diameter	120 or 150 mm
Electrical connection	220-240 V, 50 Hz, class I, grounding
Material	Stainless steel
Grease filter cleaning	Once a month or at saturation signal
Saturation indicator reset	Press simultaneously on button B + lighting

Frequently Asked Questions - HR0013 ETNA

How to install the HR0013 extractor hood?

The installation must be carried out by an authorized installer. Respect the minimum distances: 55 cm for electric cooktops, 65 cm for gas. Use an extraction duct with a diameter of 120 or 150 mm. For recirculation, order the HR0013 kit and the charcoal filter separately.

How to clean the grease filters?

The metallic filters should be cleaned once a month in the dishwasher (short cycle, low temperature) or by hand with a neutral detergent. Replace them open downwards for draining.

When and how to replace the HF0013 odor filter?

The HF0013 filter must be replaced once a year. Order the HR0013 recirculation kit. Follow the instructions provided with the new filter.

How to reset the filter saturation indicator?

After cleaning the grease filters, press simultaneously on button B and the lighting button until the flashing stops.

What to do if the lighting no longer works?

The integrated lighting system must be replaced by a qualified technician. Do not attempt to replace it yourself.

How to use the timer?

Turn on the fan and select the desired speed. Press the lighting button for 3 seconds: the timer activates and the hood automatically stops after 5 minutes.

What are the important safety instructions?

Always unplug the hood before any maintenance. Do not use abrasive products or alcohol. Respect the minimum distances and do not connect other appliances to the extraction duct.

How to select the extraction speeds?

Turn on the fan with the On/Off button. Use buttons 2 (speed 2), 3 (speed 3) or B (intensive mode). Button 1 corresponds to speed 1.

Is the hood noisy in recirculation mode?

Yes, operation with the odor and fine particle filter is noisier. For better comfort, use a slow speed and avoid intensive mode.

How to turn off the lighting?

Press the lighting button: first press 50% intensity, second 100%, third off. The hood turns off by pressing and holding the On/Off button.

USER MANUAL HR0013 ETNA

Scan the QR code or visit the website etna.nl/connected to find out how to establish a connection with your appliance.

Gebruikte pictogrammen - Pictogrammes utilisés - Benutzte Piktogramme Pictograms used

Belangrijk om te weten - Important à savoir - Wissenswertes - Important information

Tip - Conseil - Tipp

Uw afzuigkap

Warning symbol with light bulb and exclamation mark (no text or numbers)

Diagram of a staircase with brick walls and a cabinet, showing airflow direction (no text or symbols)

Diagram of a vertical structure with brick wall and hanging box, showing directional arrows indicating movement (no text or symbols)

Verlichting

max. 140 cm

Verpakking en apparaat afdanken

Diagram of a staircase with brick walls and a cabinet, showing airflow direction (no text or symbols)

Diagram of a vertical structure with brick wall and hanging box, showing airflow or movement arrows (no text or symbols)

Éclairage

max. 140 cm

Diagram of a brick wall with a door and directional arrows indicating movement or force (no text or symbols)

Diagram of a vertical structure with brick wall and hanging panel, showing directional arrows indicating motion (no text or symbols)

Bedienung

2

3

B

Beleuchtung

max. 140 cm

Cleaning the filters 6

Maintenance

Cleaning 8

Grease filters 9

Odour/fine particle filter HF3001 9

Lighting 10

Installation

General 11

Connection 12

Environmental aspects

Disposal of packaging and appliance 13

Introduction

Warning symbol with light bulb and exclamation mark (no text or numbers)

Read through this user manual for quick information about all the options available to you with this appliance. It gives safety information and instructions for maintaining the appliance.

Keep the user manual and the installation instructions. They will be useful to any subsequent user of this appliance.

Read the separate safety instructions before using the appliance.

You can find the most recent version of the instructions for use on our website.

Description

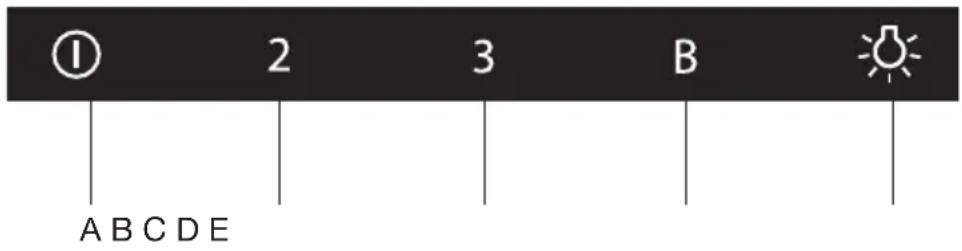

A Button On/Off and button first speed
B Button second speed
C Button third speed
D Intensive speed button
E Lighting button

Exhaust systems

The cooker hood can, depending on the model, be connected in one of two ways:

1. As a cooker hood connected to an exhaust duct. The cooking fumes are drawn into the cooking hood, filtered, and exhausted outdoors. This is the best way!

2. As a recirculation cooker hood. The cooking fumes are drawn into the cooking hood and the grease droplets and odours are filtered out. The filtered air is not exhausted outdoors, but is returned to the kitchen. You then need to fit a carbon filter.

Note! The carbon filter must be ordered separately.

Diagram of a brick wall with a door and directional arrows indicating movement or force (no text or symbols)

Diagram of a vertical structure with brick wall and hanging panel, showing directional arrows indicating motion (no text or symbols)

Operation

2

3

B

Switching the fan on and off

• Switch the fan on by pressing the On/Off button.
• Select the required extractor speed by pressing button 2, 3 or B.
• Switch off the fan by pressing the on/off button for a long time: the on/off button will then continue to flash slowly for 1 minute.

Timer function

• Switch the fan on and select the required extractor speed.
• Press the lighting button for three seconds.
  This activates the timer function.
  The selected speed flashes on the display.
  The speed can be changed during this function.
  The cooker hood switches off automatically after 5 minutes.

Switching the lighting on and off

• Press the lighting button.
  The lighting comes on at 50% of the light intensity.
• Press the lighting button again.
  The lighting comes on at 100%.
• Press the lighting button again.
  The lighting goes off.

Cleaning the filters

Saturated grease filters

The filter indicator flashes after 90 operating hours. The filter indicator flashes to indicate that the grease filters need to be cleaned:

• Grease filter indicator:
  The lighting button flashes after 90 hours of use.
• Clean the grease filters.
• Reset the memory by pressing button B and the lighting button simultaneously until the filter indicator stops flashing.

Do not reset the memory until the maintenance work on the filters has been completed.

Cleaning

Attention! Before carrying out maintenance work, always disconnect the cooker hood from the power supply by pulling out the plug or switching off the power at the fuse box. The hood must be cleaned regularly, both inside as well as outside (with at least the same regularity as used for cleaning the grease filters). Do not use any products that contain abrasive materials. Do not clean with alcohol!

Attention! If you do not follow these instructions with regards to the cleaning of the appliance and the cleaning or replacement of the filters, this can lead to fire. It is essential to follow these instructions!

The manufacturer is not liable for damage to the motor or damage as a result of fire that is due to improper servicing or not following the above safety requirements.

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then treat with clean water. Do not use any aggressive cleaning agents such as soda. The lacquer of the cooker hood will remain in good condition if you rub the lacquer with wax once in a while.

Stainless steel hoods

Do not use scouring sponges or other abrasives on stainless steel hoods. Finish with a non-abrasive, non-polishing agent and scrub in the direction of the brushing of the stainless steel.

Metal grease filters

Metal grease filters should be cleaned once a month (or when indicated by the filter saturation indication system, if present on your model), using a neutral cleaning agent, preferably by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminum-colored and black grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.

Grease filters

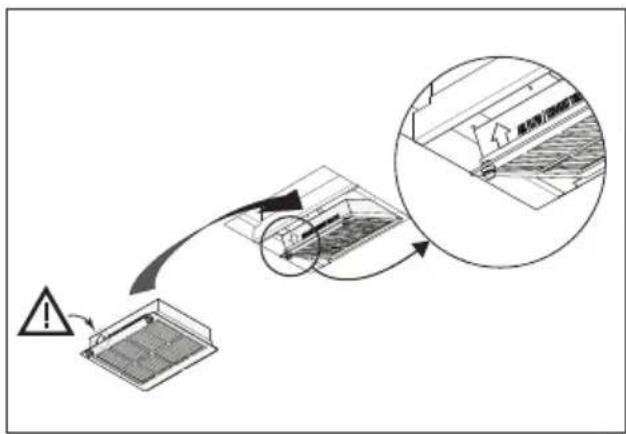

Removing the grease filters

1. Remove the filters one by one by pulling on their release handles.

Odour/fine particle filter HF3001

• More noise is produced when odour/fine particle filters are used than when the cooker hood is used with an exhaust vent.
• Odour/fine particle filters function optimally at a lower motor speed. Consequently, you should avoid the intensive setting as much as possible.

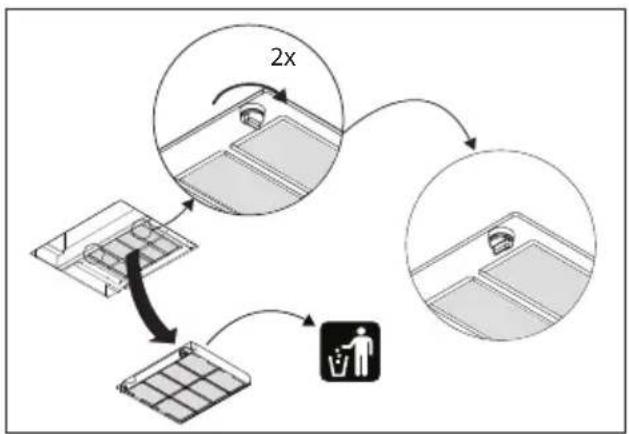

Replacing the odour/fine particle filter HF3001

The odour/fine particle filter must be replaced annually. To replace the filter, follow the instructions supplied with the new filter. The recirculation set HR0013 must be ordered for the first installation.

Important:

- The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.

Lighting

This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

General

This appliance must be connected to the power supply by a recognized installer who is familiar with and works in accordance with the applicable safety regulations. This appliance conforms to the European directives.

Important information:

• The lowest part of the cooker hood must be at least 65 cm above a gas hob. The lowest part of the cooker hood must be at least 55 cm above an electric, ceramic or induction hob.
• The cooker hood may only be connected to an existing exhaust duct to which no other appliances are connected (such as a geyser or heater).
• Gas appliances must be vented in accordance with the local regulations.
• The cooker hood works best when connected to an exhaust duct that is as short and as straight as possible.
• Before drilling any holes, always check to make sure that there are no wires in the area.
• The hood's connection pipe has a diameter of 120 or 150 mm. The exhaust duct should preferably be of the same diameter.
• The installation materials supplied with this cooker hood are suitable for reinforced concrete and masonry walls. You will need special plugs and screws to fasten the appliance to some other types of wall.

Connection

Electrical connections

This appliance is a Class I appliance and must be earthed.

Check to make sure that the voltage specified on the type plate matches the mains voltage. The appliance must be connected to the mains as follows:

$$ B R O W N = L (\text { live }) $$

$$ B L U E = N (\text { neutral }) $$

$$ \text { GREEN / YELLOW } = \text { Earth } $$

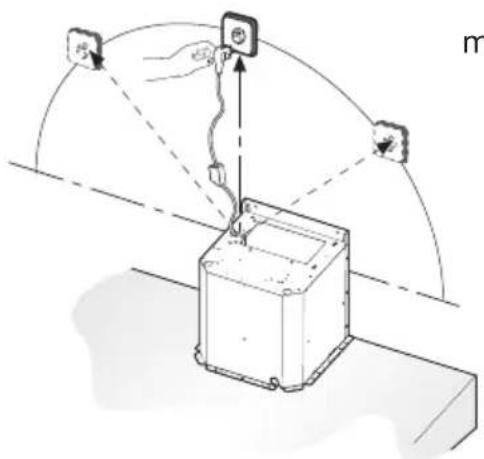

This cooker hood is fitted with a plug. Install the cooker hood so that the plug is accessible. It is preferable to fit the wall socket out of sight, behind the chimney cover.

Note: When you make a fixed connection to the mains you must make sure that the live wire is connected to an omnipolar switch with a break contact distance of at least 3 mm.

max. 140 cm

Disposal of packaging and appliance

Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance must be disposed of in a responsible manner. You can obtain more information from the authorities.

The packaging of the appliance is recyclable. The following materials may have been used:

• cardboard;
  • polyethylene foil (PE);
  • CFC-free polystyrene (PS hard foam).

Dispose of these materials in a responsible manner and in accordance with governmental provisions.

To designate the requirement of sorted processing of electrical household equipment, the symbol of a crossed-out waste container is displayed on the product. This means that at the end of its life span, the appliance may not be added to the regular household waste. The appliance must be brought to a special municipal centre for sorted waste collection or to a dealer that provides this service.

The separate processing of a household appliance prevents possible negative consequences for the environment and health which exist due to inappropriate processing. Separate processing ensures that the materials of which the appliance is made can be recovered to obtain a considerable savings of energy and raw materials.

Conformity declaration

We declare that our products comply with the applicable European Directives, Resolutions and Regulations, as well as all requirements specified in the standards to which reference is made.

www.etna.nl

www.etna.be

916834
