OR12774 BI - Dishwasher Orima - Free user manual and instructions

Product type	Built-in dishwasher
Brand	Orima
Model	OR12774 BI
Capacity	14 place settings

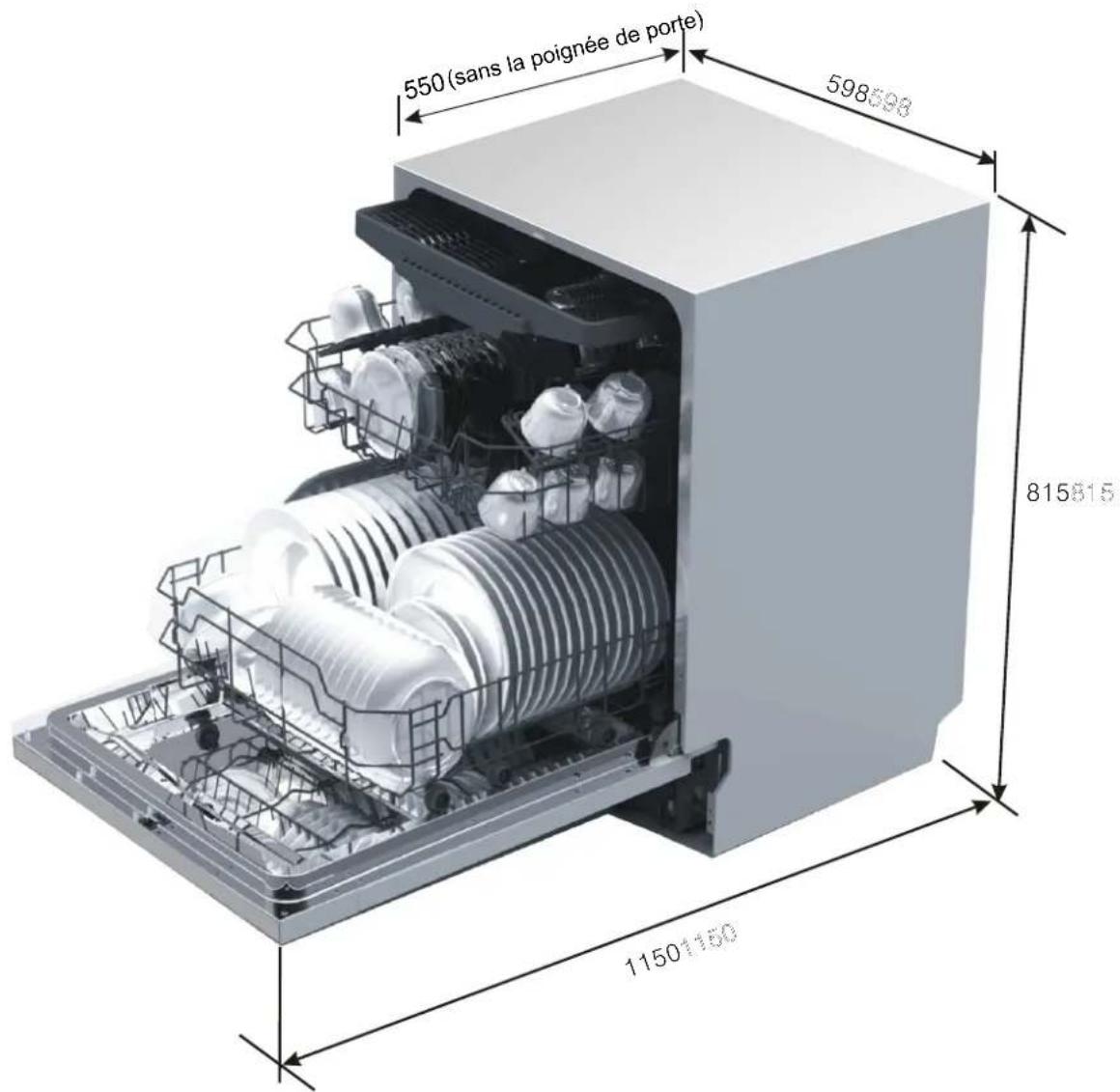

Dimensions (H x W x D)	81.5 x 59.8 x 55.0 cm
Water pressure	0.04 - 1.0 MPa
Power supply	220-240 V / 50 Hz
Energy efficiency class	E
Energy consumption (ECO program)	0.951 kWh per cycle
Water consumption (ECO program)	11.0 L per cycle
Duration of ECO program	3 h 40 min
Noise level	49 dB(A) - Class C
Washing programs	Intensive, Universal, ECO, Glass, 90 min, Quick
Special functions	Delayed start, Extra drying, Half load
Water softener	Yes, adjustable (H1 to H6)
Installation type	Built-in under worktop
Filtration system	Main filter, coarse and fine filter
Safety	Grounding, overflow protection
Maintenance	Regular cleaning of filters and spray arms
Spare parts	Available from the manufacturer

Frequently Asked Questions - OR12774 BI Orima

How to adjust the water softener?

Open the door, turn on the appliance, then press the Programme button for about 5 seconds to access the setting. Select the hardness of your water (H1 to H6) by pressing Programme, then confirm with the On/Off button. Refer to the hardness table in the manual.

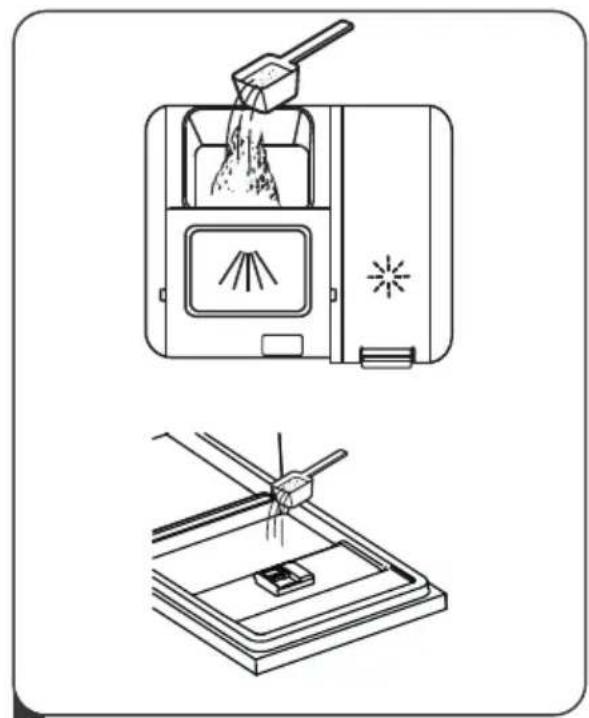

How much salt to use and how to fill it?

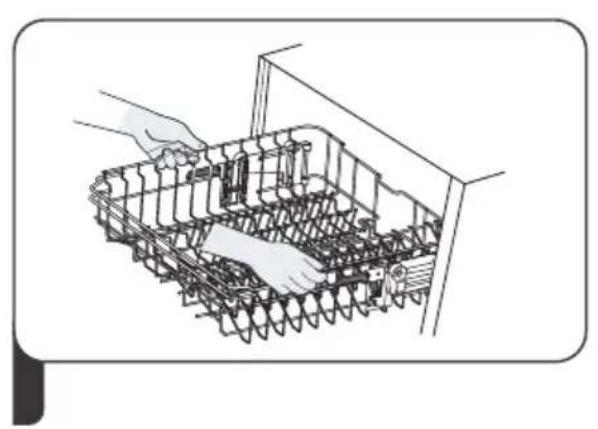

Use special dishwasher salt. Remove the lower basket, unscrew the cap of the salt reservoir, pour about 1.5 kg of salt using the provided funnel, then fill with water to the brim. Screw the cap back on and start a short program immediately to avoid corrosion.

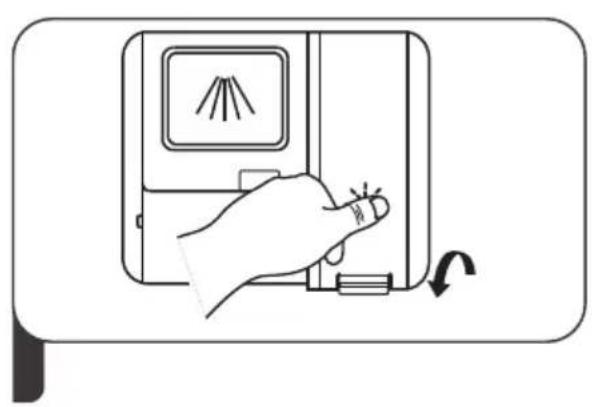

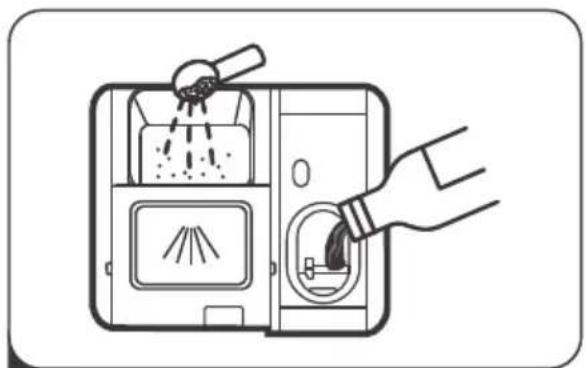

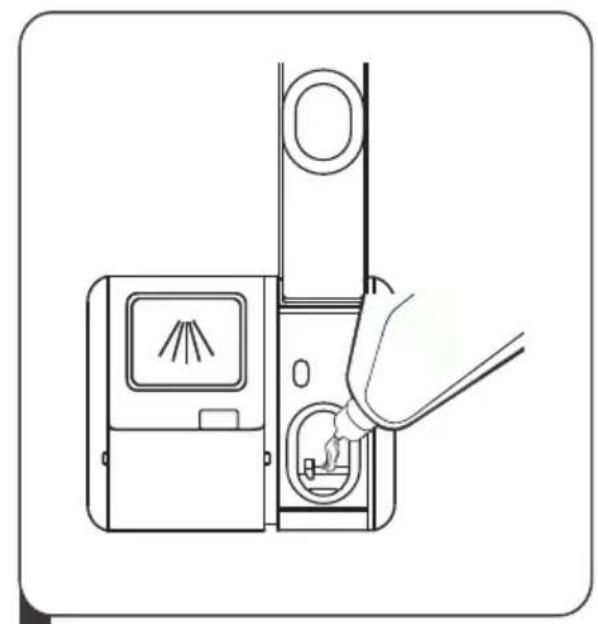

How to fill rinse aid?

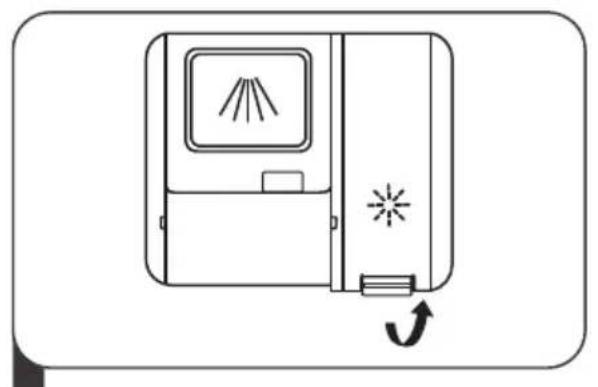

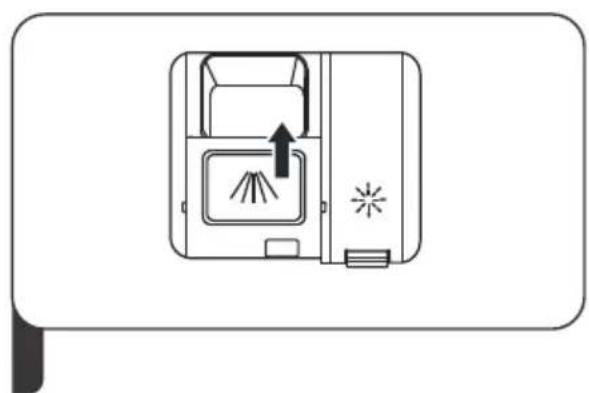

Open the cover of the rinse aid dispenser (located next to the detergent dispenser). Pour the liquid until the level indicator becomes completely black. Do not exceed the maximum level. Close the cover.

What to do if the dishwasher does not start?

Check that the appliance is on, the door is properly closed, the fuse is not blown, and the water supply is open. Make sure the water pressure is sufficient (0.04-1.0 MPa). If the problem persists, consult the troubleshooting guide.

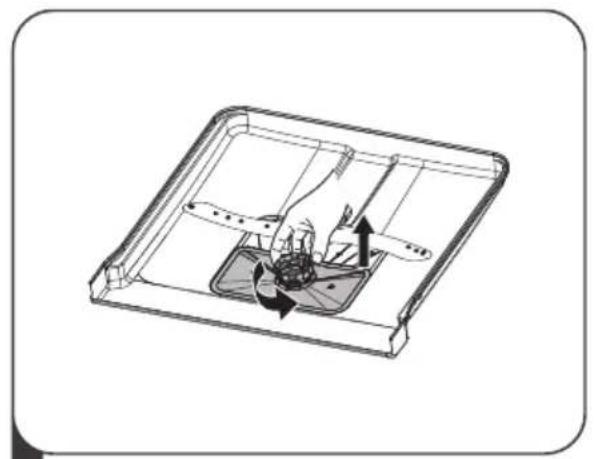

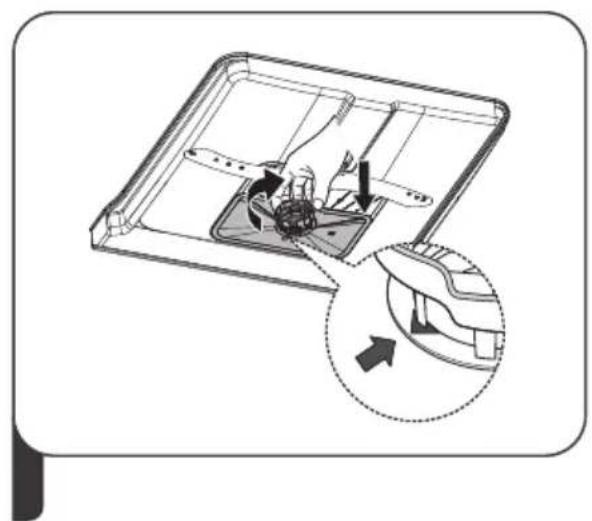

How to clean the filters?

The filters should be cleaned regularly. Turn the main filter counterclockwise and remove the assembly. Clean each part under running water with a brush. Reassemble in reverse order and replace correctly. Caution: never operate the appliance without filters.

What are the possible error codes?

Common error codes are: E1 (filling time too long - check water supply), E3 (temperature not reached - heating problem), E4 (overflow - internal leak), Ed (communication problem). In case of error, consult the manual for solutions.

How to use the half load function?

The half load function is recommended for a maximum of 6 place settings. Select a compatible program (Intensive, Universal, ECO, Glass or 90 min) then press the Half load button. This reduces water and energy consumption.

Why is the dishes not well dried?

Check that the rinse aid reservoir is full. Use the Extra drying function if available. Do not unload the dishes immediately after the cycle: leave the door ajar for a few minutes. Make sure the selected program (e.g. Quick) is not too short.

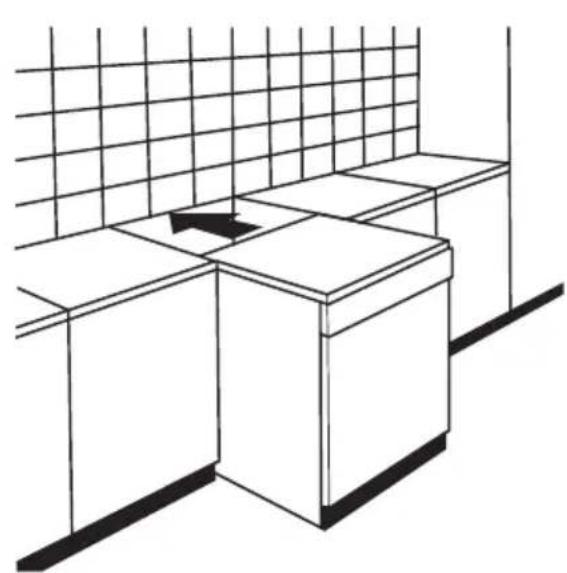

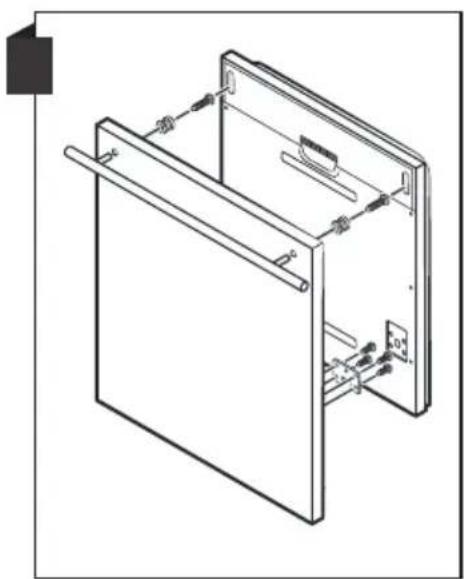

How to install the dishwasher?

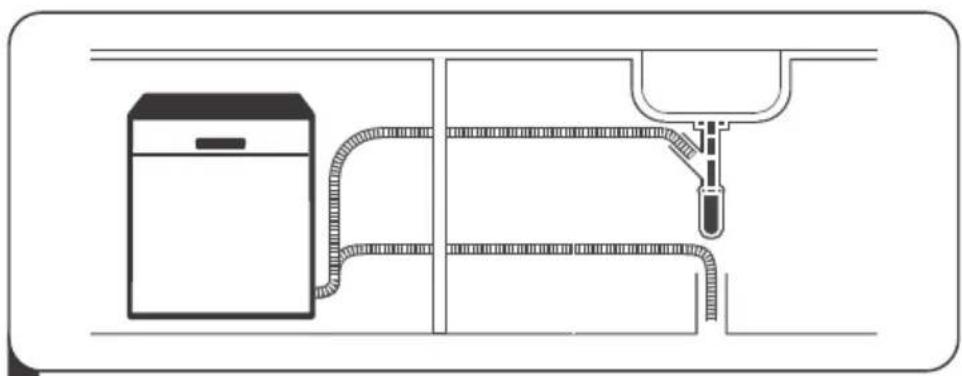

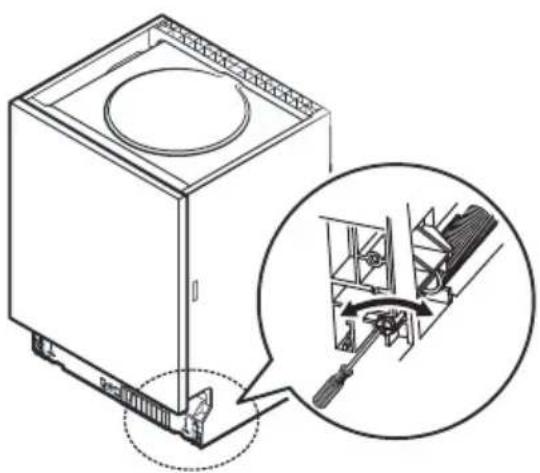

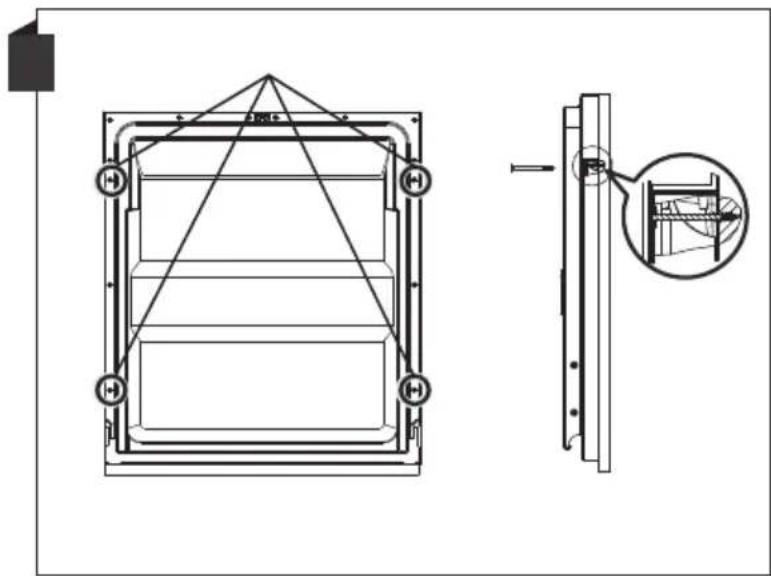

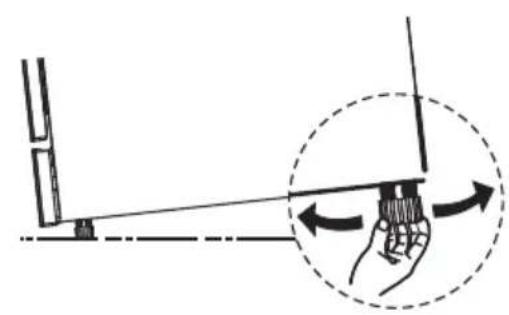

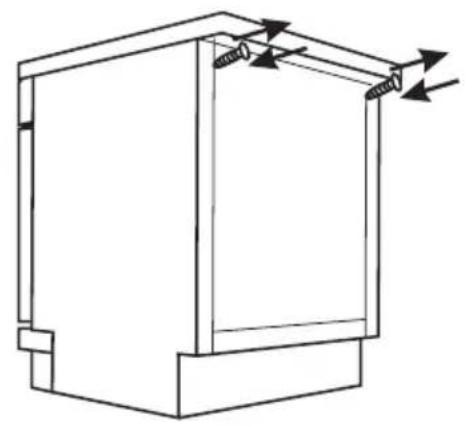

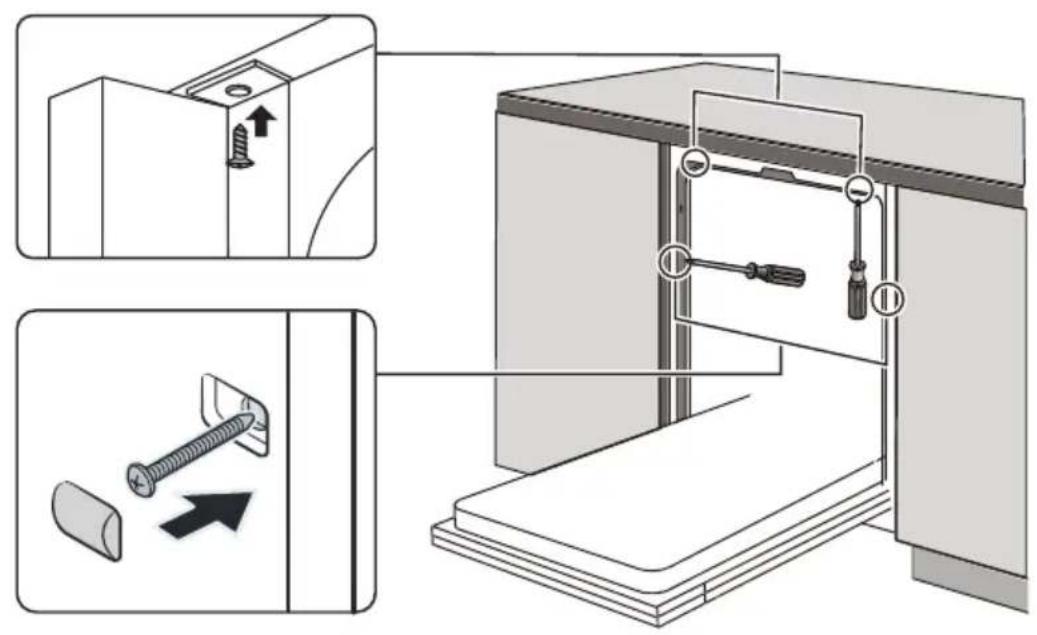

Installation must be carried out by a professional. Prepare a niche with the indicated dimensions (H 81.5 cm, W 59.8 cm, D 55 cm). Connect the water inlet and drain hoses, plug in the power supply. Level the dishwasher by adjusting the feet. Secure it to the worktop or walls.

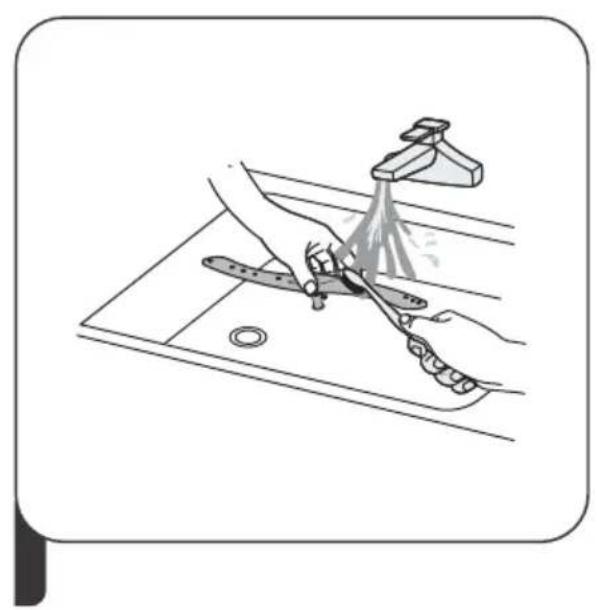

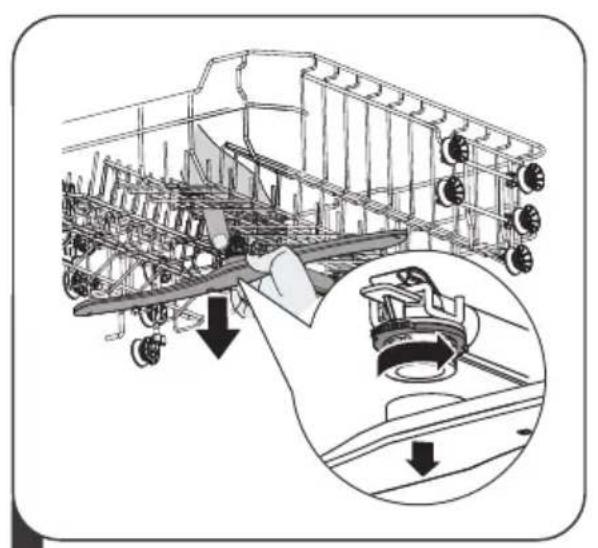

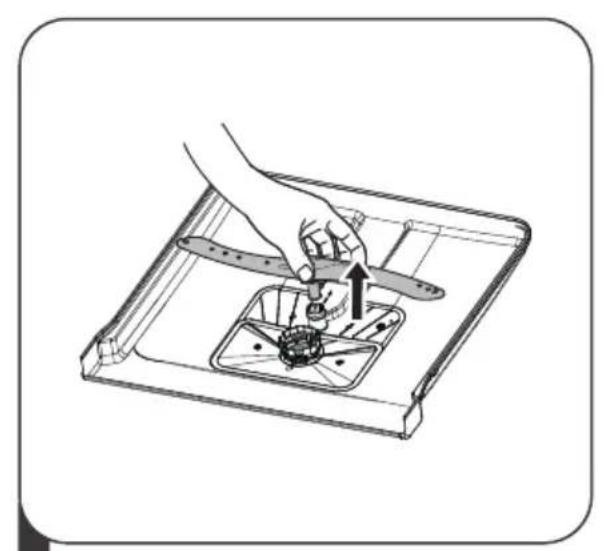

How to maintain the spray arms?

Regularly remove the spray arms (upper: by turning the nut, lower: by pulling upward). Wash them in warm soapy water with a soft brush to remove limescale deposits. Rinse and replace.

USER MANUAL OR12774 BI Orima

facebook.com/orima.pt

MÁQ. LAVAR LOUÇA ENCASTRÁVEL

Built-in Diswasher Lavavajillas Incrustacion Vaiselle Encastre

SERVICO DE APOIO AO CLIENTE

Apoio ao CLIENTE:

Tel.: [phone] E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: [e-mail]

Obrigado por ter adquirido este produits ORIMA. Por favor leia atentamente este manual antes de partir a usar o aparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produit ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

LEIA ESTE MANUAL

Estimado Cuestione:

facebook.com/orima.pt

MÁQ. LAVAR LOUÇA ENCASTRÁVEL

Built-in Diswasher Lavavajillas Incrustacion Vaiselle Encastre

SERVICO DE APOIO AO CLIENTE

Apoio ao CLIENTE:

Tel.: [phone] E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: [e-mail]

Obrigado por ter adquirido este produits ORIMA. Por favor leia atentamente este manual antes de partir a usar o aparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produit ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

01
02
03
04
05
06
07

1

A

#

Dishwasher

Instruction Manual

01

02

03

04

ECO
90°

。	。	。

facebook.com/orima.pt

MÁQ. LAVAR LOUÇA ENCASTRÁVEL

Built-in Diswasher Lavavajillas Incrustacion Vaiselle Encastre

SERVICO DE APOIO AO CLIENTE

Apoio ao CLIENTE:

Tel.: [phone] E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: [e-mail]

Obrigado por ter adquirido este produits ORIMA. Por favor leia atentamente este manual antes de partir a usar o aparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produit ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

Lea este manual

Estimado cliente,

facebook.com/orima.pt

MÁQ. LAVAR LOUÇA ENCASTRÁVEL

Built-in Diswasher Lavavajillas Incrustacion Vaiselle Encastre

SERVICO DE APOIO AO CLIENTE

Apoio ao CLIENTE:

Tel.: [phone] E: [e-mail]

Servico Pós Venda:

Tel.: [phone] E: [e-mail]

Obrigado por ter adquirido este produits ORIMA. Por favor leia atentamente este manual antes de partir a usar o aparelho.
UK Thank you for purchasing this ORIMA product. Please read this manual carefully before using the appliance.
FR Merci d'avoir acheté ce produit ORIMA. Veuillez dire attentivement ce manuel avant d'utiliser l'appareil.
ES Gracias por haber adquirido este produit ORIMA. Por favor lea atentamente este manual antes de empezar a usar el aparato.

Lisez ce manuel

Cher Client,

Specifications techniques
