Product Type	Binoculars
Brand	Steiner
Model	Wildlife 10x42
Magnification	10x
Objective Diameter	42 mm
Prism Type	Porro
Focusing System	Sports-Auto-Focus (automatic focus from 20 m to infinity)
Diopter Adjustment	Yes, on both eyepieces
Interpupillary Distance Adjustment	Yes, by central hinge articulation
Eyecups	Adjustable (ergonomic position, cylindrical, or for eyeglass wearers)
Strap System	ClicLoc (detachable by pressing)
Protective Case	Neoprene included
Rain Cap	Included
Objective Lens Covers	ClicLoc snap-on
Waterproof	Submersible (water resistant)
Cleaning	Soft cloth, possibly damp, avoid scratches
Rubber Armoring Maintenance	Dashboard aerosol cleaner or Nigrin plastic care product
Safety	Never look directly at the sun
Warranty	Does not cover wear parts (armoring, strap, eyecups, caps)
Serial Number	Yes, for identification in case of loss or theft
Included Accessories	Strap, neoprene case, rain cap, objective lens covers

Frequently Asked Questions - Wildlife 10x42 Steiner

How to attach the carrying strap with the ClicLoc system?

To attach the strap, insert the clip's lug into the binocular's eyelet until it clicks into place with an audible click. To detach, press the indicated point on the rubber armoring. The lug must always face outward.

How to adjust the eyecups for eyeglass wearers?

The eyecups can be adjusted in different positions: ergonomic, cylindrical, or for eyeglass wearers. For eyeglass wearers, use position 9 (folded eyecups) to bring the eye closer to the eyepiece.

How to adjust the focus on Sports-Auto-Focus binoculars?

First set the diopter corrections to '0'. Choose a distant object (about 200 m). Cover the left objective lens and turn the right diopter correction until you get a sharp image. Repeat for the left eye. Then vision is sharp from 20 m to infinity without further adjustment.

How to clean the binocular lenses?

First remove dust with a brush. Then use a soft cloth, possibly damp, to wipe the lenses avoiding scratches. For salt water, first rinse with a damp cloth then wipe with a dry cloth.

What to do if the image is not sharp despite Sports-Auto-Focus?

If vision is not sharp, you probably have a visual impairment. Follow the diopter adjustment procedure: adjust each eyepiece individually by covering the opposite objective, as described in the manual. Ensure the interpupillary distance is correctly adjusted.

What accessories are included with the Wildlife 10x42 binoculars?

Included accessories are a carrying strap (with ClicLoc system), a neoprene protective case, a rain cap, and snap-on ClicLoc objective lens covers.

How to maintain the rubber armoring of the binoculars?

The rubber armoring can be cleaned with liquid soap and running water for waterproof models. To seal small capillary cracks due to UV, use a dashboard aerosol cleaner or Nigrin plastic care product.

Where is the serial number of Steiner binoculars located?

The serial number is located depending on the model at the front end of the binoculars axis between the objectives, below the axis, or in the objective lens. It allows identification of the device in case of loss or theft.

What to do if there is a problem with the binoculars?

Contact a trusted dealer or contact Steiner customer service by phone at [phone] or by email at [e-mail]. The warranty does not cover wear parts such as armoring, straps, eyecups, or caps.

Are the binoculars waterproof?

Yes, Steiner binoculars are waterproof to immersion. They can be rinsed with running water and liquid soap for maintaining the rubber armoring. However, be sure to close the battery compartment if applicable.

USER MANUAL Wildlife 10x42 Steiner

Experience unforgettable moments

Instruction Manual

IcblTaTne He3a6bBaemble MOMeHTbl

PykoBoDCTBO NO 3KcNpyaTun

Congratulations on purchasing STEINER binoculars! Do not miss your life's defining moments! The accessories included with your purchase may be used according to your requirements. Proper handling is a note for enjoying this precision device over several decades. Therefore, please read the following pages before use STEINERs for the first time.

Customer-Service International:

331 East 8^th Street

Greeley, CO 80631

USA

Tel.: [phone]

E-Mail: [e-mail]

www.steiner-binoculars.com

STOEGER CANADA (1990) LTD

1801 Wentworth St. Unit #1

Whitby, Ontario L1N 8R6

Canada

Tel.: [phone]

E-Mail: [e-mail]

www.stoegercanada.ca

STEINER

Nothing Escapes You

STEINER Nothing Escapes You
Experience unforgettable moments Instruction Manual

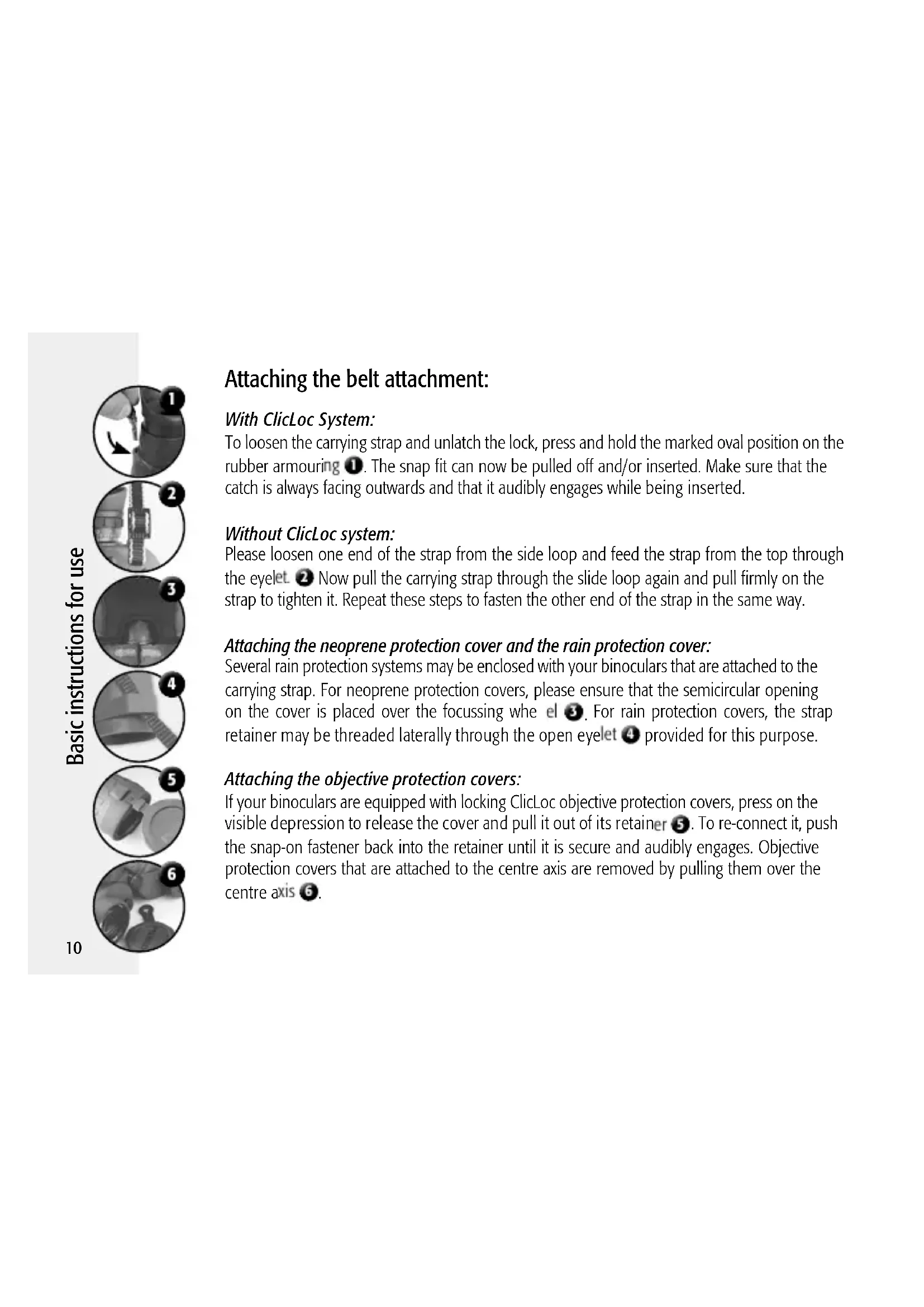

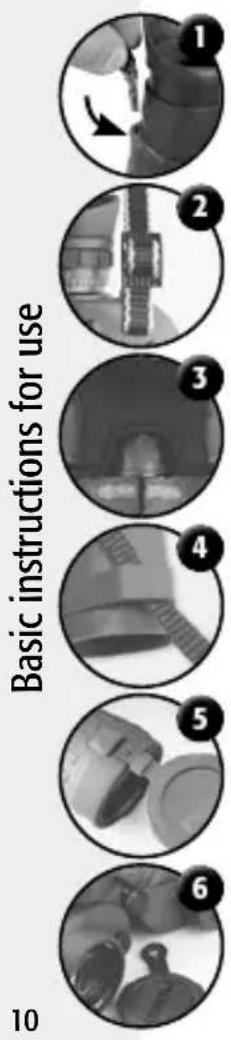

Attaching the belt attachment:

With ClicLoc System:

To loosen the carrying strap and unlatch the lock, press and hold the marked oval position on the rubber armouring ①. The snap fit can now be pulled off and/or inserted. Make sure that the catch is always facing outwards and that it audibly engages while being inserted.

Without ClicLoc system:

Please loosen one end of the strap from the side loop and feed the strap from the top through the eyelet. Now pull the carrying strap through the slide loop again and pull firmly on the strap to tighten it. Repeat these steps to fasten the other end of the strap in the same way.

Attaching the neoprene protection cover and the rain protection cover:

Several rain protection systems may be enclosed with your binoculars that are attached to the carrying strap. For neoprene protection covers, please ensure that the semicircular opening on the cover is placed over the focussing whe el 3. For rain protection covers, the strap retainer may be threaded laterally through the open eyelet 4 provided for this purpose.

Attaching the objective protection covers:

If your binoculars are equipped with locking ClicLoc objective protection covers, press on the visible depression to release the cover and pull it out of its retainer. To re-connect it, push the snap-on fastener back into the retainer until it is secure and audibly engages. Objective protection covers that are attached to the centre axis are removed by pulling them over the centre axis.

Adjusting the interocular distance and the eyecups:

Adjusting the interocular distance:

To adjust an individual interocular distance turn the two halves of the binoculars via the centre axis until you can see a round image.

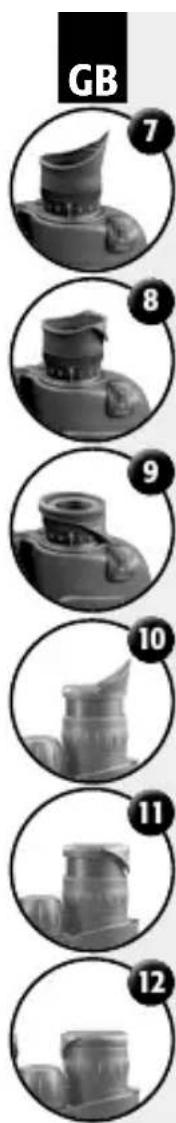

To ensure optimum visibility through your STEINERS, the eyecups may be set to different positions:

Adjusting the eyecups (models with ErgoFlex and ergonomic eyecups): ergonomic 7, cylindrical 8 or for persons wearing glass es 9.

Adjusting the eyecups (models with cylindrical eyecups): cylindrical or for persons wearing glass es 9.

Adjusting the eyecups (models with twist-up eyecups): ergonomic 7, cylindrical 8 or for persons wearing glass es 9.

Focussing:

Porro binoculars with Sports-Auto-Focus (see also key):

Adjust both dioptre settings to "0" and everything from approx. 20m and beyond is always sharp and clear. If this is not the case, one or both eyes may be ametropic. This has to be adjusted.

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand or the objective protection cover and look through the binoculars.
3. Now turn the dioptre setting on the right ocular until you can see an entirely sharp and clear image with your right eye.
4. Please repeat the same steps for the left eye. Now everything from 20m and beyond is always sharp and clear.

Porro binoculars with Sports-Auto-Focus PLUS:

Once set to the individual acuity (see Sports-Auto-Focus), Sports-Auto-Focus PLUS also offers you the possibility to focus objects close by (from a distance of 2m) by means of a short turn on the focussing whe el B.

Roof binoculars with Fast-Close-Focus (see key also):

1. Choose a very detailed and remote object (approx. 200m distant).
2. Cover the left objective with your hand, or the objective protection cover if enclosed, and look through the binoculars.
3. Now turn the focussing wheel until you can see an entirely sharp and clear image with your right eye.
4. To adjust the left eye of the binoculars, cover the right objective and look through your binoculars. Then turn the dioptre setting on the left ocular until you see a sharp and clear image of the same object.
5. By turning the focusing wheel, it is now possible to focus the binoculars down to different distances giving outstandingly detailed and brilliant images.

Note: in the Discovery series you will find the dioptre setting on both oculars.

Compass settings:

Compass light:

For STEINER marine binoculars equipped with an integrated compass, you will find a button on the side of the compass housing to illuminate the compass display inside the ocular in the dark. To do so, simply press and hold the corresponding button. In order to use the compass at night the compass light is equipped with a battery.

Changing batteries:

To be able to also use the compass at night, the compass light is equipped with a battery. Proceed as follows to change the battery:

Open the battery case 15. Now replace used battery/batteries and be careful to correctly assign the positive and/or negative pole terminals. When closing the battery cover, make sure that you close it tightly to prevent water from penetrating into the battery compartment.

Environmental protection: Batteries must not be disposed of with household waste 16.

Obtain information about the applicable regulations for the collection of WEEE (Waste of Electrical and Electronic Equipment) in your country.

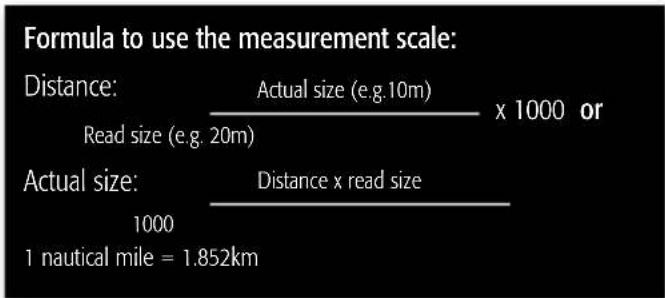

Products with integrated precision reticle:

It is highly visible and gives measurements in metres or feet (0.33m).

Measurement example:

your course. You read the value 20 from

Cleaning/Maintenance and Important Product Information:

Cleaning your binoculars:

Remove dust and loose dirt on the lenses with a brush. Then use only a soft, possibly damp cloth to wipe the lenses. Failure to use a soft cloth can scratch the lenses. Wipe off salt water with a damp cloth then use a dry cloth to wipe the lenses.

Care for the rubber armouring:

Binoculars resistant to water pressure may be rinsed under running water using liquid soap. To close smaller hairline cracks that may be caused by UV radiation the rubber armouring should be treated with Cockpit Spray or Nigrin Plastic Care.

Product Serial Number:

All STEINERs have their own serial number. This allows you to ascertain when your binoculars were produced and it also provides a way (following the registration on the STEINER website) to identify them in case of loss or theft. You can find the serial number of your binoculars (depending on the model) at the front end of the binoculars' axis, between the objectives 18, on the underside of the binoculars' axis 19 or in the objective le ns 20.

Important Safety Note:

Never look directly into the sun with your binoculars! This may cause serious damage to your eyes and possibly lead to blindness!

Please understand that we cannot accept warranty claims for wear parts such as rubber armouring, carrying straps, eyecups or protective caps. Should you encounter any problems while using your binoculars please contact your specialised dealer or our
