PNHW651 - Monitor SHARP - Free user manual and instructions

Brand	Sharp
Model	PNHW651
Product Type	Professional LCD Monitor
Dimensions (W x D x H)	1458 x 82 x 835 mm
Weight	Approx. 26 kg
Power Supply	100-240 V, 2.3 A, 50/60 Hz
Power Consumption	205 W
Operating Temperature	0°C to 40°C
Operating Humidity	20% to 80% (without condensation)
Connectivity	HDMI x3, D-sub, RS-232C, LAN, USB, audio input/output, IR output
VESA Mount Compatibility	Yes (M6 screws, bracket thickness + 8-10 mm)
Remote Control Batteries	R03 (AAA) x2
Included Accessories	Remote control, power cord, CD-ROM, manual, cable clamp, logo sticker, USB cover
Main Functions	Auto standby (OFF IF NO OPERATION), timer, thermal sensor, MODE1/MODE2 modes, date/time adjustment
Maintenance and Cleaning	Unplug before cleaning, use a dry cloth, do not use liquid detergents
Safety	Do not expose to rain, do not open, use shielded cables for HDMI, D-sub and RS-232C
Continuous Operation Time	16 hours per day (beyond not covered by warranty)
Device Class	Class A (may cause interference in residential environments)

Frequently Asked Questions - PNHW651 SHARP

How to clean the screen of the Sharp PNHW651 monitor?

Unplug the power cord, then use a dry, soft cloth. Do not use liquid or spray detergents, nor dirty cloths.

What types of connections are available on the Sharp PNHW651?

The monitor has three HDMI inputs, one D-sub (VGA) input, one RS-232C input, one LAN port, one USB port, one audio input, audio outputs and one IR output.

How to install the monitor on a wall?

Use a VESA-compatible wall mount. Installation must be performed by at least two people (three for larger models). Follow the instructions in the manual and ensure the wall can support at least four times the weight of the monitor.

What is the power consumption of the Sharp PNHW651?

Power consumption is 205 W during normal operation (power supply 100-240 V, 2.3 A, 50/60 Hz).

Can I use the monitor in vertical orientation?

Yes, but you must set the THERMAL SENSOR SETTING to PORTRAIT in the SETUP menu and ensure the power LED is on the top side (for PN-HW431) or on the right side (for other models).

How to put the monitor into standby?

Press the MONITOR OFF button on the remote control or the POWER button on the monitor. If OFF IF NO OPERATION mode is enabled, the monitor automatically goes into standby after 4 hours of inactivity.

What to do if the remote control stops working?

Check the batteries: insert new R03 (AAA) batteries respecting polarity. If the problem persists, check the distance and angle to the infrared sensor.

The monitor is heavy, how to move it safely?

For the PNHW651 model (26 kg), move it with two people holding it by the designated handles or parts indicated in the manual. Do not hold the screen itself.

What is the recommended operating time for the Sharp PNHW651?

The monitor is designed for a maximum daily use of 16 hours. Continuous use beyond 16 hours per day is not covered by warranty.

Can I repair the monitor myself?

No, the interior of the monitor contains no user-serviceable parts. Entrust any repair to a qualified Sharp-approved technician.

USER MANUAL PNHW651 SHARP

MANUEL D'INSTALLATION

[PN-HW861/PN-HW751/PN-HW651]

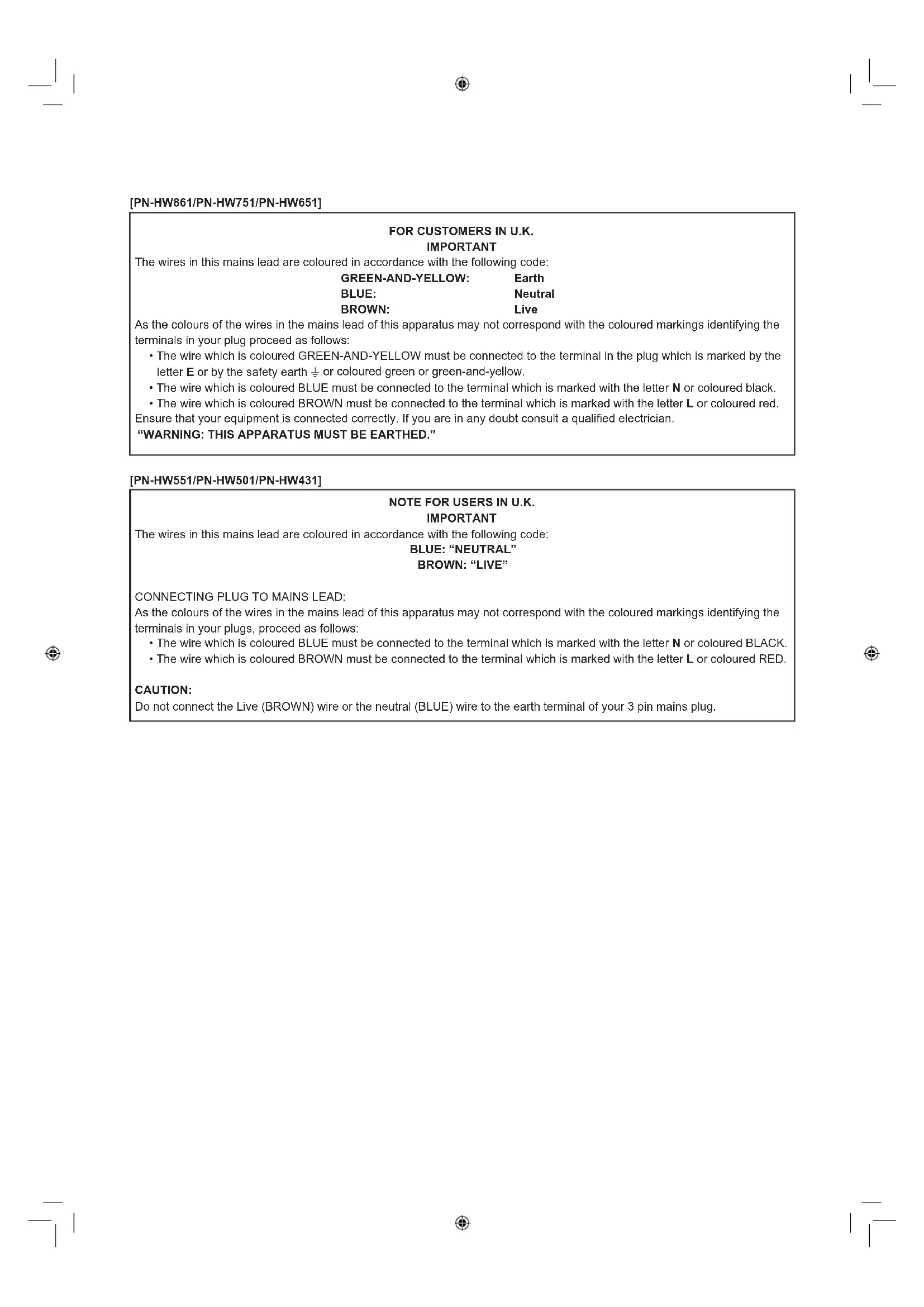

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW:

Earth

BLUE:

Neutral

BROWN:

Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

[PN-HW551/PN-HW501/PN-HW431]

NOTE FOR USERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

BLUE: "NEUTRAL"

BROWN: "LIVE"

CONNECTING PLUG TO MAINS LEAD:

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plugs, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

CAUTION:

Do not connect the Live (BROWN) wire or the neutral (BLUE) wire to the earth terminal of your 3 pin mains plug.

Contents

[ENGLISH]

IMPORTANT INFORMATION. 1
DEAR SHARP CUSTOMER. 1
SAFETY PRECAUTIONS. 2
SAFETY INSTRUCTION 3
MOUNTING PRECAUTIONS 4
Supplied Components. 5
Specifications 5

Preparing the Remote Control Unit. 5

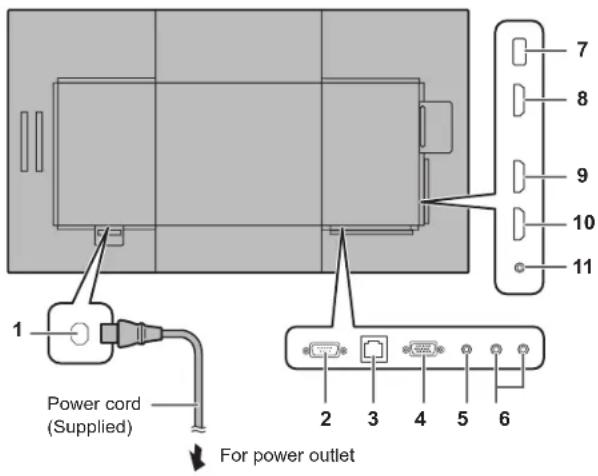

Connections 6
Turning Power On/Off. 7

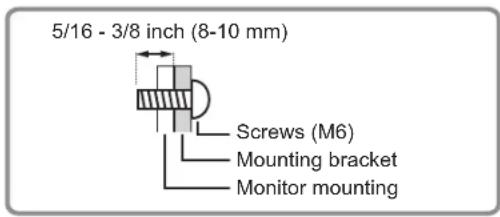

Mounting Precautions
(For SHARP dealers and service engineers) 8

Read the manuals in the provided CD-ROM. (Adobe Acrobat Reader is required to view the manuals.)

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC

SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK,DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS

INSIDE:

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal,

D-sub input terminal and RS-232C input terminal.

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your

product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the instructions must be observed closely.
4. Follow instructions - All operating instructions must be followed
5. Cleaning — Unplug the power cord from the power outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners. Do not use dirty cloths. Doing so may damage the product.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture - Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.

Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

1. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.
2. The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.
3. Overloading — Do not overload power outlets or extension cords. Overloading can cause fire or electric shock.
4. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

1. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
2. Repair — If any of the following conditions occurs, unplug the power cord from the power outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.

d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
16. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.
18. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
- Use the specified batteries only.
Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.
- Do not mix old and new batteries.
- Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.
- Replace an exhausted battery with a new one promptly.
If you will not use the remote control for a long time, remove the batteries.
- If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.
20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

1. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.
2. Do not modify this product.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

An apparatus with CLASS I construction shall be connected to a MAIN socket outlet with a protective earthing connection.

STABILITY HAZARD

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the monitor or its controls.
  This equipment is not suitable for use in locations where children are likely to be present unsupervised.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

SAFETYINSTRUCTION

• Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.
• Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.
• Do not use the monitor in places where it may be exposed to direct sunlight. Risk of cabinet deformation and failure if the monitor is used in direct sunlight.

• Please be sure to constantly remove dust and garbage that has attached to the ventilation opening. If dust collects in the ventilation opening or the inside of the monitor, it may lead to excessive heat, outbreak of fire, or malfunction. Please request a cleaning of the inside of the monitor from an authorized SHARP servicing dealer or service center.

• The power outlet shall be installed near the equipment and shall be easily accessible.

• Continuous operating time and warranty. This product is designed for a maximum daily use of 16 hours. Continual use in excess of 16 hours per day is not covered by the warranty.

The Power Cord

• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Do not use the power cord with a power tap.
  Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

MOUNTING PRECAUTIONS

• This product is for use indoors.
• A mounting bracket compliant with VESA specifications is required.
• Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.
• Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward or downward.
• This monitor should be used at an ambient temperature between 32^ (0^) and 104^ (40^) . Provide enough space around the monitor to prevent heat from accumulating inside.

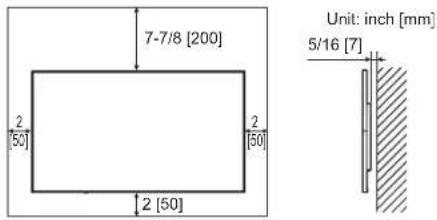

For the monitor in landscape orientation

For the monitor in portrait orientation

• If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 32^ (0^) to 104^ (40^) , install a fan or take other measures to keep the ambient temperature within the required range.
• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.

• Do not place the monitor on a device which generates heat.

• Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may cause malfunctions.
  Install the monitor such that the power LED is located on the right side (PN-HW861/PN-HW751/PN-HW651/ PN-HW551/PN-HW501) or the top side (PN-HW431).

• Set the THERMAL SENSOR SETTING on the SETUP menu to PORTrait. (See OPERATION MANUAL.)

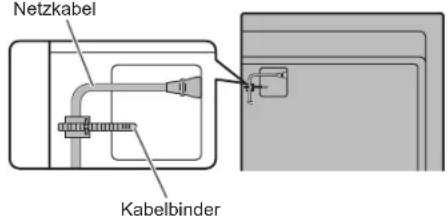

• Be sure to clamp the power cord (supplied) by using the supplied cable clamp (affixing type). When clamping the power cord, take care not to stress the terminal of the power cord. Do not bend the power cord excessively.

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

Supplied Components

If any component should be missing, please contact your dealer.

Liquid Crystal Display Monitor: 1
Remote control unit: 1
Power cord
R03 battery ("AAA" size): 2
CD-ROM (Utility Disk for Windows): 1

□ Setup Manual (this manual): 1
Cable clamp: 2
Logo sticker: 1
USB flash drive cover: 1
USB flash drive cover fixing screw: 1

• SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
• For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

Specifications

Model PN-HW861 PN-HW751 PN-HW651
Power requirement AC 100 - 240 V	3.7 A,50/60 Hz	AC 100 - 240 V, 2.9 A,50/60 Hz	AC 100 - 240 V, 2.3 A,50/60 Hz
Operating temperature * 32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 330 W 255 W 205 W
Dimensions inch (mm)(excluding protrusions)	Approx. 75-7/8 (W) x3 (D) x 43-1/4 (H)(1928 x 76 x 1099)	Approx. 66-1/8 (W) x2-9/16 (D) x 37-3/4 (H)(1680 x 65.5 x 959)	Approx. 57-3/8 (W) x3-1/4 (D) x 32-7/8 (H)(1458 x 82 x 835)
Weight lbs. (kg) Approx. 141.1 (64)	Approx. 121.3 (55) Approx. 57.3 (26)
Model PN-HW551 PN-HW501 PN-HW431
Power requirement AC 100 - 240 V	1.7 A,50/60 Hz	AC 100 - 240 V, 1.5 A,50/60 Hz	AC 100 - 240 V, 1.3 A,50/60 Hz
Operating temperature * 32°F to 104°F (0°C to 40°C)
Operating humidity 20% to 80% (no condensation)
Power consumption 150 W 115 W
Dimensions inch (mm)(excluding protrusions)	Approx. 48-3/4 (W) x2-3/8 (D) x 28 (H)(1239 x 60 x 711.5)	Approx. 44-1/4 (W) x2-11/16 (D) x 25-7/16 (H)(1124 x 68 x 646.5)	Approx. 38-1/8 (W) x2-3/8 (D) x 22 (H)(968 x 60 x 559)
Weight lbs. (kg) Approx. 35.3 (16)	Approx. 28.7 (13) Approx. 19.8 (9)

• Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Preparing the Remote Control Unit

1. Place your finger on the part marked with the , and then pull the cover off.

1. See the instructions in the compartment and put in the supplied batteries (R03 ("AAA" size) x 2) with their plus (+) and minus (-) sides oriented correctly.
2. Close the cover.

Connections

Caution

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

1. AC input terminal
2. RS-232C input terminal
3. LAN terminal
4. D-sub input terminal
5. Audio input terminal
6. Audio output terminals
7. USB port
8. HDMI1 input terminal
9. HDMI2 input terminal
   10.HDMI3 Input terminal
10. IR output terminal

TIPS

• The audio input terminals used in each input mode are as follows.

Input mode Audio input terminal
HDMI1 HDMI1 input terminal
HDMI2 HDMI2 input terminal
HDMI3 HDMI3 input terminal
D-SUB Audio input terminal
USB USB port

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
VESA is either registered trademark or trademark of Video Electronics Standards Association in the United States and/or other countries.
All other brand and product names are trademarks or registered trademarks of their respective holders.

Turning Power On/Off

Caution

• Turn on the monitor first before turning on the computer or playback device.
• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

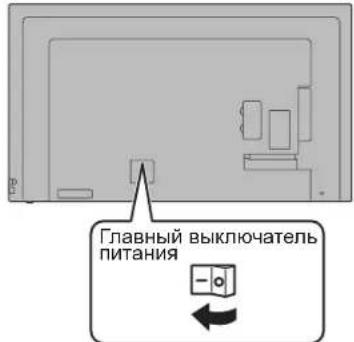

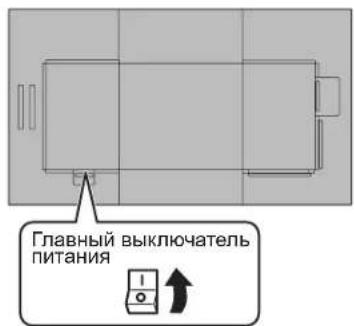

Turning on the main power

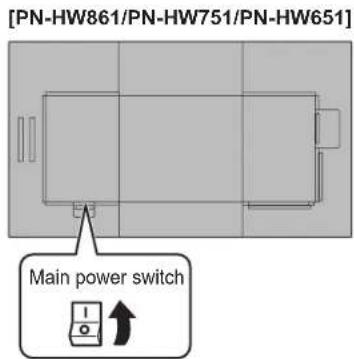

[PN-HW551/PN-HW501/PN-HW431]

Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.
• For a complete electrical disconnection, pull out the main plug.

Turning power on/off

Press the POWER button to turn the power ON/OFF. You can also turn the power ON/OFF by pressing the MONITOR ON button/MONITOR OFF button on the remote control unit.

[PN-HW861]

[PN-HW751/PN-HW651/ PN-HW551/PN-HW501]

[PN-HW431]

Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Green flashing Input signal waiting mode

• Setting the SCHEDULE flashes the power LED alternately in red and orange in standby mode.

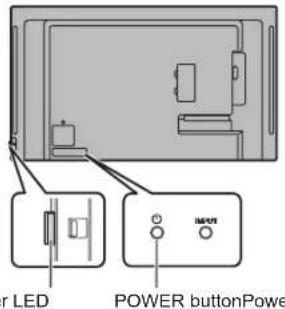

■How to pull out the power LED/remote control sensor

Pull out Store
Power LED / Remote control sensor

Operation mode

When the monitor is turned on for the first time after being shipped from the factory, the operation mode setting screen will be displayed. Set it to MODE1 or MODE2.

MODE1....OFF IF NO OPERATION is set to ON, and POWER SAVE MODE is set to ON. (These settings can not be changed.) If there is no operation for 4 hours or more, the monitor automatically enters standby mode. Power consumption in standby mode is also minimized.

MODE2....Will perform standard operation. OFF IF NO OPERATION is set to OFF, and POWER SAVE MODE is set to OFF. These settings can be changed.

Even after being set, changes can be made using OPERATION MODE, located in the menu of the monitor. (See OPERATION MANUAL.)

Date/time setting

• If the time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.
• Be sure to set the date and time.

TIPS

• Set the time on a 24-hour basis.

Mounting Precautions (For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people. (PN-HW861/PN-HW751: at least 3 people.)
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
  This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.
  This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.
• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.

• Do not use an impact driver.
• When moving the monitor, be sure to hold it with the handles [PN-HW861/PN-HW751] or hold the parts marked by below [PN-HW651/PN-HW551/PN-HW501/PN-HW431]. Do not grasp the screen. This may cause product damage, failure, or injury.

[PN-HW651/PN-HW551/PN-HW501][PN-HW431]

After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
- Do not use any screw holes other than those for mounting brackets, located on the rear of the monitor, for installation.

Table des matieres

[FRANÇAIS]

INFORMATIONS IMPORTANTES 1

CHER CLIENT. 1

PRECAUTIONS DE SECURITE 2

MESURES DE SECURITE 3

PRECAUTIONS POUR LE MONTAGE. 4

Composants fournis 5

Charactristiques 5

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

Composants fournis

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

Precaución

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

R03 Batterie (Grosse "AAA"): 2

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

Vorsicht

MEPbI INPEIOCTOPOXHOCTN PNI KPEINJIHIN ....4

KomnkekThbIe npHaadNekHOCTu. 5

Cneuikauu.. 5

NoTobKa nylbTa dntaHOnHO ynpabHeHH...5

CoeHHnHn6

BkIIOueHne/BBKIOUeHne nTaHn7

Mepbippeoctopoxhoctn npkpenneHH

(Dnna nnepeOB u Hxkehepeo no 06cnyKuBaHNO SHARP)...8

IpounTaIe pykoBOcTB c KOMnakT-DnCKA. (JINr npocMOtpa pykoBOcTB Heo6xoDm Adobe Acrobat Reader.)

BAKHAR INHΦOPMAÇΥ

IPEOCTEPEKHEH: IY MEmbSeHn OANACHOCTN BO3HNIKHOBEHn IOKAPA NIN IIOPAKEHn 3JEKTPUeCKM TOKOM

HE NOIBEPRAITE DAHHOIE N3DEJINE BO3DEIETBIO DOXKIAIIN BNAIIN

BHIMAHNE

ONACHOCTb

IOPAXEHH

3JIKTPNUECKIM

TOKOM

HEOTKpBIBATb

BHIMAHINE!

CHN3NTb ONACHOCTb NOPAXEHH

3JIeKTPnueCKmTOKOM

BHYTPN IPIPISOPA HET DETAJIEI,

KOTOPBIE MOYT OBCNJXNBATcR

IIOJIb3OBATEJIEM.

Baxhhbx INHCTpyKcnn No 3KcnJyaTaauu N

NCNoJIb3OBAHnIO (cepBnCy) B nItepaType,

KOTOPA NOCTABLRAETCB KOMJIeKTe C

I3dennem.

C cebbky BbInonHeHn Tpe6oBaHn 3JeKtpomarHnTHOH COBMeCTMOCtN (3MC), nCnoIb3yIte 3kpaHnpOBaHbIe Ka6eni dnn

NoKIOueHn K cIeDyUOIm pa3bEmam: BxOHOH pa3bEM HDMl, BxOHOH pa3bEM D-sub n BxoHOH pa3bEm RS-232C.

Bo nCnoHHe He 53aKaOHa Pocncko Fedepaun "O 3aUnte npab notpebnteJe, a TAKKe Yka3a IpaBnTeIbCTBa Pocnncko

ΦeepaunN 720 ot 16 nOHa 1997 r. yctaHabnBaetc cPOK cnJyKb daHNO moJe - 5 let C MOMeTa npOn3BODCTBa npu ycIOBm

NCNb30BAHnB CTOFOM COOTBeTCTBmC NHCtpyKneH NO 3KnpyaTaun IN PpIMeHReMbIM TxHNueckMn CTaHapTaMn.

IIMnOpTeP B PocCm: OOO «UapT ΜeKtpoHkC PaHa»

Adpec: Pocn, 105120, MockBa, 2- CbipomrTHnueckn nep., 1

Tenepon: [phone]

Knacc 3aunbI OT npaxeHn 3neKtpnueckm Tokom I (PN-HW861/PN-HW751/PN-HW651)

Klacc 3aunbl OT nopaxhenn 3Jektpueckm TOKOM II (PN-HW551/PN-HW501/PN-HW431)

Data npou3BOdCTBa yka3aHa B cepuHOM HOMepe:

SERIAL No.

01234567

Tod

8:2018

9:2019

0:2020

1:2021

1

Meca

1:RHBapb
：
9:CeHTa6pb
0:OKTABpb
X:H0a6b
Y:Декабpb

• 13dene cne dyet nepebo3ntb yynakOBke. Co6nnoaTe MaHInyIaOnHOHbte 3HaKn, yka3aHHbte Ha ynakOBke.

• PpaBnHa N yCNoBnA peaJIn3aunn He yCTaHOBJIeHbI N3ROTOBNTeNem I DOnXHbI COOTBeTCTBOBaTb HaUNHOJIbHOMy HINMECTHOMy 3aKoHOdaTeJIbCTBy CTpaHbI peaJIn3aunn N3dEInr.

• PpN yTnIn3aunn H3dennr co6nOdaIte COOTBeTCTByIOUne npaBnna, ycTaHOBJIeHHbIe dJyTnIN3aUN

3JNEKtpoobopdyoBaHHa3aKOHOdaTeBCTBOMBaWcNCTpaHbI.

YBAJXAEMbI KJIneHT KOMnAHn SHARP

Blaorapm Bac 3a npno6pehene KK MOHtopa SHARP. Ira oecneueenna 6e0nachoCTN MHOJTeHbEcnpo5MeHoi 3KcPlyatau npi06peTeHHOR BaMn N3dEny BHMaTeNbHO npOHTe npaBnA NO TeXnke 6e0nachoCTN nepeD TeM, KaK Naatb erO 3KcPnyatauio.

ПРавILA TEXHнКИ БE3ОПАСHOCTN

3NeKTPnueCTBO NcNOB3yeTcra nBbINONHeHmNHOxNoe3bIX FyHKuH, HO OHO TaKKe MOnKet PnUHNrT TpABMbI NepCOHaNy 6bItb npUHNO nobpeJxHn HMyUeCTBa B cnyae HnpabInbHoro obaHne C hM. DaHoe N3dEne CnpOeKTHPOBAHO u npOn3BeHcO bc6ecneHem MaKcNMaBbHb BoeOaCHOCTN. ODAKO HnpabInbHa 3KnPlyataaMQeT N pBcTe K npOaxHeH 3NEKTPIueckIM TokOM INB03NHKNOBHeHIO NoXapa. B cJeXn IpeoTbPAeHne NOteHuaJIbHo Yrpo3b Co5NDaTe CneDyUeHne HCTpykCnIO yCTAHOBke, 3KnPlyataaHn UChTE DaHHOR N3dEeHn. DnBocneHauHn Baewi 63onacHcToN yBvEeHne Cpoka 3KnPlyatauBaWwero KK MoHTOPa BHIMATEbHO IpOHTTe CneDyUeHne PpaBnA, PpeJe CEm PnCtYNaTb K 3KnPlyatauDaHHOr N3dEeN.

1. PpOHTIe HcTpyKuH -PpeXde Yem Haatb 3KcNlpyatauHIO u3dennr, Heo6xOaHMo npOueCTb NnoHrTa Bce HcTpyKuH no ero 3KcNlpyatauH.
2. XpaHHTe daHHoe pykoBocTBo B haDexKHom MecTe - DaHHbe IHCTpyKunn No 6e3onacHocTn N EKcnIyatauN CneNyET xpAHHTb B haDexKHom MecTe, YTObMoXHO 6blIO o6paTntbcr K Hm BnOcNeDeCTBm.
3. IopunHraTeCpneOctepeKHeaM-Bce npedocteperaIOue HeAaNcI HnAa,IMeIoUeec Ha n3deNn B INCTpykUm, DOnXhbl CTPOr C6oHbTaCb.
4. CneyuTe HnHCTpyKUaM - Heo6xoIMO CneIOBaTb Bcem HnHCTpyKUaM No 3KcnnyatauN.
5. YIcTka -PnEZeHm npCTynatb K cNCTKe H3eHnna, Heo6xOIMO octaTB BNKy N3 PO3eTK nITAHn. dIy NCTKn IN3eHnna Heo6xOIMn IcNOB3OBaT cyuY TpAnky. 3AnpeAaeTc NcNOB3OBaT dIy 3TNX CEJIe NkDKE INIa a3PO30NbHBHe YIcTHaIme cpeCTBa. He IcNOJb3yIte 3aRpy3HEHHy TO KaHb. 3TIM Bbl MOXeTe NOBpeTb YCtPOINCTBO.
6. PnHAnDNeXKHOCTN -3aepneTaTcNcONJb3ObaTb PnHAnDNeXHOCTN, HePcOMeHOBaHbIe PnpMOBdIteMeM DaHHOr N3dEINNA. NcONJb3OBAHIne DpyrIX PnHAnDNeXHOCTMeoKt CTb PpNHyOH HeCyaCThBx CnyAeB.
7. BOA n Bnara - 3anpeaaetcnsnojb3oBaTn3deNnB03ne nctouHKnOB Bobl. He pa3meaante MOHTOP B MeCTe, rHe Hero MoKET nonactb BOD. Pn pa3meuenobpatte BNMaHne Ha o6OpObaHne, nOJb3yIouee B p6ote BOn, HApIMep, KOHNIOHOEP.
8. BeHTnIaIyra - BeHTnIaIyauHbIe OTeBepCTnR nDpyrRe OTeBepCTnR B Kopnyce npi6opa npeHa3NaHehbl dnn BeHTnIaIyum.
   3anpeaetc 3akpbbta II 6IIOKpOaTa 3TN BEHTNIAHNOHbte OTBepCTNa ININ Dpyne OTBepCTNa, NOCKbky HeoocTAtOHn BENTNIAO MOKe TnpBeCt N npepeBy HnN CokpaTeN CPOka CnyXkbIs N3dEIna. 3anpeaaetc YcTAHABNtBa I3dEIne Ha cOdy, KOEB pNn dpyme aHAnOrHue bNoBepxHOCTNa, NOCKbky OHn MORYT 3abNOKPobat BENTNIAUHbte OTBepCTNa. 3anpeaetc yCTaHbNAbTa I3dEIne B 3akpbTbIX PocctpaHCTBax, TAKNX KAK KNHXhblu KaΦ nI INaKa, EcnT Nam He oeceneHa HndEkaaJae BEHTNIAUHbte OTBepCTNa. 3a NckNIOeHem CNYaeB, KORda 3TO npDeYCMToPeHO B IMCTPyuNm PNOn3BOIDITEna.
9. 3aunita shnpya nntanra -Hyp nntanra doJnkeh pa3meaaTbca TaKIM o6pa3om, yTo6bl Ha Hero He HacTypann IIOIN He yctanabnnBaJIncb kakne-JIbO npedMeTbI.
10. XX NaHEnb, KOTopar nCOnB3yTcB DAHHOM N3deNn, N3OTABnBaTcN 3CTeKnA. CNeOBAteNbHO, OHa MoKET pa36ntbcra B cnYae, ecn H3nEne ypoHr nn HaCeYr no HAp. PnOBaTne 0ctOpoxHoCTb, 4TO6b Bac He nobpeDInu ockonkn pa36ntoro cTeKnA b cnYae, ecn XX NaHEnb 6yDet pa36nTa.
11. Perperpy3ka - 3anpeaaetcnapeperpykatab po3eTKn nHTaHn IINn yDInHnTeBhble Ka6eN. Perperpy3ka MoKet npBecn K noXapy nn nopaxKeHHO 3JIeKTPnueckm TOKOM.
12. Ponnaadahne BHytpb Kopnyca npedmetob n Kndkctey - Kateropnueckn 3anpeuaetc BCTabnB kakme-nno npedmetbl BHytpb NdEJIy Cheepa BEHTINIAIOHIIe Nnn Dpyrte OTBepctTn. BHytpb N3dIINN NOaTeCBA BICOKoe HaprrKeHne, No3OTMY pcoOBBaIBHe Bero Kopnyc YceP3 OTBepctK aKoRo-Nbo npedmeta MOKeT npNBecTN K npaKeHHO 3NEKTpUeCKM TOKOM N/NIIN KOPOTKOMY 3aMikAHIO HEKOTOpBX DeTanei.
    No ToJx npuHHe 3anpeuaTcA DonyckaTb nonaHaHne BHyTpB n3deJnB BoDbln Dpynx XnDKoCTeN.
13. 06cnykBaHHe - 3aIpeuaeTcra 3aHimaTbC6cnykBaHnE n3deJeMa cAmOToTeJbHo.EcNbl dyTe CHMaTb Kpbki, To MOKeTe NOBeprYbCa B03eJIeCTBnHO BbICoKOr HApKHeNg Ipynx OnaChbIx fakTopoB. OpaTInTeCb K KBannfmuropBaHOMy 06cnykBaUoCeMey nepcoAHy dnn BblOnHHeNHy 06cnykBaHnA.
14. Pemont - Ecn npon3oJET yTo-Ni6o n3 nepeuMnclHnHO HnKe, n3BneKHe n3 po3eTKn nHTaHn BnIky shHpya nTtAHn o6paTntecb K KBaINΦmnpOBaHHOMy 06cnykBaIOUeMy nepcoHaJy 3a BInONHeHMe Heo6xOIMbIX peMOHTbIX pa6Ot.
    a. NOBpeKDeH shyP nHTaHn nn BNIka.
    b. B cIyuae nonaHaHnB n3dennne KxndKoCTn nn KaKnx-NpDpynx npedMeTOB.
    c. Korda n3dennne nonano noDdojkbnB Body.
    d. Korda n3dne He paobotaT kak 3TO ONcaHO B NcHcptpyuNo 3KcNpyaTuu. 3AnpeaaTeT oprabbI npabnEHHoNOMIMTox, YTO ONcaHb B NcHcptpyuNx NO 3KcNpyaTuu. HenpaBnBna HpeynpOBKa OprahOB ynpBaNeHn, KOtopa He ONcaHa B NcHcptpyuNx, MoKET pNBecTn K NobpeJdeHnM, dny UcTaPHeN KOTopbX 3aactyo Tpe6yetc PnBnKeKa TB KBaINΦHnUPOBaHHbx CNEuaJIcTob, KOTopbIM npNXODTCB BInOJIHrTB bOblwO obem paobot no perynpOBke.
    e. B cnyuae, ecn n3dene yponnn nn noBpeun.
    f. B cnyae, ecnB pa6oeym n3dennn HabIIOaIOTcKaKne-1N6O OTKIOHeHnR. RbHbIe OTKIOHeHnR B pa6ote n3denny yka3bIbaIOT Ha To, YTO Tpe6yETcE rO 06cnykubAHne.
15. 3anaehbIe Taann - Ecnn nnn H3neJnnoTpe6yOToC3anaehbIe Taan, y6eInTeB TOM, YTO BblOnHIOUIN OcbnyBaHne YenOBek mNoNb3yET 3anaehbIe Taan, yka3aHHbIe npo3BOuTIeMe IINn aHaONuHHe Ie Taan C TaKIMx XepaKTepiCTKAMn INpO3BOuNTeBnOCTbO, KAK nOpHnAHLbHe.IcNOIb3oBAHHe DeTaane, He peKOMeHOBoAHbIX POn3BOuNTeMe, MOKeT pNpBeCTN K Bo3rOpahHIO, PnpaKeHIO 3NeKtpmueckHM TOKOM INc03dAnHIO DpyYHX ONaChbIX CNTyAun.
16. Поберки Бзогахocгп -пocne 3abepseнma pa6ot NO obcnykuaHIO uI peMOrty nonpoCte texHnka NO obcnykuaHIO npOu3BecTn npOBeKpy Be3o3aHocctN,уTO6bI y6dntbcryTO n3dme HaxOJNTcB H aJNeJxauE m pa6oyem coCTOHN.
17. Kpennne Hn CTeHy - Pn Kpennnnn n3dennna HcTeHy Heo6xOIMMo y6eDntbCnB Tom, YTO OHO yCTaHOBHeo C nONb3OBaHnEM MeToDa, peKOMeHNIOBAHHORo ernpun3BOuTeJeM.
18. NtoHnKn Tepna - Depknte n3deJne BdaIOn OT nctouHKnOB TeTnla, TaNX KAK paNaTOpbl, HArpeBaTeN, PnNTbI IN dpYrOe obOpdyobAHne, reHepnpuyooee Teno (BKNIOa YcUNNTeN).
19. Batapeekn - HenpabunbHoe nCOnlBbOBAHne 6Taapeek MoKet npBBeCTN K INB3pbIBy IINB30rapHIO. IpoteKaHne 6Baapeek MoKet Bbl3BaTb Koppor3nIO obopyoDaHn, nCpaKaTb BaWu pyKn IIN nobPeDntb OeJdy. TTo6bl I36EkaTb noD6bHx np6Lem, CTporo BblONJIHNe IepeUcnHHeB He NKe Tpe6BaHnK TeXHHKn 6e3onacCHt:
20. IcnoIb3yIte ToIbko peKoMeHdyEmbI Tn 6aTaapeek.
    B COOTBETCTBNN C INHCTpyKUINM B OTCKe DnA 6aTapeek BCTaBBTe NOCTabJIReMbIe 6aTapeKN, npABUNbHO copneHTnpoBaB INX CTOPOBHc 3HaKaAMN (+) n (-).
    He nCnoIb3yInTe OndHOBpeMeHHo CTapbIe HOBbl6TaapeKn.

21. He nCnoJIb3yIte 6aTapeKn pa3nnuHbIX TINOB. HanpJxHeHne 6aTapeE K OINHAKOBO FOpMbI MoXET OTNmuTaBcR.
    -Опетацьно заменяпуразрднвуюсбатapeйу HOBOI.

22. EcnBn ppeDnonaraete He nonb3oBaTcnytBOM dntaHMOHHoro ynpaBneHnIeTbeHoe Bpemr, n3BNeKeNte H3 Hero 6aTapeKn.

23. Ecnn KndKocb n3 6aTapeeKn nonaHa BaWy Koxy nIOn Odekny, HEmdneHNO n TuaTeNbHO npomOte nx. Ecnn
    KJIKOCTb IONaI BAMBrrn3aTtateNbHO pOMoITeHX HO He TpntE, HHeMeIeHHO oBaTNTecb K BpaUy. IOnaAnHe JIKOKCTN 3bTaapeKINBrrn3aHINHa OdekDy MoKeT Bbl3BaTb pa3dpaeKHe KOxIN NIOBpeNTb rna3.
24. NcnoIb3ObaHnne MoHInTopa He doJNHO cOpboKdaTbcra Co3dHaem foTaIbHbix yrpo3 nnJe oNaCHOteK, KOTopbE MoryT HenocpeCTBeHHo npBecTe K CMEptN, noyehnIO TpaBM, cepbe3hIx fNtueeCKNX NOpeXeHenn IINI notePb, BKNoua YnpabLeHne JepHePOeAHPKeiNE B JepHeBx ycTaHOBkax, MeDNuHNcknx CnCTeMaX NoDepKxAHnXn3Hn, a TaYnpaBHeNe 3aNyCKamPaekT B CnCTeMaX BoOpyKeHn.
25. He cneDyET B TeueHHe NnTeJIbHOro BpeMeHHaXoNDIbCS B KOtAKeTc C HArpeBaOUnIMncs DeTaIAMn I3dIeN. 3To MOKET pINBECTu K BO3HNKHOBEHnIO Hm3KOteMnepatypbHx OOKORo.
26. He n3meHnIte 3TOT npOdyKT.

PNEyPPEXDEHNE:

Hoe n3eJne COOTBCTCYET HOpMaN KNaCaa «A». B DomauHnX ycIOBnX OHO MOKeT BbI3bBaTb paHNOIpomExn, B Cnyuae Bo3HKnHOBeHHaKOToPbIX MoKET NpHTpe6OBAbCn PpHnTHe COOTBCTByUOxMep.

AnnapaT c KOHcTpkyLnei KJACCA I cneIyTe noKnOuAtb K OCHOBHOI po3ETke, coeINHeHHoC 3aunTHbIM 3aemnHeHEm.

PNUCK HAPUHEHNA CTABINbHOCTN

Ecnn MOHTOp yCTaHOBnH Ha HeIOCTaTOUHO CTaBnBHO NOBepxHOCTn,3TO MoKET 6bTb ONaCHbIM,TAK KAK OH MoKET YNaCTb. MhOrne TpaMbI,OCo6eHHO DeTeN,MOXHO ppeIoTBpAITb C NOMOUsBO CNeDyUOnNX PPOCTbIX MEP ppeoctopoxHOCTn.

• INCNOB3OBAHHe HAcTeHHbIX KPOHHTeHOB UIN ONOp, peKOMeHNDoBaHHbIX pON3BOUInTeJEM MOHITopa.
• INCNOB3OBAHNE TOIbKO Tex IpeIMeTOB Me6eN, KOtOpble Moryr BbIDepKaaTb Bec MOHTopa
  MOHHTOP He DoJIKeH HABnCaTb HaI Kpaem IpeMeTa MeBEN, Ha KOtOpOM OH yCTaHOBJIeH.
  MOHITOP He CneDyET yCTaHABINBaTb Ha BbICOKMe IpeMTeBt (HaIPIMep, 1kaΦbI INN CTeNNaKN) 6e3 COOTBeTCTBYUoCEKpeIIeHn PpeMTeMa Me6eIN MOnHTOPa K NOxOJaUeI OCHOBE.
• MOHITOP He CNeDyeT CTaBtB Ha TkaHb IIN DpyrHe MaTePnAblb, HaxOJaIunec MExkdy MOHITOPOM IN PpeDMeTOM MeBeHN.
• 06b3HnTe DeTAM, yTO 3aBnPaTbcr Ha Me6enb, yTO6bl DOCTaTb DO MOHTopa Hn erO YacTeN, MoKcET 6b1b OnaCHO.
  -3To obopydobAHne He npedHa3HaueHO dIy IcNoJIb3OBAHnB MecTax, rDe BepoarTHO pncyTcTBne DeTee 6e3 npncMOtpa.

Oco6bIe Mepbl 6e3onacnoctn dJeTei

-He no3BOJRAte Detram 3a6npaTbCra Ha MOHtOp NIN INrpaTb prdOM C Hm.
- He yctahabnBaIte MoHtOp Ha Me6eN, KOtOpa MoKet IcNoJb3ObaTbCBA KaYeCTBe CtyneHei (HaNPmep, KOMoD).
- POMHHTe, YTO DeTn BbipaxaTb 6yphbIe 3MOUIN BO Bpem npocMToPa nporpaMM, Oco6eHHo Ha ORPOMHOM MOHTope.
MOHITOP CNEyET YCTAHABINBaTb B MeCTe, IDe DeTN He CMORY Tero DBNAtb, TAYHyI IN yPOHHTb.
Bce 1nHpybI nKa6en IOnJXhbl 6bIbI IOBeHbI TAKIM oBa3OM, QTOblIO60NtHbIe Detn He MOrIN IN XTARHyTB XBA tBc8a 3 HxN.

Hnctpykunno6e3onacnoctn

• 3anpeaetcraNCN0b3OBA Tb MOHITOP B 3anbJIeHHbIX MecTAX, MeCTax C BbICOKBnAXHO TAm, Ige MOHITOP MOKET CPONKACATCBc C MaCNAMN NnnapOMOTOP HeNb3r NcONb3OBA Tb B npcyCTBn EKnX rA3OB (DNOKCnJa cepbl, cepBOODOPOA, DnOKCnJa a3Ota, Xnpora, AMMNkA, O3OHa N.T.I., NOCKOBKY 3TO MOKET CTaTb PnVHNOB3ROPAHIN.
  CneInte 3a Tem, TTo6bMoHITOp He cOpnKacJcNc B ODoi HnDpyTMM KInKOCTeMn. CneInte 3a Tem, YTo6b HnKaKHe npEMeTb, TaKHe KAK CKePENKn DnA 6yMaRn, INoLKn, 3aKoKN, HE NoPaJaIN BHyTpB KopNyCa MOHTopA, NocKoJIbKy 3TO MoXET CTaB pNpUHNO NOnkapa INI pNpBeCTN K NopaxKeHHIO 3NEKTPuYeCKIM TOKOM.
• 3anpeaaetc yctahabnBaTb MOHITOP cBepxHy eYCTOnuBBix npedMETOB nI INe X MECTAX, IDE He rapaHTnpyETc erO be3oNaCHocTb. 3anpeaaetc NOBepraTb MOHITOP B03dEiCTBnIO CnIbHbX ydapOB ININ Bn6paunm. EcnN MoHITOP yanaTe ININ OPOKHNCTC, 3TO MOKET erO NOBpeNTb.
• 3anpeaaeTcNcnoIb3oBaTb MoHITOp B6nI3n HArpeBaTeBbHOO6bpyDObAHy INI B Tex MecTx, rKe OH MOKeT NOdBepraTbCBADeIcTBHIO BbICOKOITemPeaTybl, NocKOBKy 3TO MOKeT npBBeCTNu K Ero N3bToCHOMy HarpeBy N, KaK pe3yJbTaT, K BO3rOpahHIO.
• He nCnoB3yIe MOHtOp B MecTax, Ie Ha Hero MOrYT nonaDaTb CoNHeuHbIe lyu. 3KcNpYaTauaIy noI npMaBMn CoNHeuHbIMn LyuAMn Hecet OAnCHocTb DeOpMaun KOpNyCa MoHToPiAero HeuCnpaHBOn
• 063aTeIbHO NOIHOCTbIO ydaJIte BCIO IIbIb I MycOp, cKONIBuHcEeB BBeHTNIIraHOOHOM OTBepCTn. HAcONJIHeHne nbIN B BeHTNIAUHOHOM OTBepCTm ININ BHyTpM MOHITOPa MOKET npIEBCTeN K Upe3MePcHMy HarpBaHIO, BO3HNKHOBeHIO NOXapa ININ HeNoIaNok B paboTe. PekOMeHdEm ObaPTNbCER K ABTOpI3OBaHHOMy npEdTcABITeIIO INN B cepBNCbIb CEtp SHARP dJnO uOcTKn BHYTpeHNe YacTH MoHITOpA.

-Po3eKa NHTAHNA DoJXHa HaxOaNTbC B6Nm3O6OpyDobAHnTaKIM Opa3OM, YTO6b K HeO6eChueBnCA 6ecnpePnTCTBeHNbHdoCTyn.
BpemHnpepbBHO3Kcnnyataunn rapaHTn.
DahHoe n3dneI npedHa3NaeHo nJn 3KcNpyataunn
B TeueHHe He 6oone 16 cAcob B cyTKn. HnpepbHBaH
3KcNpyataunn B TeueHne 6oone 16 cAcob B cyTKn He
NoDnaaet NoD DeiCTbne rapaHTnn.

CteBoH uHyp

• IcnoIb3yIte TOnbKO TOT UHyp NITaHnA, KOTOpBIOCTABNReTcBMECTC MOHITOPOM.
  3anpeaaetcnoBpejdaTb ceTeBOHyp nIu CTaBHTb Ha Hero TAnKeIbe PneDMtbl, pactnBaTb ero nIu CnBHo n3n6TaB. Ero TaKe HeNb3r HapaunBaTb. NObpeJeHneU hHyp moKet npBeCTN K NoXapy nIu nopaxeHIO 3NeKTPnueckm TOKOM.
  HapaunBaHne uHa pa nTaHnMoKeT npBecTN K NOkApy no pnuHne erO nepepeba.
  3AnpeaTeBbHmAtbNNBCTABnTb BNJKy CTeBOrO UHypa Bpo3eTKMyKOpbIMnypKaM.NTOMOKeT npNBecTN KnopaxEHNO 3NeKTpHcEckHM TOKOM.
• 13BNekaTe BnIky UHypa NtTaHnI n3 po3ETK,ecnI n3DeJIne He 3KcNJIpyATpyETC dNITeJIbHOe Bpemr.
  3AnpeaeTcra YHHNtB hHyp NHTAHn B cnyae ero nnonmkn Hn HapUyHeHn B paOte. O6paTntEc 3a nmoUbK 06cnyKnBaUoemy nepcoany.

MEPbI IPEIOCTOPOXHOCTN IPN KPEJIeHn

• MoHToT npEHa3NaeHdIaTaUH B NpOMeUeHn.
  Tpe6yeTcKpeneXhBkpoHHTeH,COOTBeTCTByHOUcn Cneunphkaun VESA.
• PockoBky MOHTOp HMeet 60JIbwoB Bec, npOKOHcyIbTyIpeTecb C dIepeom nepeed erO yCTaHOBkoJ, CHrTneM INI NEpeMeEeHem.
  KpeIJIeHHe MOHTopa K CTHe Tpe6yET CneuaJIbHbIX HABIKOB, NO3ToMly TaKaJ pa6Ota DOJXHa BByIOJIHrTbC9cNEaJIHCTaMn KOMNaHH SHARP. Bam He cNeJyEt npEINpHIMTa NOnbITOK CdeNtB 3Ty pa6Oty CAMoCTOReTbHO. HaIIa KOMnaHn He Hecet KaKoi-JIn60 OTBeTCTBeHHOCr 3a HeCyaCThBiE CnyuAn INI TpaBMbl, BB3BaAHBHe PINOxIM MoHTaXOM INI HEnPaBNIbHbIM ObaPaeHHeM.
• MoHITOP dONJKeH nCOnb3ObaTbcr nepneHnKUyIpaHrNo OTHoWHeHH K NOBepxHOCTn, HA KOToPOH OH yCTaHOBNeH. PIn HEO6XoDMOCtM MOHITOP MOKeT 6bITb HaKIOHeH Ha 20 rpaDycOB BBePx nnBHN3.
  -Даннь монитор дожен 3кспуатироваьс рп Temперatype okчхалш срды ot 0^ do 40^. O6ecnebyte BOKpyr монитopa docTaTOUHO npoctpaHCTBa, UTo6bl npedOTbpaTb haKoNNeHne Tenna BHyTpIn erO kopnyca.

MOnHTopaBROPn3oHTaIbHOOpNEHaUN

MOnHTopaBBePTKanbHoiOpneHTaun

• EcIN cIoxHo oOecneuHb DoCTaTOUHoe nPoCTpaHCTBO NO ToH NIO HNO pNnHHe, HApnPmEp, H3-3a TORO, YTO MOHITOP yCTaHABnBaETCB BHTPN KOKyxa, NIO N3-3a TORO, YTO TEMNEpAtpya OKpykaHOe CpeDbbl BbIXoNt 3a DnAna3OHOT 0^ do 40^ , yCTaHOBnTE BeHTNlTOp NII pNIMTe DpyrHe Mepbl IJnTORO, YTO6bl TEMpeAtpa OKpykaHOe CpeDbbl HaxOOnnacB npeDennax Tpe6yeMoro DNAna3OHa.
  3anpeaaetc6IoknpoBaBbENTnnaOHHbIEOTBepctno MOHTopa.PoCTTEMnpaTpyBbHTpnKOpnyca MOHTopaMOKETnpBecTNeroHnpaBnHOMy cyHKIOHOPOBAHIO.
  3aPpeaaetcpa3MeaTaMoHtOp Ha yCTpOiCTBax, rHeeppyuOxuX TeIIO.

• Pn yctaHOBKe MOHTopa B BepTKaJIbHOI opHeTaUIN npndepKINBaTecb CneDyUOxN PEKOMeHdaUIN. HecobJIODeHne 3TNX peKOMeHdaUIN MOKET npNBecT K BO3NHKNOBeHHIO HeNCnPabHocTei.

• YctahabnBaIte MOHITop TaKIM o6pa3OM, Yo6bI LEDuNdkaTOp nHTaHn HaxoDIncra Cnpaba (PN-HW861/ PN-HW751/PN-HW651/PN-HW551/PN-HW501) nn CBepxv (PN-HW431).
• YctaHOBnTe THERMAL SENSOR SETTING B MeHIO SETUP B PORTAIT. (CM. PYKOBOdCTBO ITO 3KcIpyATAUUN.)
• 063aTeNbHO 3aKpeNIne 7Hyp pNtAHnB (BXoDHT B noCTABky) npn NMOou COOTBTCTBYUeero 3aXMMa Ka6enra (c KpennneHem). Pn3aXmme 7Hpya NtAHnA, cTapaIteBc He NoDpeRbTa Bo3dEJCTBnO Hyp nTAHnA. He nepeINbai Te 7Hyp nTAHnA Ype3MePHO.

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

KoMnJIeKTHbIe npHa,IeJxHocTn

B cIpyae oTCyTcTBn KaKOr-NoNbo KOMnoHeHTa, CBXnTeCb CBOIM dInpeom.

MoHHTOp C XnDKOKpncTaJIInueckm DnCnJIeem:1
NytB DnCTaHcIOHO HOrO ynpabHeHrA:1
UHyp nHTAHN
BatapeKn R03 (TIN "AAA"):2
KOMnKaT-DnCK (KOMnKaT-DnCK C cepBnCHbIMn npoPamMaMn DnA Windows): 1

PykoBoDCTBO no yctaHOBKe (3TO pykoBoDCTBO): 1
3aKIMKa6eJr:2
HakneJaC nOrToTnOM:1
KpbuWkaΦn3w-HaKaONITeI USB:1
ΦNkCnpyUoIuBnHT KpbIuKn ΦIaH-NaKoNtTeIa USB:1

* Ppaba co6ctbeHHocTn Ha nporpaMMbI, codepjkaunecsHa KOMNAKT-dnCke C yTNNTAMN, npHnAdneKAT Kopnpaun SHARP Corporation. 3anpeaaetcBocnpoan3BOOHTb nx 6e ee pa3peuHna.
*Дязштб Okужаншсpeь!

3anpeaetcBbIbpacbIbAtb 6atapeKn B DOMaHm Mycop. CneyTe HNCTpyKzmaNo yTNI3aun, DeiCTByUzIm TaM, rDe BblnpoxnaeTe.

Cneunfkaun

[PN-HW861/PN-HW751/PN-HW651]

[PN-HW551/PN-HW501/PN-HW431]

BHHMaHHe

ПитатипдОлгнб ВькючыбсЯ NБИКИЧУСВС NOMOДБ Глав Horв ВькючATEЯ ПИТАНЯ. He nOДcoeINHЯITE/ OTCOEINHЯITE WHyp ПИТАнЯ N He MeHЯITE NOLOXHEH БькючATEЯ, KOrDa rIaNbHbI BvKIOUaTeJI bITaHNY HAXODNTCBO BvKIOUeHHOM NOLOXEHN.
-ДЯ NOJHOrO OTKIIOyeHnI NITAHN BbIDepHInTe WHyP NITAHN.

BkJIOueHHe/BBIKJIIOUeHHe NHTAHN

HaKMTe KhoNky POWER nBKnIOueHn nn BbIKIOueHn nHTaHn.

BknOHTb nnn BblKnIOHaTb NITaHHe MOXHO TAKKe KNAbuIeM MONITOR ON/MONITOR OFF Ha nDcTaHcUHHom nyJIte ynpabNeHn.

[PN-HW861]

LED- INДИКATOP NITAHN
Khonka POWER

[PN-HW751/PN-HW651/ PN-HW551/PN-HW501]
LED- INHINKAtOP KhoNkA NHTAHNA POWER

[PN-HW431]
LED- INMkatop KhoNka nTaHnPOWER
