AJIST39BM - Irrigation timer Aqua Joe - Free user manual and instructions

Product Type	Telescoping Impulse Sprinkler
Brand	Aqua Joe
Model	AJIST39BM
Max Coverage Area	129.1 m²
Max Spray Diameter	12.8 m
Max Pressure	120 psi (8.3 bar)
Max Flow Rate	15.9 L/min
Max Jet Range	6.4 m
Spray Patterns	Intensive to Mist
Area Adjustment	Partial or full circular sector (0° to 360°)
Tripod Height	63.5 cm to 99.1 cm
Tripod Material	Aluminum
Sprinkler Material	Brass
Hose Connection	Standard garden hose
Weight	1.4 kg
Warranty	2 years against defects in material and workmanship
Maintenance	Drain after use to prevent freezing
Replacement Parts	Contact Snow Joe® + Sun Joe® customer service

Frequently Asked Questions - AJIST39BM Aqua Joe

How to adjust the spray range?

Use the deflector screen (Fig. 1) to adjust the spray range. Turn it to change the watering distance.

How to adjust the watering area?

Adjust the friction collars (Fig. 2) to select a partial or full circular sector (5° to 360°). For a full circle, raise the trip lever (Fig. 3).

How to change the spray pattern?

Turn the diffuser pin (Fig. 4) to change from a narrow stream to a wide mist.

How to adjust the tripod height?

Loosen the locking sleeve, extend the telescoping rod to the desired height (63.5 to 99.1 cm), then lock by turning the sleeve clockwise (Fig. 5 and 6).

How to connect the garden hose?

Attach your standard garden hose to the inlet on the sprinkler (Fig. 8). Ensure the connection is watertight.

How to maintain the sprinkler?

After use, completely drain the water from the sprinkler. Fold the tripod legs before storing in a dry place.

What to do in case of freezing?

Do not let water freeze inside the sprinkler. Water expands when freezing and can damage the unit. Always drain the water before winter.

Where to find the model and serial numbers?

They are on the sticker label attached to the sprinkler. Write them down for any after-sales service requests.

What is the warranty on this sprinkler?

Aqua Joe offers a limited 2-year warranty against defects in material and workmanship for residential use. Contact customer service for any claims.

How to contact customer service?

Call 1-866-SNOWJOE (1-866-766-9563) or email [e-mail] for assistance.

USER MANUAL AJIST39BM Aqua Joe

Line drawing of a tripod-mounted surveying instrument with tripod legs and tripod base (no text or symbols)

If you have any questions or comments,

please call the Snow Joe ^® + Sun Joe ^® customer service department at:

Read the owner's manual and safety rules carefully before using your impulse 360^ telescoping sprinkler. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

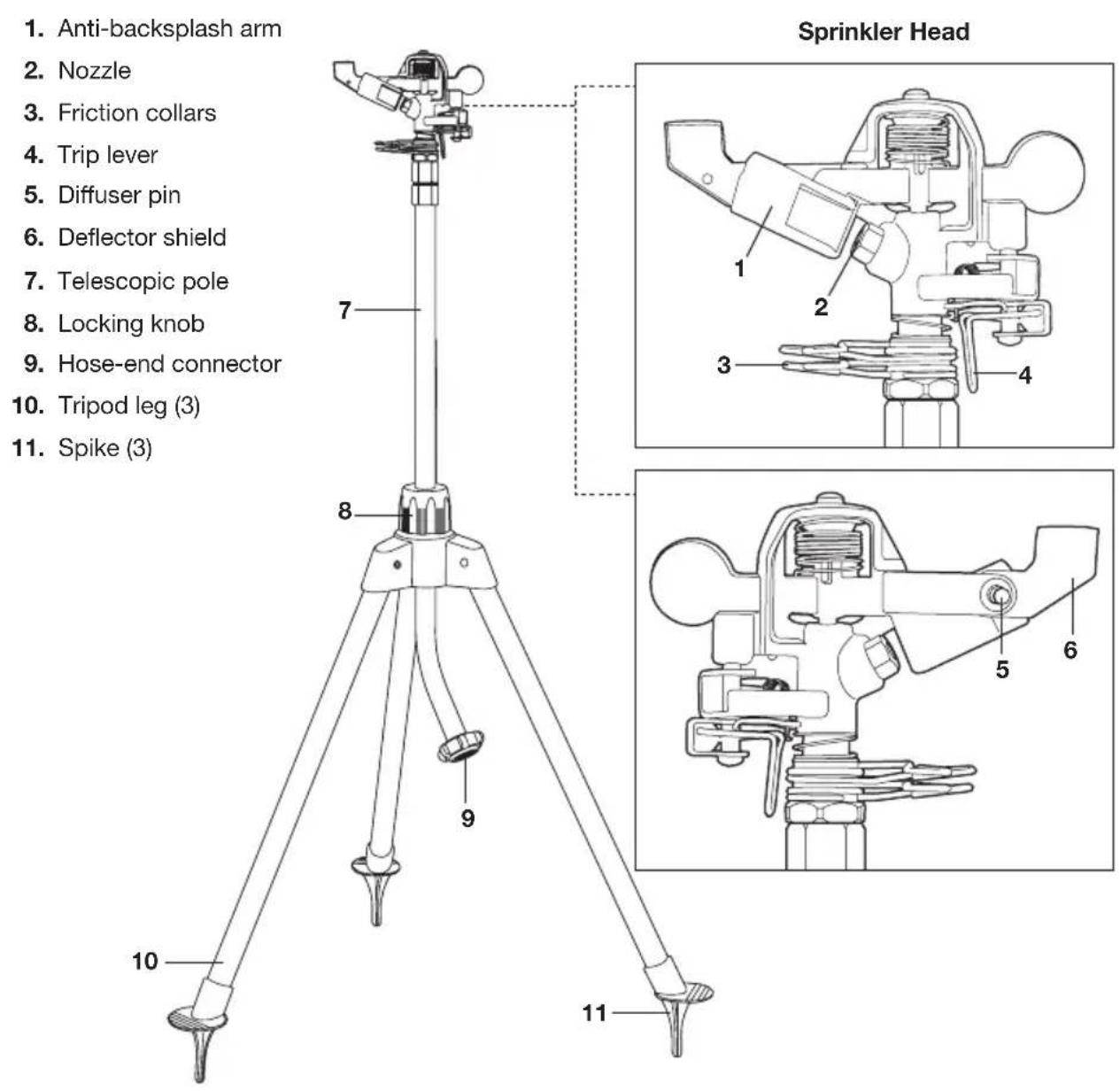

1. Anti-backsplash arm 2. Nozzle 3. Friction collars 4. Trip lever 5. Diffuser pin 6. Deflector shield 7. Telescopic pole 8. Locking knob 9. Hose-end connector 10. Tripod leg (3) 11. Spike (3) Sprinkler Head 1 2 3 4 5 6 7 8 9 10

Technical Data

Coverage Max....1390 sq ft (129.1 m ^2 )

Spray Diameter Max....42 ft (12.8 m)

Max Pressure.... 120 PSI

Max Flow 4.2 GPM

Spray Distance Max....21 ft (6.4 m)

Spray Patterns....Jet to mist

Adjustable Coverage.... Partial to full 360° circle

Telescopic Tripod Height....25 in. to 39 in. (63.5 cm to 99.1 cm)

Base ...... Aluminum tripod

Sprinkler...... Brass

Fitting Size......Standard garden hose

Weight 3 lbs (1.4 kg)

Operation

Distance Control

Use deflector shield to adjust the length of the spray. (Fig. 1).

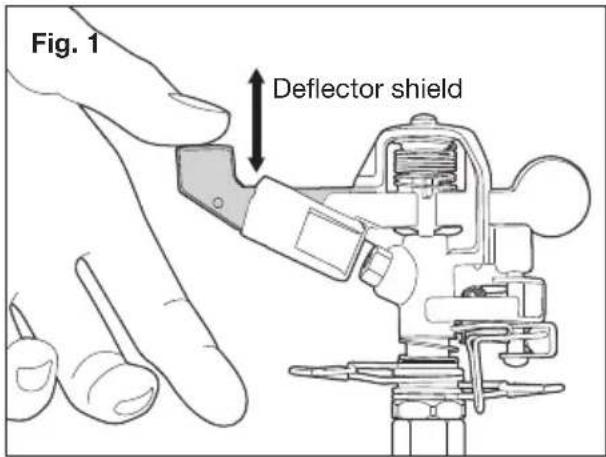

Fig. 1 Deflector shield

Three diagrams showing a central fountain with multiple fountains radiating from its base, each with a shaded dome and connecting lines (no text or symbols)

Rotation Control

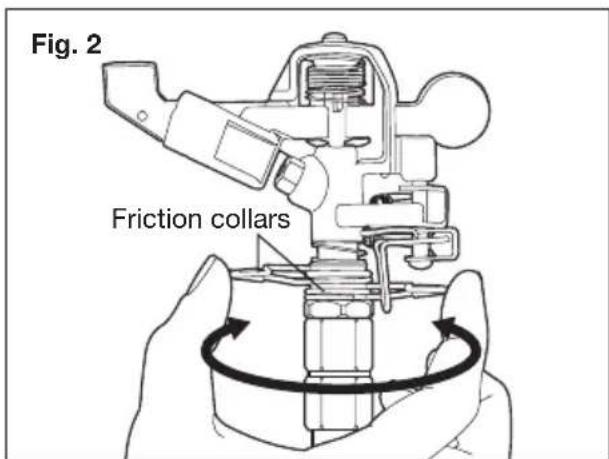

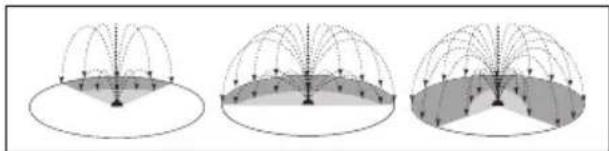

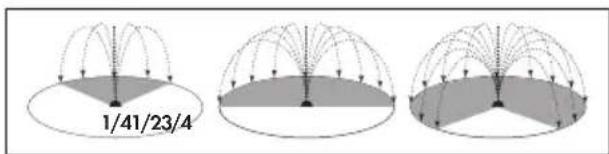

Set the friction collars for desired part circle coverage (5° - 360°) (Fig. 2).

Fig. 2 Friction collars

1/41/23/4

360° Coverage Control

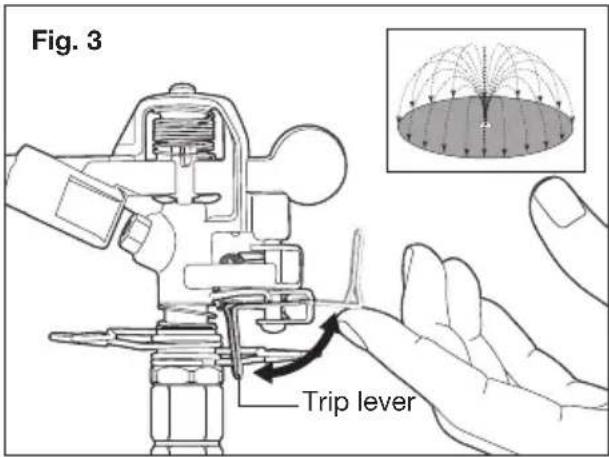

Flip the trip lever up for full circle ( 0^-360^ ) (Fig. 3).

Fig. 3 Trip lever

Adjusting Spray Patterns

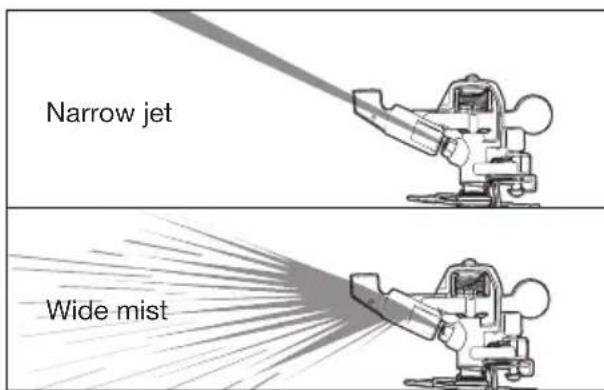

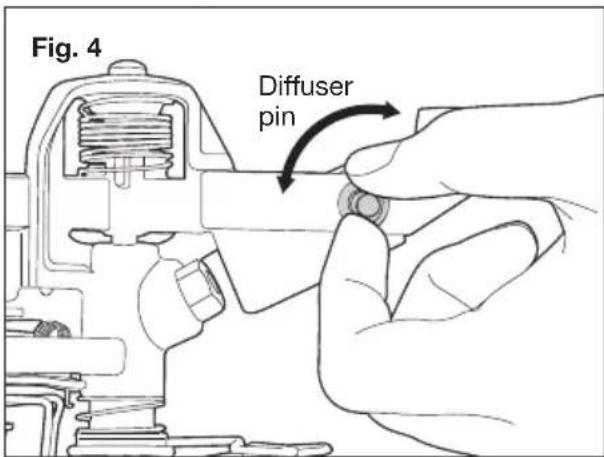

Turn diffuser pin to adjust spray from narrow jet to wide mist (Fig. 4).

Fig. 4 Diffuser pin

Narrow jet Wide mist

Telescopic Tripod

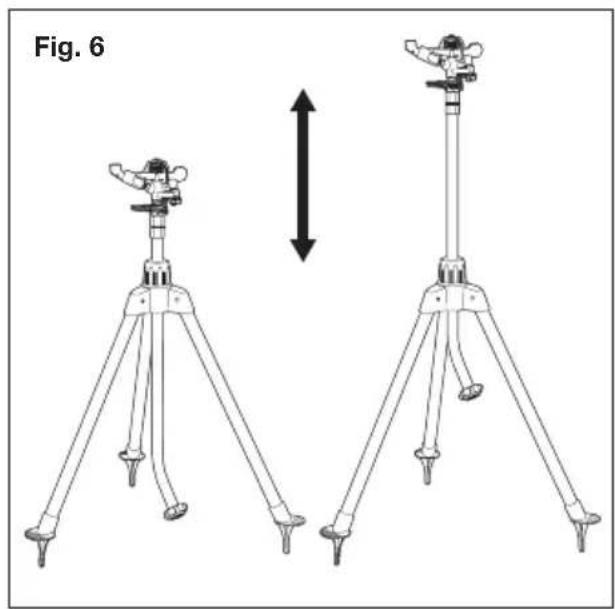

To extend the tripod, loosen the locking knob and extend the telescopic pole to the desired height. Lock the pole in positon by turning the locking knob clockwise (Figs. 5 – 6).

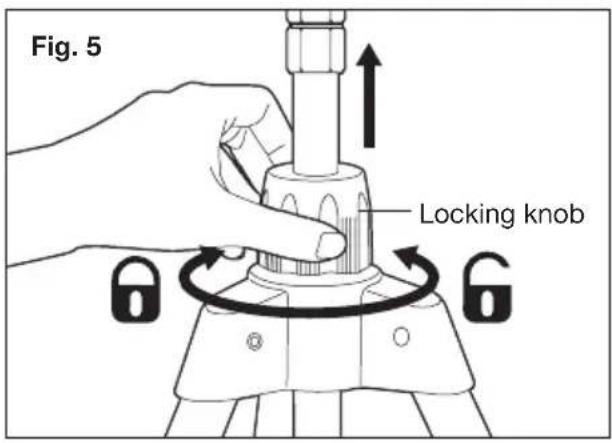

Fig. 5 Locking knob

Diagram showing two tripod-mounted sensors with a central device, one ascending and the other descending, labeled 'Fig. 6' (no text or symbols on the devices themselves)

Spiked Legs

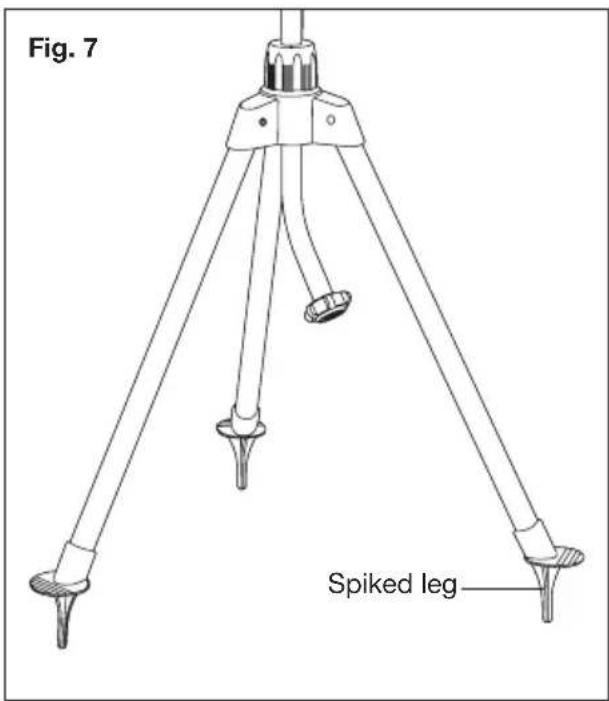

The spike cuts into the ground for extra stability without tearing up your yard as you move the sprinkler around to cover different areas (Fig. 7).

Open the spiked legs wide and dig them into the soil.

Fig. 7 Spiked leg

Connecting to the Garden Hose

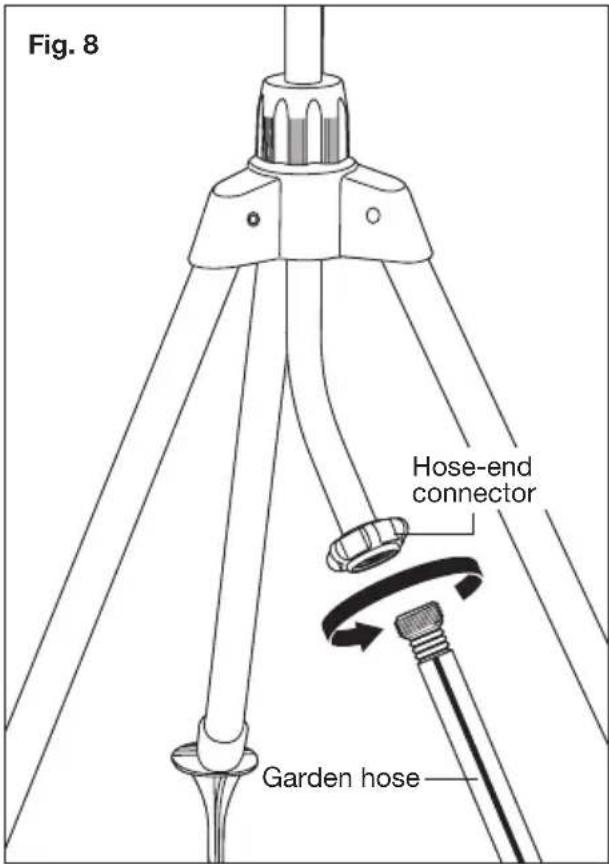

Attach your garden hose to the hose-end connector (Fig. 8).

Fig. 8 Hose-end connector Garden hose

Watering Tips

Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth, water deeply but as infrequently as possible. Watch water application to avoid water run-off.

NOTE: Since water expands when it freezes, completely drain water from sprinklers and hoses to avoid damage if temperature falls below 32^ F ( 0^ C).

Maintenance

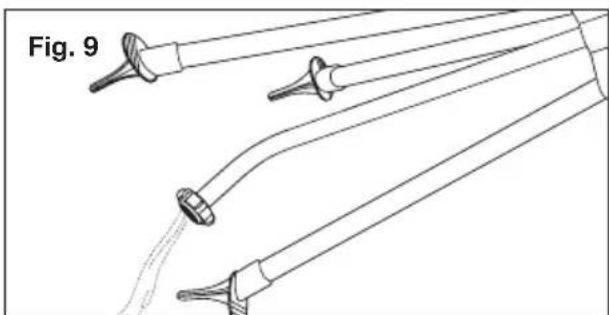

Drain the sprinkler after use. DO NOT allow water to freeze in the sprinkler (Fig. 9).

Line drawing of medical or laboratory instruments with no visible text or symbols

Storage

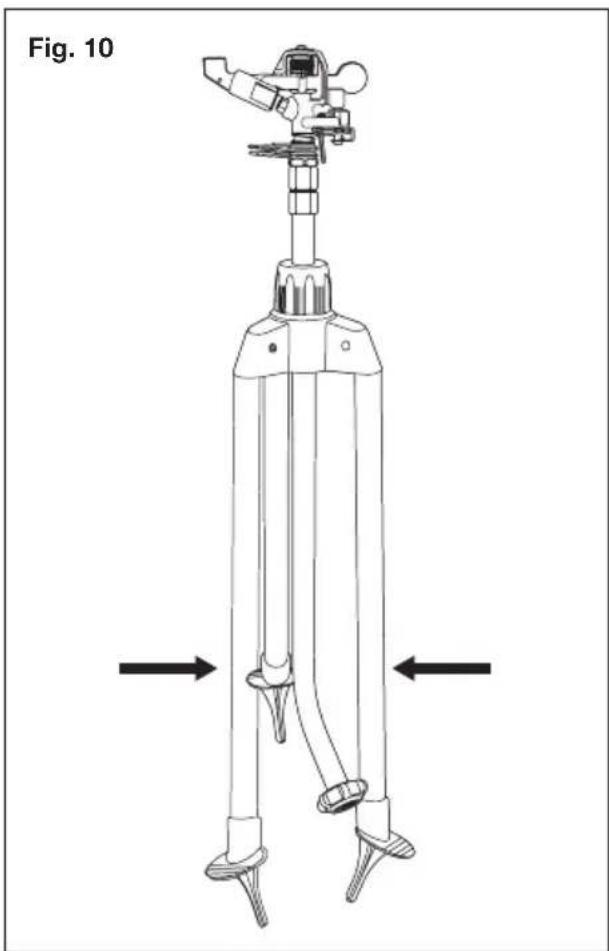

Collapse the tripod legs for storage (Fig. 10).

Technical line drawing of a mechanical device with three legs and a central shaft, shown in two opposing directional arrows (no text or symbols)

Service + Support

If your Aqua Joe ^® AJ-IST39BM Brass Impulse 360° Telescoping Sprinkler requires service or maintenance, please call Snow Joe ^® + Sun Joe ^® customer service at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the sprinkler. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: A | J | - | I | S | T | 3 | 9 | B | M | Serial #:

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe ^® , Sun Joe ^® , or Aqua Joe ^® product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products.

OUR WARRANTY:

Snow Joewarrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe's authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there's an issue with a specific part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that!

This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

PRODUCT REGISTRATION:

Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs.

WHO CAN SEEK LIMITED WARRANTY COVERAGE:

This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product.

WHAT IS NOT COVERED?

This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not affect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
