USER MANUAL SmoothTouch 76607 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Questions Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Hamilton Beach portable water can with black and silver casing (no visible text or symbols)

Can Opener Ouvre-boîte Abrelatas

English 2

Français...... 8

Español 14

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Release the activation lever; then unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service

agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

1. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
2. Do not use outdoors.
3. Do not let cord hang over edge of table or counter, or touch hot surfaces including the stove.
4. Do not place on or near a hot gas or electric burner, or in a heated oven.
5. Do not open pressurized (aerosol-type) cans.
6. Do not open cans of flammable liquids such as lighter fluid.
7. Release the activation lever before plugging cord into wall outlet. To disconnect, release the activation lever; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
8. Do not use appliance for other than intended purpose.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

⚠ WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

Parts and Features

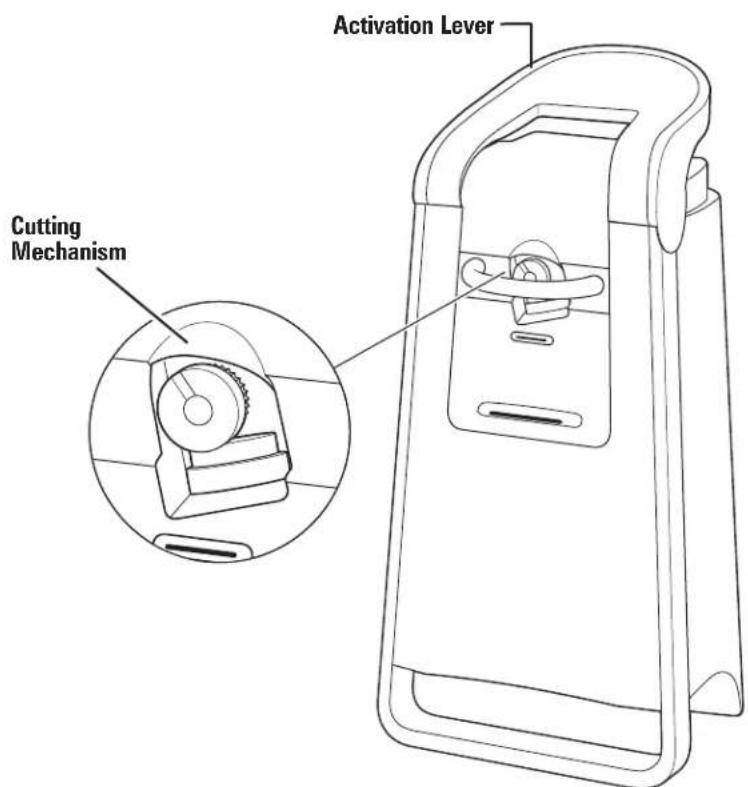

Activation Lever Cutting Mechanism

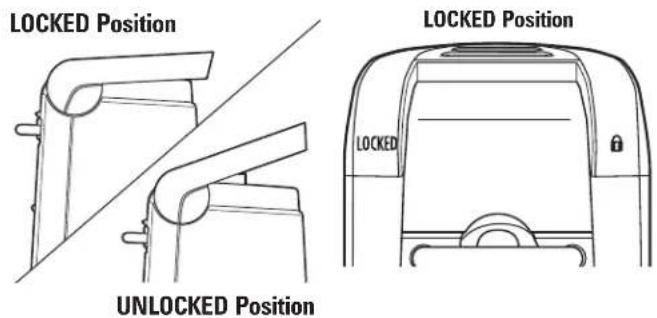

LOCKED Position UNLOCKED Position LOCKED Position

Scissor Holder Scissors included with select models.

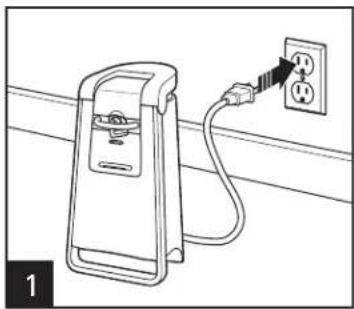

How to Use

Line drawing of a hand holding an electrical outlet connected to a battery pack (no text or symbols)

Line drawing of a hand opening a device into a container with an arrow indicating motion (no text or symbols)

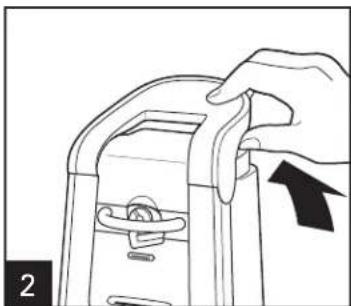

Make sure the activation lever is pulled all the way UP and in the UNLOCKED position.
NOTE: This can opener cuts the side around the top of the can.

Diagram of a mechanical device with a threaded component inserted into a tank (no text or symbols)

Place can against front of can opener and lift up until rim is under cutting mechanism.

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols)

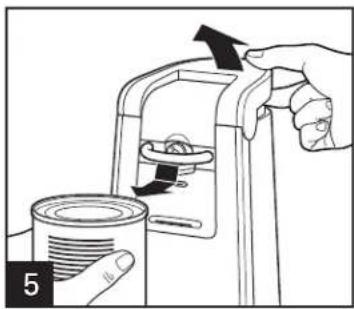

Hold the lever down until the can has completed ONE ROTATION ONLY.

Illustration of a hand using a can to lift a cup, showing mechanical components and motion arrows (no text or symbols)

NOTES:

The motor WILL NOT automatically stop or lift the lid when the can has opened.

Allowing only one rotation reduces or prevents metal slivers.

When the motor sound shifts to a higher pitch, the can is open. Carefully lift the lid up to remove.

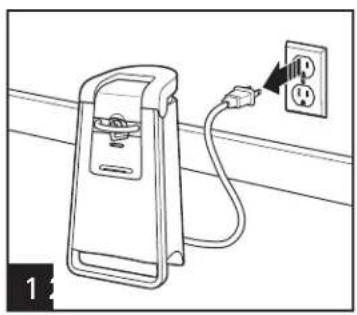

Care and Cleaning

Line drawing of a hand holding a power outlet connected to a battery pack (no text or symbols)

Line drawing of a hand holding a small object into a device (no text or symbols)

Diagram of a mechanical device with a tool inserted, showing motion direction (no text or symbols)

TIPS:

DO NOT hold the can while the can is being opened.

Some microwaveable can designs do not work with this can opener.

The can opener will easily open all standard-size cans and cans with pop-top lids.

If there is a bump, dent, or heavy seam in the rim of the can, open the other end of the can or start cutter just beyond it.

The motor of your can opener is permanently lubricated and will require no oiling.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Technical line drawings of a vehicle door frame with lock and locked components (no text or symbols)

Position DÉVERROUILLÉE

Porte-ciseaux

Line drawing of a device connected to an electrical outlet with a cable (no text or symbols)

Line drawing of a hand opening a device with a scroll wheel (no text or symbols)

Diagram of a mechanical device with a threaded component inserted into a circular tank (no text or symbols)

Line drawing of a hand holding a tool with an arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand pouring liquid into a can with an arrow indicating motion (no text or symbols)

REMARQUES :

Line drawing of a power outlet connected to a switch, with an electrical outlet nearby (no text or symbols)

Line drawing of a hand holding a small object inside a device (no text or symbols)

Line drawing of a mechanical component with a wrench and directional arrow (no text or symbols)

CONSEILS:

Line drawing of a battery connected to an electrical outlet (no text or symbols)

Line drawing of a hand pressing down on a device component (no text or symbols)

Diagram of a mechanical device with a threaded component inserted into a tank (no text or symbols)

Line drawing of a hand pressing down on a mechanical component with an arrow indicating force (no text or symbols)

Illustration of a hand using a can to lift a cup, with arrows indicating motion (no text or symbols)

NOTAS:

Line drawing of a hand holding an open electrical socket connected to a wall-mounted power outlet (no text or symbols)

Line drawing of a hand holding a small object into a device (no text or symbols)

Diagram of a mechanical device with a tool inserted, showing motion direction (no text or symbols)

CONSEJOS:
