Product Type	Electric Can Opener
Brand	Hamilton Beach
Model	76702
Power Supply	120 V~60 Hz
Use	Household use only
Key Features	Automatic opening, automatic shut-off at end of cycle, built-in sharpener, magnetic lid holder, removable piercing lever, can guide rod, cord wrap
Maintenance	Permanently lubricated motor, no oiling required
Cleaning	Do not immerse cord, plug, base or motor; clean piercing lever without soaking; avoid abrasive cleaners
Safety	Polarized plug, automatic shut-off, lever lock, supervision required near children
Replacement Parts / Repairability	Removable piercing lever, magnetic lid holder, cord wrap; repair by manufacturer or qualified professional
Warranty	1 year against defects in materials and workmanship (U.S. and Canada)
Customer Service	Canada : 1.800.267.2826 ; www.hamiltonbeach.ca

Frequently Asked Questions - 76702 HAMILTON BEACH

How to use the Hamilton Beach 76702 can opener?

Place the can under the cutting wheel, lower the piercing lever to puncture the lid, then release. The motor stops automatically when the can is open. No need to hold the lever or can during opening.

What to do if the can opener does not work?

Check that the appliance is plugged into a working outlet. Make sure the can is properly positioned under the cutting wheel. If the problem persists, contact customer service at 1.800.267.2826 (Canada).

How to clean the can opener?

Always unplug the appliance before cleaning. Clean the piercing lever with a damp cloth, without soaking. Do not use abrasive cleaners or scouring pads. Never immerse the cord, plug or appliance body in water.

Does the can opener stop automatically?

Yes, the motor stops automatically once the can is open. You do not need to hold the lever down.

Can I open cans of all sizes?

Yes, the can opener works on standard cans. If the can has a dent or heavy seam, start the cut just below it or open the other end.

How to sharpen knives with the built-in sharpener?

Insert the knife blade into the sharpener slot and pull it gently several times. Be careful not to touch the can opener's cutting blade during operation.

Is the magnetic lid holder removable?

Yes, the magnetic lid holder is removable for easy cleaning and maintenance.

What to do if the can opener jams?

Unplug the appliance immediately. Remove the can manually by lifting the lever. Check that no debris is blocking the cutting wheel. If the jam persists, contact customer service.

Is the can opener safe for children?

This appliance should not be used by children. Keep it out of reach of children and supervise them closely if the appliance is used nearby.

Where to find replacement parts?

Contact Hamilton Beach customer service at 1.800.267.2826 (Canada) or visit www.hamiltonbeach.ca to obtain replacement parts such as the piercing lever or magnetic holder.

USER MANUAL 76702 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online

Please call us – our friendly associates are ready to help.

USA: 1.800.851.8900

Questions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Release the activation lever; then unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.

8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

9. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury."

10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Release the activation lever before plugging cord into wall outlet. To disconnect, release the activation lever; then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
14. Do not open pressurized (aerosol-type) cans
15. Do not open cans of flammable liquids such as lighter fluids.
16. Do not use appliance for other than intended purpose.
17. Carefully route the power supply cord to avoid damage from the knife blades while sharpening.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

⚠ WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit into the outlet, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a

longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

⚠ WARNING To reduce the risk of personal injury, keep hair and loose clothing away from lid opener and other moving parts of the can opener while using.

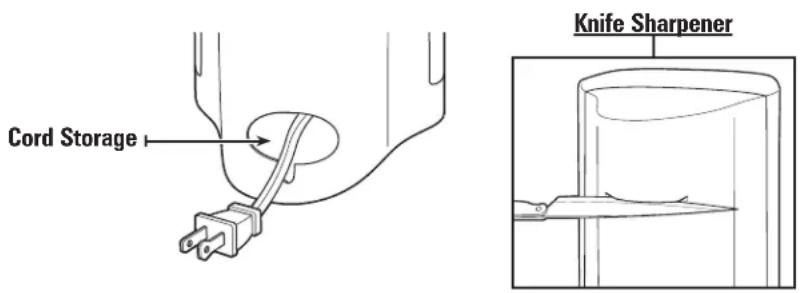

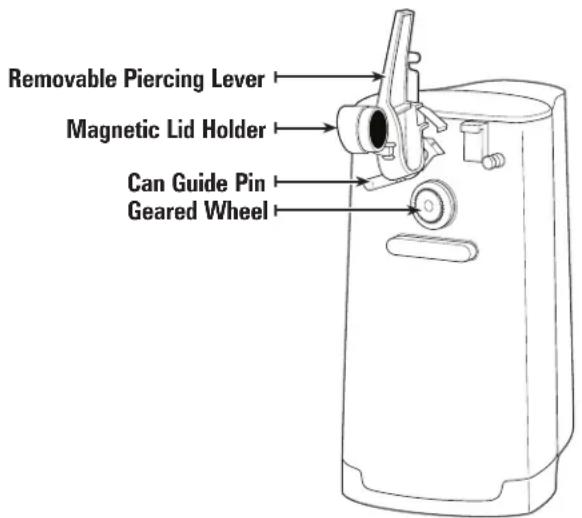

Parts and Features

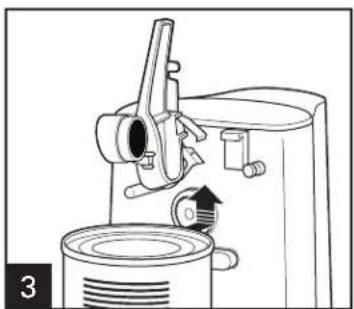

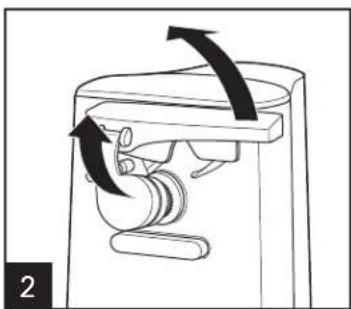

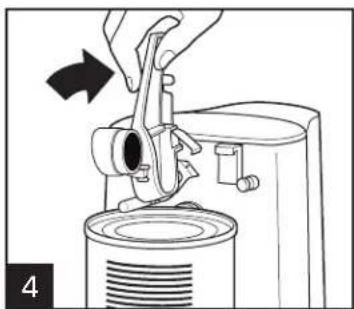

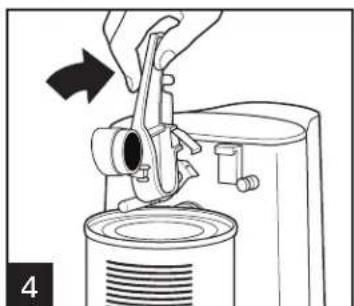

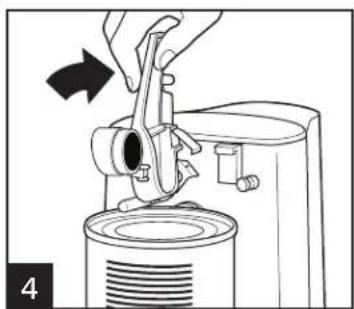

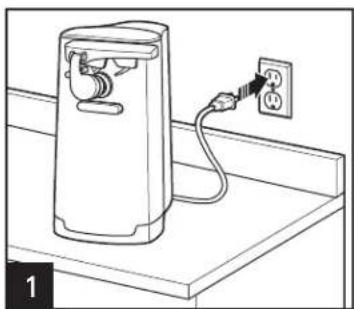

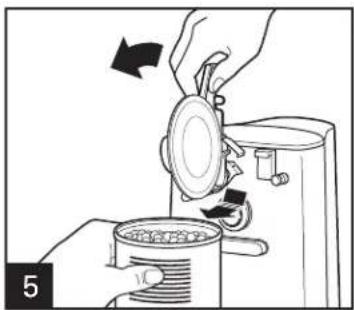

How to Use the Can Opener

Line drawing of a device connected to an electrical outlet (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Diagram of a kitchen tool with a funnel and fan, showing a rotating knob (no text or symbols)

Line drawing of a hand using a tool to lift a cylindrical component into a container (no text or symbols)

Illustration of hands using a pan to press food into a machine, showing a rotating knob and fan (no text or symbols)

NOTES:

• The motor will automatically stop when can is open.
- It is not necessary to hold lever down or hold can while can is being opened.
- If there is a bump, dent, or heavy seam in the rim of the can, open other end of can or start cutter just beyond it.
• The motor of the can opener is permanently lubricated and will require no oiling.

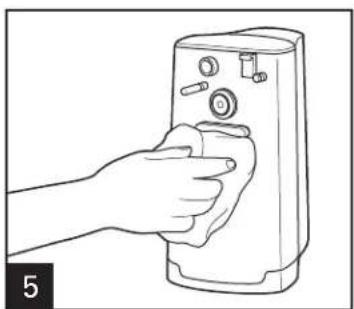

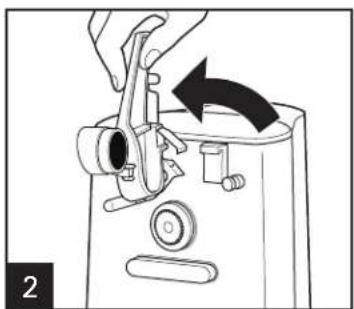

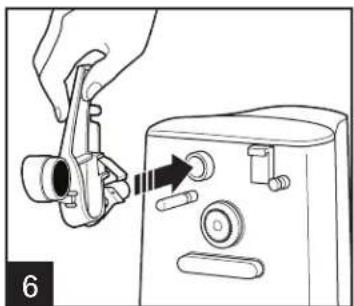

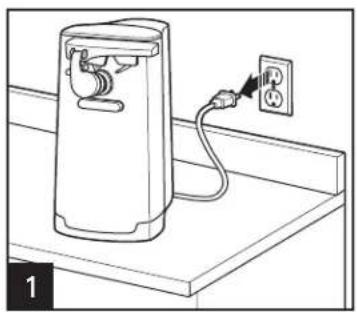

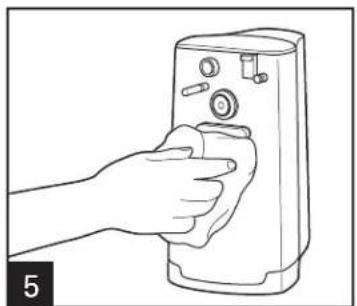

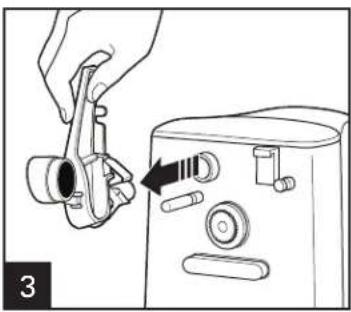

Cleaning and Care

Line drawing of a device connected to an electrical outlet (no text or symbols)

Line drawing of a sewing machine with a hand operating the blade (no text or symbols)

⚠ WARNING Electrical Shock Hazard. Do not immerse the can opener body or cord in water or other liquid.

Line drawing of a hand using a tool to adjust or install a device, with no visible text or symbols.

Illustration of hands using a tool to clean or repair a surface, no text or symbols present

Line drawing of a hand pressing down on a device (no text or symbols)

Line drawing of a hand using a tool to adjust or install a device, with no visible text or symbols.

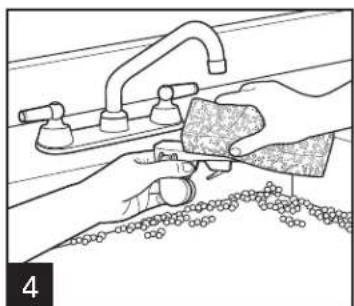

NOTICE: Do not allow piercing lever to sit in water, since this may cause the metal to rust.

NOTICE: To avoid damaging can opener, do not use abrasive cleaners or scouring pads.

Limited Warranty

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

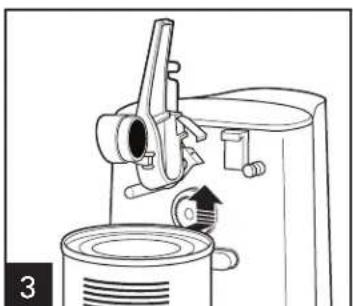

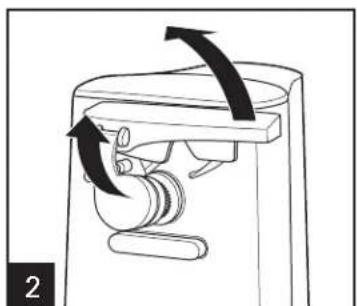

PRÉCAUTIONS IMPORTANTES

Line drawing of a device connected to an electrical outlet (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand using a tool to lift a cylindrical component, with no visible text or symbols.

Illustration of hands using a pan to lift food from a machine, showing a rotating lid and cup (no text or symbols)

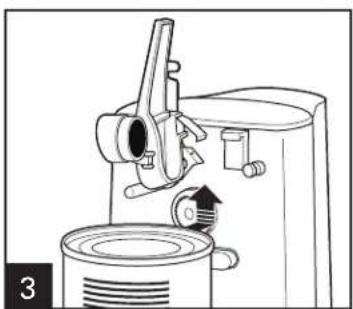

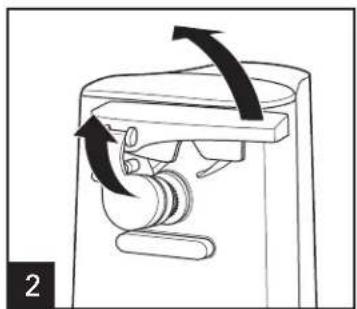

REMARQUES :

Line drawing of a device connected to an electrical outlet (no text or symbols)

Illustration of a hand using a tool to adjust or install a machine component, with no visible text or symbols.

Illustration of a hand using a clamp to adjust or install a device, with no visible text or symbols.

Illustration of hands using a tool to clean or repair a surface, with no visible text or symbols

Line drawing of a hand cleaning a device with a button (no text or symbols)

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.

Line drawing of a gas collection device connected to an electrical outlet (no text or symbols)

Mechanical device diagram showing a rotating mechanism with directional arrows (no text or symbols)

Mechanical diagram showing a cutting tool interacting with a cylindrical component (no text or symbols visible)

Illustration of a hand using a tool to lift a can into a container, with no visible text or symbols.

Illustration of hands using a pan to press food from a machine, showing a lid being inserted (no text or symbols)

NOTAS:

Line drawing of a device connected to an electrical outlet (no text or symbols)

Line drawing of a hand using a manual tool to adjust or install a machine component, with no visible text or symbols.

Illustration of a hand using a tool to adjust or install a machine component, with no visible text or symbols.

Line drawing of hands using a tool to clean or repair a surface, no text or symbols present

Line drawing of a hand holding a device with a button, no text or symbols present

Illustration of a hand using a tool to adjust or install a device, with no visible text or symbols.
