DrinkMaster 727B - Electric blender HAMILTON BEACH - Free user manual and instructions

Brand	Hamilton Beach
Model	DrinkMaster 727B
Product Type	Electric Mixer
Power Supply	120 V, 60 Hz
Speeds	2 (Low and High)
Container Capacity	12 ounces (355 ml) maximum, 4 ounces (118 ml) minimum
Main Functions	Mixing drinks, milkshakes, smoothies, powdered drinks
Features	Tilting head, removable agitator, cup guide, cup support
Container Material	Metal (dishwasher safe)
Care and Cleaning	Wash agitator and container in warm soapy water or dishwasher; wipe motor base with a damp cloth; do not immerse
Safety	Polarized plug, automatic shut-off, do not use near water, supervision required
Replacement Parts	Removable agitator, metal container
Repairability	Repair by manufacturer or qualified professional
Warranty	1 year (standard Hamilton Beach product) or 2 years (Portfolio), limited
Use	Household only
Cord	Short to avoid tangling; extension cord acceptable if needed

Frequently Asked Questions - DrinkMaster 727B HAMILTON BEACH

How to clean the DrinkMaster 727B?

Unplug the appliance. Remove the agitator by pulling down. Wash the agitator and metal container in warm soapy water or dishwasher. Wipe the motor base with a damp cloth or sponge. Never immerse the motor base in water.

What speeds are available?

The DrinkMaster 727B has two speeds: 1 (LOW) and 2 (HIGH). It is recommended to start at low speed then switch to high if needed.

Can this appliance crush ice?

No, the DrinkMaster does not crush ice. For best results, use pre-crushed ice if the recipe requires it.

What is the maximum container capacity?

The container has a maximum capacity of 12 ounces (355 ml) and a minimum capacity of 4 ounces (118 ml). Do not exceed the maximum fill line.

Is the appliance suitable for hot drinks?

No, the DrinkMaster is designed for cold ingredients. For best results, use liquids as cold as possible. Do not pour hot liquids into the container.

How to install the agitator?

Lift the mixer head backward, insert the agitator until it clicks into place. Make sure it is securely attached before starting the appliance.

Can I use whole fruits?

It is not recommended to use whole fruits. Mash or puree fruits before adding them to the mixture.

What to do if the appliance does not work?

Check that the appliance is plugged in and the switch is set to a position other than OFF. Make sure the container is properly in place. If the problem persists, contact customer service at 1-800-851-8900 (US) or 1-800-267-2826 (Canada).

Is the container dishwasher safe?

Yes, the metal container can be washed in the dishwasher. The agitator should be hand washed in warm soapy water.

What is the warranty on this product?

The DrinkMaster 727B is warranted for 1 year (for standard Hamilton Beach products) or 2 years (Portfolio line) against defects in material and workmanship. The warranty does not cover accessories such as the agitator or container.

USER MANUAL DrinkMaster 727B HAMILTON BEACH

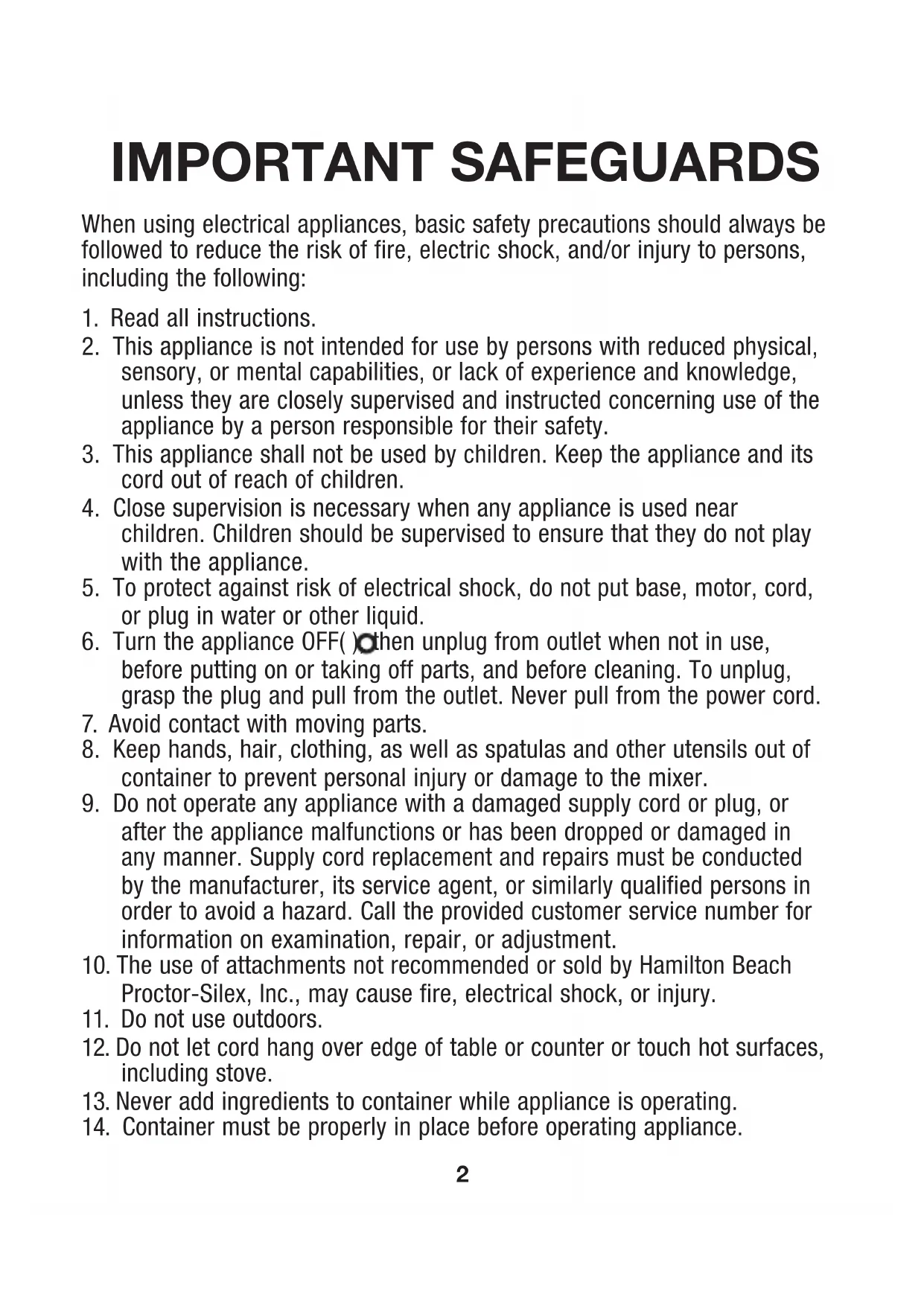

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put base, motor, cord, or plug in water or other liquid.
6. Turn the appliance OFF() then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.
8. Keep hands, hair, clothing, as well as spatulas and other utensils out of container to prevent personal injury or damage to the mixer.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
10. The use of attachments not recommended or sold by Hamilton Beach Proctor-Silex, Inc., may cause fire, electrical shock, or injury.
11. Do not use outdoors.
12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
13. Never add ingredients to container while appliance is operating.

14. Container must be properly in place before operating appliance.

15. To wash mixing shaft, unplug mixer and remove mixing shaft from mixer. (See “Cleaning Your DrinkMaster.”)

16. Do not place on or near a hot gas or electric burner, or in a heated oven.
17. Do not use appliance for other than intended purpose.
18. Check that the appliance is OFF ( ) before plugging cord into wall outlet. To disconnect, turn the control to OFF ( ) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
19. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

This appliance is equipped with a polarized plug. This type of plug has one blade wider than the other. The plug will fit into an electrical outlet only one way. This is a safety feature intended to help reduce the risk of electrical shock. If you are unable to insert the plug into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not attempt to defeat the safety purpose of the polarized plug by modifying the plug in any way.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in, or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the DrinkMaster. Care must be taken to arrange extension cord so that it will not drape over countertop or tabletop where it can be pulled on by children or accidentally tripped over.

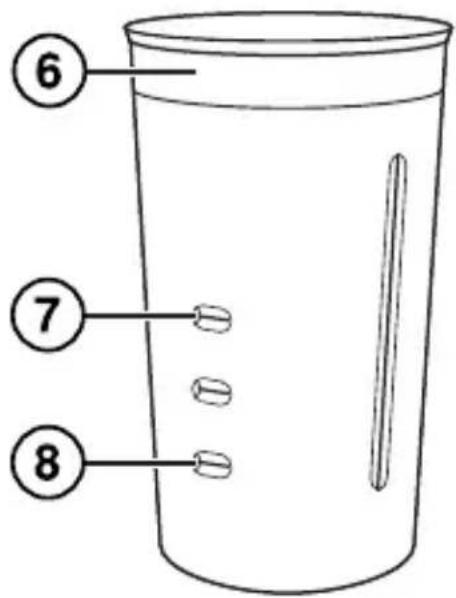

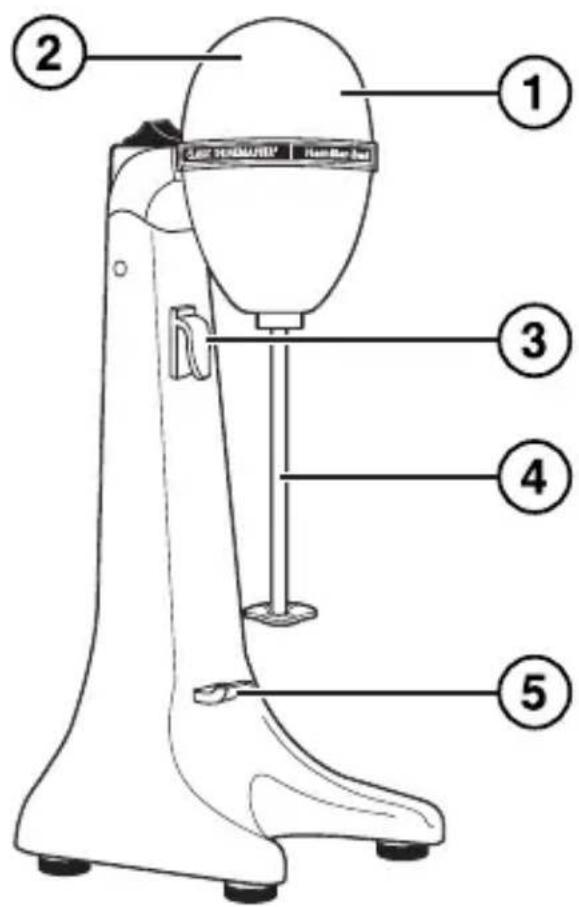

Parts and Features

1. Tilting Head
2. ControlSwitch

$$ = O F F $$

$$ 1 = \text { LOW } $$

$$ 2 = \mathrm{HIGH} $$

1. Container Support

2. Removable Mixing Shaft (pull down to remove)

3. Container Rest

4. Container
5. Maximum Level, 12 ounces (355 ml)
6. Minimum Level, 4 ounces (118 ml)

⑥ ⑦ ⑧

① ② ③ ④ ⑤ ① ② ③ ④

BEFORE FIRST USE: Wash container and mixing shaft before using.

1. Place mixing shaft in unit by tilting the head back and inserting the mixing shaft until it “snaps” into place.
2. Set Control Switch too (off). Plug into electrical outlet.
3. Place ingredients to be mixed in container.

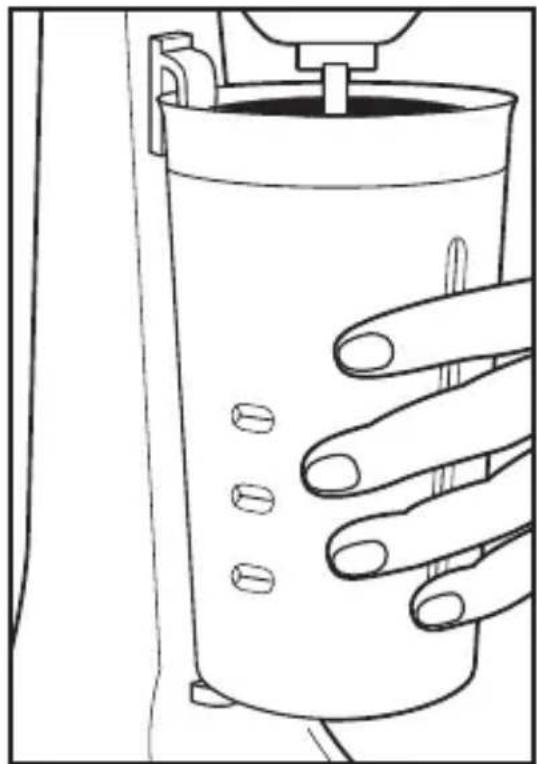

4. Place container onto DrinkMaster, making certain that container's top edge is behind container support and container bottom is on container rest.

Line drawing of a hand holding a cylindrical container with three small circular indentations, no text or symbols present

1. With mixing shaft “snapped” in place, move Control Switch to desired speed to process. Start with Speed 1 (LOW) then increase to Speed 2 (HIGH) if desired.

2. For hard ice cream or very thick shakes, remove the container from the rest and support. With mixing shaft still submerged in mixture, move the container around for more thorough mixing.

3. When finished, turn unit to (off) and tilt head up.

4. Pour contents from container and serve.

Helpful Hints

• Most drinks can be mixed in less than two minutes.
• Whole fruit should not be used when making fruit drinks. Mash or puree fruit; add to drink, and mix.
• The container must always be filled to at least the minimum level mark or the liquid will not reach mixing shaft. When mixing thin mixtures, such as powdered diet drinks, do not fill above maximum level mark (12 ounces/355 ml) or liquid may overflow while mixing.
• For best results, all liquid ingredients should be as cold as possible. Milk drinks will taste best if milk is ice cold. The colder the milk, the thicker and more frothy the drink.
• All syrups and powdered mixes should be added just before mixing to prevent them from sinking to the bottom of the container.
• The DrinkMaster does not crush ice. For best results, use crushed ice if the recipe calls for ice.

Cleaning Your DrinkMaster®

1. Unplug unit. To remove mixing shaft, grasp and pull down to release from head. Wash the mixing shaft in warm, soapy water.
2. The metal mixing container should be washed in warm, soapy water or in a dishwasher.
3. To clean DrinkMaster, wipe with damp cloth or sponge. Do not use abrasive cleansers of any type.

DO NOT IMMERSE THE APPLIANCE IN WATER OR OTHER LIQUID.

Recipes

Always add liquid ingredients first then remaining ingredients.

Start mixing on 1 (LOW) then increase Speed to 2 (HIGH).

Process to desired consistency, about 1 to 2 minutes.

Freeze & Squeeze One

4 scoops frozen vanilla yogurt
1 / 3 cup orange juice
1 teaspoon rum flavoring
1 tablespoon lime juice

Mash One In The Hay

4 scoops frozen strawberry yogurt
12 cup apple juice
12 cup fresh strawberries, mashed
1 / 3 cup banana, mashed

Squeeze One On The Country

6 ounces strawberry yogurt
2 fresh strawberries, mashed
1 / 2 cup orange juice

Mud Patch & Gravel

4 scoops chocolate ice cream
1 / 3 cup milk
^3/_4 cup fresh strawberries, mashed
1 / 4 cup nuts in syrup

Creamy Orange Frosty

2 scoops vanilla ice cream
1 cup orange juice

Crowded Van Through Georgia

3 scoops vanilla ice cream
1 / 2 cup milk
12 banana, sliced then mashed
2 tablespoons chocolate syrup

Patch & Forty-One

6 ounces strawberry yogurt
1 scoop lemon sorbet
12 cup orange juice
2 fresh strawberries, mashed

Bucket Of Fruit

12 cup low-fat peach yogurt
1 / 2 cup orange juice
2 fresh strawberries, mashed
12 kiwi fruit, peeled and mashed

Chocolate Mint Mallow

3 scoops chocolate ice cream
1 / 2 cup milk
14 cup marshmallow creme
13 cup crushed peppermint candy pieces

Strawberry Cooler

3 scoops frozen strawberry yogurt
^3/_4 cup ginger ale

Customer Service

If you have a question about your DrinkMaster, call our toll-free customer service number. Before calling, please note the model, type, and series numbers and fill in that information below. These numbers can be found on the bottom of your DrinkMaster. This information will help us answer your question much more quickly.

MODEL: ____ TYPE: ____ SERIES: ____

The following warranty applies only to product purchased in the United States and Canada.°

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period of two (2) years for Hamilton Beach Portfolio products or one (1) year for Hamilton Beach products from the date of original purchase, except as noted below. During this period, we will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with respect to the following, which may be supplied with this product: glass parts, glass containers, cutter/strainer, blades, and/or agitators. This warranty extends only to the original consumer purchaser and does not cover a defect resulting from abuse, misuse, neglect, use for commercial purposes, or any use not in conformity with the printed directions. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state, or province to province. Some states or provinces do not allow limitations on implied warranties or special, incidental or consequential damages, so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have model, series, and type numbers ready for operator to assist you.),

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

Web site address: www.hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!
