UNA90 - Slicer GRAEF - Free user manual and instructions

Type	Electric slicer
Brand	Graef
Model	UNA90
Blade	Stainless steel rotary blade
Thickness adjustment	Manual adjustment with crank, with over-zero stop
Switches	Pulse and continuous switches
Food guide	Included, for small foods (less than 10 cm)
Carriage	Removable for cleaning, with roller
Finger guard	Foldable, with push button
Safety	Stop plate covering the blade when off, finger guard
Power supply	Mains 220-240 V, 50/60 Hz
Motor warranty	36 months (3 years)
Cleaning	Removable blade and carriage, manual cleaning with damp cloth
Maintenance	Monthly lubrication of carriage guide with oil or vaseline
Disposal	Do not dispose of with household waste, WEEE recycling

Frequently Asked Questions - UNA90 GRAEF

How to adjust the cutting thickness on the UNA90 slicer?

Turn the thickness adjustment crank in the desired direction. To close the stop plate onto the blade, turn past zero clockwise until it stops.

Can I use the slicer without the food guide?

Yes, only if the size and shape of the pieces to be cut do not allow its use. For small foods (less than 10 cm), always use the food guide.

How to clean the slicer blade?

Unplug the appliance. Slide the carriage towards you, remove the cover plate, then unscrew the blade by turning the screw clockwise. Clean with a damp cloth and apply vaseline to the sliding ring. Never put the blade in the dishwasher.

How to use the continuous switch?

To slice large quantities, press the continuous switch after preparing the carriage and thickness adjustment. Let the motor cool for about 5 minutes after extended use.

What to do if the motor stops during use?

Check if the appliance has overheated. Let the motor cool for at least 5 minutes. If the problem persists, contact Graef customer service.

How to remove the carriage for cleaning?

Press the carriage catch located on the lower front face, then slide the carriage back towards the body. Clean with a damp cloth or under running water. Do not immerse the appliance.

What is the warranty on the UNA90 slicer?

The motor has a 36-month warranty from the date of purchase. Damage due to misuse is not covered. For any repairs, contact Graef's after-sales service.

How to prevent the blade from rusting?

Clean the blade immediately after use, especially after slicing brined meat or acidic foods (tomatoes, cucumbers). Use a damp cloth with a little mild detergent, then dry thoroughly.

Can I slice frozen foods with this slicer?

The instructions do not mention frozen foods. It is recommended to only slice foods at room temperature or refrigerated. Frozen foods could damage the blade or motor.

How to maintain the carriage guide?

Once a month, apply a few drops of resin-free oil or vaseline to the carriage guide. Remove excess with a soft cloth. This ensures smooth movement.

USER MANUAL UNA90 GRAEF

Technical line drawing of a mechanical component with rotational motion arrows (no text or symbols)

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with labeled components and directional arrows (no readable text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two mechanical components with a downward arrow indicating motion (no text or symbols)

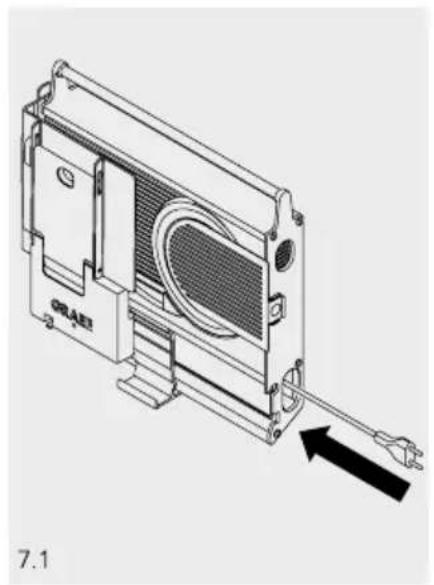

Technical line drawing of a mechanical device with a labeled component and an arrow indicating direction (no text or symbols present)

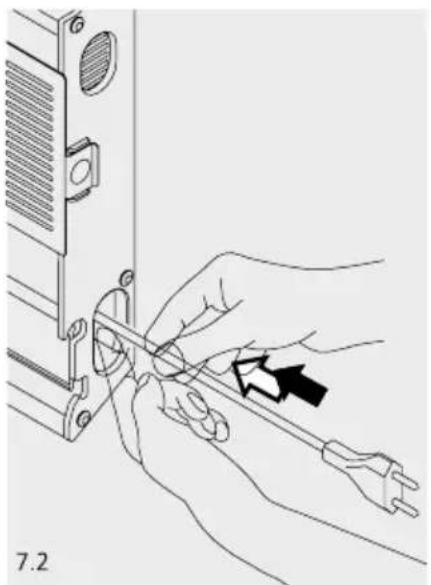

Illustration of hands using a tool to adjust or install a component, no text or symbols present

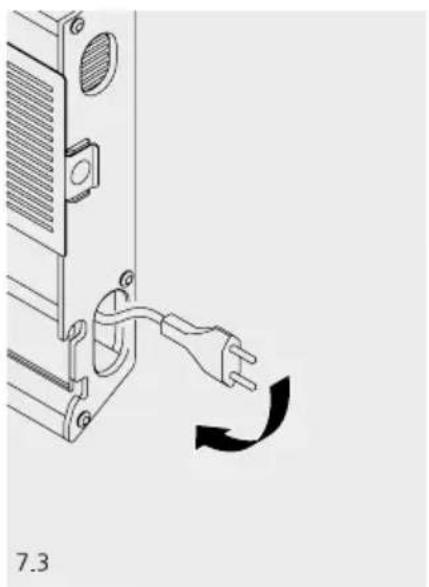

Diagram of a computer monitor with an attached power plug and cable, showing a curved arrow indicating rotation (no text or symbols present)

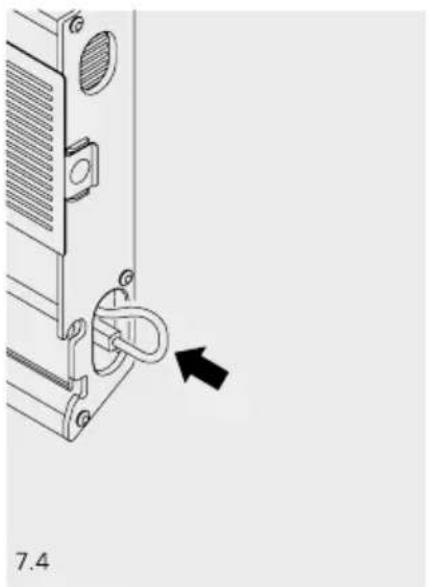

Technical diagram of a mechanical device with a hanging hook and arrow indicator (no text or symbols)

Reinigung/Messer / Cleaning/Blade

Technical line drawing of a mechanical device with an inset showing a close-up view of the component (no text or symbols present)

Reinigung/Schlitten / Cleaning/Carriage

Techn. Daten / Technical details

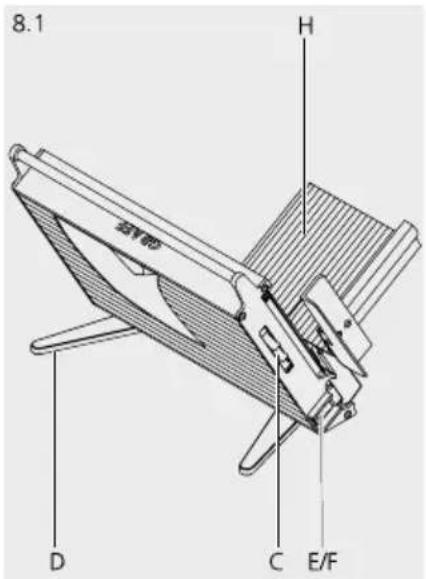

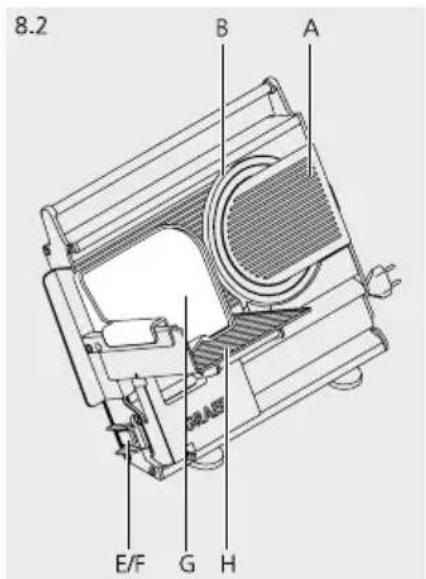

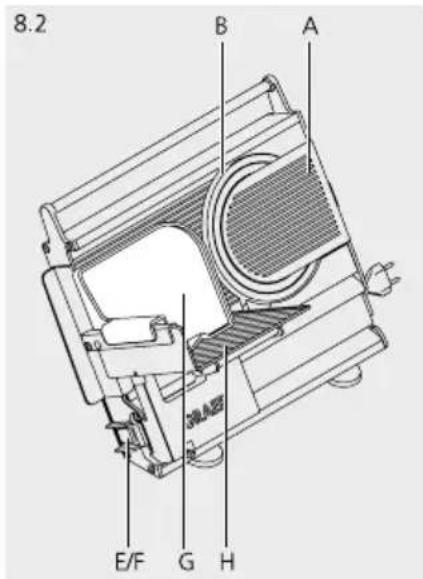

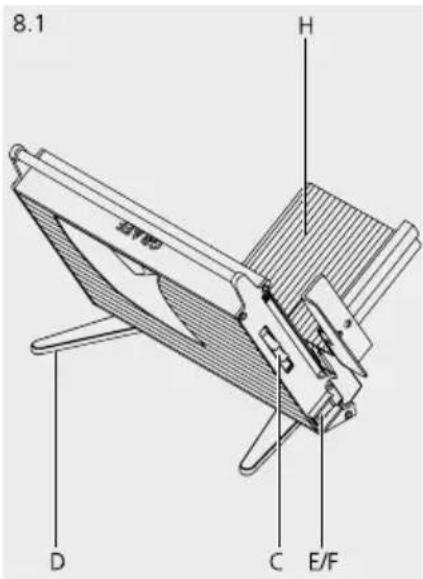

A Cover Plate
B Blade
C Balance wheel, for ad justment of slicing thick ness
D Feets
E Quick action switch
F Continuous operation switch
G Food holder
H Carriage

Inhaltsverzeichnis

Safety instructions.... 15

Unpacking 16

Requirements for the installation location....16

Sources of hazards.... 16

Cutting 17

Tips....17

Food holder 17

Cleaning 18

Blade removal 18

Preservation of value - blade....18

Carriage 18

Customer service department....19

Disposal....19

3 year motor guarantee .... 19

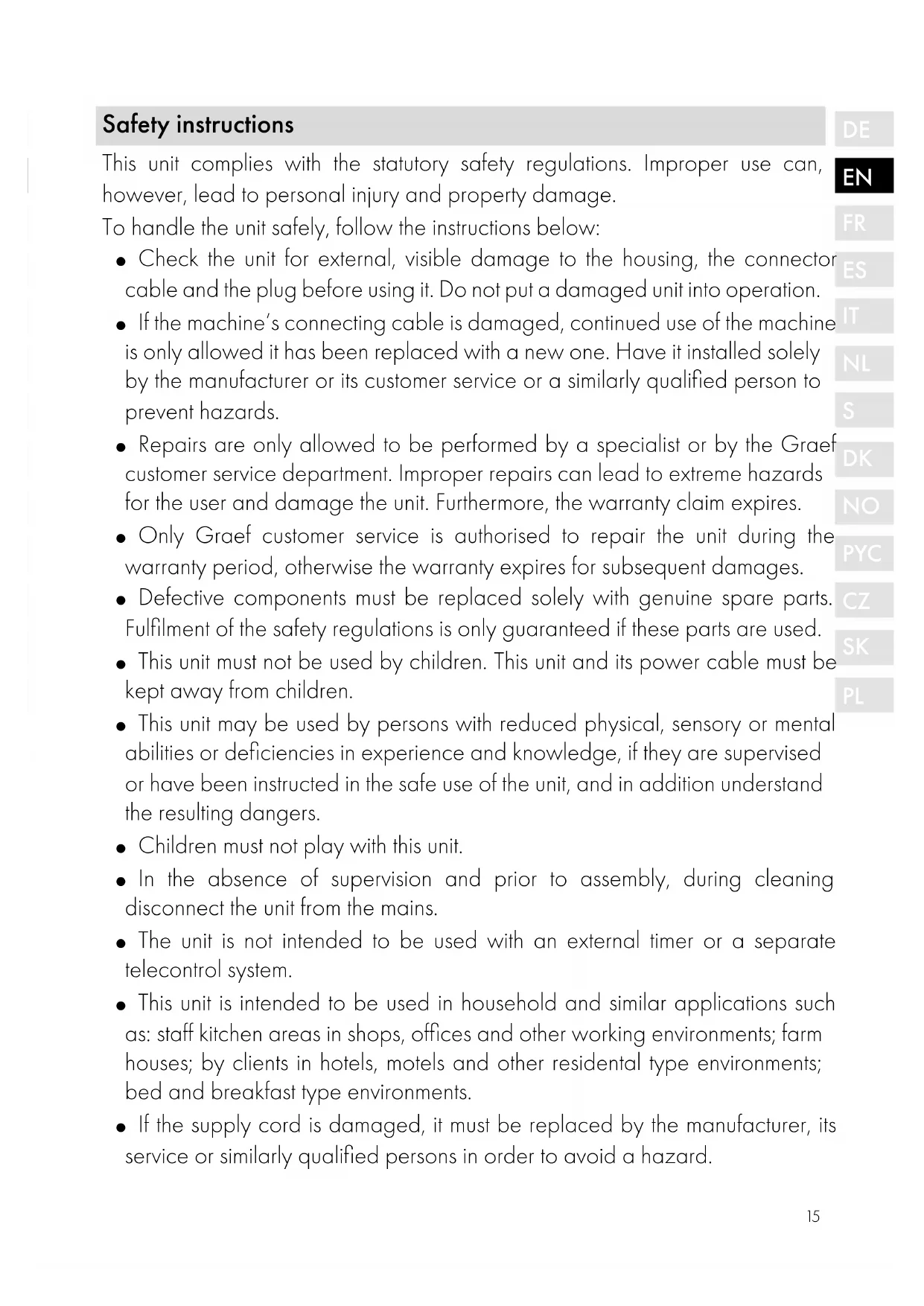

Safety instructions

This unit complies with the statutory safety regulations. Improper use can, however, lead to personal injury and property damage.

To handle the unit safely, follow the instructions below:

• Check the unit for external, visible damage to the housing, the connector cable and the plug before using it. Do not put a damaged unit into operation.
• If the machine's connecting cable is damaged, continued use of the machine is only allowed it has been replaced with a new one. Have it installed solely by the manufacturer or its customer service or a similarly qualified person to prevent hazards.
• Repairs are only allowed to be performed by a specialist or by the Graef customer service department. Improper repairs can lead to extreme hazards for the user and damage the unit. Furthermore, the warranty claim expires.
• Only Graef customer service is authorised to repair the unit during the warranty period, otherwise the warranty expires for subsequent damages.
• Defective components must be replaced solely with genuine spare parts. Fulfilment of the safety regulations is only guaranteed if these parts are used.
• This unit must not be used by children. This unit and its power cable must be kept away from children.
• This unit may be used by persons with reduced physical, sensory or mental abilities or deficiencies in experience and knowledge, if they are supervised or have been instructed in the safe use of the unit, and in addition understand the resulting dangers.
  • Children must not play with this unit.
• In the absence of supervision and prior to assembly, during cleaning disconnect the unit from the mains.
• The unit is not intended to be used with an external timer or a separate telecontrol system.
• This unit is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service or similarly qualified persons in order to avoid a hazard.

• Always pull the supply line from the electric socket using the connector plug, not on the connector cable.

• Never operate the unit with wet hands.
• This unit must be used with the carriage and food holder unless the size and shape of the items to be sliced do not permit use of the food holder.
• In stand-by mode, turn the control knob clockwise past the zero position up to the limit so that the stop plate covers the cutter.
• Do not use the packing material as a toy. Danger of suffocation.
• Do not touch the blade with your fingers. It is very sharp and cause severe injuries.
• Make sure the unit is switched off and not connected to the mains supply.
• Check to make sure the limit stop is closed (cutter blade is covered).
• Do not use any aggressive or abrasive cleaning agents and do not use any solvents.
• Do not scratch off stubborn soiling with hard objects.
• Do not wash in the unit in water or immerse it into water.

Unpacking

To unpack the unit, proceed as below:

• Take the unit out of the carton.
- Remove all pieces of the packing.
- Remove any possibly extant labels on the unit (do not remove the rating plate).

Requirements for the installation location

For safe and flawless operation of the unit, the place of location must meet these prerequisites:

The unit must be set up on a firm, flat, level and non-slip base that has sufficient load bearing capacity.

Select the place of location so that children cannot reach the sharp blade in the unit.

Sources of hazards

The rotating blade can cut off body parts. Your fingers, especially the thumbs, are endangered. For this reason, never reach into the space between the stop plate and the holder for the material to be sliced as long as the stop plate is not ^16

completely closed, i.e., is placed below "0".

Cutting

• Swivel the machine feet out as far as they go (1.1).

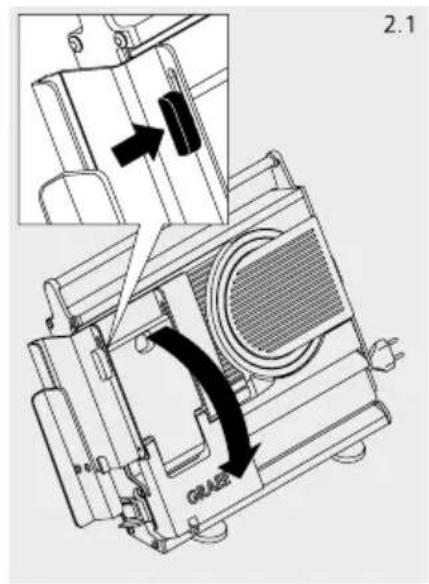

• Push the slider on the underside of the carriage together and turn the carriage over (2.1).

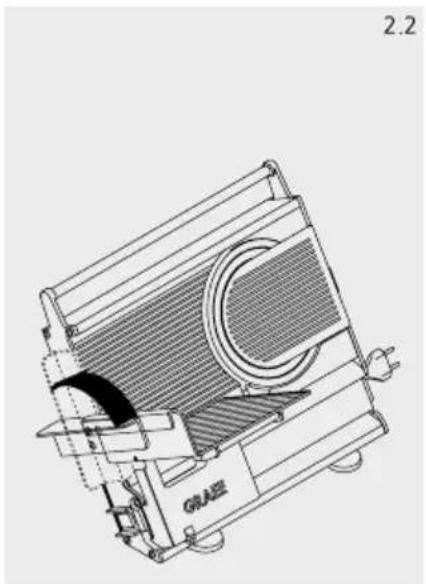

• Put the thumb protection into a horizontal position (2.2).
• Place the cutting goods on the carriage.
• Adjust the desired cutting width by turning the hand wheel (3.2).
• Push the needed switch „Pulse“ or „Permanent“ (3.1).
• Press the cutting goods gently against the stopper plate and lead the carriage evenly against the blade (3.3).
• After finishing the cutting process, turn off the appliance (3.1).

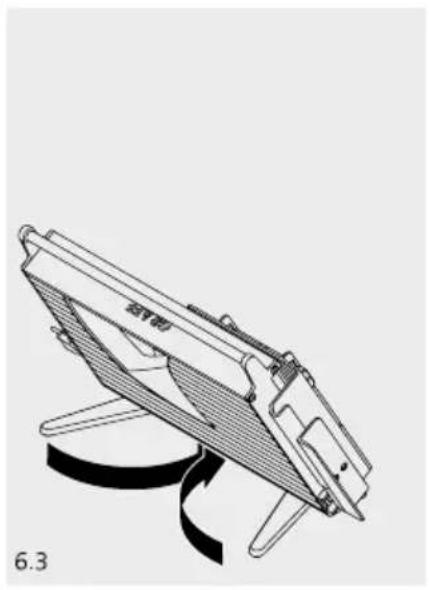

• Push the button on the side of the thumb protection and flip it (6.1).
• Push the slider on the underside of the carriage together and flip it (6.2).

Important: Let the engine cool off after a permanent usage of approx. 5 minutes.

Tips

• Soft cutting goods (for example cheese or ham) can be cut best when cooled.
• Soft cutting goods are cut better when you move it forward slower.
• When cutting cucumbers or carrots it helps to cut them to an identical size beforehand, and then lead them to the cutter using the scrap holder.

Food holder

When the items to be sliced are shorter and 10 cm so it is no longer possible to correctly hold onto them, the food holder must be used.

• Place the food rests or the small items for slicing on the carriage.
• Set the food holder on the rear of the carriage and put the food holder onto the items to be sliced (3.5).
• Proceed as above as described in "Slicing".

Important: The food holder lets you slice small items such as mushrooms and tomatoes.

The unit must not be used without the food holder unless the size and shape of the items to be sliced do not permit its use.

Cleaning

Clean the exterior of the unit with a soft, moist damp cloth. If heavy soiled, a mild detergent can be used.

Blade removal

Please occasionally unscrew the blade and clean the interior of the unit. Especially, when "juicy" slicing items (tomatoes, fruit, roasts, etc.) were sliced. Handle the blade with great care!

• Pull the carriage all the way towards you.

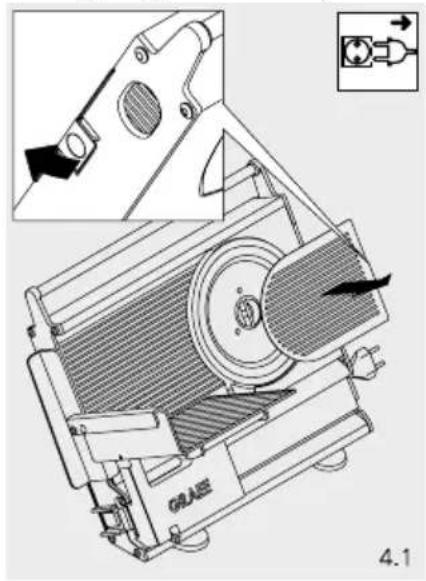

• Remove the blade cover plate (4.1).

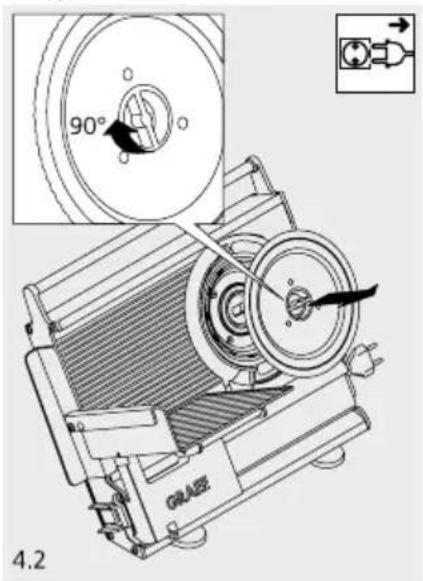

• Loosen the blade by turning the blade screw clockwise (4.2).
• Clean the insides of the blade with a damp cloth.

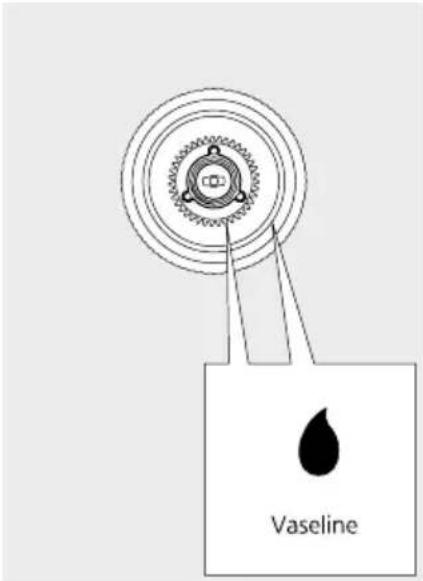

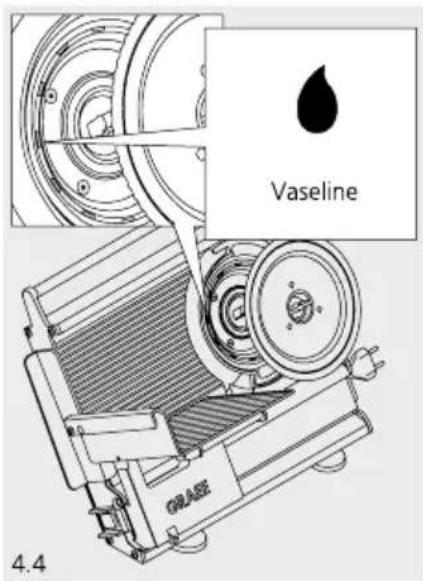

• Lubricate the gliding ring and gear on the inside of the blade with Vaseline after cleaning (4.3 - 4.4).
• Replace the blade and the blade cover plate in reverse sequence.

Preservation of value - blade

For a long-lasting sharpness and for a preservation of the value of your Graef blade we recommend that the blade be cleaned in regular intervals, especially after cutting cured meat or ham. They contain salts which when on the blade surface for a longer period of time could produce so-called "rust film" (on "stainless steel" as well). When cutting products which contain a lot of water, such as tomatoes or cucumbers, a lack or wrong (too "wet") cleaning may produce rust on the blade surface.

For this reason we recommend that you use a moist cloth and a bit of detergent, if and when necessary, to clean the blade directly after use. Never put the blade in a dishwasher, firstly due to decrease in sharpness and corrosion resistance (salts attack the blade), and secondly due to safety in handling the blade whilst loading and unloading the dishwasher.

Carriage

To clean the carriage better, it can be removed from the appliance.

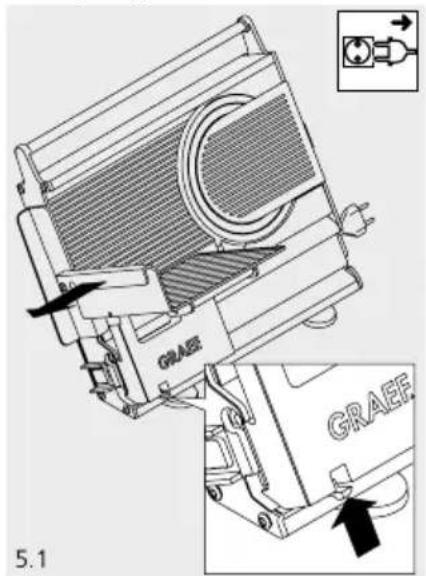

• Push the carriage bar on the front side (bottom) of the carriage (5.1).
• Keep it pushed and pull off the carriage towards the back (towards body).

• Clean the carriage with a moist cloth or under running water.

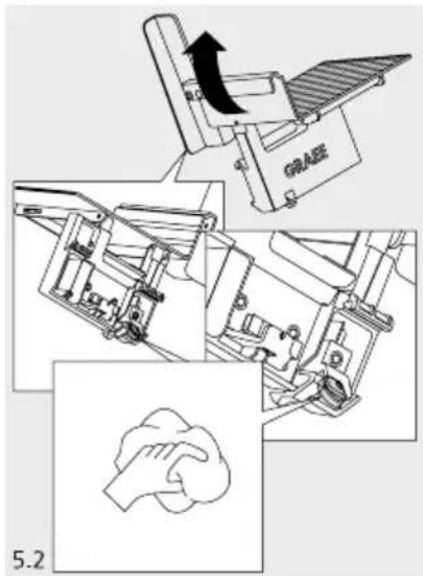

• Clean the roller with a damp cloth (5.2).

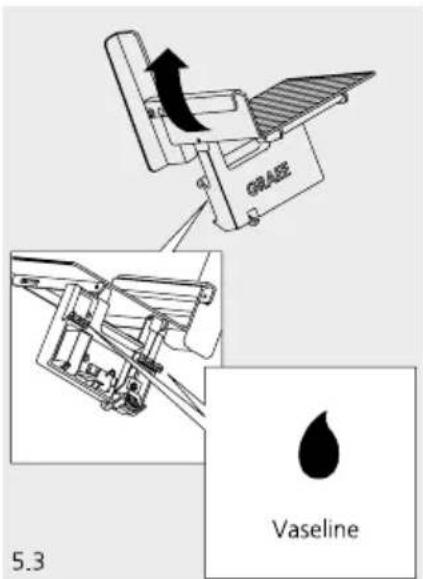

• Please apply a few drips of resin-free oil or Vaseline on the carriage rail once a month. Remove excess oil / Vaseline with a soft cloth (5.3).
• Keep the carriage lock pushed and push the carriage towards the front on the carriage rail.

Customer service department

If your Graef unit has a defect, please contact your dealer or the Graef customer service department.

Disposal

At the end of its service life, this product cannot be disposed of in normal domestic waste but has to be disposed of at a collection point for recycling electronic household waste. The symbol on the product and in the operating instructions point out to this fact. Reuse the materials according to their marking. By reusing, recycling or other applying other forms of use of old units, you render an important contribution to the protection of our environment. Please ask your municipal administration for the disposal point.

3 year motor guarantee

For this product we assume an additional guarantee on the motor of 36 months beginning with the date of sale. Your legal warranty claim in conformity with Section 439 ff. of The German Civil Code E shall be unaffected by this regulation. The guarantee does not cover any damage which is caused by incorrect handling or use as well as defects which only slightly influence the function or the value of the unit. Moreover, transport damage provided we are not responsible shall be excluded from the claims under guarantee. Guarantee shall be ruled out for damage, the repair of which has not been carried out by us or one of our represenations. In case of justified complaints, we shall repair the defective product or replace it by a product without defects at our discretion.
