WT 260 - Alarm clock radio TECHNOLINE - Free user manual and instructions

Brand	TECHNOLINE
Model	WT 260
Product type	Radio alarm clock
Power supply	2 AAA 1.5V batteries (not included)
Display	LCD
Radio-controlled reception	DCF-77 (Germany)
Time formats	12h / 24h
Calendar	Continuous until 2099
Day and week display	Yes, with language selection (GER, ENG, ITA, FRE, DUT, SPA, DAN)
Indoor temperature	-9.9°C to 49.9°C / °F
Alarm	Daily, with snooze (5 min) and crescendo
Manual setting	Time, date, language, time zone
Dimensions (approx.)	Not specified in the manual
Weight (approx.)	Not specified in the manual
Care	Clean with a soft dry cloth. Do not use solvents.
Safety	Use only non-rechargeable alkaline batteries. Observe polarity. Do not open the case.
Operating conditions	Indoor, -10°C to 50°C, 20% to 95% humidity
Storage	-20°C to 60°C, 20% to 95% humidity
Battery life	Approximately 12 months

Frequently Asked Questions - WT 260 TECHNOLINE

How to set the time manually?

Press and hold the SET button for 2 seconds. Use the + and - buttons to set hours and minutes. Press SET to confirm each step. If no action for 30 seconds, the clock returns to normal display.

How to set the alarm?

Press and hold the ALARM button for 2 seconds until the alarm time flashes. Use + and - to set the hours, then press ALARM. Set the minutes in the same way. To activate/deactivate, briefly press ALARM.

What to do if the clock does not receive the DCF signal?

Place the clock near a window, at least 2.5 m away from electrical devices. You can also set the time manually. Automatic search occurs at 1:00 AM. To force a search, press and hold the - button.

How to change the temperature display to °F?

Press the - button to toggle between °C and °F.

How to use the snooze function?

When the alarm sounds, press the z^2 (or snooze button) to stop the alarm for 5 minutes. The 'z' icon flashes. Press any button to cancel snooze.

What type of batteries should I use?

Use two non-rechargeable alkaline AAA 1.5V batteries. Observe the polarity marked in the compartment.

How to clean the device?

Remove the batteries. Clean the exterior with a soft dry cloth. Never use solvents or abrasive cleaners.

Why is the display dim or blank?

Check that the batteries are correctly installed and not drained. Replace batteries if necessary.

How to reset the clock?

Remove the batteries, wait 30 seconds, then reinsert them. All settings will be erased and the clock will start searching for the DCF signal again.

The clock does not display the correct date or day language.

Enter manual setting by holding SET. Browse through the options to set year, month, day, and language. Available languages are GER, ENG, ITA, FRE, DUT, SPA, DAN.

USER MANUAL WT 260 TECHNOLINE

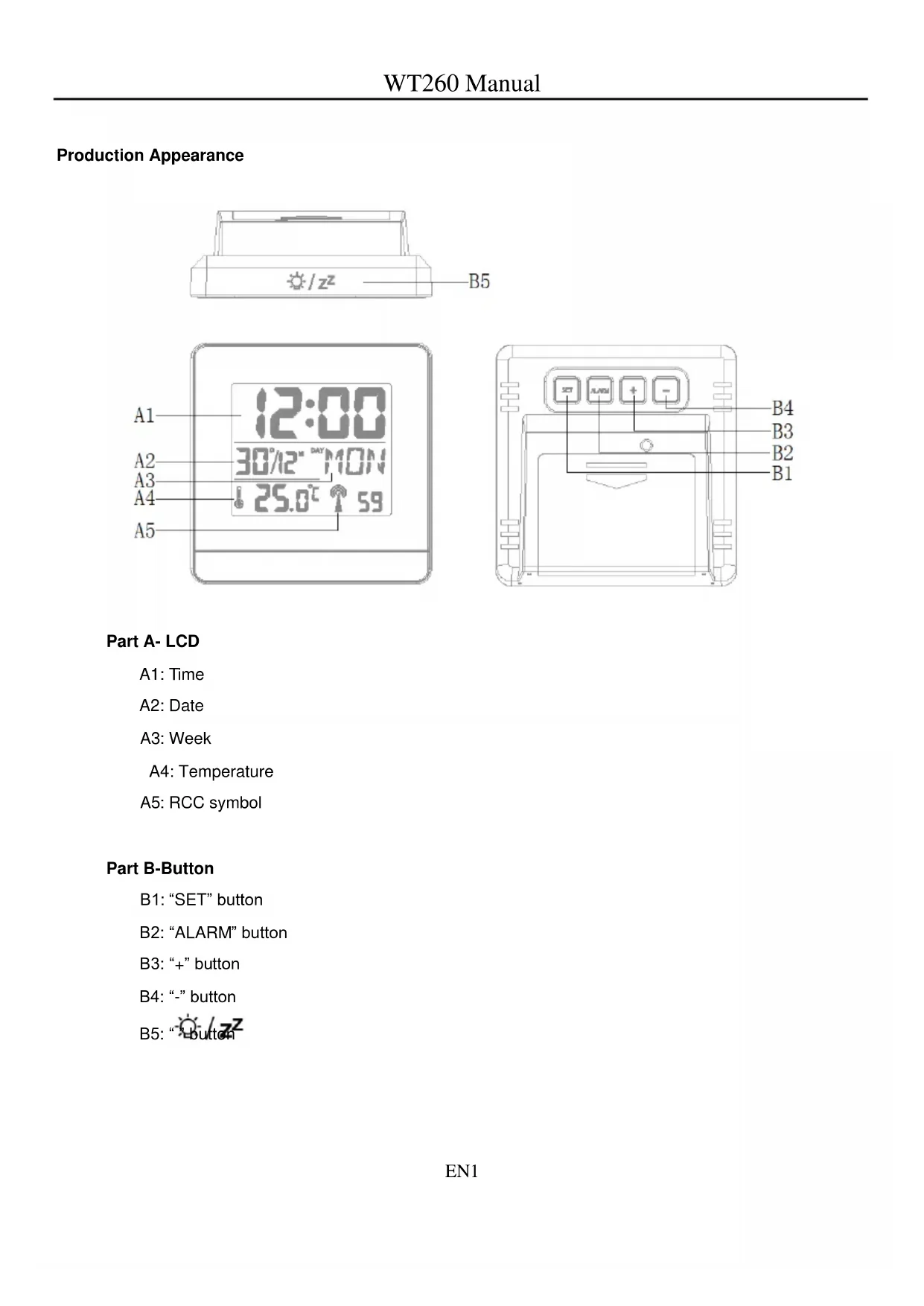

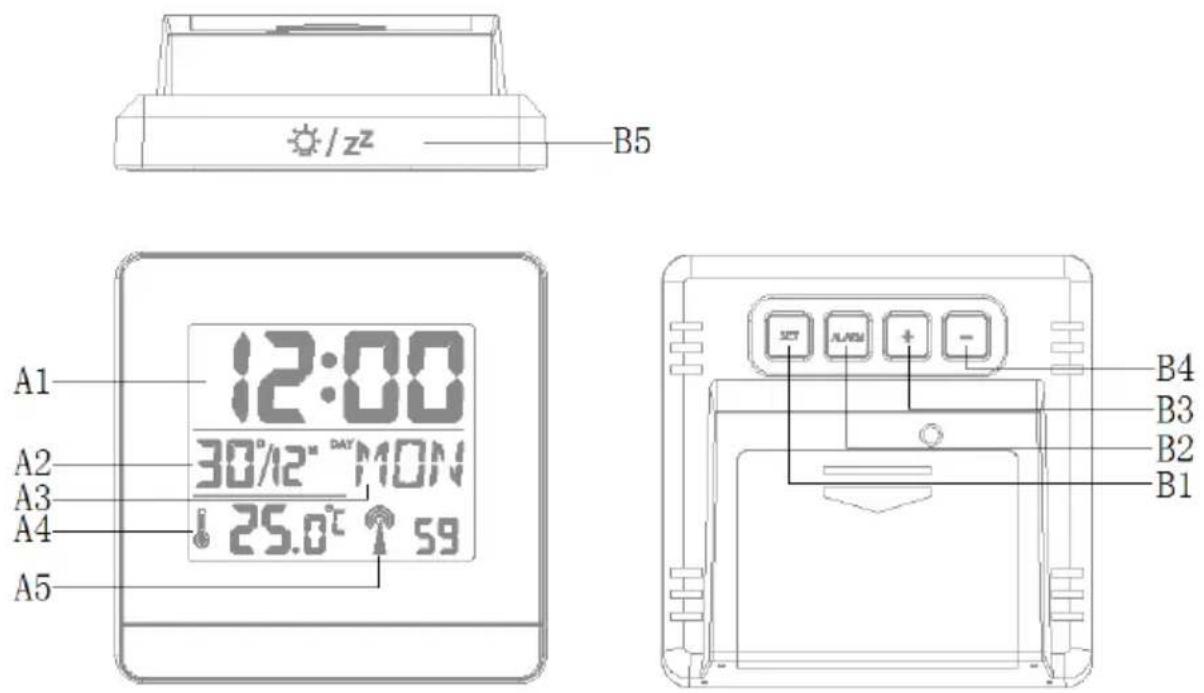

Production Appearance

Part A-LCD

A1: Time
A2: Date
A3:Week
A4: Temperature
A5: RCC symbol

Part B-Button

B1:"SET" button
B2: "ALARM" button
B3:" ^+ button
B4:“-”button

Features:

Radio controlled DCF-77 clock
12/24 hour time format
Manual time setting
Continuous calendar up to year 2099
Date and weekday display
Temperature alternatively in ^ C or ^ F
Automatic snooze function (5 minutes)
Thermometer: Indoor measurement range: -9.9^ 49.9^
Battery: battery 1.5V "AAA" size × 2 pcs (not included)

Initial operation:

Open the battery compartment cover
Insert 2× AAA batteries observing polarity [“+” and “-” marks]
- When you insert the batteries, all icons on the LCD display will light up for 3 seconds, you will hear a beep tone and the station detects indoor temperature.

Reception of the DCF radio controlled signal:

The clock automatically starts the DCF signal search after starting up. The radio mast symbol starts to flash.
At 1:00am the Radio Controlled clock automatically carries out a synchronization procedure with the DCF signal to correct any deviations to the exact time. If this synchronization attempt is unsuccessful (The radio mast symbol disappears from the display), the system will automatically attempt another synchronization at the next full hour. This procedure is repeated automatically up to 5 times.
To start manual DCF signal reception manually, press and hold the “-” button, If no signal is received within seven minutes, then the DCF signal search stops (the radio mast symbol disappears) and starts again the next full hour.

Please note:

• If the clock cannot receive the DCF signal (because the distance is too great to receive a signal from the transmitter in Mainflingen, Germany), you have the option of setting the time manually as mentioned below. As soon as the reception of the DCF signal is possible, then the clock is readjusted automatically.
  We recommend a minimum distance of 2.5 meters(8.2 Feet) to all sources of interference, such as televisions or computer monitors, Radio reception is weaker in rooms with concrete walls and in offices. In such extreme circumstances, place the clock close to the window.

Manual time setting:

To start manual DCF signal reception, press and hold the "-" button, If no signal is received within seven minutes, then the DCF signal search stops (the radio mast symbol disappears) and starts again the next full hour.
Press and hold the "SET" button for 2 seconds, 12/24HR start to flash. Now use "+" and "-" buttons to switch 12/24 hour mode.
Press "SET" to confirm your setting, the time zone starts to flash. Use "+" and "-" buttons to set a correct time zone. For UK time please set time zone to -1.
Press "SET" to confirm your setting, the hour display starts to flash. Now use "+" and "-" buttons to set the hour.
Press "SET" to confirm your setting, the minute displays starts to flash. Now use "+" and "-" buttons to set the minute.
Press "SET" to confirm your setting, the year display 2009 starts to flash. Now use "+" and "-" buttons to set the year.
Press SET to confirm your setting, the month display starts to flash. Now use ^ 十 + ^ 一 and - buttons to set the month.
Press "SET" to confirm your setting, the Date display starts to flash. Now use "+" and "-" buttons to set the date.
Press "SET" to confirm your setting, the weekday language display starts to flash. Now use "+" and "-" buttons to set the weekday language in GER, ENG, ITA, FRE, DUT, SPA or DAN
Press "SET" to confirm your setting and to end the setting procedures, enter the clock mode.

Please note:

• If there is no valid operation within 30 seconds, the clock will automatically return to normal time mode from the set mode.

Setting the daily alarm:

Press and hold down the "ALARM" button for 2 seconds until the alarm time is flashing.
The Hour display of the Alarm time starts to flash. Use the "+" and "-" buttons to set the hour. Press "ALARM" button to confirm your setting
The Minute display of the Alarm time starts to flash. Use the "+" and "-" buttons to set the minute. Press "ALARM" button to confirm your setting and to end the setting procedure.
To activate or deactivate the daily alarms, press the "ALARM" button once. When active, a bell icon is

displayed.

Please note:

• If there is no valid operation within 30 seconds, the clock will automatically return to normal time mode from the set mode.
  The alarm will sound for 2 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours.
  Rising alarm sound (crescendo, duration: 2 minutes)

Automatic Snooze function:

While the alarm is sounding, touch the “/” to activate snooze function. The Snooze function is active and a flashing “Z” icon appears on the display.
This stops the alarm for 5 minutes and will sound again.
The Snooze function can be interrupted by pressing any other button.

°C/°F temperature display:

The temperature is displayed either in ^ C or F. Pressing the - button allows you to switch between ^ C or F.

Hereby, Technotrade declares that this product WT260 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and ROHS 2011/65/EC. The original EU declaration of conformity may be found at: www.technoline.de/doc/4029665002606

Specifications:

Battery life 12 months
Environmental requirement: usage -10~50°C & 20%~95%

storage -20\~60°C & 20%~95%

Environmental reception effects

The clock obtains the accurate time with wireless technology. Same as all wireless devices, the reception is maybe affected by the following circumstances:

• long transmitting distance
• nearby mountains and valleys
• near freeway, railway, airports, high voltage cable etc.
• near construction site

among tall buildings
- inside concrete buildings
- near electrical appliances (computers, TV's, etc) and metallic structures
- inside moving vehicles

Place the clock at a location with optimal signal, i.e. close to a window and away from metal surfaces or electrical appliances.

Precautions

• This main unit is intended to be used only indoors.
• Do not subject the unit to excessive force or shock.
• Do not expose the unit to extreme temperatures, direct sunlight, dust or humidity.
• Do not immerse in water.
• Avoid contact with any corrosive materials.
• Do not dispose this unit in a fire as it may explode.
• Do not open the inner back case or tamper with any components of this unit.

Batteries safety warnings

• Use only alkaline batteries, not rechargeable batteries.
  Install batteries correctly by matching the polarities (+ / - )
• Always replace a complete set of batteries.
• Never mix used and new batteries.
• Remove exhausted batteries immediately.
• Remove batteries when not in use.
• Do not recharge and do not dispose of batteries in fire as the batteries may explode.
• Ensure batteries are stored away from metal objects as contact may cause a short circuit.
• Avoid exposing batteries to extreme temperature or humidity or direct sunlight.
• Keep all batteries out of reach from children. They are a choking hazard.

Use the product only for its intended purpose!

Consideration of duty according to the battery law

Old batteries do not belong to domestic waste because they could cause damages of health and environment. You can return used batteries free of charge to your dealer and collection points. As end-user you are committed by law to bring back needed batteries to distributors and other collecting points!

Consideration of duty according to the law of electrical devices

This symbol means that you must dispose of electrical devices separated from the General household waste when it reaches the end of its useful life. Take your unit to your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.
