IAN 296945 - Folding furniture CRIVIT - Free user manual and instructions

Product type	Folding table and stool set
Brand	Crivit
Model	IAN 296945
Intended use	Camping, domestic use
Table dimensions (unfolded)	120 x 60 cm
Table height (adjustable)	55 cm / 60 cm / 70 cm
Stool dimensions (unfolded)	42 x 31 cm, height 40 cm
Dimensions (folded)	62.5 x 11.5 x 63.5 cm
Total weight	Approx. 8.1 kg
Maximum load capacity of table	50 kg
Maximum load capacity per stool	100 kg
Package contents	1 table, 4 stools, 1 instruction manual
Materials	Steel, textile
Height adjustment	Yes, 3 levels (55, 60, 70 cm)
Folding mechanism	With safety locks
Cleaning and care	Damp cloth with mild detergent, dry completely before storage
Safety instructions	Do not leave children unattended, observe maximum loads, check condition before use
Warranty	3 years
After-sales service France	Tel. [phone], Email: [e-mail]
Spare parts	Available during warranty period

Frequently Asked Questions - IAN 296945 CRIVIT

How to unfold the table?

Place the folded table with handles facing up, open the closures, carefully unfold it, then fold the legs upwards until they click into place. Slide the safety locks into the center of the brackets.

How to adjust the table height?

The table has 3 height levels (55, 60, 70 cm). To adjust, snap the locking devices of all four legs to the same height.

What is the maximum load for the table and stools?

The table supports up to 50 kg maximum. Each stool supports up to 100 kg maximum.

How to clean the folding furniture?

Use a damp cloth with a mild detergent. Let all parts dry thoroughly before storing to prevent mold and odors.

Can I use this furniture in windy weather?

In case of extreme weather conditions, such as strong wind, secure the product to prevent it from tipping over.

How to store the furniture?

Place the stools inside the table, secure them with the clip-closure straps, then carefully refold the table and secure it with the closures. Store in a dry place at room temperature.

Is the product guaranteed?

Yes, the product comes with a 3-year warranty from the date of purchase. Keep the receipt as proof.

Can I attach a parasol to the table?

No, do not attach a parasol to the table. Use a parasol with its own frame for stability reasons.

How to unfold the stools?

Take the stools out of the packaging and unfold them as shown in illustration E of the instruction manual.

What to do in case of a defect?

Contact customer service by phone [phone] for France) or by email ([e-mail]) with proof of purchase and a description of the defect.

USER MANUAL IAN 296945 CRIVIT

PDF ONLINE www.lidl-service.com

KLAPPMÖBEL-SET / FOLDING FURNITURE SET / ENSEMBLE TABLE ET SIÈGES PLIANTS

DE AT CH

KLAPPMÖBEL-SET

Assembly, operating and safety instructions

NL BE

VOUWMEUBELSET

Technical line drawing of a briefcase with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a rectangular electronic component with internal compartments and mounting holes (no text or symbols)

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY!

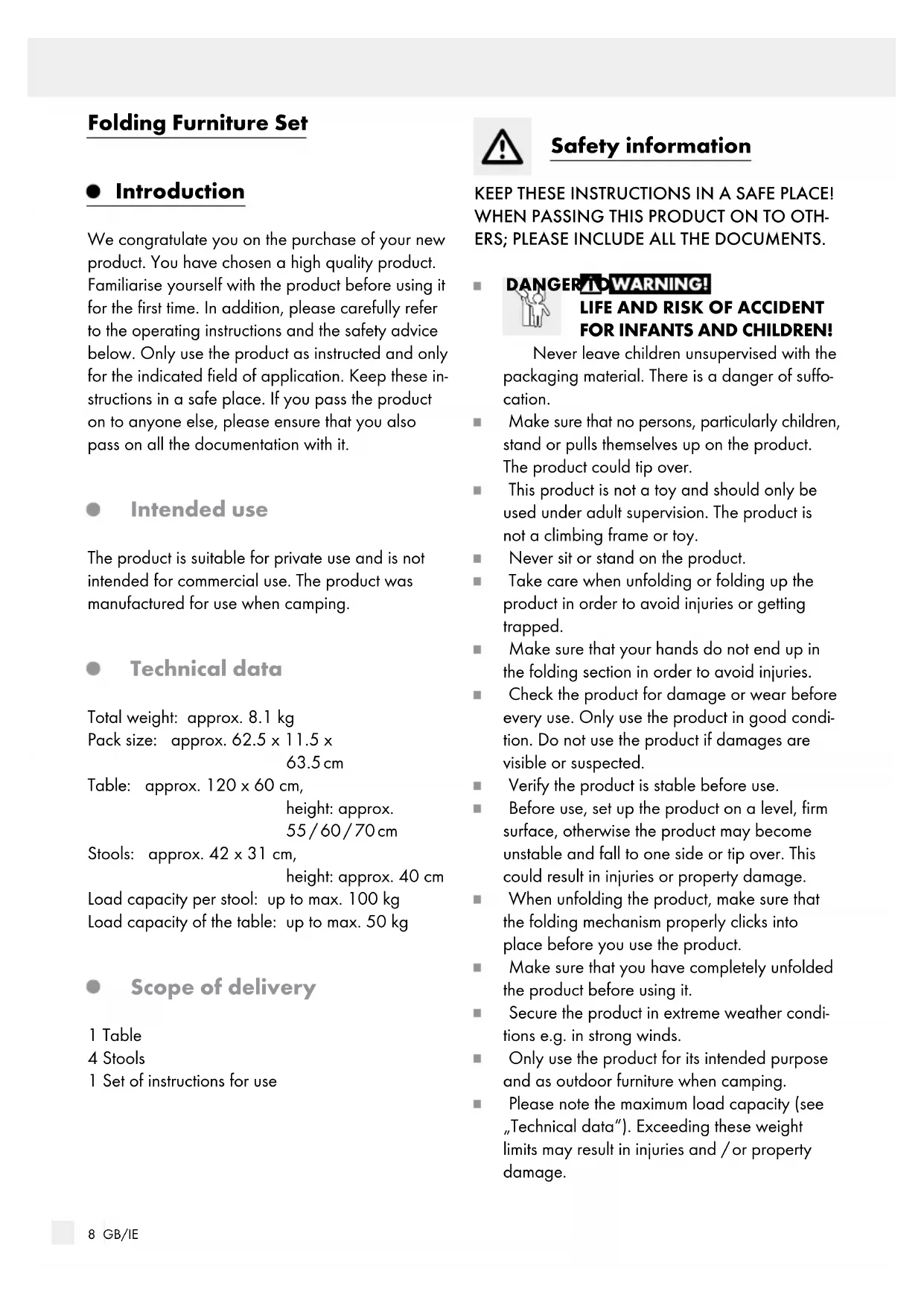

Folding Furniture Set

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is suitable for private use and is not intended for commercial use. The product was manufactured for use when camping.

- Technical data

Total weight: approx. 8.1 kg

Pack size: approx. 62.5 x 11.5 x

63.5 cm

Table: approx. 120 x 60 cm,

height: approx.

55/60/70cm

Stools: approx. 42 x 31 cm,

height: approx. 40 cm

Load capacity per stool: up to max. 100 kg

Load capacity of the table: up to max. 50 kg

- Scope of delivery

1 Table
4 Stools
1 Set of instructions for use

Safety information

KEEP THESE INSTRUCTIONS IN A SAFE PLACE! WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE INCLUDE ALL THE DOCUMENTS.

DANGER TO WARNING!

LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. There is a danger of suffocation.

■ Make sure that no persons, particularly children, stand or pulls themselves up on the product. The product could tip over.
This product is not a toy and should only be used under adult supervision. The product is not a climbing frame or toy.
■ Never sit or stand on the product.
Take care when unfolding or folding up the product in order to avoid injuries or getting trapped.
■ Make sure that your hands do not end up in the folding section in order to avoid injuries.
- Check the product for damage or wear before every use. Only use the product in good condition. Do not use the product if damages are visible or suspected.
- Verify the product is stable before use.
Before use, set up the product on a level, firm surface, otherwise the product may become unstable and fall to one side or tip over. This could result in injuries or property damage.
When unfolding the product, make sure that the folding mechanism properly clicks into place before you use the product.
■ Make sure that you have completely unfolded the product before using it.
- Secure the product in extreme weather conditions e.g. in strong winds.
■ Only use the product for its intended purpose and as outdoor furniture when camping.
Please note the maximum load capacity (see „Technical data“). Exceeding these weight limits may result in injuries and / or property damage.

As this product can be set up simply and quickly, it is not as stable as a standard table. Do not load the table with more than 50 kg of weight and avoid loading it on one side, as this table can tip over faster than standard outdoor tables due to its low weight.
- Do not attach a parasol to the table. Only use a parasol with its own base frame.

RISK OF DAMAGE TO THE PRODUCT OR PROPERTY! We are not liable for accidents resulting from failure to comply with the above safety instructions or from improper handling.

- Installation

Unfolding the table

☐ Remove the product from the packaging. Position it so that the carrying handles are facing upwards, and then undo the clasps on the folded table (see Fig. B).

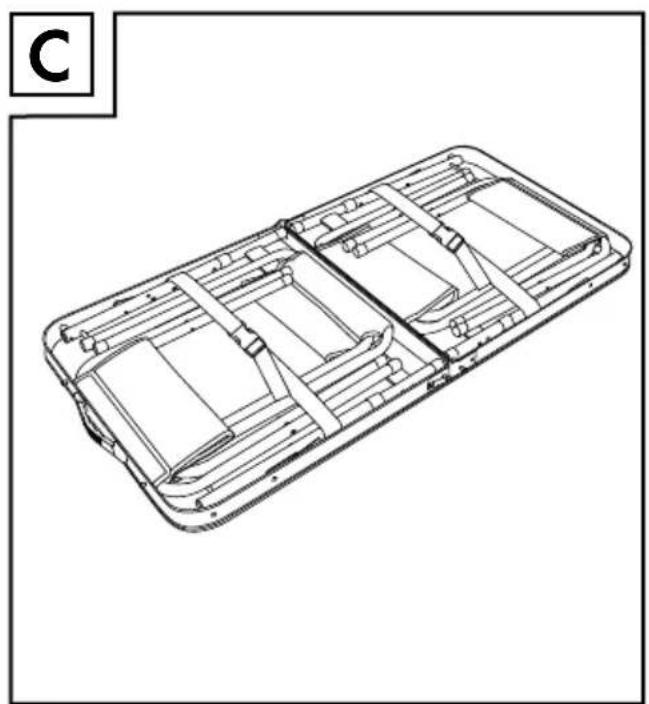

□ Carefully unfold the table and lay it on the ground in front of you (see Fig. C).
☐ Undo the buckle fastening straps and remove the four stools.
☐ Unfold the inner table legs upwards so that you can push in the joint until it locks into place. Then slide the safety bar into the centre of the joint (see Fig. D1).
☐ Now adjust the height of the table legs as shown in Figure D2.
☐ Use the closing mechanism and close the clasps in order to prevent the table from collapsing (see Fig. D3).
☐ Turn the table over and position it on a level surface.

- Adjusting the table height

The table can be set to 3 heights.

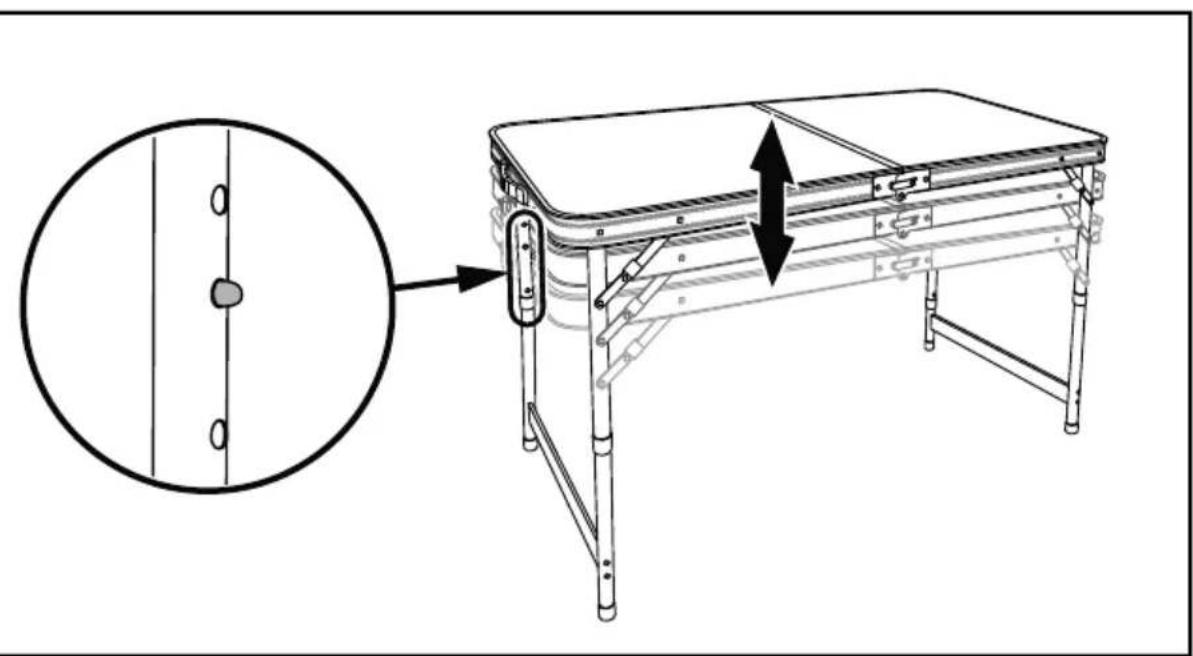

☐ To set your chosen height, allow the locking mechanism to lock into place at the same height on all four legs (see Fig. G).

Using the stools

☐ Remove the stools from the packaging and unfold them as shown in Figure E.

- Collapsing the table

☐ To collapse the table, follow the instructions in the "Unfolding the table" section in reverse order.

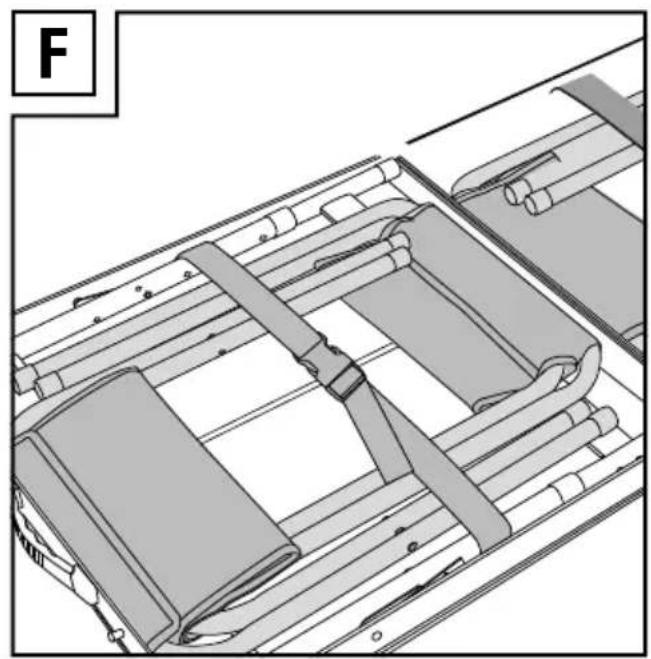

Place the stools within the table and fix these in place using the buckle fastening straps (see Fig. F).
☐ Then carefully fold up the table and secure it with the clasps.

- Cleaning and care

□ Clean the product using a damp cloth and a mild detergent.
- Allow all the parts to dry thoroughly before you put the product away again. This will prevent the build-up of mould, odours and discolouration.

- Storage

Store the product in a sheltered, dry room. Always store the dry and clean product at room temperature.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided

to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

Line drawings of three folding folding chairs, no text or symbols present

Technical diagram of a mechanical assembly with multiple rollers and straps (no text or symbols)

G

Technical diagram of a table with structural components and directional arrows indicating movement or force, including a magnified detail view.
