Ylvie BE 1722 - Scale ADE - Free user manual and instructions

Product type	Electronic bathroom scale
Brand	ADE
Model	Ylvie BE 1722
Dimensions (L × W × H)	300 × 300 × 6 mm
Net weight	Approximately 1.5 kg
Power supply	1 CR2032 3 V battery (included)
Maximum capacity	180 kg
Accuracy	1 % ± 100 g
Graduations	100 g
Measurement units	kg / lb (pound)
Display	LCD digital display
Main functions	Weighing, unit selection, auto-off, step-on calibration
Display retention after weighing	Approximately 10 seconds
Power on	Automatic by pressing on weighing surface
Auto-off	A few seconds after stepping off
Surface material	Tempered glass (likely)
Low battery indicator	Display 'Lo'
Overload indicator	Display 'Err'
Cleaning	Soft, slightly damp cloth; occasional disinfection
Safety precautions	Flat, hard surface; do not use on carpet; avoid wet feet
Warranty	2 years (material and manufacturing defects)
Manufacturer / Distributor	Waagen-Schmitt GmbH, Hamburg, Germany
Country of origin	Not specified (likely Germany or China)
Model number	BE 1722

Frequently Asked Questions - Ylvie BE 1722 ADE

How to change the measurement unit on the ADE Ylvie BE 1722 scale?

Press the UNIT button located under the scale. The display will alternately show kg or lb (pound).

What to do if the scale displays 'Lo'?

The Lo display indicates the battery is low. Replace it with a CR2032 3 V battery, respecting polarity (+/-).

How to calibrate the ADE Ylvie scale?

Place the scale on a hard, flat surface. Step on it briefly to turn it on, then step off. The display shows 0.0 after calibration. Repeat after each battery change.

What is the maximum capacity of this scale?

The scale supports a maximum weight of 180 kg. Beyond that, the display shows Err to indicate overload.

Does the scale work on a carpet or rug?

No, for accurate measurement, place it on a hard, flat, and dry surface. A carpet can distort results.

Why does the displayed weight seem incorrect?

Check that the scale is on a stable surface, the batteries are in good condition, and no electromagnetic devices (phone, radio) are nearby. Reset if necessary by removing the battery for 30 seconds.

How to clean the ADE Ylvie scale?

Wipe with a soft, slightly damp cloth. Never use abrasive or corrosive products. Avoid immersion in water. For disinfection, use a mild commercial disinfectant.

What does the 'C' display on the screen mean?

The C display indicates a weighing error. Step off the scale and restart the weighing procedure.

How to reset the scale to factory settings?

Remove the battery from the compartment, wait a few seconds, then reinsert it respecting polarity (+ facing up). The scale will restart with default settings.

Where can I find the EU declaration of conformity?

The full text of the declaration of conformity is available online at www.ade-germany.de/doc.

USER MANUAL Ylvie BE 1722 ADE

22089 Hamburg, Germany

You have chosen to purchase a high-quality product from the brand ADE, which combines intelligent functions with an exceptional design. These bathroom scales make it possible for you to determine and monitor your body weight. The many years of experience of the brand ADE ensures a high technical standard and proven quality.

We hope you enjoy weighing yourself and wish you success in reaching your goal weight!

Your ADE Team

General information

About this manual

This operating manual describes how to safely use and care for your products. Keep this operating manual in a safe place in case you would like to refer to it later. If you pass this item on to someone else, pass on this manual as well.

Failure to observe the recommendations in this operating manual can lead to injuries or damage to your product.

Explanation of symbols

This symbol, combined with the word DANGER, warns against serious injury.

This symbol, combined with the word WARNING, warns against moderate and mild injuries.

This symbol, combined with the word NOTE, warns against material damage.

This symbol signifies additional information and general advice.

Table of Contents

General information 12
Intended Use 14
Safety. 14
Overview 16
Scope of Delivery. 16
Start-up 17
Weighing 18
Resetting the scale. 18
Cleaning. 18
Fault/Remedy. 19
Technical Data 19
Declaration of Conformity 20
Guarantee. 20
Disposal. 21

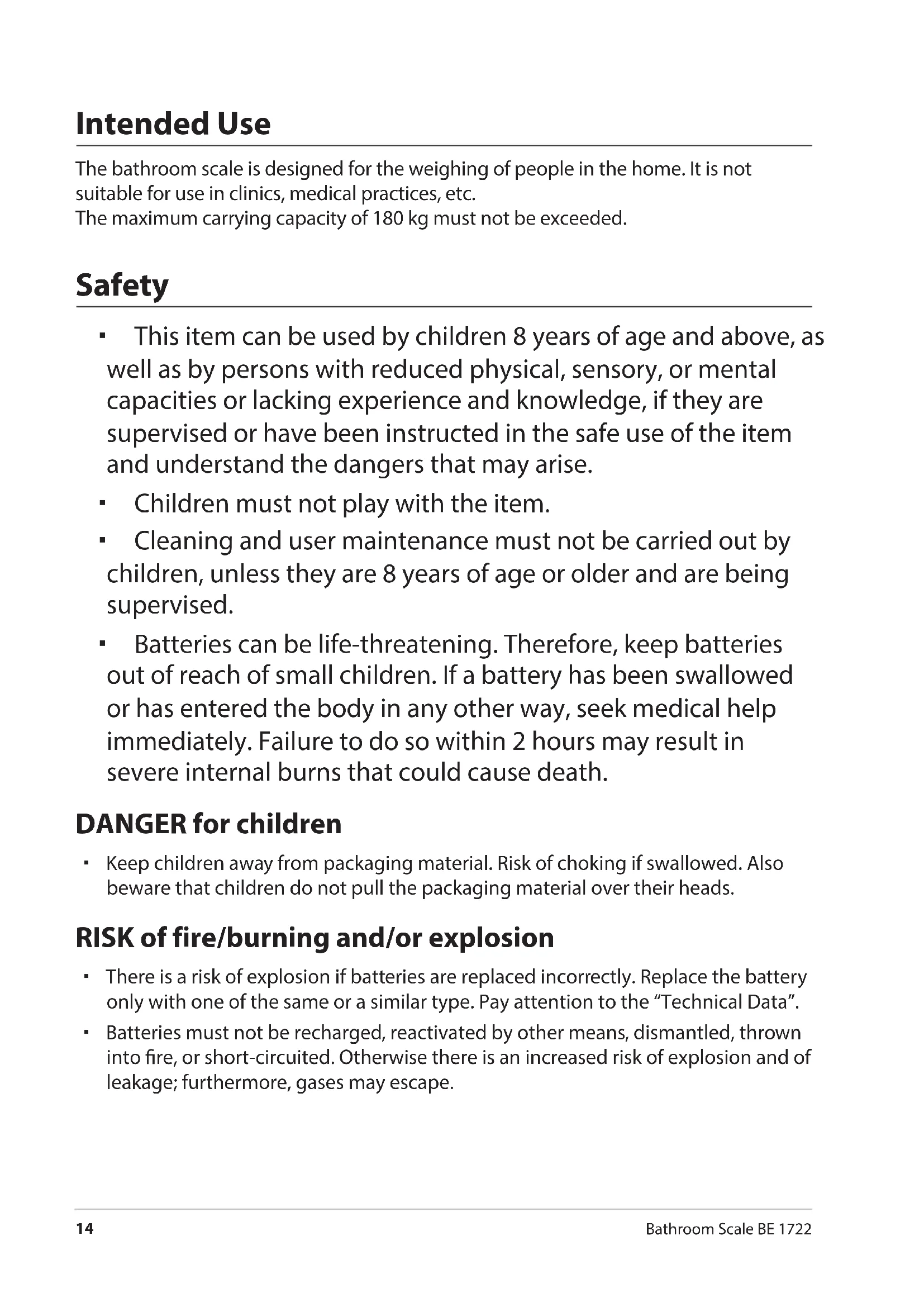

The bathroom scale is designed for the weighing of people in the home. It is not suitable for use in clinics, medical practices, etc.

The maximum carrying capacity of 180kg must not be exceeded.

Safety

• This item can be used by children 8 years of age and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge, if they are supervised or have been instructed in the safe use of the item and understand the dangers that may arise.
  Children must not play with the item.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries can be life-threatening. Therefore, keep batteries out of reach of small children. If a battery has been swallowed or has entered the body in any other way, seek medical help immediately. Failure to do so within 2 hours may result in severe internal burns that could cause death.

DANGER for children

• Keep children away from packaging material. Risk of choking if swallowed. Also, beware that children do not pull the packaging material over their heads.

RISK of fire/burning and/or explosion

• There is a risk of explosion if batteries are replaced incorrectly. Replace the battery only with one of the same or a similar type. Pay attention to the "Technical Data".

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise there is an increased risk of explosion and of leakage; furthermore, gases may escape.

• Avoid contact with skin, eyes, and mucosa. If contact is made with the battery fluid, rinse the affected areas immediately with plenty of clean water and see a doctor straight away.

WARNING against risk of injury

• Do not step onto the outer edge of any one side of the scale. Risk of tipping!
• Do not step onto the scale with wet feet or when its surface is damp. Risk of slipping!

BEWARE of material damage

• Place the scale on a stable, even surface.
• Do not overload the scale. Pay attention to the "Technical Data". Place yourself on the scale exclusively for weighing purposes.
• Protect the scale from sharp jolts and vibrations.
• Remove the battery from the scale once it has been used or when you are no longer using the scale. You will thus avoid damage that may result from the leakage of battery acid.
• When inserting and changing batteries, pay attention to the correct polarity (+/-) .
• Do not subject the battery to any extreme conditions, by – for example – storing it on radiators or under direct sunlight. Increased risk of leakage!
• Clean the battery and device contacts, as needed, before inserting the battery.
• Do not make any modifications to the item. Only allow repairs to be carried out at a specialist workshop. Repairs carried out incorrectly can considerably endanger the user.
• Do not place the scale in the vicinity of devices which may emit electromagnetic radiation, such as mobile phones, wireless devices, or the like. Doing so may lead to incorrect display indicators or malfunctions.
• There are feet on the underside of the scale. Since surfaces are made from various materials and are treated with diverse care products, the possibility cannot be completely excluded that some of these substances contain constituents that attack and soften the feet of the device. If necessary, place an anti-slip underlay beneath the scale.

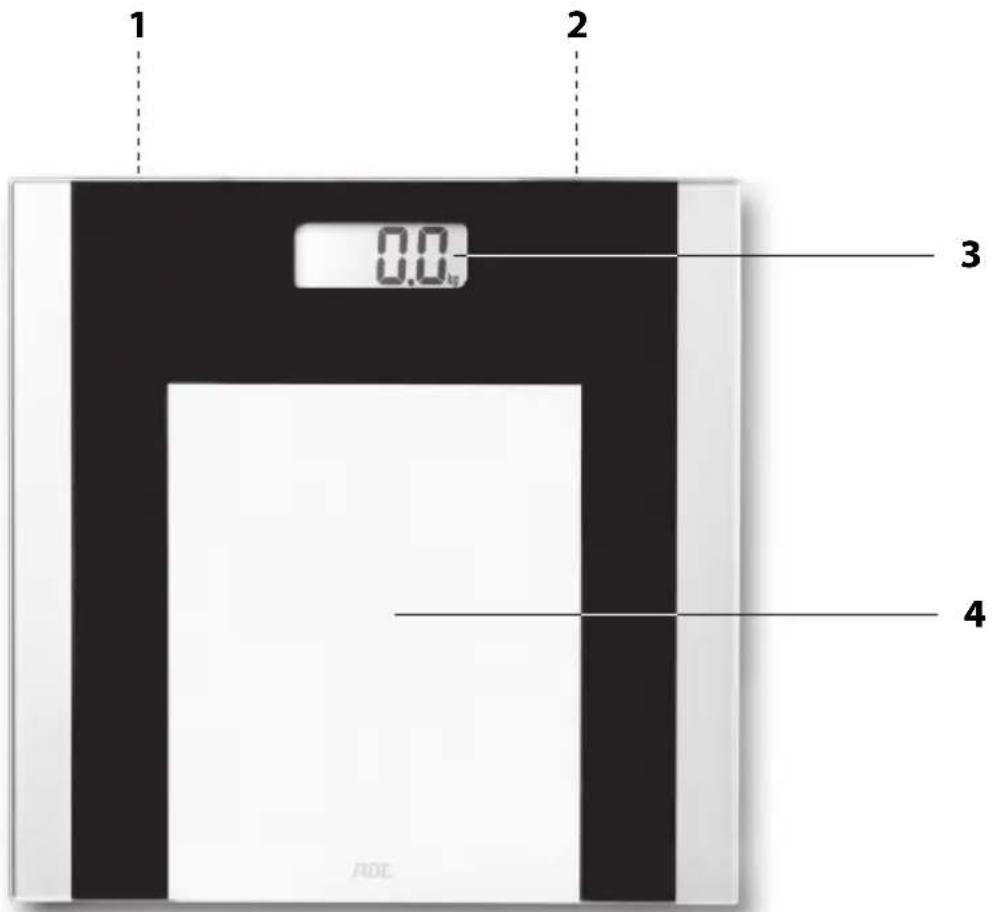

1 UNIT button (underside): Changing the unit of measurement
2 Battery compartment (underside)
3 Display
4 Weighing surface

Scope of Delivery

• Bathroom scales
  Battery type CR2032, 3
• Operating Manual

Inserting/changing battery

For use you require one battery of the type CR2032, 3 V (included). The battery compartment is located on the underside of the device.

1. Remove the battery compartment cover.
2. Push the battery towards the contact springs under the big, angular retaining plate and then press it down. The battery will snap into the holding lugs on the opposite side and the battery will be held firmly in its holder.

Pay attention to the correct polarity (+ / -) . The plus pole (+) must point upwards.

1. Put the battery compartment cover back in place. The battery compartment cover must snap securely into place.

Suggestions for changing the battery:

• A battery change is necessary when "Lo" or nothing at all is shown on the display.
• Only use the type of battery that is specified in the "Technical Data".
• Dispose of batteries in an environmentally appropriate way (see "Disposal").
• Calibrate the scale, see "Positioning the scale".

Choosing the unit of measurement

When the scale is delivered, the unit of measurement is set to "kg" as standard. However, the measurement can also be displayed in the English unit of measure "lb" (pounds).

• Push the UNIT button on the back of the scale.

Pay attention to the display indicator.

Positioning the scale

1. Place the scale on an even, firm, and dry surface. Do not place the scale on carpet.
2. First, briefly step onto the middle of the weighing surface to calibrate the scale. As soon as the display shows "0.0", calibration is complete.

This calibration must be performed after each battery change.

WARNING against injuries

• Do not step onto the scale with wet feet or when its surface is damp. Risk of slipping!

• Position yourself on the scale. Remain standing still and do not hold on to anything.

The scale switches on and the display flashes shortly afterwards: The weight measurement is displayed in the selected unit of measure.

A few seconds after you step off the weighing surface, the scale will switch off automatically.

• The weight is displayed for up to approx. 10 seconds after leaving the scale. When you step on the weighing platform using slight force, the display shows "0.0" and you can weigh yourself again.

• Weigh yourself with as little clothing on as possible.

• Try to weigh yourself always at the same time and under consistent conditions in order to obtain comparable values.

Resetting the scale

Reset the scale to factory settings if unusual or obviously incorrect values are shown on the display.

1. Remove the battery from the battery compartment and wait a moment.
2. Re-insert the battery. Pay attention to the correct polarity of the batteries (+/-) . The plus pole (+) must point upwards.

After switching the scale on, you can weigh yourself as usual.

Cleaning

NOTE on material damage

-Do not immerse the scale in water or other liquids.

• Do not under any circumstances use harsh, scraping, or abrasive cleaning agents or the like to clean the scale. If you do, the surface could be scratched.

• Wipe down the scale as needed using a lightly dampened, soft cloth.

• Disinfect the weighing surface from time to time using a suitable disinfecting agent (available at specialist retailers and pharmacies).

Fault/Remedy

Fault Possible Cause
No function	·Battery empty or inserted the wrong way around?
The scale appear to be displaying false weighing results	·Is the scale standing on a firm, even surface? ·Is a device that can cause electromagnetic disturbances located in the vicinity of the scale? ·Remove the battery from the scale and wait a moment. Reinsert the battery.
“Err” is shown on the display	·The maximum capacity of the scale (180 kg) has been exceeded.
“Lo” is shown on the display	·The battery is empty (see “Inserting/ changing the battery”).
“C” is shown on the display	·An error occurred. Step off the scale and repeat the weighing procedure.

Technical Data

Model: Bathroom Scale BE 1722 "Ylvie"

Battery: 1x CR2032/3 V

Rated current: 2.5mA

Measuring range: max. 180kg

Variance: 1% + / - 100g

Indicator division: 100 g

Weight: approx. 1.5kg

Dimensions of scale: approx. 300 × 300 × 6 mm

Distributor: Waagen-Schmitt GmbH

(no service address) Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved.

For this reason, design and technical modifications are possible at any time.

Waagen-Schmitt GmbH hereby declares that the bathroom scale BE 1722 complies with EU directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.ade-germany.de/doc

The declaration loses its validity if modifications have been made to the device without our approval.

Hamburg, March 2018

Waagen-Schmitt GmbH

Guarantee

The company Waagen-Schmitt GmbH guarantees for 2 years from the purchase date the cost-free rectification of defects on the basis of material or fabrication errors through repair or exchange.

In the event of a guarantee claim, please return the product with the proof of purchase (stipulating the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging with similar materials. Put cardboard with waste paper, films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Hand in the old device at a collection point for electronic waste or at a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Recyclable and disposable batteries do not belong in household waste

All batteries must be handed in at a collection point in your community, suburb, or at the retailer. Such batteries can thus be disposed of in an environmentally friendly way.
