Product type	Analog alarm clock radio
Brand	ADE
Model	CK 1820
Power supply	2 LR6 (AA) 1.5 V batteries
Display	Analog dial with hour, minute and second hands
Alarm function	Yes, with progressive alarm
Snooze function	Yes, repeats every 5 minutes
Automatic alarm shut-off	After 45 minutes
Dial illumination	Yes, about 10 seconds on button press
Time setting	Setting wheel (clockwise)
Alarm setting	Separate setting wheel
Alarm on/off	Sliding switch
Care and cleaning	Soft dry or slightly damp cloth; do not immerse
Safety	Use by children from age 8 under supervision; batteries out of reach of small children
Recommended battery type	Alkaline type LR6 (AA)
Warranty	2 years (material or manufacturing defects)
Dimensions (approx.)	Approximately 10 x 10 x 5 cm (estimate)
Weight (approx.)	Approximately 200 g (with batteries)
Instruction manual included	Yes, free download

Frequently Asked Questions - CK 1820 ADE

How do I set the time on the ADE CK 1820 alarm clock radio?

Turn the time setting wheel (located on the back or side) in the direction of the indicated arrow. The hands advance. Only turn clockwise to avoid damaging the mechanism.

How do I set the alarm?

Use the alarm time setting wheel (separate from the time wheel). Turn it in the direction of the arrow to position the alarm hand on the desired time. Then, slide the on/off switch to the '⏻' (on) position to activate the alarm.

How do I use the snooze function?

When the alarm sounds, press the Snooze button once (on top of the device). The alarm stops and rings again after 5 minutes. You can repeat this process several times.

How do I turn off the alarm permanently?

Slide the alarm on/off switch to the '⚙' (off) position. The alarm will not sound again until reactivated.

How do I activate the dial illumination?

Press the Snooze/light button on top of the device. The dial lights up for about 10 seconds.

What should I do if the device no longer works?

First check the batteries: are they dead or inserted backwards? If the problem persists, replace the batteries with two new LR6 (AA) batteries, observing polarity (+/-).

How do I replace the batteries?

Remove the battery compartment cover (located on the back). Insert two LR6 (AA) 1.5 V batteries according to the polarity markings (+/-) inside the compartment. Close the cover until it clicks. Always replace both batteries at the same time.

What type of batteries should I use?

Use only LR6 (AA) 1.5 V batteries. Preferably alkaline batteries for longer life. Do not mix different types of batteries.

How do I clean the alarm clock radio?

Clean the device with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth. Never immerse the device in water and do not use harsh or abrasive cleaners.

Does the alarm ring for a long time?

The alarm automatically stops after 45 minutes if you do not press any button. You can also stop it manually by pressing the Snooze button (5-minute pause) or by turning off the alarm with the slide switch.

USER MANUAL CK 1820 ADE

Close-up of a black analog wall clock showing time approximately 10:30 (no text or symbols beyond 'ADE' label)

Bedienungsanleitung

Simple icon of a person using a laptop inside a circle (no text or symbols)

CK 1820

Operating Manual | Manual de instrucciones | Mode d'emploi | Istruzioni per l'uso | Instrukcja obsługi

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Warning symbol with exclamation mark inside a triangle (no text or numbers)

22089 Hamburg, Germany

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

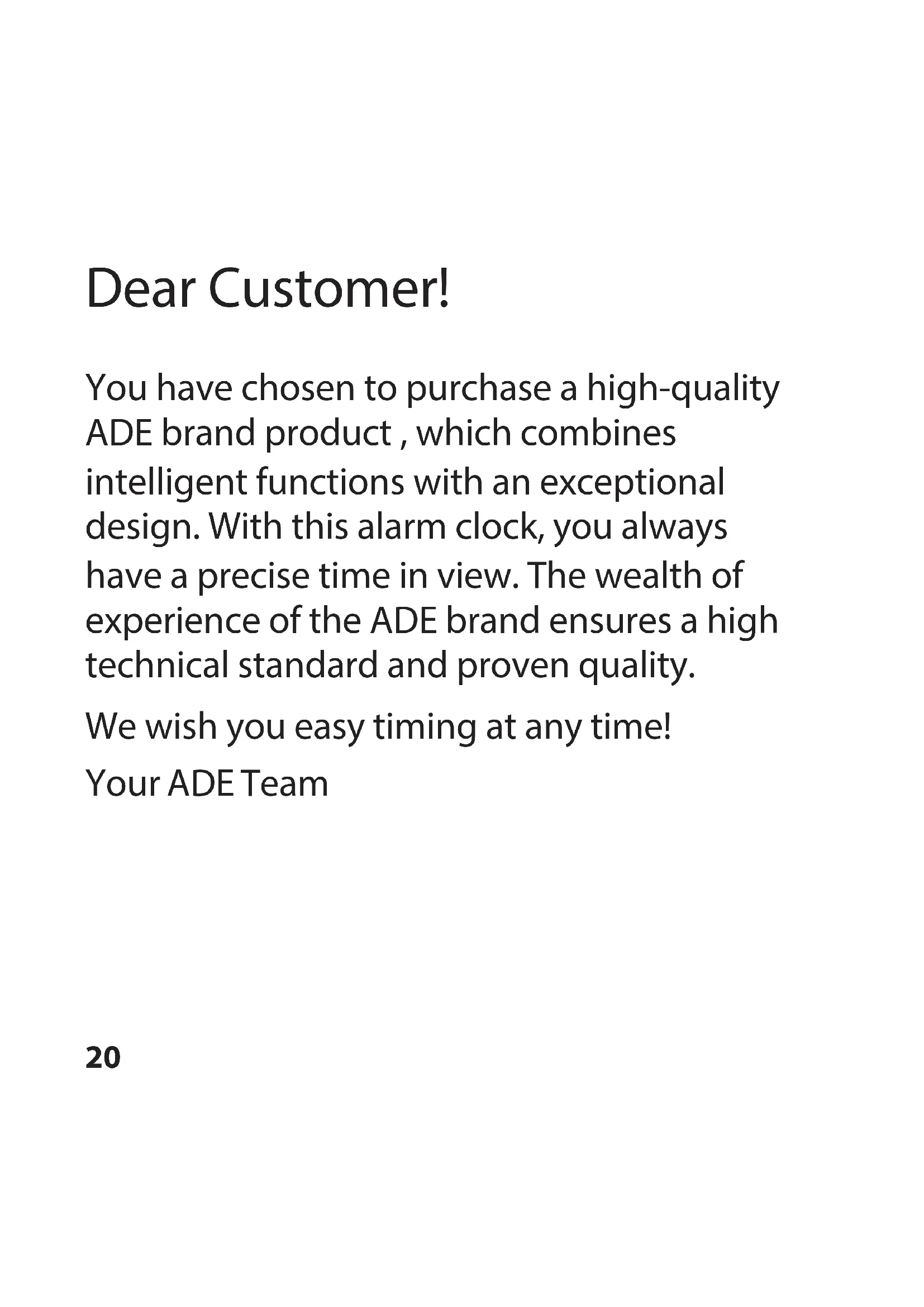

You have chosen to purchase a high-quality ADE brand product, which combines intelligent functions with an exceptional design. With this alarm clock, you always have a precise time in view. The wealth of experience of the ADE brand ensures a high technical standard and proven quality.

We wish you easy timing at any time!

Your ADE Team

General information

About this operating manual

Simple icon of a person using a laptop inside a circle (no text or symbols)

This operating manual describes how to operate and maintain your product safely.

Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

Pull the protective film off the display.

Explanation of symbols

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word DANGER warns of serious injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word WARNING warns of moderate and mild injuries.

Warning symbol with exclamation mark inside a triangle (no text or numbers)

This symbol combined with the word NOTE warns of material damage.

Simple black icon of an information symbol inside a circle (no text or numbers)

This symbol indicates additional information and general notes.

Table of Contents

General information ......21

Intended use....24

Safety....24

At a glance....28

Scope of delivery....30

Starting up....30

Setting the time....31

Alarm 31

Light 33

Cleaning....33

Fault and remedy 33

Technical data ....34

Declaration of Conformity....35

Warranty 35

Disposal 36

Intended use

This alarm clock is designed for private use in dry indoor environments.

Safety

- This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.

• Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.

- Batteries, when swallowed, can be life-threatening. Keep the product and batteries out of reach of small children. If a battery has been swallowed, seek medical help immediately.

DANGER for children

- Keep children away from packaging material. There is a risk of choking if swallowed.

RISK of fire/burning and/or explosion

- There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or an equivalent battery type. Observe the “Technical data”.

- Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited.

Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

- Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

- Protect the alarm clock from strong shocks, vibrations, and moisture.

- Remove the batteries from the device when they are depleted or when the alarm clock will not be used for a longer period of time. This prevents damage that may be caused by leakage.

- When inserting and changing batteries, pay attention to the correct polarity (+/-).

- Do not expose the batteries to extreme conditions, for example, by storing them on

radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.
• Only use batteries of the same type.
• Do not make any changes to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.
• Some varnishes or furniture care products may possibly attack and soften the material of the slip-resistant foot. To avoid unwanted traces, place a non-slip pad under the product, if necessary.

At a glance

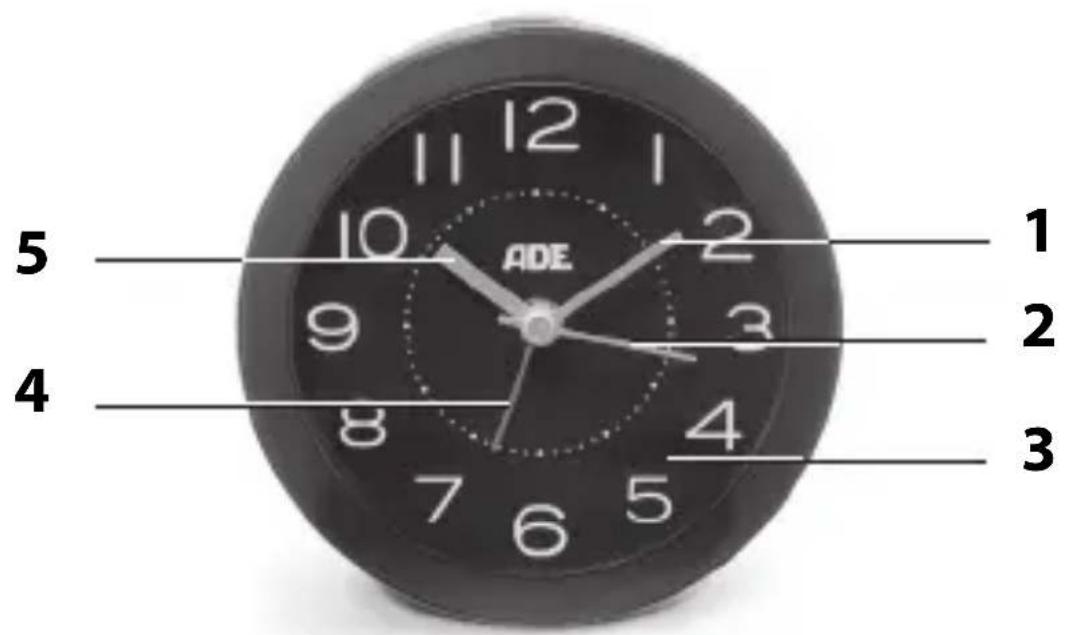

5 10 2 9 3 4 8 4 7 6 5 ADE 1 2 3

1 Minute hand
2 Second hand
3 Dial
4 Alarm hand
5 Hour hand

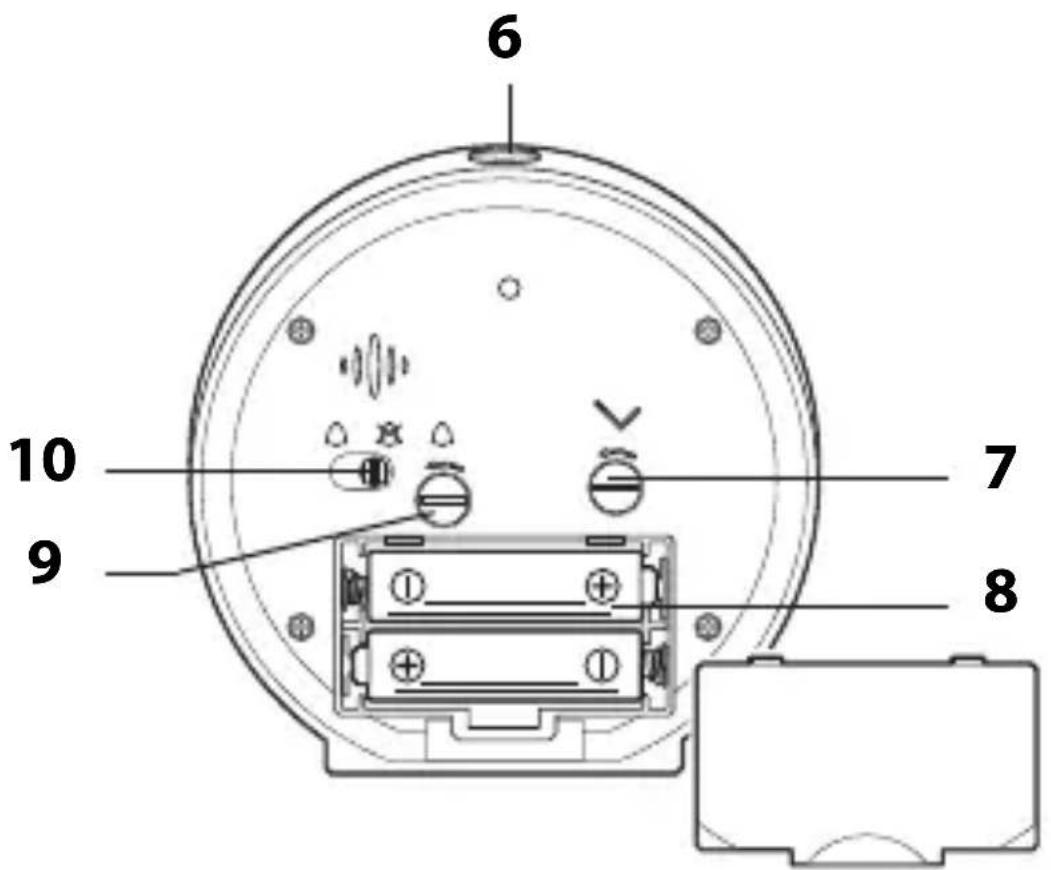

6 10 7 9 8

6 Snooze and light button

7 Time knob

8 Battery compartment, 2x LR/R6 (AA), 1.5 V

9 Alarm knob

10 On/off switch for alarm function

Scope of delivery

• Analogue alarm clock with backlight
• Battery type LR/R6 (AA), 1.5 V—(2x)
• Operating Manual

Starting up

1. Remove the battery compartment cover upwards.
2. Insert the batteries as shown on the bottom of the battery compartment. Pay attention to the correct polarity (+/-).
3. Replace the battery compartment cover and press it down. The battery compartment lid must engage audibly.

Notes on changing the battery:

• When the hands stop, the batteries must be changed.
• Always exchange all of the batteries at the same time.

- Only use the battery type specified in the "Technical Data".

- Dispose of old batteries in an environmentally friendly manner, see “Disposal”.

Setting the time

-Use the time knob to set the time. Turn the knob only in the direction of the arrow

Alarm

Setting and enabling the alarm time

1. Use the alarm knob to set the time. Turn the knob only in the direction of the arrow

2. To enable the alarm function, slide the on/off switch to 🔒.

Waking up

At the set time, you will be woken by an alarm signal, which will become more intense as the waking time increases.

Auto-stop function

If you do not press a button, the alarm switches off automatically after 45 minutes.

Repeat alarm (snooze function)

-Press the button 1x when the alarm sounds. After 5 minutes, the device switches on again and wakes you up again. This procedure can be repeated multiple times.

Disabling the alarm function

-Slide the on/off switch to ⚙

Light

-Press the button to light up the dial for about 10 seconds.

Cleaning

Do not immerse the alarm clock in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

- If necessary, use a soft, dry cloth, or a slightly moistened one to wipe the alarm clock.

Fault and remedy

No function.

- Are the batteries empty or inserted the wrong way around?

The alarm clock does not trigger.

- Is the on/off switch set to ☐?

Technical data

Model: CK 1820 analogue alarm clock

Batteries: 2x R6 (AA), 1.5 V

Rated current: < 0.3 A

Distributor (no service address):

Waagen-Schmitt GmbH

Hammer Steindamm 27-29

22089 Hamburg, Germany

Our products are constantly being developed and improved. For this reason, design and technical modifications are possible at any time.

Declaration of Conformity

Waagen-Schmitt GmbH hereby declares that the CK 1820 analogue alarm clock complies with EU directives 2014/30/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, March 2019 Waagen-Schmitt GmbH

Warranty

Waagen-Schmitt GmbH warrants for 2 years from the purchase date the cost-free rectification of defects in material and workmanship through repair or exchange.

In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposal

Disposing of the packaging

Recycling symbol composed of four arrows forming a triangle (no text or labels)

Dispose of the packaging with similar materials. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way. In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided. Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All standard and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such standard and rechargeable batteries can thus be disposed of in an environmentally friendly way.
