Product type	Built-in electric oven
Brand	AEG
Model	BPK742280B
Capacity	71 L
Dimensions (front)	594 x 595 x 567 mm (H x W x D)
Dimensions (rear)	576 x 559 x 567 mm (H x W x D)
Recess dimensions	578 - 600 x 560 x 550 mm (H x W x D)
Weight	34.5 kg
Supply voltage	230 V, 50 Hz
Energy efficiency class	A++
Energy consumption (fan-assisted)	0.52 kWh/cycle
Energy consumption (conventional)	1.09 kWh/cycle
Number of cooking levels	8
Cooking modes	Fan-assisted, Top/Bottom heat, Grill, Turbo grill, Assisted cooking, Pizza function, Bottom heat, Bread baking, Dough proving, Frozen dishes, Sterilization, Dehydration, Plate warming, Defrosting, Gratinating, Low-temperature cooking, Keep warm, Moist air circulation
Special functions	Pyrolytic cleaning (fast, normal, intensive), Meat probe, Assisted cooking with automatic weight, Quick preheating, Delayed start, Keep warm, Key lock, Automatic shut-off, My programmes (3 favourites)
Included accessories	Metal grid, Baking tray, Roasting dish, Meat probe
Lighting	Bulb resistant to 300 °C, energy efficiency class G
Child safety	Yes (key lock and alphabetical code)
Cleaning	Pyrolysis, removable shelf supports, removable door
Repairability	Original spare parts, approved after-sales service

Frequently Asked Questions - BPK742280B AEG

How to set the time on the oven?

After first connection, the display shows a welcome message. Navigate to the Settings menu then Current time to set the time. Confirm with OK.

What to do if the oven does not heat up?

First check that the clock is set, the door is properly closed, and the fuse has not tripped. If child safety is activated, deactivate it. Refer to the Troubleshooting chapter in the manual.

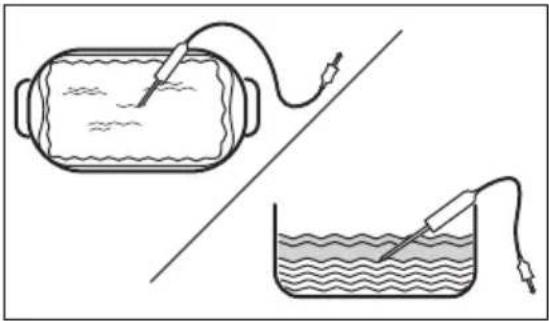

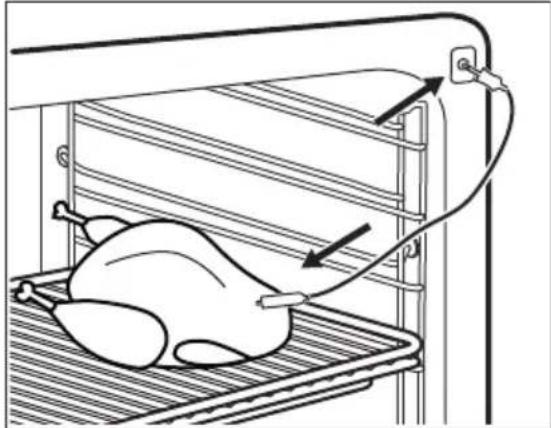

How to use the meat probe?

Insert the probe into the thickest part of the food. Plug it into the front socket of the oven. Select a cooking mode, set the oven temperature (min. 120 °C) and the desired core temperature. Press START. A sound signal sounds when the temperature is reached.

How to clean the oven with pyrolysis?

Remove all accessories and shelf supports. Select Cleaning in the menu, then choose the duration: fast (1 h), normal (1 h 30 min), or intensive (3 h). The door locks automatically. Once finished, wipe the ashes with a damp cloth.

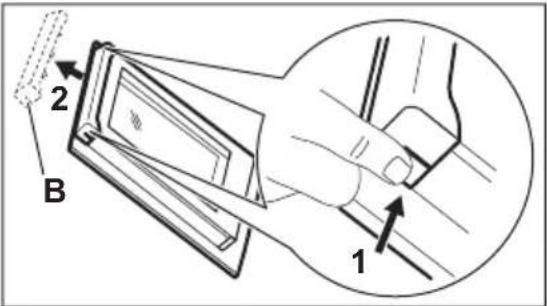

How to disassemble the oven door for cleaning?

Open the door fully, lift the locking levers on the hinges, then close the door to 70°. Hold it on both sides and remove it by lifting. Place it on a soft cloth. Remove the trim and glass panels by releasing them from the guide. Clean with soapy water and reassemble in reverse order.

How to activate child safety?

In the Options menu, select Child safety and activate it. When the oven is turned on, an alphabetical code appears; select the letters in alphabetical order to unlock. The door remains locked even when the oven is off.

Which cooking mode to choose for a cake?

For sponge cake or classic cake, use Top/Bottom heat or Fan-assisted (reduce temperature by 20-40 °C). For pies with crispy base, prefer Bottom heat or Pizza function.

How to save energy with this oven?

Use the Moist air circulation function which reduces consumption. Do not preheat systematically, use residual heat by turning off 3-10 min before the end, and keep dishes warm at low temperature. Turn off the light during cooking.

What to do if an error code like C2 or F111 appears?

Code C2 means that the meat probe was left in the oven during pyrolysis: remove it. C3 indicates that the door is not properly closed. F111 means that the probe is not fully inserted into the socket. Follow the instructions in the Troubleshooting chapter.

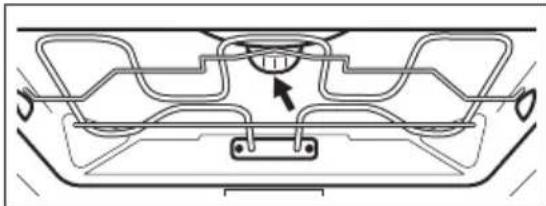

How to replace the oven light bulb?

Turn off and unplug the oven. For the top lighting, turn the glass diffuser, replace with a 300 °C resistant bulb (identical type). For the side lighting, remove the left shelf support, then the glass cover with a flat object. Replace the bulb and reassemble.

USER MANUAL BPK742280B AEG

Simple line drawing of a kitchen oven (no text or symbols)

BD742P

BPE742280M

BPK742280B

BPK742280M

BPK742280T

TIL PERFEKTE RESULTATER

2.1 Installation....5

2.2 El-forbindelse....6

2.3 Brug....7

Pure electrical circuit lines without any symbols

4. SÅDAN TÄENDES OG SLUKKES OVNEN

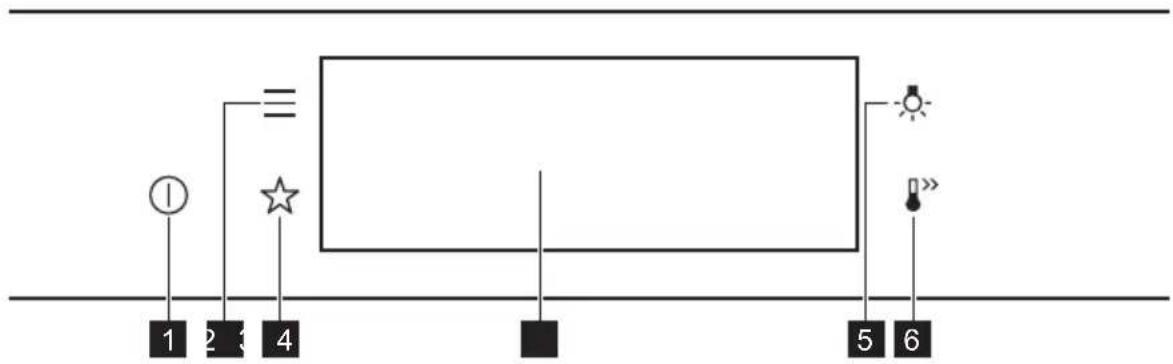

4.1 Betjeningspanel

1 3 4 5 6

11.2 Fjernelse: Ovnribber

14.5 Undermenu for: Service

Undermenu Beskrivelse
Demo funktion Aktiverings- / deaktiveringskode: 2468
Softwareversion Oplysninger om softwareversion.
Nulstil alle indstillinger Gendanner fabriksindstillingerne.

15. DET ER NEMT!

3. BESCHRIJVING VAN HET PRODUCT.....47

3.1 Algemeen overzicht.... 47
3.2 Accessoires.... 47

4. HET IN- EN UITSCHAKELEN VAN DE OVEN.... 48

4.1 Bedieningspaneel.... 48
4.2 Display....49

5. VOORAFGAAND AAN HET EERSTE GEBRUIK....50

12. PROBLEEMOPLOSSING....69

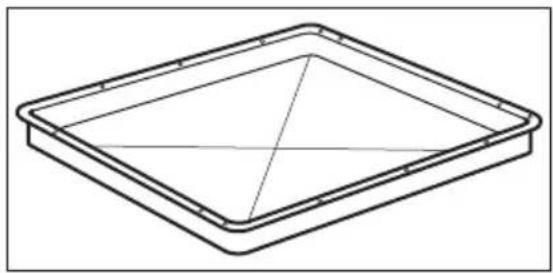

Three technical line drawings of a rectangular tray with internal grating, shown from different angles (no text or symbols)

Voedselsensor

Pure electrical circuit lines without any symbols

4. HET IN- EN UITSCHAKELEN VAN DE OVEN

Technical line drawing of a structural framework with an inset magnified detail (no text or symbols)

8.2 Voedselsensor

12. PROBLEEMOPLOSSING

WAARSCHUWING!

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

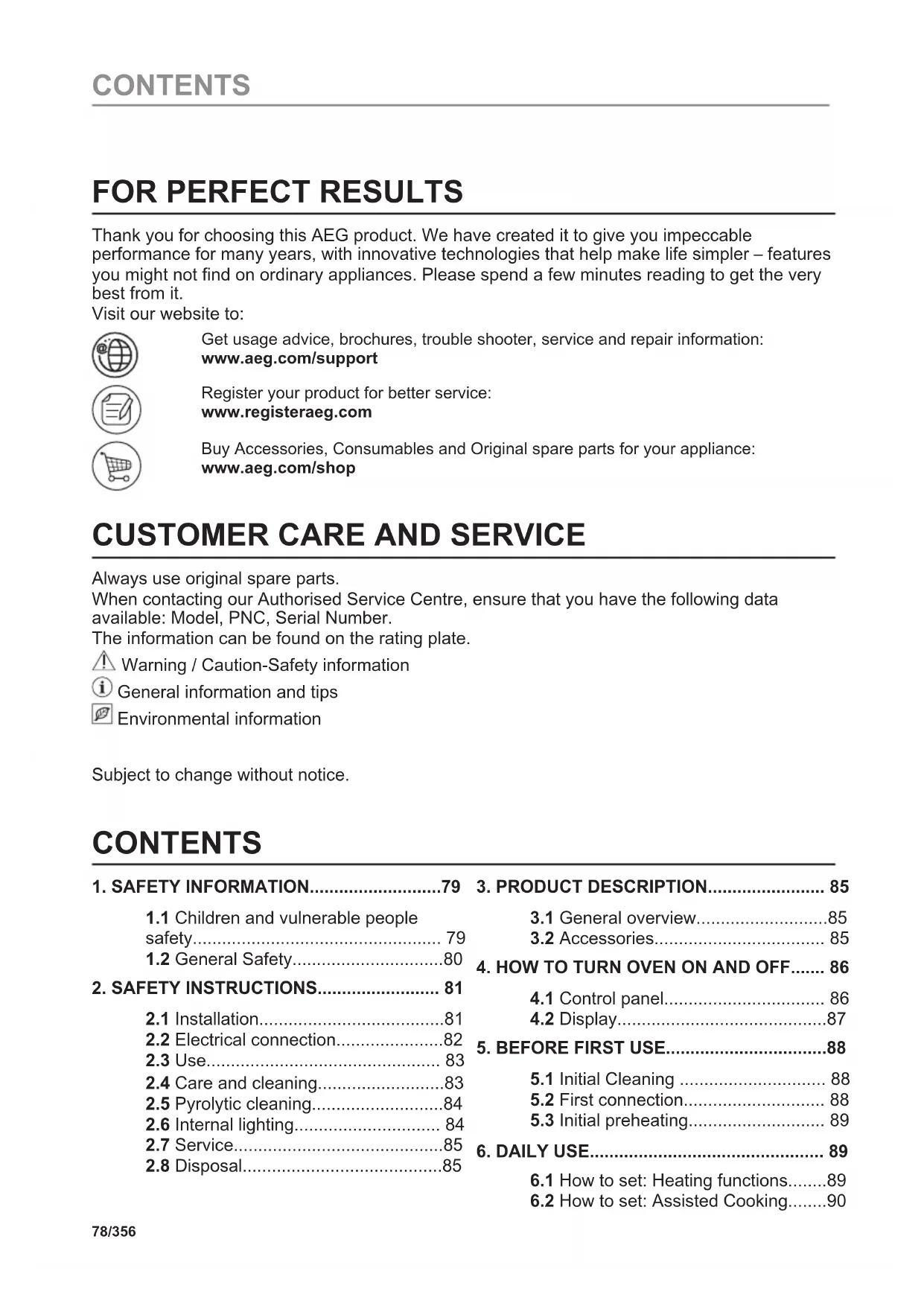

CONTENTS

1. SAFETY INFORMATION......79

1.1 Children and vulnerable people safety....79

1.2 General Safety......80

2. SAFETY INSTRUCTIONS...... 81

2.1 Installation......81

2.2 Electrical connection....82

2.3 Use....83

2.4 Care and cleaning....83

2.5 Pyrolytic cleaning....84

2.6 Internal lighting.... 84

2.7 Service....85

2.8 Disposal....85

3. PRODUCT DESCRIPTION...... 85

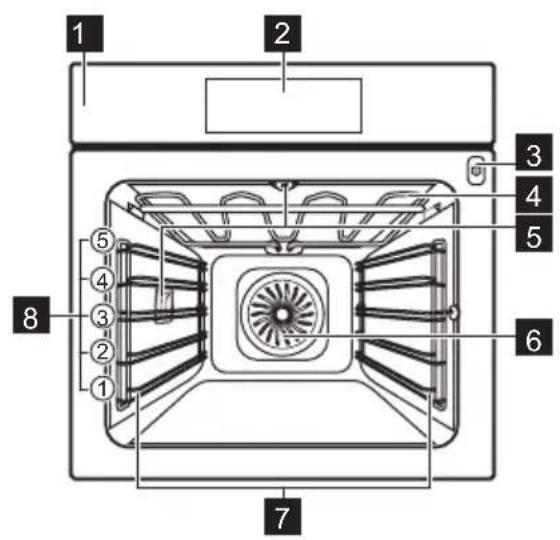

3.1 General overview....85

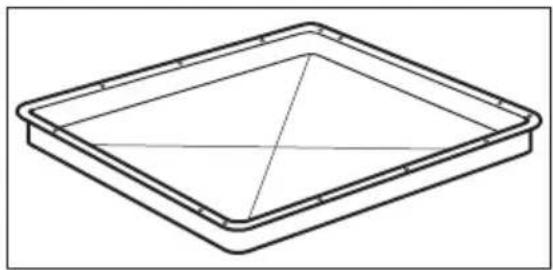

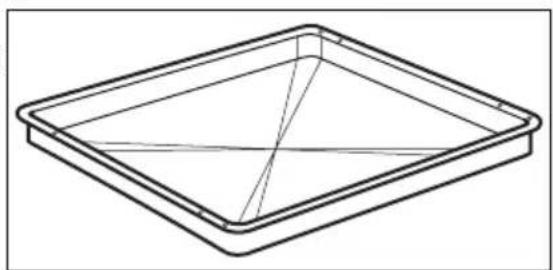

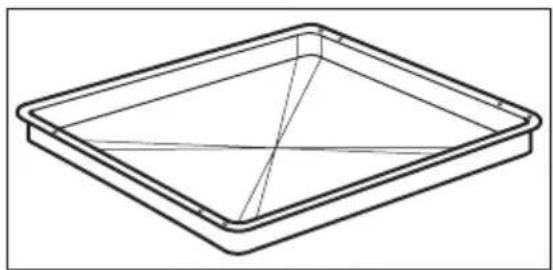

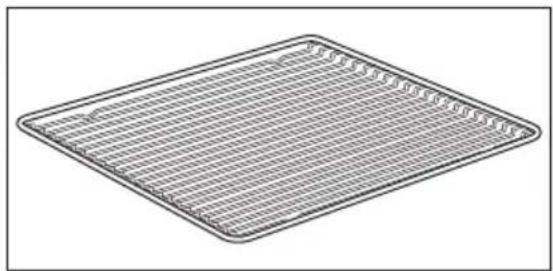

3.2 Accessories.... 85

4. HOW TO TURN OVEN ON AND OFF..... 86

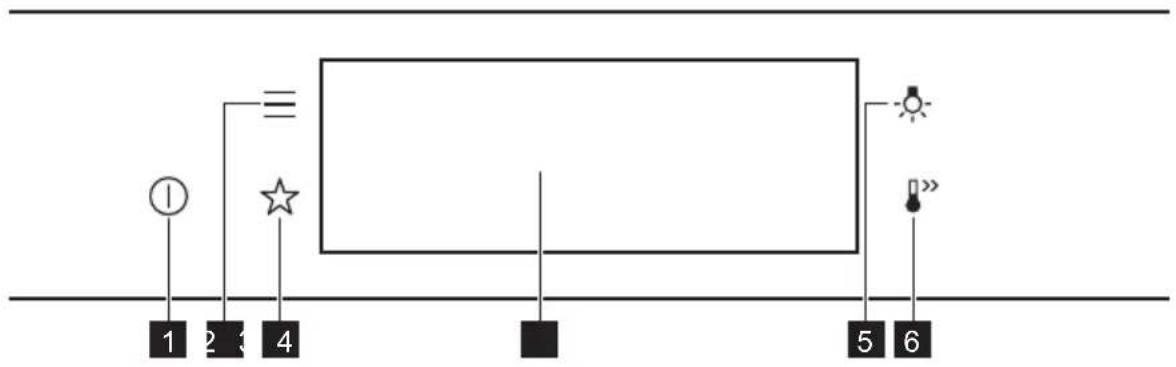

4.1 Control panel.... 86

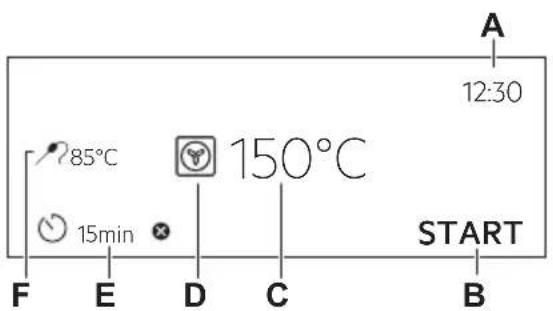

4.2 Display....87

5. BEFORE FIRST USE....88

5.1 Initial Cleaning 88
5.2 First connection.... 88
5.3 Initial preheating.... 89

6. DAILY USE.... 89

6.1 How to set: Heating functions......89
6.2 How to set: Assisted Cooking.....90

6.3 Heating functions....90
6.4 Notes on: Moist Fan Baking.....92

7. CLOCK FUNCTIONS....92

7.1 Clock functions description.....92
7.2 How to set: Clock functions...... 93

8. HOW TO USE: ACCESSORIES......95

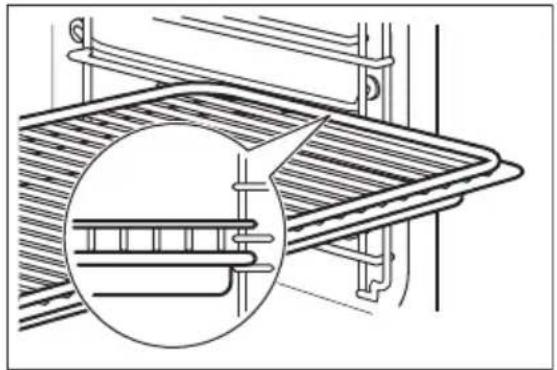

8.1 Inserting accessories....95
8.2 Food Sensor.... 96

9. ADDITIONAL FUNCTIONS.... 98

9.1 How to save: Favourites.... 98
9.2 Function lock....98
9.3 Automatic switch-off....98
9.4 Cooling fan....99

10. HINTS AND TIPS....99

10.1 Cooking recommendations......99
10.2 Moist Fan Baking....99
10.3 Moist Fan Baking - recommended accessories....100
10.4 Cooking tables for test institutes101

11. CARE AND CLEANING....102

11.1 Notes on cleaning.....103
11.2 How to remove: Shelf supports .103

1. ⚠ SAFETY INFORMATION

11.3 How to use: Pyrolytic Cleaning..104
11.4 Cleaning Reminder....104

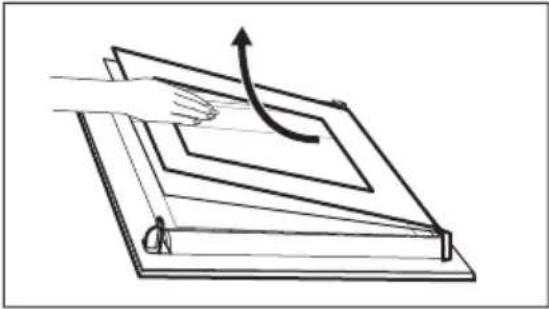

11.5 How to remove and install: Door105
11.6 How to replace: Lamp....106

12. TROUBLESHOOTING.....107

12.1 What to do if....107
12.2 How to manage: Error codes.....108
12.3 Service data....108

13. ENERGY EFFICIENCY......109

13.1 Product Information and Product Information Sheet*....109
13.2 Energy saving....110

14. MENU STRUCTURE....110

14.1 Menu....110
14.2 Submenu for: Cleaning......111
14.3 Submenu for: Options......111
14.4 Submenu for: Setup....112
14.5 Submenu for: Service.... 112

15. IT'S EASY!...... 112

16. TAKE A SHORTCUT!......113

17. ENVIRONMENTAL CONCERNS......114

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall

be kept away from the appliance unless continuously supervised.

• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Only a qualified person must install this appliance and replace the cable.
• Do not use the appliance before installing it in the built-in structure.
• Disconnect the appliance from the power supply before carrying out any maintenance.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Always use oven gloves to remove or insert accessories or ovenware.
• Use only the food sensor (core temperature sensor) recommended for this appliance.

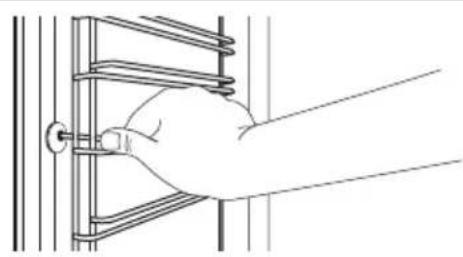

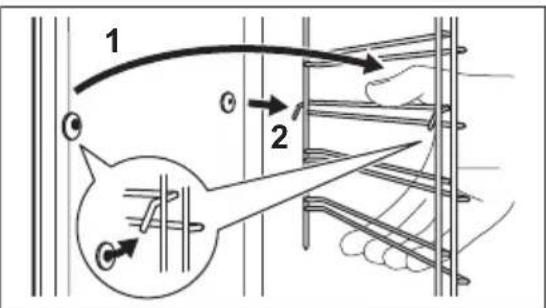

  • To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
• Do not use a steam cleaner to clean the appliance.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the oven cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the work-top minimum height)	578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 594 mm
Height of the back of the appliance 576 mm
Width of the front of the appliance 595 mm
Width of the back of the appliance 559 mm
Depth of the appliance 567 mm
Built in depth of the appliance 546 mm
Depth with open door 1027 mm
Ventilation opening minimum size. Opening placed on the bottom rear side	560x20 mm
Mains supply cable length. Cable is placed in the right corner of the back side	1500 mm
Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

WARNING!

Risk of damage to the appliance.

- To prevent damage or discoloration to the enamel:

– do not put ovenware or other objects in the appliance directly on the bottom.
– do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

- Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the oven cavity:

– any excess food residues, oil or grease spills / deposits.
– any removable objects (including shelves, side rails etc., provided with the product) particularly any non-stick pots, pans, trays, utensils etc.

• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning operates. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are strongly advised to:

– provide good ventilation during and after each Pyrolytic cleaning.

– provide good ventilation during and after the first use at maximum temperature operation.

- Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes emitted during the cleaning process of all Pyrolytic Ovens.

- Remove any pets (especially birds) from the vicinity of the appliance location during and after the Pyrolytic cleaning and first use maximum temperature operation to a well ventilated area.

- Small pets can also be highly sensitive to the localized temperature changes in the vicinity of all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.

- Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for low level harmful fumes.

- Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to humans, including children, or persons with medical conditions.

2.6 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.7 Service

• To repair the appliance contact the Authorised Service Centre.
- Use original spare parts only.

2.8 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

1 2 3 4 5 6 7 8 1 2 3 4 5

Control panel
Display
Socket for the food sensor
Heating element
Lamp
Fan
Shelf support, removable
Shelf positions

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Line drawing of a rectangular plate with grid pattern (no text or symbols)

Baking tray

For cakes and biscuits.

Grill- / Roasting pan

To bake and roast or as a pan to collect fat.

Food sensor

To measure the temperature inside food.

Simple line drawing of a square tray with internal grid lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

4. HOW TO TURN OVEN ON AND OFF

4.1 Control panel

1 2 3 4 5 6

1	ON / OFF Press and hold to turn the oven on and off.
2	Menu Lists the oven functions.
3	Favourites Lists the favourite settings.
4	Display Shows the current settings of the oven.
5	Lamp switch To turn the lamp on and off.
6	Fast Heat Up To turn on and off the function: Fast Heat Up.

Press Move		Press and hold
Touch the surface with finger-tip.	Slide fingertip over the surface.	Touch the surface for 3 seconds.

4.2 Display

	After turning on, the display shows the main screen with the heating function and the default temperature.
	If you do not use the oven for 2 minutes, the display goes to standby.
	When you cook, the display shows the set functions and other available options.
	Display with key functions set.A. Time of dayB. START/STOPC. TemperatureD. Heating functionsE. TimerF. Food sensor (selected models only)

Display indicators
Basic indicators - to navigate on the display.
OKTo confirm the selection / setting.	<To go one level back in the menu.	To undo the last action.	To turn the options on and off.
Sound alarm function indicators - when the set time of cooking ends, the signal sounds.
The function is on.	STOPThe function is on.Cooking stops automatically.		Sound alarm is off.
Timer indicators
To set the function: Delayed start.		To cancel the setting.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial Cleaning

Step 1 Step 2 Step 3
Remove all accessories and removable shelf supports from the oven.	Clean the oven and the accessories with a soft cloth, warm water and a mild detergent.	Place the accessories and the removable shelf supports in the oven.

5.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display brightness, Key tones, Buzzer volume, Time of day.

5.3 Initial preheating

Preheat the empty oven before the first use.
Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function:☐Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function:☐Let the oven operate for 15 min.
i The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Heating functions

Step 1 Turn on the oven. The display shows the default heating function.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3	Select the heating function and press: OKThe display shows: temperature.
Step 4	Set: temperature. Press: OK
Step 5	Press: STARTFood Sensor - you can plug the sensor at any time before or during cooking.
STOP - press to turn off the heating function.
Step 6 Turn off the oven.

Take a shortcut!

6.2 How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature.

For some of the dishes you can also cook with:

• Weight Automatic
• Food Sensor

The degree to which a dish is cooked:

• Rare or Less
• Medium
• Well done or More

Step 1 Turn on the oven.
Step 2	Press: ≡
Step 3	Press: ✗Enter: Assisted Cooking.
Step 4 Choose a dish or a food type.
Step 5	Press: $START

Take a shortcut!

6.3 Heating functions

STANDARD

Heating function Application
Grill	To grill thin pieces of food and to toast bread.
Turbo Grilling	To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.

Heating function Application
True Fan Cooking	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
Frozen Foods	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Conventional Cooking	To bake and roast food on one shelf position.
Pizza Function	To bake pizza. To make intensive browning and a crispy bottom.
Bottom Heat	To bake cakes with crispy bottom and to preserve food.
Bread Baking	Use this function to prepare bread and bread rolls with a very good professional-like result in terms of crispiness, colour and crust gloss.
Dough Proving	To speed up the rising of the yeast dough. It prevents dough surface from drying and keeps the dough elastic.

SPECIALS

Heating function Application
Preserving	To preserve vegetables (e.g., pickles).
Dehydrating	To dry sliced fruit, vegetables and mushrooms.
Plate Warming	To preheat plates for serving.
Defrost	To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
Au Gratin	For dishes such as lasagna or potato gratin. To make gratins and to brown.
Slow Cooking	To prepare tender, succulent roasts.
Keep Warm	To keep food warm.
Moist Fan Baking	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temper- ature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Bak-ing.

6.4 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements according to EU 65/2014 and EU 66/2014. Tests according to EN 60350-1.

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

7. CLOCK FUNCTIONS

7.1 Clock functions description

Clock function Application
Cooking time To set the length of cooking. Maximum is 23 h 59 min.
End action To set what happens when the timer ends counting.
Delayed start To postpone the start and / or end of cooking.
Time extension To extend cooking time.
Reminder To set a countown. Maximum is 23 h 59 min. This function has no effect on the operation of the oven.
Uptimer Monitors how long the function operates. Uptimer - you can turn it on and off.

7.2 How to set: Clock functions

How to set the clock
Step 1 Press: Time of day.
Step 2	Set the time. Press: OK

How to set cooking time
Step 1 Choose the heating function and set the temperature.
Step 2	Press: ⏻
Step 3	Set the time. Press: OK

Take a shortcut!

How to choose end option
Step 1 Choose the heating function and set the temperature.
Step 2	Press: ⏻
Step 3 Set the cooking time.
Step 4	Press: ⋆ ⋆ ⋆
Step 5 Press: End action.
Step 6 Choose the preferred: End action.
Step 7	Press: OK Repeat the action until the display shows the main screen.

How to delay start of cooking
Step 1 Set the heating function and the temperature.
Step 2	Press: ⏻
Step 3 Set the cooking time.
Step 4	Press: ● ● ●
Step 5 Press: Delayed start.
Step 6 Choose the value.
Step 7	Press: OK Repeat the action until the display shows the main screen.

How to extend cooking time

When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time. You can also change the heating function.

Press +1min to extend the cooking time.

How to change timer settings
Step 1	Press: 🌐
Step 2 Set the timer value.
Step 3	Press: OK
You can change the set time during cooking at any time.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf:Push the shelf between the guide bars of the shelf support.
Baking tray / Deep pan:Push the tray between the guide bars of the shelf support.

Wire shelf, Baking tray / Deep pan:

Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

8.2 Food Sensor

Food Sensor- measures the temperature inside the food. You can use it with every heating function.

There are two temperatures to be set:
°CThe oven temperature: minimum 120 °C.	The core temperature.

For the best cooking results:
Ingredients should be at room temperature.	Do not use it for liquid dishes.	During cooking it must remain in the dish.

The oven calculates an approximate end of cooking time. It depends on the quantity of food, the set oven function and the temperature.

How to use: Food Sensor

Step 1 Turn on the oven.
Step 2 Set a heating function and, if necessary, the oven temperature.
Step 3 Insert: Food Sensor.
Meat, poultry and fish Casserole
Insert the tip of Food Sensor into the centre of meat, fish, in the thickest part if possible. Make sure that at least 3/4 of Food Sensor is inside of the dish.		Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during baking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.
Step 4 Plug Food Sensor into the socket at the front of the oven.The display shows the current temperature of: Food Sensor.
Step 5	- press to set the core temperature of the sensor.
Step 6	- press to set the preferred option:Sound alarm - when food reaches the core temperature, the signal sounds.Sound alarm and stop cooking - when food reaches the core temperature, the signal sounds and the oven stops.
Step 7	Select the option and repeatedly press: OK to go to main screen.
Step 8	Press: STARTWhen food reaches the set temperature, the signal sounds. You can choose to stop or to continue cooking to make sure the food is well done.
Step 9 Remove Food Sensor plug from the socket and remove the dish from the oven.[HTHB] WARNING!There is a risk of burns as Food Sensor becomes hot. Be careful when you unplug it and remove it from the food.

Take a shortcut!

9. ADDITIONAL FUNCTIONS

9.1 How to save: Favourites

You can save your favourite settings, such as the heating function, the cooking time, the temperature or the cleaning function. You can save 3 favourite settings.

Step 1 Turn on the oven.
Step 2 Select the preferred setting.
Step 3	Press:Select: Favourites.
Step 4 Select: Save current settings.
Step 5	Press + to add the setting to the list of: Favourites. Press OK
press to reset the setting. press to cancel the setting.

9.2 Function lock

This function prevents an accidental change of the heating function.

Step 1 Turn on the oven.
Step 2 Set a heating function.
Step 3	☆, press at the same time to turn on the function.
To turn off the function repeat step 3.

9.3 Automatic switch-off

For safety reasons the oven turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)
30 - 115 12.5
120 - 195 8.5
200 - 245 5.5
250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Food sensor, End time, Slow Cooking.

9.4 Cooling fan

When the oven operates, the cooling fan turns on automatically to keep the surfaces of the oven cool. If you turn off the oven, the cooling fan can continue to operate until the oven cools down.

10. HINTS AND TIPS

10.1 Cooking recommendations

i

The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

Your oven may bake or roast differently to the oven you had before. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food. If you cannot find the settings for a special recipe, look for the similar one.

For more cooking recommendations refer to cooking tables on our website. To find the Cooking Hints check the PNC number on the rating plate on the front frame of the oven cavity.

10.2 Moist Fan Baking

For the best results follow suggestions listed in the table below.

		(°C) (min)
Sweet rolls, 16 pieces	baking tray or dripping pan	180 2 25 - 35
Swiss Roll baking tray or dripping pan		180 2 15 - 25
Whole fish, 0.2 kg	baking tray or dripping pan	180 3 15 - 25
Cookies, 16 pieces	baking tray or dripping pan	180 2 20 - 30
Macaroons, 24 pieces	baking tray or dripping pan	160 2 25 - 35
Muffins, 12 pieces	baking tray or dripping pan	180 2 20 - 30
Savory pastry, 20 pieces	baking tray or dripping pan	180 2 20 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan	140 2 15 - 25
Tartlets, 8 pieces	baking tray or dripping pan	180 2 15 - 25

10.3 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Simple line drawing of an oval-shaped object with no text or symbols

Simple line drawing of a circular mechanical component with a small protrusion (no text or symbols)

Simple line drawing of a bowl or container with no text, numbers, or symbols

Pizza pan
Baking dish
Ramekins
Flan base tin
Dark, non-reflective 28 cm diameter
Dark, non-reflective 26 cm diameter
Ceramic 8 cm diameter, 5 cm height
Dark, non-reflective 28 cm diameter

10.4 Cooking tables for test institutes

Information for test institutes

Tests according to: EN 60350, IEC 60350.

BAKING ON ONE LEVEL. Baking in tins

(°C) (min)

BAKING ON ONE LEVEL. Biscuits

Use the third shelf position.

(°C) (min)

Short bread / Pastry strips True Fan Cooking 140 25 - 40

Short bread / Pastry strips, preheat the empty oven

Small cakes, 20 per tray, preheat the empty oven

Small cakes, 20 per tray, preheat the empty oven

MULTILEVEL BAKING. Biscuits
		(°C) (min)
Short bread / Pastry strips True Fan Cooking 140 25 - 45 1 / 4
Small cakes, 20 per tray, preheat the empty oven	True Fan Cooking 150 23	- 40 1 / 4
Fatless sponge cake True Fan Cooking 160 35 - 50 1 / 4

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Clean the front of the oven with a soft cloth with warm water and a mild detergent.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Do not store the food in the oven for longer than 20 minutes. Dry the cavity with a soft cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.
Step 2 Pull the front of the shelf support away from the side wall.
Step 3 Pull the rear end of the shelf support away from the side wall and remove it.
Step 4 Install the shelf supports in the opposite sequence.

11.3 How to use: Pyrolytic Cleaning

Clean the oven with Pyrolytic Cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Before the Pyrolytic Cleaning:
Turn off the oven and wait until it is cold.	Remove all accessories and removable shelf supports.	Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.

Step 1 Step 2 Step 3
Turn on the oven.	Press:Cleaning.	Select the cleaning mode.
Option Cleaning mode Duration
Pyrolytic cleaning, quick Light cleaning 1 h
Pyrolytic cleaning, normal Normal cleaning 1 h 30 min
Pyrolytic cleaning, intense Thorough cleaning 3 h
When the cleaning starts, the oven door is locked and the lamp is off. The cooling fan works at a higher speed.
STOP - press to stop the cleaning before it is completed.Do not use the oven until the door lock symbol disappears from the display.

When the cleaning ends:
Turn off the oven and wait until it is cold.	Clean the cavity with a soft cloth.	Remove the residue from the bottom of the cavity.

11.4 Cleaning Reminder

When the reminder appears, cleaning is recommended.

Use the function: Pyrolytic Cleaning.

11.5 How to remove and install: Door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

Step 1 Fully open the door.
Step 2 Lift and press the clamping levers (A) on the two door hinges.
Step 3 Close the oven door to the first opening position (approximately 70° angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.
Step 4 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.
Step 5 Pull the door trim to the front to remove it.
Step 6 Hold the door glass panels on their top edge one by one and pull them up out of the guide.
Step 7 Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dish-washer.
Step 8 After cleaning, do the above steps in the opposite sequence.
Step 9 Install the smaller panel first, then the larger and the door.

11.6 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Before you replace the lamp:
Step 1 Step 2 Step	3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Top lamp

Step 1 Turn the glass cover to remove it.
Step 2 Clean the glass cover.
Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 4 Install the glass cover.

Side lamp

Step 1 Remove the left shelf support to get access to the lamp.
Step 2 Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover.
Step 3 Clean the glass cover.
Step 4 Replace the lamp with a suitable 300 °C heat-resistant lamp.
Step 5 Install the glass cover.
Step 6 Install the left shelf support.

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

The oven does not turn on or does not heat up
?Possible cause	Remedy
The oven is not connected to an electrical supply or it is connected incorrectly.	Check if the oven is correctly connected to the electrical supply.
The clock is not set. Set the clock, for details refer to "Clock Functions" chapter, How to set: Clock functions.
The door is not closed correctly. Fully close the door.
The fuse is blown. Make sure the fuse is the cause of the problem. If the problem recurs, contact a qualified electrician.
The oven Child Lock is on. Refer to "Menu" chapter, Submenu for: Options.
Components
Description Remedy
The lamp is burnt out. Replace the lamp, for details refer to "Care and Cleaning" chapter, How to replace: Lamp.

Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure.

12.2 How to manage: Error codes

When the software error occurs, the display shows error message.

In this section, you will find the list of the problems that you can handle on your own.

Code and description Remedy
C2 - the Food sensor is in the oven cavity during Pyrolytic Cleaning.	Take out the Food sensor.
C3 - the door is not fully closed during Pyrolytic Cleaning.	Close the door.
F111 - Food sensor is not correctly inserted into the socket.	Fully plug Food sensor into the socket.
F240, F439 - the touch fields on the display do not work properly.	Clean the surface of the display. Make sure there is no dirt on the touch fields.
F908 - the oven system cannot connect with the control panel.	Turn the oven off and on.

12.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the oven cavity. Do not remove the rating plate from the oven cavity.

We recommend that you write the data here:
Model (MOD.)
Product number (PNC)
Serial number (S.N.)

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet*

Supplier's name AEG
Model identification	BD742P 944188657BPE742280M 944188671BPK742280B 944188649BPK742280M 944188640BPK742280T 944188651
Energy Efficiency Index 61.2
Energy efficiency class A++
Energy consumption with a standard load, conventional mode	1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode	0.52 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass	BD742P 34.5 kg
	BPE742280M 35.0 kg
	BPK742280B 34.5 kg
	BPK742280M 34.5 kg
	BPK742280T 34.5 kg

* For European Union according to EU Regulations 65/2014 and 66/2014.

For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B.

For Ukraine according to 568/32020.

Energy efficiency class is not applicable for Russia.

EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The oven has features which help you save energy during everyday cooking.

Make sure that the oven door is closed when the oven operates. Do not open the oven door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the oven before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

If a programme with the Duration or End Time selection is activated and the cooking time is longer than 30 min, the heating elements automatically turn off earlier in some oven functions.

The fan and lamp continue to operate. When you turn off the oven, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the oven temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the oven will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm.

The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. MENU STRUCTURE

14.1 Menu

Press to open Menu.

Menu item Application
Assisted Cooking Lists automatic programmes.
Menu item Application
Cleaning Lists cleaning programmes.
Favourites Lists the favourite settings.
Options To set the oven configuration.
Settings Setup To set the oven configuration.
		Service Shows the software version and configuration.

14.2 Submenu for: Cleaning

Submenu Application
Pyrolytic cleaning, quick Duration: 1 h.
Pyrolytic cleaning, normal Duration: 1 h 30 min.
Pyrolytic cleaning, intense Duration: 3 h.

14.3 Submenu for: Options

Submenu Application
Light Turns the lamp on and off.
Child Lock Prevents accidental activation of the oven. When the option is on, the text "Child Lock" appears on the display when you turn on the oven. To enable the oven use, choose the code letters in the alphabetical order. When the Child Lock is on and the oven is turned off the oven door is locked. Access to the timer, the remote operation and the lamp is available with the Child Lock on.
Fast Heat Up Shortens heat up time.	It is available only for some of the oven functions.
Cleaning Reminder Turns the reminder on and off.
Time indication Turns the clock on and off.
Digital clock style Changes the format of the displayed time indication.

14.4 Submenu for: Setup

Submenu Description
Language Sets the oven language.
Display brightness Sets the display brightness.
Key tones Turns the tone of the touch fields on and off. It is not possible to mute the tone for: ➊
Buzzer volume Sets the volume of key tones and signals.
Time of day Sets the current time and date.

14.5 Submenu for: Service

Submenu Description
Demo mode Activation / deactivation code: 2468
Software version Information about software version.
Reset all settings Restores factory settings.

15. IT'S EASY!

Before first use you have to set:
Language	Display brightness	Key tones Buzzer volume Time of day

Familiarize yourself with the basic icons on the control panel and the display:
1ON / OFF Menu Favourites	≡	☆	💡Timer	💡Food sensor	START / STOP

Start using the oven
Quick start Turn on the oven and start cooking with the default temperature and time of the function.	Step 1 Step 2 Step 3
	Press and hold: ➊.	☐ ... - select the preferred function.	Press: $START
Quick Off Turn off the oven, any screen or message at any time.	➊ - press and hold until the oven turns off.

Start cooking
Step 1 Step 2	Step 3 Step 4	Step 5
1- press to turn on the oven.	☐ ...- select the heating function.	°C- set the temperature.	OK- press to confirm.	START- press to start cooking.

Get to know how to cook quickly
Use the automatic programmes to prepare a dish quickly with the default settings:
Assisted Cooking	Step 1 Step 2 Step	3 Step 4
	Press: Press: . Press: Assis-		ted Cooking.	Choose the dish.

Use quick functions to set the cooking time
10% Finish assistUse 10% Finish assist to add extra time when 10% of the cooking time is left.	To extend the cooking time press +1min.

16. TAKE A SHORTCUT!

Here you can see all the useful shortcuts. You can also find them in the dedicated chapters in the user manual.

How to set: Heating functions

How to set: Assisted cooking

How to set: Cooking time

How to delay: Start and end of cooking

How to cancel: Set Timer

How to use: Food Sensor

17. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

POUR DES RÉSULTATS PARFAITS

2.1 Installation....118

Line drawing of a rectangular plate with grid lines, no text or symbols present

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal diagonal lines (no text or symbols)

Sonde de cuisson

Pure electrical circuit lines without any symbols

4. COMMENT ALLUMER ET ÉTEINDRE LE FOUR

Simple line drawing of an oval-shaped object with no text or symbols

Plaque à pizza

Simple line drawing of a circular container with a small handle at the bottom (no text or symbols)

Plat de cuisson

Ramequins

Simple line drawing of a bowl or container with no text, numbers, or symbols

Description Solution

Pure electrical circuit lines without any symbols

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Line drawing of a rectangular plate with grid lines, no text or symbols present

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Line drawing of a square tray with internal diagonal lines (no text or symbols)

Termosonda

Pure electrical circuit lines without any symbols

4. COME ACCENDERE E SPEGNERE IL FORNO

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

8.2 Termosonda

Three technical line drawings of a rectangular tray with internal grating, shown from different angles (no text or symbols)

Sonda térmica

Pure electrical circuit lines without any symbols

4. COMO LIGAR E DESLIGAR O FORNO

4.1 Painel de comandos

1 2 3 4 5 6

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

8.2 Sonda térmica

Pure electrical circuit lines without any symbols

4. CÓMO ENCENDER Y APAGAR EL HORNO

4.1 Panel de mandos

1 2 3 4 5 6

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

8.2 Sonda térmica

Simple line drawing of an oval-shaped object with no text or symbols

Bandeja para pizza

Simple line drawing of a circular sieve or pan with a small handle (no text or symbols)

Bandeja para hornear

Ramequines

Simple line drawing of a bowl or container with no text, numbers, or symbols

Molde para base

Line drawing of a rectangular plate with radial grooves and a grid pattern (no text or symbols)

Simple line drawing of a square tray with internal grid lines (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Pure electrical circuit lines without any symbols

4. SÅ HÄR SLÅR DU PÅ OCH STÄNGER AV UGNEN

4.1 Kontrollpanel

1 2 3 4 5 6

Technical line drawing of a structural frame with an inset magnified detail (no text or symbols)

8.2 Matlagningstermometer

Line drawing of a hand holding a metal rack with a circular valve (no text or symbols)

Five circular icons representing shopping and e-commerce activities: cart, printer, gear, and shopping cart (no text or symbols)

CE
