PM211798 - Salt/pepper mill Emerio - Free user manual and instructions

Brand	Emerio
Model	PM211798
Product type	Electric salt and pepper mill
Power supply	6 AA 1.5 V batteries (not included)
Grinding mechanism	Ceramic grinding piece
Grind adjustment	Dial: clockwise for fine grind, counterclockwise for coarse
Activation	Gravity sensor: automatically activates when tilting the mill 90° or more
Reservoir capacity	Approximately 2/3 of the height of the pepper/salt compartment
Recommended use	Peppercorns and sea salt crystals (not fine or rock salt)
Cleaning	Soft dry cloth; do not immerse or put in dishwasher
Troubleshooting	If the mechanism jams, turn the dial to the coarsest setting and/or disassemble the ceramic piece
Storage	In upright position; remove batteries if not used for long time
Safety	Appliance suitable for children aged 8+ with supervision; do not use mixed batteries
Warranty	2 years from date of purchase
Customer service	[phone] / [e-mail]
Country of manufacture	Not specified (German brand)
Dimensions (estimated)	Height approx 20 cm, diameter approx 5 cm
Weight (estimated)	Approx 300 g (without batteries)

Frequently Asked Questions - PM211798 Emerio

How to install batteries in the Emerio PM211798 mill?

Hold the appliance vertically, detach the housing from the pepper compartment by turning counterclockwise. Insert 6 AA 1.5 V batteries observing the +/- polarities. Replace the battery compartment into the housing and lock firmly.

How to adjust the fineness of the grind?

Turn the adjustment dial on the device: clockwise for a fine grind, counterclockwise for a coarse grind. Do not touch the dial during operation.

What types of salt and pepper can I use?

Use only peppercorns and sea salt crystals. Do not use fine table salt or rock salt, as they may damage the mechanism.

How to clean the mill?

Before cleaning, remove the batteries. Clean with a soft dry cloth. Never immerse the appliance in water or any liquid, and do not put it in the dishwasher. If the grinding piece is stuck, turn the dial to the coarsest setting or gently disassemble it.

Why does the mill not start?

Check that the batteries are inserted correctly (polarities respected) and that they are new. The appliance activates automatically only when the grinding piece is pointed downward and tilted at least 90°. Also ensure the reservoir is not empty.

Can I grind spices other than pepper and salt?

No, the appliance is designed only for grinding peppercorns and sea salt crystals. Using other condiments may damage the mechanism and void the warranty.

What to do if the grinding mechanism is blocked?

Turn the adjustment dial counterclockwise to the largest grain size. If that is not enough, you can disassemble the ceramic piece (as shown in the image) to clean it. Reassemble properly afterwards.

Can I use rechargeable batteries?

The manual does not mention the use of rechargeable batteries. It is recommended to use standard AA 1.5 V alkaline batteries. If you use rechargeables, ensure they provide 1.5 V and follow the battery manufacturer's instructions.

How to contact Emerio customer service?

You can reach customer service by phone at [phone] or by email at [e-mail]. Have your receipt ready for any warranty claims.

Is the mill under warranty?

Yes, Emerio offers a 2-year warranty from the date of purchase. The warranty covers manufacturing defects, but not damage due to improper use, wear parts, or repairs by third parties. Keep your receipt.

USER MANUAL PM211798 Emerio

White portable energy drink with a black funnel and metallic handle, no visible text or symbols on the device itself.

Pepper/ salt mill (EN)

Instruction manual – English ...... - 2 -

Instruction manual – English

SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. Different types of batteries or new and used batteries are not to be mixed.
6. Batteries are to be inserted with the correct polarity.
7. Exhausted batteries are to be removed from the appliance.
8. After unwrapping the appliance check for possible faults or damages.
9. The appliance is intended for indoor use or for use in weatherproof areas only. Do not use it for purposes it is not intended for.
10. Ensure that no water and / or other liquids get inside the appliance.
11. Remove the batteries if you do not use the appliance for an extended period of time.
12. In case any operating elements are damaged, do not try to repair it on your own. In such case a professional should carry out the repair.
13. Do not store in damp areas or in high-temperature areas.
14. The device is not suitable for milling fine-grained kitchen salt or rock salt.
15. The appliance is suitable for pepper grains and sea salt crystals milling only.
16. The appliance is not suitable for milling condiments/products other than these specified in this manual.

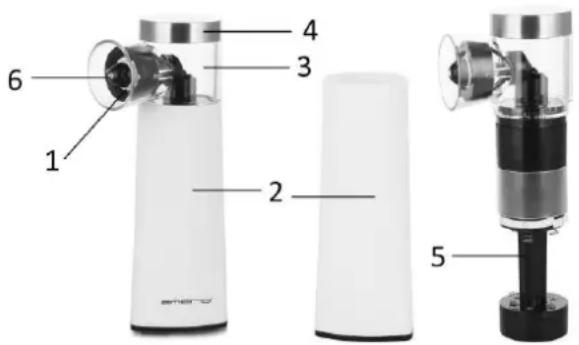

PARTS DESCRIPTION

1. Grinding part
2. Housing
3. Pepper compartment
4. Pepper compartment lid
5. Battery compartment
6. Adjustment wheel

Gravity sensor: The appliance is activated when the grinding part is directed downwards. Whether the appliance is switched on or off depends on the position of the grinding part in relation to the Earth gravity field.

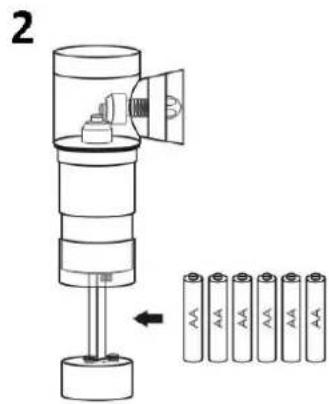

INSTALLING THE BATTERIES

1. Holding the appliance in a vertical position.
2. Detach the housing from pepper compartment by rotating the pepper compartment in anticlockwise direction. (fig. 1)
3. Place 6×1.5V AA batteries (not included) in the battery compartment. Pay attention to the polarity +/- markings. (fig. 2)
4. Insert the battery compartment back into the housing, and lock them tightly.

OPERATION

1. Place the appliance in a vertical direction. Open the pepper compartment lid. (fig.3)
2. Fill some pepper or sea salt, up to 2/3 of the compartment's height, into the pepper compartment and re-assemble the unit. (fig.4)
3. Turn the adjustment wheel to get the desired milling of pepper or salt: Clockwise for a finer milling; Anti-clockwise for coarser milling. (fig.5)

ATTENTION: Do not touch the adjustment wheel while the appliance is operation.

1. Tilt the appliance at a 90^ angle or more over your food to grind pepper automatically. (fig.6) Caution: Do not mill condiments directly above steaming meals.

Diagram of a mechanical device inside a circular frame, showing internal components and motion direction (no text or symbols)

Circular diagram with concentric rings and directional arrows, no text or symbols present

CLEANING

1. Before cleaning, make sure the batteries are removed from the appliance.
2. Do not immerse the mill in liquid or put it in a dishwasher. Do not use with wet hands.
3. Use only a soft dry cloth to clean, do not use cleaning products or detergent.
4. In case the ceramic grinding part is jammed, twist the adjustment wheel in anti-clockwise direction to the larger grain size. The adjustment wheel and ceramic part A (as show in the picture) can also be taken off if needed. Reassemble correctly after cleaning.

Close-up of a metallic mechanical component with a labeled section A (no text or symbols beyond label)

STORAGE:

Store the appliance in an upright position. Batteries shall be removed if the appliance is not in use or idle for an extended period of time.

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR IN FIRE OR SHORT CIRCUIT.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

Diagram of a cylindrical container with a mechanical component and directional arrow, no text or symbols present

2

3

Diagram of a mechanical device inside a container with directional arrows indicating rotation (no text or symbols)

6

Diagram of a mechanical device inside a circular frame, showing internal components and motion direction (no text or symbols)

4

Diagram of a container with particles inside, showing liquid and an open lid (no text or symbols)

5

Circular diagram with concentric rings and radial arrows, no text or symbols present

REINIGUNG

Close-up of a mechanical component with a labeled section A (no readable text or symbols)

LAGERUNG:

Diagram of a cylindrical container with a lid and an open lid, showing directional arrows (no text or symbols)

2

3

Diagram of a mechanical device inside a container with directional arrows indicating rotation (no text or symbols)

6

Diagram of a mechanical device inside a circular frame, showing internal components and motion direction (no text or symbols)

4

Diagram of a mechanical device with particles inside, enclosed in a circle (no text or symbols)

5

Circular diagram of a mechanical or electrical component with internal components and directional arrows (no text or symbols)

NETTOYAGE

Close-up of a mechanical component with a labeled section A, showing internal structure and a circular inset (no text or symbols)

RANGEMENT :

Diagram of a mechanical device with an arrow indicating rotation, no text or symbols present

Circular diagram with concentric rings and radial arrows, no text or symbols present

RENGÖ RING

Close-up of a metallic mechanical component with a labeled section A (no text or symbols beyond label)

FÖ RVARING:

Diagram of a mechanical device with an arrow indicating rotation, no text or symbols present

Circular diagram with concentric rings and radial arrows, no text or symbols present

REINIGING

Close-up of a metallic mechanical component with a labeled section A (no visible text or symbols)

OPSLAG:

Diagram of a cylindrical container with a lid and an open lid, showing internal components and directional arrows (no text or symbols)

2

3

Diagram of a mechanical device inside a container with rotating arrows indicating rotation (no text or symbols)

6

Diagram of a mechanical device inside a circular frame, showing internal components and motion direction (no text or symbols)

4

Diagram of a container with particles inside, showing liquid flow and a lid (no text or symbols)

5

Circular diagram of a mechanical or electrical component with internal components and directional arrows (no text or symbols)

CZYSZCZENIE

Close-up of a mechanical component with a labeled section A, showing internal structure and a circular detail (no text or symbols beyond label)

PRZECHOWYWANIE:

Diagram of a cylindrical container with a mechanical component and directional arrows indicating flow or movement (no text or symbols)

2

3

Diagram of a mechanical device inside a container with directional arrows indicating rotation (no text or symbols)

6

Diagram of a mechanical device with rotating arrow and base components (no text or symbols)

4

Diagram of a container with particles and a lid, showing liquid flow direction (no text or symbols)

5

Circular diagram with concentric rings and directional arrows, no text or symbols present

Close-up of a mechanical component with labeled section A (no readable text or symbols)

ХРАНЕНИЕ:
