USER MANUAL CJ603E Sun Joe

Model CJ603E Form No. SJ-CJ603E-880E-MR5 © 2021 by Snow Joe , LLCAll rights reserved. Original instructions.

SAVE THESE INSTRUCTIONS

A Division of Snow Joe

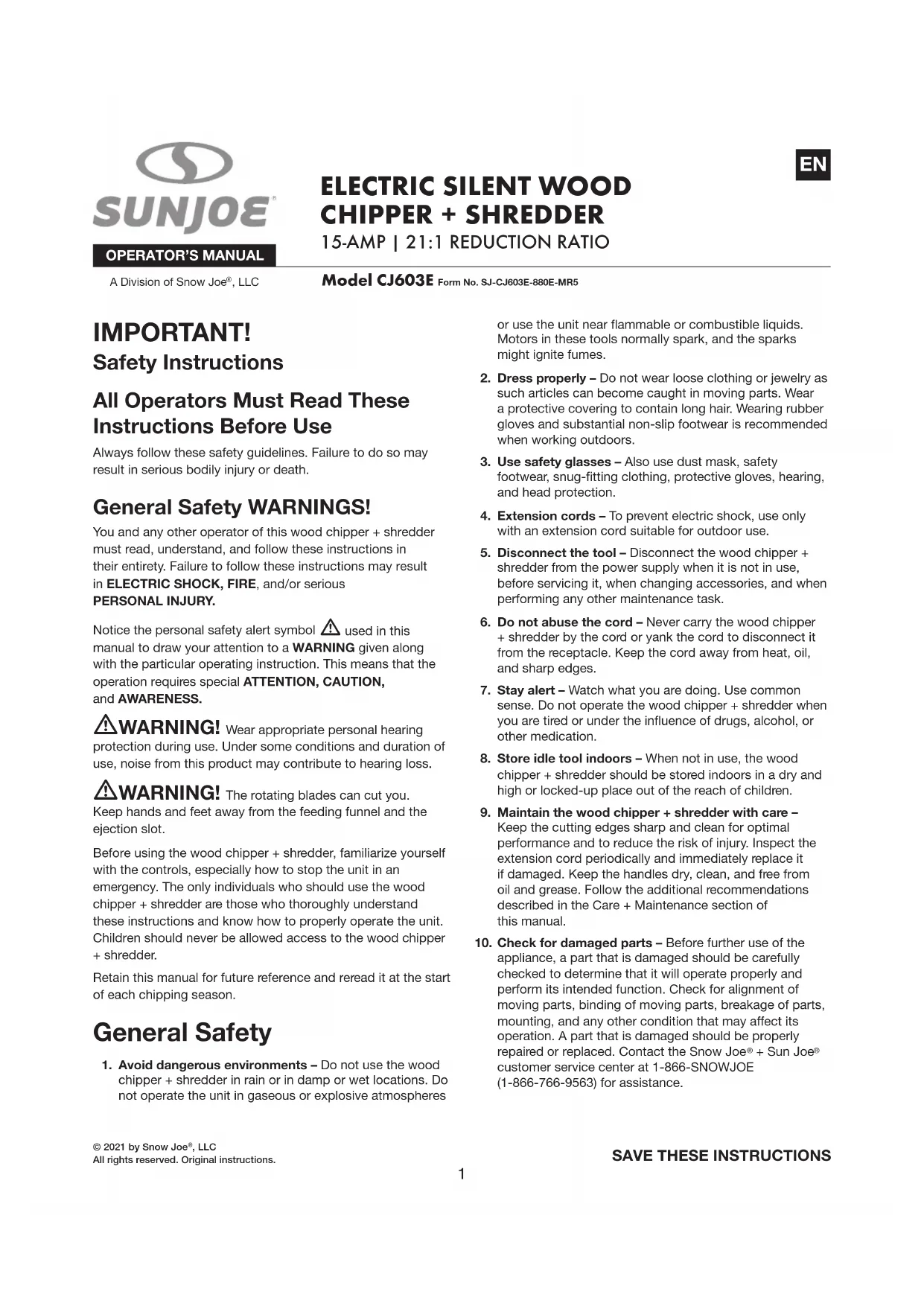

IMPORTANT! Safety Instructions All Operators Must Read These Instructions Before Use Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death. General Safety WARNINGS! You and any other operator of this wood chipper + shredder must read, understand, and follow these instructions in their entirety. Failure to follow these instructions may result in ELECTRIC SHOCK, FIRE, and/or serious PERSONAL INJURY. Notice the personal safety alert symbol m used in this manual to draw your attention to a WARNING given along with the particular operating instruction. This means that the operation requires special ATTENTION, CAUTION, and AWARENESS. mWARNING! Wear appropriate personal hearing protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. mWARNING! The rotating blades can cut you. Keep hands and feet away from the feeding funnel and the ejection slot. Before using the wood chipper + shredder, familiarize yourself with the controls, especially how to stop the unit in an emergency. The only individuals who should use the wood chipper + shredder are those who thoroughly understand these instructions and know how to properly operate the unit. Children should never be allowed access to the wood chipper + shredder. Retain this manual for future reference and reread it at the start of each chipping season. General Safety

1. Avoid dangerous environments – Do not use the wood

chipper + shredder in rain or in damp or wet locations. Do not operate the unit in gaseous or explosive atmospheres or use the unit near ammable or combustible liquids. Motors in these tools normally spark, and the sparks might ignite fumes.

2. Dress properly – Do not wear loose clothing or jewelry as

such articles can become caught in moving parts. Wear a protective covering to contain long hair. Wearing rubber gloves and substantial non-slip footwear is recommended when working outdoors.

3. Use safety glasses – Also use dust mask, safety

footwear, snug-tting clothing, protective gloves, hearing, and head protection.

4. Extension cords – To prevent electric shock, use only

with an extension cord suitable for outdoor use.

5. Disconnect the tool – Disconnect the wood chipper +

shredder from the power supply when it is not in use, before servicing it, when changing accessories, and when performing any other maintenance task.

6. Do not abuse the cord – Never carry the wood chipper

+ shredder by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

7. Stay alert – Watch what you are doing. Use common

sense. Do not operate the wood chipper + shredder when you are tired or under the inuence of drugs, alcohol, or other medication.

8. Store idle tool indoors – When not in use, the wood

chipper + shredder should be stored indoors in a dry and high or locked-up place out of the reach of children.

9. Maintain the wood chipper + shredder with care –

Keep the cutting edges sharp and clean for optimal performance and to reduce the risk of injury. Inspect the extension cord periodically and immediately replace it if damaged. Keep the handles dry, clean, and free from oil and grease. Follow the additional recommendations described in the Care + Maintenance section of this manual.

10. Check for damaged parts – Before further use of the

appliance, a part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may aect its operation. A part that is damaged should be properly repaired or replaced. Contact the Snow Joe

11. Lighting – Only operate your wood chipper + shredder in

daylight or good articial light.

12. Do not overreach – Keep proper footing and balance at

13. Never leave a running tool unattended – Turn the

wood chipper + shredder o and wait until it comes to a complete stop before leaving the work area.

14. Avoid accidental starting – Do not carry the wood

chipper + shredder with your nger on the switch. Make sure the switch is o before plugging in or unplugging the unit.

15. Use the right tool – Do not use this machine for any job

except that for which it was intended.

16. Keep children, bystanders, and pets away – All

spectators, including pets, should be kept a safe distance away from the work area. Personal Safety

1. Before starting the wood chipper + shredder, make sure

that the hopper inlet is empty.

2. Keep your face and body away from the opening.

3. Do not allow hands or any other part of the body or

clothing near the feeding funnel or discharge chute.

4. Never put your hands into the hopper while the wood

chipper + shredder is running. Always use the paddle supplied with your wood chipper + shredder to push items into the hopper.

5. Do not try to force objects larger than the recommended

diameter of 1.73 inch into the hopper.

6. Always stand clear of the discharge zone when operating

the wood chipper + shredder. Never reach under the unit until it has come to a complete stop.

7. When feeding material into the wood chipper + shredder,

be careful to remove pieces of metal, rocks, bottles, cans or other foreign objects that may damage the blades.

8. If the cutting mechanism strikes a foreign object or if the

wood chipper + shredder should start making any unusual noise or vibration, turn it o and allow it to come to a complete stop. Disconnect from power supply and take the following steps: – Inspect for damage; – Check for and tighten any loose parts. mWARNING! Never reach into the hopper until the wood chipper + shredder has come to a complete stop and is unplugged. The blades will continue to rotate for a few seconds after the unit is turned o.

9. Do not allow processed material to build up in the

discharge zone; this may prevent proper discharge and can result in kickback of material through the hopper. mWARNING! Never put your hands near the ejection slot. Failure to heed the warning could result in serious injury.

10. If the wood chipper + shredder becomes clogged, turn it

OFF and disconnect from power supply before clearing debris. Keep the power source clear of debris and other accumulations to prevent damage to the power source. Remember that the starting mechanism on engine powered tools will cause the cutting mechanism to move.

11. Keep all guards and deectors in place and in good

12. Do not operate the wood chipper + shredder on a paved

or gravel surface where ejected material could cause injury.

13. Turn o the wood chipper + shredder and disconnect it

from the power supply whenever you leave the work area.

14. Do not tilt the wood chipper + shredder while it is running.

15. Never reach into the hopper until the wood chipper +

shredder has come to a complete stop and has been disconnected from the power supply. Electric Safety

1. Ground fault circuit interrupter (GFCI) protection should

be provided on the circuit(s) or outlet(s) to be used for this electric wood chipper + shredder. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.

2. To prevent electric shock, use only with an extension cord

suitable for outdoor use, such as SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A. Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current to the product. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.3 3. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized UL-, CSA-, or ETL-listed extension cord recommended for outdoor, all-weather use, such as the Snow Joe + Sun Joe

SJTW-A 14-gauge 50-foot extension cord with lighted end (Model PJEXT50-B). Visit sunjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563). The appliance plug will t into a polarized extension cord only one way. If the appliance plug does not t fully into the extension cord, reverse the plug. If the plug still does not t, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will t into the polarized wall outlet only one way. If the plug does not t fully into the wall outlet, reverse the plug. If the plug still does not t, contact a qualied electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.5. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.6. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.7. If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer.8. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.9. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.10. Have your tool repaired by an electrician or a qualied service center. This power tool complies with relevant safety requirements. To avoid danger, electrical appliances must only be repaired by qualied personnel using original spare parts; otherwise this may result in considerable damage to the user.Extension CordLengthWire Gauge (A.W.G.):Up to 50 ft(15 m)+50 ft - 100 ft(+15 m - 30 m)14 12 m WARNING m Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:• Do not allow any part of the wood chipper + shredder to make contact with water while it is in operation. If the appliance becomes wet while turned o, wipe dry before starting. • Use only a UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use, such as the Snow Joe

Sun Joe SJTW-A 14-gauge 50-foot extension cord with lighted end (Model PJEXT50-B). Visit sunjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563).• Do not use an extension cord over 100 ft (30 m).• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots oers some protection. EXTENSION CORD CHART(B) Connect plug and receptacleCord set Appliance cord(A) Tie cord as shownTable 1. Method of Securing Extension Cord4 Double-Insulated Appliances In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double- insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualied service personnel at an authorized Snow Joe

dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol (square within a square) may also be marked on the appliance.

IDENTICAL REPLACEMENT PARTS. This wood chipper + shredder is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this electric wood chipper + shredder only as described in this manual.5 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. SAFETY ALERT – Indicates a precaution, a warning, or a danger. Symbols SymbolsDescriptions Descriptions

MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate. WARNING! Do not expose the unit to rain or wet conditions.

WEAR EYE AND HEARING

PROTECTION – For protection against injury, wear ear defenders and safety goggles. Wear protective gloves when using the machine and handling debris. SWITCH OFF! Remove plug from outlet before cleaning or conducting maintenance checks.

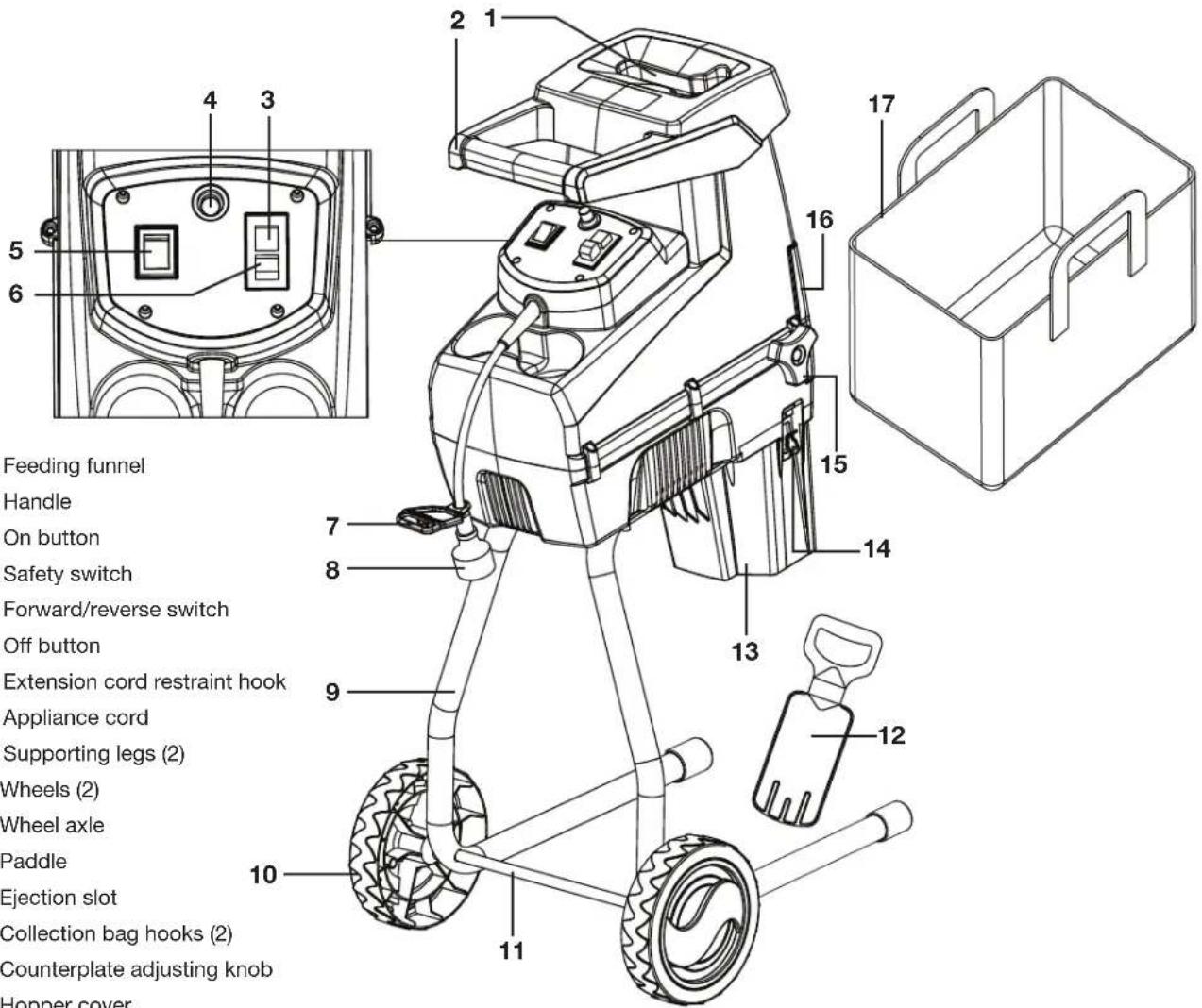

9. Supporting legs (2)

• Wheel axle with hardware

• Manual with registration card

1. Carefully remove the electric wood chipper + shredder and

check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or

damage occurred during shipping. If you nd damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). NOTE: Do not discard the shipping carton and packaging material until you are ready to use the electric wood chipper + shredder. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations or save the packaging for long-term product storage. IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suocation risk! Assembly Wheels Fitting NOTE: The hardware for the wheels are already assembled on the wheel axle.

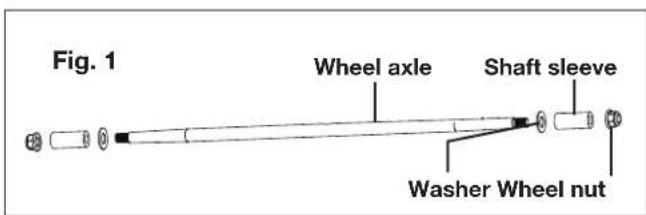

1. Remove all the wheel nuts and shaft sleeves on the wheel

axle, and remove the washers on the wheel axle (Fig. 1).

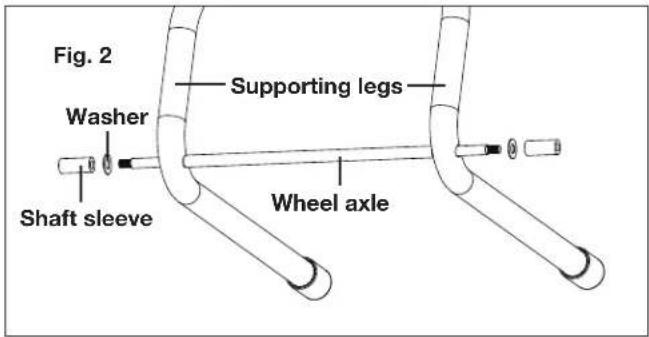

2. Insert the wheel axle into the two supporting legs, and

re-assemble the washers and the shaft sleeves (Fig. 2).

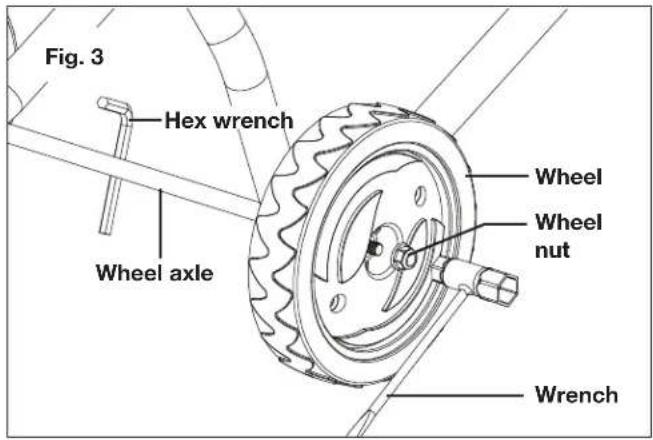

3. Put the wheel onto the wheel axle, secure with the wheel

nut. Using the supplied hex key wrench to x the wheel axle, at the same time use the wrench provided to rmly lock the wheel nut (Fig. 3).

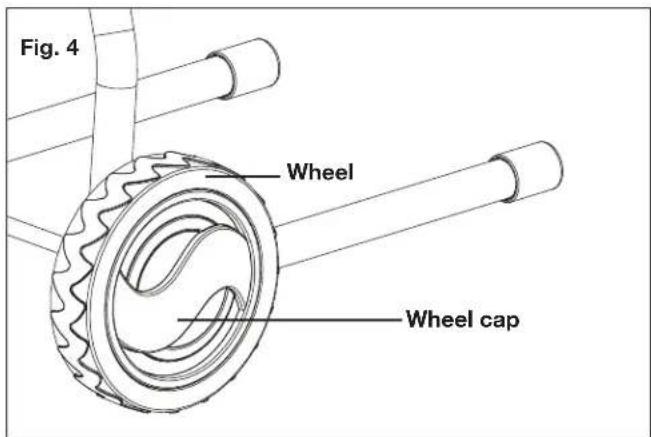

4. Place the wheel cover in the center of the wheel, rmly

press to secure (Fig. 4).

5. Repeat the above steps 3 – 4 to assemble the other wheel.

Fig. 1 Shaft sleeve Washer Wheel nut Wheel axle Fig. 2 Shaft sleeve Wheel axle Washer Supporting legs Wheel Wheel axle Hex wrench Wrench Wheel nut Fig. 3 Fig. 4 Wheel Wheel cap8 Stand Assembly Fitting

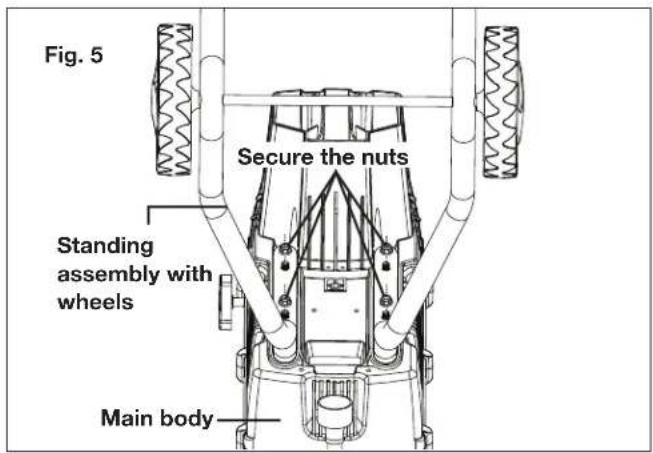

1. Turn the shredder main body upside down, and x the

standing assembly with wheels on the bottom of the main body with the 4 nuts. Tighten the nuts with the wrench (Fig. 5).

2. Turn the shredder to let it stand on the wheels. It's now

ready for use. Operation Starting + Stopping mWARNING! Before starting, ensure that the feeding funnel is empty.

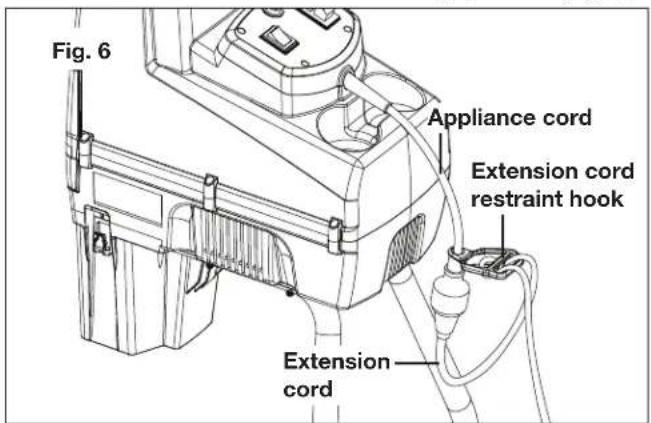

1. Secure the extension cord using the extension cord

restraint hook located at the appliance cord. Securing the extension cord in this manner protects against accidental disconnect of the electrical cord during operation (Fig. 6).

2. To start the chipper, press the forward end of the forward/

forward/reverse button to the middle position, and press the OFF button (Fig. 7). Basic Shredding Procedure mWARNING! Always wear ear and eye protection and wear gloves during operation.

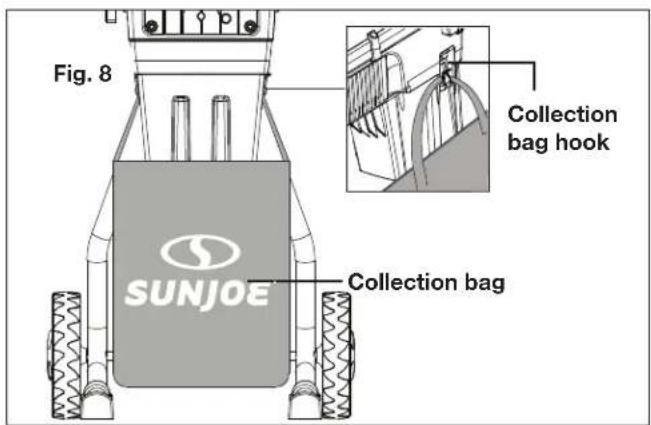

1. This unit is equipped with 2 hooks on each side. Hang the

handles of the provided collection bag on the two hooks before starting (Fig. 8).

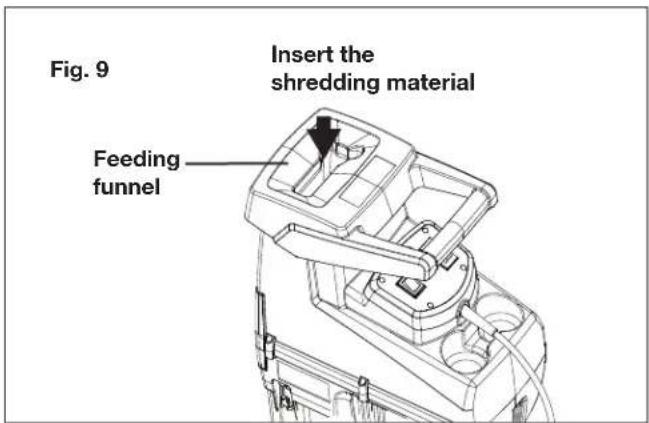

2. Connect the wood chipper + shredder to a proper power

source and switch on the unit; the wood chipper + shredder will start to work. Insert the shredding material inside the hopper through the feeding funnel to shred them (Fig. 9). Fig. 5 Main body Standing assembly with wheels Secure the nuts Fig. 6 Extension cord Appliance cord Extension cord restraint hook Fig. 7 Forward position Reverse position Forward/reverse button ON button OFF button

3. Use the paddle to push the material inside if needed.

mWARNING! Never put your hands into the hopper while the wood chipper + shredder is running. Always use the paddle supplied with your shredder to push items into the hopper.

4. Only insert as much material as needed to prevent

blockage of the feeding funnel. Chop garden waste that has been stored for a few days and is wilted and damp alternately with dry branches. This prevents the cutting blades from blocking up. Branches with leaves must be completely chopped before new material is fed. Make sure that the chopped material can fall freely from the ejection slot.

5. Keep hold of branches while feeding them into the wood

chipper + shredder until they are automatically drawn in.

6. Keep to the working speed of the wood chipper +

shredder and do not overload it.

7. To protect the wood chipper + shredder from clogging,

shred wilted garden waste that has been left to dry for a few days and shred thin twigs alternately with branches.

8. Before you shred roots, remove any remaining soil and

9. Do not shred soft, damp material such as kitchen waste;

take it straight to be composted.

10. Keep a few dry branches for the end, as they will help

clean the wood chipper + shredder.

11. Only switch the wood chipper + shredder o after all of

the shredding material has passed through the ejection slot. Otherwise, the discharge chutes may jam the next time when the shredder is turned on. Overload Protection Your electric wood chipper + shredder is designed with overload protection. If the shredder is clogged during shredding, the overload protection will cut the power automatically to protect your shredder. Wait at least 1 minute before restarting the unit when the power is cut.

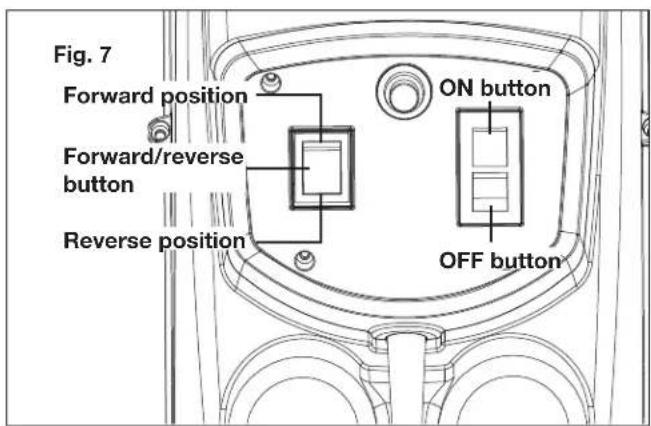

2. Then, push the reverse end of the forward/reverse switch,

and press the On button (Fig. 7). The shredder will push the jammed branches back from the feeding funnel.

3. After all the jammed branches are pushed out, you can

restart the machine following the instructions in Starting + Stopping section. Care + Maintenance

ATTENTION! Before performing any cleaning or maintenance, disconnect the unit from the power supply. mWARNING! Always wear gloves when cleaning and maintaining. Cleaning

1. Always clean the wood chipper + shredder immediately

after use. Use only a warm damp cloth and a soft brush to clean your wood chipper + shredder.

2. Never spray water on the wood chipper + shredder or

wash it with water. Do not use detergents or solvents as these could cause irreparable damage to your shredder.

3. Make sure the ventilation slots are always kept clean and

4. Do not allow stain to become dry and hard on the wood

chipper + shredder surface. This will directly aect the shredding performance. Fig. 9 Feeding funnel Insert the shredding material Fig. 10 Reset button10

5. Make sure that the feeding funnel and the ejection slot are

clean and clear of all waste material.

6. Make sure that all nuts, bolts and screws are tight

7. Always have any damaged or worn parts repaired, or

replaced by qualied personnel. Adjusting the Counterplate During the operation of the unit, the distance between the blade and the counterplate will become bigger, which will cause incomplete shredding. To obtain an optimum shredding result and prevent damage to the blade, the counterplate must be adjusted at regular intervals. To adjust the counterplate, follow the instruction below.

1. Stop and unplug the unit.

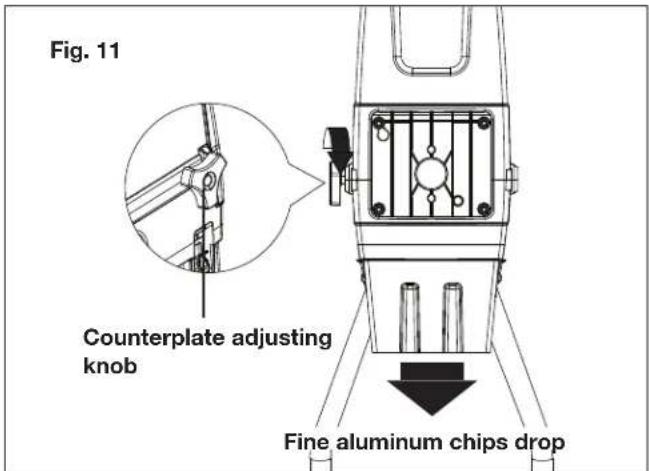

2. Turn the counterplate adjusting knob clockwise until a

slight friction noise can be heard and some ne aluminum shavings fall from the ejection slot (Fig. 11).

3. Plug on the unit and resume working.

Counterplate Replacement mWARNING! Always wear gloves when cleaning and maintaining the inside of the unit.

1. Stop and unplug the unit.

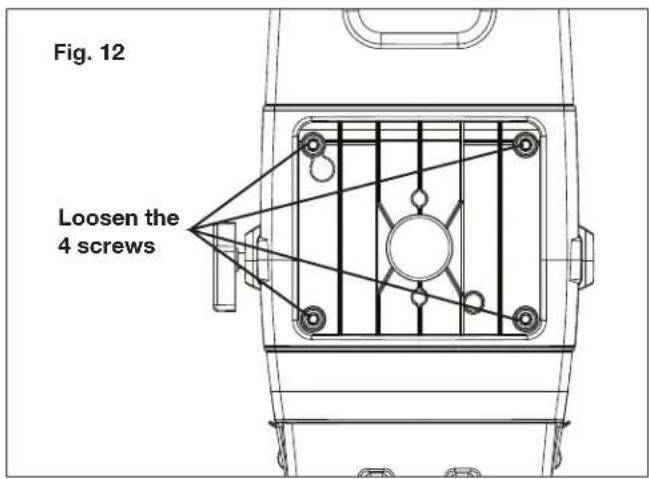

2. Open the hopper cover by loosening the 4 screws that

secure it (Fig. 12).

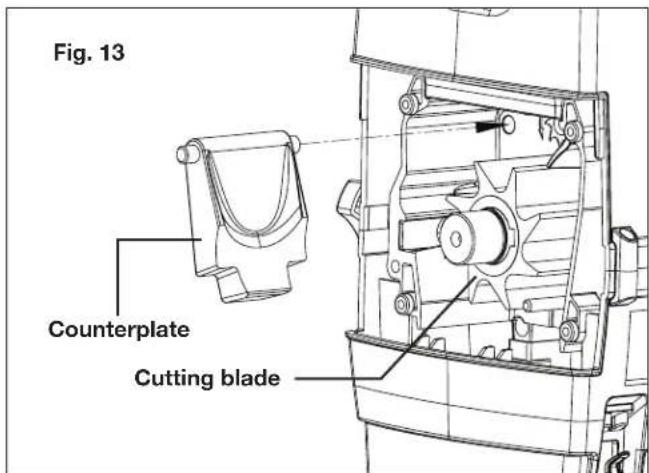

3. The counterplate is located on the left side of the

blade, inserted in a small hole. Simply take out the old counterplate and replace a new one in the original position (Fig. 13).

4. Replace the hopper cover and secure with the original 4

screws. The electric wood chipper + shredder is ready for use. Storage Follow the steps below to prepare the electric wood chipper + shredder for storage:

1. Disconnect the power supply to the wood

2. Clean the wood chipper + shredder with a damp cloth or

3. Inspect the wood chipper + shredder carefully for worn,

loose, or damaged parts. Check connections and screws and tighten if necessary. Pay special attention to the counterplate and replace if it shows signs of wear. Refer to the Care + Maintenance section. Fig. 11 Fine aluminum chips drop Counterplate adjusting knob Fig. 12 Loosen the 4 screws Fig. 13 Counterplate Cutting blade11

4. Store the wood chipper + shredder indoors in a dry, clean,

and cool area out of the reach of children. Do not store the unit next to corrosive materials, such as fertilizer and rock salt.

5. Wipe the extension cord to remove any foreign

substances, such as oil or stains. Replace the extension cord immediately if it is cut or damaged in any way.

6. Do not cover the wood chipper + shredder with a solid

plastic sheet. Plastic coverings trap moisture around the shredder, which can damage the unit. Service + Support If your Sun Joe

CJ603E electric wood chipper + shredder requires service or maintenance, please call the Snow Joe

customer service center at 1-866-SNOWJOE (1-866-766-9563). Model + Serial Numbers When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal axed to the housing or handle of your electric wood chipper + shredder. Copy these numbers into the space provided below. Record the following numbers from the housing or handle of your new product: Model #: Serial #: C J 6 0 3 E12 Troubleshooting Motor does not run Chipping material is not being pulled in Blades cutting ineciently

• Adjust or replace the counterplate. Problem Remedy Possible Cause

• Power failure/unit not plugged into a working receptacle.

• The overload protection has responded.

• The forward/reverse switch is not switched on

• Check to make sure unit is plugged into a working outlet. Make sure extension cord is not damaged.

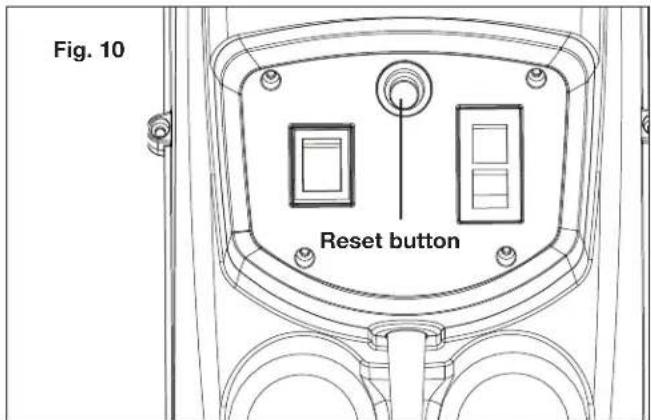

• Press the reset button and restart the unit in reverse mode to remove the jammed material. Wait one minute before restarting the unit.

• Press the forward end of the forward/ reverse switch.

• The material is jammed in the feeding funnel.

• The cutting blades are blocked.

• The ejection slot is blocked.

• Examine the feeding funnel and remove any blocked material.

• Push the reverse end of the forward/ reverse switch, and press the On button

• Examine the ejection slot and remove any blocked material.

• Counterplate need to be adjusted or replaced. Only a company specialist may be able to correct faults that cannot be rectied with the aid of this table. Please call the Snow Joe

WARNING! ALWAYS use only authorized Snow Joe

replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe

if you are unsure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. ModelAccessories Item

SJTW-A 14-gauge 50-foot extension cord with lighted end Sun Joe

CJ603E electric wood chipper + shredder counterplate CJ603E-CTPLATE

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe

to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe

CUSTOMER PROMISE OUR WARRANTY: Snow Joe warrants new, genuine, powered and non-powered Products to be free from defects in material or workmanship when used for ordinary household use for a period of two years from the date of purchase by the original, end-user purchaser when purchased from Snow Joe or from one of Snow Joe’s authorized sellers with proof of purchase. Because Snow Joe is unable to control the quality of its Products sold by unauthorized sellers, unless otherwise prohibited by law, this Warranty does not cover Products purchased from unauthorized sellers. If your Product does not work or there’s an issue with a specic part that is covered by the terms of this Warranty, Snow Joe will elect to either (1) send you a free replacement part, (2) replace the Product with a new or comparable product at no charge, or (3) repair the Product. How cool is that! This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your Product will not diminish your warranty rights. However, registering your Product will allow Snow Joe to better serve you with any of your customer service needs. WHO CAN SEEK LIMITED WARRANTY COVERAGE: This Warranty is extended by Snow Joe to the original purchaser and original owner of the Product. WHAT IS NOT COVERED? This Warranty does not apply if the Product has been used commercially or for non-household or rental applications. This Warranty also does not apply if the Product was purchased from an unauthorized seller. This Warranty also does not cover cosmetic changes that do not aect performance. Wearing parts like belts, augers, chains and tines are not covered under this Warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). ABOVE ALL ELSE, Snow Joe, LLC (“Snow Joe”) is dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a Snow Joe

product (“Product”) does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us. That’s why we have a Limited Warranty (“Warranty”) for our Products. EN15Modelo CJ603E Forma No. SJ-CJ603E-880S-MR5
